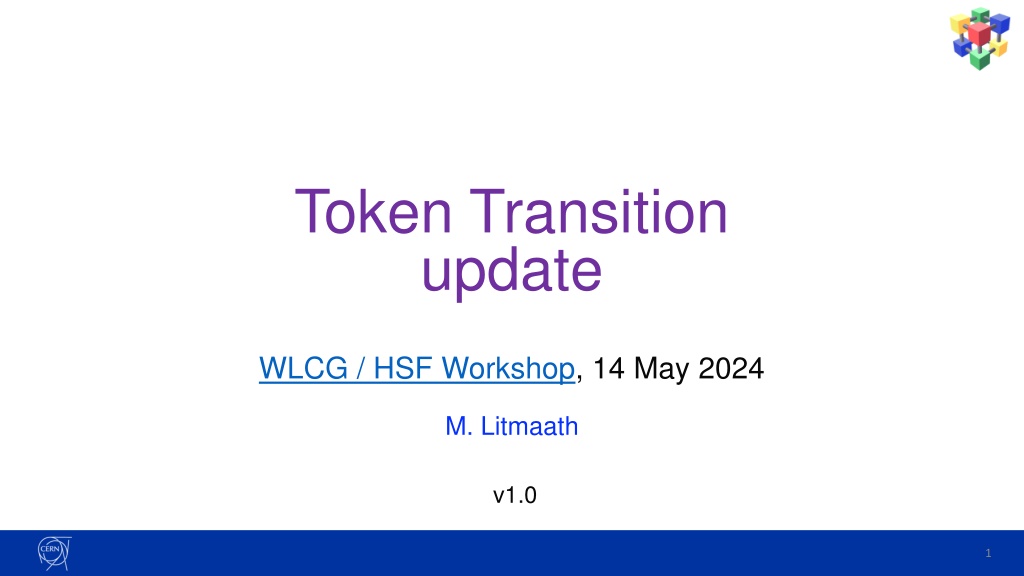

Token Transition update WLCG / HSF Workshop, 14 May 2024 M. Litmaath v1.0 1
Computing (1) More details in March GDB update Campaign to have HTCondor CEs upgraded to maintained versions Intermediary version: v9.0.20 Supports tokens, SSL (no VOMS mapping) and GSI (with VOMS mapping) Versions >= v23.x Support tokens and SSL without VOMS mapping Versions >= v23.5.2 Support tokens and SSL with VOMS mapping! (release notes) To use SSL mappings with proxies, clients must also run recent versions! All versions support delegation of VOMS proxies to be used by jobs and APEL Mind this HTCondor (CE) setting for APEL: USE_VOMS_ATTRIBUTES = True 53 tickets, >= 16 solved Many sites prefer upgrading to EL9 at the same time, but APEL client, parsers and python-argo-ams-library (GGUS:165910) not yet available for that platform Expected very soon, possibly from the WLCG repository temporarily 2
Computing (2) APEL support for tokens is discussed separately between concerned parties APEL, HTCondor, ARC, several sites, EGI Ops, WLCG Ops Coordination Stopgap approaches for the time being Map token issuers / subjects / to pseudo VOMS FQANs The rest of the machinery can stay unchanged Medium-term solution expected from the GUT Profile WG (see later) 3
IAM service developments (1) ~All production instances at CERN are on 1.8.4 since March 27 One was finally done on April 4 because of an issue with cloning its DB The services have been running OK It fixed a long-standing security concern about anonymous clients The dteam instance is usable for service monitoring with tokens Users are imported from the VOMS-Admin service until its retirement VO membership is managed by EGI Operations and WLCG Ops Coordination A campaign has been launched on April 19 for sites to configure support for the instance for the ops VO by June 1st 156 tickets, >= 95 solved 4
IAM service developments (2) New instances for the LHC experiments have been created on Kubernetes, sharing their DBs with the OpenShift instances For better load-balancing, logging, monitoring, GitOps and HA options They will eventually replace the current production instances on OpenShift Dates to be decided per experiment Sites have been ticketed to add support for the future VOMS endpoints and token issuers by May 31st A timeline with tentative milestones for the transition from VOMS-Admin to full dependence on IAM has been agreed for the LHC experiments Some IAM code improvements should still happen in May and/or June VO admin training material has been provided, still to be improved further Supported use cases for the time being are: VO management VOMS proxies Low-rate token issuance for pilot jobs, SAM tests etc. 5
VOMS-Admin phaseout snapshot April 29 Remove legacy VOMS servers from vomses in production for Puppet at CERN as of May 7 Many tickets from users who were disabled in IAM due to sync issues, all fixed manually Versions 2.0.0 of the wlcg-voms rpms only contain the LSC files, no vomses files Broadcast sent to wlcg-operations list Not critical: voms-proxy-init would fail over to a VOMS server that works May 06 VOMS-Admin switched off for first VO delayed until after the WLCG workshop No VOMS-Admin service is deleted yet May 31 Deadline for sites to have configured support for the Kubernetes instances, including ops Start considering switching off OpenShift instances unlikely to happen before July September Possibly depending on HA situation on Kubernetes Ultimately also the oidc-agent menu listing IAM instances should be updated accordingly June 03 VOMS-Admin switched off for last VO some may need a bit more time (final deadline June 30) 6
Data Challenge 2024 (1) DC24 was a major milestone in the WLCG Token Transition Timeline It has allowed scale tests with tokens of services involved in data management Rucio (ATLAS & CMS) and DIRAC (LHCb) FTS IAM ALICE use access envelope tokens with XRootD services since 20 years, but a future switch to WLCG tokens is an option being worked on The Data Challenge sessions of this workshop also feature observations and discussions about the use of tokens 7
Data Challenge 2024 (2) DC24 has allowed us to draw conclusions from millions of transfers done with tokens! It is clear that some ways in which tokens were used are not advisable for the long term FTS and IAM instances got overloaded in various ways, causing failures and requiring interventions Several ideas for more sustainable use of tokens will be discussed in the next months between experts of the services involved Concerning token audiences, scopes, lifetimes, exchanges, refreshing, ... For the time being, we keep relying on VOMS proxies for most of our data management 8
AuthZ WG items (1) Various IAM code changes are desirable in the short term In particular to fix VO admin-related issues in view of VOMS-Admin EOL Main focus of an IAM Hackathon at CNAF, May 29-30 Lessons learned from DC24 will be taken into account later In particular, stop storing access tokens in the DB No high-rate usage is foreseen for the time being First, sustainable token usage patterns have to be agreed and tested between the parties involved in data management Version 2.0 of the WLCG token profile is under preparation Fixing a number of issues encountered with v1.0 In the description and/or implementation Most PRs have been merged and the corresponding issues closed A few open cases need to be discussed in AuthZ or DOMA BDT WG meetings More difficult cases will be postponed for future revisions 9
AuthZ WG items (2) The Grand Unified Token (GUT) Profile WG has met 5 times already (agendas) Good progress with its current main challenge: how to determine the VO for the token profiles and the various use cases we need to handle WLCG tokens, SciTokens, EGI Check-in tokens A new, common attribute will be defined with practical semantics Details TBD in upcoming meetings The Token Trust & Traceability WG will meet again this month Aiming to equip site admins, VO experts, with tips & tricks for tokens Recipes, tools, log mining, testing, debugging, monitoring, banning, ... For example, to prevent exposure of tokens through logs! Or how to use the dteam VO for monitoring with tokens See next page 10
Auxiliary services The March 7 Ops Coordination meeting had a presentation on MyToken Used at KIT e.g. to monitor dCache services with dteam tokens Further details are available here The May 2 Ops Coordination meeting had a presentation on htgettoken + HashiCorp Vault as a Service for Managing Grid Tokens In production at FNAL for various communities since >1 year Such auxiliary services are expected to facilitate various use cases Production workflows Monitoring User workflows To help avoid that users need to know anything about tokens! 11
Conclusions and outlook Various items related to tokens concern many of us in the next months VOMS-Admin EOL final deadline June 30 IAM usability for VO administration by LHC experiments High-priority issues are being worked on for a next release in June HA options for LHC experiment IAM instances not to be rushed Data management: lessons learned from DC24 Aiming to reach the next level of token usage in the second half of this year HTCondor CE versions that no longer support GSI along with moving to EL9 APEL adjustments for tokens short vs. medium term GUT Profile WG progress toward a new VO attribute for accounting and more Version 2.0 of the WLCG token profile to signal where we intend to go More deployment and operations know-how with IAM being in the center More use of auxiliary services gradually benefiting more use cases while we keep gaining experience with tokens everywhere! 12
