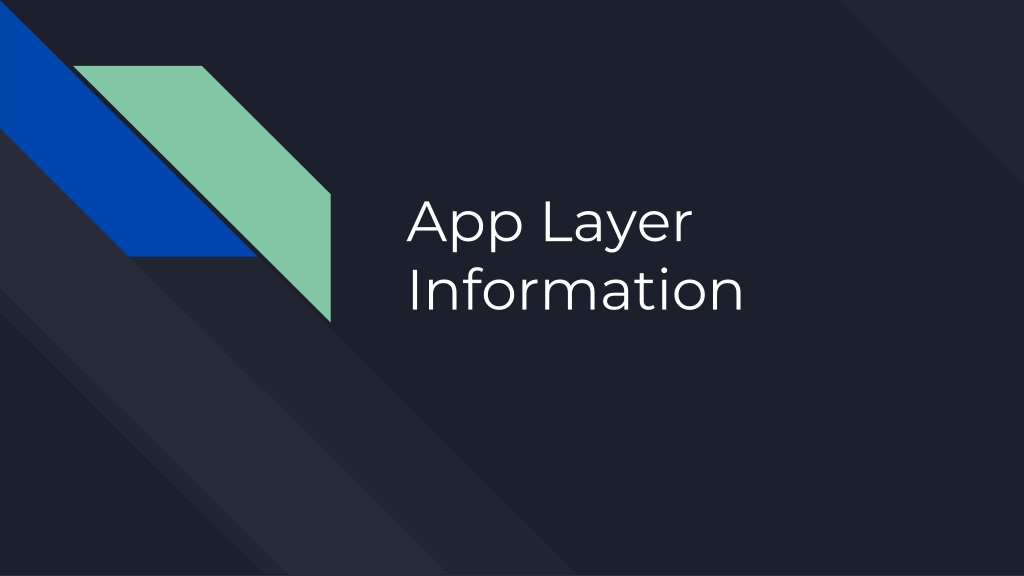

App Layer Information

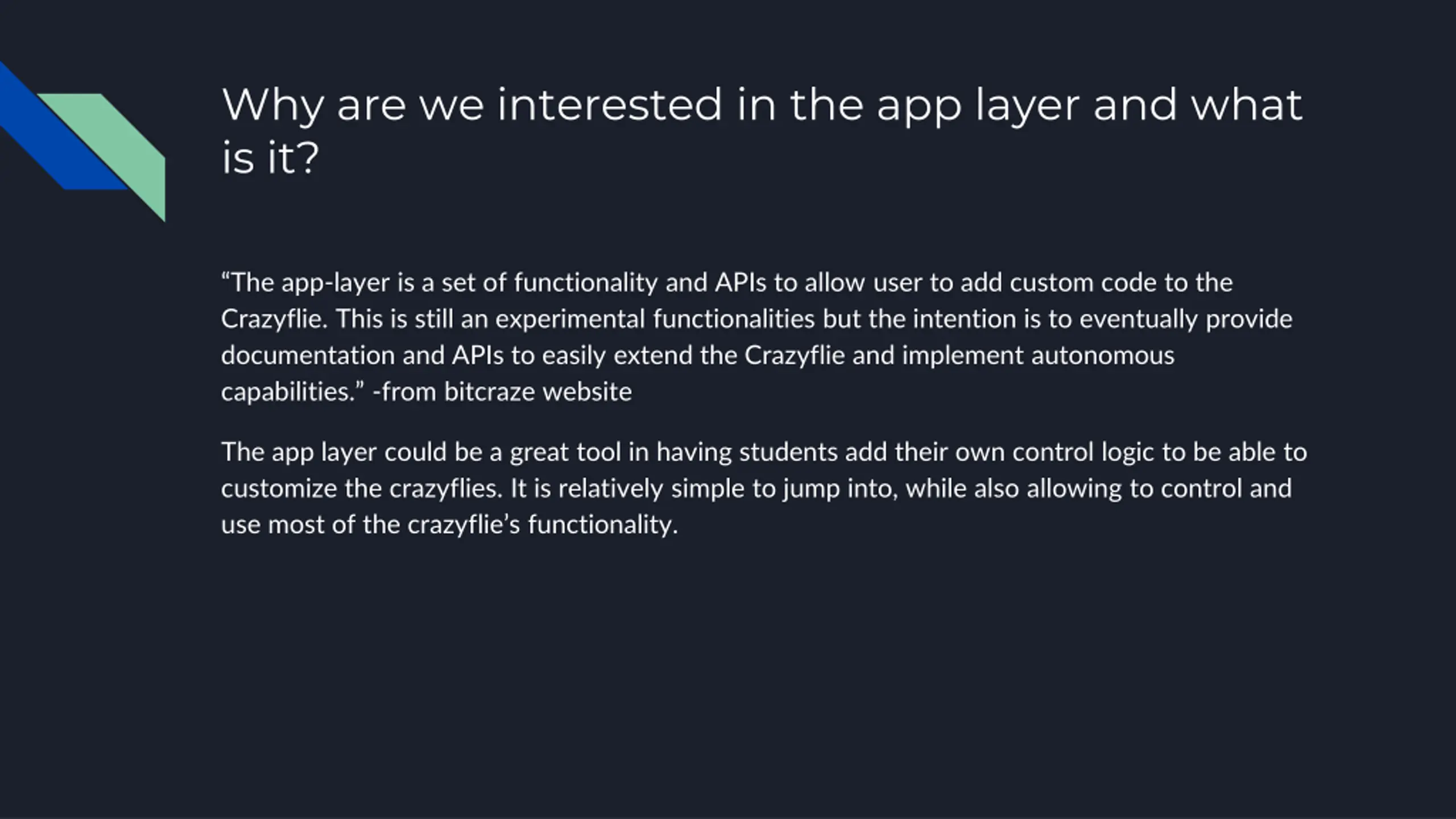

Why are we interested in the app layer and what is it? The app-layer is a set of functionality and APIs to allow user to add custom code to the Crazyflie. This is still an experimental functionalities but the intention is to eventually provide documentation and APIs to easily extend the Crazyflie and implement autonomous capabilities. -from bitcraze website The app layer could be a great tool in having students add their own control logic to be able to customize the crazyflies. It is relatively simple to jump into, while also allowing to control and use most of the crazyflie s functionality.

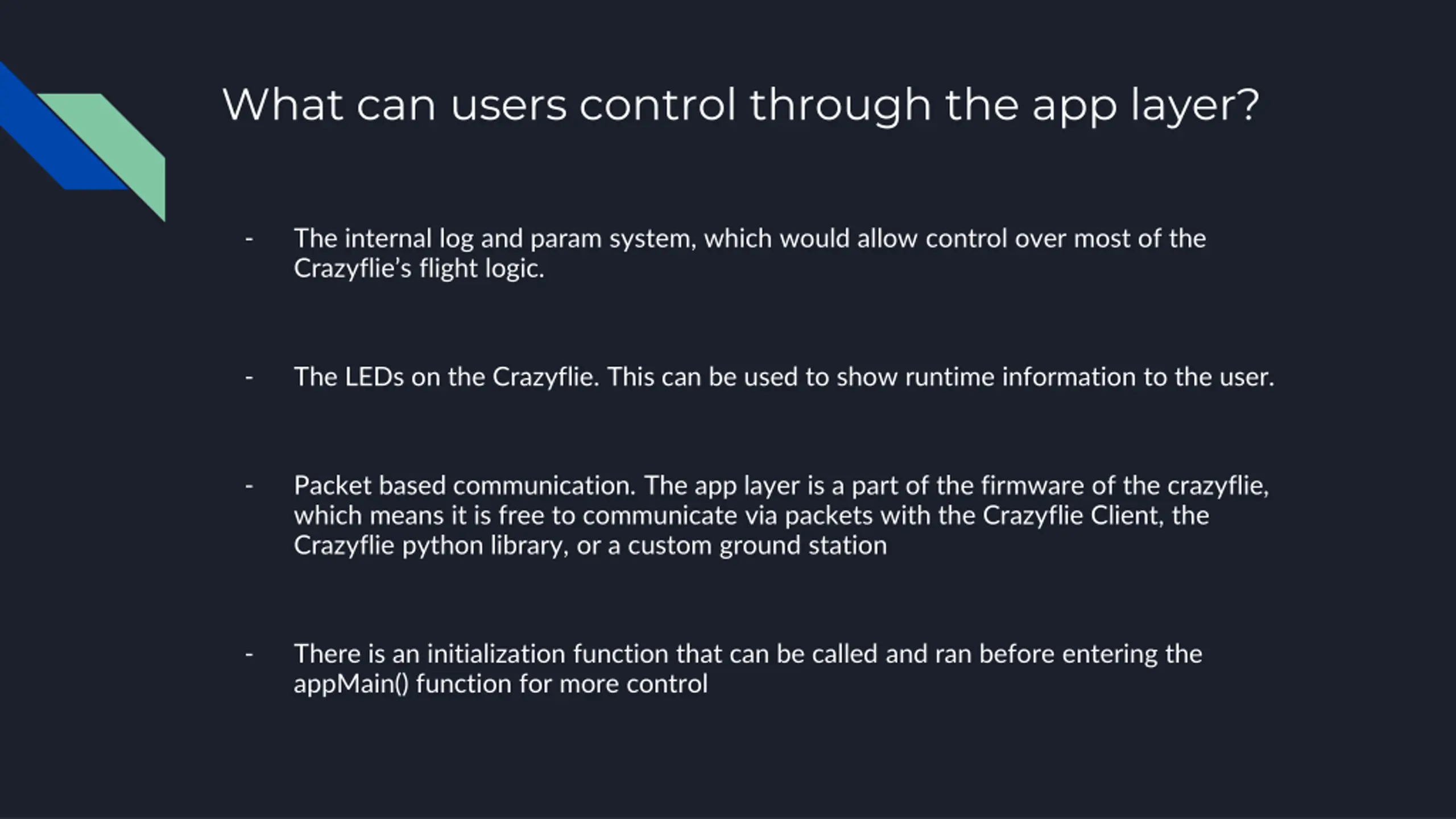

What can users control through the app layer? - The internal log and param system, which would allow control over most of the Crazyflie s flight logic. - The LEDs on the Crazyflie. This can be used to show runtime information to the user. - Packet based communication. The app layer is a part of the firmware of the crazyflie, which means it is free to communicate via packets with the Crazyflie Client, the Crazyflie python library, or a custom ground station - There is an initialization function that can be called and ran before entering the appMain() function for more control

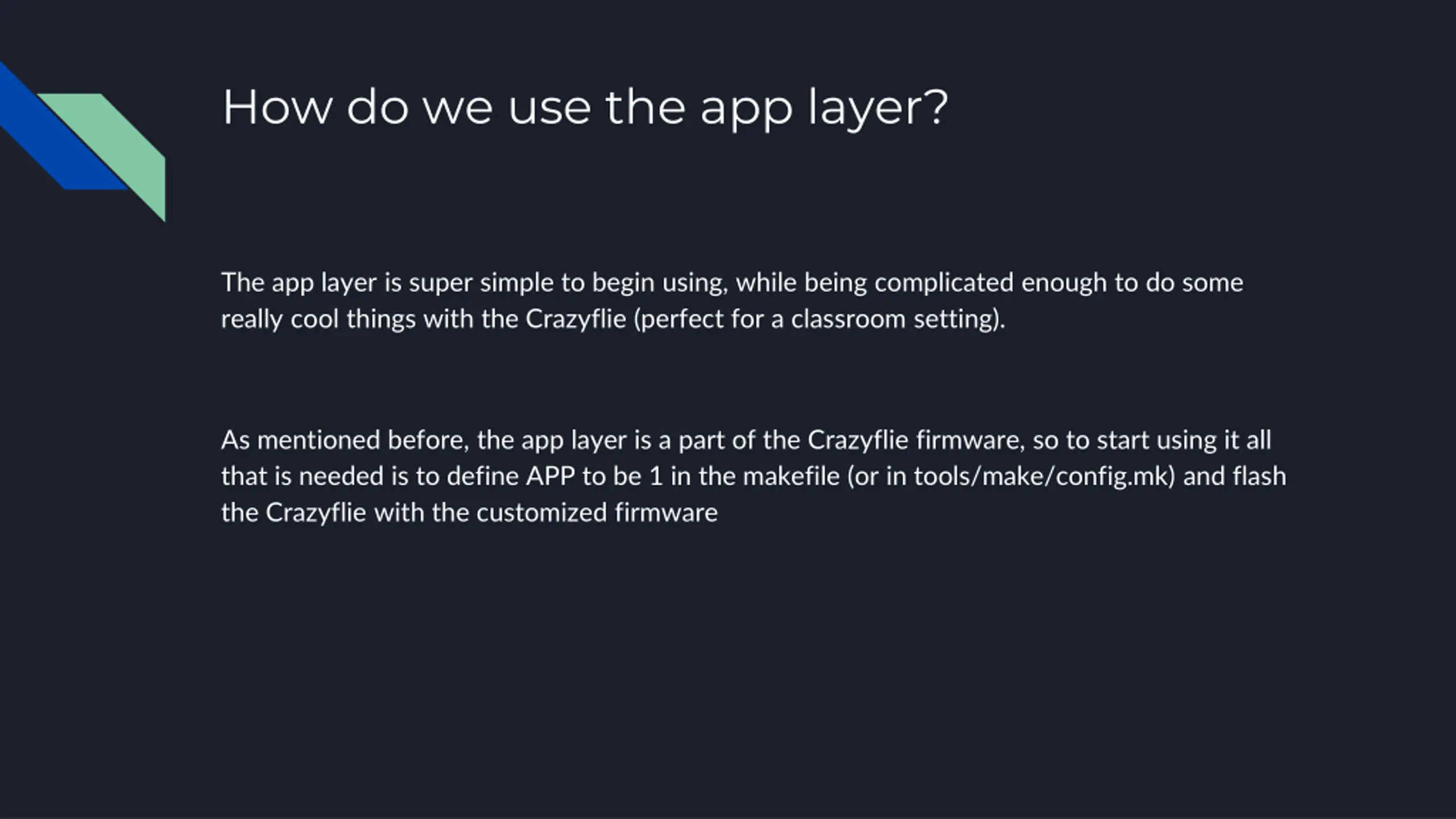

How do we use the app layer? The app layer is super simple to begin using, while being complicated enough to do some really cool things with the Crazyflie (perfect for a classroom setting). As mentioned before, the app layer is a part of the Crazyflie firmware, so to start using it all that is needed is to define APP to be 1 in the makefile (or in tools/make/config.mk) and flash the Crazyflie with the customized firmware

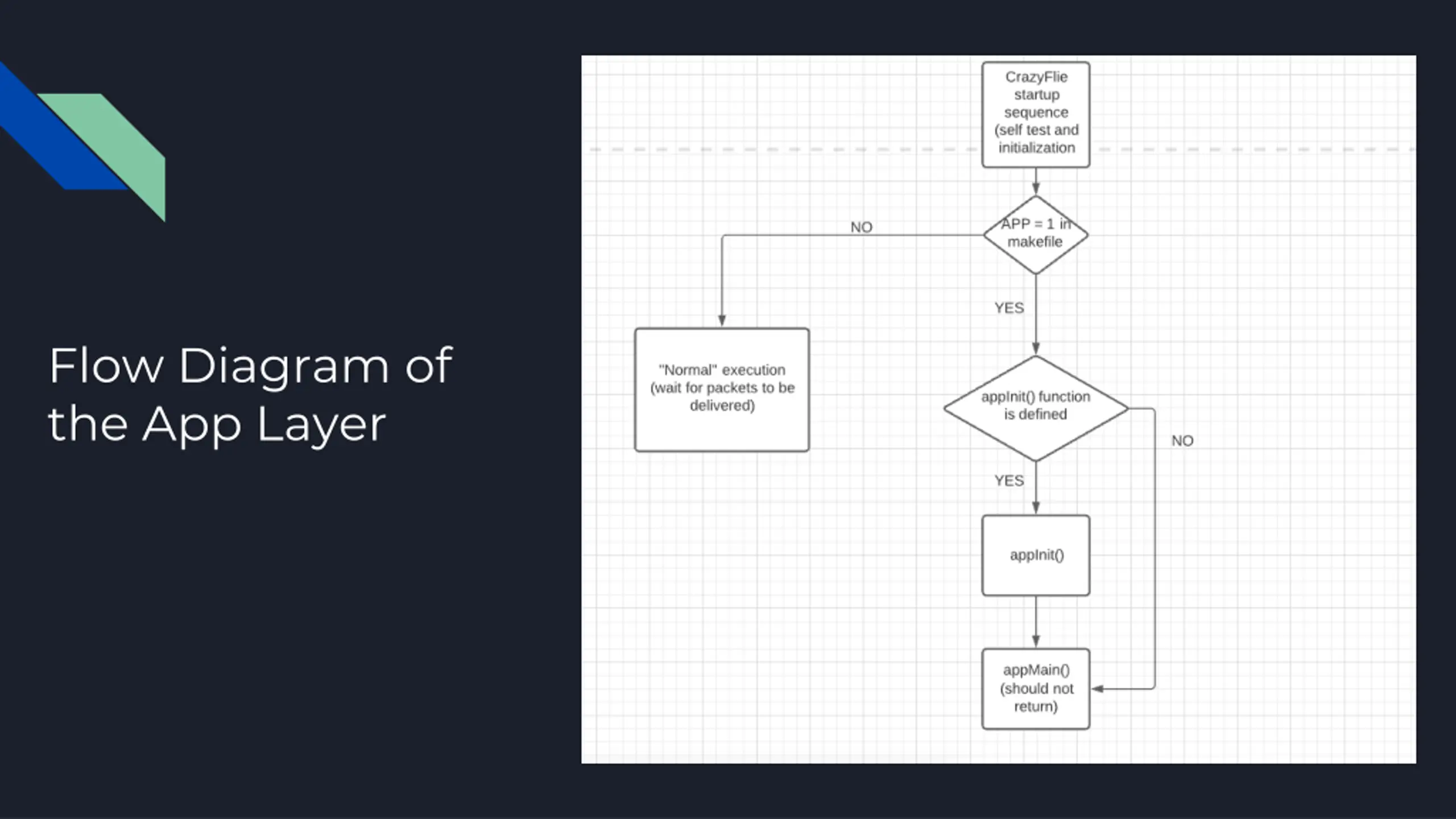

Flow Diagram of the App Layer

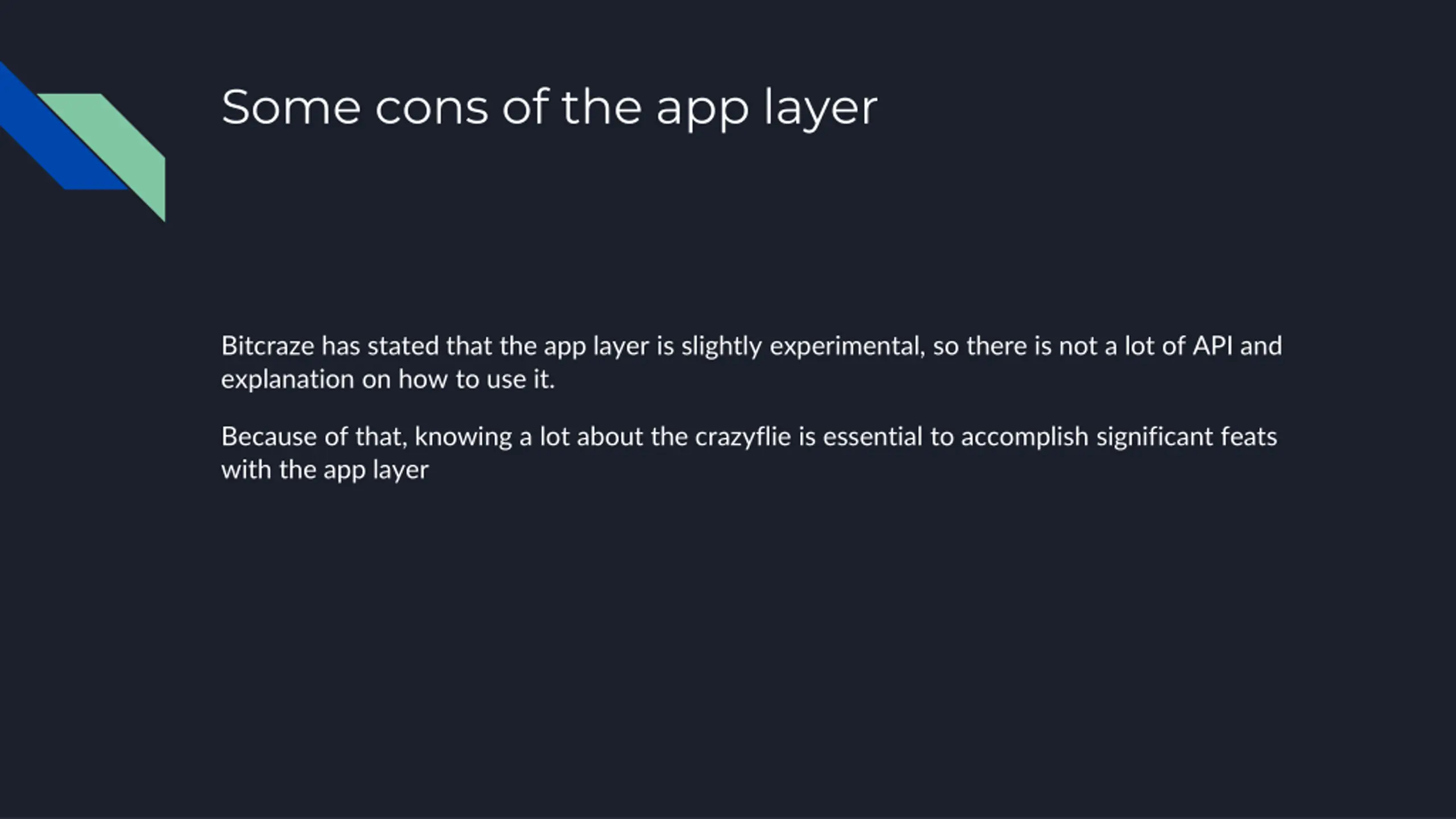

Some cons of the app layer Bitcraze has stated that the app layer is slightly experimental, so there is not a lot of API and explanation on how to use it. Because of that, knowing a lot about the crazyflie is essential to accomplish significant feats with the app layer

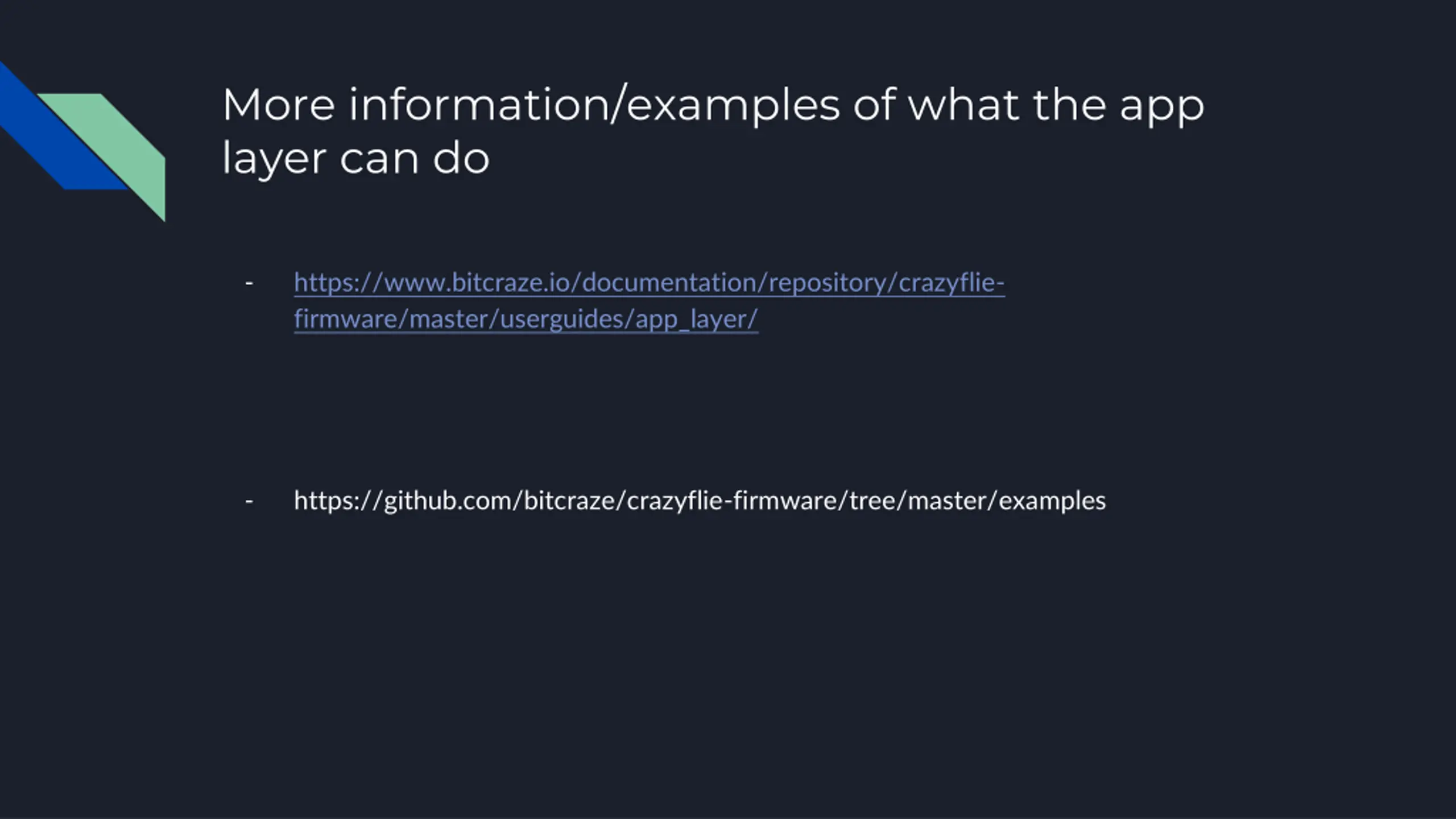

More information/examples of what the app layer can do - https://www.bitcraze.io/documentation/repository/crazyflie- firmware/master/userguides/app_layer/ - https://github.com/bitcraze/crazyflie-firmware/tree/master/examples
