Presentation Transcript
Resources Cifuentes Thesis: Reverse Compilation Techniques I will be posting other resources on the website
Phases of Decompilation 1. Loading 2. Disassembly 3. Lifting 4. Dataflow Analysis 5. Type Inference 6. CodeGen 7. Name Recovery???
Loading You ve done this!
Disassembly You ve done this too!

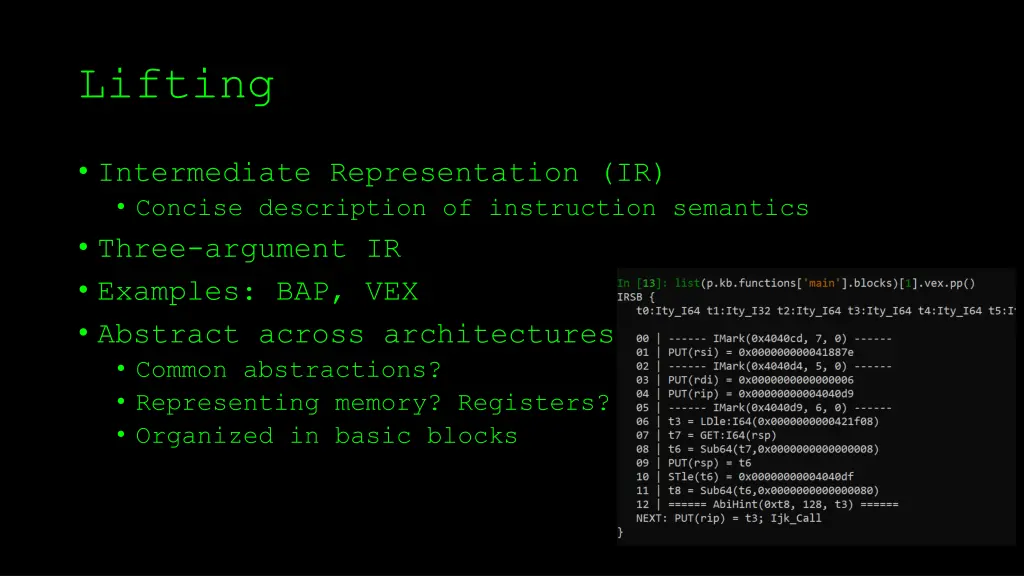

Lifting Intermediate Representation (IR) Concise description of instruction semantics Three-argument IR Examples: BAP, VEX Abstract across architectures Common abstractions? Representing memory? Registers? Organized in basic blocks
Data Flow Analysis Constant Propagation Calling Convention Analysis Condition Code Propagation Register Copy Elimination Stack Frame Analysis Dead Register & Condition Code Elimination Variable Recovery
Constant Propagation - resolving indirection - deobfuscation 1 2 3 4 5
Variable Recovery ra var_10 var_40 var_44 var_x var_y
Dead Condition Code Elimination Important when lifted to IR
Stack Frame Analysis Abstract Domain: {rsp, rbp} {1,2, } and and Track constant offsets off of rbp and rsp Determine overapproximation of stack from size at all program points in function
Control Flow Structuring if ( ) { while ( ) { goto lbl } } else if ( ) { } else { if ( ) { lbl: for ( ) { } } }
Control Flow Structuring Basic Pattern Matching Cifuentes Thesis Phoenix No More Goto Focus of next week
Type Inference Early approaches: Unification-Based Relies on the equality constraint Type(a) == Type(b) Problems: Overunification Not expressive enough (missing fields, pointer passing) TIE: subtying! Relies on the subtyping constraint ???? ???? ? ????(????(?)) Retypd: polymorphic types! existential types! (i.e. generics and interfaces)
Codegen Now we have functions, IR, etc. But how do we get C? Translate semantics of IR and control flow into pseudocode
Future Directions: Name Recovery - Now we have variables, but they don t mean much! - Can we automate recovering variables names? - DEEP LEARNING!!! - DIRE, Debin
