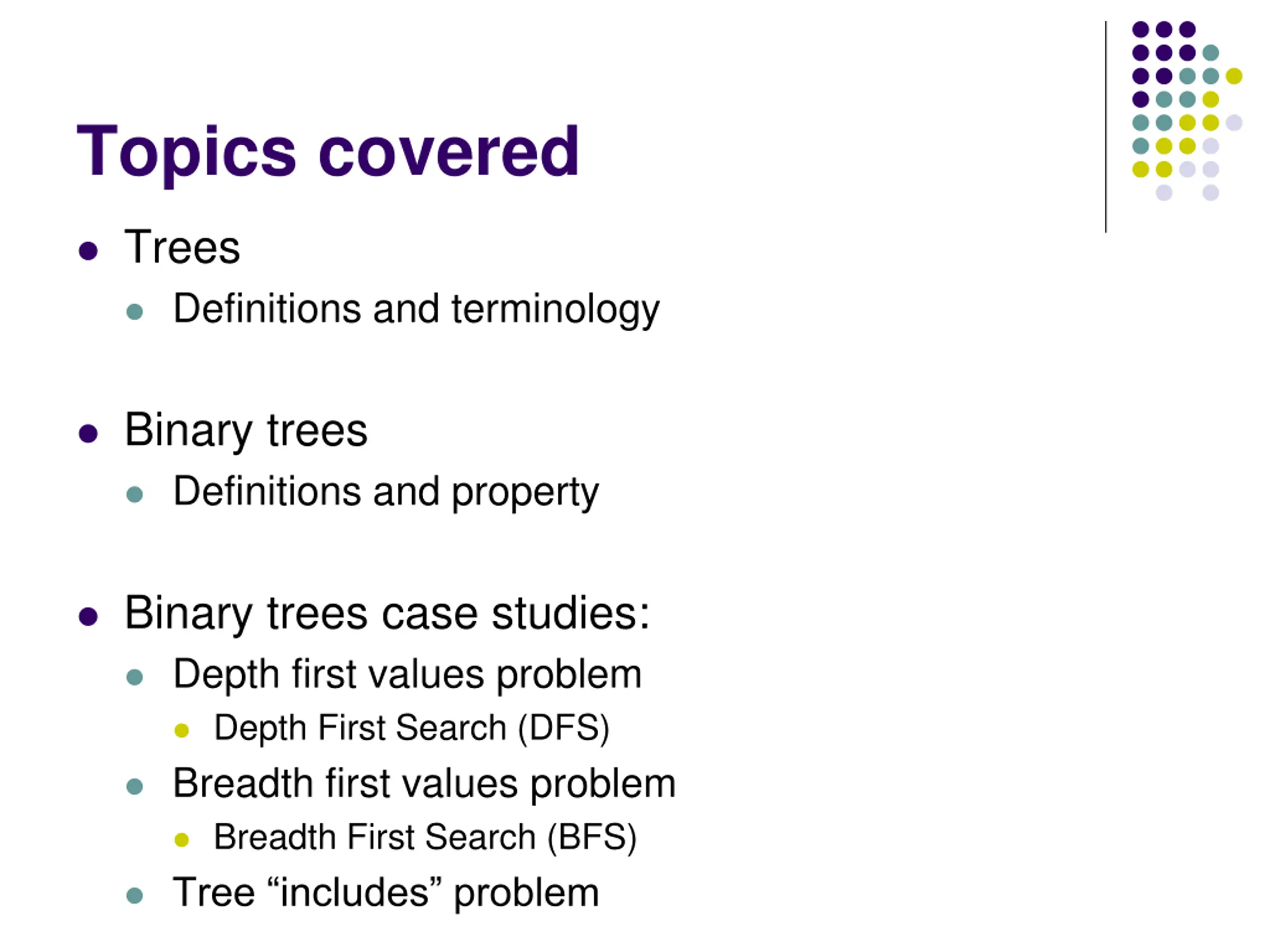

Topics covered Trees Definitions and terminology Binary trees Definitions and property Binary trees case studies: Depth first values problem Depth First Search (DFS) Breadth first values problem Breadth First Search (BFS) Tree includes problem

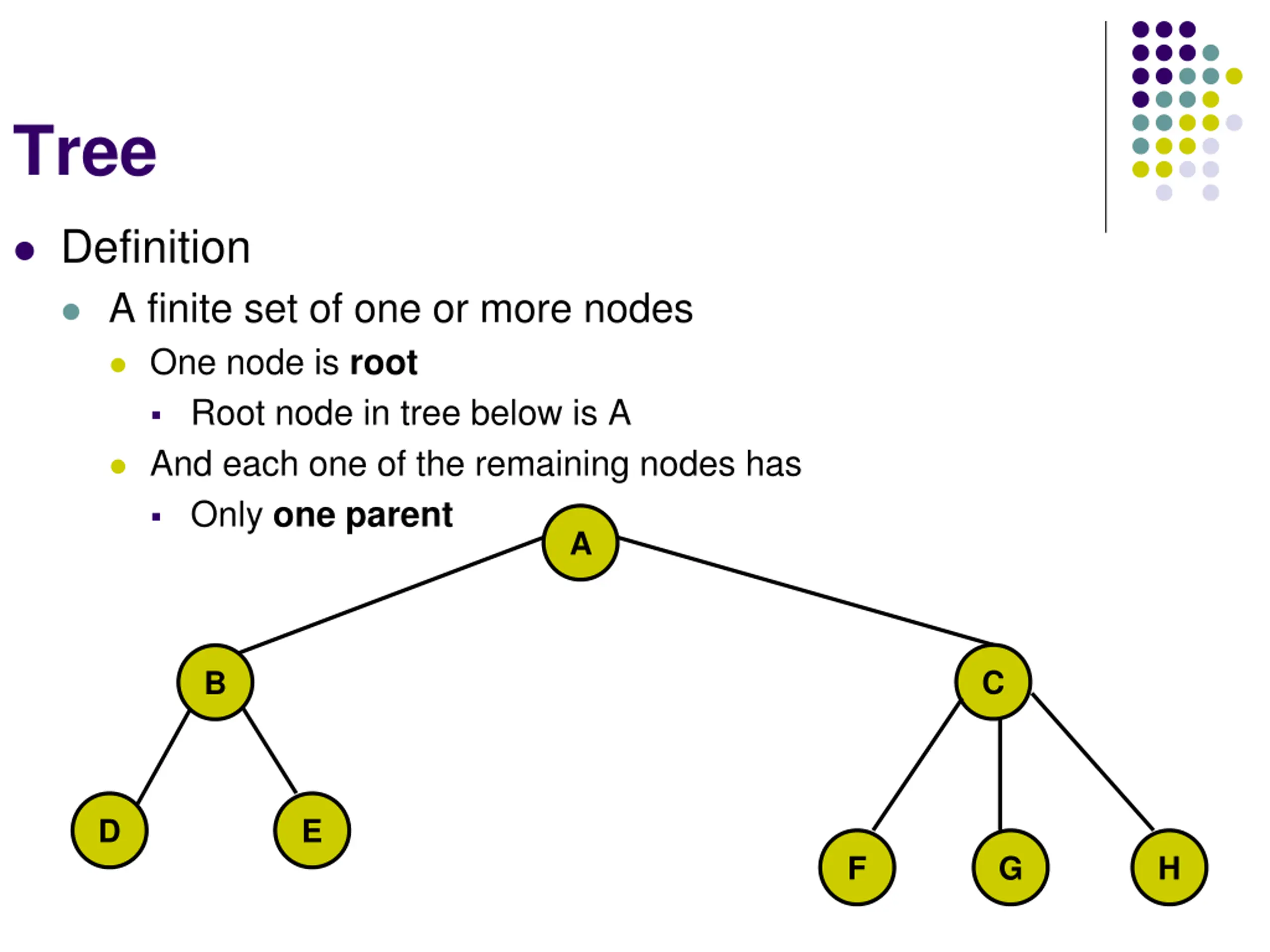

Tree Definition A finite set of one or more nodes One node is root Root node in tree below is A And each one of the remaining nodes has Only one parent A C B D E F G H

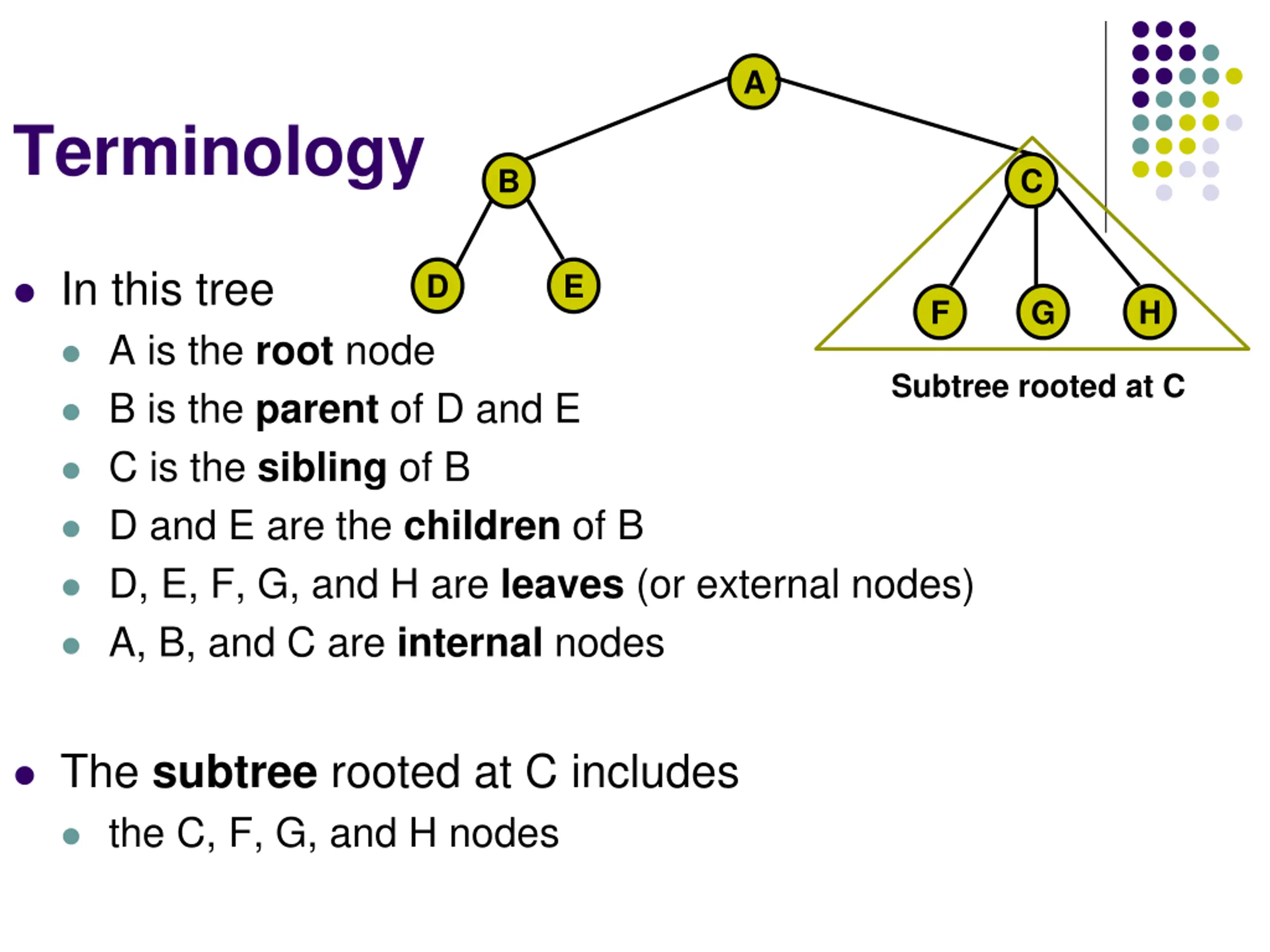

A Terminology C B In this tree A is the root node B is the parent of D and E C is the sibling of B D and E are the children of B D, E, F, G, and H are leaves (or external nodes) A, B, and C are internal nodes D E F G H Subtree rooted at C The subtree rooted at C includes the C, F, G, and H nodes

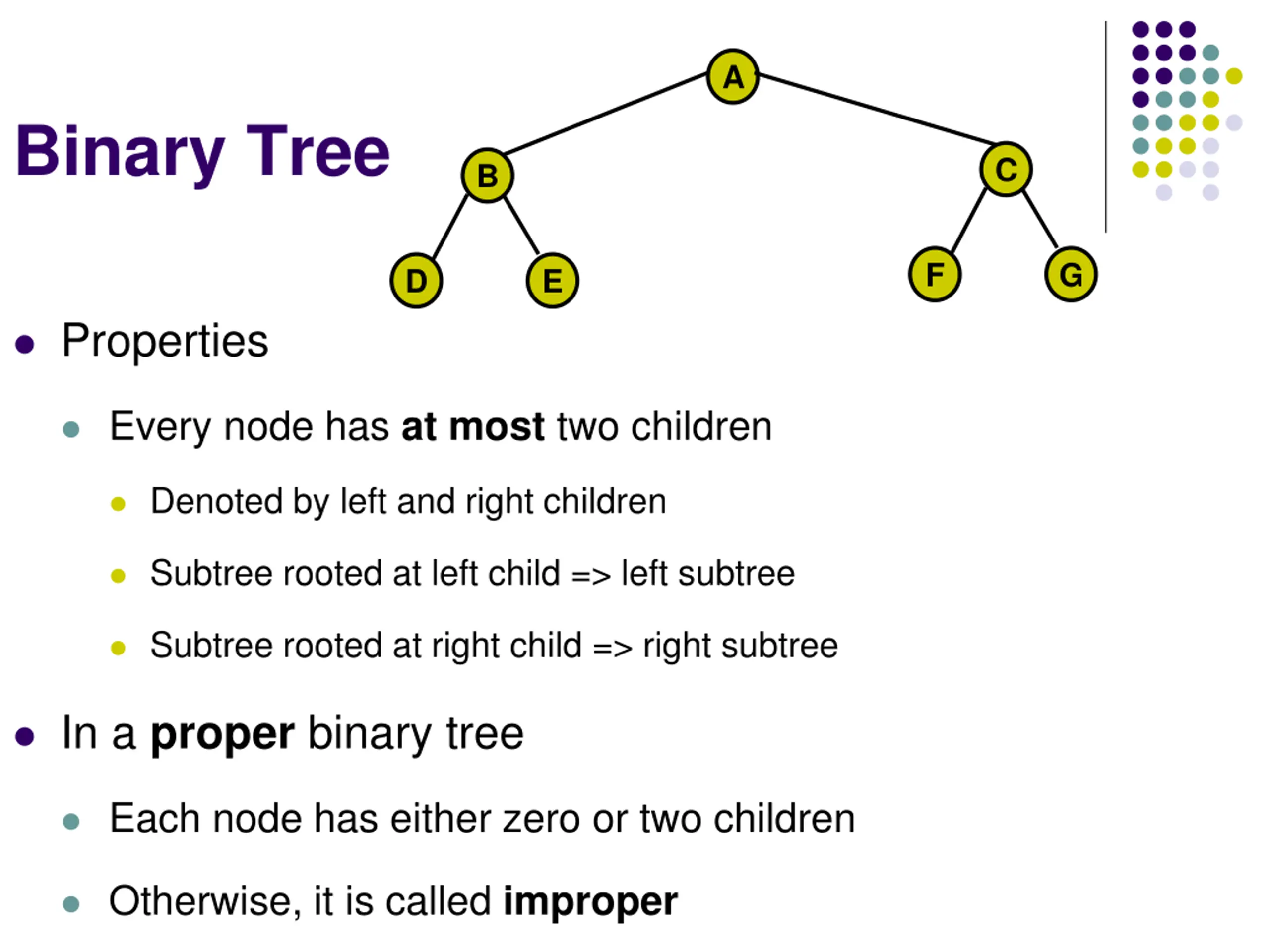

A Binary Tree C B F G D E Properties Every node has at most two children Denoted by left and right children Subtree rooted at left child => left subtree Subtree rooted at right child => right subtree In a proper binary tree Each node has either zero or two children Otherwise, it is called improper

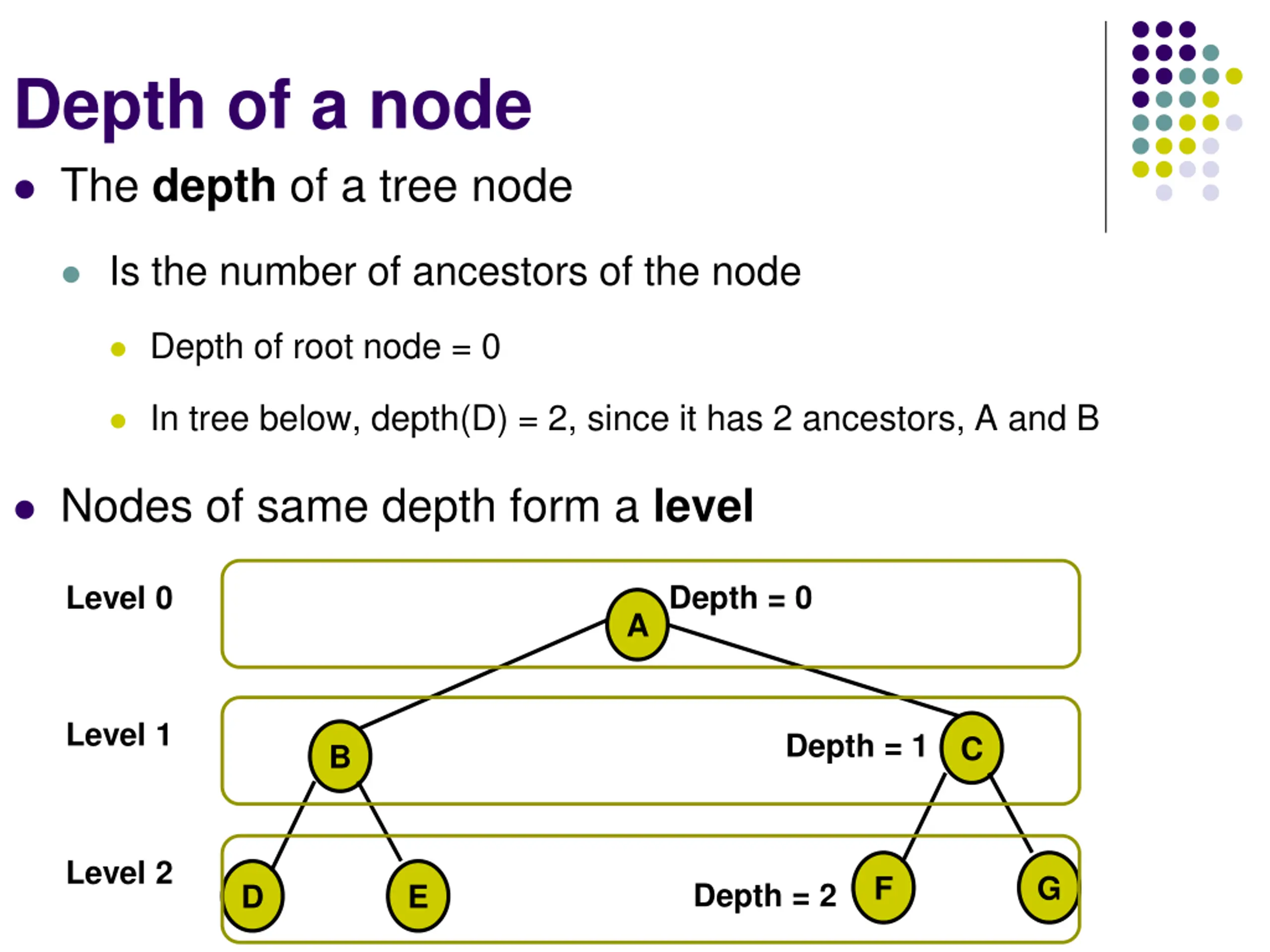

Depth of a node The depth of a tree node Is the number of ancestors of the node Depth of root node = 0 In tree below, depth(D) = 2, since it has 2 ancestors, A and B Nodes of same depth form a level Depth = 0 Level 0 A Level 1 Depth = 1 C B Level 2 F G Depth = 2 D E

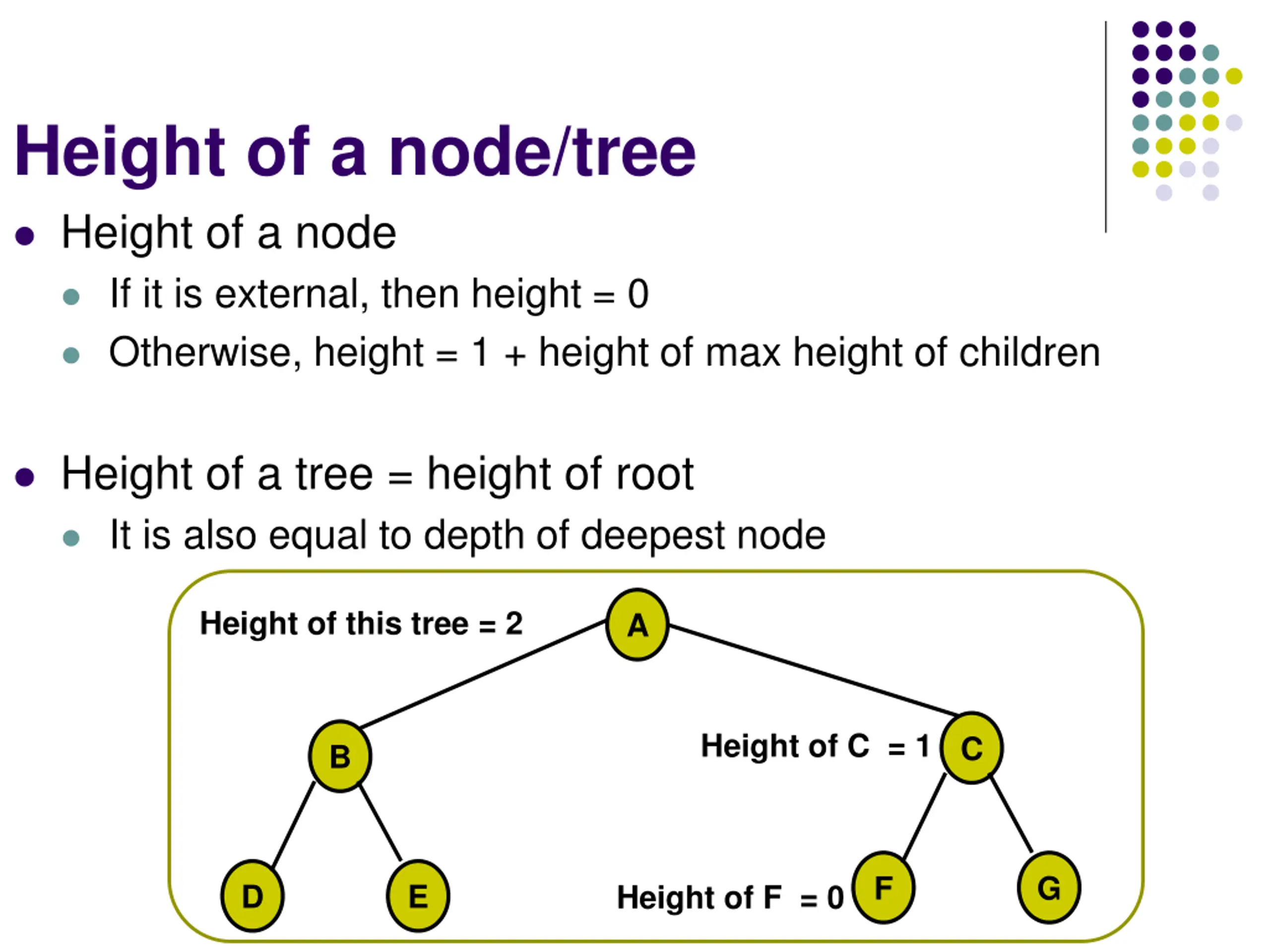

Height of a node/tree Height of a node If it is external, then height = 0 Otherwise, height = 1 + height of max height of children Height of a tree = height of root It is also equal to depth of deepest node Height of this tree = 2 A Height of C = 1 C B F G D E Height of F = 0

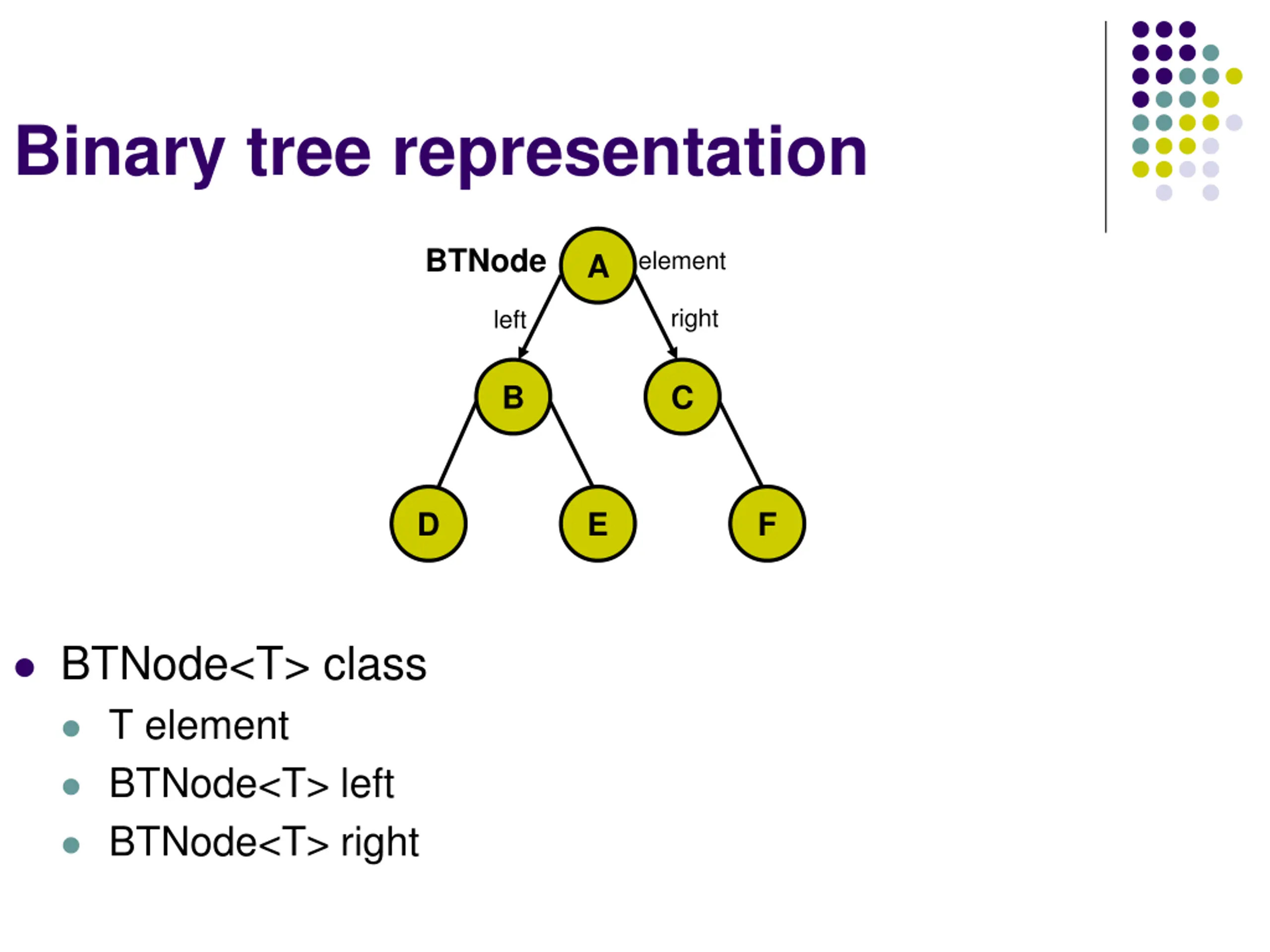

Binary tree representation BTNode element A right left B C D E F BTNode<T> class T element BTNode<T> left BTNode<T> right

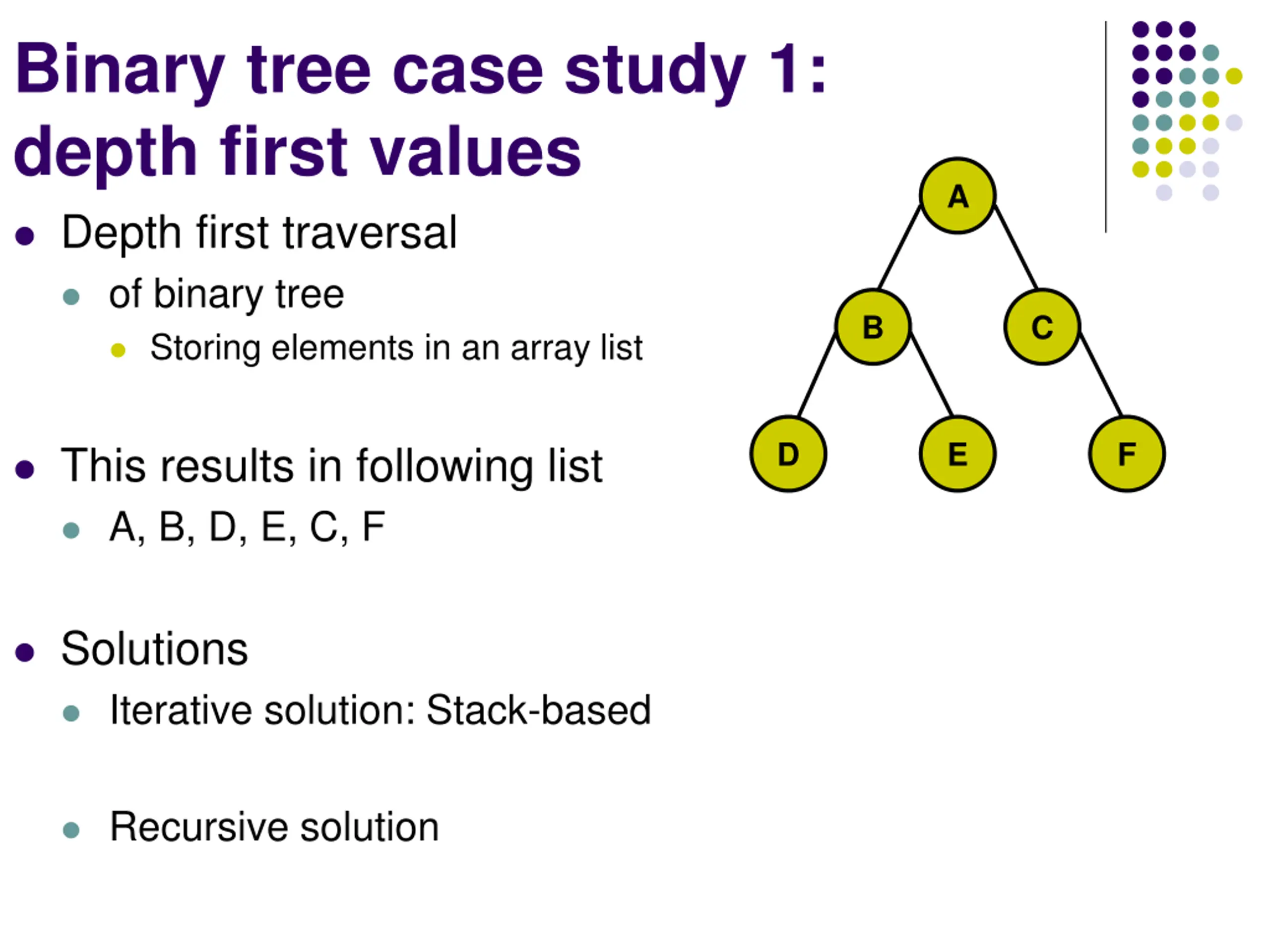

Binary tree case study 1: depth first values Depth first traversal of binary tree Storing elements in an array list A B C D E F This results in following list A, B, D, E, C, F Solutions Iterative solution: Stack-based Recursive solution

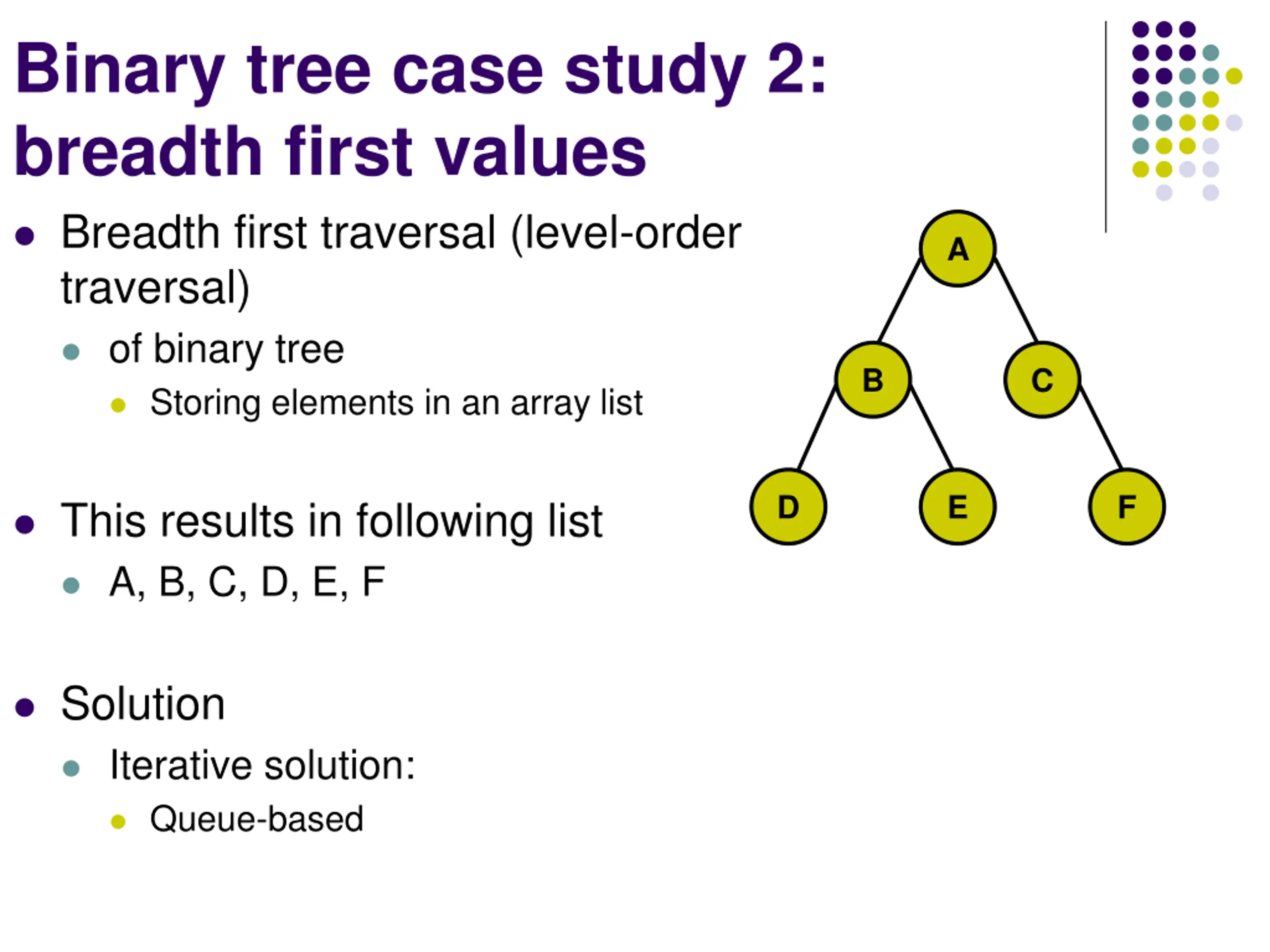

Binary tree case study 2: breadth first values Breadth first traversal (level-order traversal) of binary tree Storing elements in an array list A B C D E F This results in following list A, B, C, D, E, F Solution Iterative solution: Queue-based

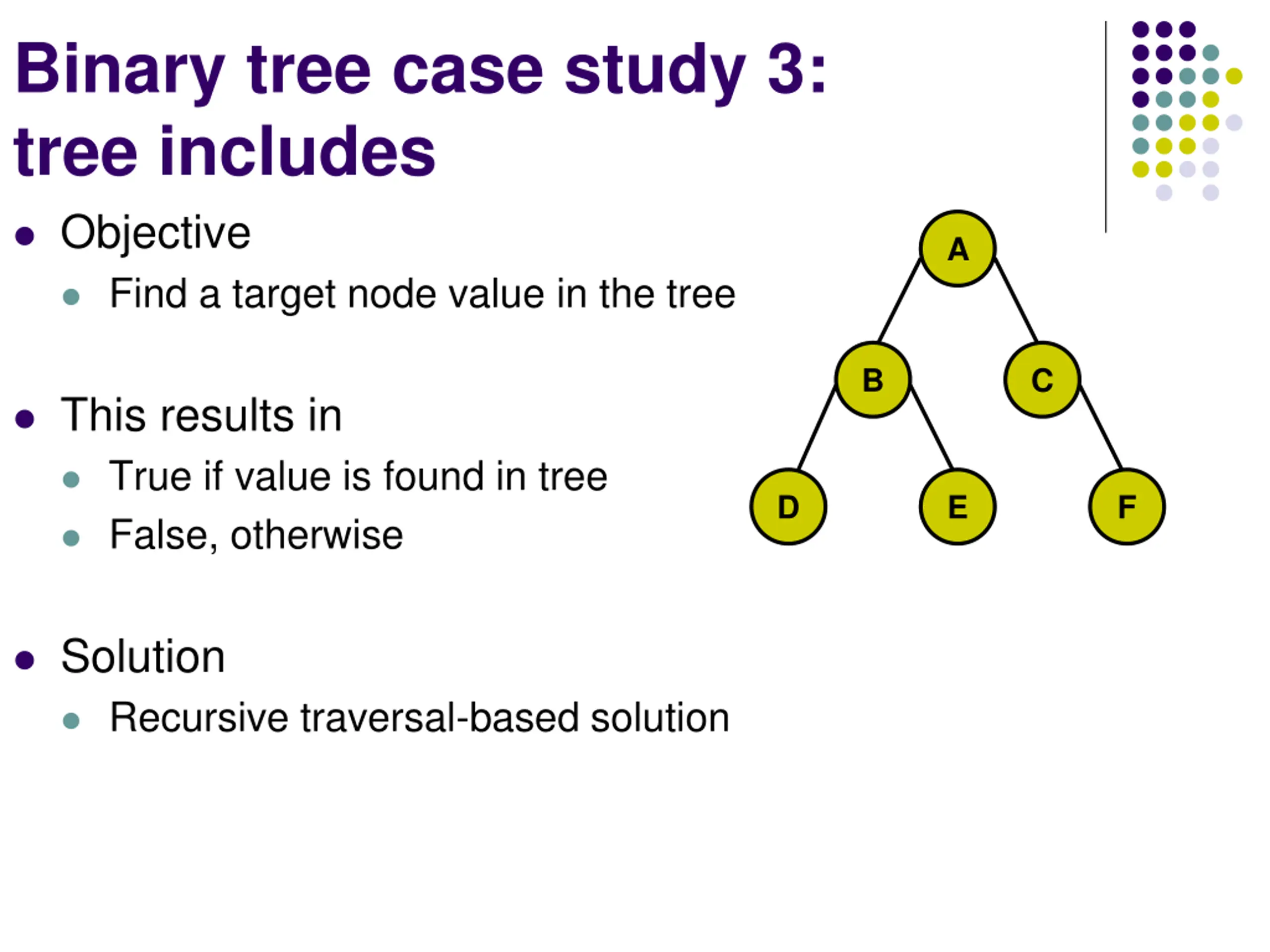

Binary tree case study 3: tree includes Objective Find a target node value in the tree A B C This results in True if value is found in tree False, otherwise D E F Solution Recursive traversal-based solution
