Systematic on Rear Leakage correction Observation : Different behaviour between Data & MC

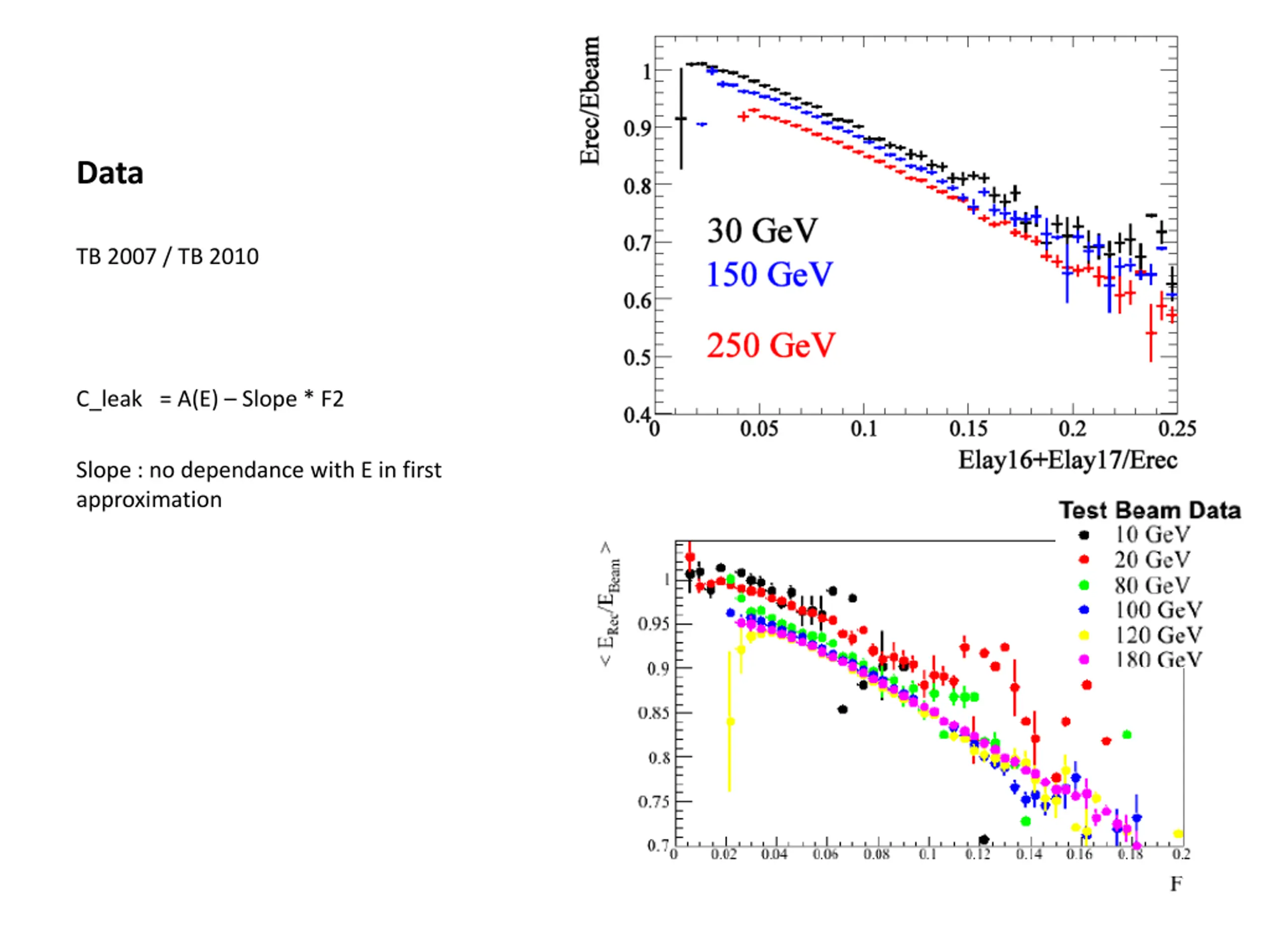

Data TB 2007 / TB 2010 C_leak = A(E) Slope * F2 Slope : no dependance with E in first approximation

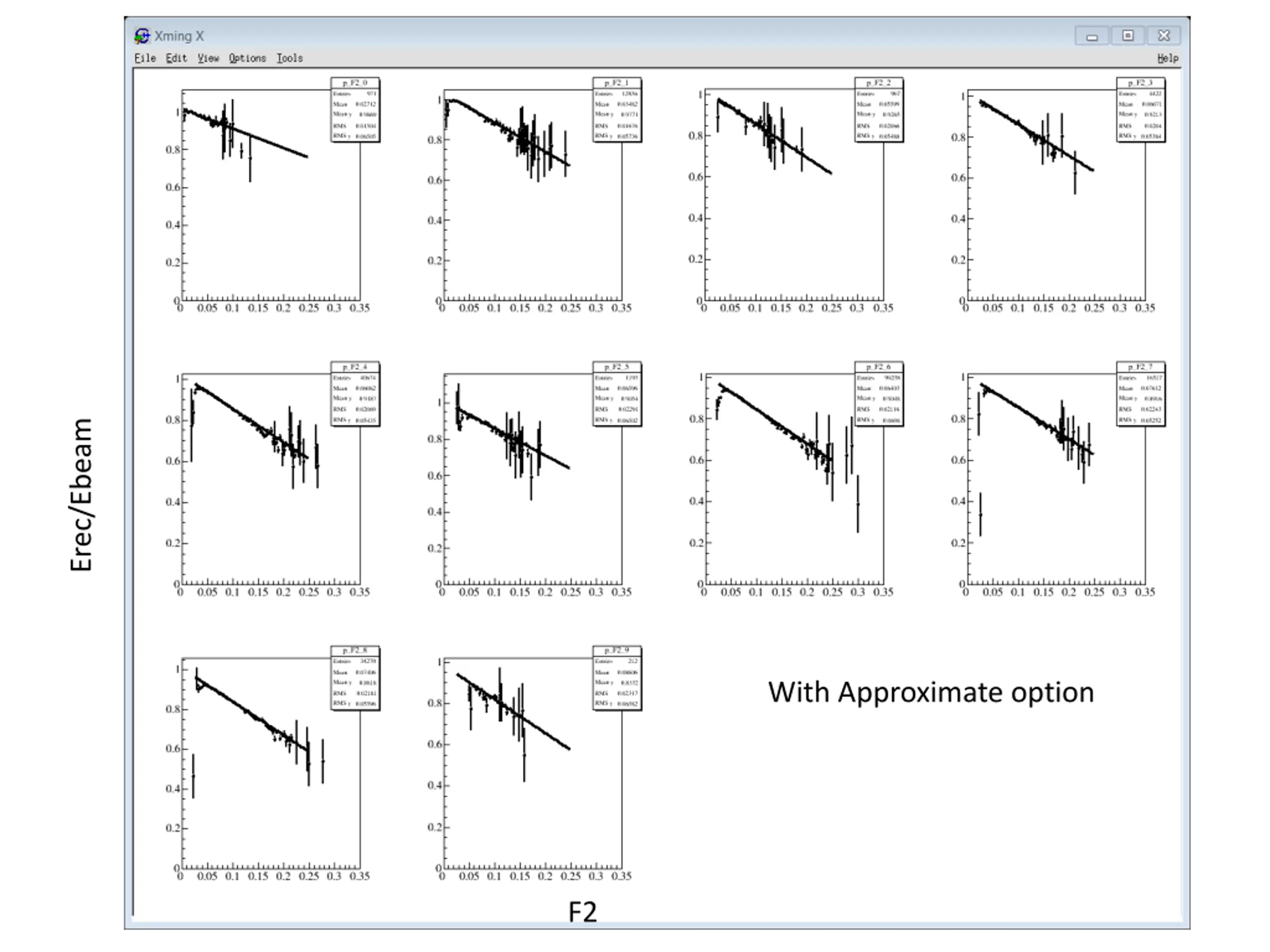

Erec/Ebeam With Approximate option F2

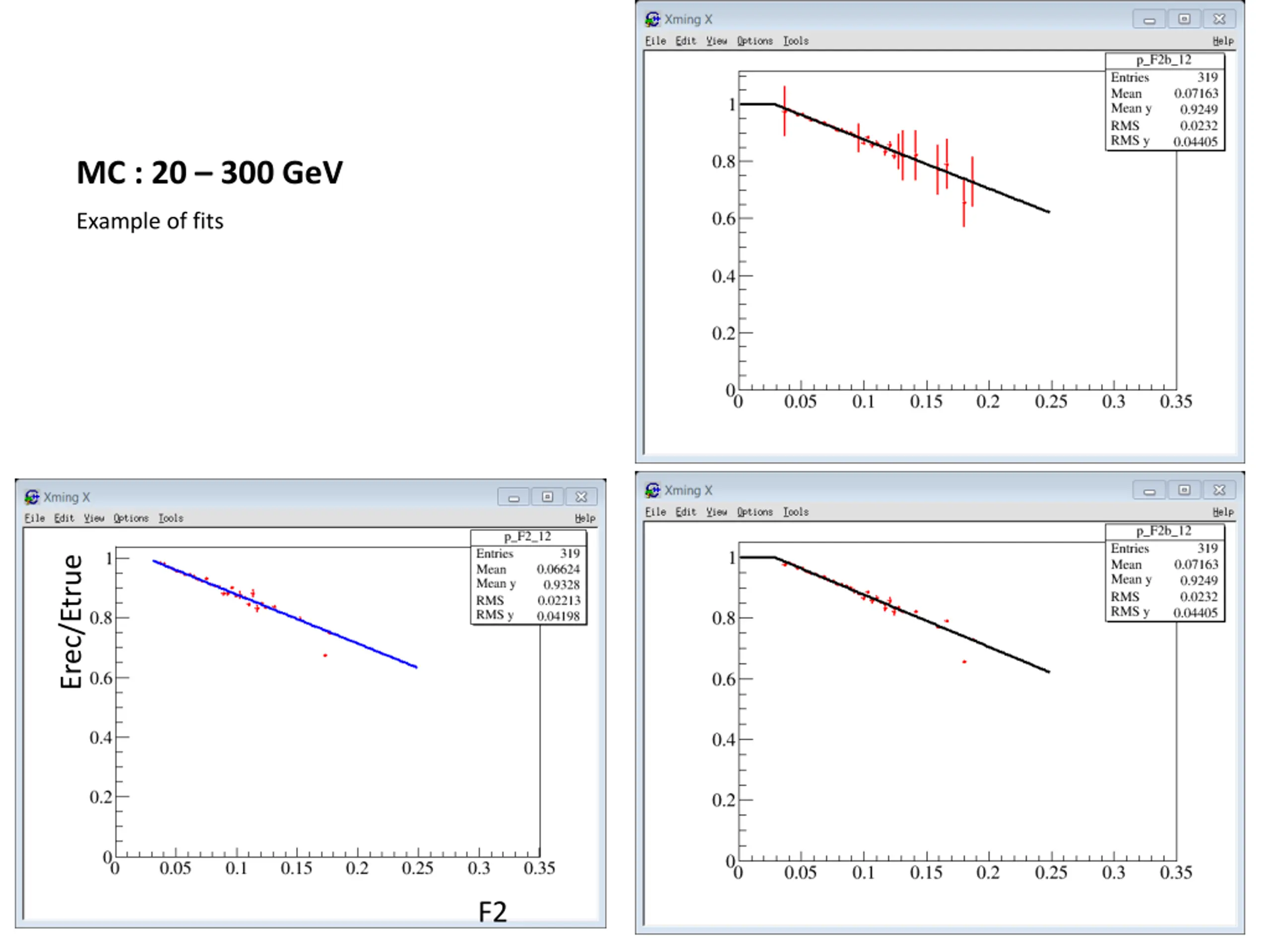

MC : 20 300 GeV Example of fits Erec/Etrue F2

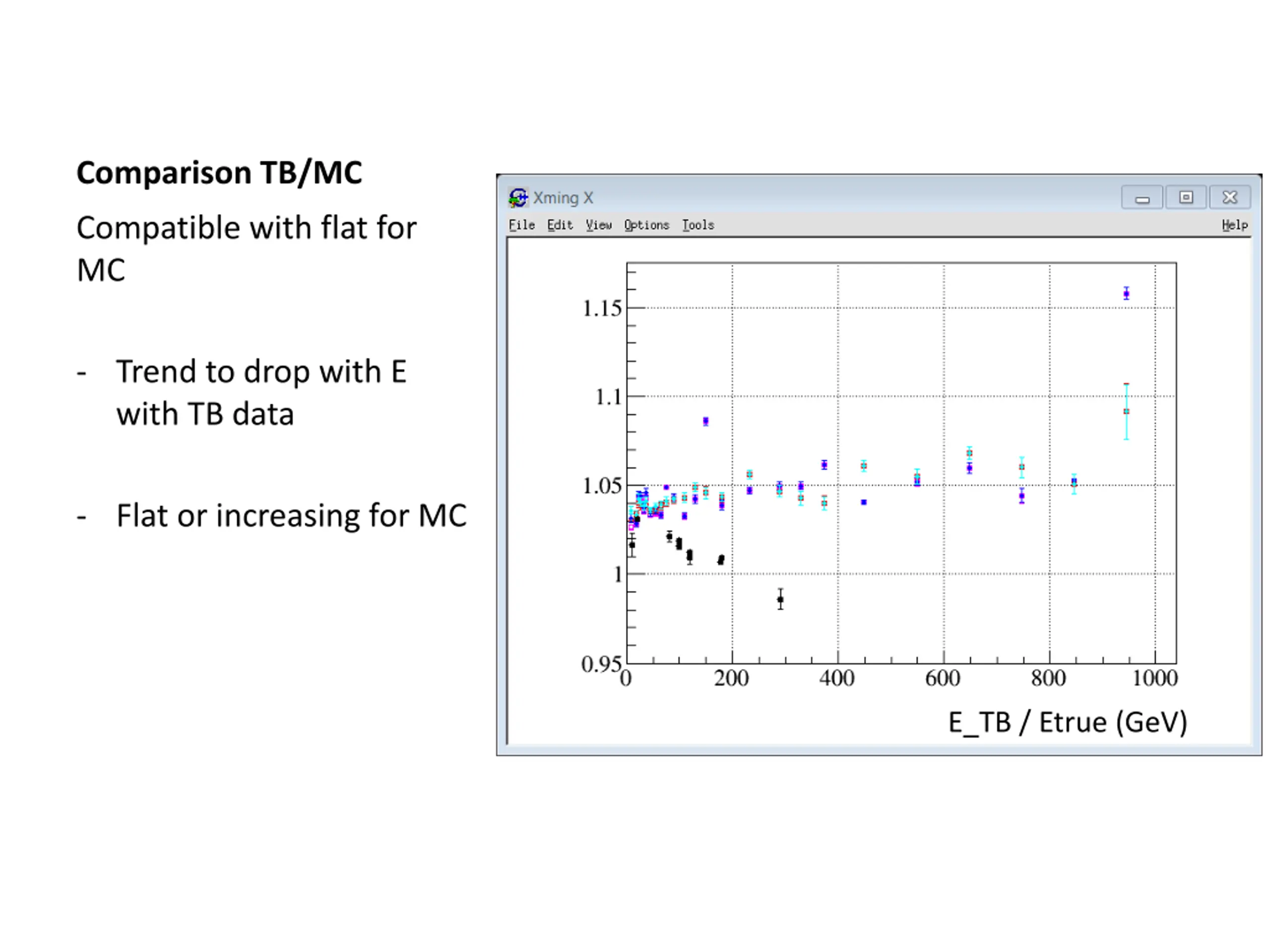

Comparison TB/MC Compatible with flat for MC - Trend to drop with E with TB data - Flat or increasing for MC E_TB / Etrue (GeV)

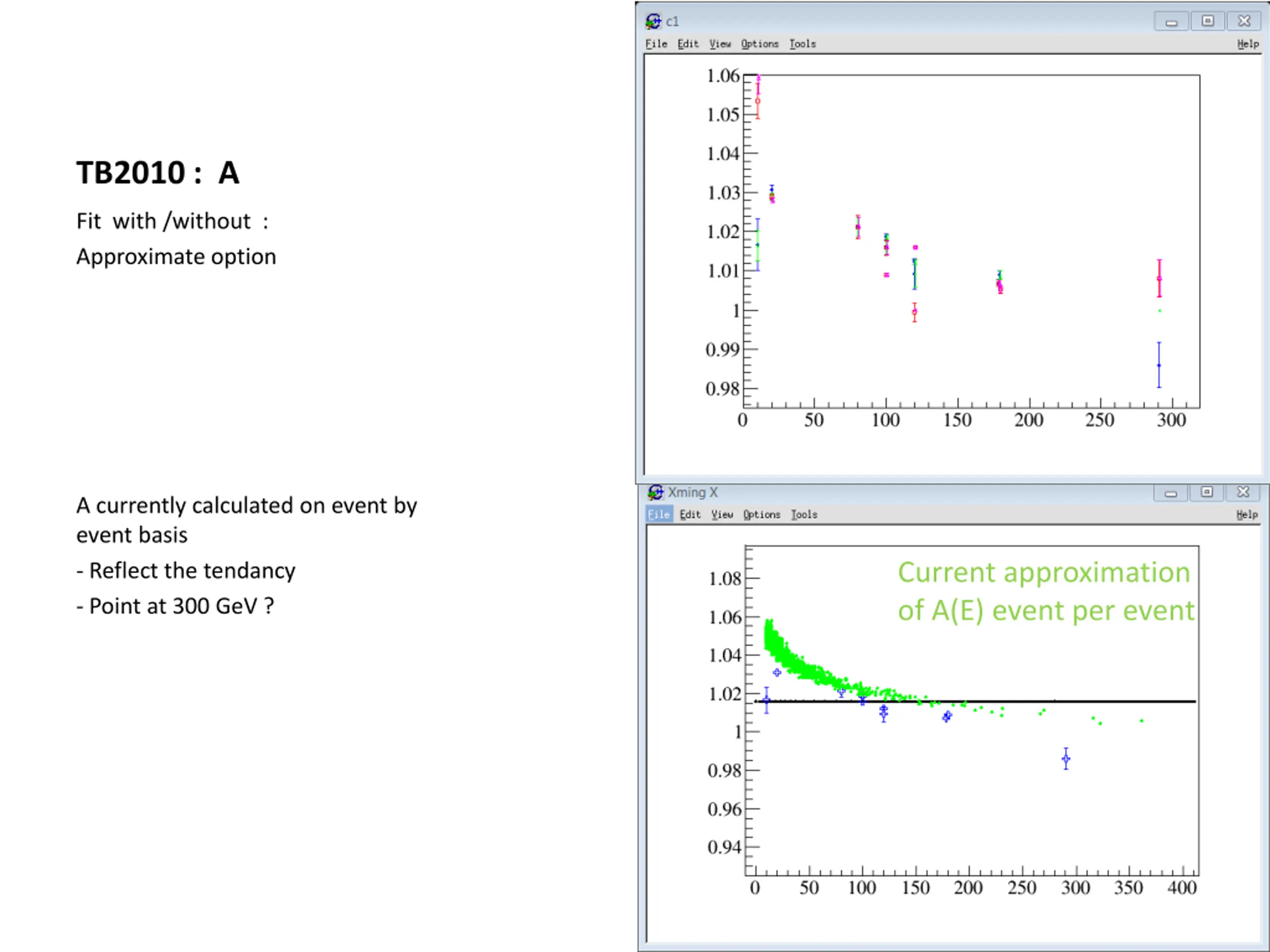

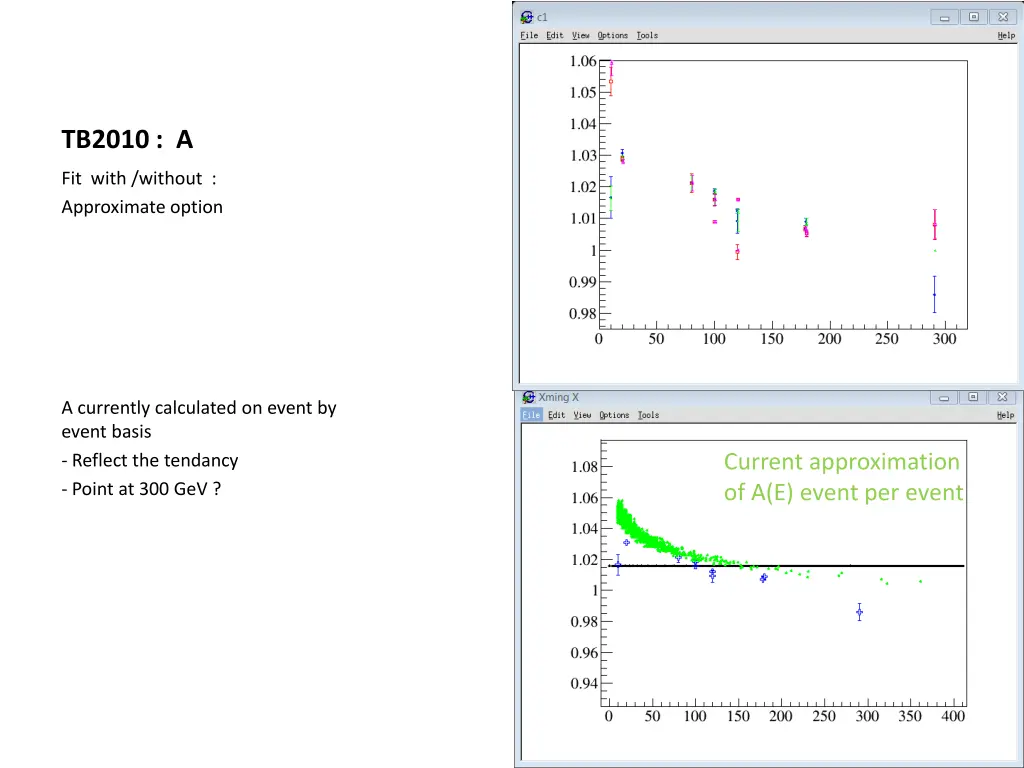

TB2010 : A Fit with /without : Approximate option A currently calculated on event by event basis - Reflect the tendancy - Point at 300 GeV ? Current approximation of A(E) event per event

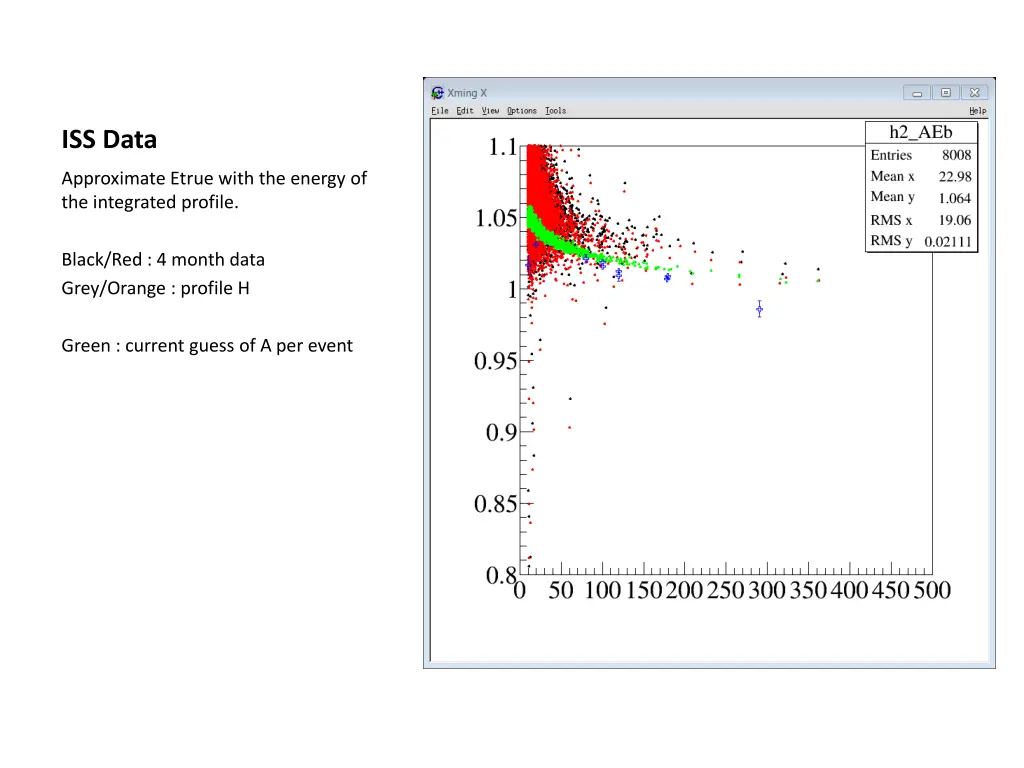

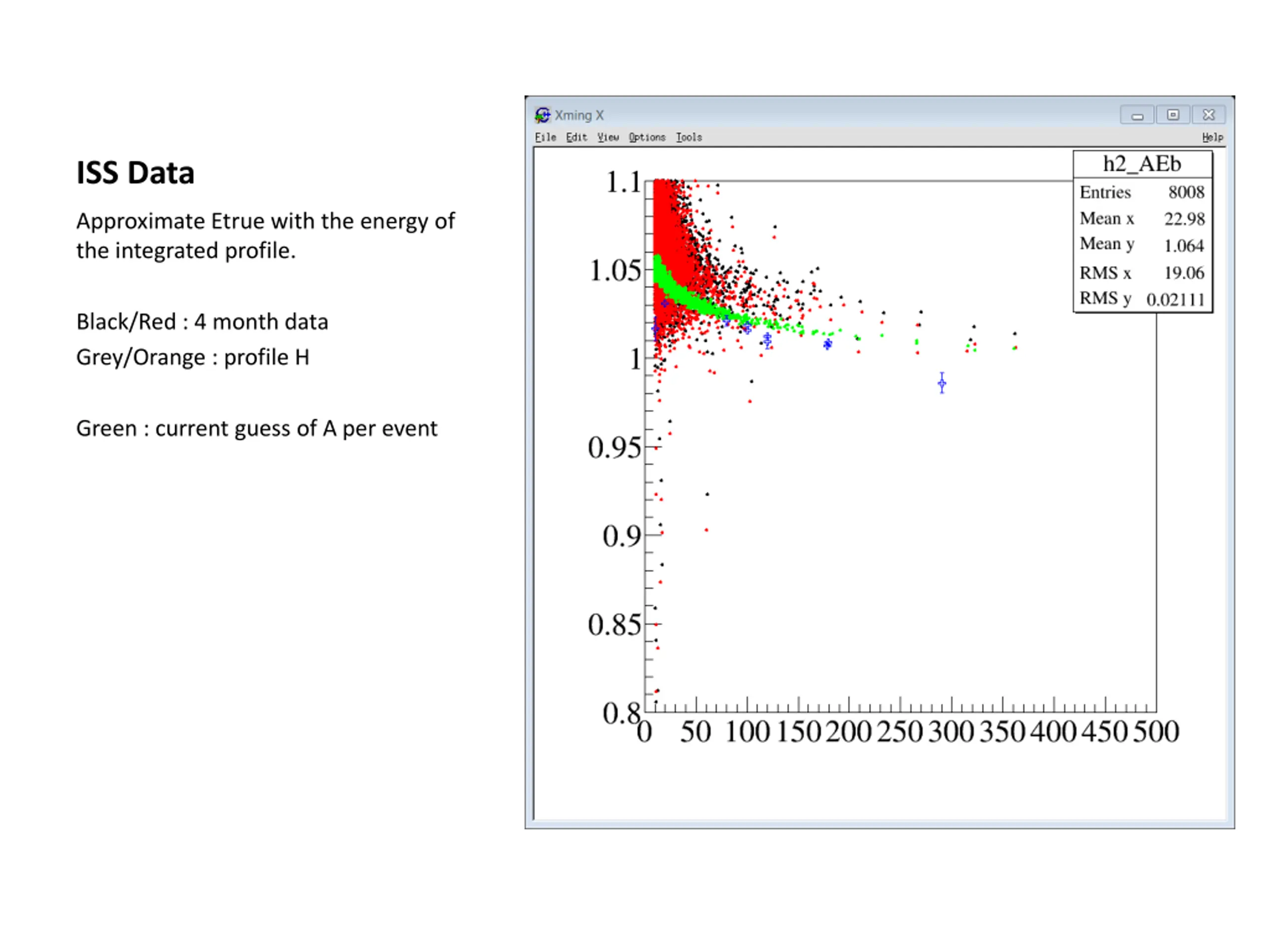

ISS Data Approximate Etrue with the energy of the integrated profile. Black/Red : 4 month data Grey/Orange : profile H Green : current guess of A per event

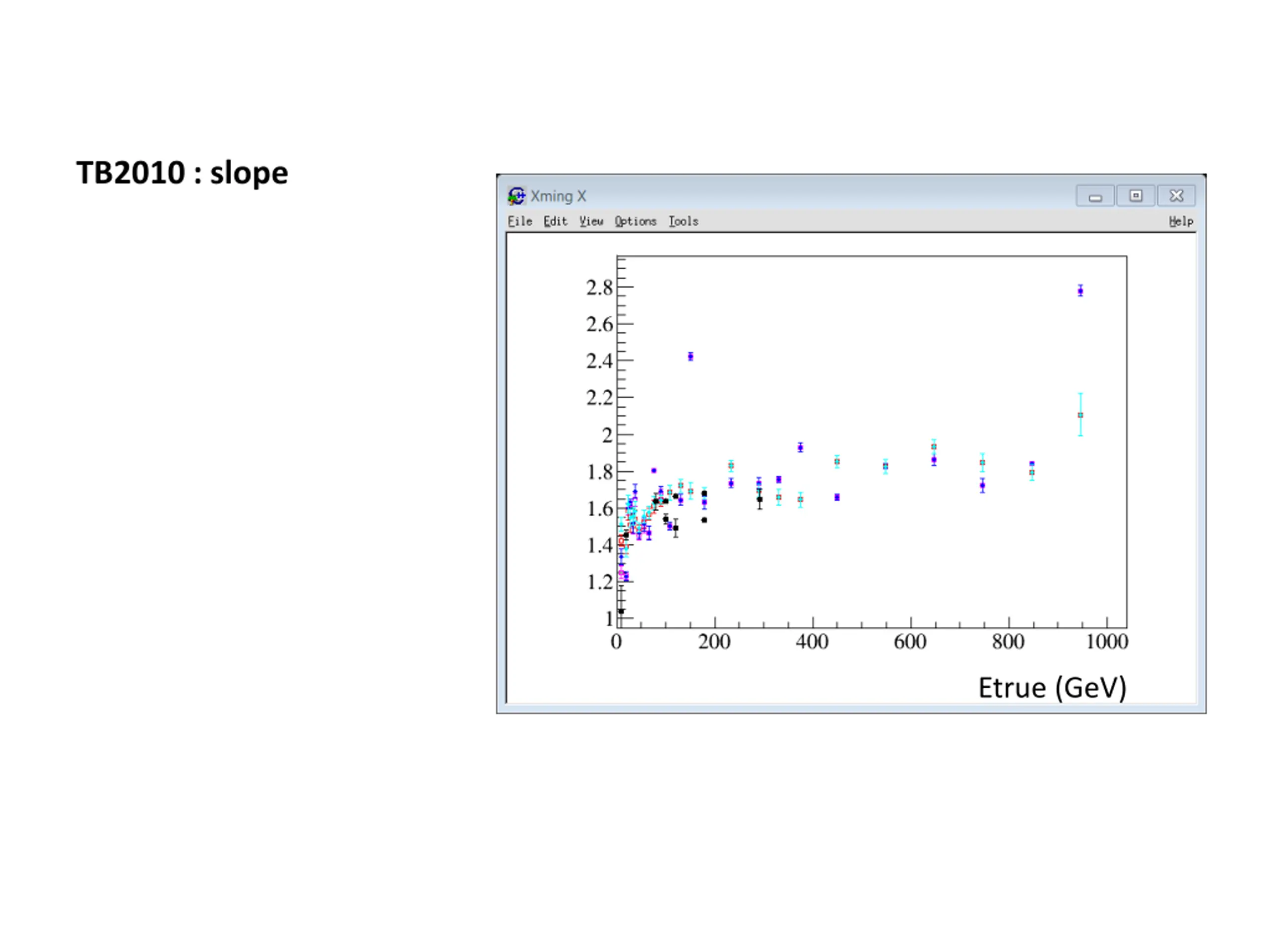

TB2010 : slope Etrue (GeV)

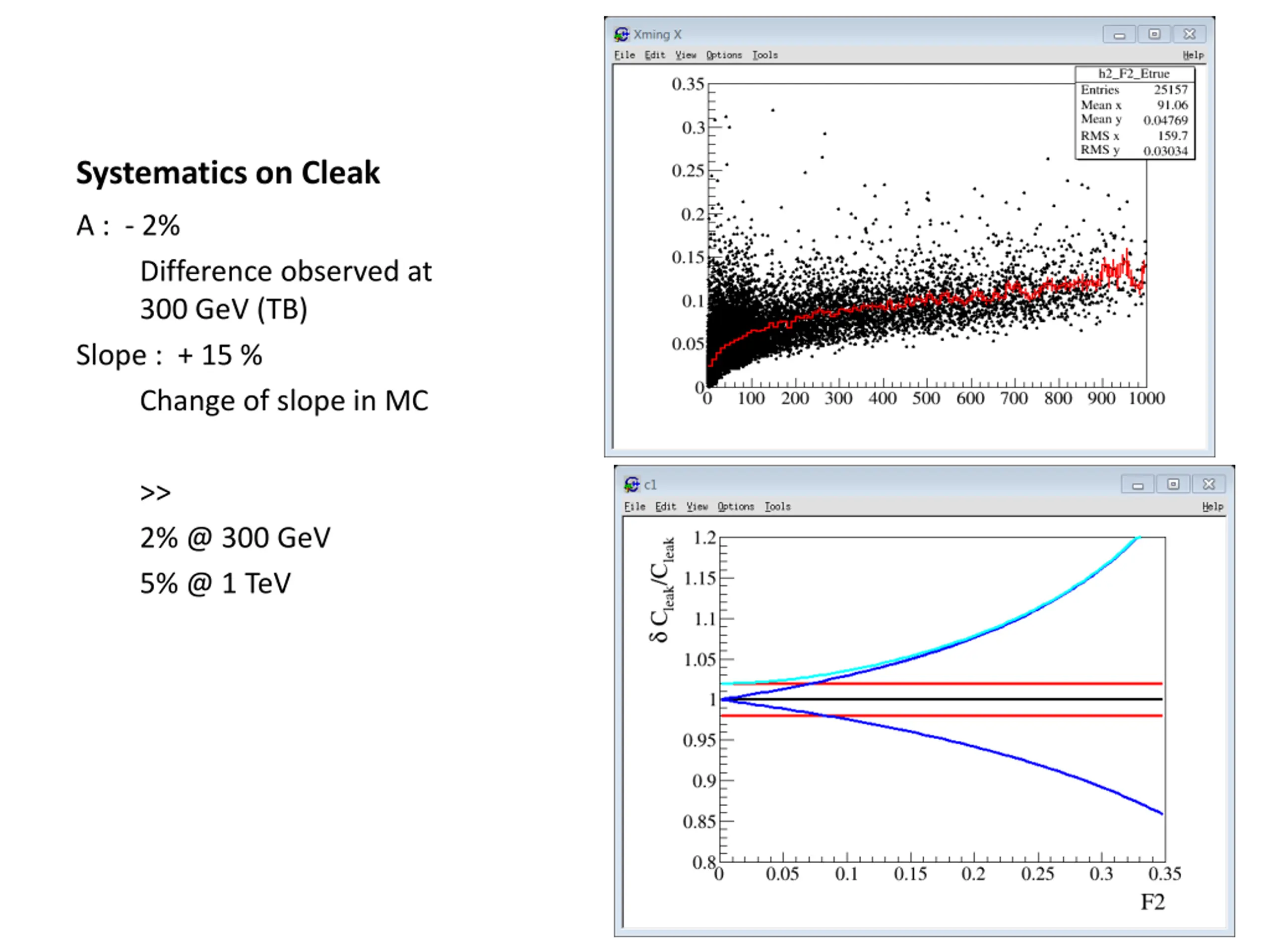

Systematics on Cleak A : - 2% Difference observed at 300 GeV (TB) Slope : + 15 % Change of slope in MC >> 2% @ 300 GeV 5% @ 1 TeV
