Status of the SPARC design Jean SOUDIER Designers: Jean Soudier, Christophe Flouzat Reviewers: Fr d ric Morel Jean.soudier@iphc.cnrs.fr 18/03/2025

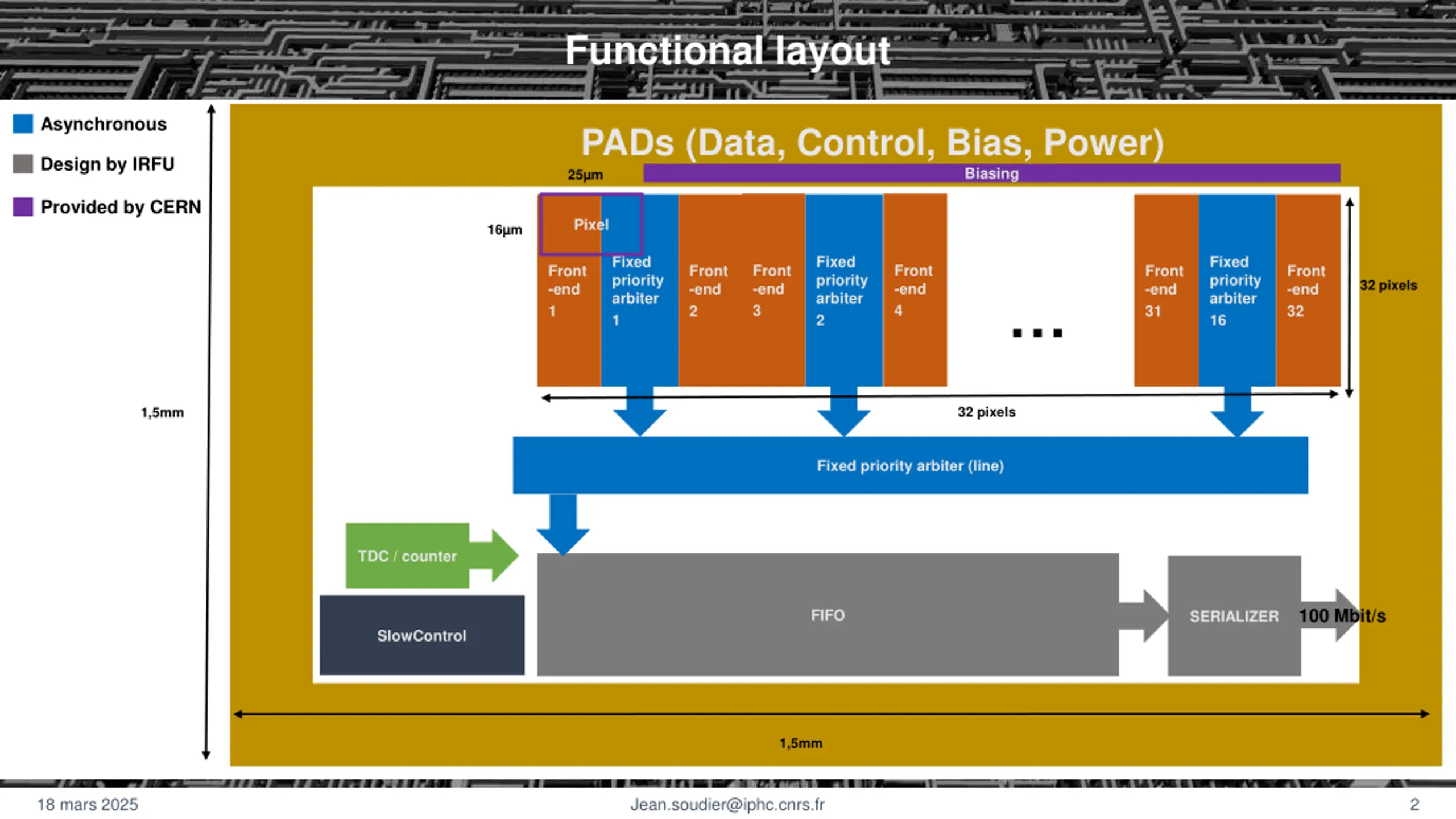

Functional layout Asynchronous PADs (Data, Control, Bias, Power) 25 m Design by IRFU Biasing Provided by CERN Pixel 16 m Fixed priority arbiter 1 Fixed priority arbiter 2 Fixed priority arbiter 16 Front -end 3 Front -end 4 Front -end 1 Front -end 2 Front -end 31 Front -end 32 32 pixels 32 pixels 1,5mm Fixed priority arbiter (line) TDC / counter 100 Mbit/s FIFO SERIALIZER SlowControl 1,5mm 18 mars 2025 Jean.soudier@iphc.cnrs.fr 2

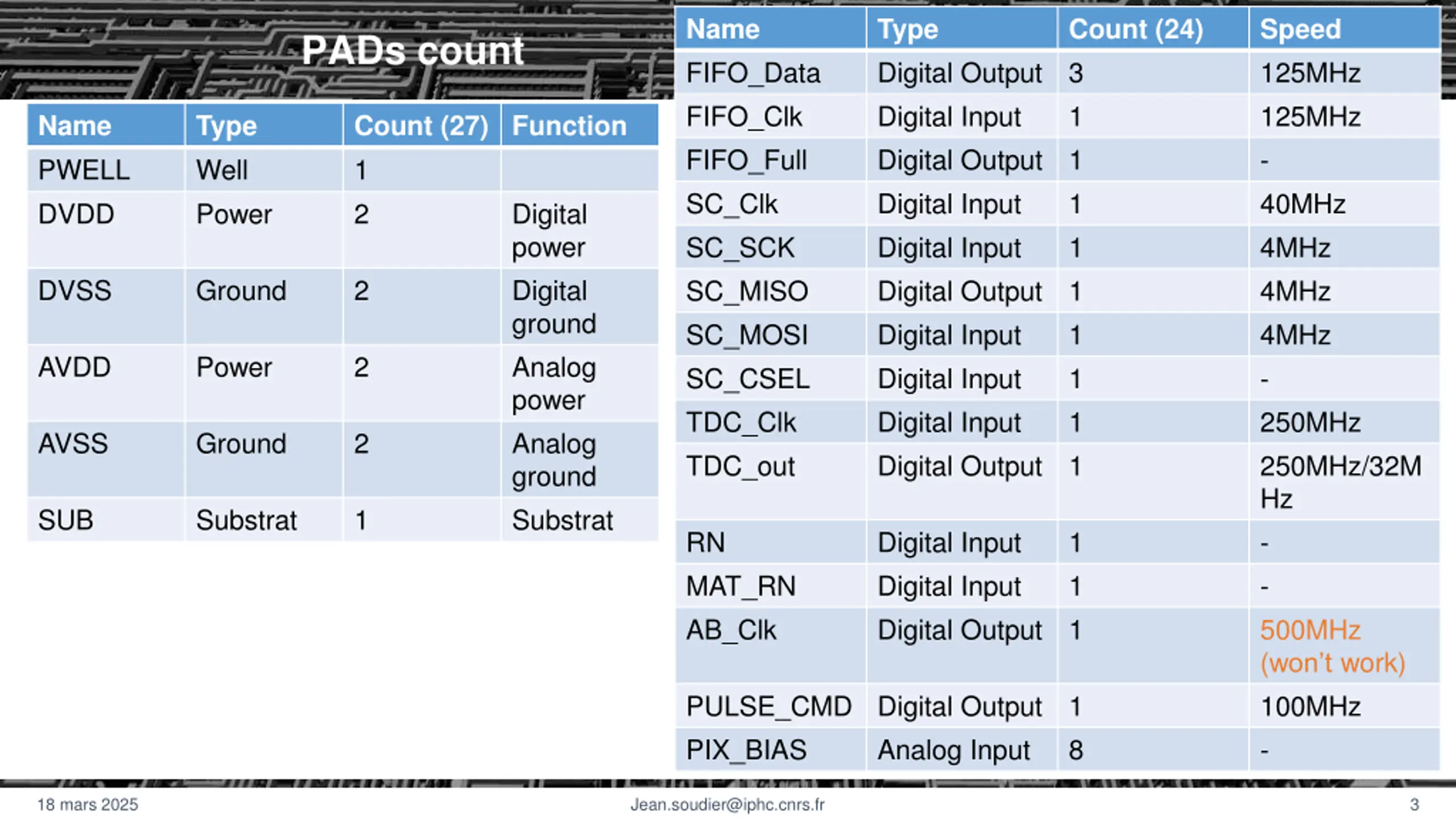

Name FIFO_Data FIFO_Clk FIFO_Full SC_Clk SC_SCK SC_MISO SC_MOSI SC_CSEL TDC_Clk TDC_out Type Digital Output Digital Input Digital Output Digital Input Digital Input Digital Output Digital Input Digital Input Digital Input Digital Output Count (24) 3 1 1 1 1 1 1 1 1 1 Speed 125MHz 125MHz - 40MHz 4MHz 4MHz 4MHz - 250MHz 250MHz/32M Hz - - 500MHz (won t work) 100MHz - PADs count Name PWELL DVDD Type Well Power Count (27) Function 1 2 Digital power Digital ground Analog power Analog ground Substrat DVSS Ground 2 AVDD Power 2 AVSS Ground 2 SUB Substrat 1 RN MAT_RN AB_Clk Digital Input Digital Input Digital Output 1 1 1 PULSE_CMD PIX_BIAS Digital Output Analog Input 1 8 18 mars 2025 Jean.soudier@iphc.cnrs.fr 3

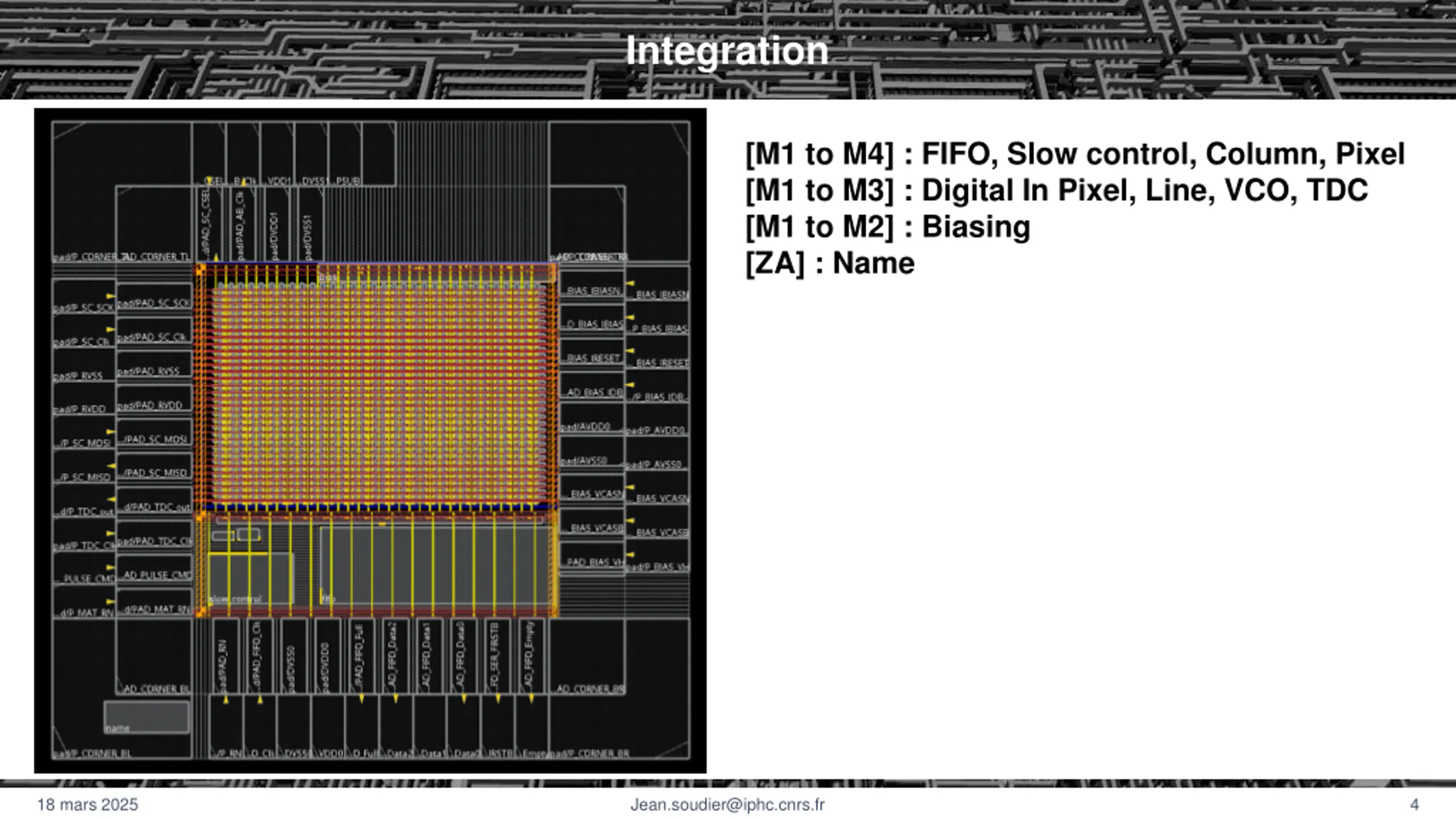

Integration [M1 to M4] : FIFO, Slow control, Column, Pixel [M1 to M3] : Digital In Pixel, Line, VCO, TDC [M1 to M2] : Biasing [ZA] : Name 18 mars 2025 Jean.soudier@iphc.cnrs.fr 4

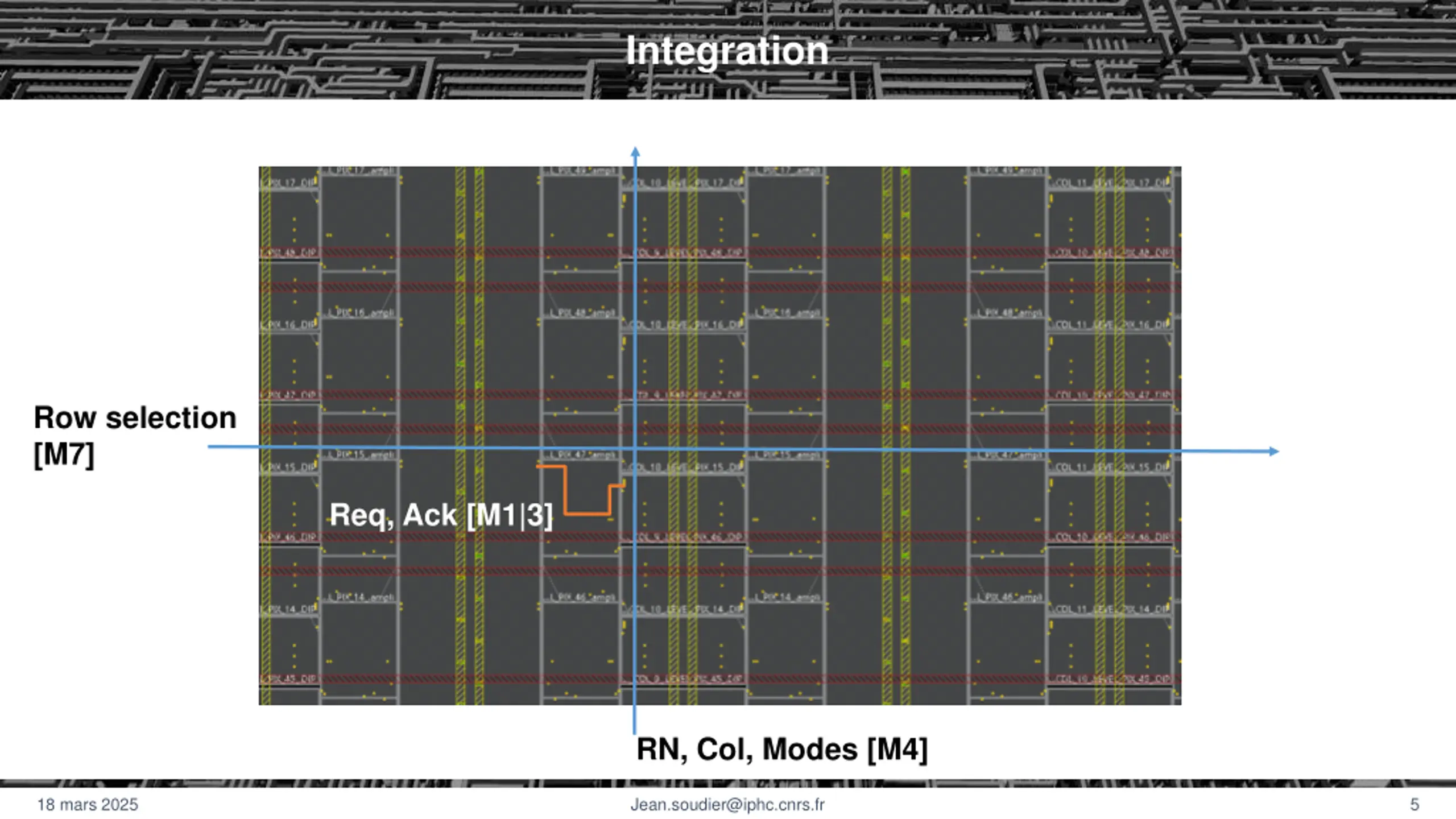

Integration Row selection [M7] Req, Ack [M1|3] RN, Col, Modes [M4] 18 mars 2025 Jean.soudier@iphc.cnrs.fr 5

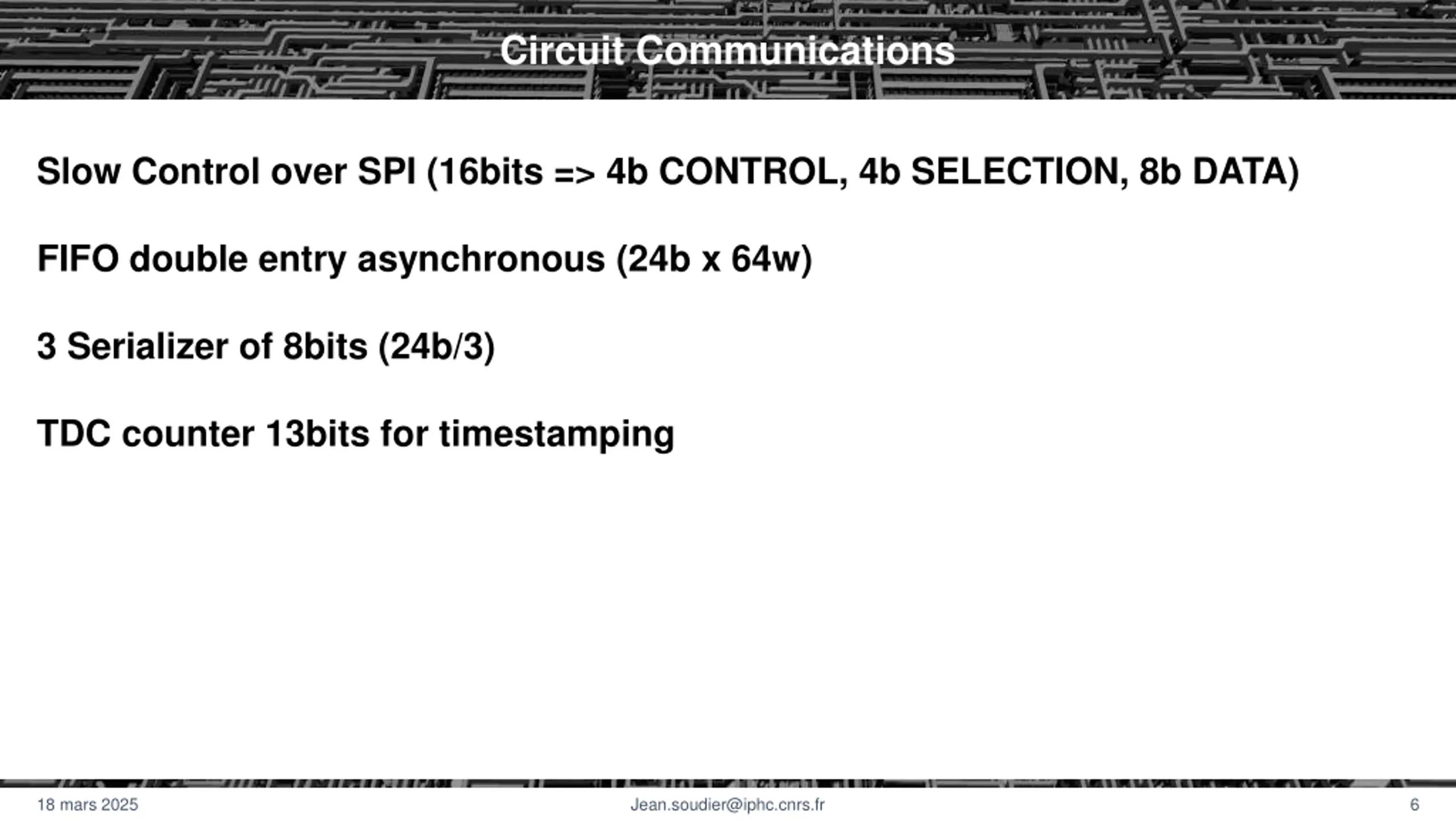

Circuit Communications Slow Control over SPI (16bits => 4b CONTROL, 4b SELECTION, 8b DATA) FIFO double entry asynchronous (24b x 64w) 3 Serializer of 8bits (24b/3) TDC counter 13bits for timestamping 18 mars 2025 Jean.soudier@iphc.cnrs.fr 6

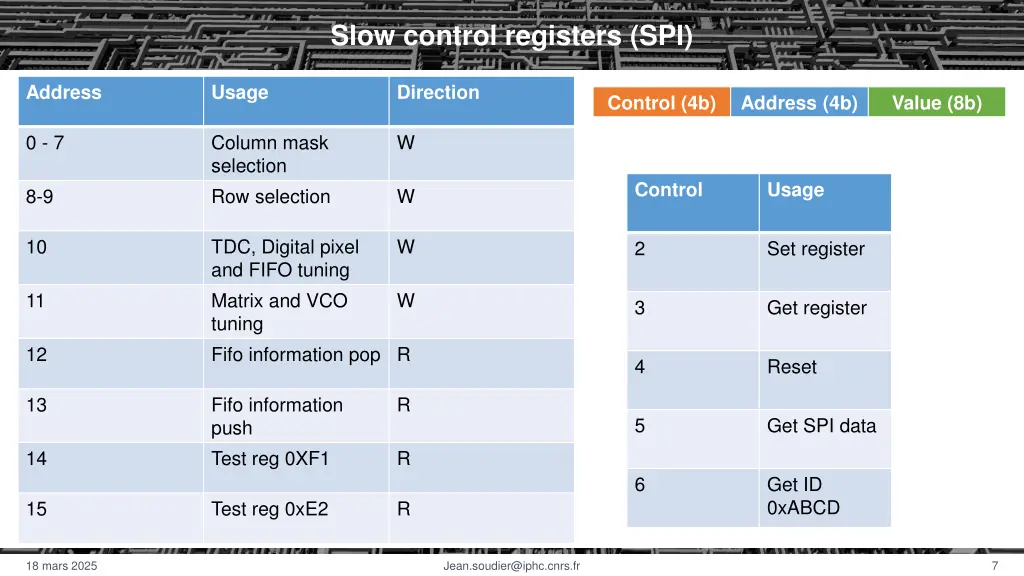

Slow control registers (SPI) Address Usage Direction Control (4b) Address (4b) Value (8b) 0 - 7 Column mask selection Row selection W Control Usage 8-9 W 10 TDC, Digital pixel and FIFO tuning Matrix and VCO tuning Fifo information pop R W 2 Set register 11 W 3 Get register 12 4 Reset 13 Fifo information push Test reg 0XF1 R 5 Get SPI data 14 R 6 Get ID 0xABCD 15 Test reg 0xE2 R 18 mars 2025 Jean.soudier@iphc.cnrs.fr 7

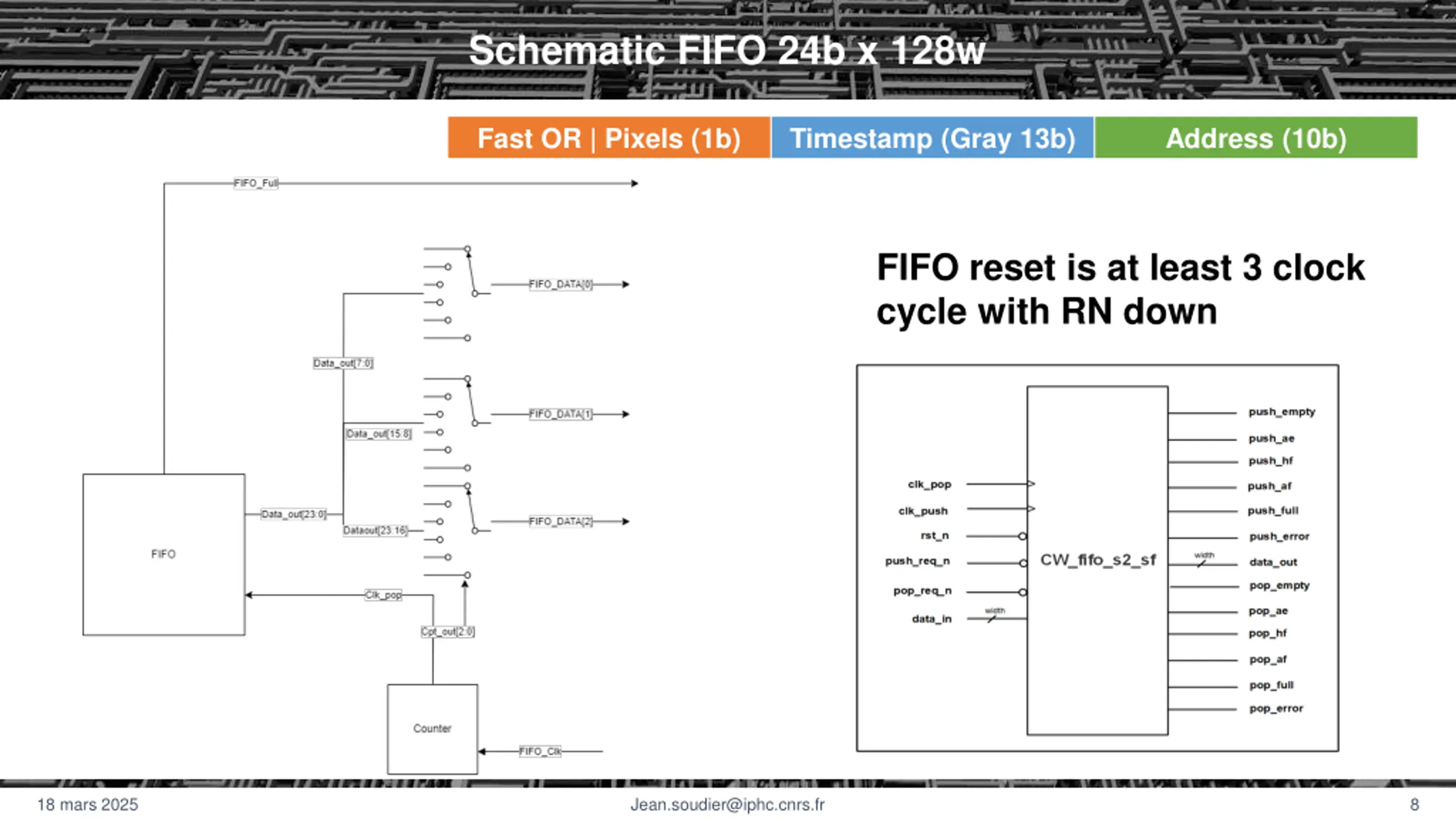

Schematic FIFO 24b x 128w Fast OR | Pixels (1b) Timestamp (Gray 13b) Address (10b) FIFO reset is at least 3 clock cycle with RN down 18 mars 2025 Jean.soudier@iphc.cnrs.fr 8

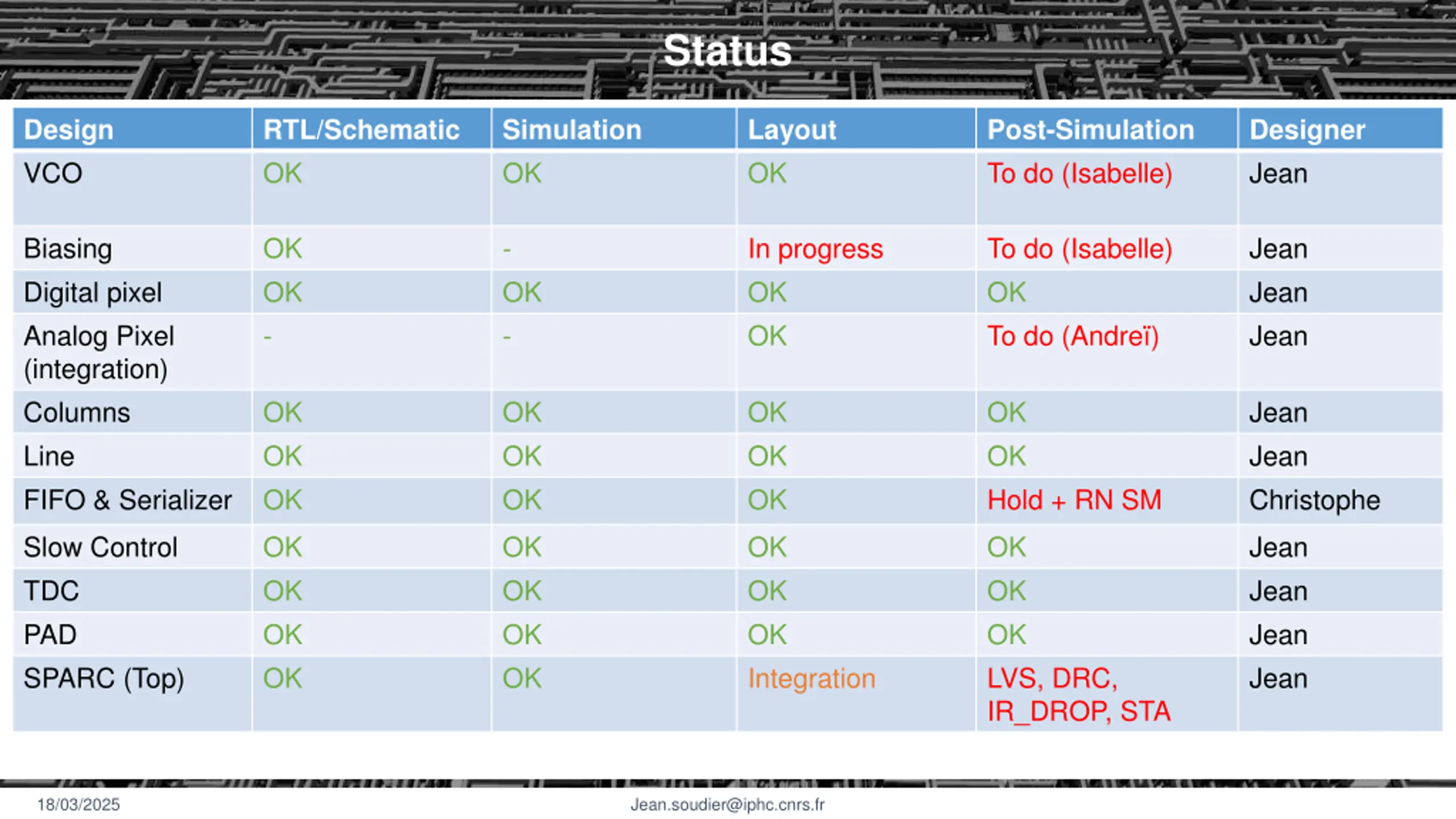

Status Design VCO RTL/Schematic OK Simulation OK Layout OK Post-Simulation To do (Isabelle) Designer Jean Biasing Digital pixel Analog Pixel (integration) Columns Line FIFO & Serializer OK OK - - OK - In progress OK OK To do (Isabelle) OK To do (Andre ) Jean Jean Jean OK OK OK OK OK OK OK OK OK OK OK Hold + RN SM Jean Jean Christophe Slow Control TDC PAD SPARC (Top) OK OK OK OK OK OK OK OK OK OK OK Integration OK OK OK LVS, DRC, IR_DROP, STA Jean Jean Jean Jean 18/03/2025 Jean.soudier@iphc.cnrs.fr

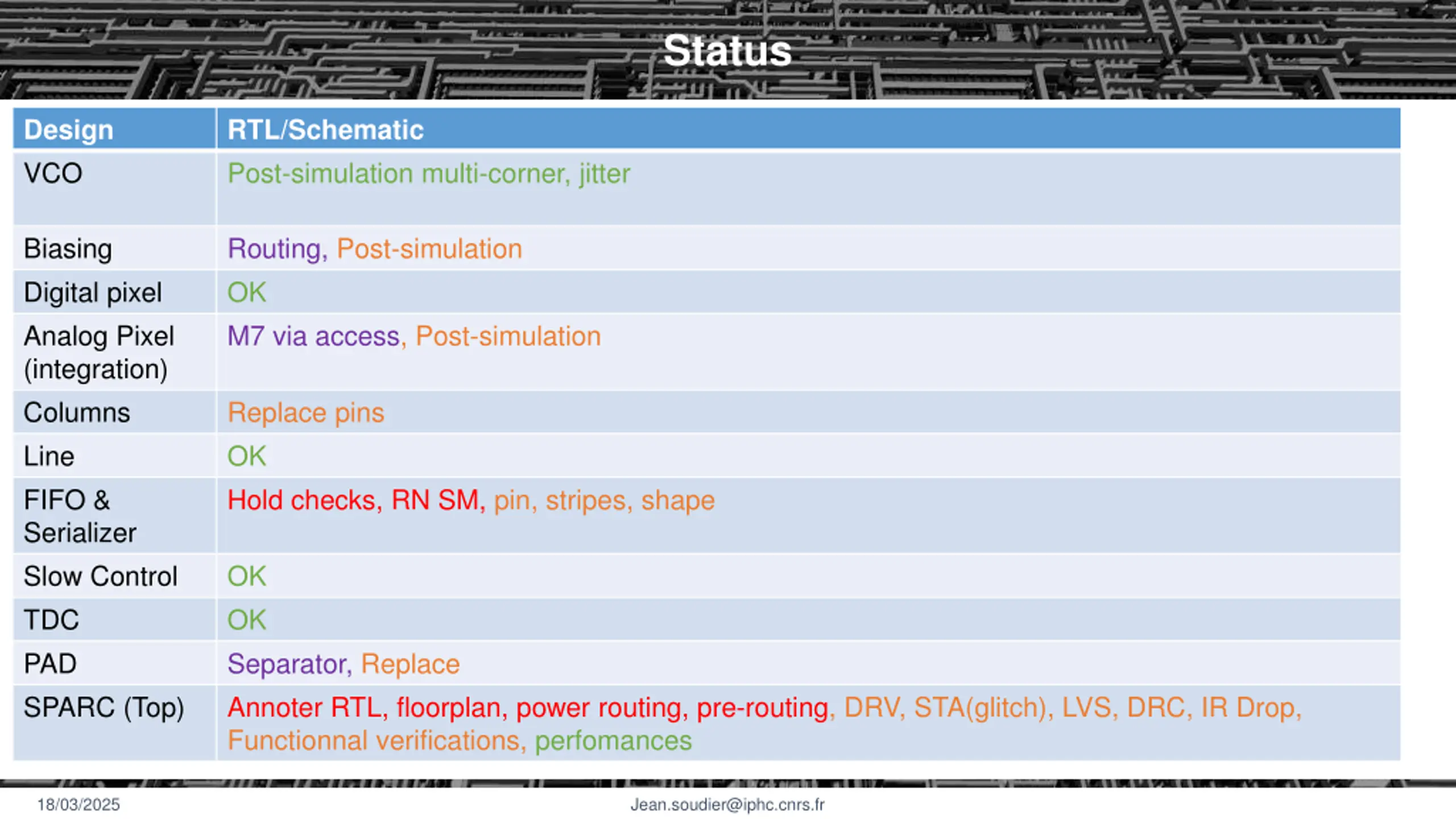

Status Design VCO RTL/Schematic Post-simulation multi-corner, jitter Biasing Digital pixel Analog Pixel (integration) Columns Line FIFO & Serializer Slow Control TDC PAD SPARC (Top) Routing, Post-simulation OK M7 via access, Post-simulation Replace pins OK Hold checks, RN SM, pin, stripes, shape OK OK Separator, Replace Annoter RTL, floorplan, power routing, pre-routing, DRV, STA(glitch), LVS, DRC, IR Drop, Functionnal verifications, perfomances 18/03/2025 Jean.soudier@iphc.cnrs.fr

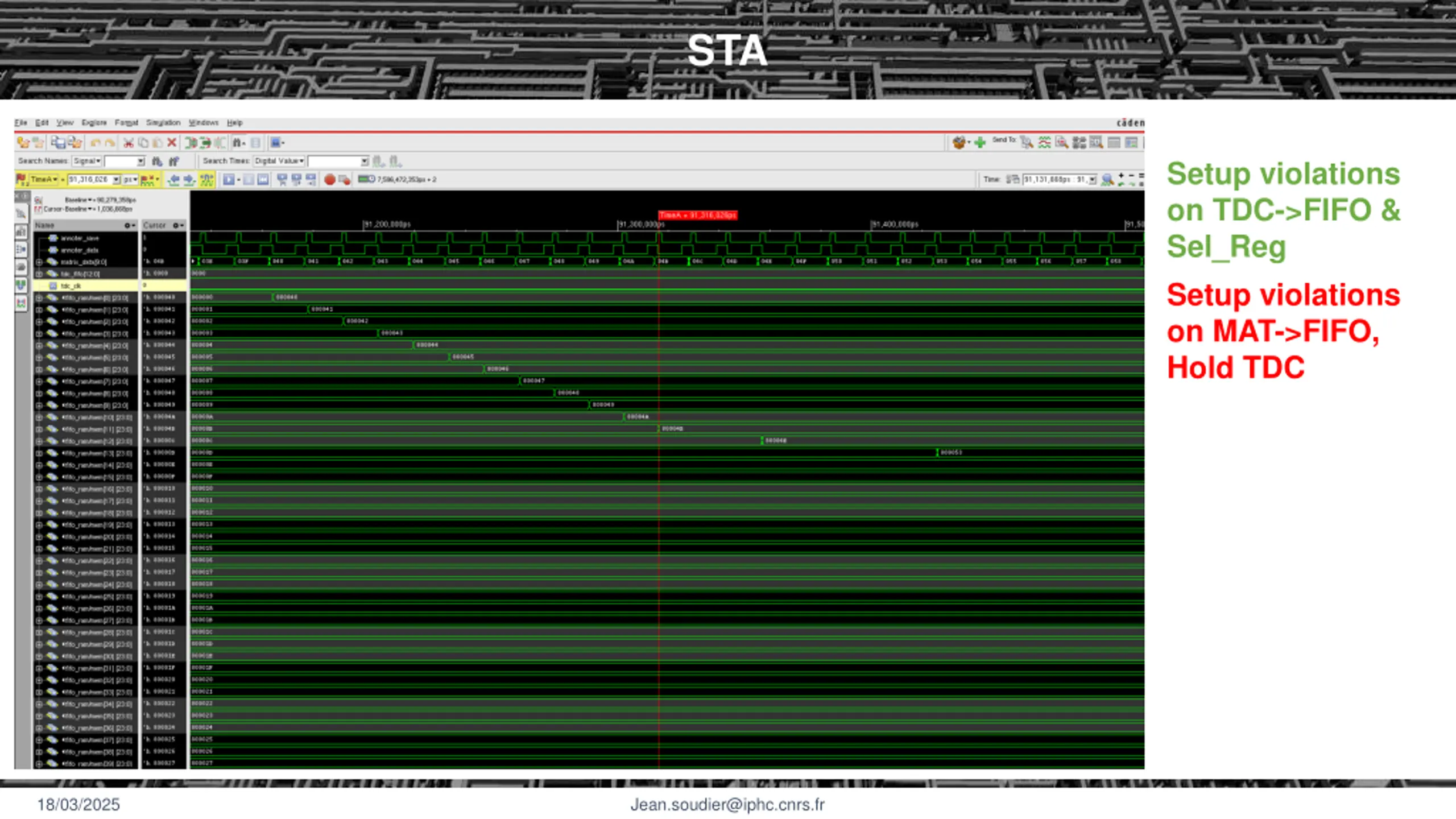

STA Setup violations on TDC->FIFO & Sel_Reg Setup violations on MAT->FIFO, Hold TDC 18/03/2025 Jean.soudier@iphc.cnrs.fr

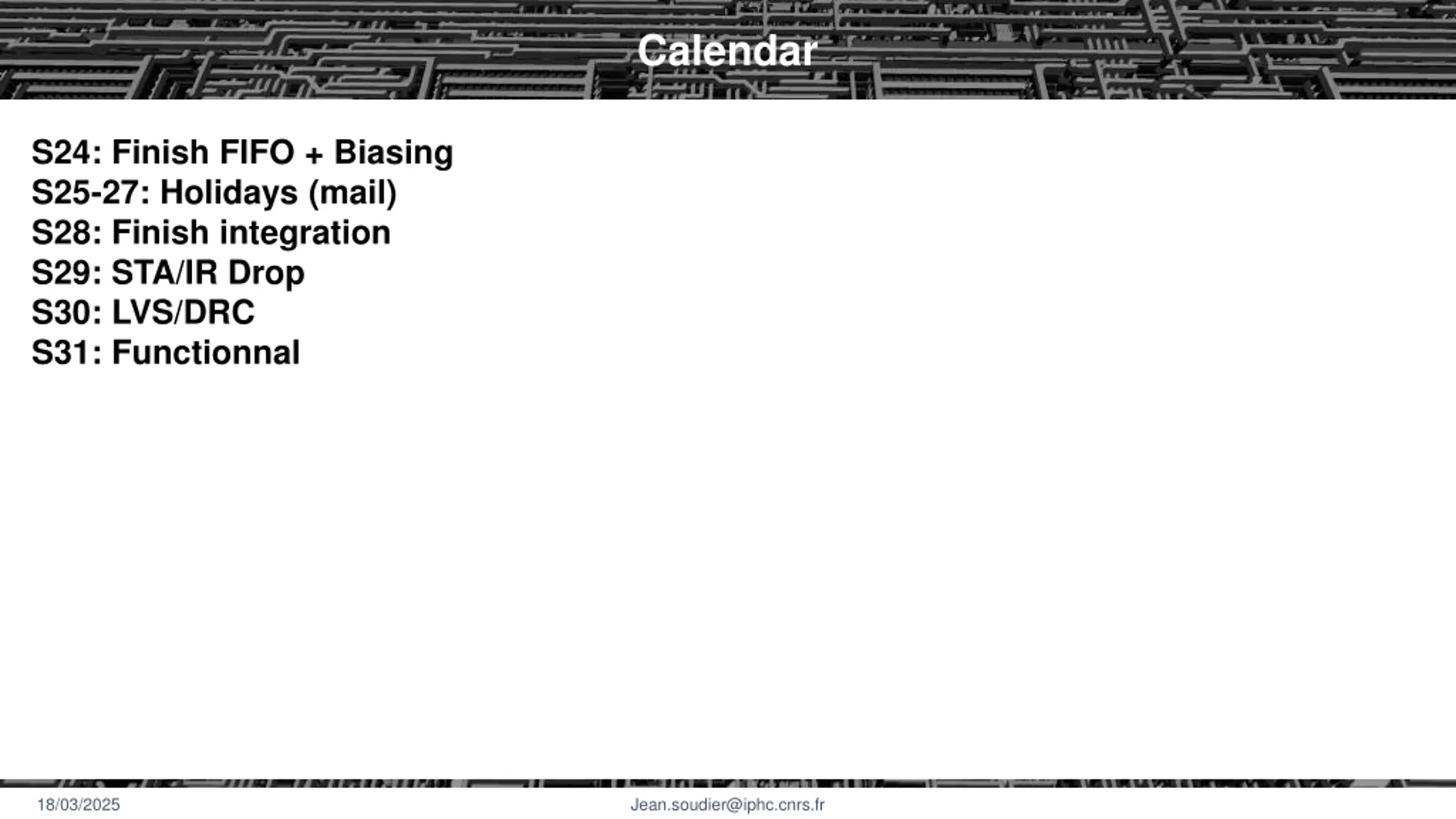

Calendar S24: Finish FIFO + Biasing S25-27: Holidays (mail) S28: Finish integration S29: STA/IR Drop S30: LVS/DRC S31: Functionnal 18/03/2025 Jean.soudier@iphc.cnrs.fr
Tanks you for your attention 18/03/2025 Jean.soudier@iphc.cnrs.fr

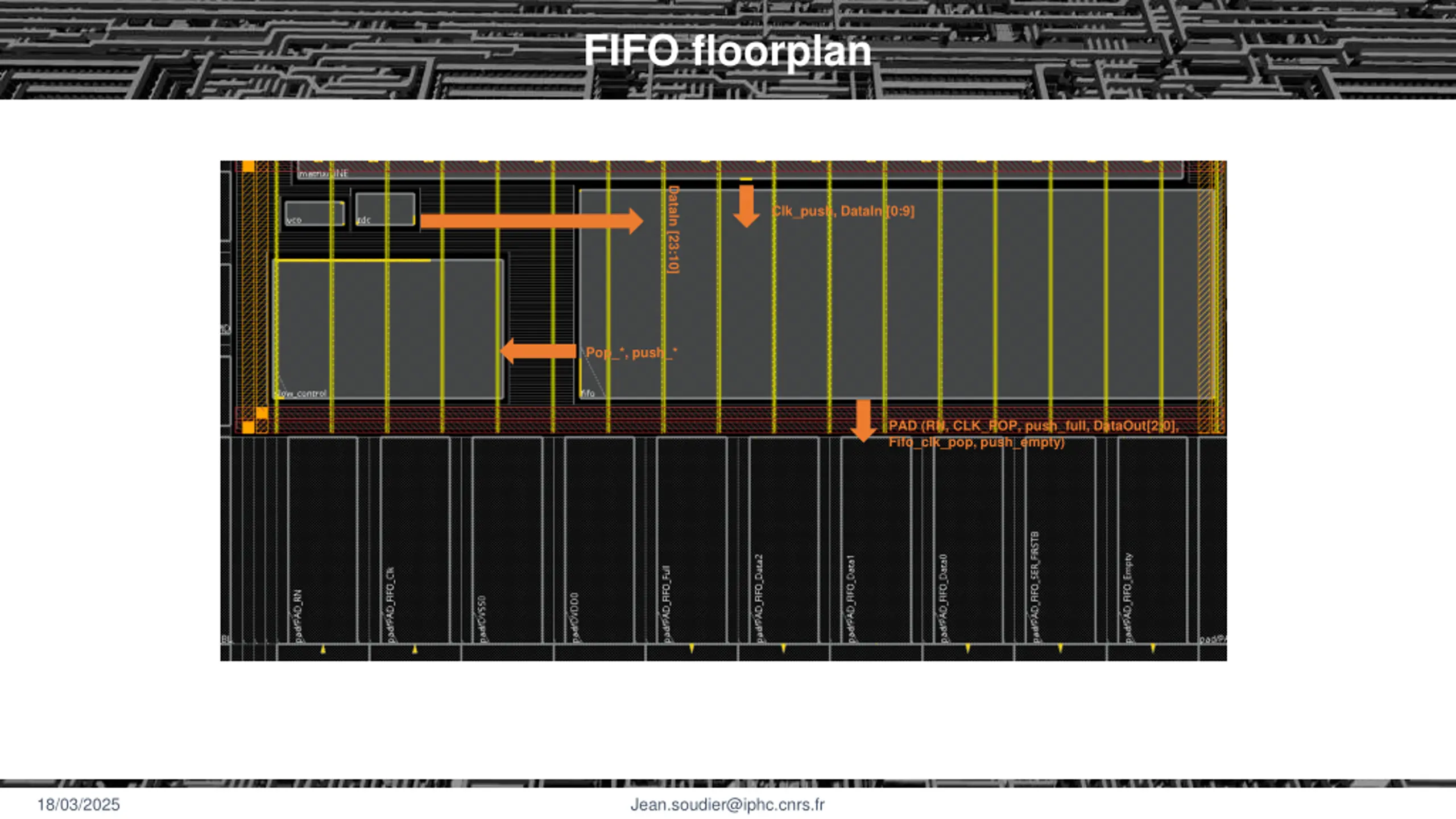

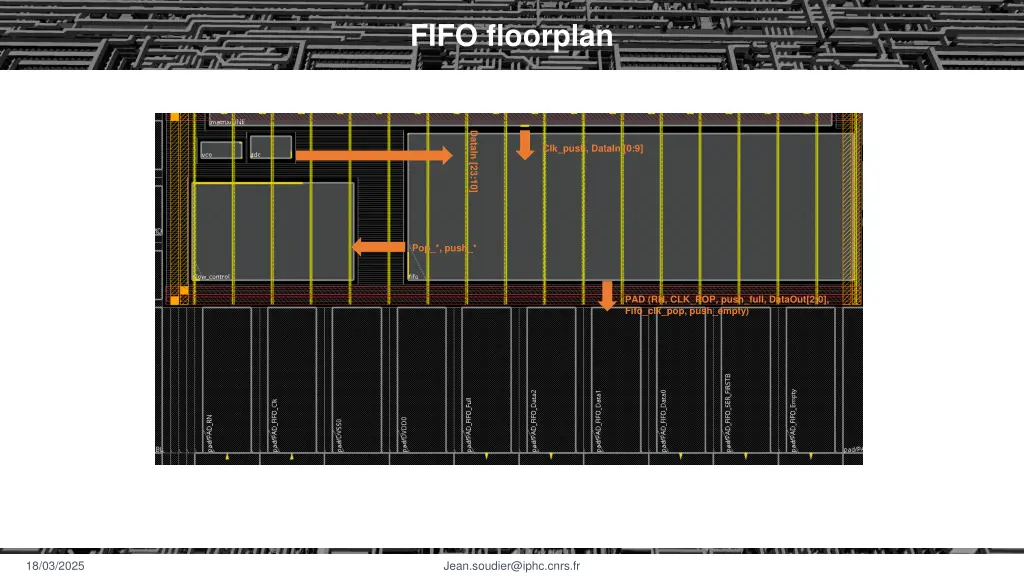

FIFO floorplan DataIn [23:10] Clk_push, DataIn [0:9] Pop_*, push_* PAD (RN, CLK_POP, push_full, DataOut[2:0], Fifo_clk_pop, push_empty) 18/03/2025 Jean.soudier@iphc.cnrs.fr
