  1. SleekSurface LED Downlight Munish Peshin/Sisesh Behuray Junel 2017

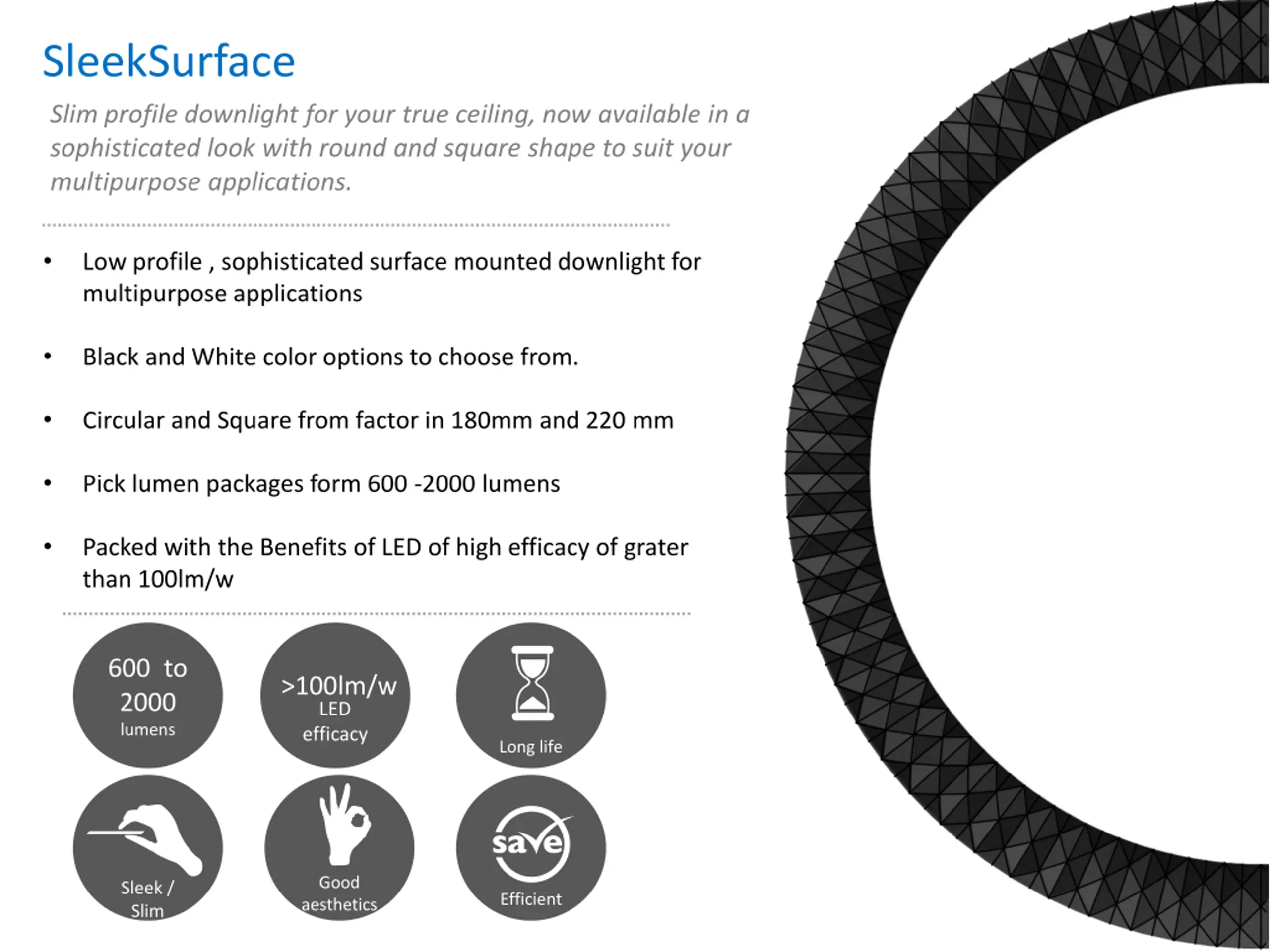

  2. SleekSurface Slim profile downlight for your true ceiling, now available in a sophisticated look with round and square shape to suit your multipurpose applications. Low profile , sophisticated surface mounted downlight for multipurpose applications Black and White color options to choose from. Circular and Square from factor in 180mm and 220 mm Pick lumen packages form 600 -2000 lumens Packed with the Benefits of LED of high efficacy of grater than 100lm/w 600 to 2000 lumens >100lm/w LED efficacy Long life Good aesthetics Sleek / Slim Efficient

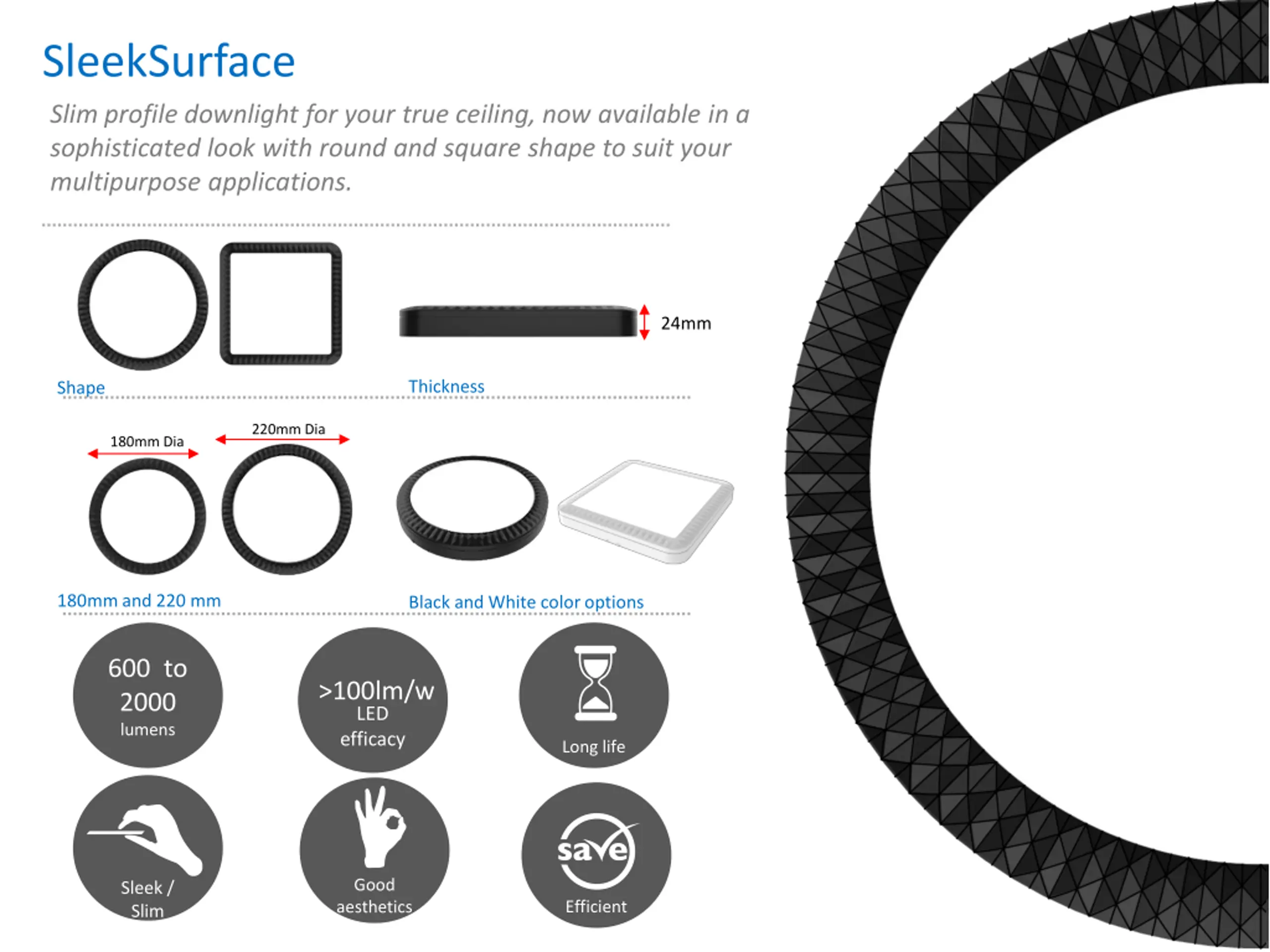

  3. SleekSurface Slim profile downlight for your true ceiling, now available in a sophisticated look with round and square shape to suit your multipurpose applications. 24mm Thickness Shape 220mm Dia 180mm Dia 180mm and 220 mm Black and White color options 600 to 2000 lumens >100lm/w LED efficacy Long life Good aesthetics Sleek / Slim Efficient

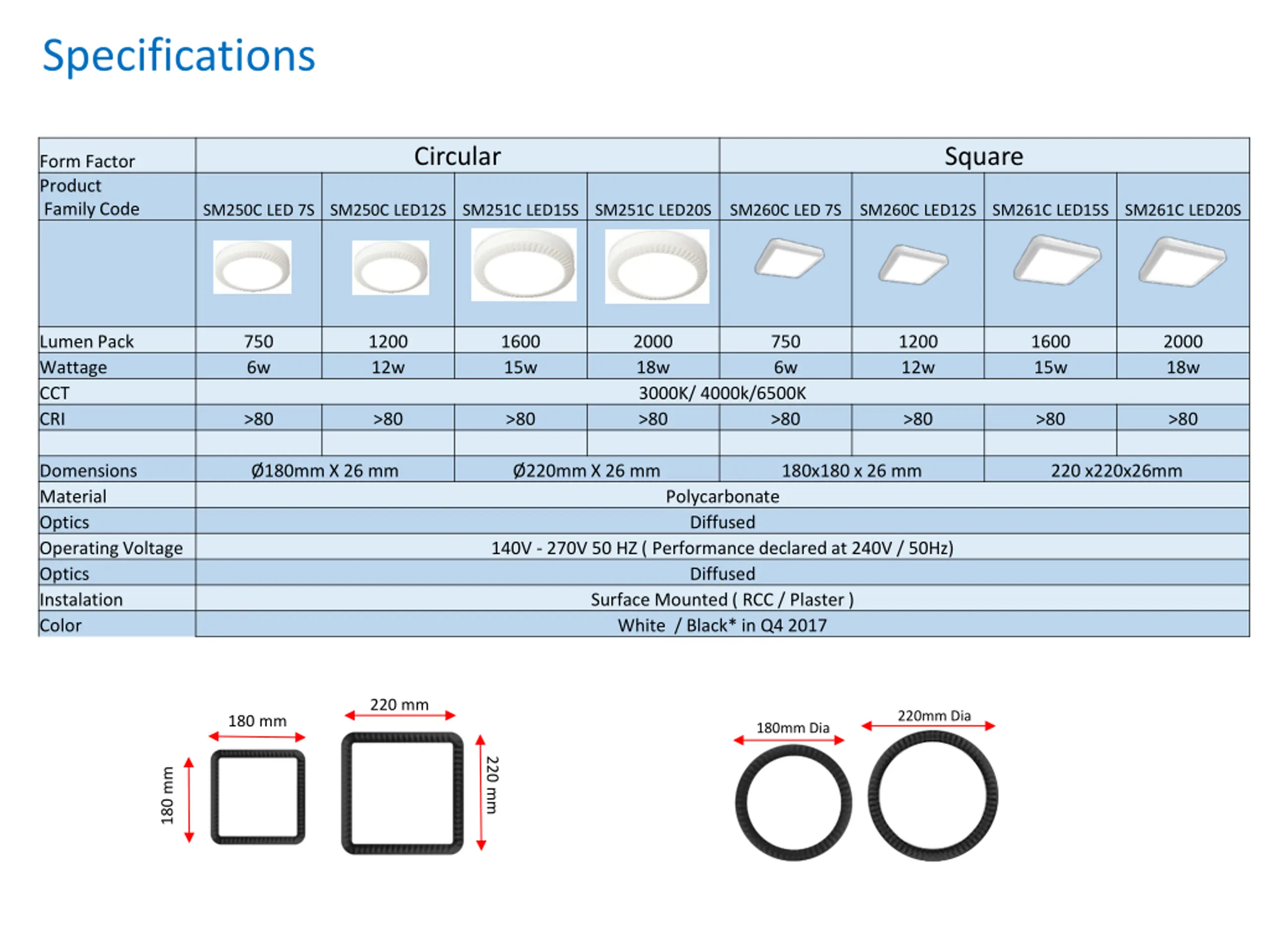

  4. Specifications Circular Square Form Factor Product Family Code SM250C LED 7S SM250C LED12S SM251C LED15S SM251C LED20S SM260C LED 7S SM260C LED12S SM261C LED15S SM261C LED20S Lumen Pack Wattage CCT CRI 750 6w 1200 12w 1600 15w 2000 18w 3000K/ 4000k/6500K >80 750 6w 1200 12w 1600 15w 2000 18w >80 >80 >80 >80 >80 >80 >80 Domensions Material Optics Operating Voltage Optics Instalation Color 180mm X 26 mm 220mm X 26 mm 180x180 x 26 mm 220 x220x26mm Polycarbonate Diffused 140V - 270V 50 HZ ( Performance declared at 240V / 50Hz) Diffused Surface Mounted ( RCC / Plaster ) White / Black* in Q4 2017 220 mm 220mm Dia 180 mm 180mm Dia 220 mm 180 mm

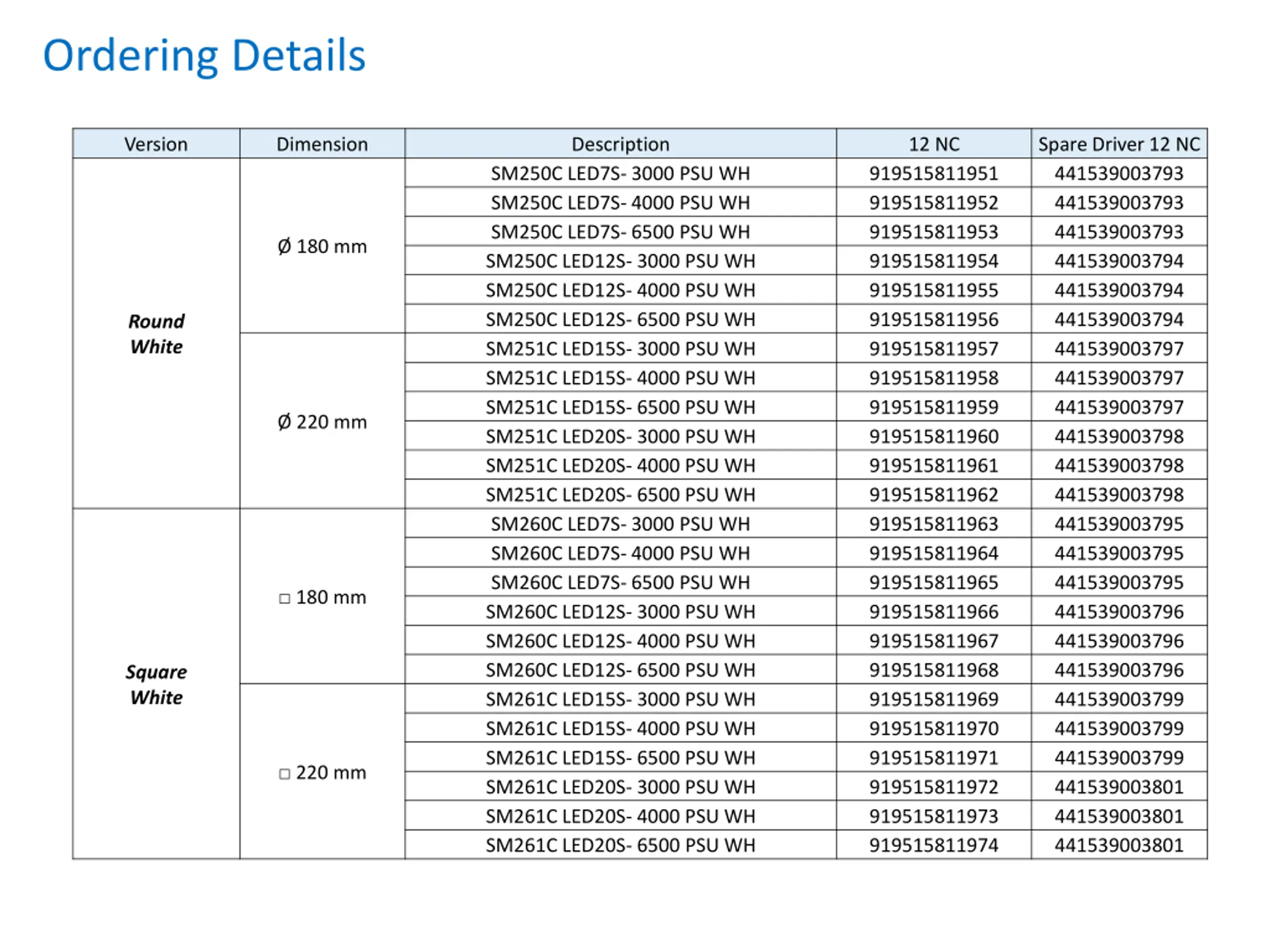

  5. Ordering Details Version Dimension Description 12 NC Spare Driver 12 NC 441539003793 441539003793 441539003793 441539003794 441539003794 441539003794 441539003797 441539003797 441539003797 441539003798 441539003798 441539003798 441539003795 441539003795 441539003795 441539003796 441539003796 441539003796 441539003799 441539003799 441539003799 441539003801 441539003801 441539003801 SM250C LED7S- 3000 PSU WH SM250C LED7S- 4000 PSU WH SM250C LED7S- 6500 PSU WH SM250C LED12S- 3000 PSU WH SM250C LED12S- 4000 PSU WH SM250C LED12S- 6500 PSU WH SM251C LED15S- 3000 PSU WH SM251C LED15S- 4000 PSU WH SM251C LED15S- 6500 PSU WH SM251C LED20S- 3000 PSU WH SM251C LED20S- 4000 PSU WH SM251C LED20S- 6500 PSU WH SM260C LED7S- 3000 PSU WH SM260C LED7S- 4000 PSU WH SM260C LED7S- 6500 PSU WH SM260C LED12S- 3000 PSU WH SM260C LED12S- 4000 PSU WH SM260C LED12S- 6500 PSU WH SM261C LED15S- 3000 PSU WH SM261C LED15S- 4000 PSU WH SM261C LED15S- 6500 PSU WH SM261C LED20S- 3000 PSU WH SM261C LED20S- 4000 PSU WH SM261C LED20S- 6500 PSU WH 919515811951 919515811952 919515811953 919515811954 919515811955 919515811956 919515811957 919515811958 919515811959 919515811960 919515811961 919515811962 919515811963 919515811964 919515811965 919515811966 919515811967 919515811968 919515811969 919515811970 919515811971 919515811972 919515811973 919515811974 180 mm Round White 220 mm 180 mm Square White 220 mm

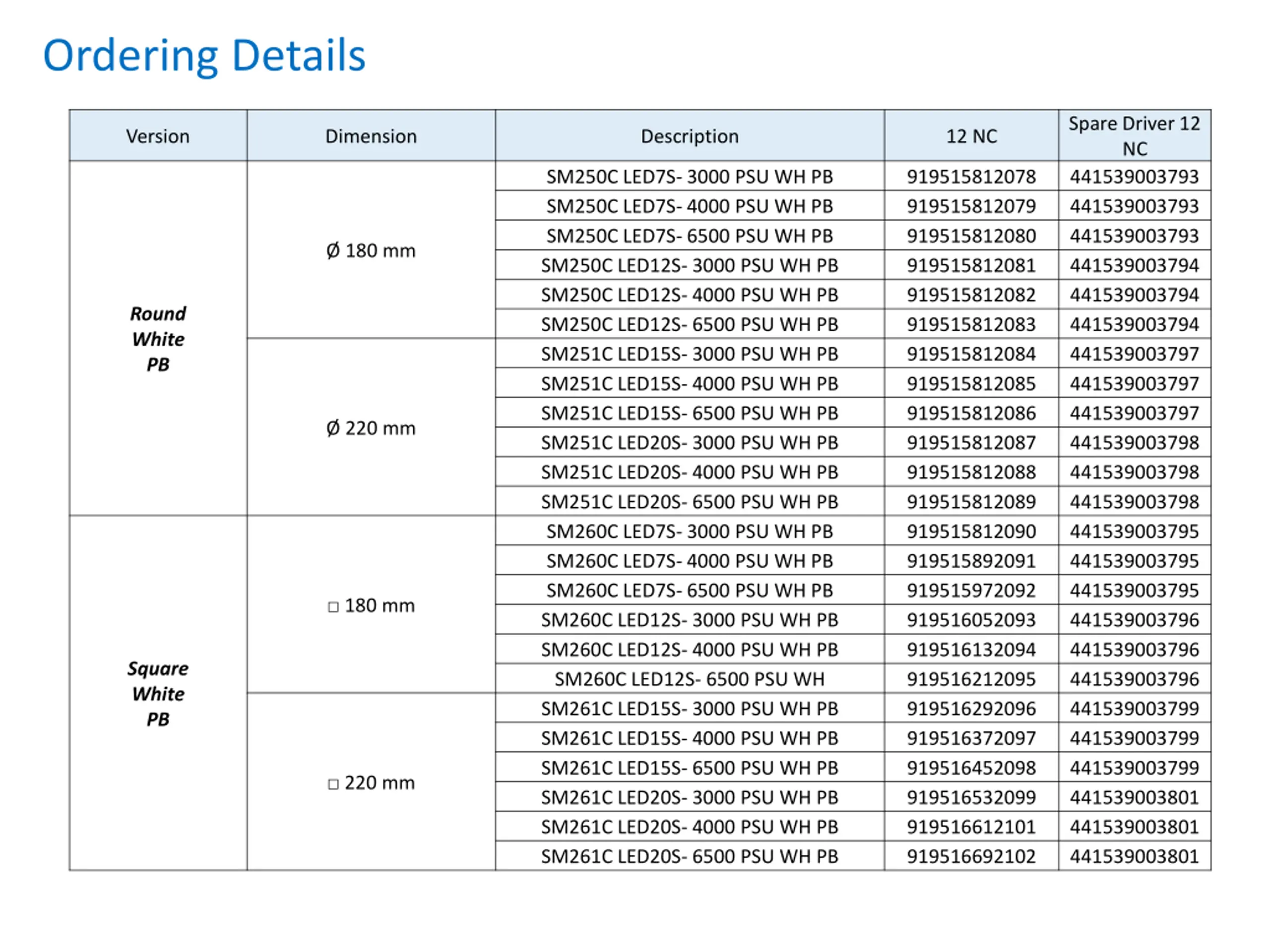

  6. Ordering Details Spare Driver 12 NC 441539003793 441539003793 441539003793 441539003794 441539003794 441539003794 441539003797 441539003797 441539003797 441539003798 441539003798 441539003798 441539003795 441539003795 441539003795 441539003796 441539003796 441539003796 441539003799 441539003799 441539003799 441539003801 441539003801 441539003801 Version Dimension Description 12 NC SM250C LED7S- 3000 PSU WH PB SM250C LED7S- 4000 PSU WH PB SM250C LED7S- 6500 PSU WH PB SM250C LED12S- 3000 PSU WH PB SM250C LED12S- 4000 PSU WH PB SM250C LED12S- 6500 PSU WH PB SM251C LED15S- 3000 PSU WH PB SM251C LED15S- 4000 PSU WH PB SM251C LED15S- 6500 PSU WH PB SM251C LED20S- 3000 PSU WH PB SM251C LED20S- 4000 PSU WH PB SM251C LED20S- 6500 PSU WH PB SM260C LED7S- 3000 PSU WH PB SM260C LED7S- 4000 PSU WH PB SM260C LED7S- 6500 PSU WH PB SM260C LED12S- 3000 PSU WH PB SM260C LED12S- 4000 PSU WH PB SM260C LED12S- 6500 PSU WH SM261C LED15S- 3000 PSU WH PB SM261C LED15S- 4000 PSU WH PB SM261C LED15S- 6500 PSU WH PB SM261C LED20S- 3000 PSU WH PB SM261C LED20S- 4000 PSU WH PB SM261C LED20S- 6500 PSU WH PB 919515812078 919515812079 919515812080 919515812081 919515812082 919515812083 919515812084 919515812085 919515812086 919515812087 919515812088 919515812089 919515812090 919515892091 919515972092 919516052093 919516132094 919516212095 919516292096 919516372097 919516452098 919516532099 919516612101 919516692102 180 mm Round White PB 220 mm 180 mm Square White PB 220 mm

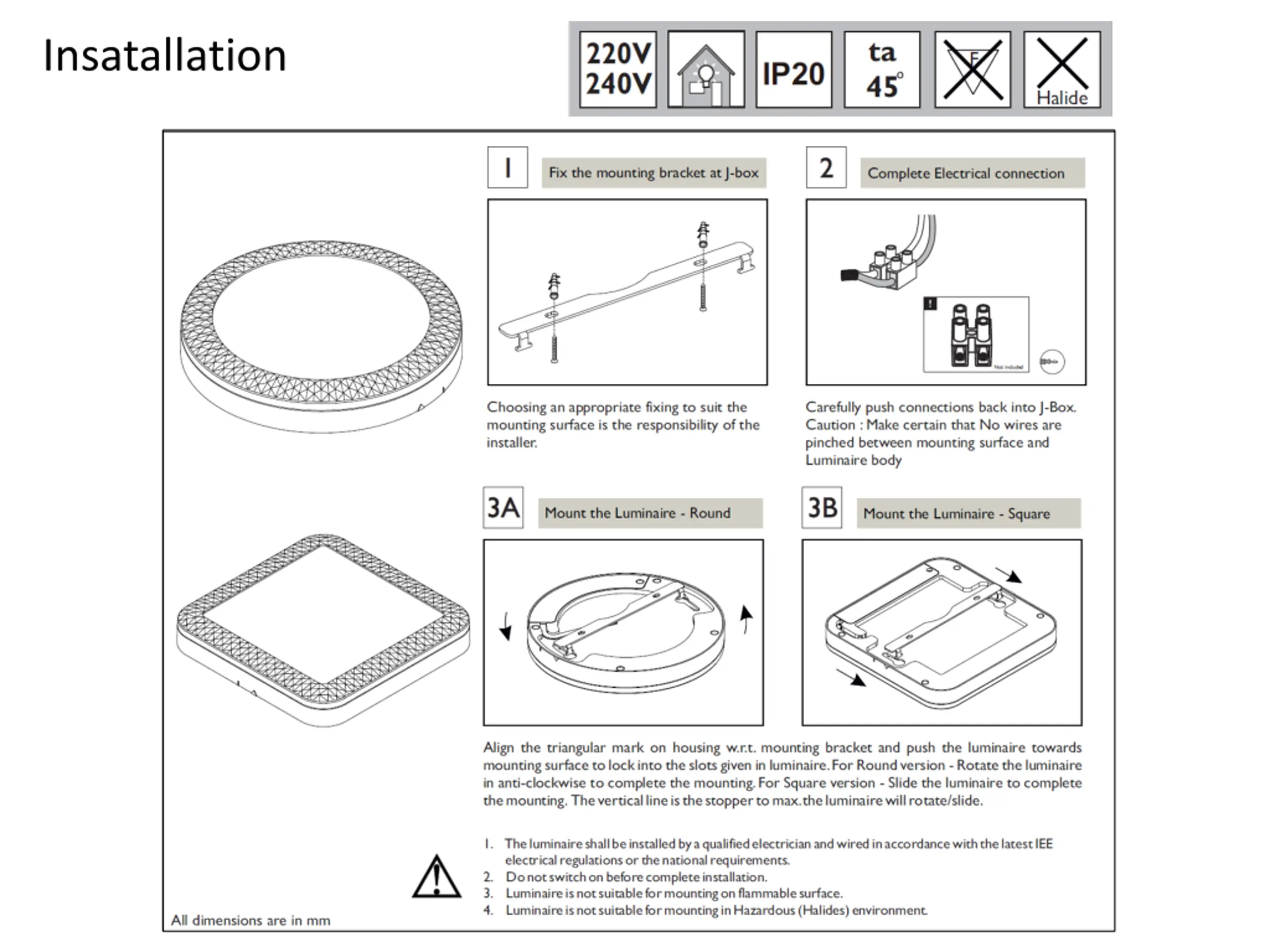

  7. Insatallation
