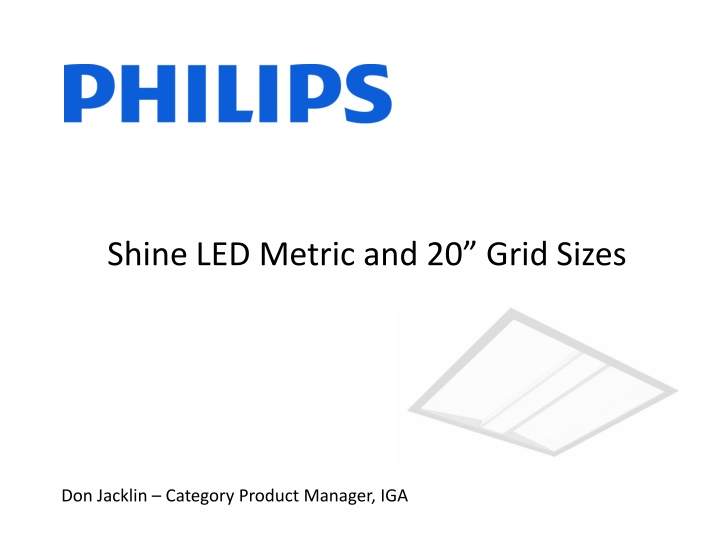

Shine LED Metric and 20” Grid Sizes
Don Jacklin – Category Product Manager, IGA
•
Family overview:
–
A family of fully luminous fixtures, Shine LED recessed is
a highly efficacious and economical solution for any
recessed lighting and energy challenge utilizing metric or
5’ ceiling grid
Overview
•
4 sizes:
600mm x 600mm
600mm x 1200mm
20”x2’
20’x4’ *
*Optional filler panel kits to fit 20”x60” grid space
For standard 2x4, 1x4, and 2x2 sizes, use ClearAppeal or VersaForm
•
4 lumen packages:
–
600mmx600mm and 20”x2’: 3000 and 4000lm
–
600mmx1200mm and 20”x4’: 4000, 5200, 6800lm
•
3 color temps: 3000K, 3500K, 4000K
•
Standard 1% dimming drivers: 0-10V Advance Xitanium
•
Optional Daylight Response sensors and Actilume Daylight/Occ sensors
•
Optional 6’ flex whips and battery pack also available
Product Details
•
LED boards and drivers field replaceable, if required, via side lens cavity
•
Philips Slim platform boards yielding efficacies as high as 119lm/W
•
Lead times (CSO):
–
C – CSO = 6 weeks from released order
–
Optional 10-day QuickShip available upon request (note: certain exceptions and
limitations apply. Refer to
http://www.ledalite.com/files/downloads/QuickShip_Products.pdf
for more
information)
•
Standard 5 year warranty: luminaire, LEDs, driver
Product Details Con’t
Support Material
For additional support material including:
•
Spec sheets
•
ies files
•
Product Images
•
Application images
•
Install instructions
visit…
www.lightingproducts.philips.com/our-brands/ledalite/shine-recessed
www.ledalite.com/products/shine/recessed
Shine LED recessed Metric and 20”
Don Jacklin
Don.Jacklin@philips.com
(604.649.0563)
Questions?
