Set and Map in C++ with Examples

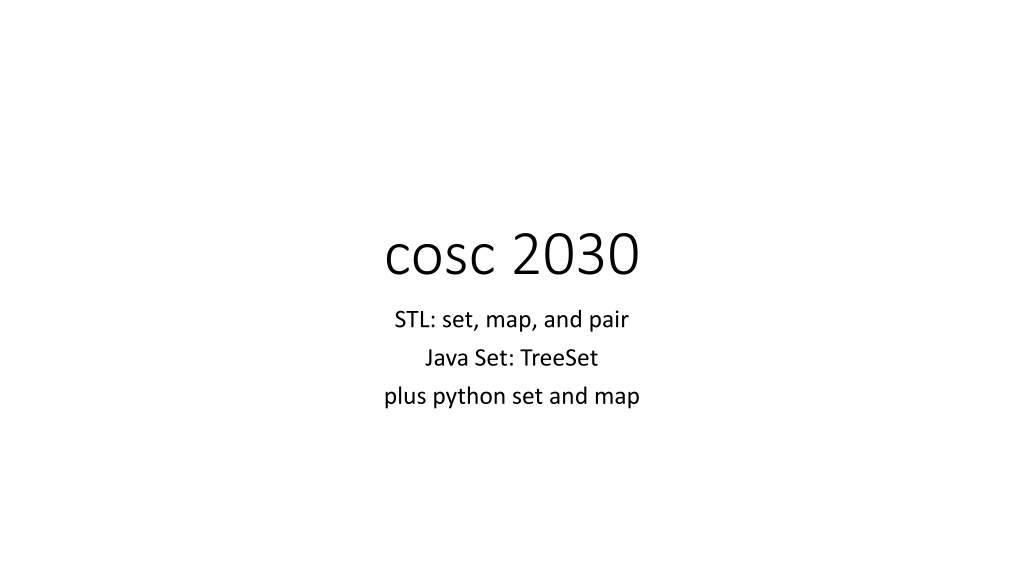

cosc 2030

STL: set, map, and pair

Java Set: TreeSet

plus python set and map

std:set

•

sets are containers that store unique elements following a specific

order.

•

maps are normally implemented as binary search trees, specifically Red-Black

trees

•

But NOT required.  So not all implementations are trees.

•

There is also a multiset, that doesn't require unique elements.

•

otherwise everything works the same.

set usage.

•

include <set>

•

operations:

•

constructor:

•

std::set<int> myset;

•

bool empty() and clear()

•

myset.empty();

•

size_type size()

•

basically int size, but more specific more other data structures.

•

myset.size();

•

iterator insert ( value)

•

myset.insert(10);

•

iterator find(value)

•

iterator myset.find(10);

set usage (2)

•

iterators and the find

•

so if declared

•

set<string>

•

then

•

set<string>:: iterator it;

•

it = dict.insert(word);

•

find sets the iterator to end if false.

•

it = dict.find(word);

•

if (it != dict.end)  //found.

set example code.

#include <iostream>

#include <set>

using namespace std;

// set store only the keys and unique keys

int main () {

  set<int> myset;

  set<int>:: iterator it;

  for (int i=0; i<5; ++i) myset.insert(i);

  std::cout << "elements: ";

  for (it=myset.begin(); it!=myset.end(); ++it)

     cout << ' ' << *it;

  cout << endl;

  it = myset.find(2);

  cout <<" find of 2 is "<<*it<<endl;

it = myset.find(2);

  cout <<" find of 2 is "<<*it<<endl;

  it = myset.find(20);

  if (it == myset.end())

    cout <<" find of 20 is end marker\n";

  myset.erase(1);

  it = myset.find(3);

  if (it != myset.end())

    myset.erase(it);

  std::cout << "elements now: ";

  for (it=myset.begin(); it!=myset.end(); ++it)

     cout << ' ' << *it;

  cout << endl;  return 0;

output:

elements:  0 1 2 3 4

 find of 2 is 2

 find of 20 is end marker

elements now:  0 2 4

std:map

•

Maps are associative containers that store elements formed by a

combination of a key value and a mapped value, following a specific

order.

•

ie it requires a pair

•

pair<KEY, value>

•

example

•

pair<string,int>

•

like maps, normally implemented as Red-Black trees, but this is not

required.

map usage.

•

include <map>

•

operations:

•

constructor:

•

std::map<char, int> mymap;  //where char is the key, and int is the value.

•

bool empty() and clear()

•

mymap.empty();

•

size_type size()

•

basically int size, but more specific more other data structures.

•

mymap.size();

•

iterator insert ( pair value)

•

mymap.insert(pair<char,int>('d', 4));

•

iterator find(value)

•

iterator mymap.find('b');

map usage (2)

•

like the set, the iterator is actually a pair value.

•

so  map<char,int> mymap;

•

needs   map<char,int>:: iterator it;

•

But map (unlike set) has [] operators

•

so we can use array style code

•

mymap['a'] = 12;

example code

#include <iostream>

#include <map>

using namespace std;

int main ()  {

  map<char,int> mymap;

  map<char,int>:: iterator it;

  mymap['a'] = 1;

  mymap['b'] = 2;

  mymap['c'] = 3;

  mymap.insert(pair<char,int>('d', 4));

  mymap['b'] = 5;

  std::cout << "elements: \n";

  for (it=mymap.begin(); it!=mymap.end(); ++it)

     cout << it->first<<": "<<it->second<<endl;

 it = mymap.find('b');

  cout <<"find of b is "<<it->second<<endl;

  it = mymap.find('e');

  if (it == mymap.end())

    cout <<"find of e is end marker\n";

  mymap.erase('a');

  it = mymap.find('b');

  mymap.erase(it);

  std::cout << "elements now: \n";

  for (it=mymap.begin(); it!=mymap.end(); ++it)

     cout << it->first<<": "<<it->second<<endl;

  return 0;

output:

elements:

a: 1

b: 5

c: 3

d: 4

find of b is 5

find of e is end marker

elements now:

c: 3

d: 4

Java Collection

•

Previous

•

List and Queue

•

This time is the TreeSet and

TreeMap.

TreeSet

•

Contains only unique elements

•

doesn't allow for a null element.

•

maintains ascending order

•

CompareTo function is  required if use your own object.

•

access and retrieval times are pretty fast, as you would expect.

•

treeSet is not thread safe

•

use Collections.synchronizedSet( ) for thread safety.

•

Internal

•

it's a binary search tree, implemented self-balancing by requirements.

Normally implemented as a Red-Black tree.

TreeSet (2)

•

standard methods

•

add(object), addall( objects), contains(object), isEmpty(), remove (object), clear(),

size()

•

specific to TreeSet

•

first(), pollFirst()  returns the first (lowest) element in the sorted set

•

left most node.

•

last(), pollLast() returns the last (highest) element in the sorted set.

•

right most node.

•

Lower( object) return the closet least element in the sorted set or null if there is

nothing smaller

•

higher( object) returns the closet greater element in the sorted set or null if there is

nothing higher.

•

You can also returns the subset(object1, object2),  all object greater then

tailSet(object), and all object less then  headSet(object).

TreeSet code

TreeSet<String> myTree=new TreeSet<String>();

myTree.add("Jim");

myTree.add("Fred");

myTree.add("Jake");

myTree.first();  //returns Fred

myTree.last(); //returns Jim

myTree.contains("Allyson"); //returns false.

Java TreeMap

•

a TreeMap is the same idea as a TreeSet, except it a key value map

•

the key is then used for sorting.  using the Map.Entry<key, value>

•

code:

TreeMap<Integer,String> map=new TreeMap<Integer,String>();

map.put(100,"Jim");

map.put(102,"Fred");

map.pollFirstEntry(); //returns the Map.Entry<100, "Jim">

map.containsKey("100"); //returns true

map.containsValue("Allyson"); //return false

python

•

It has a set

•

also includes a data type for

sets

. A set is an unordered collection with no

duplicate elements.

•

which implemented as a hash

•

not to be confused with dictionary variable.

•

you can install a ordered-set (from PyPi)

•

but actually be a double linked list on top of a dictionary, instead of a tree.

•

https://pypi.org/project/ordered-set/

•

There does not appear to a c++ style map function in python.

numbers = {

# using add() method

numbers.add(

print

'Updated Set:'

, numbers)

output: {32, 34, 12, 21, 54}
