Presentation Transcript

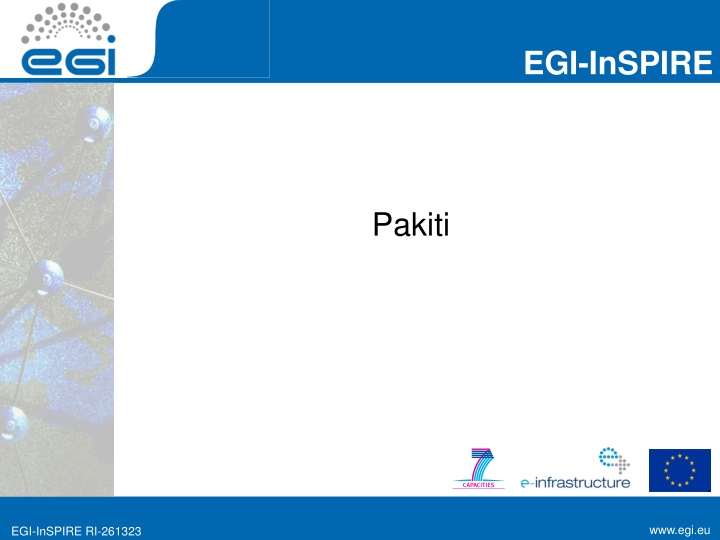

EGI-InSPIRE Pakiti www.egi.eu www.egi.eu EGI-InSPIRE RI-261323 EGI-InSPIRE RI-261323
Pakiti Overview Patch monitoring Unpatched vulnerabilities present severe security threat Client - server architecture In production use by EGI CSIRT Nagios probe against WNs https://pakiti.egi.eu/ Development by EGI CSIRT www.egi.eu EGI-InSPIRE RI-261323
Utilization in EGI www.egi.eu EGI-InSPIRE RI-261323
Excerise Install your own Pakiti server Collect report from a node Identify unpatched vulnerabilities www.egi.eu EGI-InSPIRE RI-261323
Installation steps Installation of server package Configuration of Apache Configuration of MySQL Configuration of Pakiti server Using Pakiti client www.egi.eu EGI-InSPIRE RI-261323
Server package RPM from EGI AppDB 1. rpm --import http://pgp.mit.edu/pks/lookup?op=get&sear ch=0x930D2233A28C25A6 2. wget -O /etc/yum.repos.d/pakiti.repo http://repository.egi.eu/community/software/ pakiti/pakiti2/releases/repofiles/sl-6- i386.repo 3. yum update 4. yum install pakiti2-server www.egi.eu EGI-InSPIRE RI-261323
Apache Configuration Enable https and Pakiti virtual host 1. Remove default https virtual host /etc/httpd/conf.d/ssl.conf 2. Copy Pakiti definition cp /usr/share/doc/pakiti2-server- 2.1.6/pakiti2.apache2 /etc/httpd/conf.d/pakiti2.conf 3. Adapt to your preferred authN system 4. Check firewall configuration www.egi.eu EGI-InSPIRE RI-261323
MySQL Create Pakiti database and MySQL user: 1. CREATE DATABASE pakiti; 2. CREATE USER 'pakiti'@'localhost' IDENTIFIED BY 'really_random_password'; 3. GRANT ALL PRIVILEGES ON pakiti.* to 'pakiti'@'localhost' ; 4. FLUSH PRIVILEGES; Create schema: 1. cd /usr/share/doc/pakiti2-server-2.1.6/ 2. mysql -D pakiti -u pakiti -p < pakiti2.sql www.egi.eu EGI-InSPIRE RI-261323
Pakiti server Update mysql password/username: 1. /etc/pakiti2/pakiti2-server.conf Browse to https://server/ and adapt Settings (top right) 1. http://www.redhat.com/security/data/oval/co m.redhat.rhsa-2014.xml 2. Release 4,5,6 www.egi.eu EGI-InSPIRE RI-261323
Server configuration www.egi.eu EGI-InSPIRE RI-261323
Putting it together Install Pakiti client 1. yum install pakiti2-client-manual Configure the client /usr/share/doc/pakiti2-client-manual- 2.1.6/pakiti2-client 1. SERVERS="localhost:443 2. #CA_PATH="/etc/ssl/certs/" Run the client and check the results www.egi.eu EGI-InSPIRE RI-261323
EGI-InSPIRE Central Log Collecting www.egi.eu www.egi.eu EGI-InSPIRE RI-261323 EGI-InSPIRE RI-261323
Motivation Logs can point to an attack and vector Attackers wipe logs once they have root access Having logs stored locally doesn t scale A single point where to analyse data Local logs are not trustworthy www.egi.eu EGI-InSPIRE RI-261323
Solutions syslog, former default logging system replaced by rsyslog (syslog clients can send to rsyslog) syslog-ng (OSE and Premium Edition, additional plugins under proprietary license) Commercial solutions splunk (volume based licensing/can get expensive) www.egi.eu EGI-InSPIRE RI-261323
Rsyslog Server Decide whether secure channel is required TLS is supported Decide what directory structure is needed Make sure you have free space on storage Enable monitoring of the server Rsyslog is well documented www.egi.eu EGI-InSPIRE RI-261323
Rsyslog client Decide what message to send out Find out security requirements 1. $DefaultNetstreamDriverCAFile /etc/ssl/certs/AddTrust_External_Root.pem 2. $DefaultNetstreamDriver gtls 3. $ActionSendStreamDriverMode 1 4. $ActionSendStreamDriverAuthMode x509/certvalid # server is NOT authenticated 5. *.* @@(o)147.251.252.199:10514 www.egi.eu EGI-InSPIRE RI-261323
Processing Collected Data Usual tools like grep, etc. Files are available from /var/log/remote-hosts More volumes data needs advanced tools Indexing, filtering ElasticSearch, Kibana Processing logs using cloud tools http://home.zcu.cz/~bodik/metasw/esbegitf/ www.egi.eu EGI-InSPIRE RI-261323
Kibana www.egi.eu EGI-InSPIRE RI-261323
Excercise Configure your client to log remotely 147.251.252.199 is provided as a VO server Check the log contents Files ssh cf@147.251.252.199 /var/log/remote-hosts Kibana: http://147.251.252.199/kibana3/index.html#/dash board/file/logstashesb.json www.egi.eu EGI-InSPIRE RI-261323
