Explore the compatibility of Samsung Electronics LED MR16 lamps with transformers in the EU region. The list includes non-dimmable MR16 lamps in 3.2W, 5.0W, 7.0W variants, along with essential specifications and transformer compatibility details. Dimmable options for 7.0W MR16 lamps are also highlighted. Discover the transformer compatibility for each power rating, operating voltage, and frequency. Note that Samsung LED MR16 lamps are not suitable for use with dimmers or dimming systems.

ale_viz
ale_viz Follow

Uploaded on Sep 24, 2024 | 0 Views

Download Presentation

Please find below an Image/Link to download the presentation.

The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.

E N D

Presentation Transcript

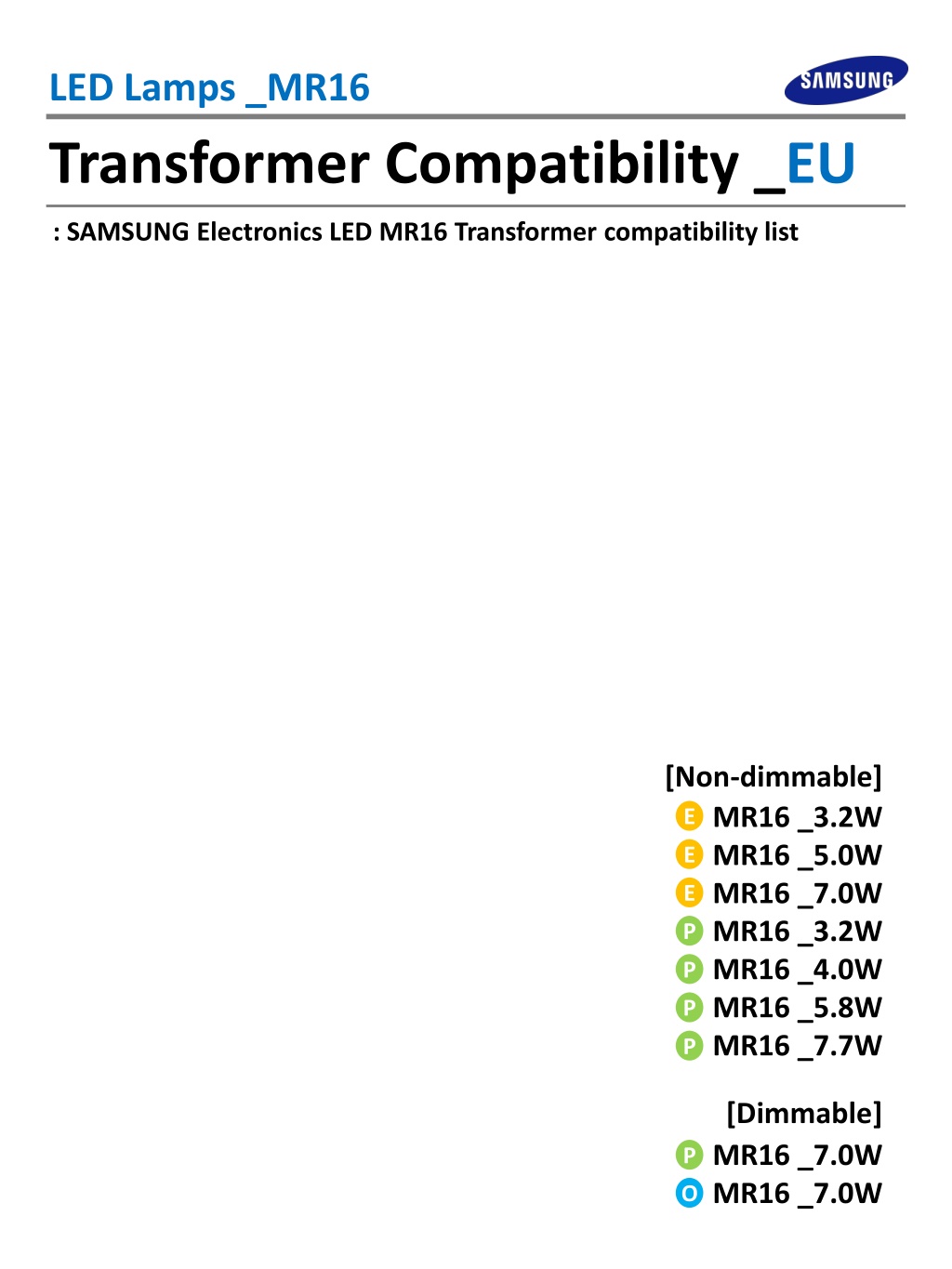

  1. LED Lamps _MR16 Transformer Compatibility _EU : SAMSUNG Electronics LED MR16 Transformer compatibility list [Non-dimmable] MR16 _3.2W MR16 _5.0W MR16 _7.0W MR16 _3.2W MR16 _4.0W MR16 _5.8W MR16 _7.7W P E E E P P P [Dimmable] MR16 _7.0W MR16 _7.0W P O

  2. Transformer Compatibility [EU] _11 Sep 2012 Essential Range SAMSUNG ELECTRONICS LED Lamp MR16 _3.2W MR16 _3.2W (20W Equivalent) Product Code SI-M8W04SAB0EU SI-M8W04SAD0EU Bar Code 8806085166752 8806085166769 Specification 210lm / 3.2W / 25D / 2700K / GU5.3 210lm / 3.2W / 40D / 2700K / GU5.3 Samsung LED MR16_3.2W Lamps are not for use with dimmers or dimming systems. Transformer Compatibility Region/ CountryNo EUR 1 Manufacture and Part Number Power rating (W) Operating voltage (V) Frequency (Hz) OSRAM/ET-Z 60 220-240V 20~60 220~240 50/60 EUR 2 OSRAM/HALOTRONIC HTM 70/ 230-240V 20~70 230~240 50/60 EUR 3 OSRAM/HALOTRONIC HTM 105/ 230-240V 35~105 230~240 50/60 EUR 4 OSRAM/ET-PARROT 105 220-240V 35~105 220~240 50/60 EUR 5 PHILIPS Primaline 105 230-240V 50~105 230~240 50/60 EUR 6 TRIDONIC.ATOO/TMDD 105 50~105 230~240 50/60 EUR 7 HATCH/ RS 12-80BF-277 277V 50/60Hz 80 277 50/60 EUR 8 ABB 50-230/12 KXG 50 230 50/60 EUR 9 HEP TB60M 230 10-60W 10~60 230 50/60 EUR 10 Conrad 574222 10-60W 50-60Hz 10~60 220~240 50/60 EUR 11 Conrad 574223 10-60W 50-60Hz 10~60 220~240 50/60 EUR 12 PHILIPS_ET-E 60 20~60 220~240 50/60

  3. Transformer Compatibility [EU] _11 Sep 2012 Essential Range SAMSUNG ELECTRONICS LED Lamp MR16 _5.0W MR16 _5.0W (35W Equivalent) Product Code SI-M8W06SAB0EU SI-M8W06SAD0EU Bar Code 8806085166837 8806085166790 Specification 310lm / 5.0W / 25D / 2700K / GU5.3 310lm / 5.0W / 40D / 2700K / GU5.3 Samsung LED MR16_5.0W Lamps are not for use with dimmers or dimming systems. Transformer Compatibility Region/ CountryNo EUR 1 Manufacture and Part Number Power rating (W) Operating voltage (V) Frequency (Hz) OSRAM/ET-Z 60 220-240V 20~60 220~240 50/60 EUR 2 OSRAM/HALOTRONIC HTM 70/ 230-240V 20~70 230~240 50/60 EUR 3 OSRAM/HALOTRONIC HTM 105/ 230-240V 35~105 230~240 50/60 EUR 4 OSRAM/ET-PARROT 105 220-240V 35~105 220~240 50/60 EUR 5 PHILIPS Primaline 105 230-240V 50~105 230~240 50/60 EUR 6 TRIDONIC.ATOO/TMDD 105 50~105 230~240 50/60 EUR 7 HATCH/ RS 12-80BF-277 277V 50/60Hz 80 277 50/60 EUR 8 ABB 50-230/12 KXG 50 230 50/60 EUR 9 HEP TB60M 230 10-60W 10~60 230 50/60 EUR 10 Conrad 574222 10-60W 50-60Hz 10~60 220~240 50/60 EUR 11 Conrad 574223 10-60W 50-60Hz 10~60 220~240 50/60 EUR 12 PHILIPS_ET-E 60 20~60 220~240 50/60

  4. Transformer Compatibility [EU] _30 Jan 2013 Essential Range SAMSUNG ELECTRONICS LED Lamp MR16 _7.0W MR16 _7.0W (40W Equivalent) Product Code SI-M8W07SAB0EU SI-M8W07SAD0EU Bar Code 8806085470804 8806085470798 Specification 420lm / 7.0W / 25D / 2700K / GU5.3 420lm / 7.0W / 40D / 2700K / GU5.3 Samsung LED MR16_7.0W Lamps are not for use with dimmers or dimming systems. Transformer Compatibility Region/ CountryNo Manufacture and Part Number Power rating (W) Operating voltage (V) Frequency (Hz) EU 1 OSRAM/HALOTRONIC HTM 70/ 230-240V 20~70 230~240 50/60 EU 2 OSRAM/ET-PARROT 105 220-240V 35~105 220~240 50/60 EU 3 PHILIPS Primaline 70 230-240V 20~70 230~240 50/60 EU 4 PHILIPS Primaline 105 230-240V 50~105 230~240 50/60 EU 5 TRIDONIC.ATOO/TMDD 105 50~105 230~240 50/60 EU 6 HATCH/ RS 12-80BF-277 277V 50/60Hz 80 277 50/60 EU 7 ABB 50-230/12 KXG 50 230 50/60 EU 8 Philips ET-S 60 220-240 20~60 230~240 50/60 EU 9 Conrad 574222 10-60W 50-60Hz 10~60 230 50/60 EU 10 Conrad 574223 10-60W 50-60Hz 10~60 230~240 50/60 EU 11 15 220~240 50/60 Conrad SLT15-12VF-1 1-15W 50-60Hz 220-240V 12VDC EU 12 PHILIPS_ET-E 60 20~60 220~240 50/60 EU 13 PHILIPS ET-E 105 220-240V 50~105 220~240 50/60

  5. Transformer Compatibility [EU] _05 Feb 2013 Performer Range SAMSUNG ELECTRONICS LED Lamp MR16 _3.2W MR16 _3.2W (20W Equivalent) Product Code SI-M8W042AB1EU SI-M8W042AD1EU SI-M8V042AB1EU SI-M8V042AD1EU Bar Code 8806085465107 8806085465084 8806085464988 8806085464902 Specification 210lm / 3.2W / 25D / 2700K / GU5.3 210lm / 3.2W / 40D / 2700K / GU5.3 220lm / 3.2W / 25D / 3000K / GU5.3 220lm / 3.2W / 40D / 3000K / GU5.3 Samsung LED MR16_3.2W Lamps are not for use with dimmers or dimming systems. Transformer Compatibility Region/ CountryNo EU 1 Manufacture and Part Number Power rating (W) Operating voltage (V) Frequency (Hz) OSRAM/ET-Z 60 220-240V 20~60 220~240 50/60 EU 2 OSRAM/HALOTRONIC HTM 70/ 230-240V 20~70 230~240 50/60 EU 3 OSRAM/HALOTRONIC HTM 105/ 230-240V 35~105 230~240 50/60 EU 4 OSRAM/ET-PARROT 105 220-240V 35~105 220~240 50/60 EU 5 PHILIPS Primaline 105 230-240V 50~105 230~240 50/60 EU 6 TRIDONIC.ATOO/TMDD 105 50~105 230~240 50/60 EU 7 HATCH/ RS 12-80BF-277 277V 50/60Hz 80 277 50/60 EU 8 ABB 50-230/12 KXG 50 230 50/60 EU 9 HEP TB60M 230 10-60W 10~60 230 50/60 EU 10 Conrad 574222 10-60W 50-60Hz 10~60 220~240 50/60 EU 11 Conrad 574223 10-60W 50-60Hz 10~60 220~240 50/60 EU 12 PHILIPS_ET-E 60 20~60 220~240 50/60

  6. Transformer Compatibility [EU] _11 Sep 2012 Performer Range SAMSUNG ELECTRONICS LED Lamp MR16 _4.0W MR16 _4.0W (20W Equivalent) Product Code SI-M8W041AB1EU SI-M8W041AD1EU SI-M8V041AB1EU SI-M8V041AD1EU Bar Code 8809296768050 8809296768067 8809296768074 8809296768081 Specification 200lm / 4.0W / 25D / 2700K / GU5.3 200lm / 4.0W / 40D / 2700K / GU5.3 200lm / 4.0W / 25D / 3000K / GU5.3 200lm / 4.0W / 40D / 3000K / GU5.3 Samsung LED MR16_4.0W Lamps are not for use with dimmers or dimming systems. Transformer Compatibility Region/ CountryNo EUR 1 OSRAM / HALOTRONIC HTM 105/ 230-240V Manufacture and Part Number Power rating (W) Operating voltage (V) Frequency (Hz) 35~105 220~240 50/60 EUR 2 HATCH / RS12-80M 80 120 50/60 EUR 3 LIGHTECH / E164062 75 120 60 EUR 4 TRIDONIC.ATOO / TMDD 105 50~105 220~240 50/60 EUR 5 HATCH / RS 12-80BF-277 80 277 50/60 EUR 6 PHILIPS / ET-S60 20~60 220~240 50/60

  7. Transformer Compatibility [EU] _11 Sep 2012 Performer Range SAMSUNG ELECTRONICS LED Lamp MR16 _5.8W MR16 _5.8W (35W Equivalent) Product Code SI-M8W062AB1EU SI-M8W062AD1EU SI-M8V062AB1EU SI-M8V062AD1EU SI-M8T062AB1EU SI-M8T062AD1EU Bar Code 8809296761051 8809296763253 8809296761068 8809296763260 8809296763123 8809296763154 Specification 350lm / 5.8W / 25D / 2700K / GU5.3 350lm / 5.8W / 40D / 2700K / GU5.3 370lm / 5.8W / 25D / 3000K / GU5.3 370lm / 5.8W / 40D / 3000K / GU5.3 390lm / 5.8W / 25D / 4000K / GU5.3 390lm / 5.8W / 40D / 4000K / GU5.3 Samsung LED MR16_5.8W Lamps are not for use with dimmers or dimming systems. Transformer Compatibility Region/ CountryNo EUR 1 Manufacture and Part Number Power rating (W) Operating voltage (V) Frequency (Hz) OSRAM / ET-Z 60/220-240 20~60 220~240 50/60 EUR 2 ABB 50-230/12 KXG 50 230 50/60 EUR 3 HATCH 277V 60 277 50/60 EUR 4 TRIDONIC.ATOO 50~105 230~240 50/60 EUR 5 OSRAM HALOTRONIC HTM 35-105W 35~105 230~240 50/60 EUR 6 PHILIPS_Primaline 35-105W 35~105 230~240 50/60 EUR 7 OSRAM HALOTRONIC HTM 20-70W 20~70 230~240 50/60 EUR 8 Philips ET-S 60 220-240 20~60 230~240 50/60 EUR 9 OSRAM/ET-PARROT 105 220-240V 35~105 220~240 50/60

  8. Transformer Compatibility [EU] _11 Sep 2012 Performer Range SAMSUNG ELECTRONICS LED Lamp MR16 _7.7W MR16 _7.7W (50W Equivalent) Product Code SI-M8W082AB1EU SI-M8W082AD1EU SI-M8V082AB1EU SI-M8V082AD1EU Bar Code 8809296761587 8809296762294 8809296761594 8809296762287 Specification 420lm / 7.7W / 25D / 2700K / GU5.3 420lm / 7.7W / 40D / 2700K / GU5.3 480lm / 7.7W / 25D / 3000K / GU5.3 480lm / 7.7W / 40D / 3000K / GU5.3 Samsung LED MR16_7.7W Lamps are not for use with dimmers or dimming systems. Transformer Compatibility Region/ CountryNo EUR 1 Manufacture and Part Number Power rating (W) Operating voltage (V) Frequency (Hz) OSRAM/ET-Z 60 220-240V 20~60 220~240 50/60 EUR 2 OSRAM/HALOTRONIC HTM 70/ 230-240V 20~70 230~240 50/60 EUR 3 OSRAM/HALOTRONIC HTM 105/ 230-240V 35~105 230~240 50/60 EUR 4 OSRAM/ET-PARROT 105 220-240V 35~105 220~240 50/60 EUR 5 PHILIPS Primaline 70 230-240V 20~70 230~240 50/60 EUR 6 PHILIPS Primaline 105 230-240V 50~105 230~240 50/60 EUR 7 TRIDONIC.ATOO/TMDD 105 50~105 230~240 50/60 EUR 8 HATCH/ RS 12-80BF-277 277V 50/60Hz 80 277 50/60

  9. Transformer Compatibility [EU] _02 Mar 2013 Performer Range SAMSUNG ELECTRONICS LED Lamp MR16 _7.0W MR16 _7.0W (35W Equivalent) Product Code SI-M8W085AB1EU SI-M8W085AD1EU SI-M8V085AB1EU SI-M8V085AD1EU SI-M8T085AB1EU SI-M8T085AD1EU Bar Code 8806085460751 8806085460768 8806085460775 8806085460782 8806085460799 8806085460812 Specification 350lm / 7.0W / 25D / 2700K / GU5.3 350lm / 7.0W / 40D / 2700K / GU5.3 370lm / 7.0W / 25D / 3000K / GU5.3 370lm / 7.0W / 40D / 3000K / GU5.3 390lm / 7.0W / 25D / 4000K / GU5.3 390lm / 7.0W / 40D / 4000K / GU5.3 For dimming system, please check dimmer compatibility list of MR16_7.0W. Transformer Compatibility Region/ CountryNo Manufacture and Part Number Power rating (W) Operating voltage (V) Frequency (Hz) EU 1 OSRAM/ET-Z 60 220-240V 20~60 220~240 50/60 EU 2 OSRAM/HALOTRONIC HTM 70/ 230-240V 20~70 230~240 50/60 EU 3 OSRAM/HALOTRONIC HTM 105/ 230-240V 35~105 230~240 50/60 EU 4 OSRAM/ET-PARROT 105 220-240V 35~105 220~240 50/60 EU 5 PHILIPS Primaline 70 230-240V 20~70 230~240 50/60 EU 6 PHILIPS Primaline 105 230-240V 50~105 230~240 50/60 EU 7 TRIDONIC.ATOO/TMDD 105 50~105 230~240 50/60 EU 8 HATCH/ RS 12-80BF-277 277V 50/60Hz 80 277 50/60 EU 9 ABB 50-230/12 KXG 35~105 220~240 50/60 EU 10 Philips ET-S 60 220-240 60 220~240 50/60 EU 11 Conrad 574222 10-60W 50-60Hz 10~60 220~240 50/60 EU 12 Conrad 574223 10-60W 50-60Hz 10~60 220~240 50/60 EU 13 1~15 220~240 50/60 Conrad SLT15-12VF-1 1-15W 50-60Hz 220-240V 12VDC EU 14 PHILIPS_ET-E 60 20~60 220~240 50/60 EU 15 PHILIPS ET-E 105 220-240V 105 220~240 50/60

  10. Transformer Compatibility [EU] _02 Mar 2013 Optimum Range SAMSUNG ELECTRONICS LED Lamp MR16 _7.0W MR16 _7.0W (30W Equivalent) Product Code SI-M9W085AB1EU SI-M9W085AD1EU Bar Code 8806085460829 8806085460836 Specification 290lm / 7.0W / 25D / 2700K / GU5.3 290lm / 7.0W / 40D / 2700K / GU5.3 For dimming system, please check dimmer compatibility list of MR16_7.0W. Transformer Compatibility Region/ CountryNo Manufacture and Part Number Power rating (W) Operating voltage (V) Frequency (Hz) EU 1 OSRAM/ET-Z 60 220-240V 20~60 220~240 50/60 EU 2 OSRAM/HALOTRONIC HTM 70/ 230-240V 20~70 230~240 50/60 EU 3 OSRAM/HALOTRONIC HTM 105/ 230-240V 35~105 230~240 50/60 EU 4 OSRAM/ET-PARROT 105 220-240V 35~105 220~240 50/60 EU 5 PHILIPS Primaline 70 230-240V 20~70 230~240 50/60 EU 6 PHILIPS Primaline 105 230-240V 50~105 230~240 50/60 EU 7 TRIDONIC.ATOO/TMDD 105 50~105 230~240 50/60 EU 8 HATCH/ RS 12-80BF-277 277V 50/60Hz 80 277 50/60 EU 9 ABB 50-230/12 KXG 35~105 220~240 50/60 EU 10 Philips ET-S 60 220-240 60 220~240 50/60 EU 11 Conrad 574222 10-60W 50-60Hz 10~60 220~240 50/60 EU 12 Conrad 574223 10-60W 50-60Hz 10~60 220~240 50/60 EU 13 1~15 220~240 50/60 Conrad SLT15-12VF-1 1-15W 50-60Hz 220-240V 12VDC EU 14 PHILIPS_ET-E 60 20~60 220~240 50/60 EU 15 PHILIPS ET-E 105 220-240V 105 220~240 50/60

  11. LED Lamps _AR111 Transformer Compatibility _EU : SAMSUNG Electronics LED AR111 Transformer compatibility list [Dimmable] AR111 _15W P

  12. Transformer Compatibility [EU] _17 Apr 2013 Performer Range SAMSUNG ELECTRONICS LED Lamp AR111 _15W AR111 _15W (75W Equivalent) Product Code SI-P8W151HB1EU SI-P8W151HD1EU SI-P8T151HB1EU SI-P8T151HD1EU Bar Code 8806085470507 8806085470163 8806085470200 8806085470194 Specification 800lm / 15W / 25D / 2700K / G53 800lm / 15W / 40D / 2700K / G53 900lm / 15W / 25D / 4000K / G53 900lm / 15W / 40D / 4000K / G53 For dimming system, please check dimmer compatibility list of AR111_15W. Transformer Compatibility Region/ CountryNo Manufacture and Part Number Power rating (W) Operating voltage (V) Frequency (Hz) EU 1 OSRAM/ET-Z 60 220-240V 20~60 220~240 50/60 EU 2 OSRAM/HALOTRONIC HTM 70/ 230-240V 20~70 230~240 50/60 EU 3 OSRAM/ET-PARROT 105 220-240V 35~105 220~240 50/60 EU 4 PHILIPS Primaline 70 230-240V 20~70 230~240 50/60 EU 5 PHILIPS Primaline 105 230-240V 50~105 230~240 50/60 EU 6 TRIDONIC.ATOO/TMDD 105 50~105 230~240 50/60 EU 7 HATCH/ RS 12-80BF-277 277V 50/60Hz 80 277 50/60 EU 8 ABB 50-230/12 KXG 50 230 50/60 Conrad SLT15-12VF-1 1-15W 50-60Hz 220-240V 12VDC EU 9 15 220~240 50/60 EU 10 PHILIPS_ET-E 60 60 220~240 50/60 EU 11 PHILIPS ET-E 105 220-240V 105 220~240 50/60
