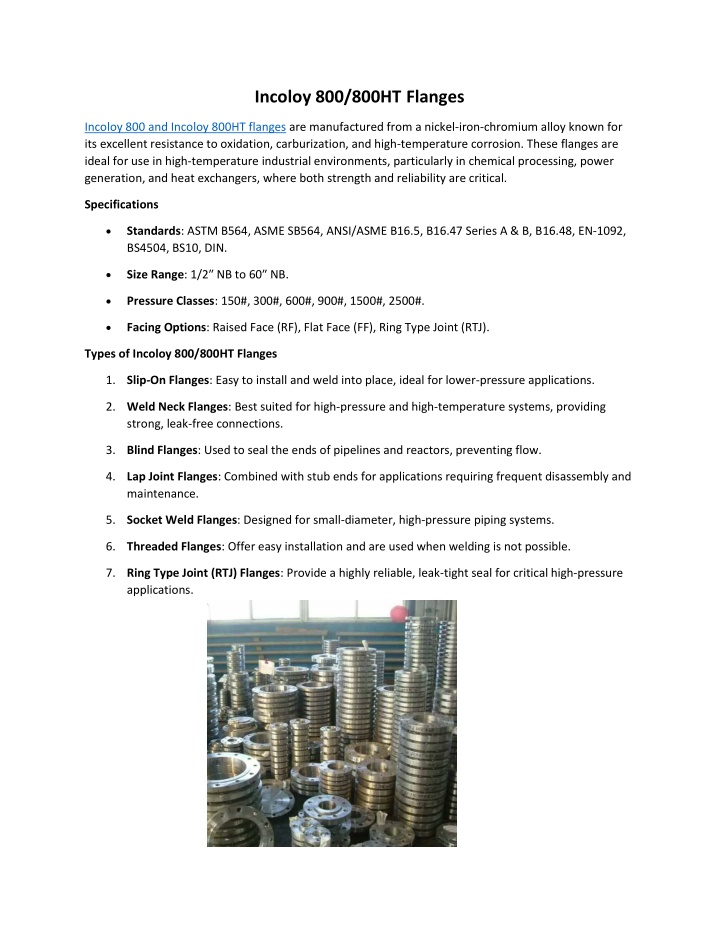

Incoloy 800/800HT Flanges Incoloy 800 and Incoloy 800HT flanges are manufactured from a nickel-iron-chromium alloy known for its excellent resistance to oxidation, carburization, and high-temperature corrosion. These flanges are ideal for use in high-temperature industrial environments, particularly in chemical processing, power generation, and heat exchangers, where both strength and reliability are critical. Specifications Standards: ASTM B564, ASME SB564, ANSI/ASME B16.5, B16.47 Series A & B, B16.48, EN-1092, BS4504, BS10, DIN. Size Range: 1/2 NB to 60 NB. Pressure Classes: 150#, 300#, 600#, 900#, 1500#, 2500#. Facing Options: Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ). Types of Incoloy 800/800HT Flanges 1.Slip-On Flanges: Easy to install and weld into place, ideal for lower-pressure applications. 2.Weld Neck Flanges: Best suited for high-pressure and high-temperature systems, providing strong, leak-free connections. 3.Blind Flanges: Used to seal the ends of pipelines and reactors, preventing flow. 4.Lap Joint Flanges: Combined with stub ends for applications requiring frequent disassembly and maintenance. 5.Socket Weld Flanges: Designed for small-diameter, high-pressure piping systems. 6.Threaded Flanges: Offer easy installation and are used when welding is not possible. 7.Ring Type Joint (RTJ) Flanges: Provide a highly reliable, leak-tight seal for critical high-pressure applications.

8.Spectacle Blind Flanges: Used to isolate sections of pipe during maintenance or temporary shutdowns. 9.Long Weld Neck Flanges: Ideal for connecting high-stress, high-temperature equipment such as pressure vessels. Key Features High-Temperature Strength: Incoloy 800/800HT retains exceptional strength even at elevated temperatures (up to 1100 C/2012 F). Corrosion Resistance: Excellent resistance to oxidation, carburization, and scaling, making it ideal for use in aggressive environments. Creep Resistance: Incoloy 800HT is specifically designed for superior creep and rupture resistance at higher temperatures, making it suitable for long-term applications. Good Weldability: Easily welded and fabricated without the need for post-weld heat treatment, simplifying installation and maintenance. Fatigue Resistance: The alloy offers excellent fatigue and thermal-fatigue strength, essential for high-temperature cyclic operations. Applications Chemical Processing: Heat exchangers, reactors, and piping systems where high temperature and resistance to corrosive environments are required. Power Generation: Components in gas turbines, heat exchangers, and nuclear reactors. Petrochemical: Furnaces, piping, and equipment used in the oil and gas industry. Heat Treatment: Equipment used for high-temperature heat treating processes. Why Choose Incoloy 800/800HT Flanges? Superior High-Temperature Performance: Ideal for continuous exposure to elevated temperatures without degradation. Corrosion and Oxidation Resistance: Provides exceptional protection against chemical corrosion, making it suitable for a wide range of industries. Long Service Life: Reduced maintenance needs due to the alloy's high durability and resistance to wear. Compliance with International Standards: Manufactured according to global quality standards, ensuring consistency and reliability. For Incoloy 800/800HT Flanges of superior quality and performance, contact Meraki Star Metals Oil & Gas Equipment Trading L.L.C., your trusted supplier of high-performance industrial components.
