1. WORKFORCE READY REST API Overview

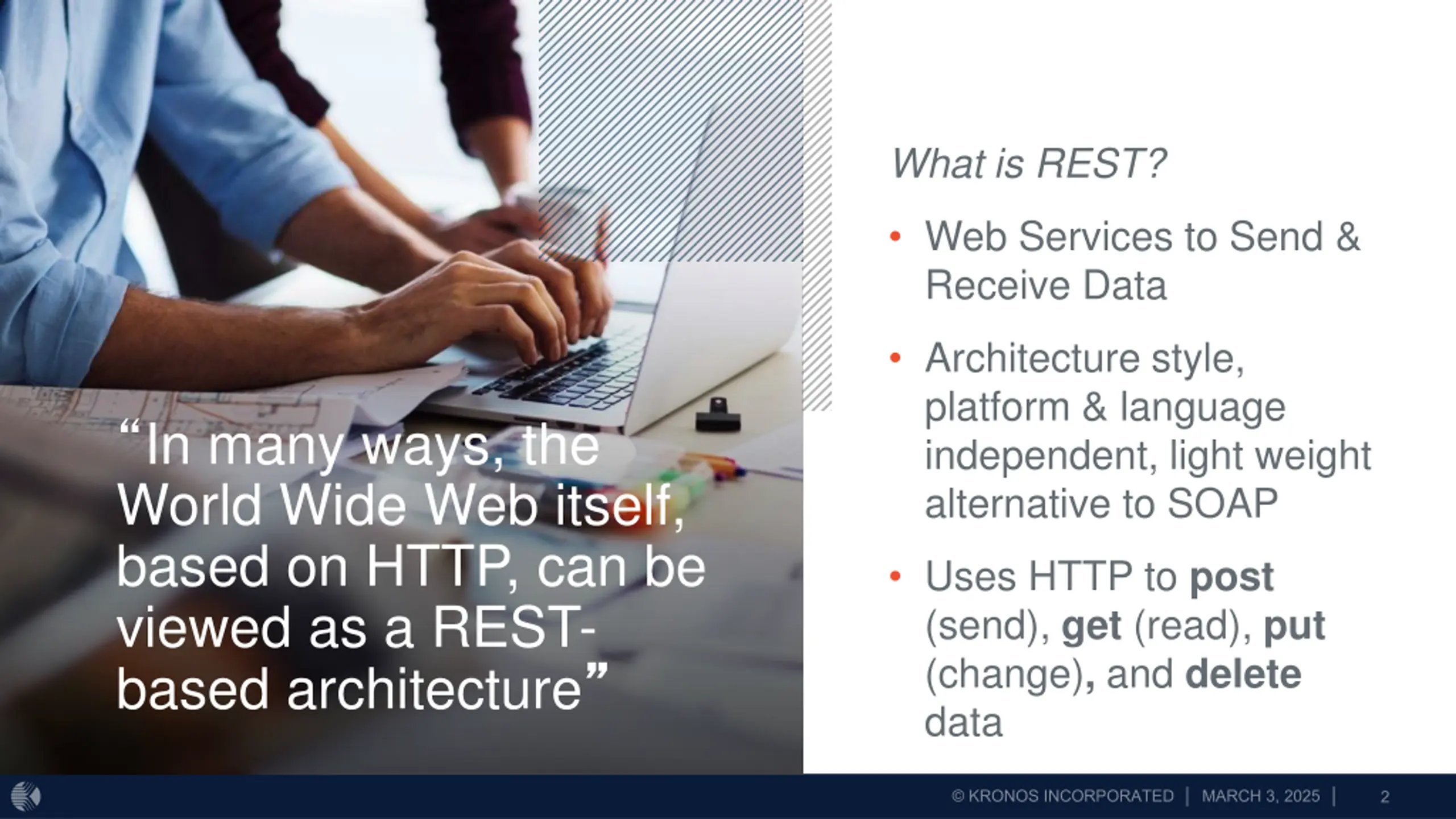

2. What is REST? Web Services to Send & Receive Data Architecture style, platform & language independent, light weight alternative to SOAP In many ways, the World Wide Web itself, based on HTTP, can be viewed as a REST- based architecture Uses HTTP to post (send), get (read), put (change), and delete data

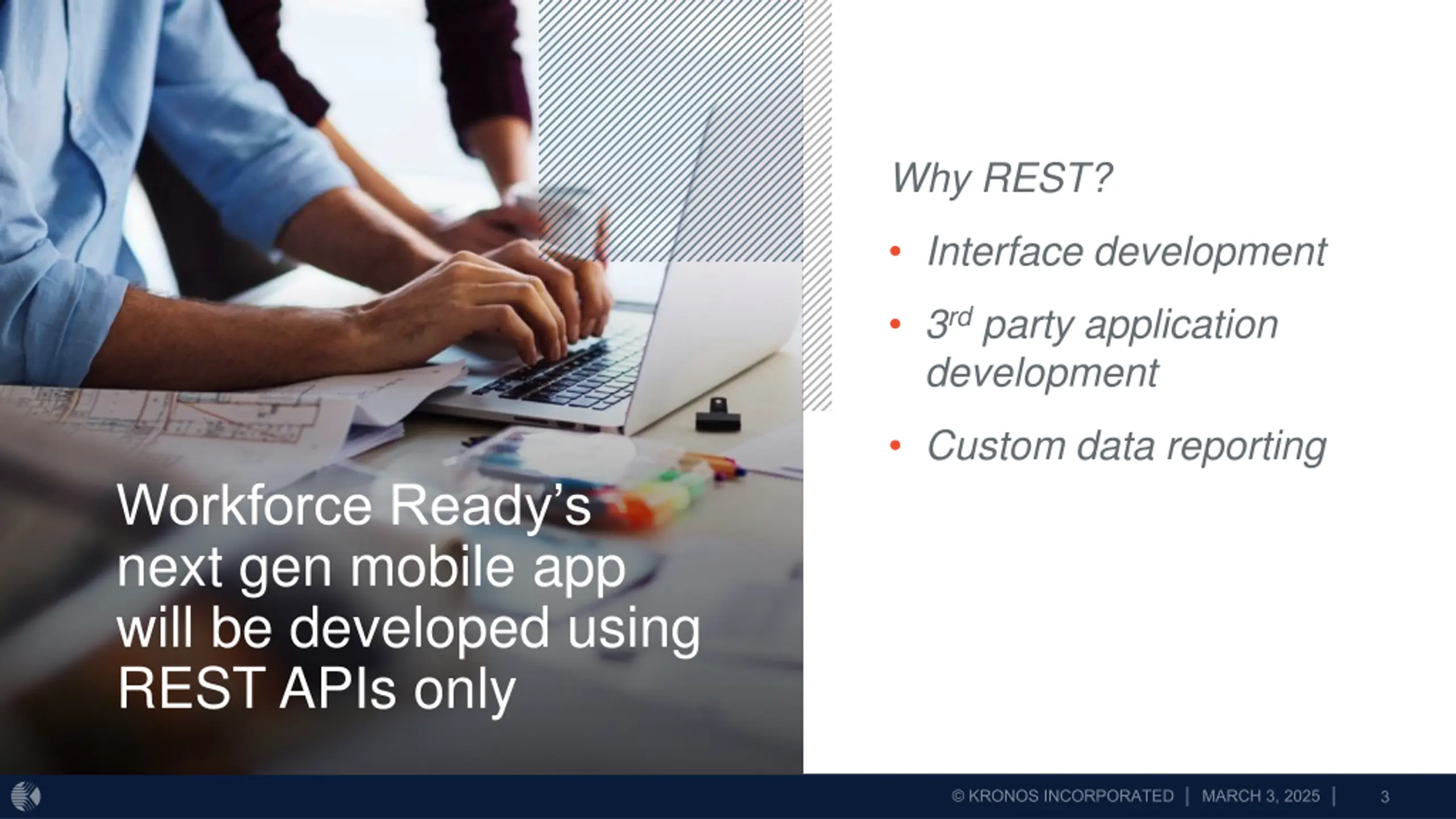

3. Why REST? Interface development 3rd party application development Custom data reporting Workforce Ready s next gen mobile app will be developed using REST APIs only

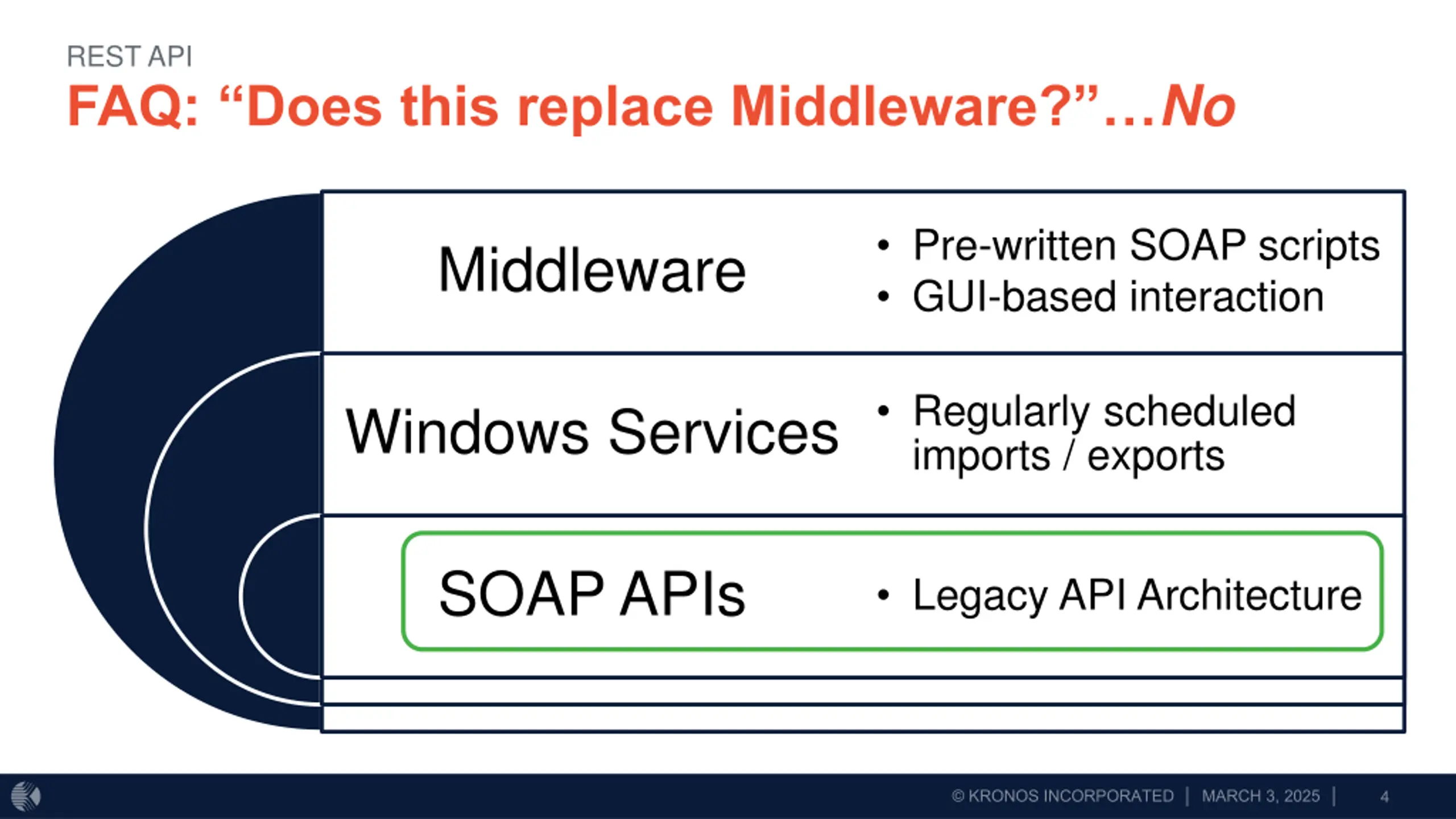

4. REST API FAQ: Does this replace Middleware? No Pre-written SOAP scripts GUI-based interaction Middleware Regularly scheduled imports / exports Windows Services SOAP APIs Legacy API Architecture

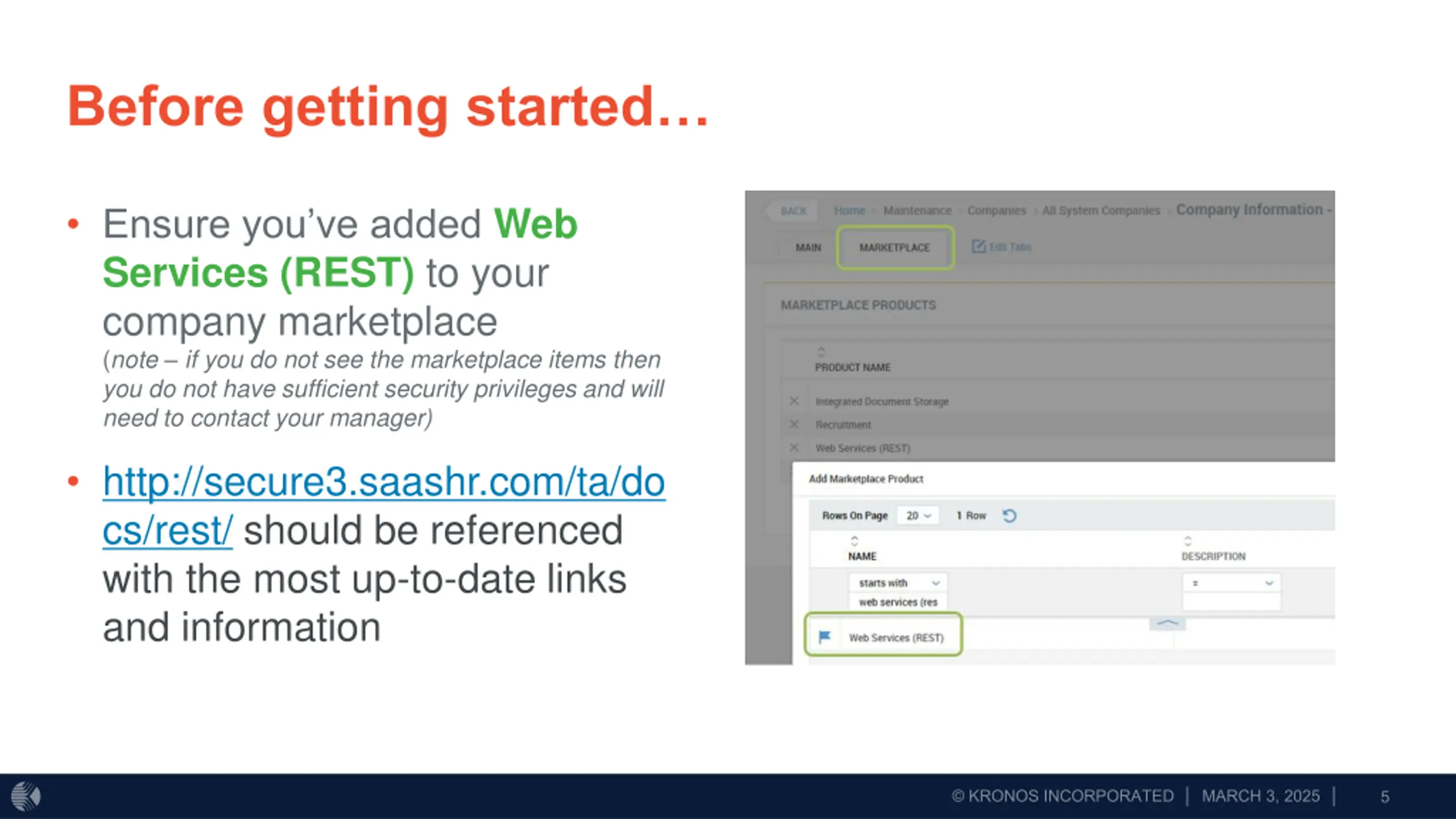

5. Before getting started Ensure you ve added Web Services (REST) to your company marketplace (note if you do not see the marketplace items then you do not have sufficient security privileges and will need to contact your manager) http://secure3.saashr.com/ta/do cs/rest/ should be referenced with the most up-to-date links and information

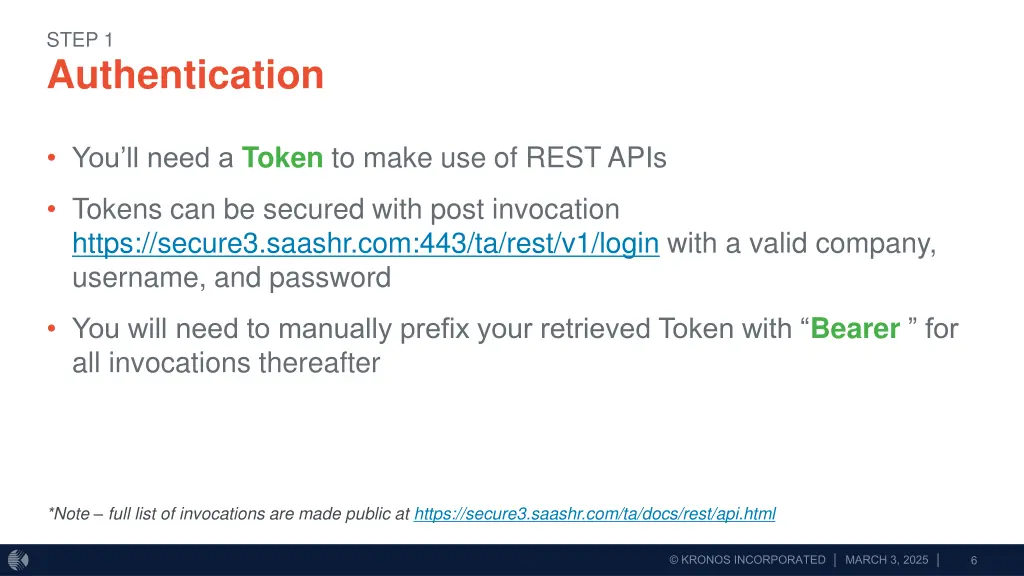

6. STEP 1 Authentication You ll need a Token to make use of REST APIs Tokens can be secured with post invocation https://secure3.saashr.com:443/ta/rest/v1/login with a valid company, username, and password You will need to manually prefix your retrieved Token with Bearer for all invocations thereafter *Note full list of invocations are made public at https://secure3.saashr.com/ta/docs/rest/api.html

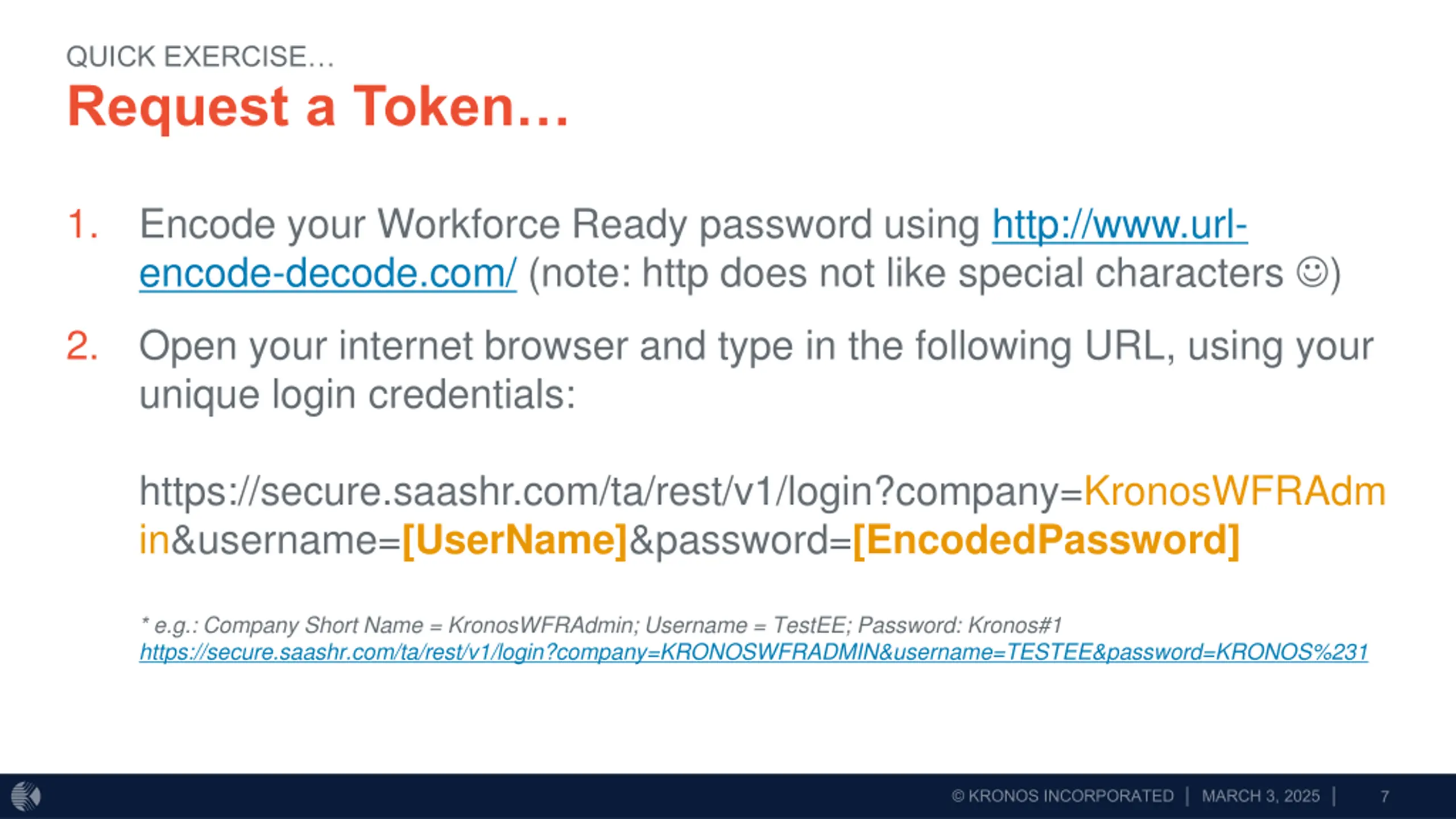

7. QUICK EXERCISE Request a Token 1. Encode your Workforce Ready password using http://www.url- encode-decode.com/ (note: http does not like special characters ) 2. Open your internet browser and type in the following URL, using your unique login credentials: https://secure.saashr.com/ta/rest/v1/login?company=KronosWFRAdm in&username=[UserName]&password=[EncodedPassword] * e.g.: Company Short Name = KronosWFRAdmin; Username = TestEE; Password: Kronos#1 https://secure.saashr.com/ta/rest/v1/login?company=KRONOSWFRADMIN&username=TESTEE&password=KRONOS%231

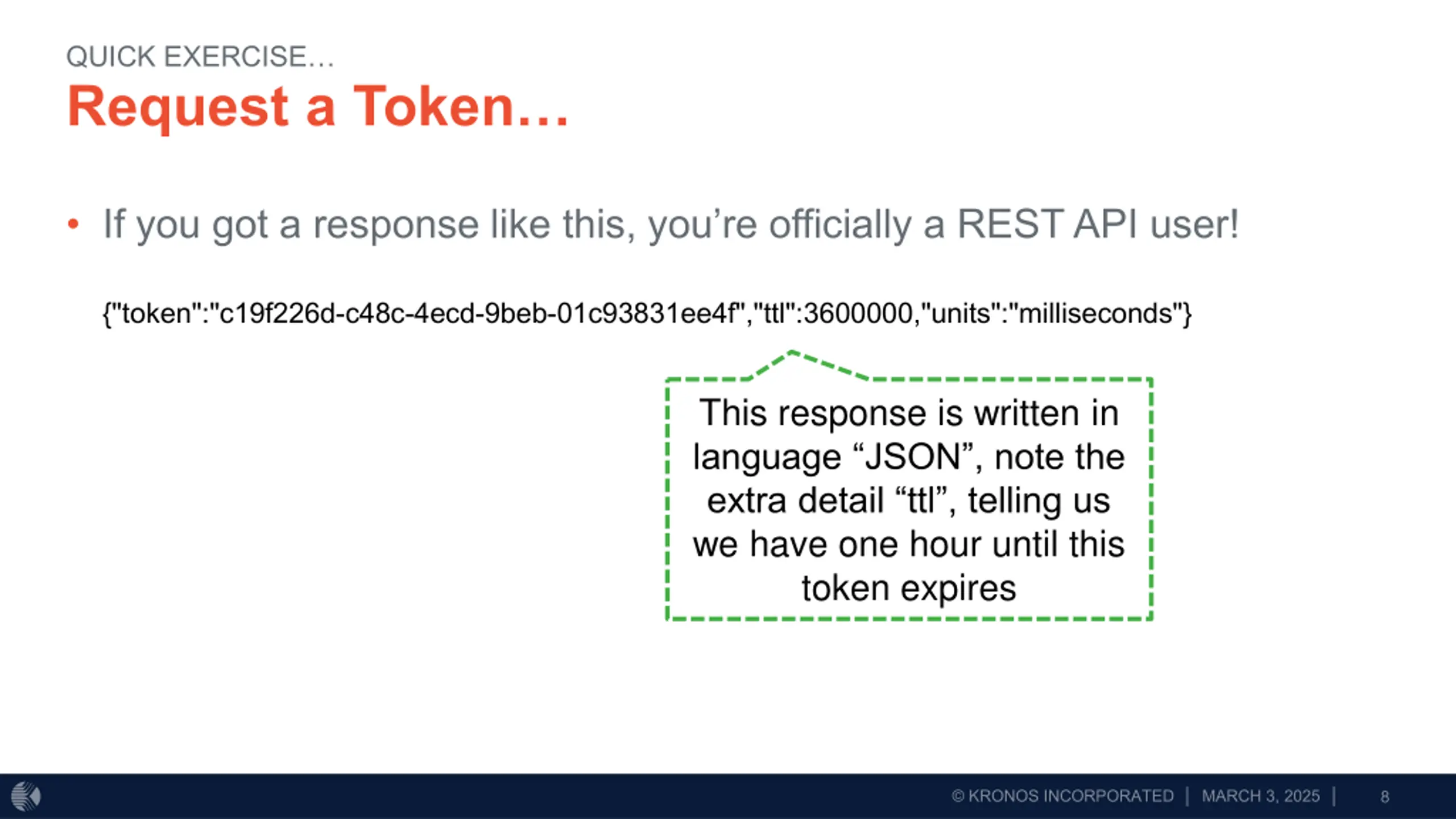

8. QUICK EXERCISE Request a Token If you got a response like this, you re officially a REST API user! {"token":"c19f226d-c48c-4ecd-9beb-01c93831ee4f","ttl":3600000,"units":"milliseconds"} This response is written in language JSON , note the extra detail ttl , telling us we have one hour until this token expires

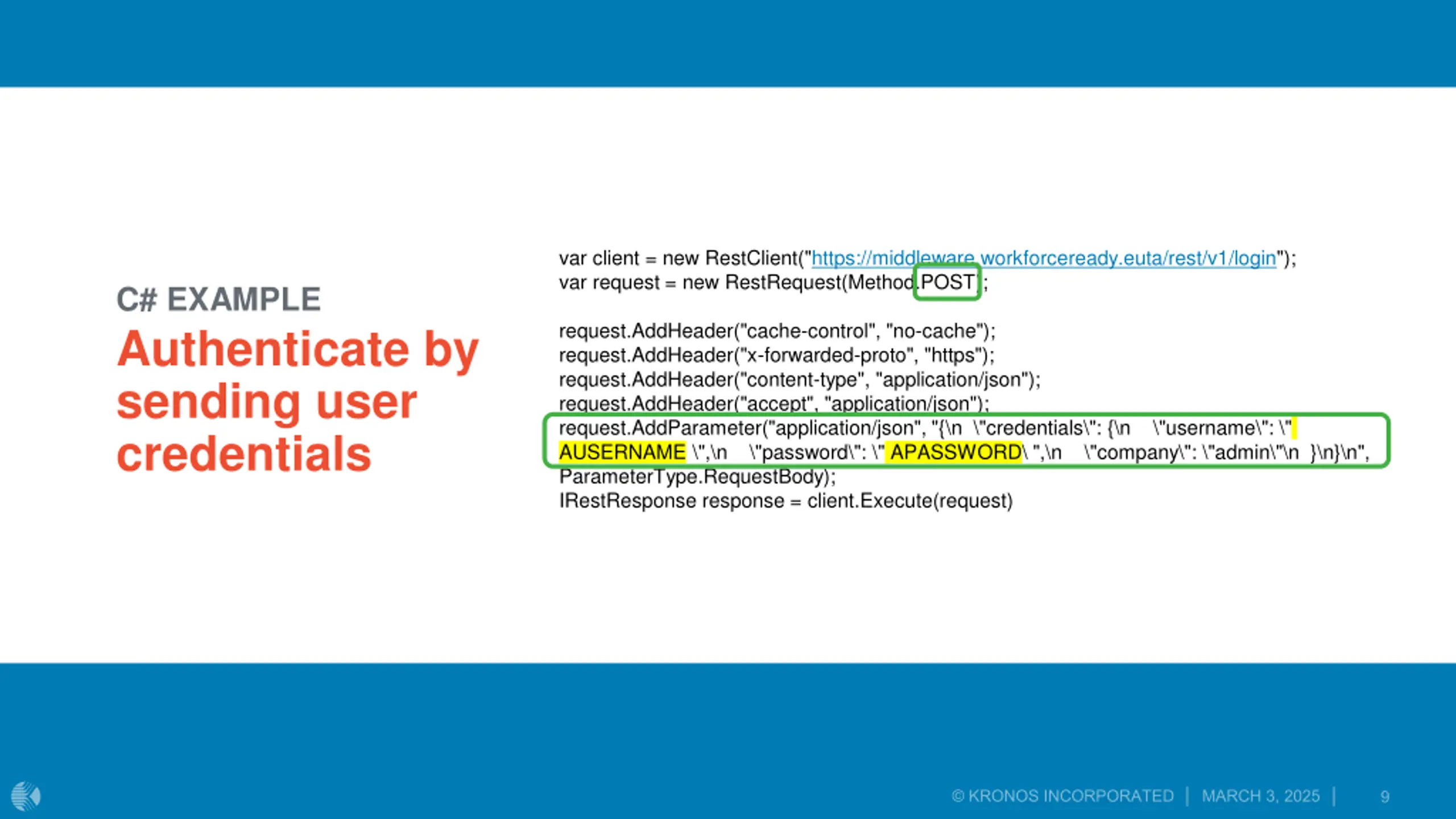

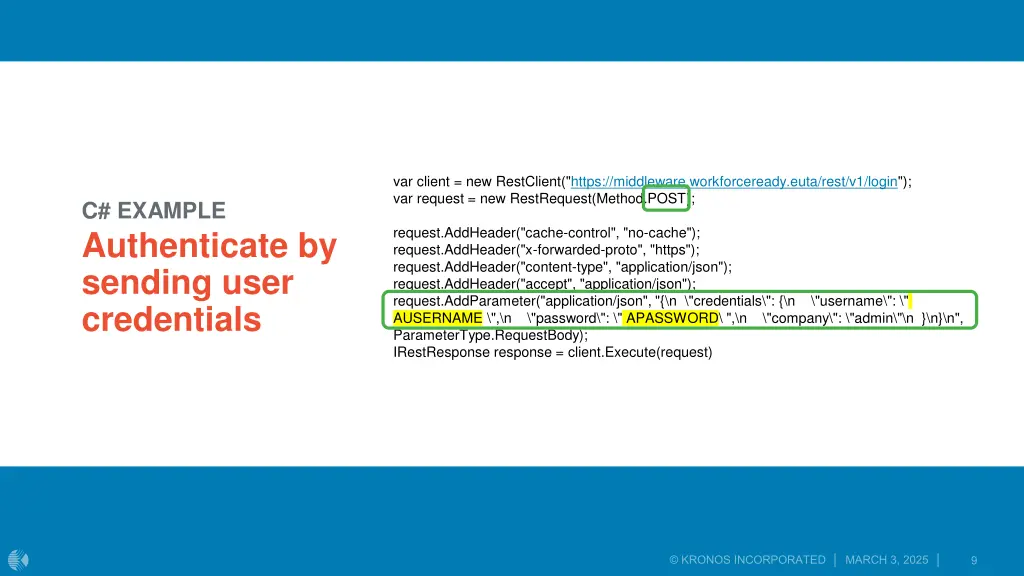

9. var client = new RestClient("https://middleware.workforceready.euta/rest/v1/login"); var request = new RestRequest(Method.POST); C# EXAMPLE request.AddHeader("cache-control", "no-cache"); request.AddHeader("x-forwarded-proto", "https"); request.AddHeader("content-type", "application/json"); request.AddHeader("accept", "application/json"); request.AddParameter("application/json", "{\n \"credentials\": {\n \"username\": \" AUSERNAME \",\n \"password\": \" APASSWORD\ ",\n \"company\": \"admin\"\n }\n}\n", ParameterType.RequestBody); IRestResponse response = client.Execute(request) Authenticate by sending user credentials

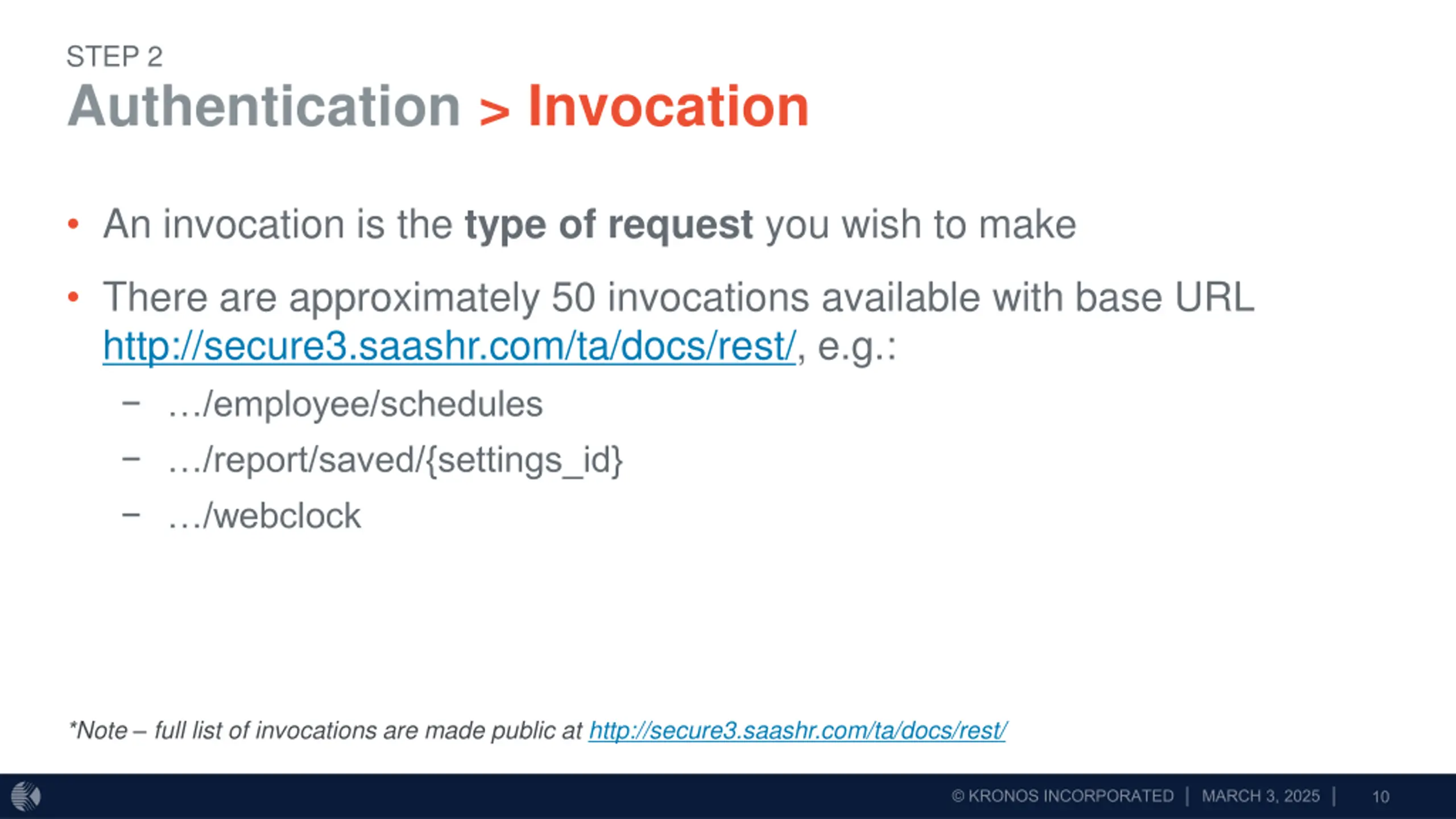

10. STEP 2 Authentication > Invocation An invocation is the type of request you wish to make There are approximately 50 invocations available with base URL http://secure3.saashr.com/ta/docs/rest/, e.g.: /employee/schedules /report/saved/{settings_id} /webclock *Note full list of invocations are made public at http://secure3.saashr.com/ta/docs/rest/

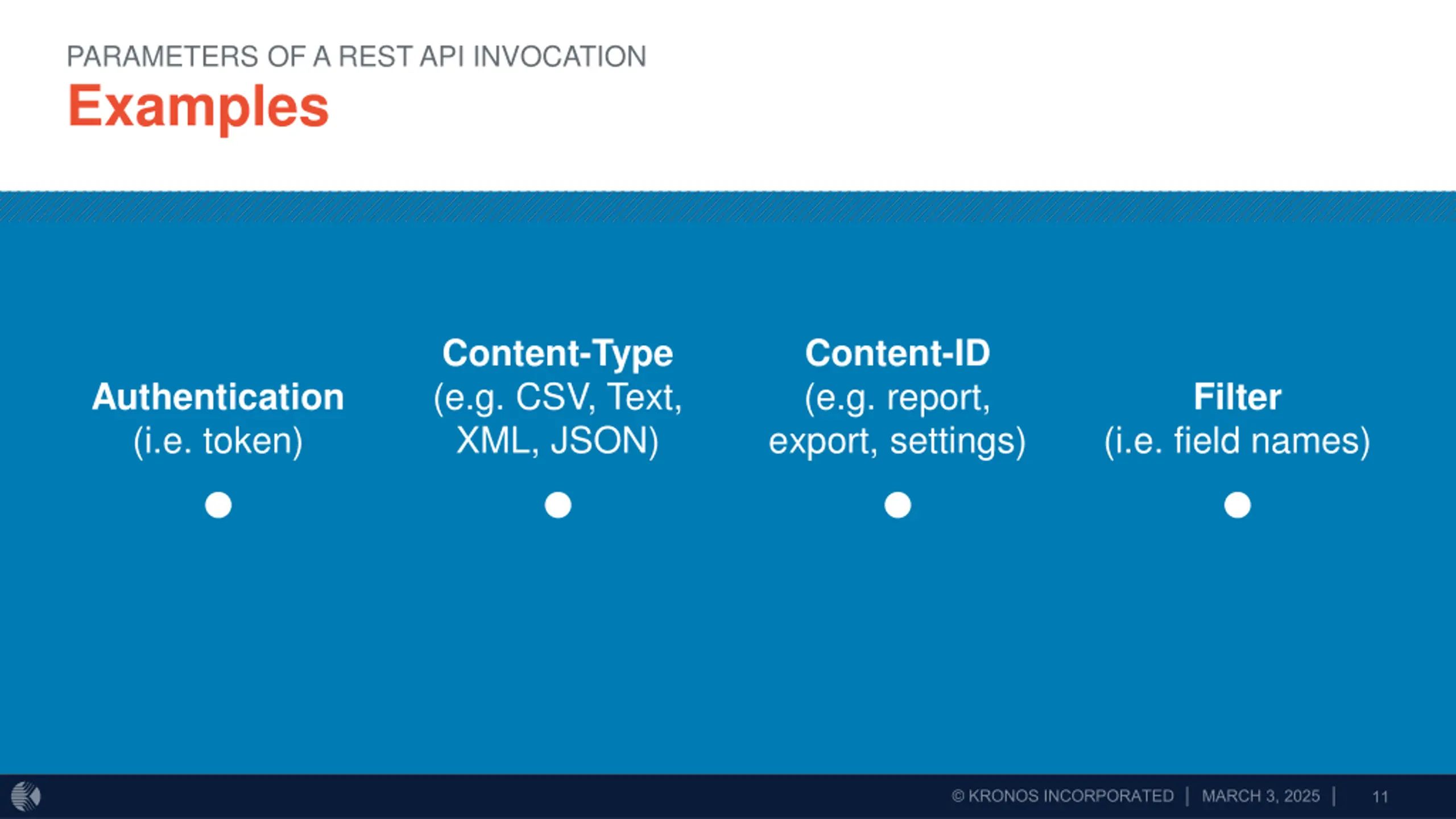

11. PARAMETERS OF A REST API INVOCATION Examples Content-Type (e.g. CSV, Text, XML, JSON) Content-ID (e.g. report, export, settings) Authentication (i.e. token) Filter (i.e. field names)

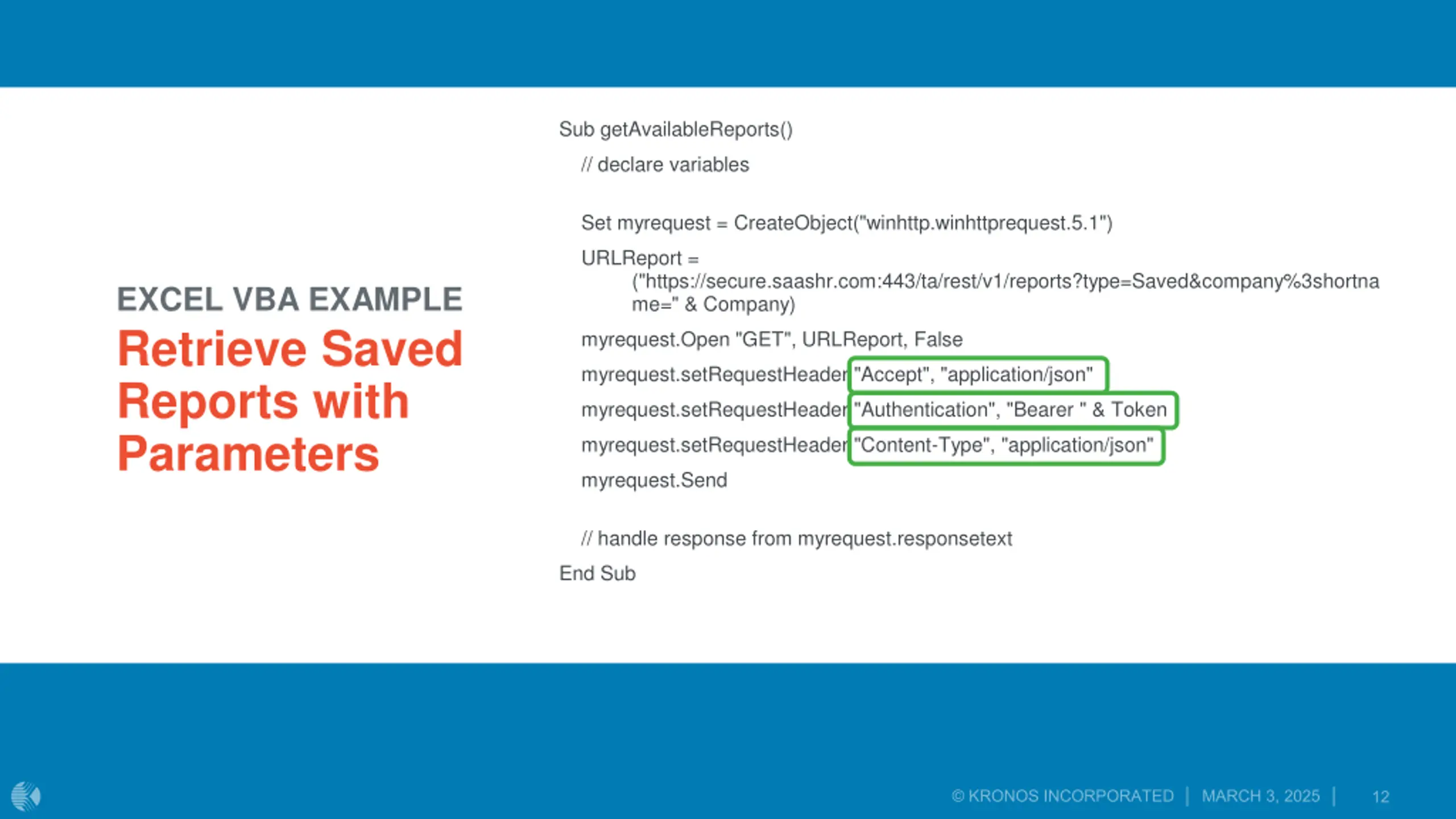

12. Sub getAvailableReports() // declare variables Set myrequest = CreateObject("winhttp.winhttprequest.5.1") URLReport = ("https://secure.saashr.com:443/ta/rest/v1/reports?type=Saved&company%3shortna me=" & Company) EXCEL VBA EXAMPLE Retrieve Saved Reports with Parameters myrequest.Open "GET", URLReport, False myrequest.setRequestHeader "Accept", "application/json" myrequest.setRequestHeader "Authentication", "Bearer " & Token myrequest.setRequestHeader "Content-Type", "application/json" myrequest.Send // handle response from myrequest.responsetext End Sub

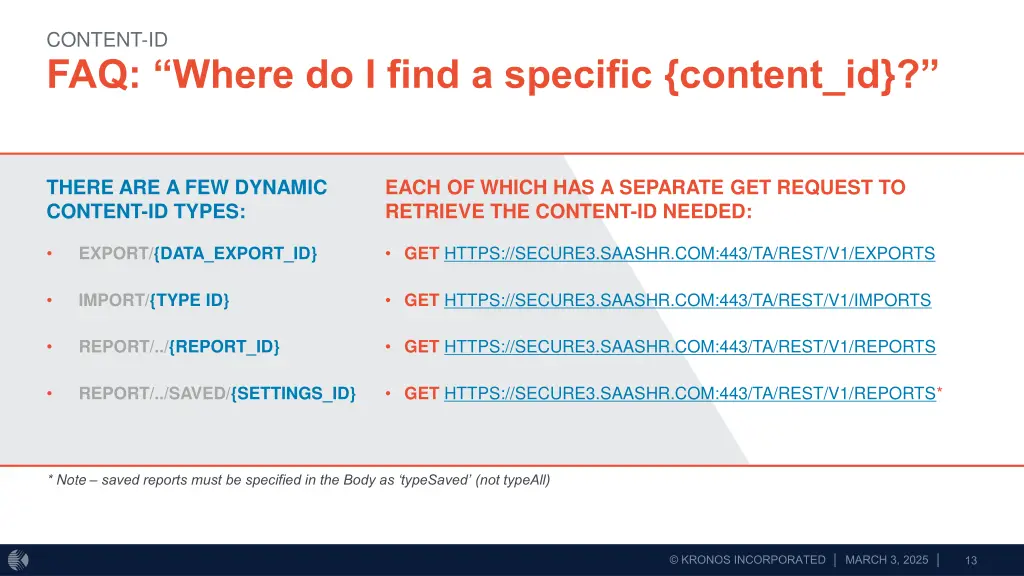

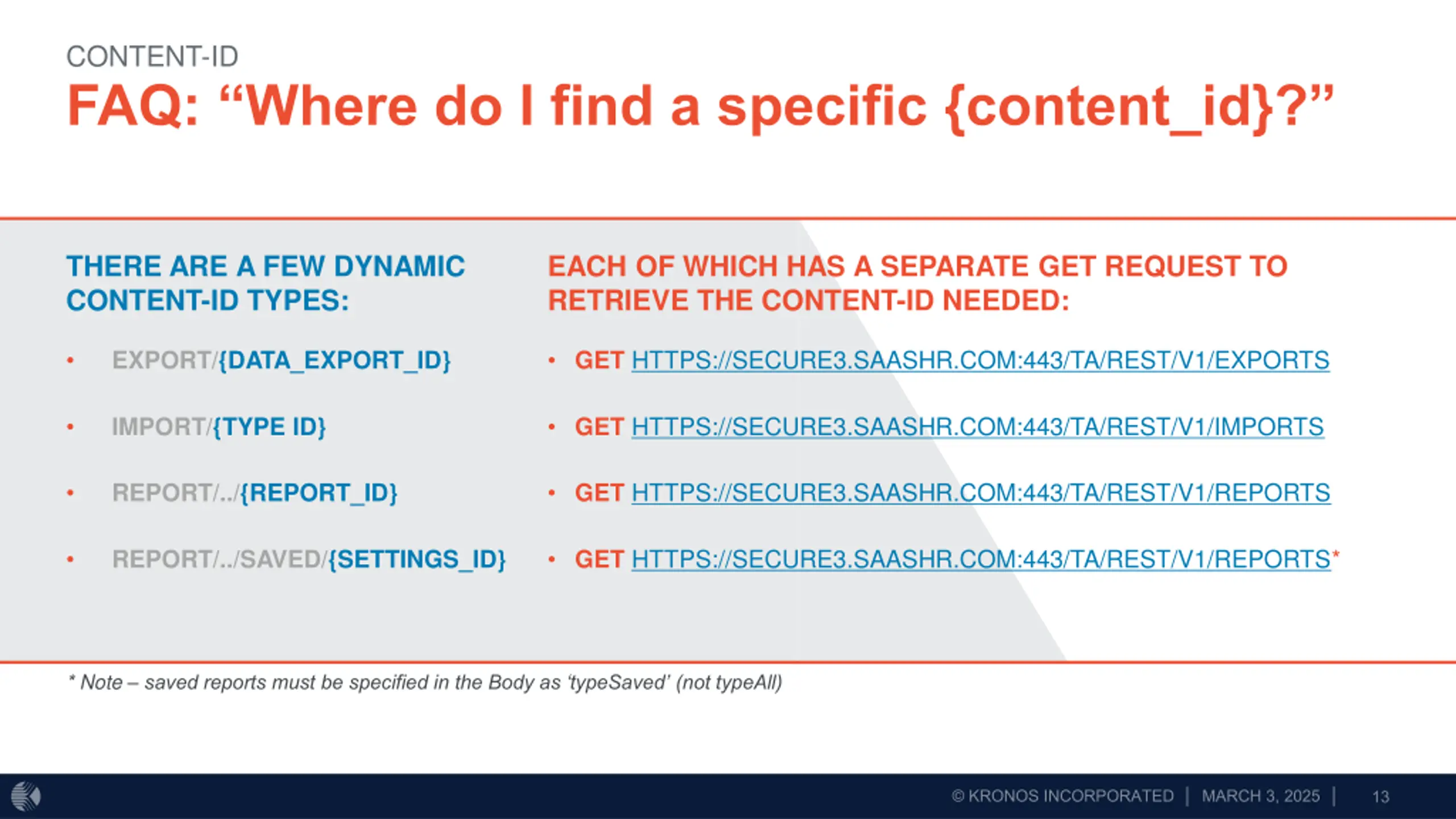

13. CONTENT-ID FAQ: Where do I find a specific {content_id}? THERE ARE A FEW DYNAMIC CONTENT-ID TYPES: EACH OF WHICH HAS A SEPARATE GET REQUEST TO RETRIEVE THE CONTENT-ID NEEDED: GET HTTPS://SECURE3.SAASHR.COM:443/TA/REST/V1/EXPORTS EXPORT/{DATA_EXPORT_ID} GET HTTPS://SECURE3.SAASHR.COM:443/TA/REST/V1/IMPORTS IMPORT/{TYPE ID} GET HTTPS://SECURE3.SAASHR.COM:443/TA/REST/V1/REPORTS REPORT/../{REPORT_ID} GET HTTPS://SECURE3.SAASHR.COM:443/TA/REST/V1/REPORTS* REPORT/../SAVED/{SETTINGS_ID} * Note saved reports must be specified in the Body as typeSaved (not typeAll)

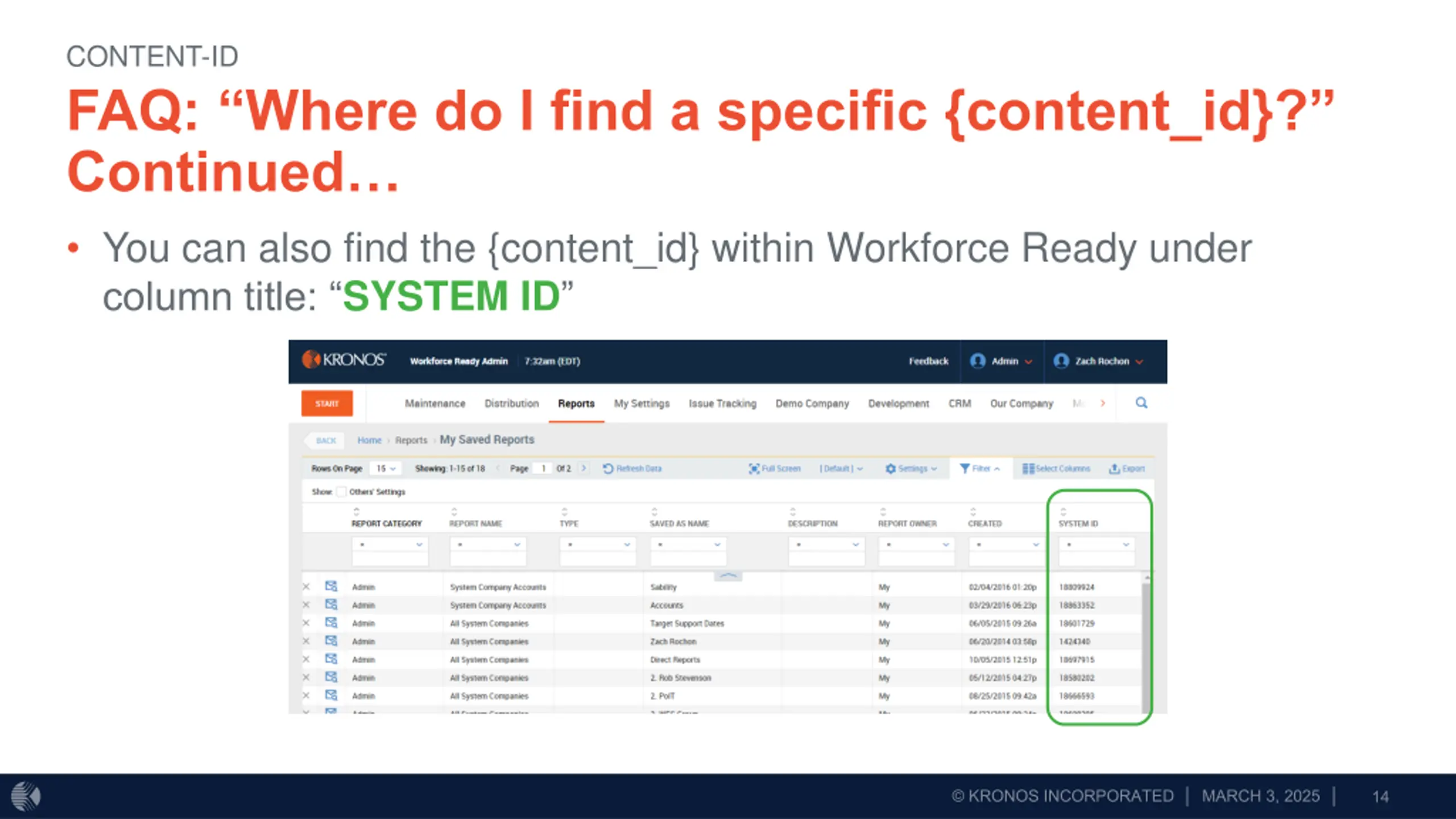

14. CONTENT-ID FAQ: Where do I find a specific {content_id}? Continued You can also find the {content_id} within Workforce Ready under column title: SYSTEM ID

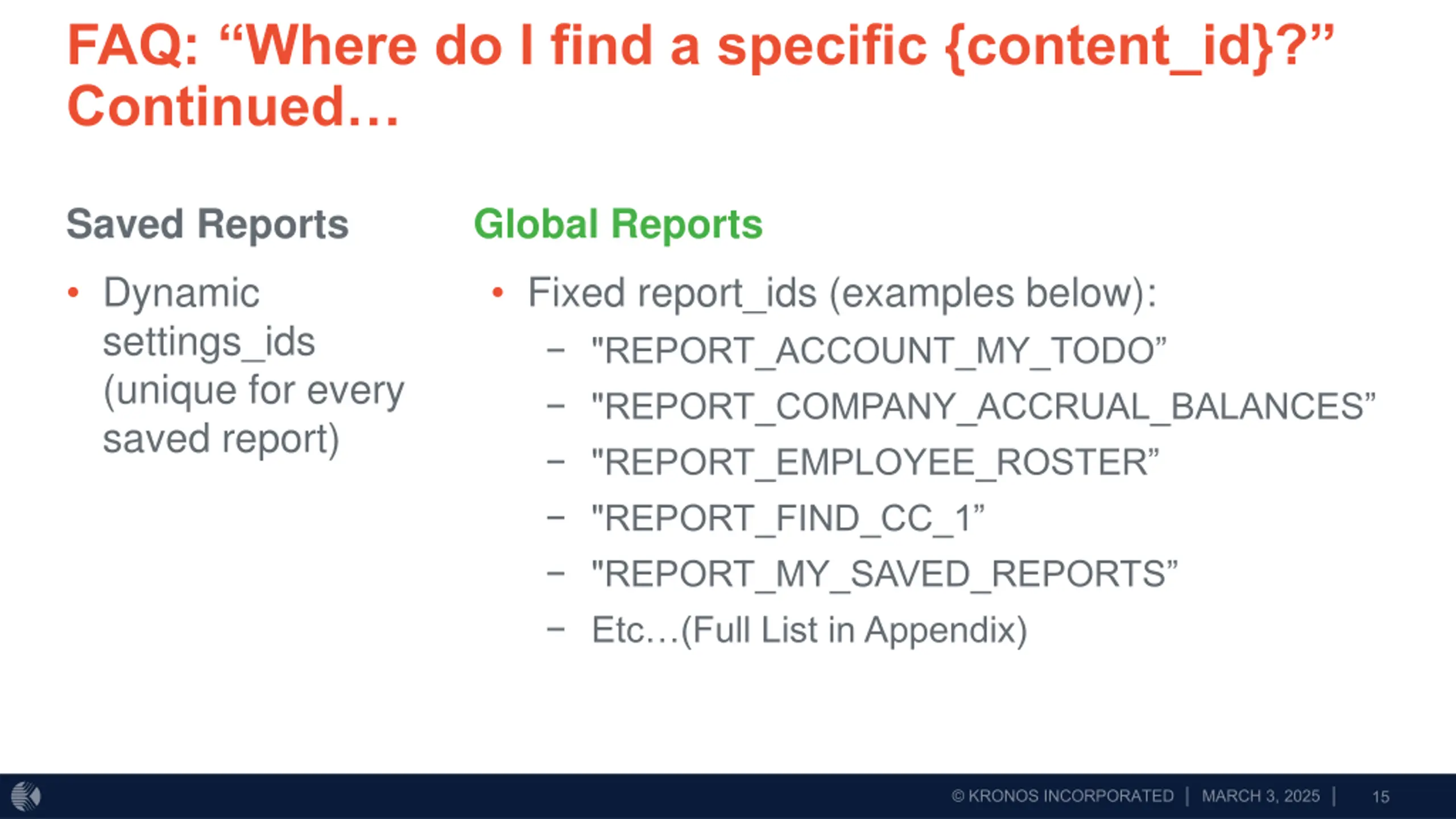

15. FAQ: Where do I find a specific {content_id}? Continued Saved Reports Global Reports Dynamic settings_ids (unique for every saved report) Fixed report_ids (examples below): "REPORT_ACCOUNT_MY_TODO "REPORT_COMPANY_ACCRUAL_BALANCES "REPORT_EMPLOYEE_ROSTER "REPORT_FIND_CC_1 "REPORT_MY_SAVED_REPORTS Etc (Full List in Appendix)

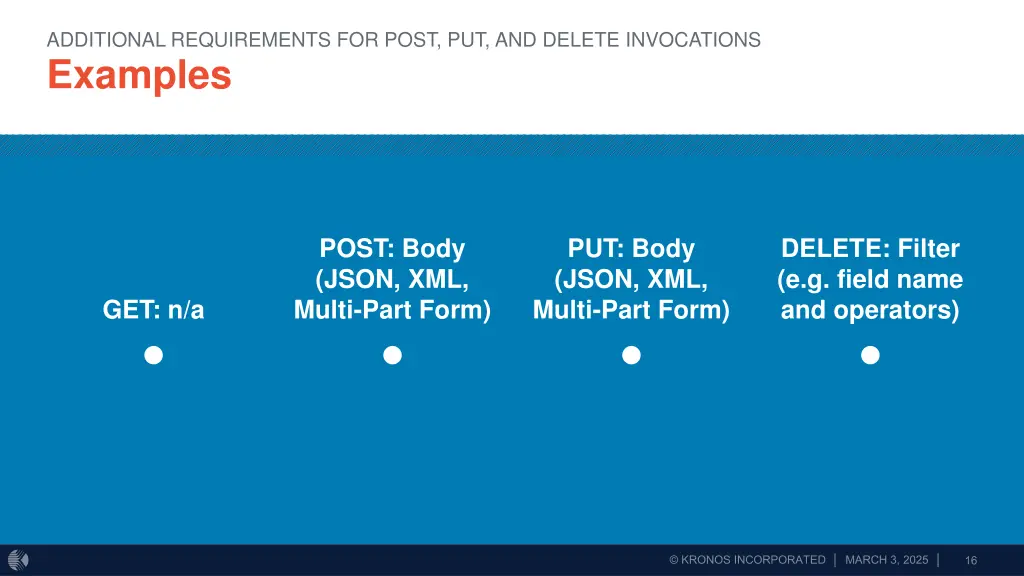

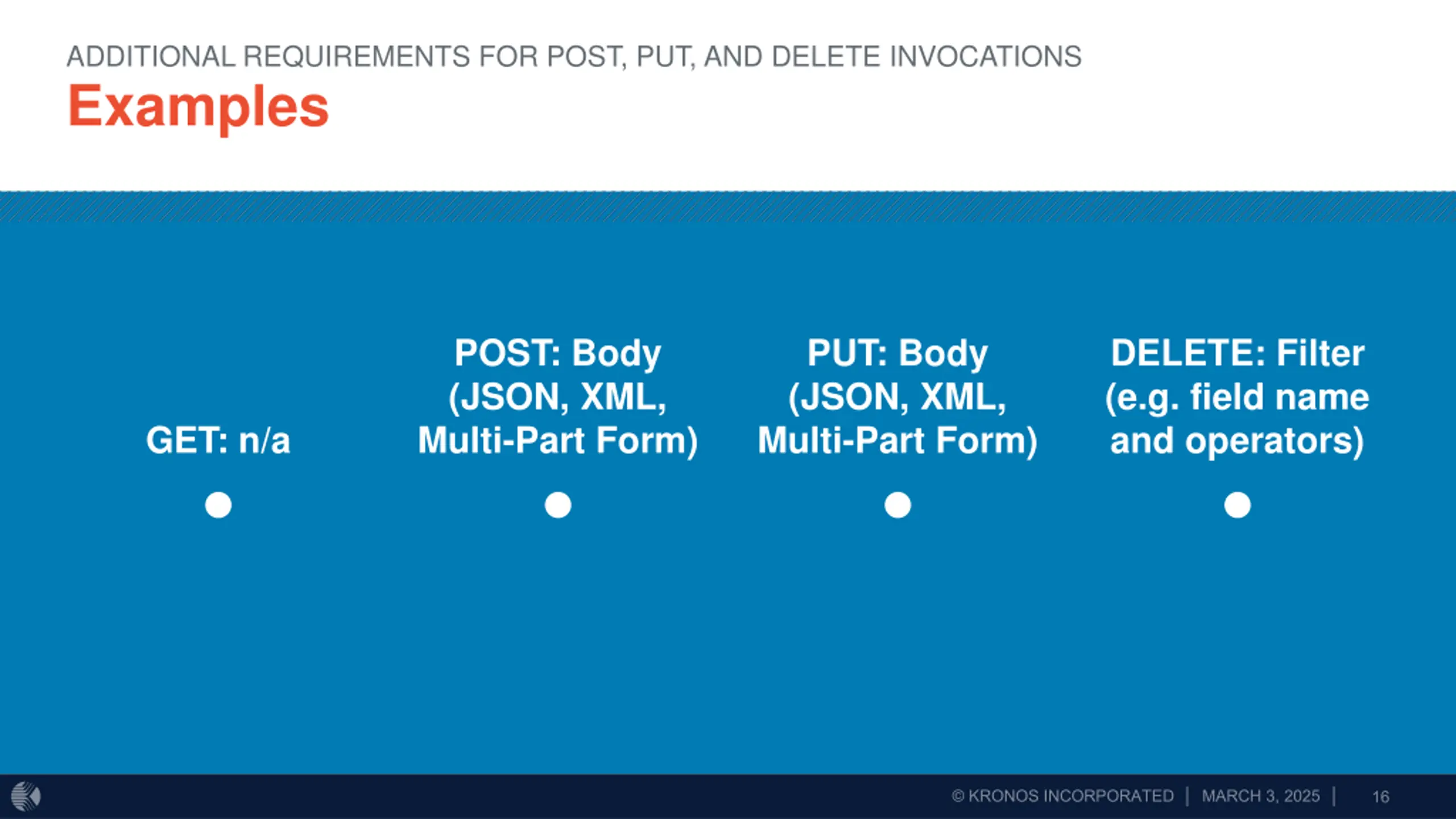

16. ADDITIONAL REQUIREMENTS FOR POST, PUT, AND DELETE INVOCATIONS Examples POST: Body (JSON, XML, Multi-Part Form) PUT: Body (JSON, XML, Multi-Part Form) DELETE: Filter (e.g. field name and operators) GET: n/a

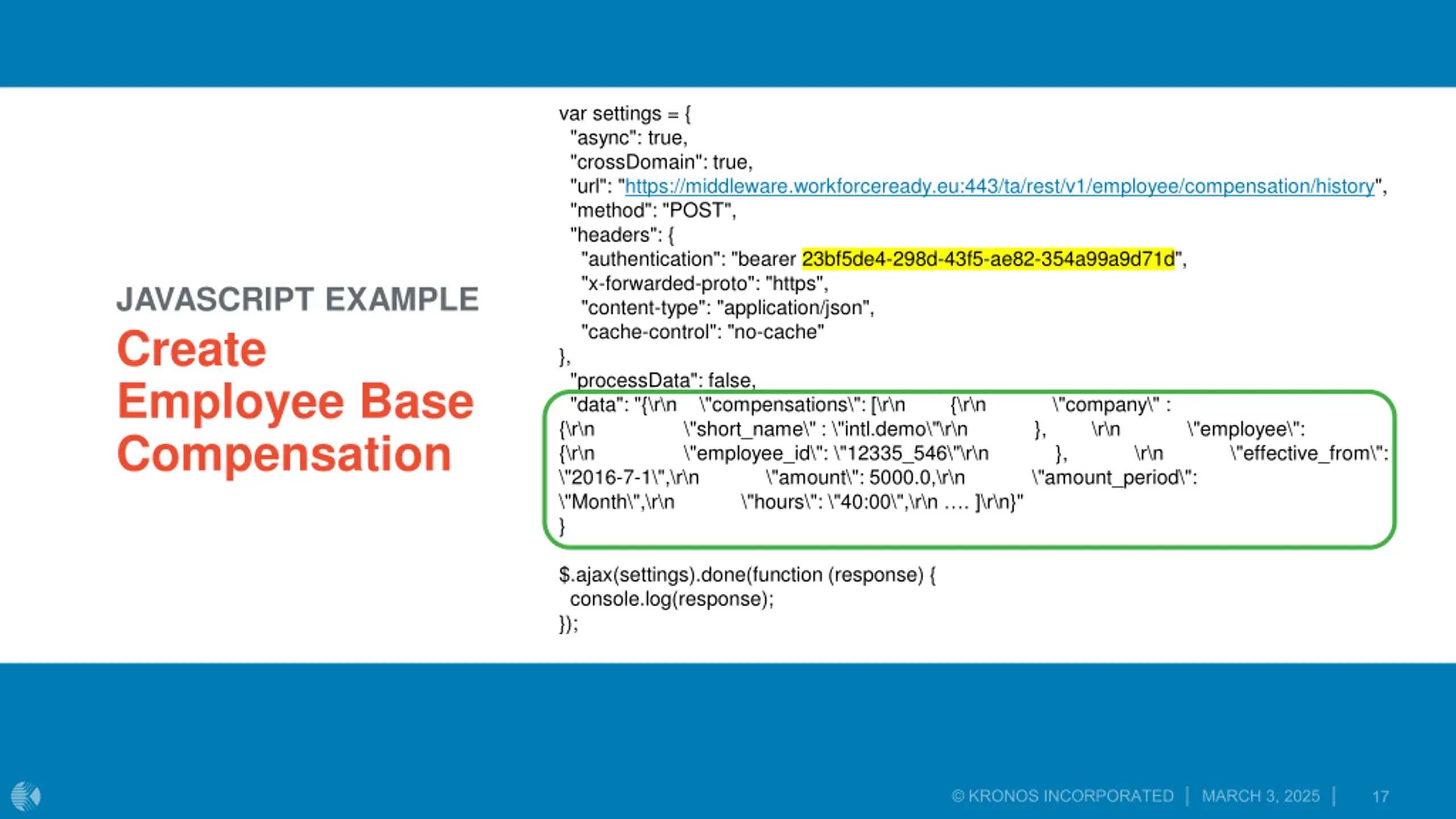

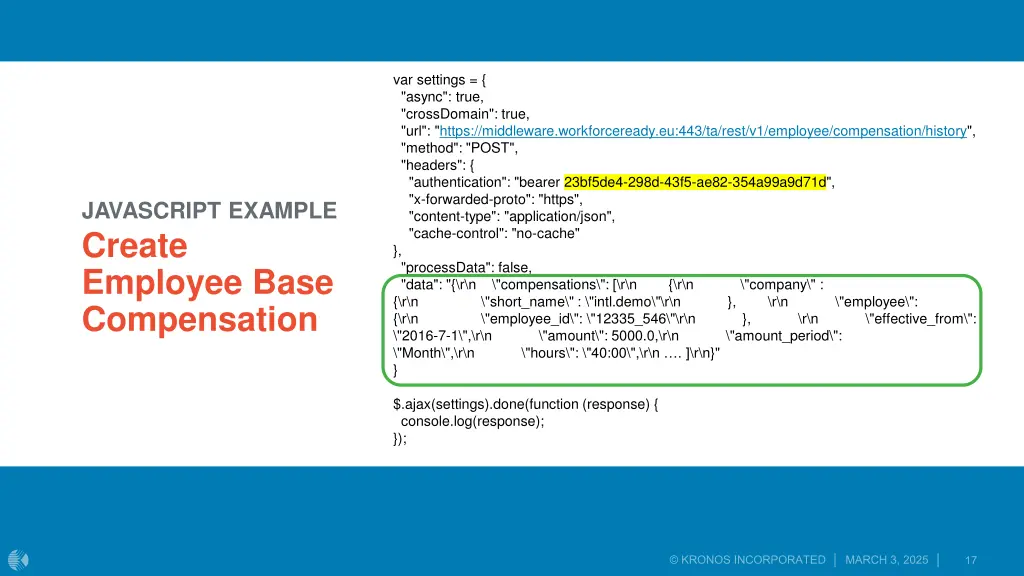

17. var settings = { "async": true, "crossDomain": true, "url": "https://middleware.workforceready.eu:443/ta/rest/v1/employee/compensation/history", "method": "POST", "headers": { "authentication": "bearer 23bf5de4-298d-43f5-ae82-354a99a9d71d", "x-forwarded-proto": "https", "content-type": "application/json", "cache-control": "no-cache" }, "processData": false, "data": "{\r\n \"compensations\": [\r\n {\r\n {\r\n \"short_name\" : \"intl.demo\"\r\n {\r\n \"employee_id\": \"12335_546\"\r\n \"2016-7-1\",\r\n \"amount\": 5000.0,\r\n \"Month\",\r\n \"hours\": \"40:00\",\r\n . ]\r\n}" } JAVASCRIPT EXAMPLE Create Employee Base Compensation \"company\" : \r\n }, \"amount_period\": }, \"employee\": \"effective_from\": \r\n $.ajax(settings).done(function (response) { console.log(response); });

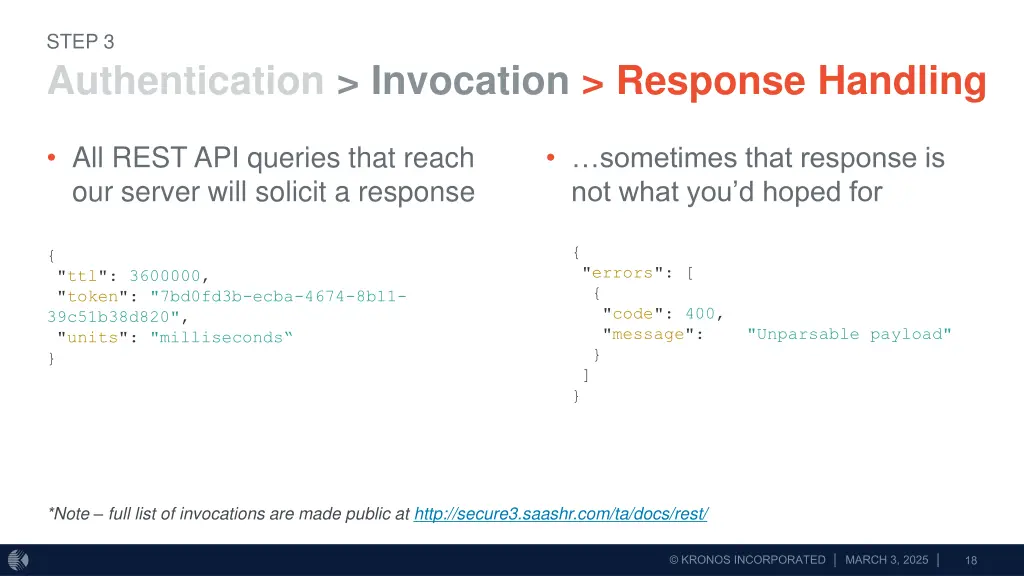

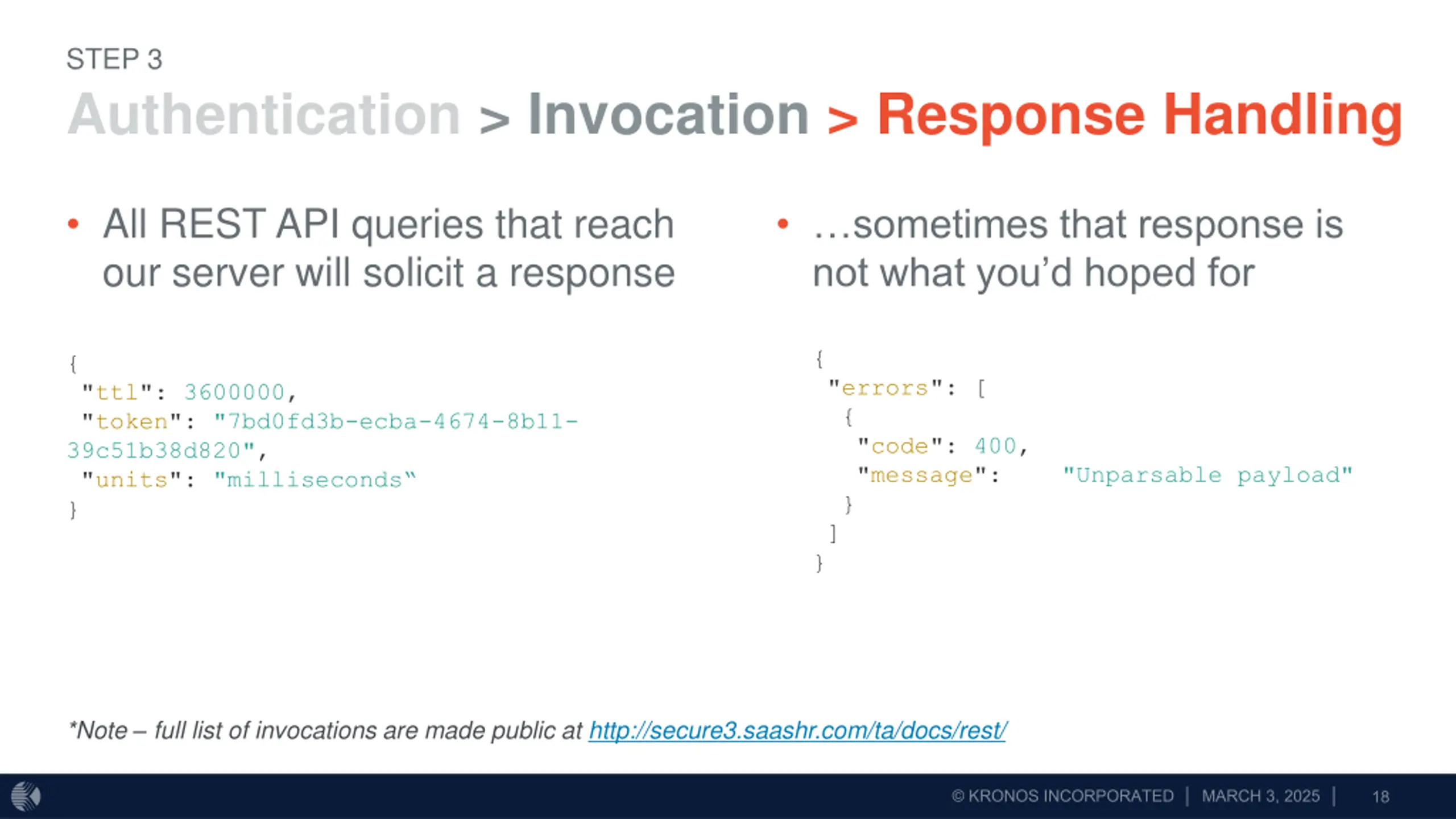

18. STEP 3 Authentication > Invocation > Response Handling All REST API queries that reach our server will solicit a response sometimes that response is not what you d hoped for { "errors": [ { "code": 400, "message": "Unparsable payload" } ] } { "ttl": 3600000, "token": "7bd0fd3b-ecba-4674-8b11- 39c51b38d820", "units": "milliseconds } *Note full list of invocations are made public at http://secure3.saashr.com/ta/docs/rest/

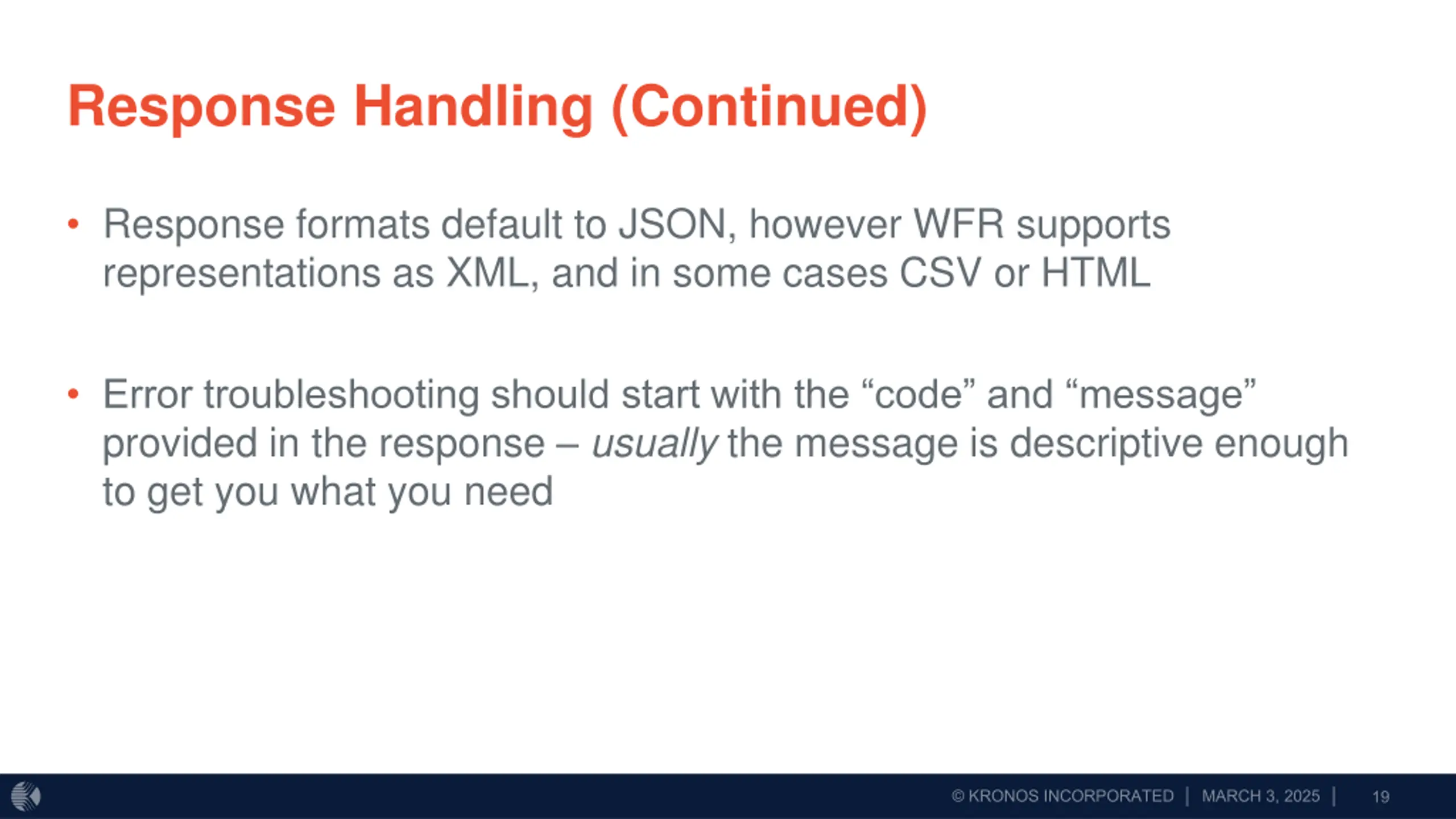

19. Response Handling (Continued) Response formats default to JSON, however WFR supports representations as XML, and in some cases CSV or HTML Error troubleshooting should start with the code and message provided in the response usually the message is descriptive enough to get you what you need

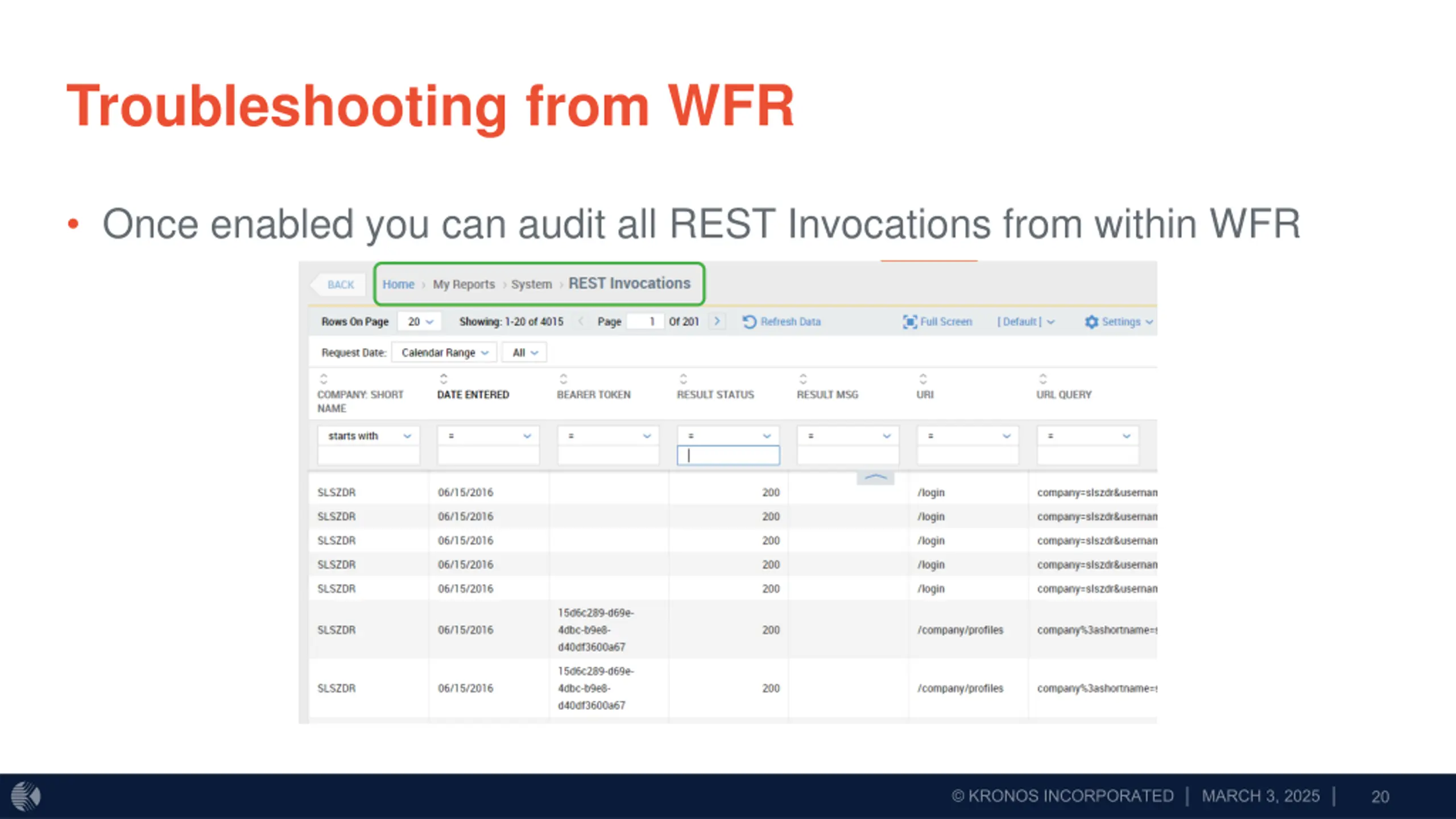

20. Troubleshooting from WFR Once enabled you can audit all REST Invocations from within WFR

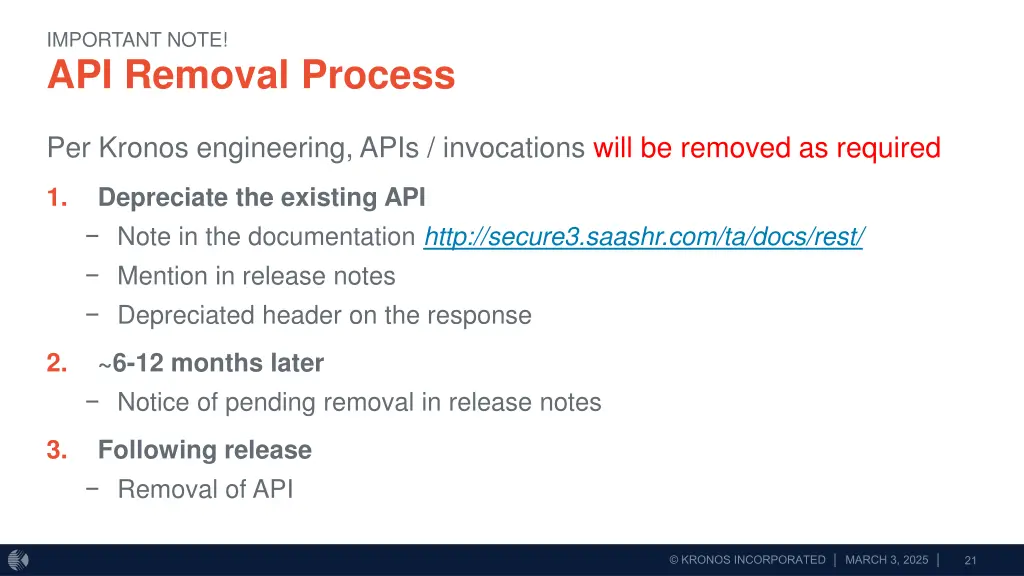

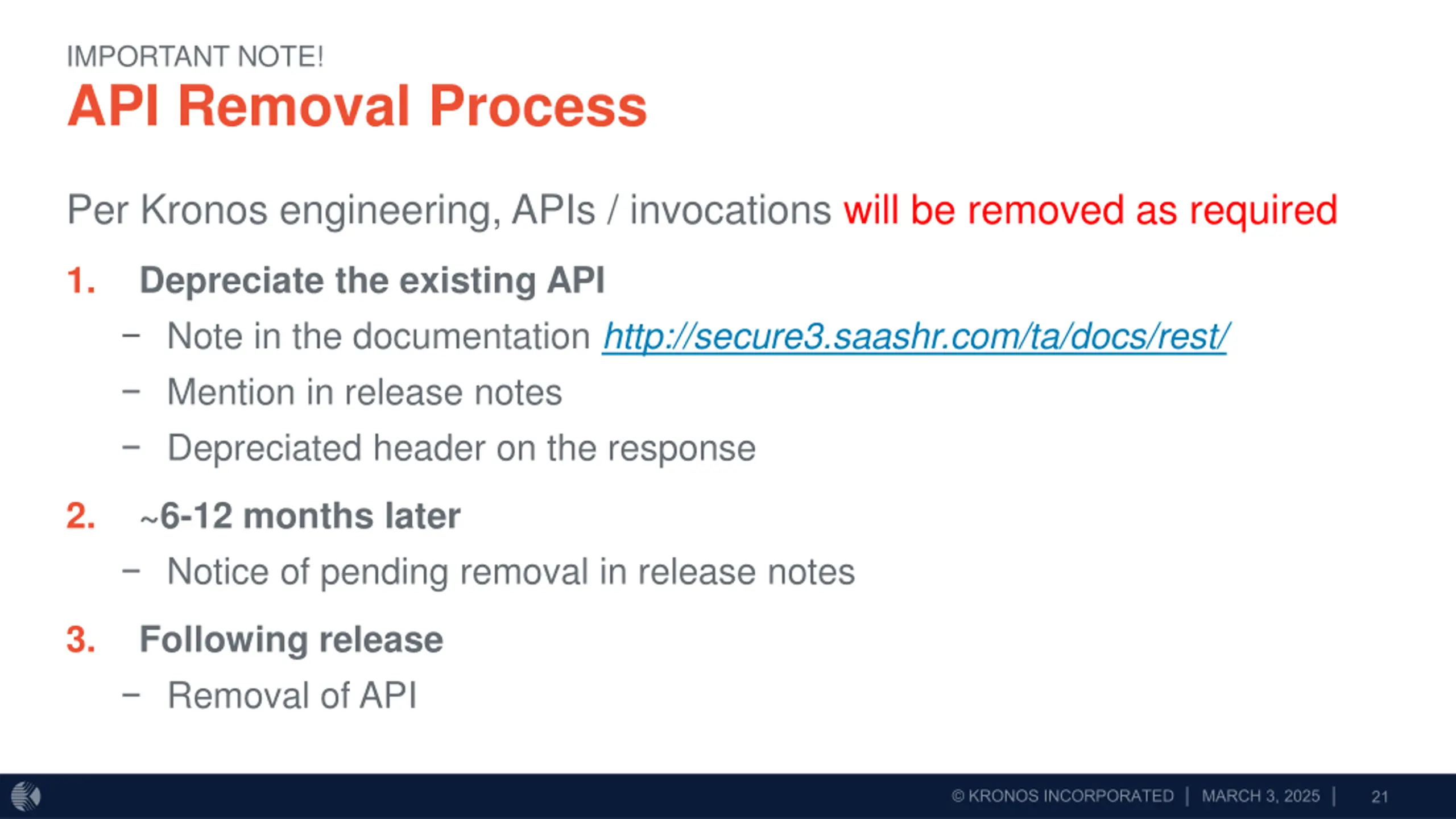

21. IMPORTANT NOTE! API Removal Process Per Kronos engineering, APIs / invocations will be removed as required 1. Depreciate the existing API Note in the documentation http://secure3.saashr.com/ta/docs/rest/ Mention in release notes Depreciated header on the response 2. ~6-12 months later Notice of pending removal in release notes 3. Following release Removal of API

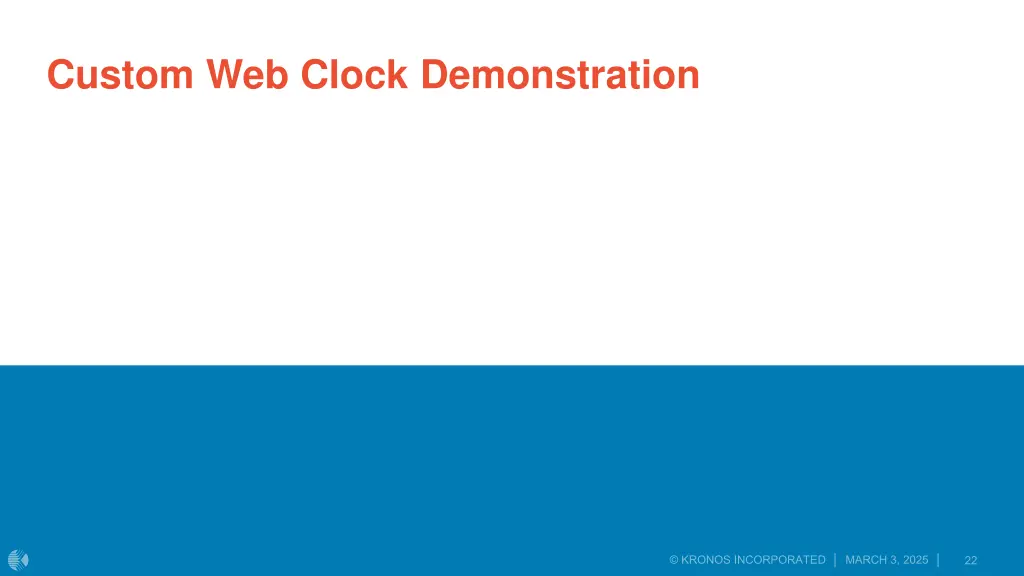

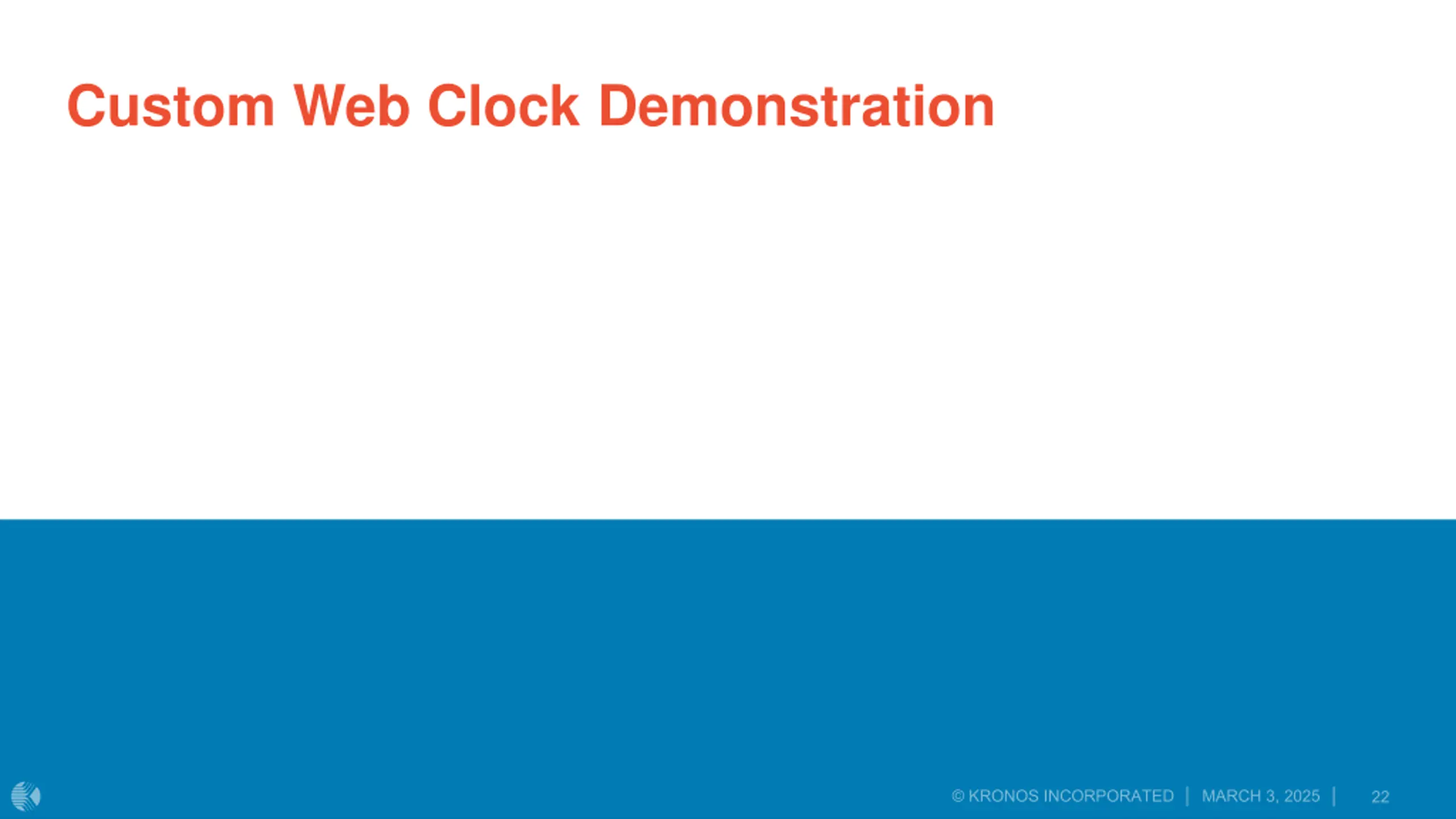

22. Custom Web Clock Demonstration

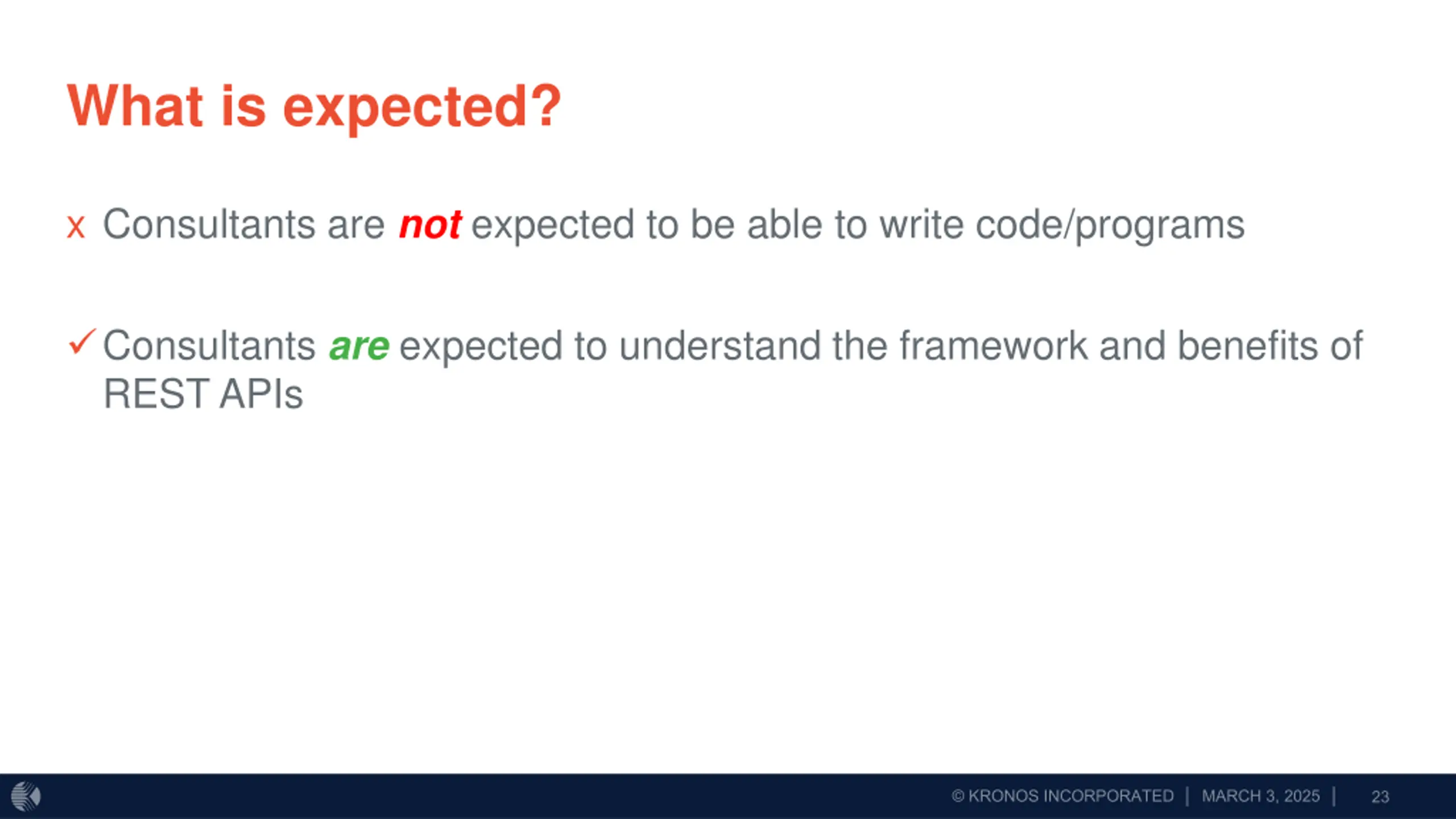

23. What is expected? x Consultants are not expected to be able to write code/programs Consultants are expected to understand the framework and benefits of REST APIs

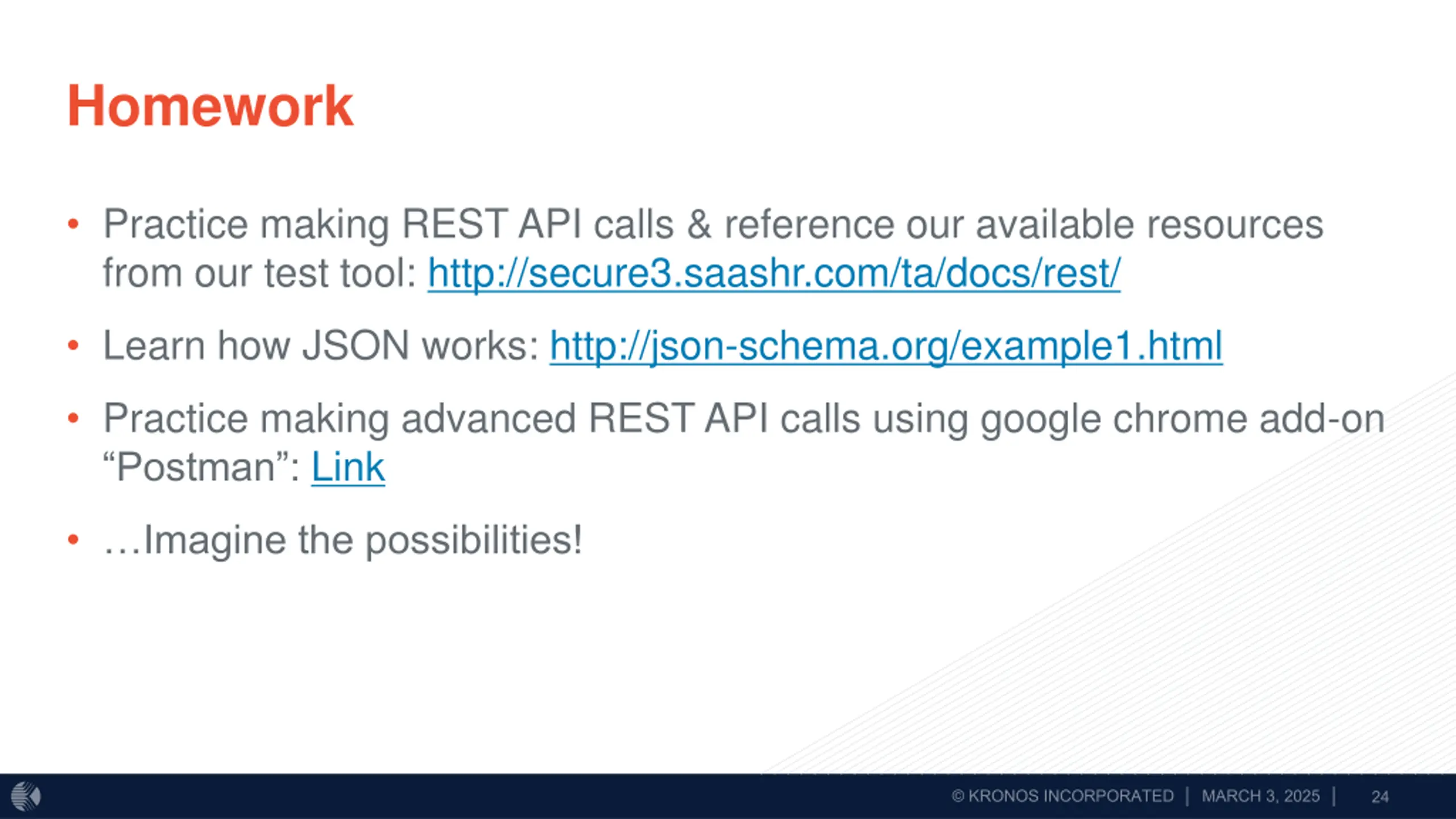

24. Homework Practice making REST API calls & reference our available resources from our test tool: http://secure3.saashr.com/ta/docs/rest/ Learn how JSON works: http://json-schema.org/example1.html Practice making advanced REST API calls using google chrome add-on Postman : Link Imagine the possibilities!

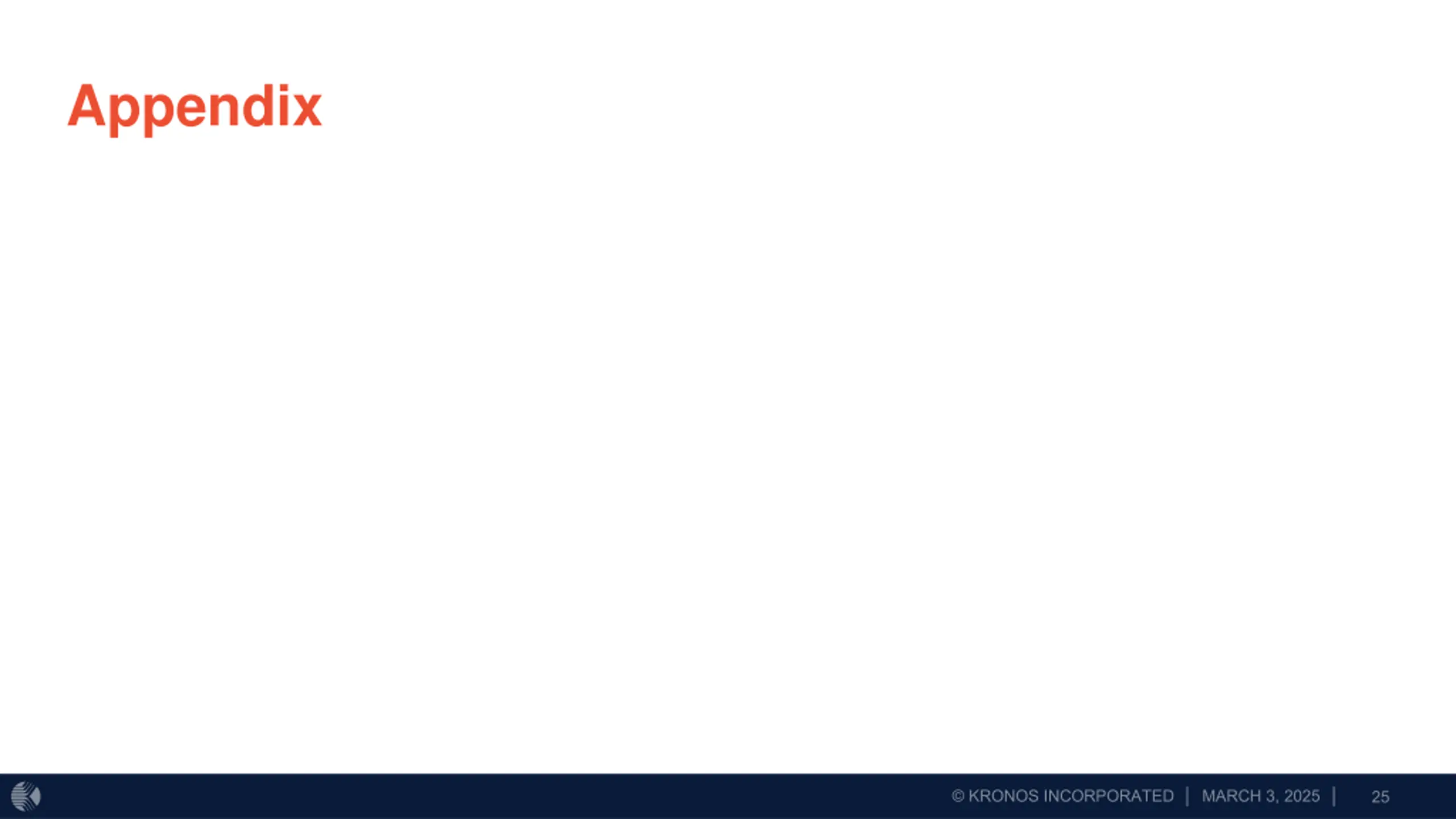

25. Appendix

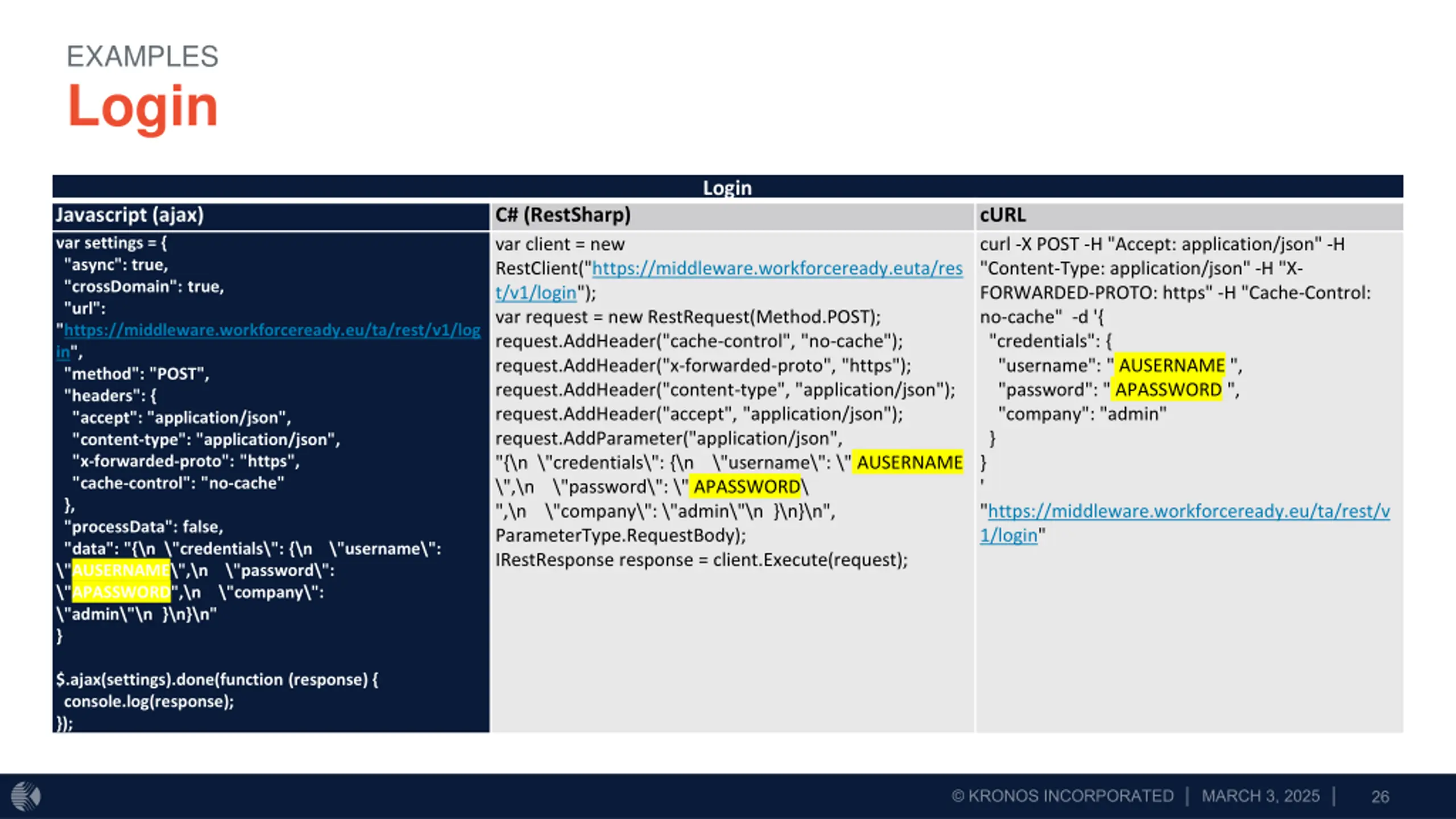

26. EXAMPLES Login Login Javascript (ajax) var settings = { "async": true, "crossDomain": true, "url": "https://middleware.workforceready.eu/ta/rest/v1/log in", "method": "POST", "headers": { "accept": "application/json", "content-type": "application/json", "x-forwarded-proto": "https", "cache-control": "no-cache" }, "processData": false, "data": "{\n \"credentials\": {\n \"username\": \"AUSERNAME\",\n \"password\": \"APASSWORD",\n \"company\": \"admin\"\n }\n}\n" } C# (RestSharp) var client = new RestClient("https://middleware.workforceready.euta/res t/v1/login"); var request = new RestRequest(Method.POST); request.AddHeader("cache-control", "no-cache"); request.AddHeader("x-forwarded-proto", "https"); request.AddHeader("content-type", "application/json"); request.AddHeader("accept", "application/json"); request.AddParameter("application/json", "{\n \"credentials\": {\n \"username\": \" AUSERNAME \",\n \"password\": \" APASSWORD\ ",\n \"company\": \"admin\"\n }\n}\n", ParameterType.RequestBody); IRestResponse response = client.Execute(request); cURL curl -X POST -H "Accept: application/json" -H "Content-Type: application/json" -H "X- FORWARDED-PROTO: https" -H "Cache-Control: no-cache" -d '{ "credentials": { "username": " AUSERNAME ", "password": " APASSWORD ", "company": "admin" } } ' "https://middleware.workforceready.eu/ta/rest/v 1/login" $.ajax(settings).done(function (response) { console.log(response); });

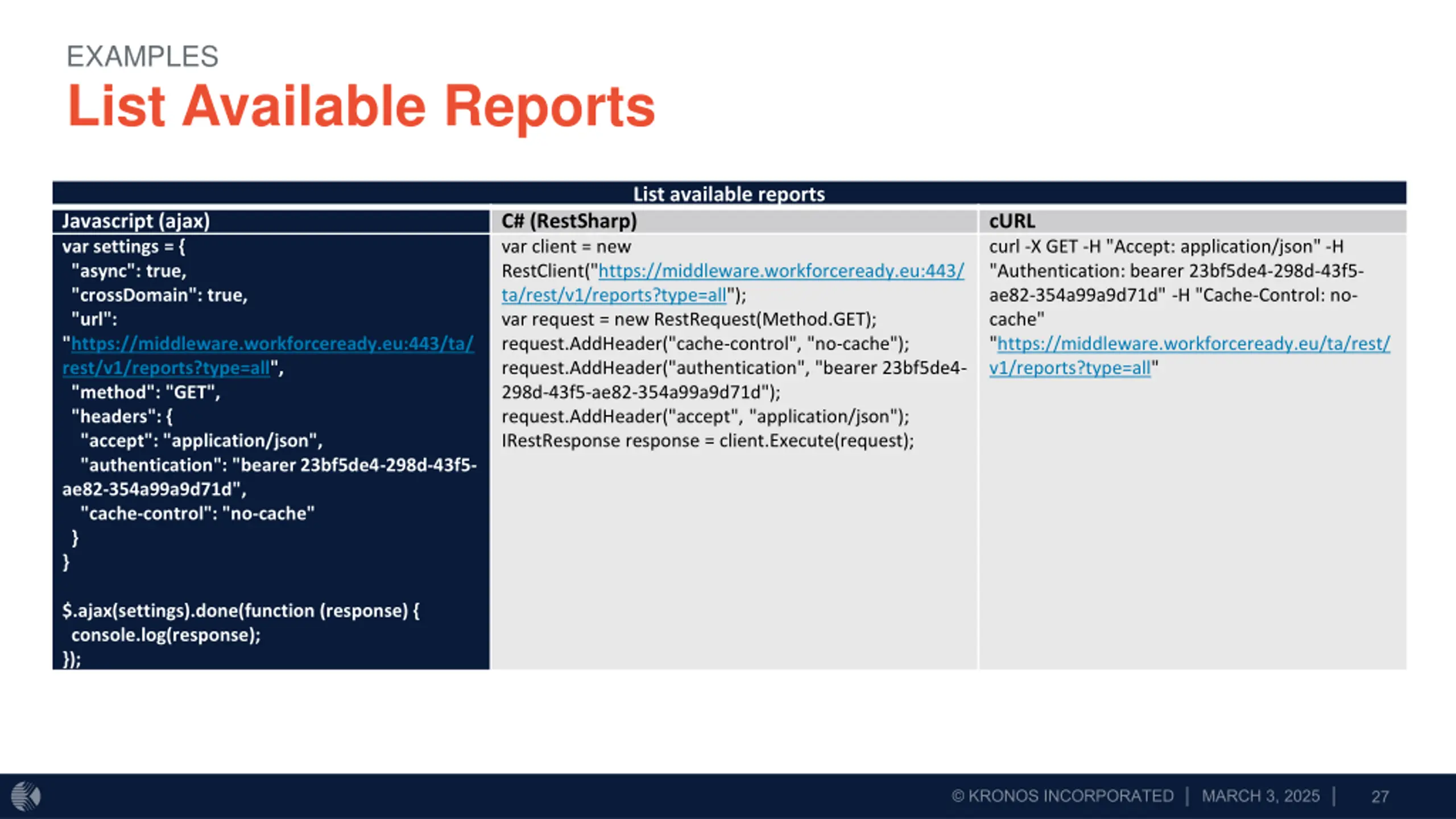

27. EXAMPLES List Available Reports List available reports Javascript (ajax) var settings = { "async": true, "crossDomain": true, "url": "https://middleware.workforceready.eu:443/ta/ rest/v1/reports?type=all", "method": "GET", "headers": { "accept": "application/json", "authentication": "bearer 23bf5de4-298d-43f5- ae82-354a99a9d71d", "cache-control": "no-cache" } } C# (RestSharp) var client = new RestClient("https://middleware.workforceready.eu:443/ ta/rest/v1/reports?type=all"); var request = new RestRequest(Method.GET); request.AddHeader("cache-control", "no-cache"); request.AddHeader("authentication", "bearer 23bf5de4- 298d-43f5-ae82-354a99a9d71d"); request.AddHeader("accept", "application/json"); IRestResponse response = client.Execute(request); cURL curl -X GET -H "Accept: application/json" -H "Authentication: bearer 23bf5de4-298d-43f5- ae82-354a99a9d71d" -H "Cache-Control: no- cache" "https://middleware.workforceready.eu/ta/rest/ v1/reports?type=all" $.ajax(settings).done(function (response) { console.log(response); });

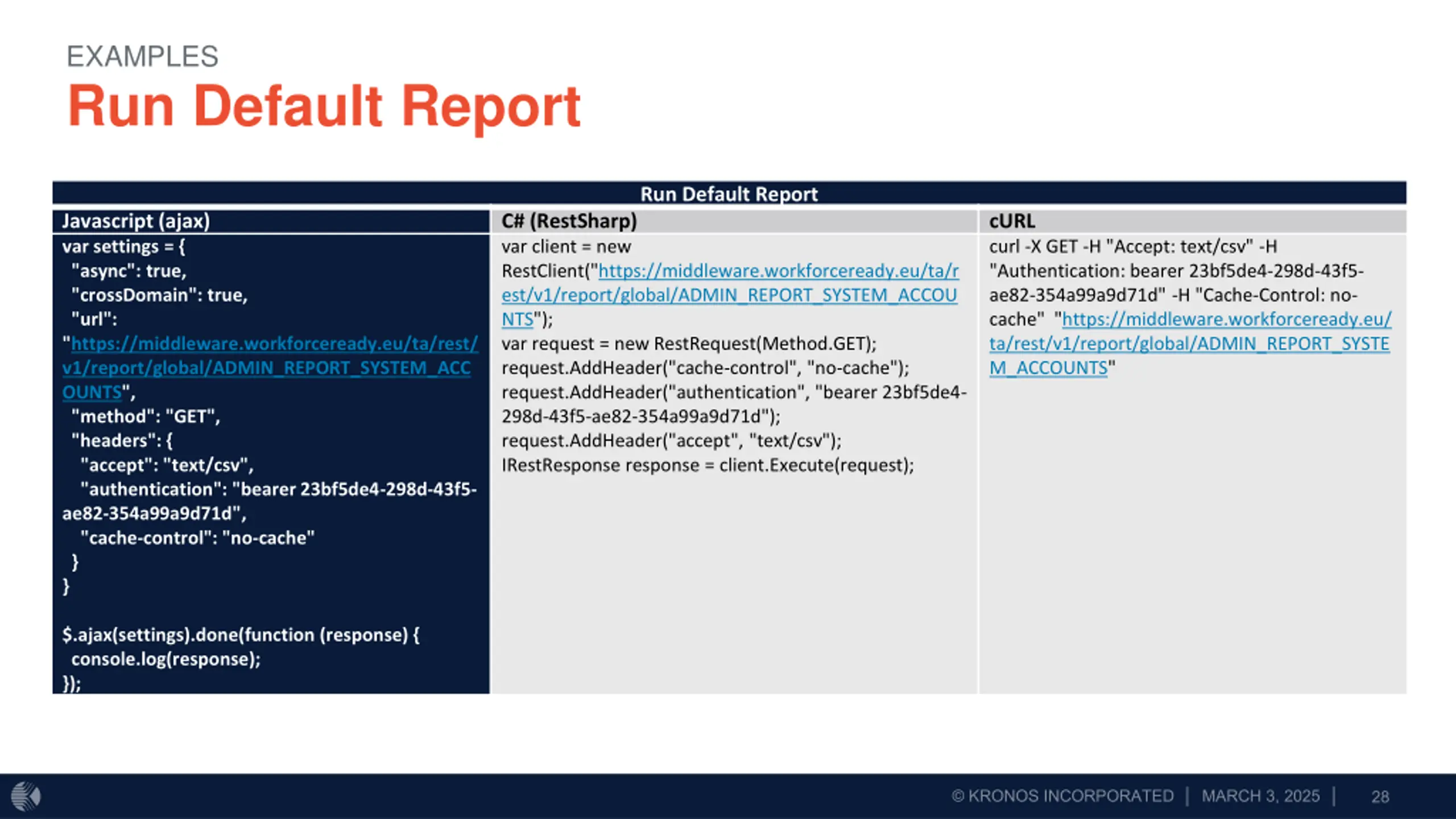

28. EXAMPLES Run Default Report Run Default Report Javascript (ajax) var settings = { "async": true, "crossDomain": true, "url": "https://middleware.workforceready.eu/ta/rest/ v1/report/global/ADMIN_REPORT_SYSTEM_ACC OUNTS", "method": "GET", "headers": { "accept": "text/csv", "authentication": "bearer 23bf5de4-298d-43f5- ae82-354a99a9d71d", "cache-control": "no-cache" } } C# (RestSharp) var client = new RestClient("https://middleware.workforceready.eu/ta/r est/v1/report/global/ADMIN_REPORT_SYSTEM_ACCOU NTS"); var request = new RestRequest(Method.GET); request.AddHeader("cache-control", "no-cache"); request.AddHeader("authentication", "bearer 23bf5de4- 298d-43f5-ae82-354a99a9d71d"); request.AddHeader("accept", "text/csv"); IRestResponse response = client.Execute(request); cURL curl -X GET -H "Accept: text/csv" -H "Authentication: bearer 23bf5de4-298d-43f5- ae82-354a99a9d71d" -H "Cache-Control: no- cache" "https://middleware.workforceready.eu/ ta/rest/v1/report/global/ADMIN_REPORT_SYSTE M_ACCOUNTS" $.ajax(settings).done(function (response) { console.log(response); });

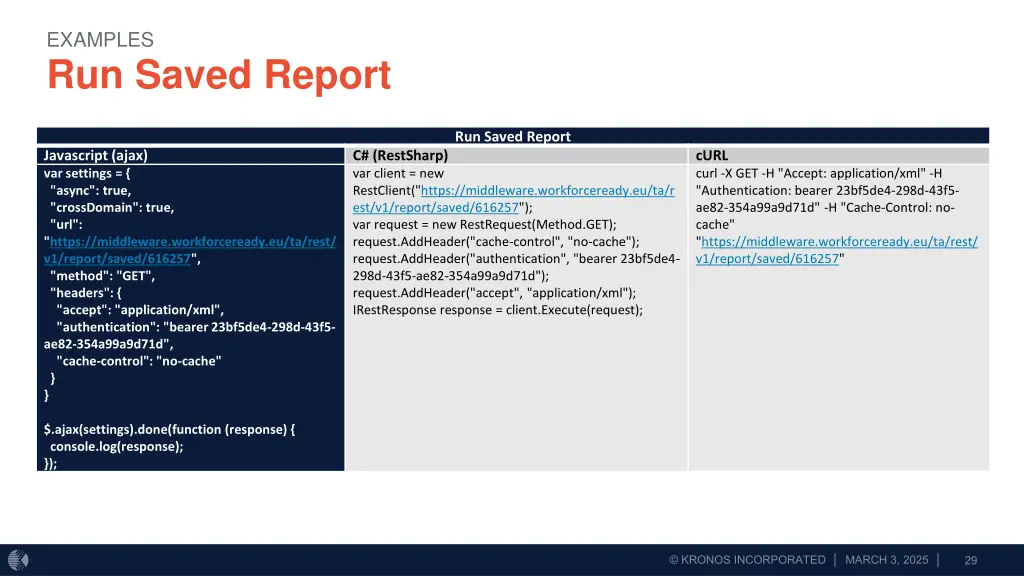

29. EXAMPLES Run Saved Report Run Saved Report Javascript (ajax) var settings = { "async": true, "crossDomain": true, "url": "https://middleware.workforceready.eu/ta/rest/ v1/report/saved/616257", "method": "GET", "headers": { "accept": "application/xml", "authentication": "bearer 23bf5de4-298d-43f5- ae82-354a99a9d71d", "cache-control": "no-cache" } } C# (RestSharp) var client = new RestClient("https://middleware.workforceready.eu/ta/r est/v1/report/saved/616257"); var request = new RestRequest(Method.GET); request.AddHeader("cache-control", "no-cache"); request.AddHeader("authentication", "bearer 23bf5de4- 298d-43f5-ae82-354a99a9d71d"); request.AddHeader("accept", "application/xml"); IRestResponse response = client.Execute(request); cURL curl -X GET -H "Accept: application/xml" -H "Authentication: bearer 23bf5de4-298d-43f5- ae82-354a99a9d71d" -H "Cache-Control: no- cache" "https://middleware.workforceready.eu/ta/rest/ v1/report/saved/616257" $.ajax(settings).done(function (response) { console.log(response); });

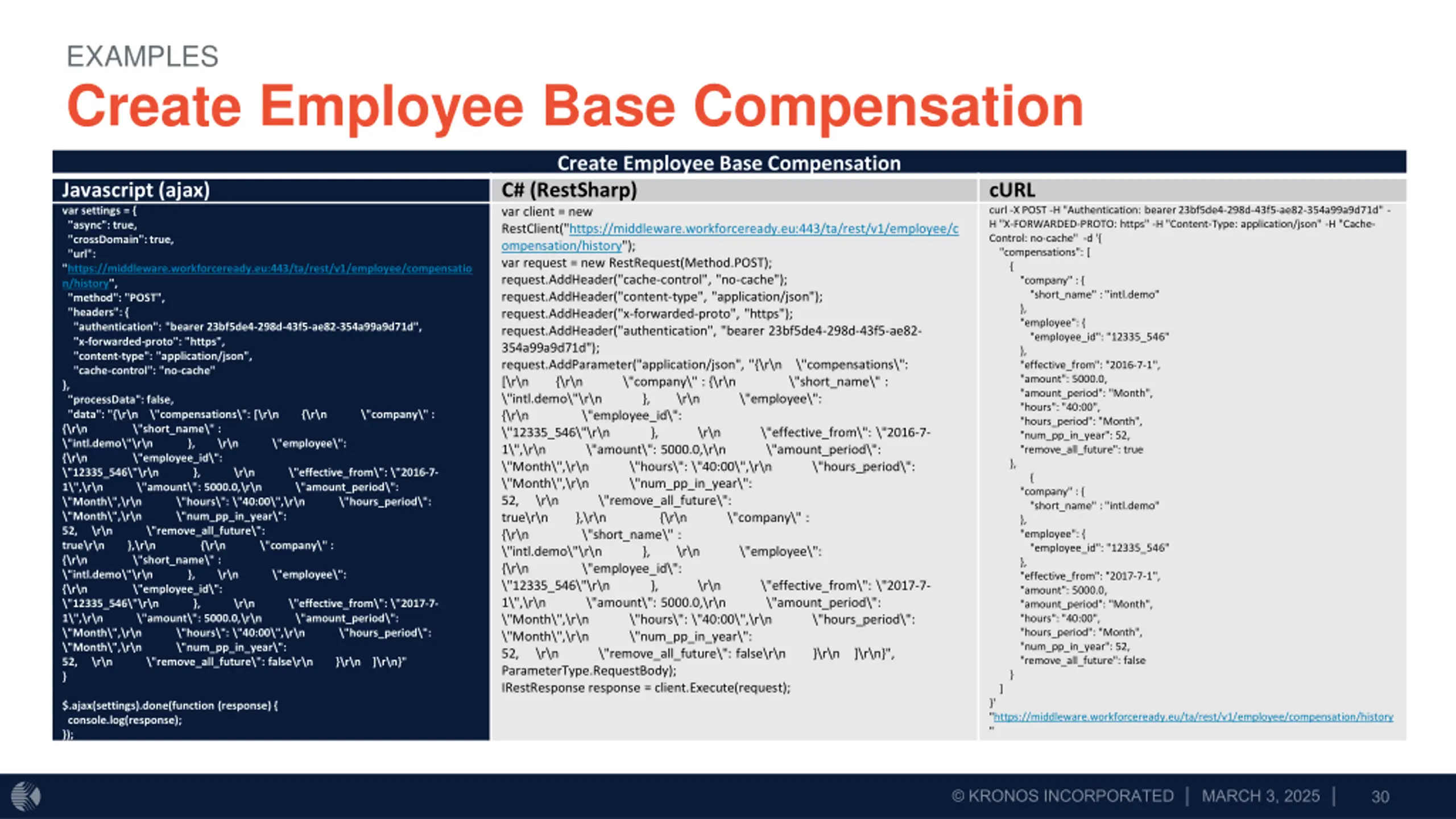

30. EXAMPLES Create Employee Base Compensation Create Employee Base Compensation C# (RestSharp) var client = new RestClient("https://middleware.workforceready.eu:443/ta/rest/v1/employee/c ompensation/history"); var request = new RestRequest(Method.POST); request.AddHeader("cache-control", "no-cache"); request.AddHeader("content-type", "application/json"); request.AddHeader("x-forwarded-proto", "https"); request.AddHeader("authentication", "bearer 23bf5de4-298d-43f5-ae82- 354a99a9d71d"); request.AddParameter("application/json", "{\r\n \"compensations\": [\r\n {\r\n \"company\" : {\r\n \"intl.demo\"\r\n }, \r\n {\r\n \"employee_id\": \"12335_546\"\r\n }, \r\n 1\",\r\n \"amount\": 5000.0,\r\n \"Month\",\r\n \"hours\": \"40:00\",\r\n \"Month\",\r\n \"num_pp_in_year\": 52, \r\n \"remove_all_future\": true\r\n },\r\n {\r\n \"company\" : {\r\n \"short_name\" : \"intl.demo\"\r\n }, \r\n {\r\n \"employee_id\": \"12335_546\"\r\n }, \r\n 1\",\r\n \"amount\": 5000.0,\r\n \"Month\",\r\n \"hours\": \"40:00\",\r\n \"Month\",\r\n \"num_pp_in_year\": 52, \r\n \"remove_all_future\": false\r\n ParameterType.RequestBody); IRestResponse response = client.Execute(request); Javascript (ajax) var settings = { "async": true, "crossDomain": true, "url": "https://middleware.workforceready.eu:443/ta/rest/v1/employee/compensatio n/history", "method": "POST", "headers": { "authentication": "bearer 23bf5de4-298d-43f5-ae82-354a99a9d71d", "x-forwarded-proto": "https", "content-type": "application/json", "cache-control": "no-cache" }, "processData": false, "data": "{\r\n \"compensations\": [\r\n {\r\n \"short_name\" : \"intl.demo\"\r\n }, \r\n {\r\n \"employee_id\": \"12335_546\"\r\n }, \r\n 1\",\r\n \"amount\": 5000.0,\r\n \"Month\",\r\n \"hours\": \"40:00\",\r\n \"Month\",\r\n \"num_pp_in_year\": 52, \r\n \"remove_all_future\": true\r\n },\r\n {\r\n \"company\" : {\r\n \"short_name\" : \"intl.demo\"\r\n }, \r\n {\r\n \"employee_id\": \"12335_546\"\r\n }, \r\n 1\",\r\n \"amount\": 5000.0,\r\n \"Month\",\r\n \"hours\": \"40:00\",\r\n \"Month\",\r\n \"num_pp_in_year\": 52, \r\n \"remove_all_future\": false\r\n } cURL curl -X POST -H "Authentication: bearer 23bf5de4-298d-43f5-ae82-354a99a9d71d" - H "X-FORWARDED-PROTO: https" -H "Content-Type: application/json" -H "Cache- Control: no-cache" -d '{ "compensations": [ { "company" : { "short_name" : "intl.demo" }, "employee": { "employee_id": "12335_546" }, "effective_from": "2016-7-1", "amount": 5000.0, "amount_period": "Month", "hours": "40:00", "hours_period": "Month", "num_pp_in_year": 52, "remove_all_future": true }, { "company" : { "short_name" : "intl.demo" }, "employee": { "employee_id": "12335_546" }, "effective_from": "2017-7-1", "amount": 5000.0, "amount_period": "Month", "hours": "40:00", "hours_period": "Month", "num_pp_in_year": 52, "remove_all_future": false } ] }' "https://middleware.workforceready.eu/ta/rest/v1/employee/compensation/history " \"short_name\" : \"employee\": {\r\n \"company\" : \"effective_from\": \"2016-7- \"amount_period\": \"hours_period\": \"employee\": \"effective_from\": \"2016-7- \"amount_period\": \"hours_period\": \"employee\": \"employee\": \"effective_from\": \"2017-7- \"amount_period\": \"hours_period\": \"effective_from\": \"2017-7- \"amount_period\": \"hours_period\": }\r\n ]\r\n}", }\r\n ]\r\n}" $.ajax(settings).done(function (response) { console.log(response); });

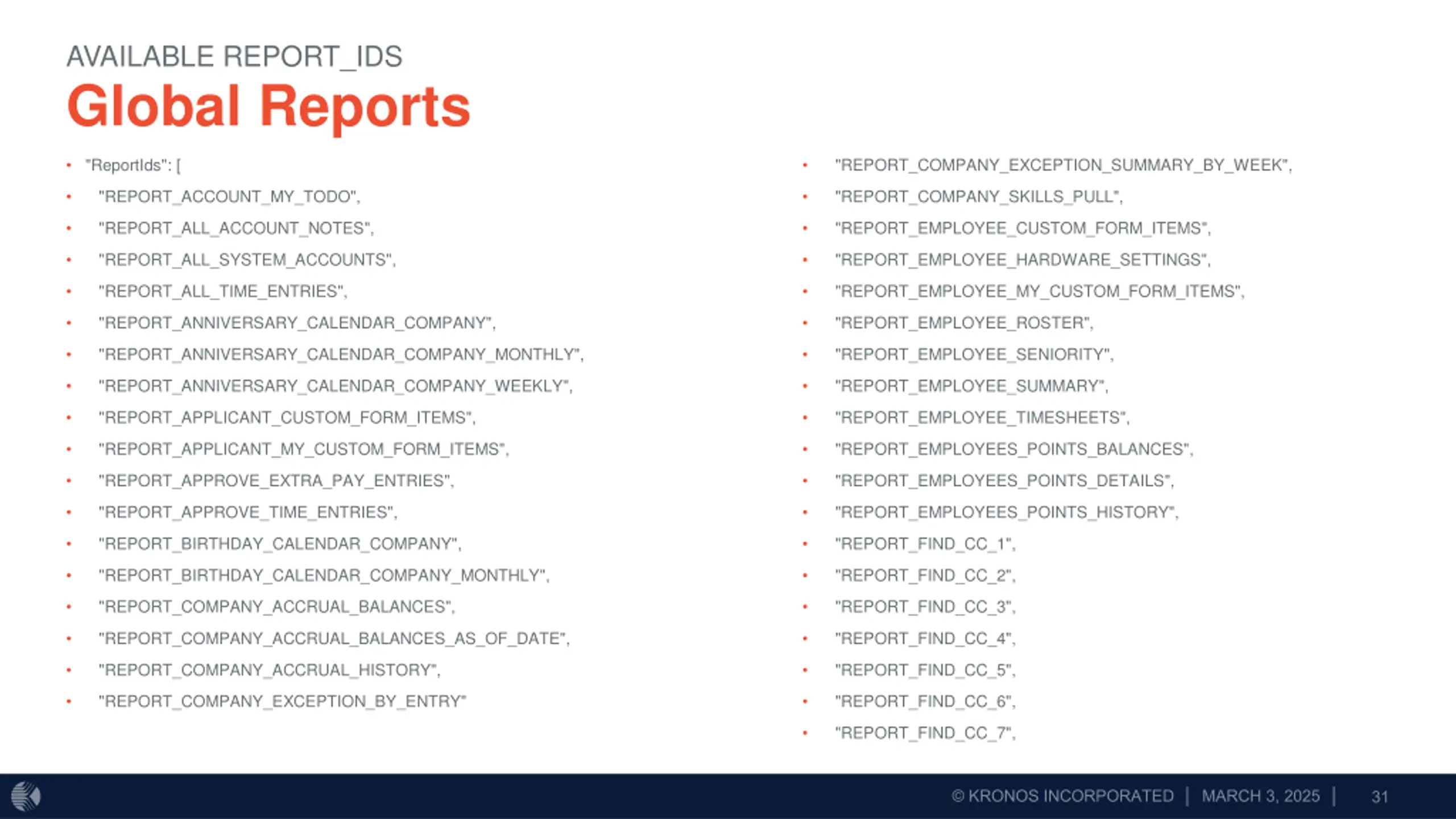

31. AVAILABLE REPORT_IDS Global Reports "ReportIds": [ "REPORT_COMPANY_EXCEPTION_SUMMARY_BY_WEEK", "REPORT_ACCOUNT_MY_TODO", "REPORT_COMPANY_SKILLS_PULL", "REPORT_ALL_ACCOUNT_NOTES", "REPORT_EMPLOYEE_CUSTOM_FORM_ITEMS", "REPORT_ALL_SYSTEM_ACCOUNTS", "REPORT_EMPLOYEE_HARDWARE_SETTINGS", "REPORT_ALL_TIME_ENTRIES", "REPORT_EMPLOYEE_MY_CUSTOM_FORM_ITEMS", "REPORT_ANNIVERSARY_CALENDAR_COMPANY", "REPORT_EMPLOYEE_ROSTER", "REPORT_ANNIVERSARY_CALENDAR_COMPANY_MONTHLY", "REPORT_EMPLOYEE_SENIORITY", "REPORT_ANNIVERSARY_CALENDAR_COMPANY_WEEKLY", "REPORT_EMPLOYEE_SUMMARY", "REPORT_APPLICANT_CUSTOM_FORM_ITEMS", "REPORT_EMPLOYEE_TIMESHEETS", "REPORT_APPLICANT_MY_CUSTOM_FORM_ITEMS", "REPORT_EMPLOYEES_POINTS_BALANCES", "REPORT_APPROVE_EXTRA_PAY_ENTRIES", "REPORT_EMPLOYEES_POINTS_DETAILS", "REPORT_APPROVE_TIME_ENTRIES", "REPORT_EMPLOYEES_POINTS_HISTORY", "REPORT_BIRTHDAY_CALENDAR_COMPANY", "REPORT_FIND_CC_1", "REPORT_BIRTHDAY_CALENDAR_COMPANY_MONTHLY", "REPORT_FIND_CC_2", "REPORT_COMPANY_ACCRUAL_BALANCES", "REPORT_FIND_CC_3", "REPORT_COMPANY_ACCRUAL_BALANCES_AS_OF_DATE", "REPORT_FIND_CC_4", "REPORT_COMPANY_ACCRUAL_HISTORY", "REPORT_FIND_CC_5", "REPORT_COMPANY_EXCEPTION_BY_ENTRY" "REPORT_FIND_CC_6", "REPORT_FIND_CC_7",

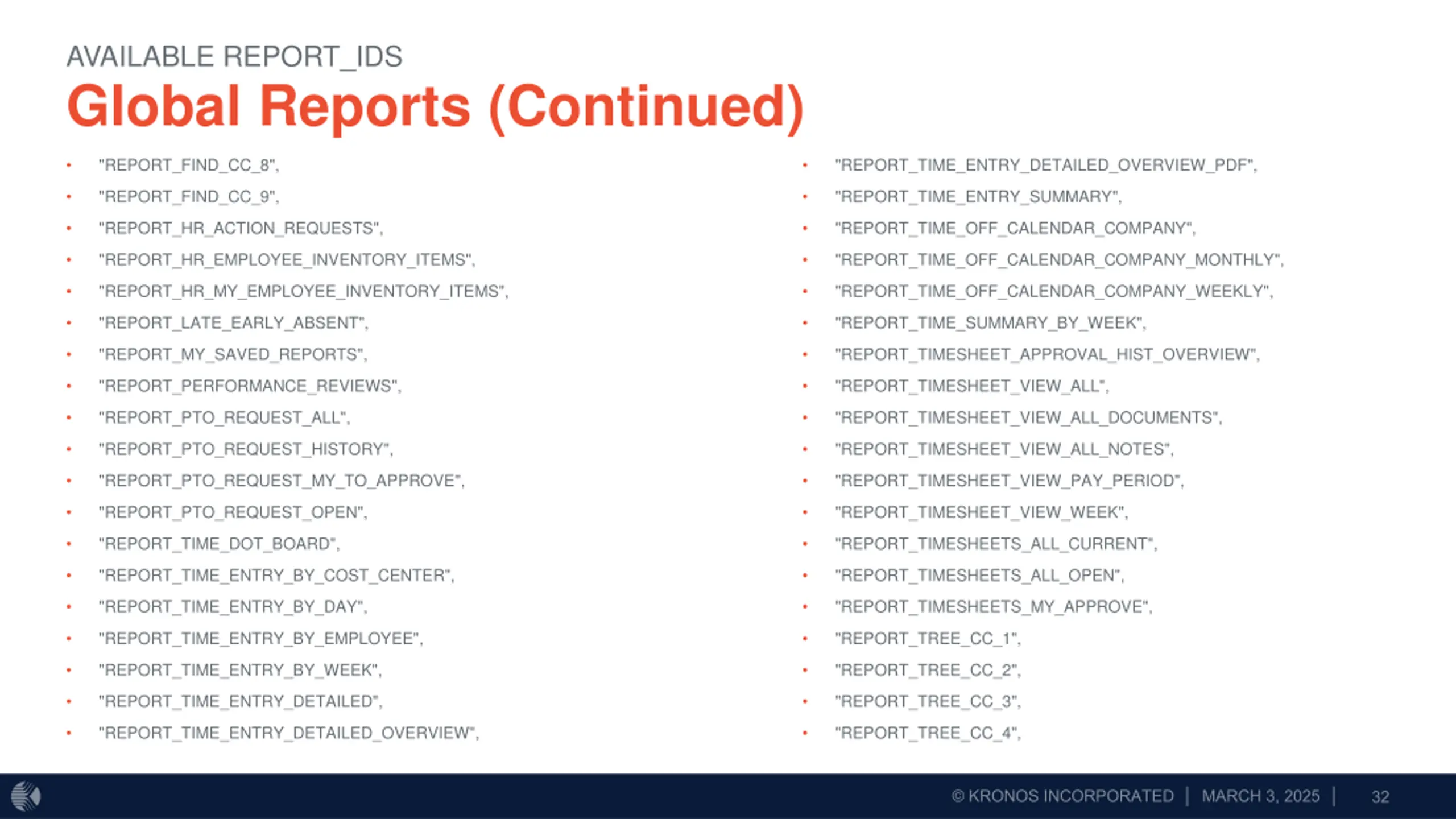

32. AVAILABLE REPORT_IDS Global Reports (Continued) "REPORT_FIND_CC_8", "REPORT_TIME_ENTRY_DETAILED_OVERVIEW_PDF", "REPORT_FIND_CC_9", "REPORT_TIME_ENTRY_SUMMARY", "REPORT_HR_ACTION_REQUESTS", "REPORT_TIME_OFF_CALENDAR_COMPANY", "REPORT_HR_EMPLOYEE_INVENTORY_ITEMS", "REPORT_TIME_OFF_CALENDAR_COMPANY_MONTHLY", "REPORT_HR_MY_EMPLOYEE_INVENTORY_ITEMS", "REPORT_TIME_OFF_CALENDAR_COMPANY_WEEKLY", "REPORT_LATE_EARLY_ABSENT", "REPORT_TIME_SUMMARY_BY_WEEK", "REPORT_MY_SAVED_REPORTS", "REPORT_TIMESHEET_APPROVAL_HIST_OVERVIEW", "REPORT_PERFORMANCE_REVIEWS", "REPORT_TIMESHEET_VIEW_ALL", "REPORT_PTO_REQUEST_ALL", "REPORT_TIMESHEET_VIEW_ALL_DOCUMENTS", "REPORT_PTO_REQUEST_HISTORY", "REPORT_TIMESHEET_VIEW_ALL_NOTES", "REPORT_PTO_REQUEST_MY_TO_APPROVE", "REPORT_TIMESHEET_VIEW_PAY_PERIOD", "REPORT_PTO_REQUEST_OPEN", "REPORT_TIMESHEET_VIEW_WEEK", "REPORT_TIME_DOT_BOARD", "REPORT_TIMESHEETS_ALL_CURRENT", "REPORT_TIME_ENTRY_BY_COST_CENTER", "REPORT_TIMESHEETS_ALL_OPEN", "REPORT_TIME_ENTRY_BY_DAY", "REPORT_TIMESHEETS_MY_APPROVE", "REPORT_TIME_ENTRY_BY_EMPLOYEE", "REPORT_TREE_CC_1", "REPORT_TIME_ENTRY_BY_WEEK", "REPORT_TREE_CC_2", "REPORT_TIME_ENTRY_DETAILED", "REPORT_TREE_CC_3", "REPORT_TIME_ENTRY_DETAILED_OVERVIEW", "REPORT_TREE_CC_4",

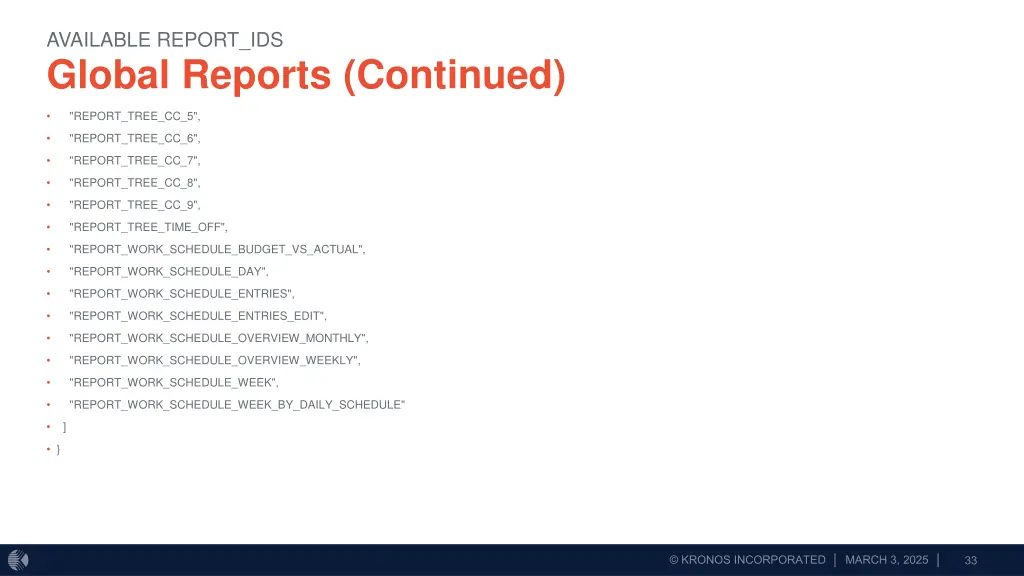

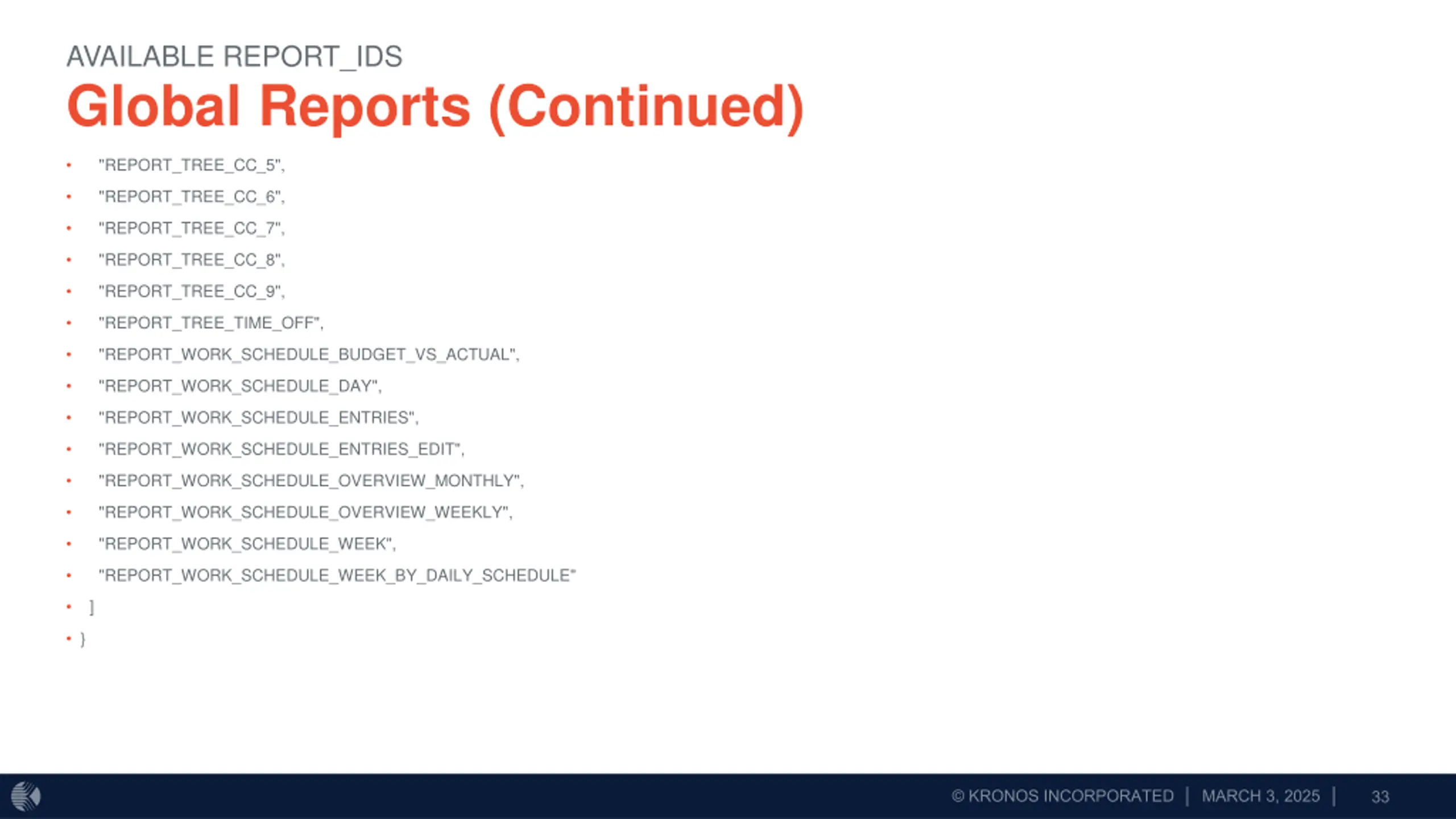

33. AVAILABLE REPORT_IDS Global Reports (Continued) "REPORT_TREE_CC_5", "REPORT_TREE_CC_6", "REPORT_TREE_CC_7", "REPORT_TREE_CC_8", "REPORT_TREE_CC_9", "REPORT_TREE_TIME_OFF", "REPORT_WORK_SCHEDULE_BUDGET_VS_ACTUAL", "REPORT_WORK_SCHEDULE_DAY", "REPORT_WORK_SCHEDULE_ENTRIES", "REPORT_WORK_SCHEDULE_ENTRIES_EDIT", "REPORT_WORK_SCHEDULE_OVERVIEW_MONTHLY", "REPORT_WORK_SCHEDULE_OVERVIEW_WEEKLY", "REPORT_WORK_SCHEDULE_WEEK", "REPORT_WORK_SCHEDULE_WEEK_BY_DAILY_SCHEDULE" ] }
