REFLECTION OF LIGHT BY PLANE SURFACES
REFLECTION OF LIGHT
BY PLANE SURFACES
•
We have learnt about shadows and we carried out many experiments with light
rays and also discussed the rectilinear propagation of light i.e., light travels in a
straight line. In class 7 we learnt the laws of reflection.
•
Let us recall some of them.
A source of light, an opaque object and a screen are needed to form a shadow.
Light travels in a straight line.
When light gets reflected from a surface, the angle of reflection is equal to the
angle of incidence.
The incident ray, the normal at the point of incidence and the reflected ray all
lie in the same plane.
•
We observed shadows and images in your daily life. Some questions might
have come to your mind while observing these shadows or images.
•
How can we get the image of a big building in a small mirror?
•
Can we get the image formed by a plane mirror on a screen?
•
Why is there right-left inversion when we look into a mirror?
•
Why is the angle of reflection equal to the angle of incidence when a light ray
gets reflected from a surface.
•
In this lesson we are going to learn about reflection of light on plane surfaces
in detail so that we can answer the above questions.
•
Let’s start with some activities based on your previous knowledge.
Formation of image by a pinhole camera
•
Recall how an image forms in a pinhole
camera that you have learnt in class 6.
•
Draw a ray diagram of the formation of
an image in a pinhole camera.
•
What would happen if we increase the size of the hole of the pinhole camera.
Observe the flame of a candle with a pinhole camera making a big hole.
•
Try to draw a ray diagram of the formation of an image in a pinhole camera
with a big hole.
•
By observing the figure we can understand that the light rays coming from the
top of the candle flame fall at different points on the screen.
•
Similarly the rays coming from bottom of the candle flame also fall at different
points on the screen.
•
Thus we get blurred image on the screen due to the big hole of the camera.
Activity
•
A smart crow is on a tree at point ‘A’ as
shown. Some grains are on the ground.
•
If the crow wants to take a grain and
reach the point ‘B’ on the other tree as
early as possible(in least time), from
where should the crow pick up the
grain.
•
Which among the paths ACB, ADB,
AEB and AFB is the shortest path?
•

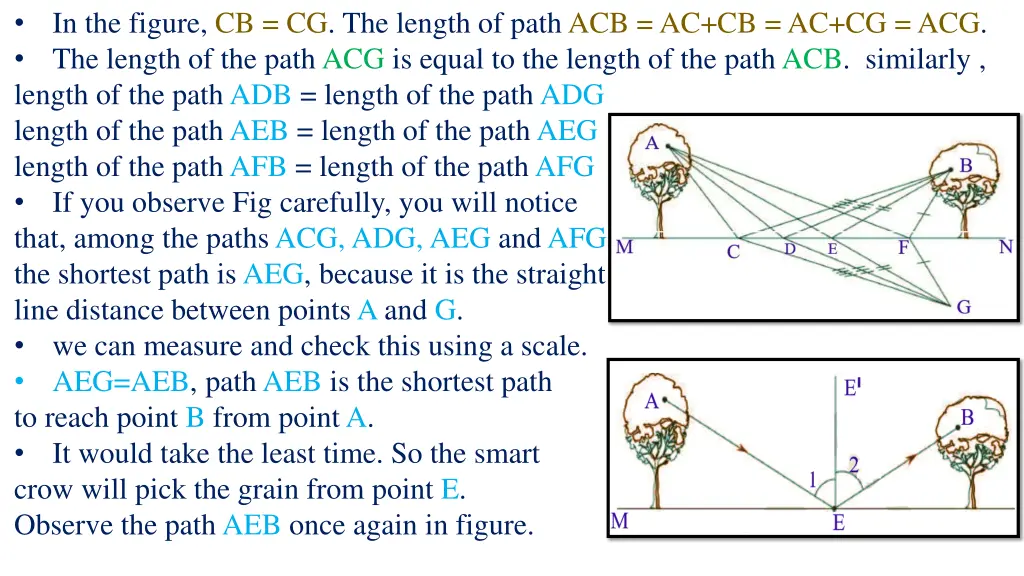

To compare the lengths of these paths,
we make duplicates of them in such a
way that all the duplicate paths meet at
point G as shown in figure.
•
In the figure,
CB = CG
. The length of path
ACB = AC+CB = AC+CG = ACG
.
•
The length of the path
ACG
is equal to the length of the path
ACB
. similarly ,
length of the path
ADB
= length of the path
ADG
length of the path
AEB
= length of the path
AEG
length of the path
AFB
= length of the path
AFG
•
If you observe Fig carefully, you will notice
that, among the paths
ACG, ADG, AEG
and
AFG
,
the shortest path is
AEG
, because it is the straight
line distance between points
A
and
G
.
•
we can measure and check this using a scale.
•
AEG=AEB
, path
AEB
is the shortest path
to reach point
B
from point
A
.
•
It would take the least time. So the smart
crow will pick the grain from point
E
.

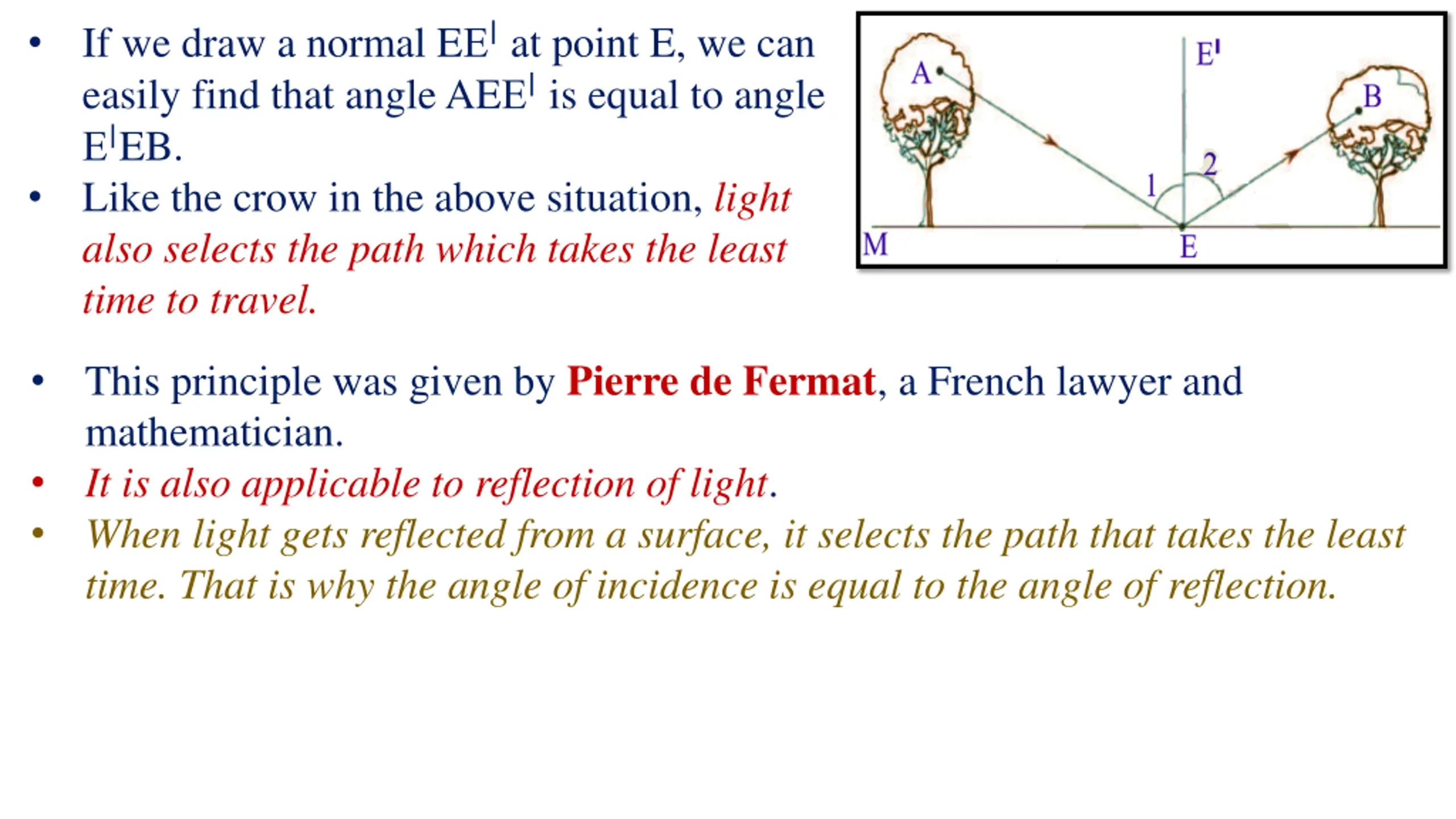

Observe the path
AEB
once again in figure.
•
This principle was given by
Pierre de Fermat
, a French lawyer and
mathematician.
•
It is also applicable to reflection of light
.
•
When light gets reflected from a surface, it selects the path that takes the least
time. That is why the angle of incidence is equal to the angle of reflection.
