Principles of Computer Security Instructor: Haibin Zhang hbzhang@umbc.edu

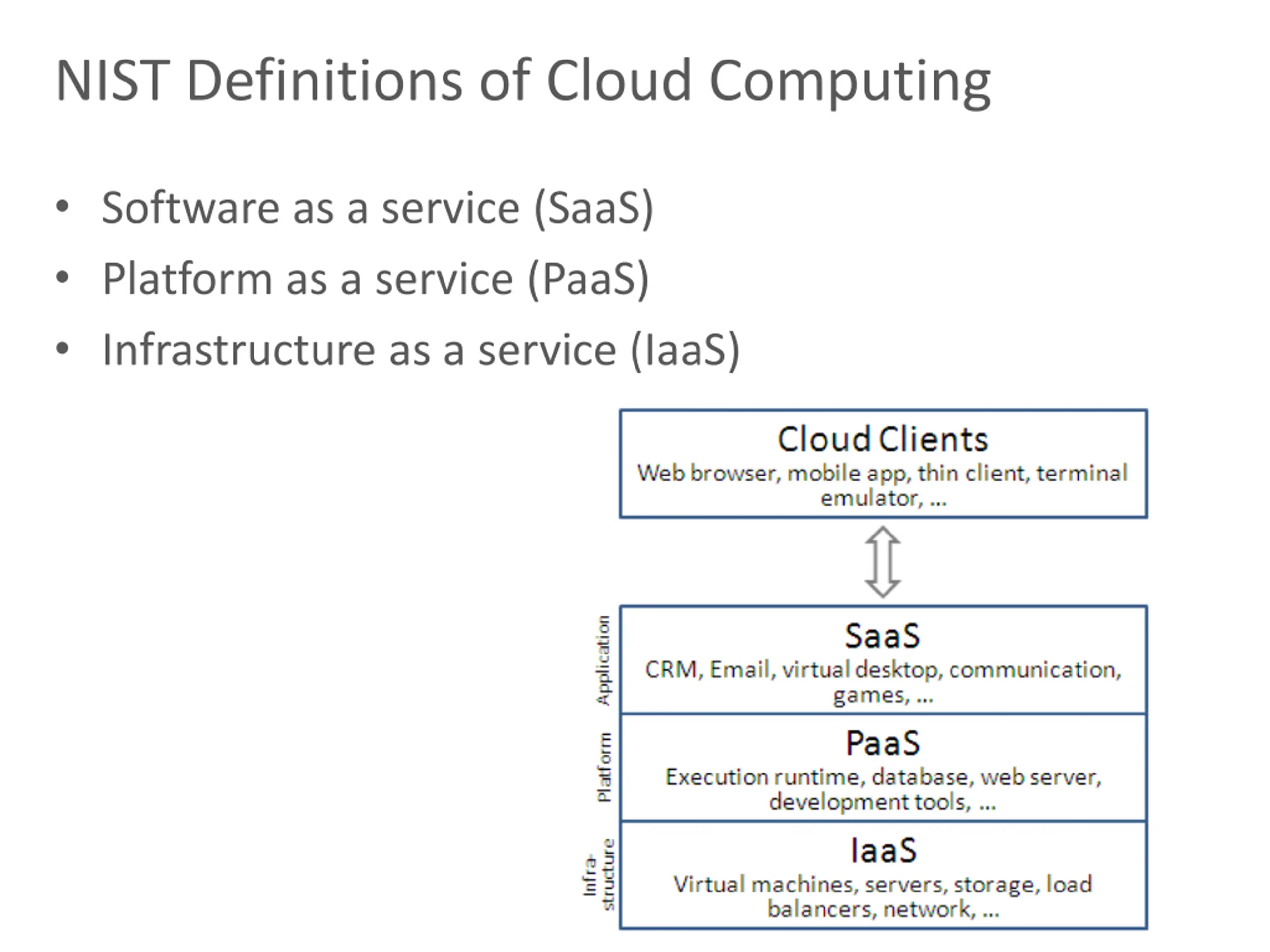

NIST Definitions of Cloud Computing Software as a service (SaaS) Platform as a service (PaaS) Infrastructure as a service (IaaS)

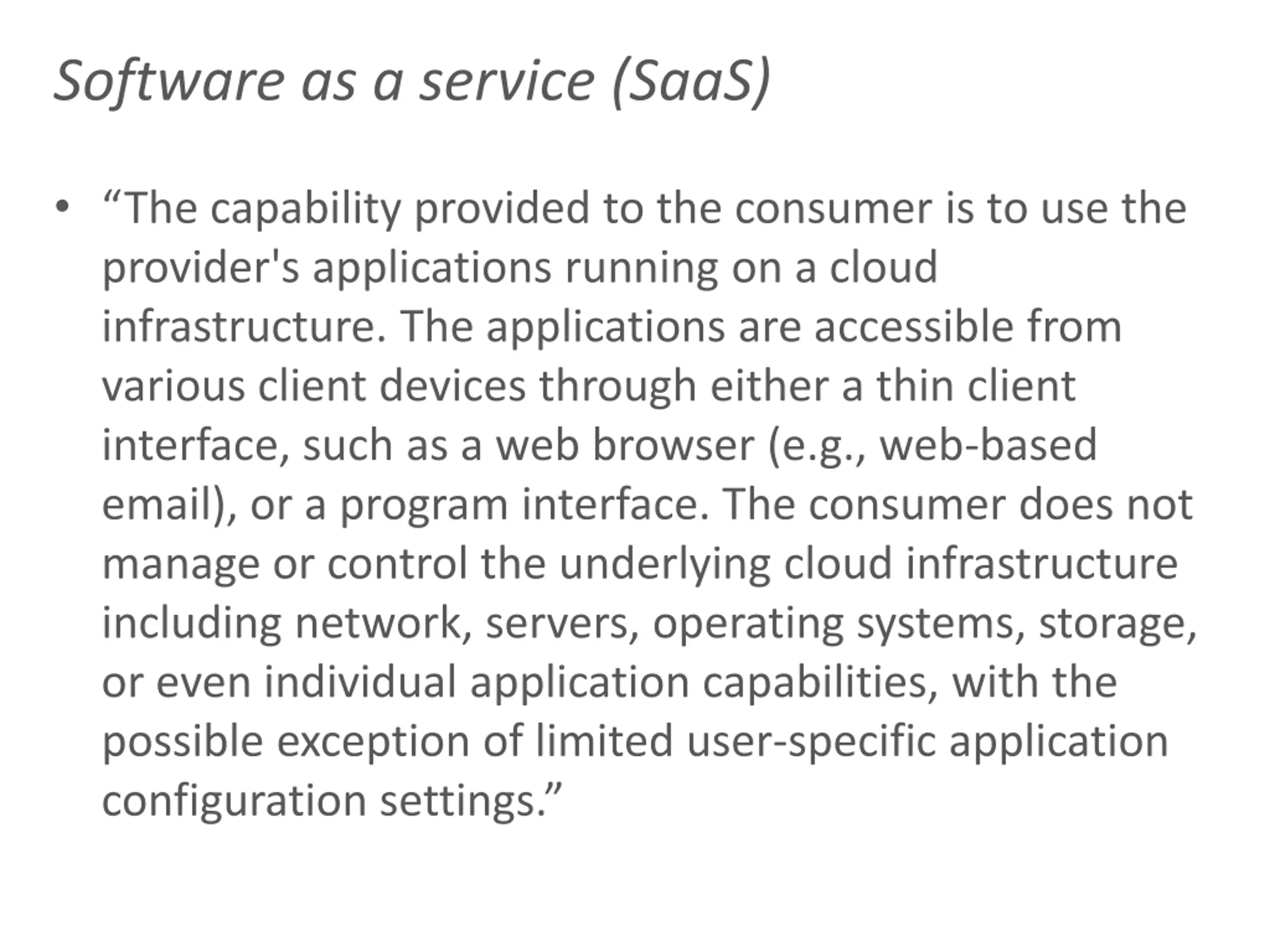

Software as a service (SaaS) The capability provided to the consumer is to use the provider's applications running on a cloud infrastructure. The applications are accessible from various client devices through either a thin client interface, such as a web browser (e.g., web-based email), or a program interface. The consumer does not manage or control the underlying cloud infrastructure including network, servers, operating systems, storage, or even individual application capabilities, with the possible exception of limited user-specific application configuration settings.

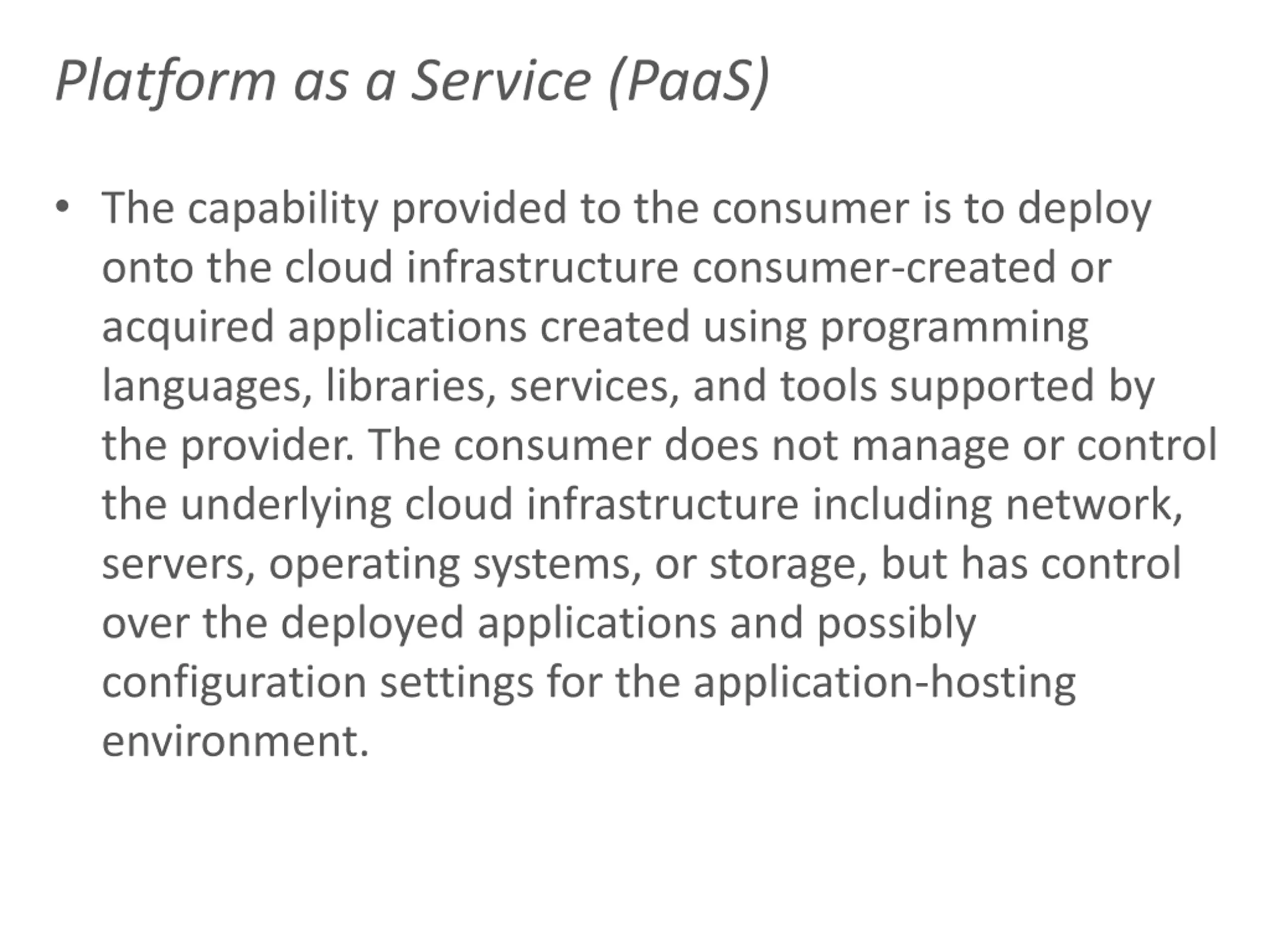

Platform as a Service (PaaS) The capability provided to the consumer is to deploy onto the cloud infrastructure consumer-created or acquired applications created using programming languages, libraries, services, and tools supported by the provider. The consumer does not manage or control the underlying cloud infrastructure including network, servers, operating systems, or storage, but has control over the deployed applications and possibly configuration settings for the application-hosting environment.

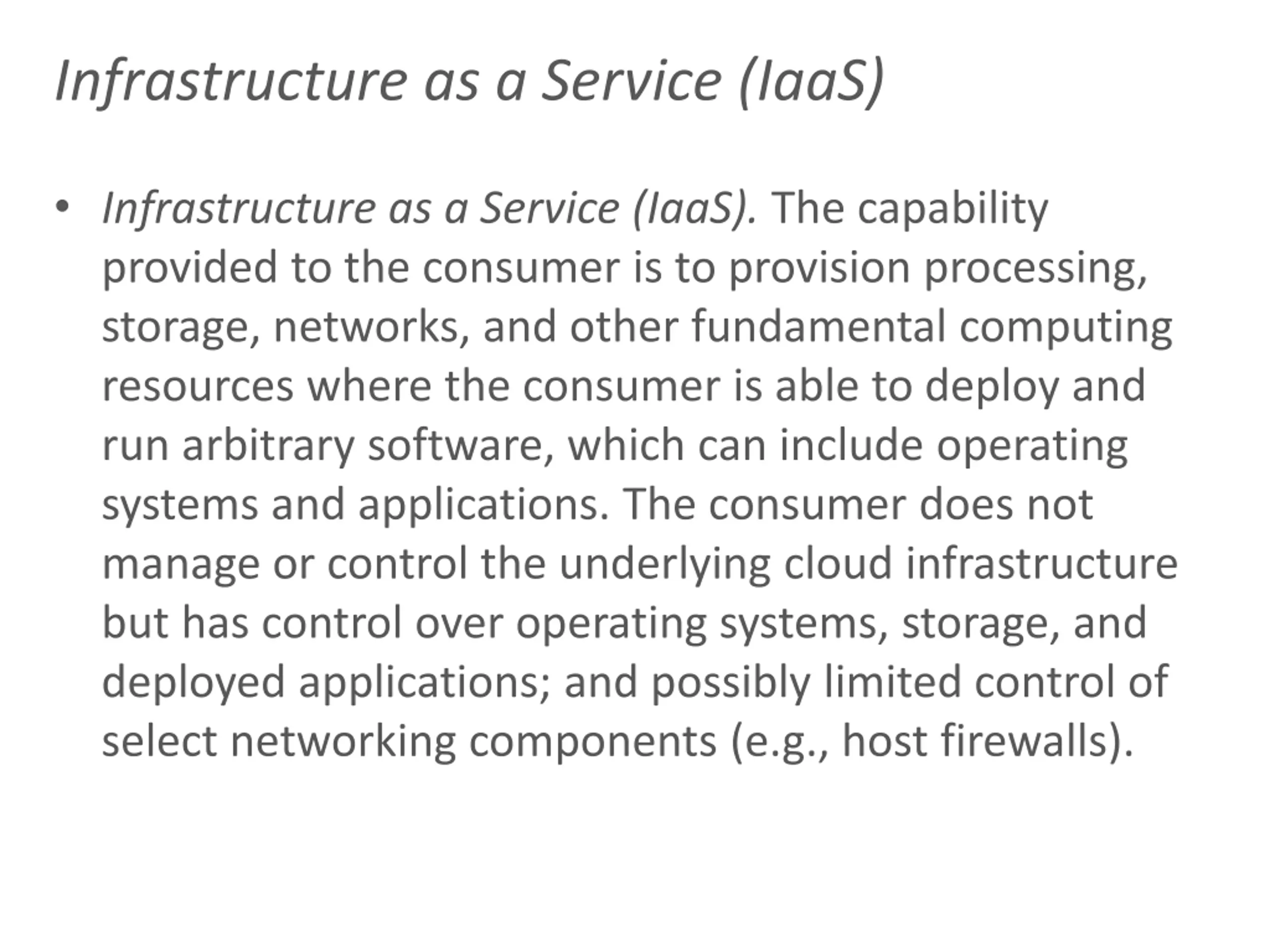

Infrastructure as a Service (IaaS) Infrastructure as a Service (IaaS). The capability provided to the consumer is to provision processing, storage, networks, and other fundamental computing resources where the consumer is able to deploy and run arbitrary software, which can include operating systems and applications. The consumer does not manage or control the underlying cloud infrastructure but has control over operating systems, storage, and deployed applications; and possibly limited control of select networking components (e.g., host firewalls).

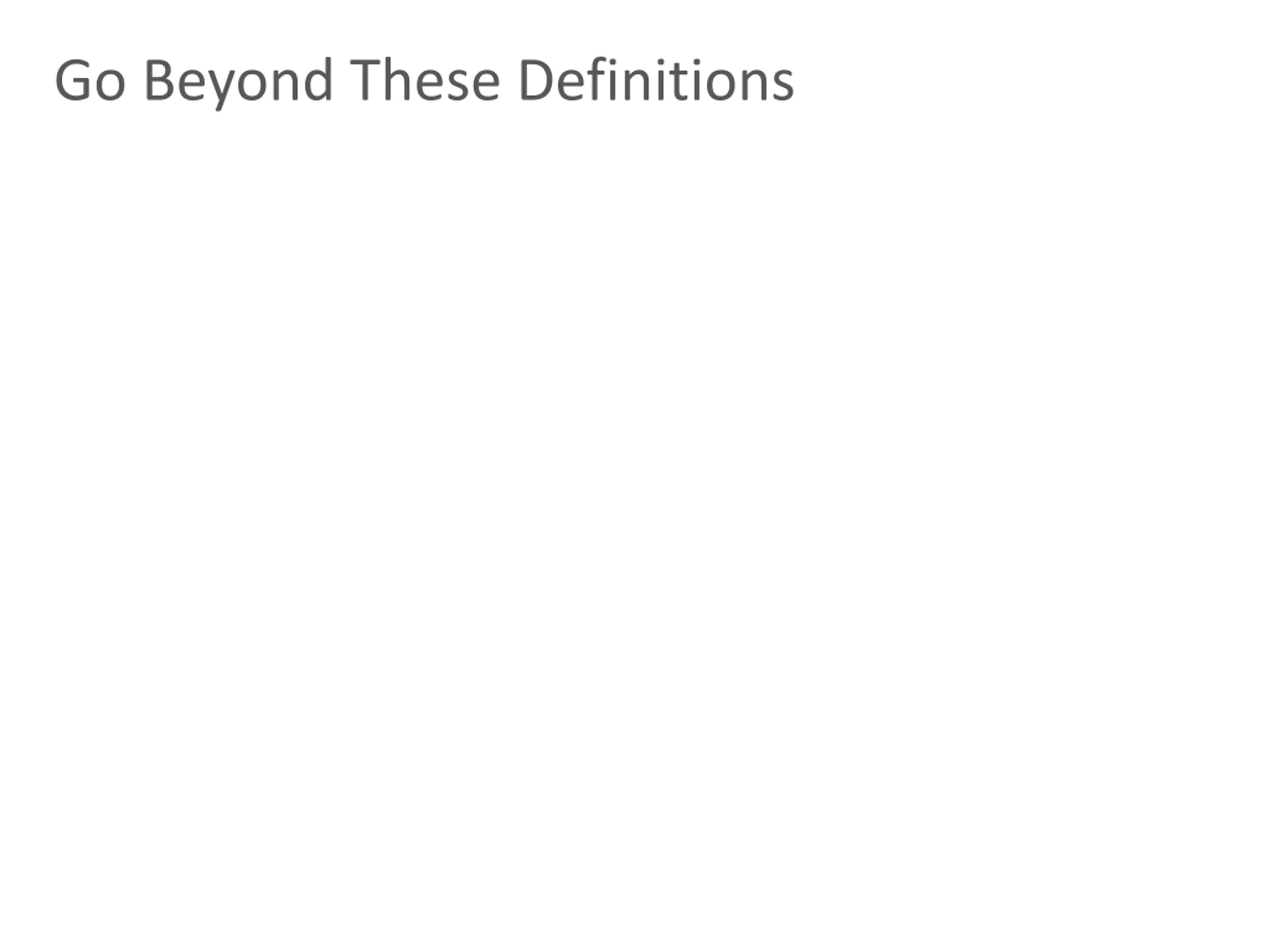

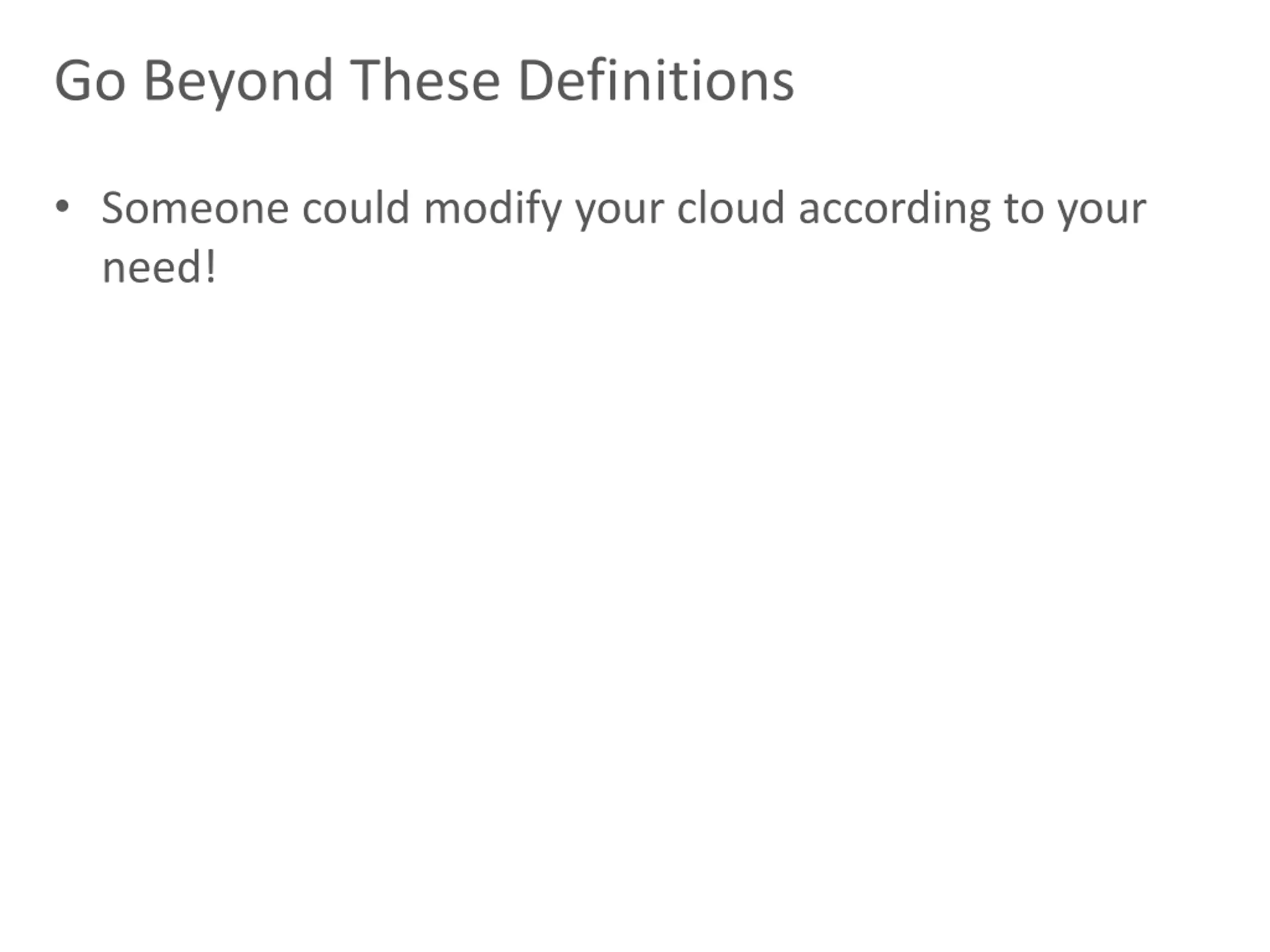

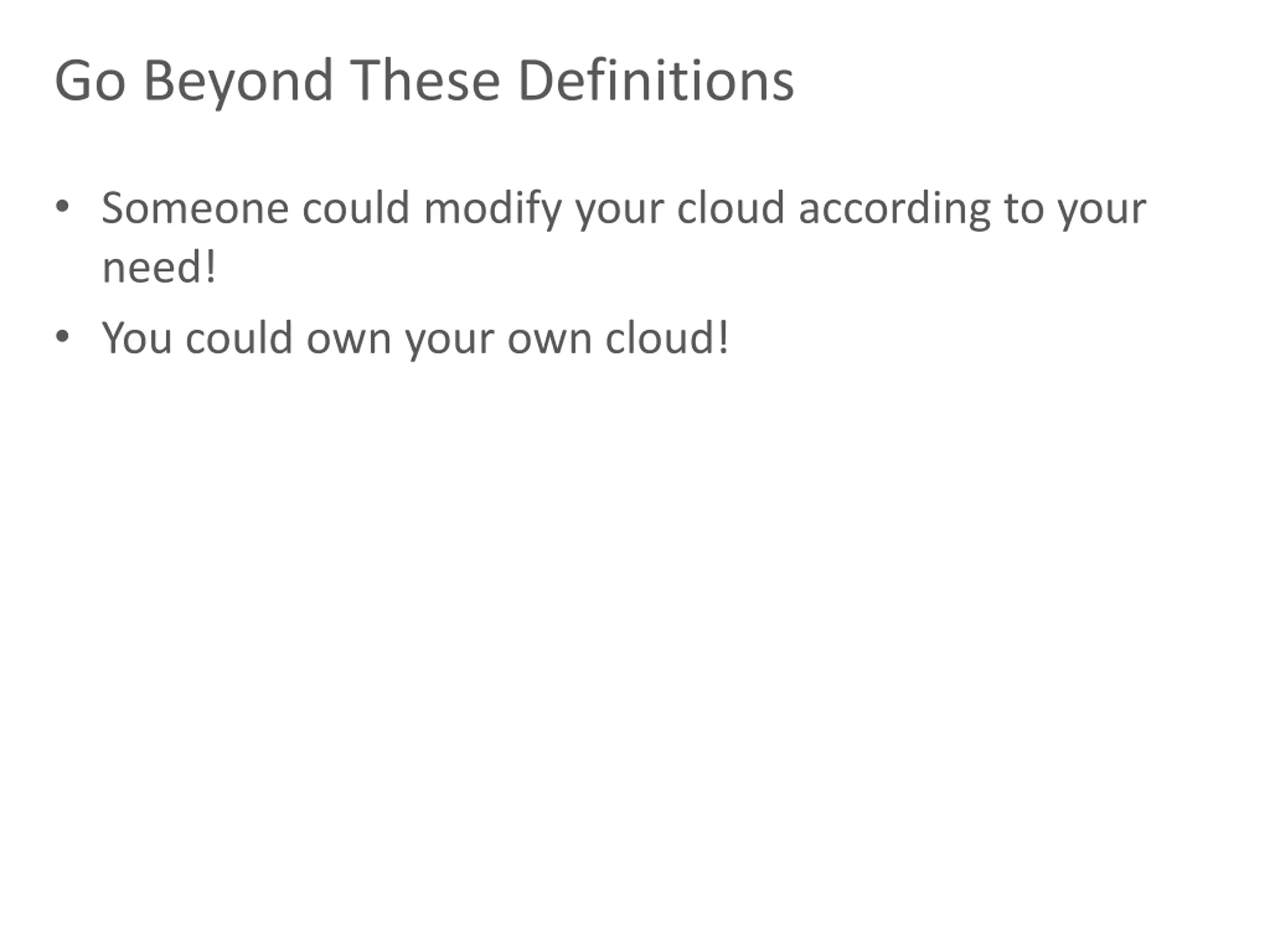

Go Beyond These Definitions Someone could modify your cloud according to your need!
Go Beyond These Definitions Someone could modify your cloud according to your need! You could own your own cloud!

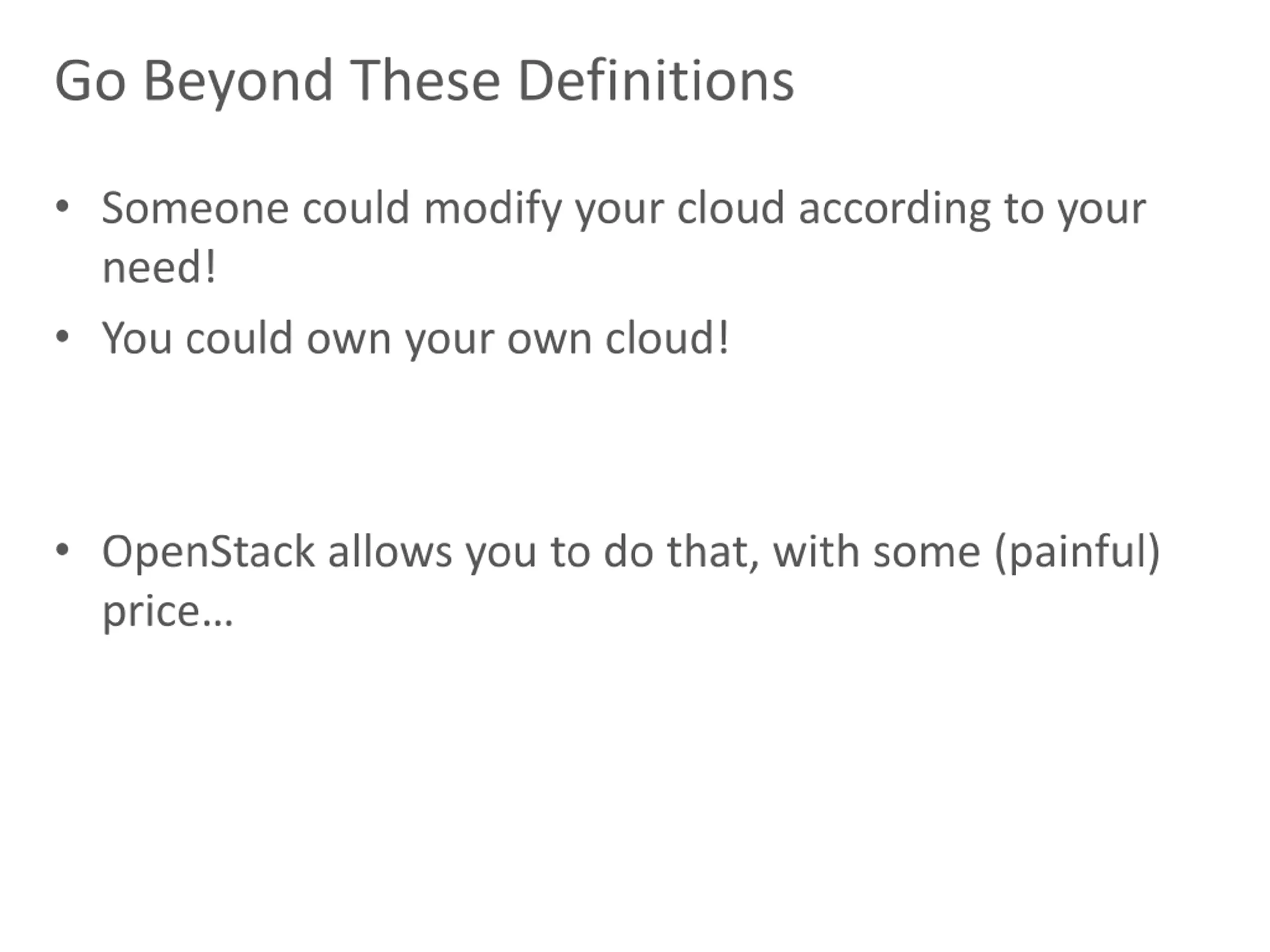

Go Beyond These Definitions Someone could modify your cloud according to your need! You could own your own cloud! OpenStack allows you to do that, with some (painful) price

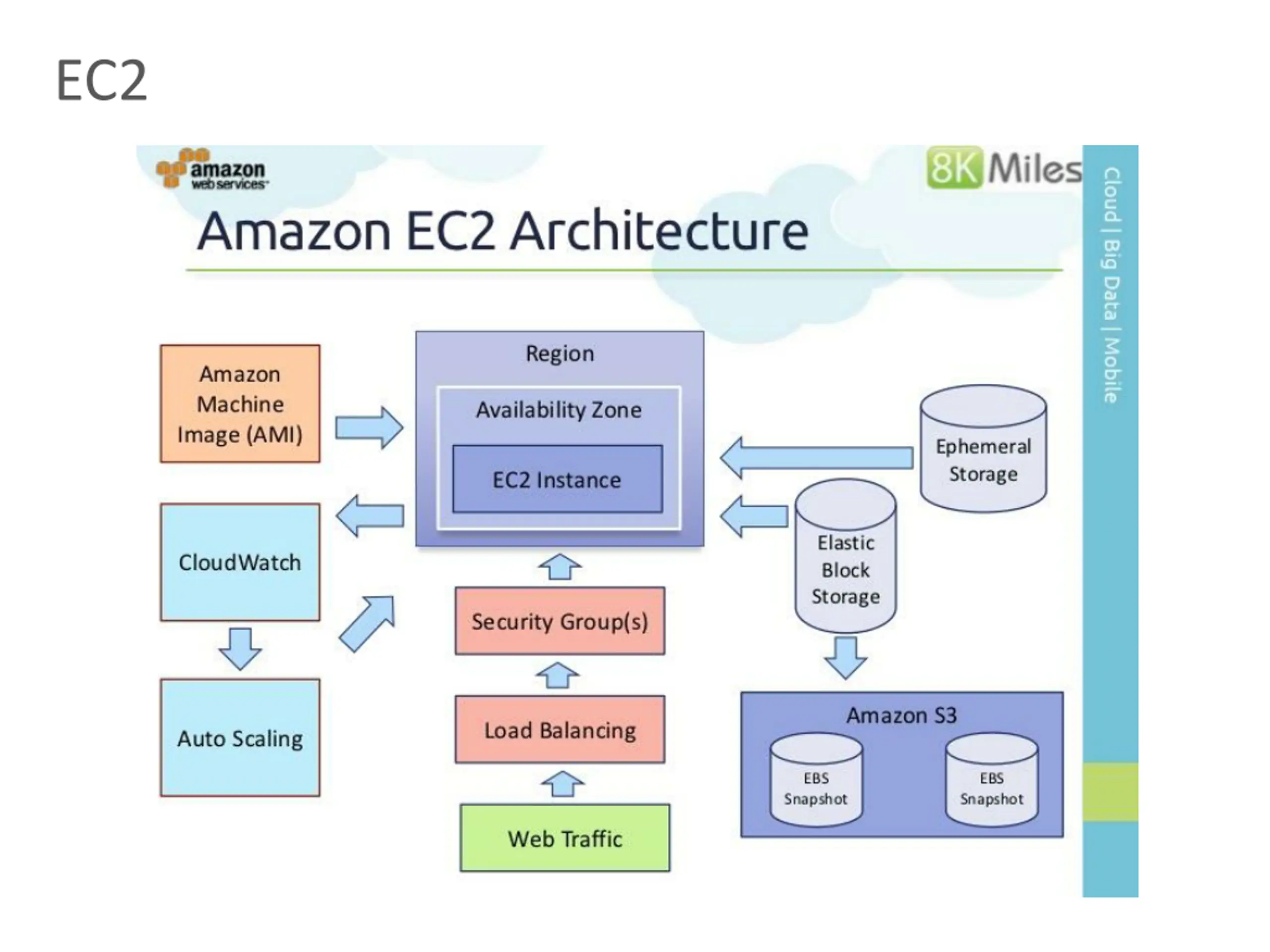

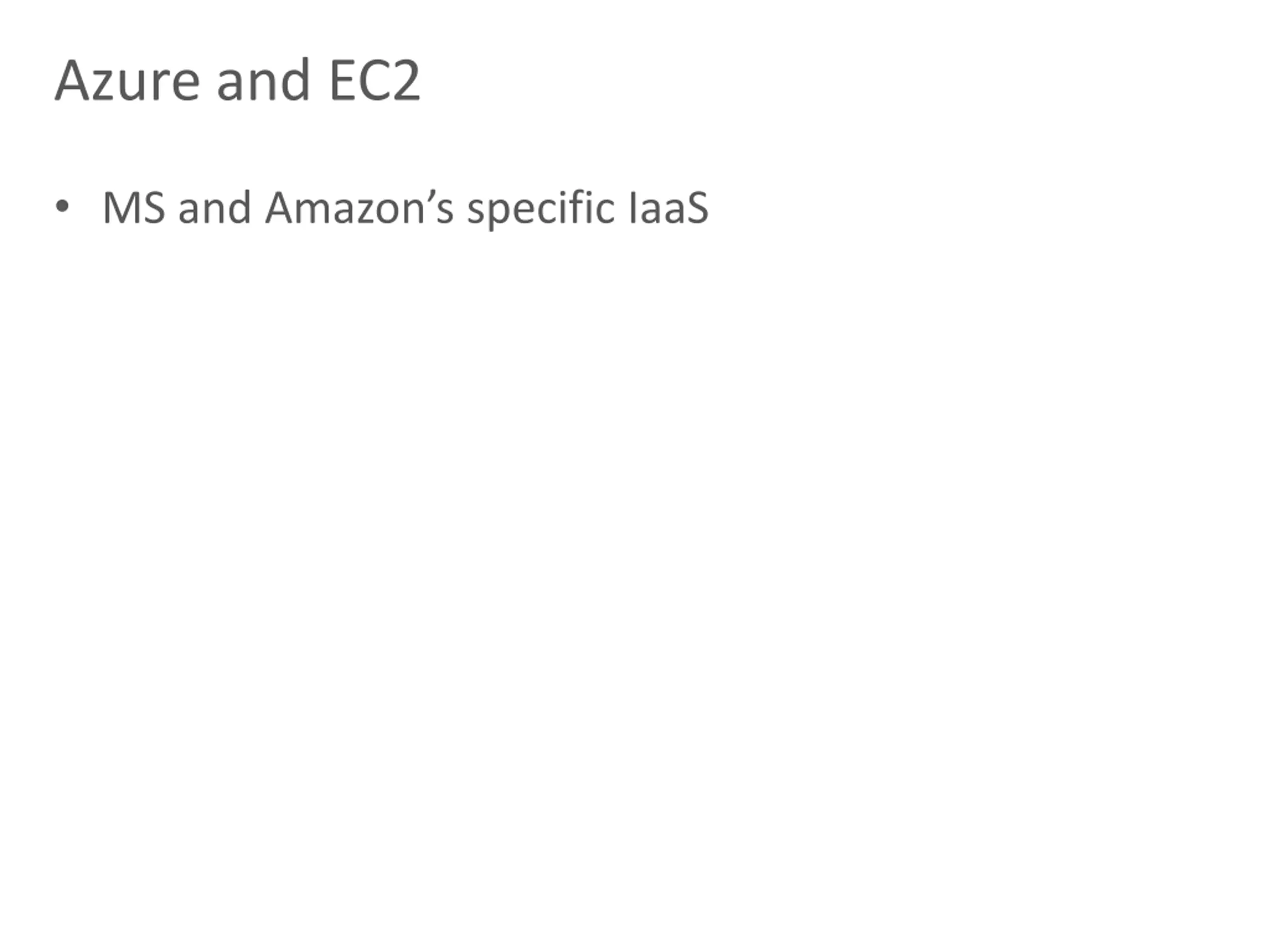

Azure and EC2 MS and Amazon s specific IaaS

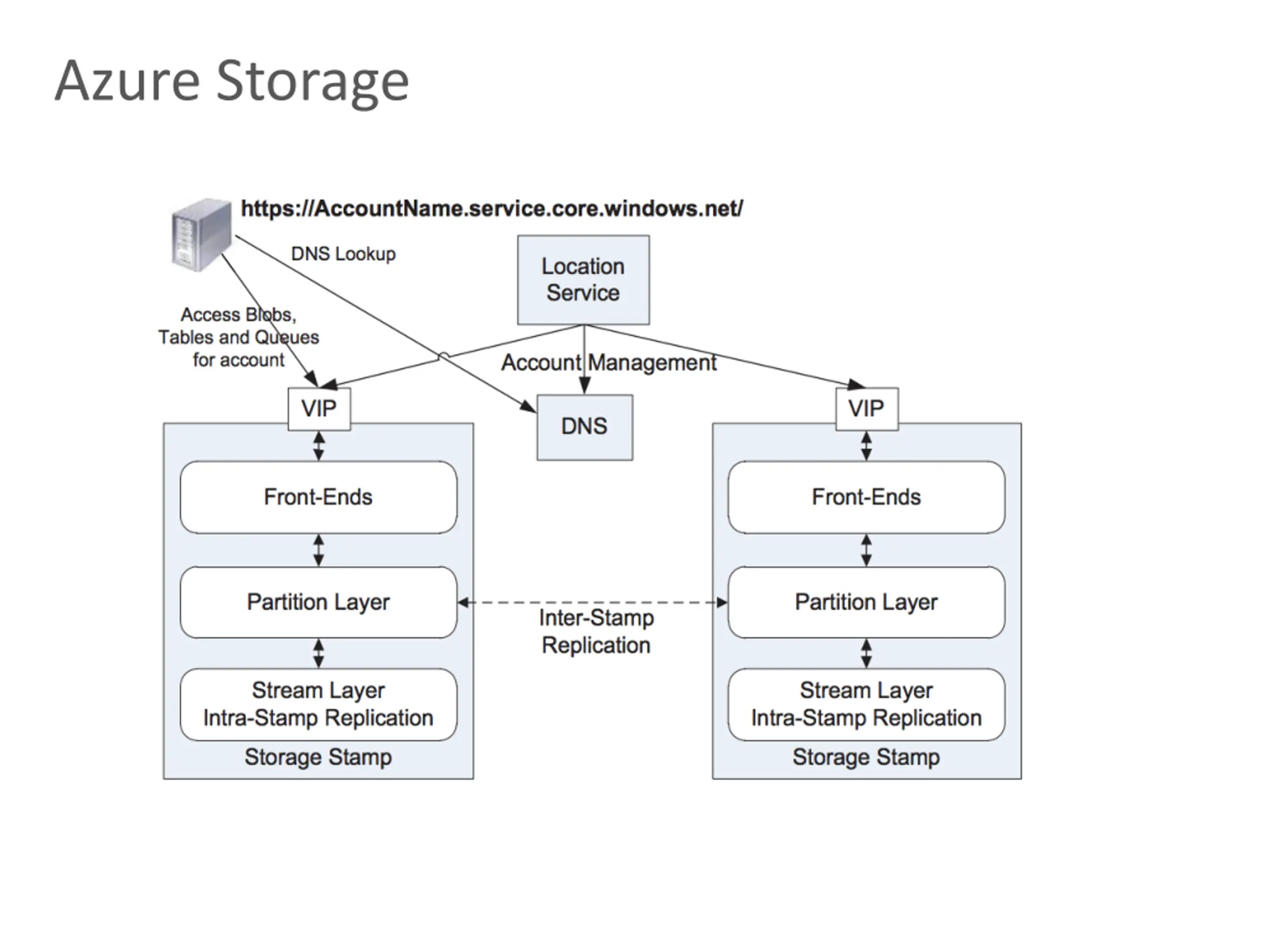

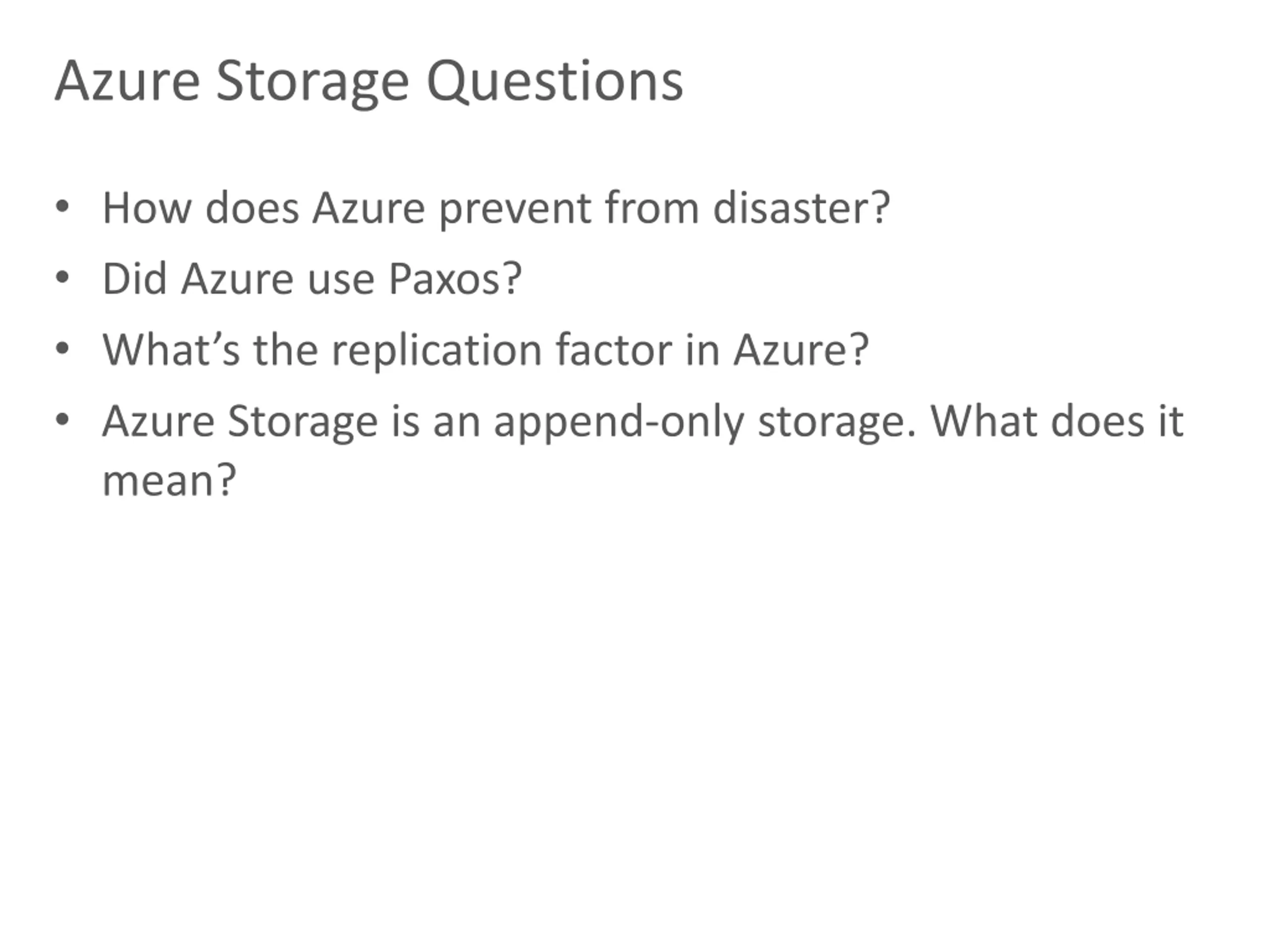

Azure Storage Questions How does Azure prevent from disaster? Did Azure use Paxos? What s the replication factor in Azure? Azure Storage is an append-only storage. What does it mean?

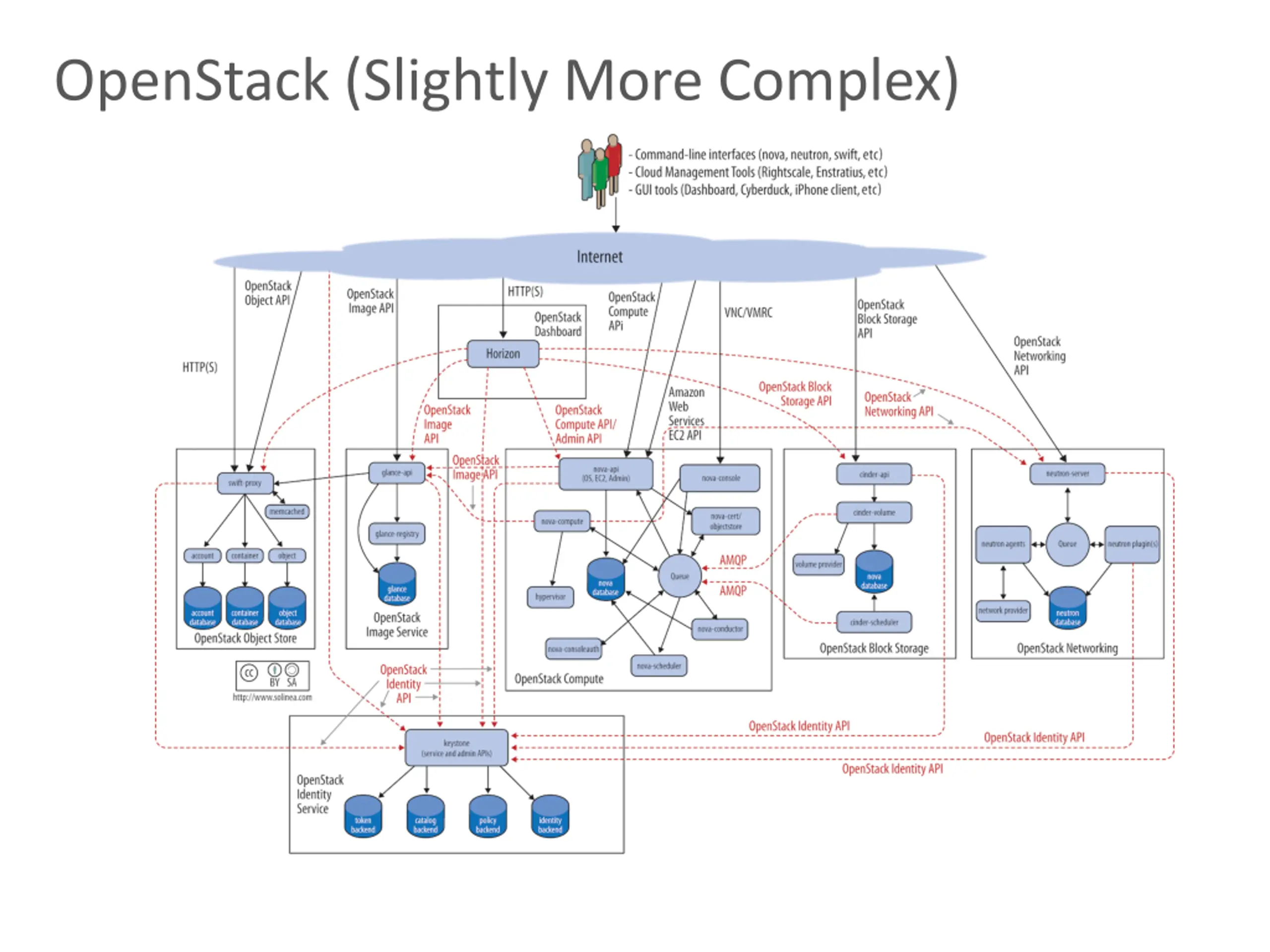

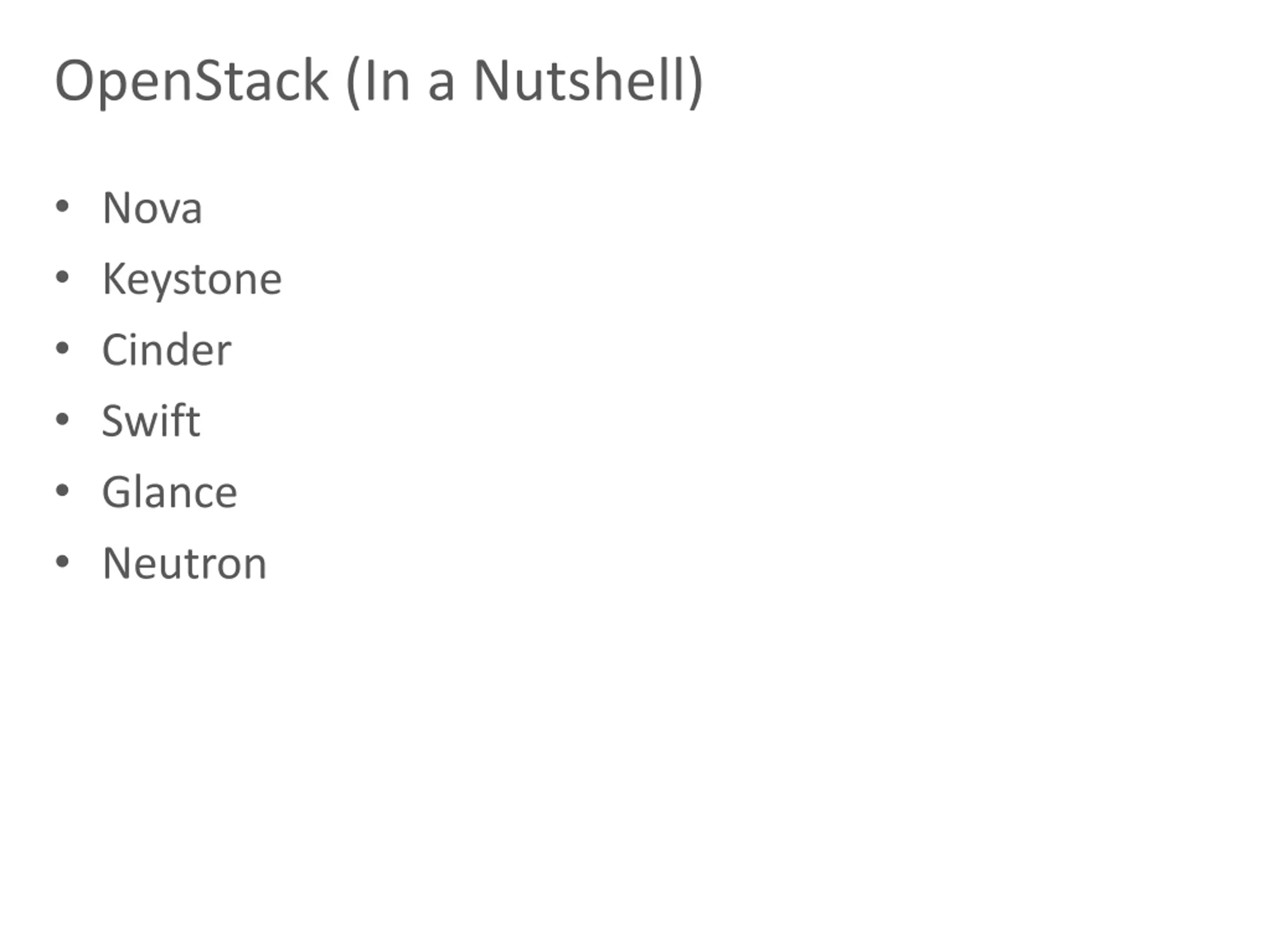

OpenStack (In a Nutshell) Nova Keystone Cinder Swift Glance Neutron

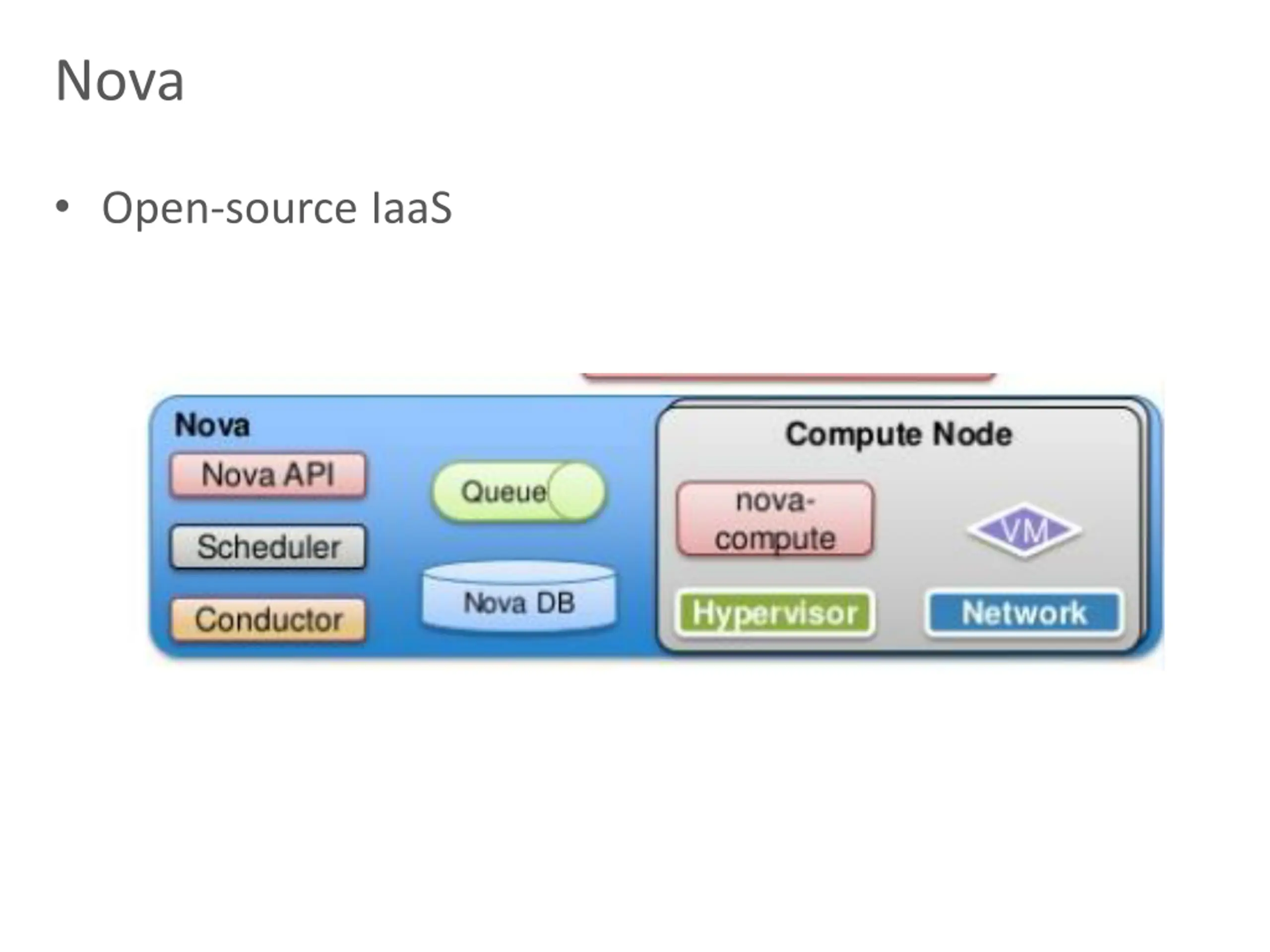

Nova Open-source IaaS

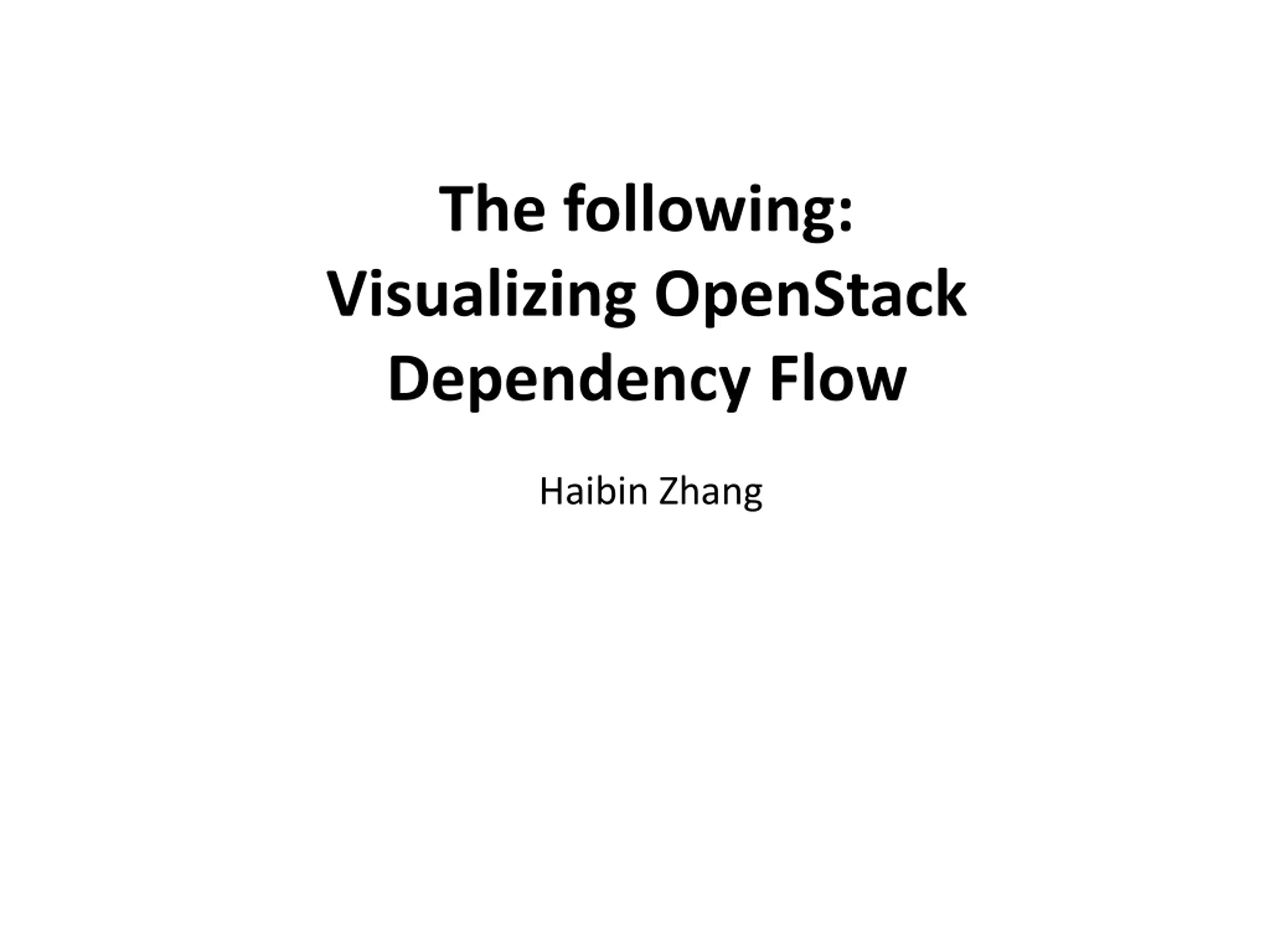

The following: Visualizing OpenStack Dependency Flow Haibin Zhang

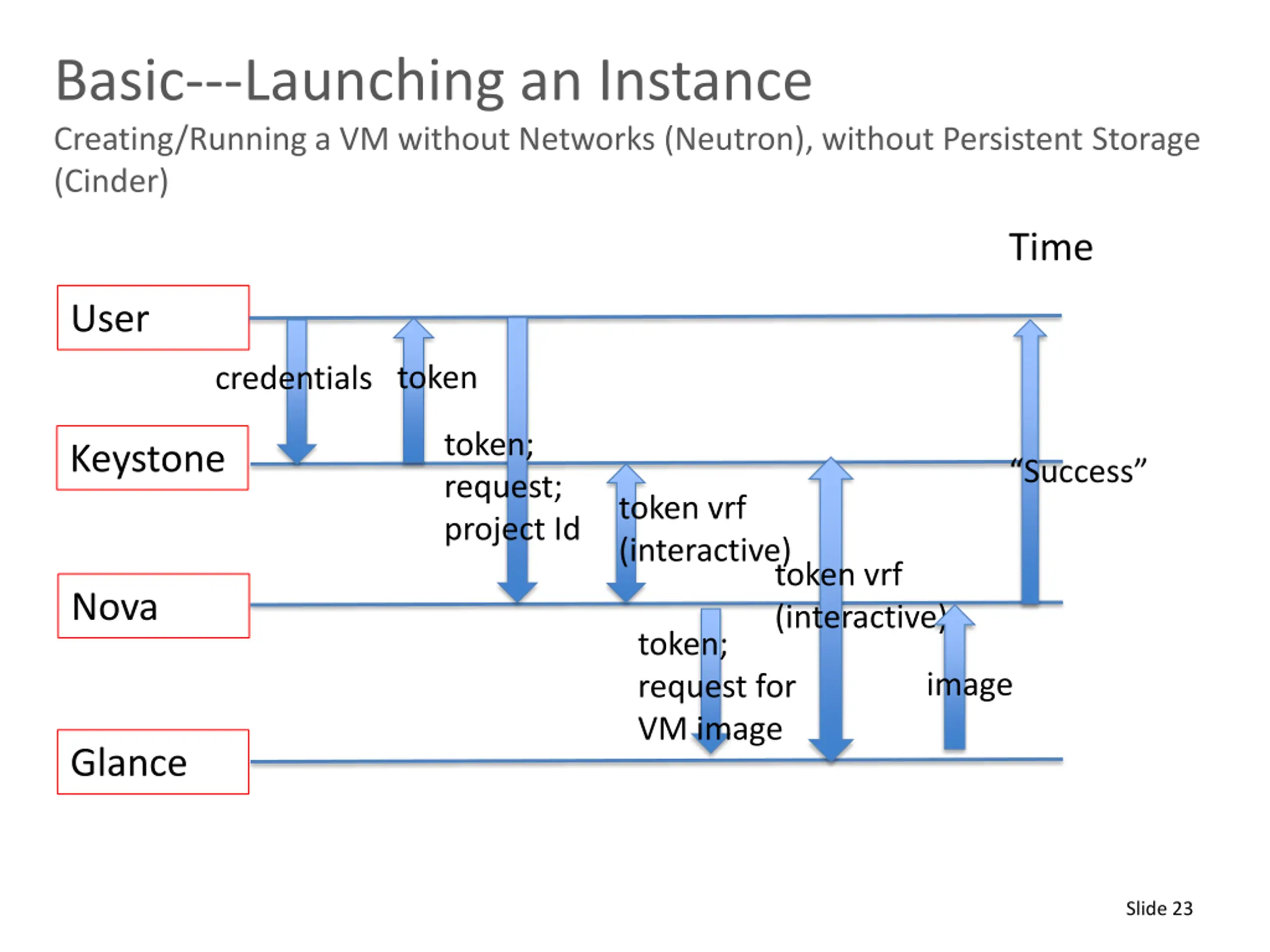

Basic---Launching an Instance Creating/Running a VM without Networks (Neutron), without Persistent Storage (Cinder) Time User credentials token token; request; project Id Keystone Success token vrf (interactive) token vrf (interactive) Nova token; request for VM image image Glance Slide 23

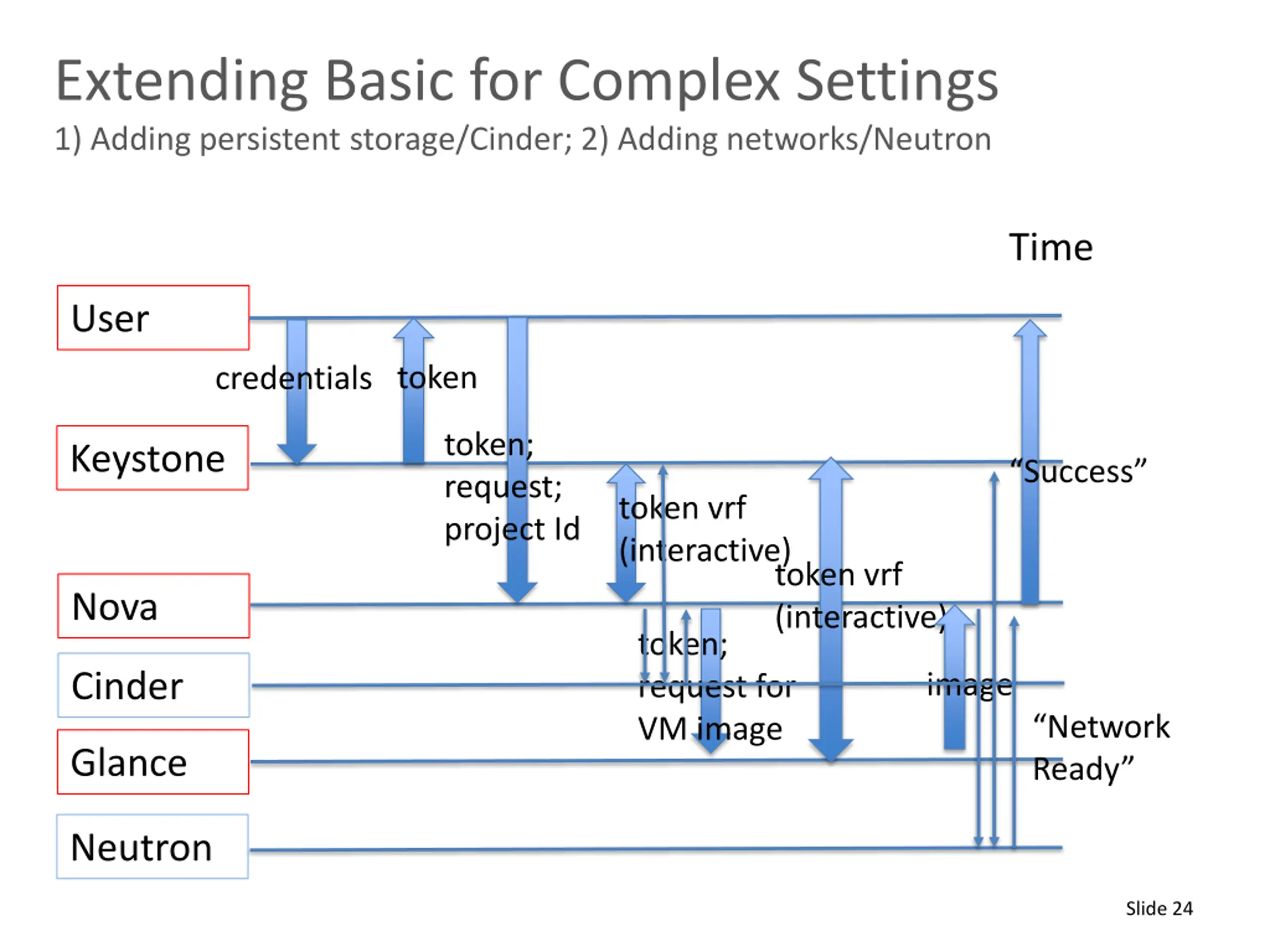

Extending Basic for Complex Settings 1) Adding persistent storage/Cinder; 2) Adding networks/Neutron Time User credentials token token; request; project Id Keystone Success token vrf (interactive) token vrf (interactive) Nova token; request for VM image Cinder image Network Ready Glance Neutron Slide 24

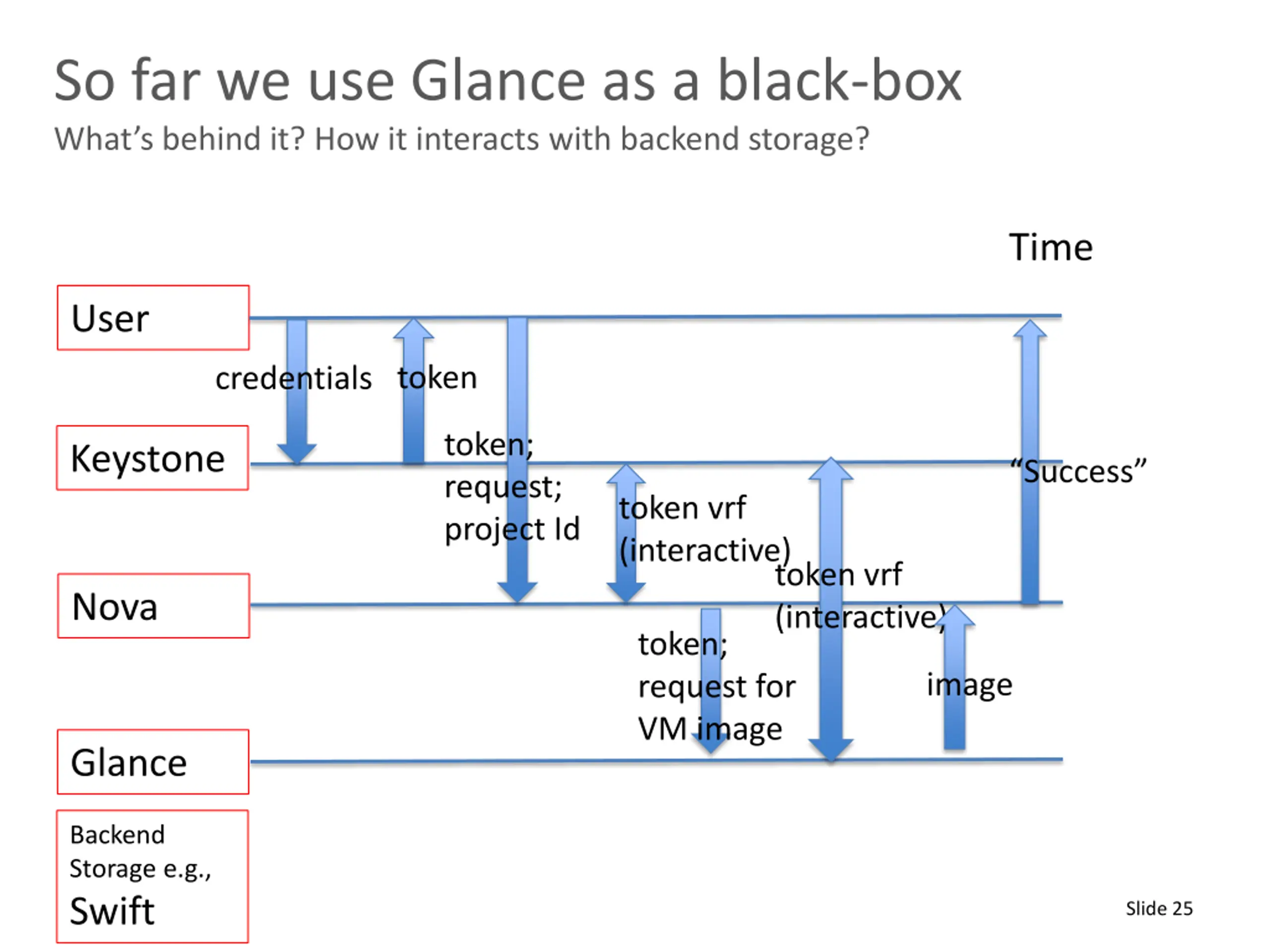

So far we use Glance as a black-box What s behind it? How it interacts with backend storage? Time User credentials token token; request; project Id Keystone Success token vrf (interactive) token vrf (interactive) Nova token; request for VM image image Glance Backend Storage e.g., Swift Slide 25

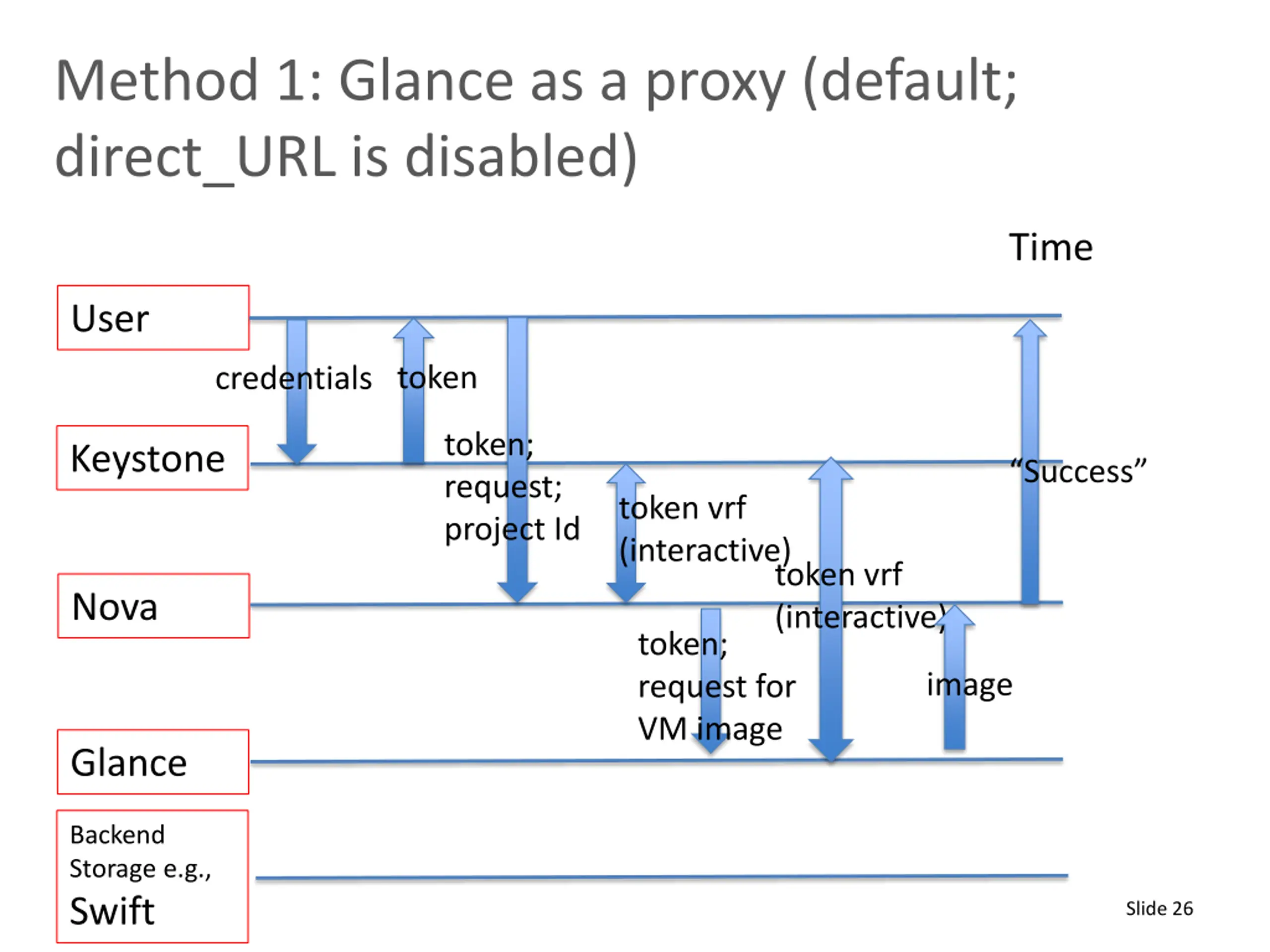

Method 1: Glance as a proxy (default; direct_URL is disabled) Time User credentials token token; request; project Id Keystone Success token vrf (interactive) token vrf (interactive) Nova token; request for VM image image Glance Backend Storage e.g., Swift Slide 26

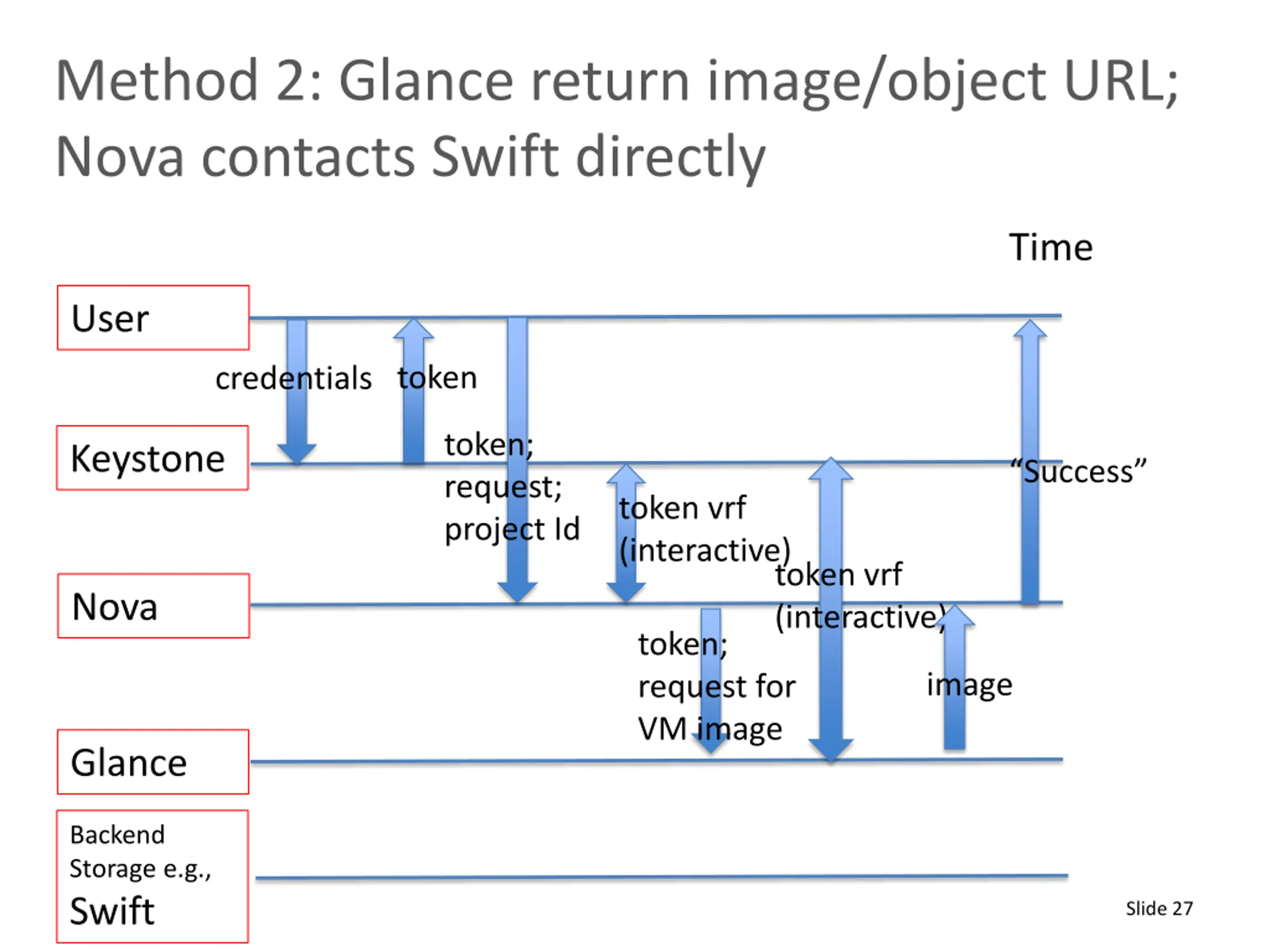

Method 2: Glance return image/object URL; Nova contacts Swift directly Time User credentials token token; request; project Id Keystone Success token vrf (interactive) token vrf (interactive) Nova token; request for VM image image Glance Backend Storage e.g., Swift Slide 27

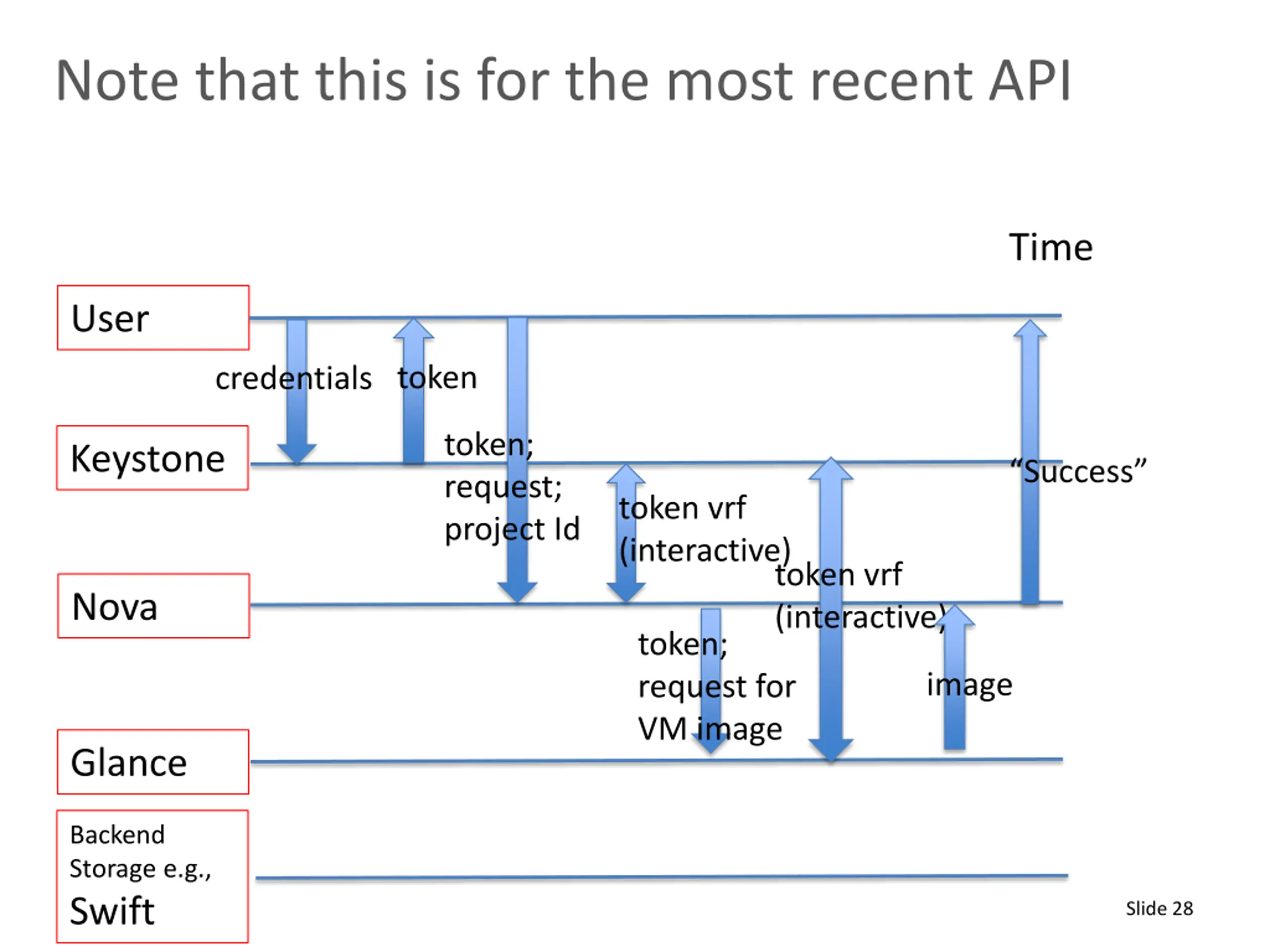

Note that this is for the most recent API Time User credentials token token; request; project Id Keystone Success token vrf (interactive) token vrf (interactive) Nova token; request for VM image image Glance Backend Storage e.g., Swift Slide 28

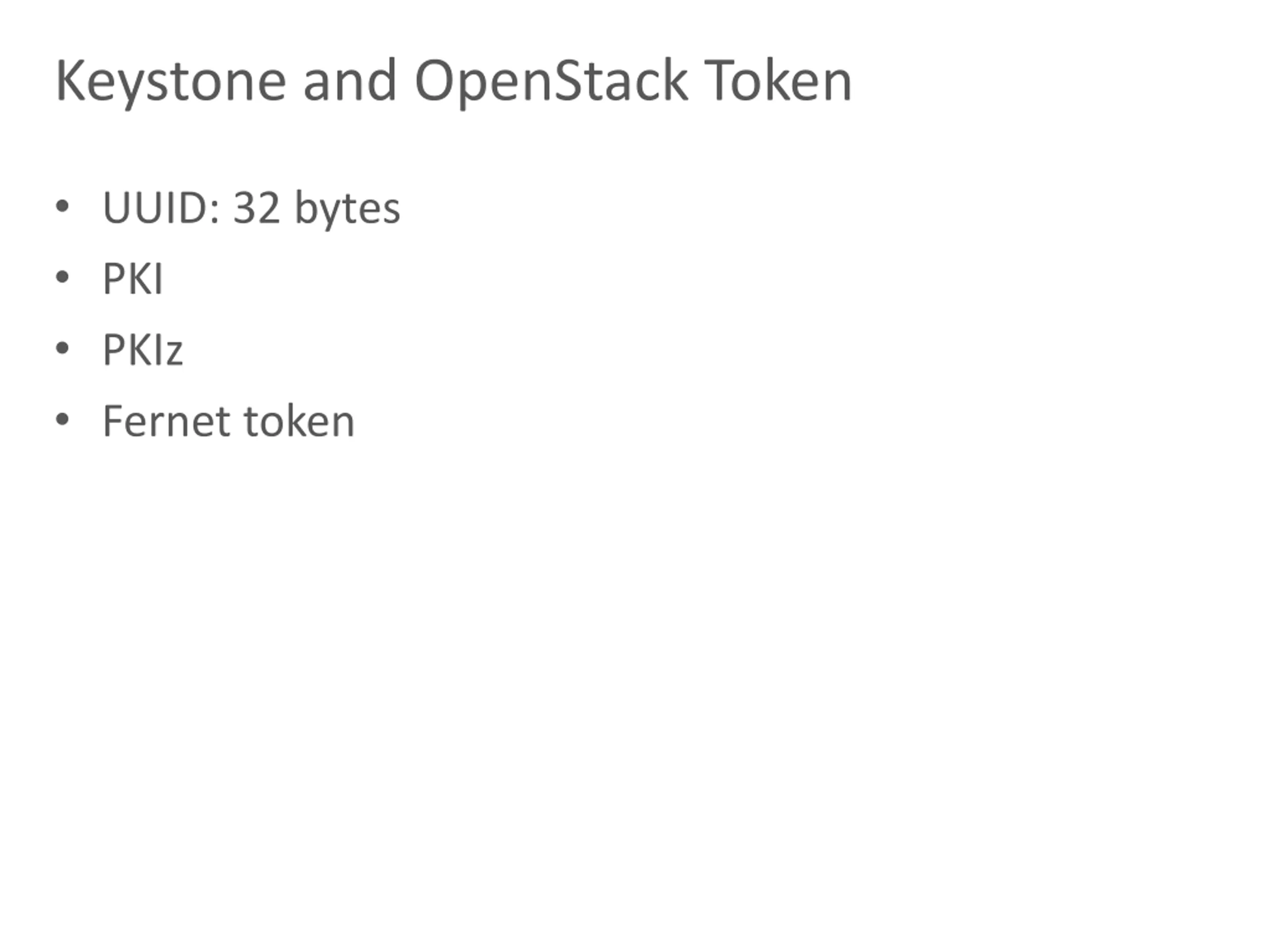

Keystone and OpenStack Token UUID: 32 bytes PKI PKIz Fernet token
