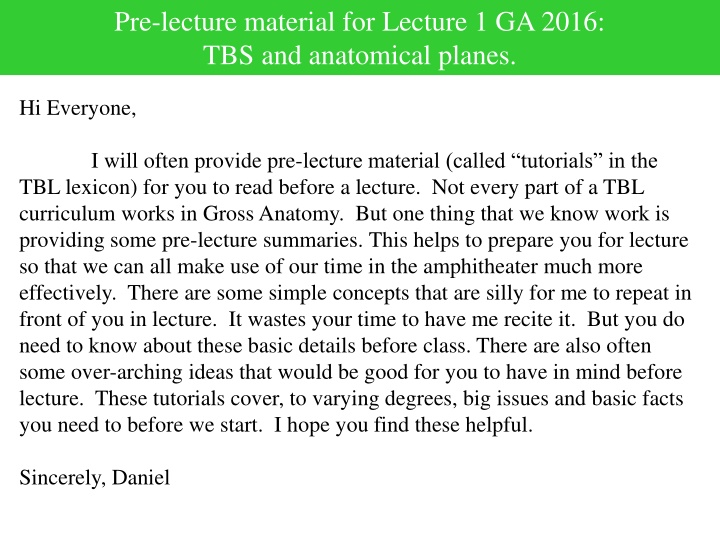

Pre-Lecture Material for Gross Anatomy: TBS and Anatomical Planes
Hi Everyone,
I will often provide pre-lecture material (called “tutorials” in the
TBL lexicon) for you to read before a lecture. Not every part of a TBL
curriculum works in Gross Anatomy. But one thing that we know work is
providing some pre-lecture summaries. This helps to prepare you for lecture
so that we can all make use of our time in the amphitheater much more
effectively. There are some simple concepts that are silly for me to repeat in
front of you in lecture. It wastes your time to have me recite it. But you do
need to know about these basic details before class. There are also often
some over-arching ideas that would be good for you to have in mind before
lecture. These tutorials cover, to varying degrees, big issues and basic facts
you need to before we start. I hope you find these helpful.
Sincerely, Daniel
Pre-lecture material for Lecture 1 GA 2016:
TBS and anatomical planes.
Main point:
The TBS is an integrated model for
the body that connects anatomy, histology, and
physiology.
We can learn regional anatomy by studying
deviations from the TBS in each region.
muscle
nerves
skin
vessels
Internal
organs
bone
In 1969 Matt Cartmill, a Duke
Professor, and his colleagues
came up with the idea of the
Typical Body Segment (TBS),
which represents an average
transverse section (see next
slide) through a human body.
The TBS contains all the
relevant organ systems, tissue
types, and physiological
functions you will encounter.
Obviously, in reality each
segment of the body is
different. To learn Gross
Anatomy we start with the
TBS and discuss deviations
from that basic plan.
The Typical Body Segment (The Typical BS; a Duke tradition)
A TYPICAL BODY SEGMENT
dorsal
ventral
caudal
Transverse
section
CT scans are flipped
so dorsal is down.
Feet are pointing out
of the screen.
The TBS is a transverse section cut perpendicular to the long axis of
the body. You see this when you buy a salmon steak or look at a CT
scan.
The Typical Body Segment (The Typical BS; a Duke tradition)
Anatomical orientation: Standard anatomical position is when a person stands facing
forward with the palms facing outward and the toes pointing forward or slightly askew.
Anatomical position is the starting point for all orientation.
You can divide the body into three planes; each perpendicular to each other. Those
planes are called sagittal, coronal, and transverse. Those three planes can represent
many sections, as you will see in the next slide.
Anatomical position lets us orient regards of body position.
Planes:
Sagittal
Coronal
Transverse
The human body can be divided into multiple sections along the three planes.
(from Stern, 2003)
There are three planes that we use to divide the human body.
We do talk about the dorsum or the ventrum or the dorsal and ventral surfaces. We
also talk about the proximal or distal end of a bone. But when we are being precise
we use these terms in a relative way that allows rapid and consist description in any
setting and is especially valuable in a clinical setting. Here are examples: The heart
is dorsal to the sternum. The vertebra is dorsal to the heart. The wrist is distal to the
elbow. The nipple is lateral to the sternum. The heart is medial to the lung. etc. etc.
Once you know planes and orientation you
can now consider different surfaces and
levels of the body. To avoid confusion we
use relative terms that designate the position
of one structure relative to another.
Relative Locations
:
Dorsal (posterior): toward the back
Ventral (anterior): toward the front
Cranial (superior): toward the head
Caudal (inferior): toward the tail/feet
Medial: close to the midline
Lateral: further from the midline
Proximal: on a limb; close to the midline
Distal: on a limb; further from the midline
We describe position in relative terms within the body.
