Physics Concepts Illustrated with Images

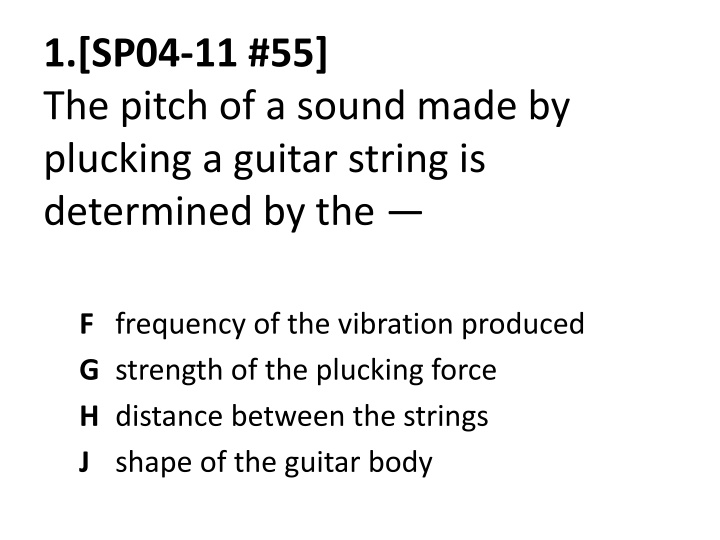

1.[SP04-11 #55]
The pitch of a sound made by
plucking a guitar string is
determined by the —
F
frequency of the vibration produced
G
strength of the plucking force
H
distance between the strings
J
shape of the guitar body
2.[SP04-10 #37]
Which
illustration best
demonstrates
compression
waves?
3.[JY04-11 #14]
When trying to spear
a fish in water, a person needs to take
into account the way light bends as it
moves from water into air. The
bending of light as it passes from one
medium into another is known as —
F
reflection
G
refraction
H
diffraction
J
polarization
4.[SP03-11 #32]
One tuning fork is
struck and placed next to an
identical fork. The two forks do not
touch. The second tuning fork
starts to vibrate because of —
A
interference
B
the Doppler effect
C
resonance
D
standing waves
5.[JY04-11 #7]
Which wave has
the greatest
velocity?
6.[SP03-11 #44]
According to the table,
which workers have the
greatest chance of
experiencing significant
hearing loss over time?
A
Police traffic officers
B
Shoe-factory workers
C
Road-construction crews
D
Library desk clerks
7.[SP03-10 #38]
At 0°C sound travels
through air at a speed of 330 m/s. If a
sound wave is produced with a
wavelength of 0.10 m, what is the
wave’s frequency?
F
0.0033 Hz
G
33 Hz
H
330 Hz
J
3300 Hz
8. A guitar player is seated next to a
piano. The piano player strikes an E
key on the piano. The guitarist reports
that this causes the E string on his
guitar to vibrate. What is the name of
this phenomenon?
A Polarization
B Resonance
C Reflection
D Diffraction
9. A surface wave generated by an earthquake
was recorded at Seismic Station 1. Forty seconds
later the same wave was recorded at Seismic
Station 2. What accounts for the time difference?
F The origin of the wave is closer to Seismic Station 1.
G The speed of the wave decreases with distance.
H The wavelength is longer at Seismic Station 2.
J The wave frequency increases when the wave passes through soil.
10. The diagram
shows waves
approaching a barrier.
Which pattern will be
formed after the
waves pass
through the opening
in the barrier?
11. The speed of sound in human
tissue is about 1600 m/s. If an
ultrasound pulse takes 1.5 × 10
-5
s
to travel through a tissue, what is
the thickness of the tissue?
F 2.4 km
G 2.4 m
H 24 cm
J 24 mm
12. A tuning fork with a frequency of 256
Hz vibrates when struck. Because of these
vibrations, a nearby tuning fork begins to
vibrate without being struck. Which of the
following best accounts for the vibration of
the second tuning fork?
F Resonance
G Polarization
H Diffraction
J Refraction
13. When a DVD is read, laser light
touches the DVD surface and is
then measured at location A. What
allows light to return to location A
after striking the DVD surface?
F Conduction
G Refraction
H Magnification
J Reflection
14. An empty cup was tightly covered with
plastic wrap, and a few grains of salt were
sprinkled on top of the plastic. When a
tuning fork was struck and placed slightly
above the plastic wrap, the salt began to
move. Which characteristic of waves does
the movement of the salt best
demonstrate?
A Echo formation
B Diffraction
C Resonance
D Specular reflection
15. Diverging lenses are useful to people
who suffer from nearsightedness because
the lenses can cause images of distant
objects to be focused on the retina. Lenses
allow images to be focused on the retina
because of —
F diffusion
G reflection
H diffraction
J refraction
16. Which label on the model
represents a wavelength?
F
Q
G
R
H
S
J
T
17. A surfer wishing to ride a big wave
is most interested in a wave’s —
A rarefaction
B compression
C amplitude
D wavelength
18. A diver on a springboard can increase
the height of a jump by repeatedly flexing
the knees with a rhythm that matches the
springboard’s natural frequency. This is an
example of —
A interference
B reflection
C resonance
D polarization
19. Earthquake waves are detected by an instrument called a
seismograph, and the data are recorded visually on a seismogram.
To determine the location of an earthquake, scientists must
determine the amount of time between the first arrival of the P
wave and the first arrival of the S wave at the location of the
seismograph. According to the data in the seismogram shown
above, how much time elapsed between the arrival of the P wave
and the arrival of the S wave?
A 11 seconds
B 25 seconds
C 37 seconds
D 90 seconds
20. Diagram 1 represents a wave. Diagram 2 represents
the composite wave formed when a second wave
interferes with the original wave. Which of the
following best represents the second wave?
21. Which of the following indicates
one wavelength of the wave shown
above?
A W to X
B X to Y
C W to Y
D Y to Z
Answer key:
F
