Goldengate Solution Overview Chapter 1

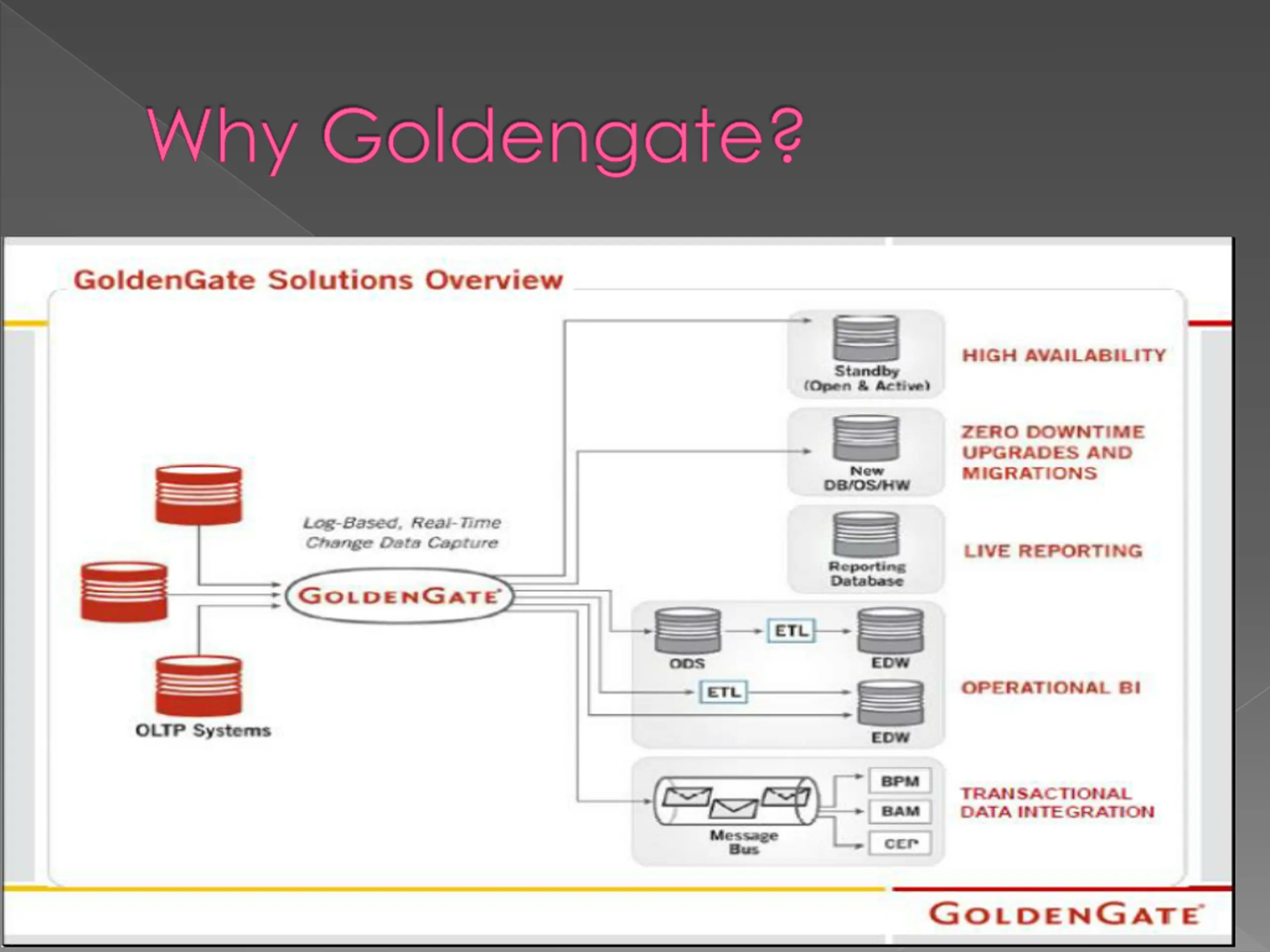

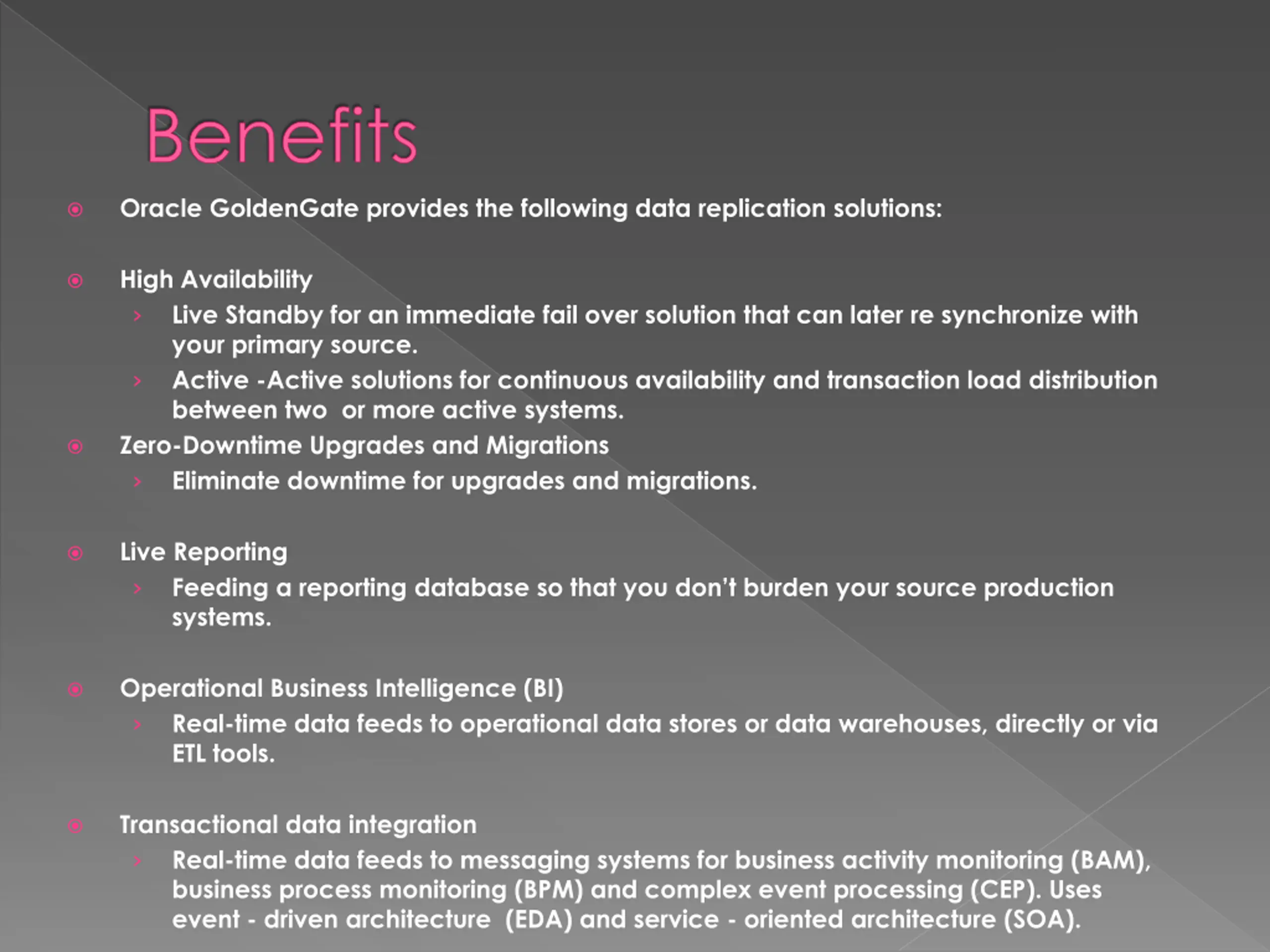

Benefits Oracle GoldenGate provides the following data replication solutions: High Availability Live Standby for an immediate fail over solution that can later re synchronize with your primary source. Active -Active solutions for continuous availability and transaction load distribution between two or more active systems. Zero-Downtime Upgrades and Migrations Eliminate downtime for upgrades and migrations. Live Reporting Feeding a reporting database so that you don t burden your source production systems. Operational Business Intelligence (BI) Real-time data feeds to operational data stores or data warehouses, directly or via ETL tools. Transactional data integration Real-time data feeds to messaging systems for business activity monitoring (BAM), business process monitoring (BPM) and complex event processing (CEP). Uses event - driven architecture (EDA) and service - oriented architecture (SOA).

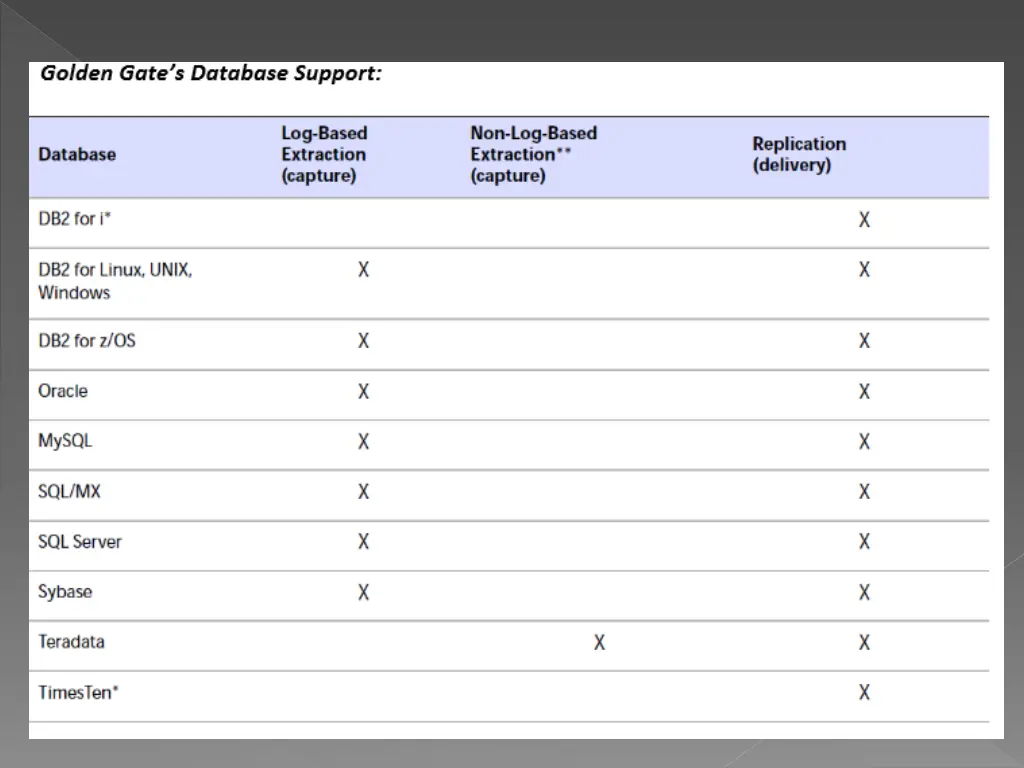

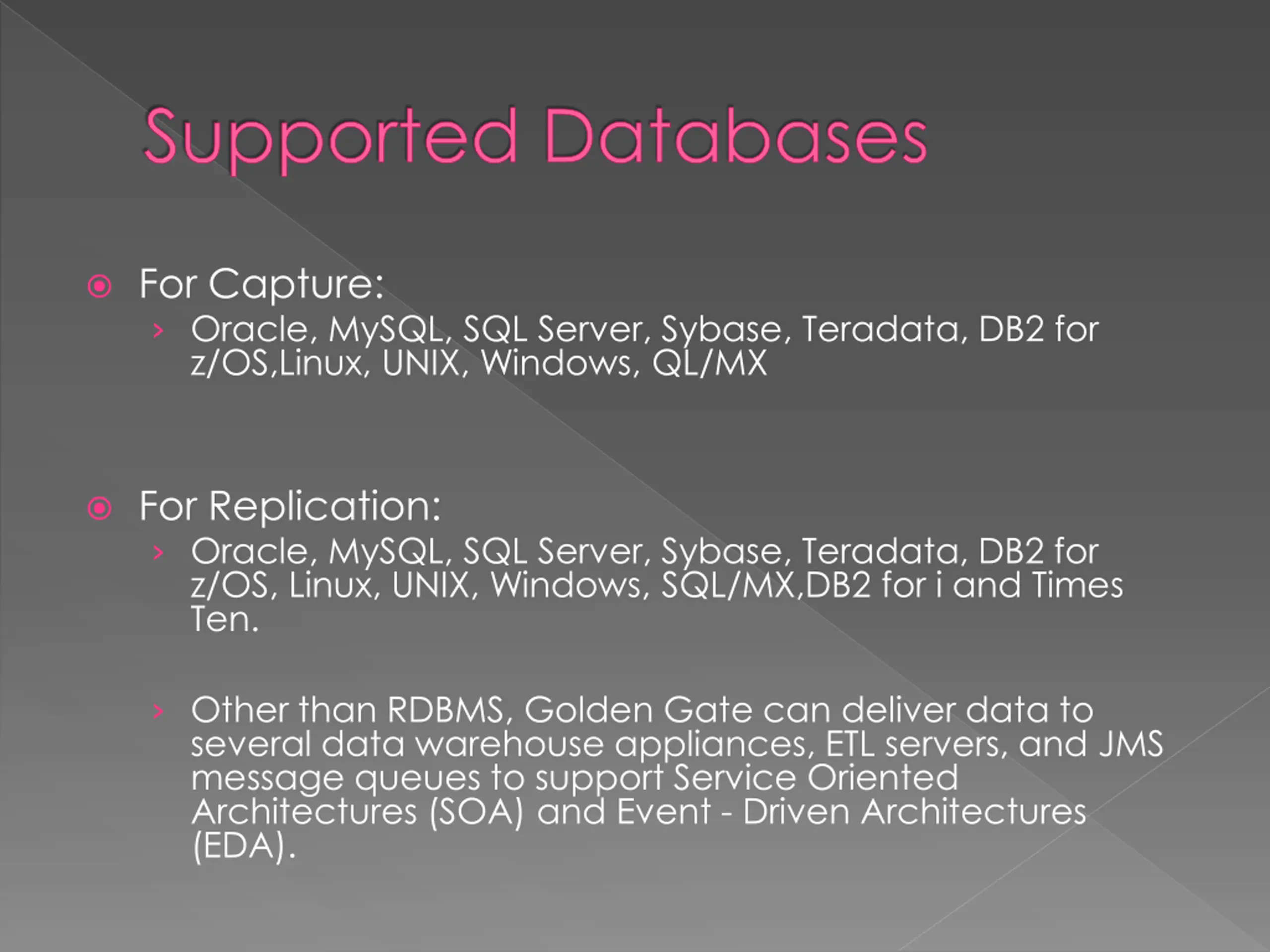

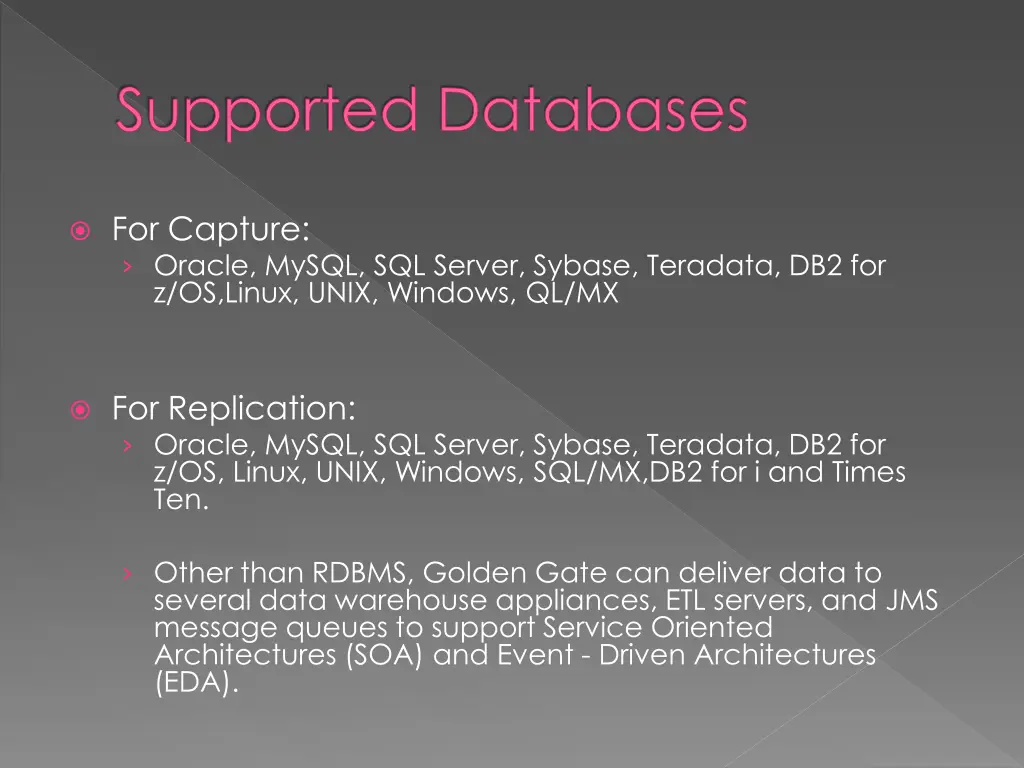

Supported Databases For Capture: Oracle, MySQL, SQL Server, Sybase, Teradata, DB2 for z/OS,Linux, UNIX, Windows, QL/MX For Replication: Oracle, MySQL, SQL Server, Sybase, Teradata, DB2 for z/OS, Linux, UNIX, Windows, SQL/MX,DB2 for i and Times Ten. Other than RDBMS, Golden Gate can deliver data to several data warehouse appliances, ETL servers, and JMS message queues to support Service Oriented Architectures (SOA) and Event - Driven Architectures (EDA).

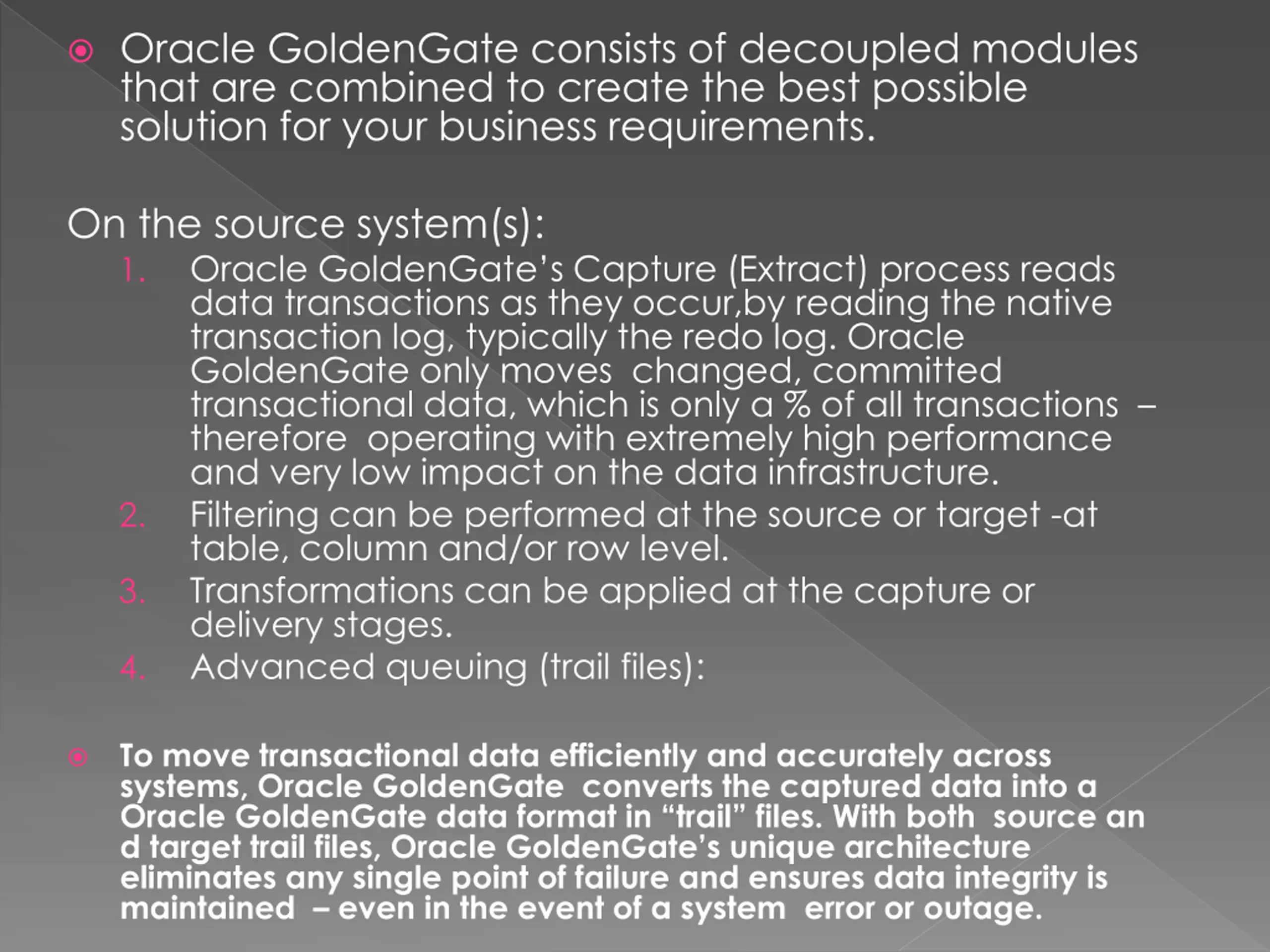

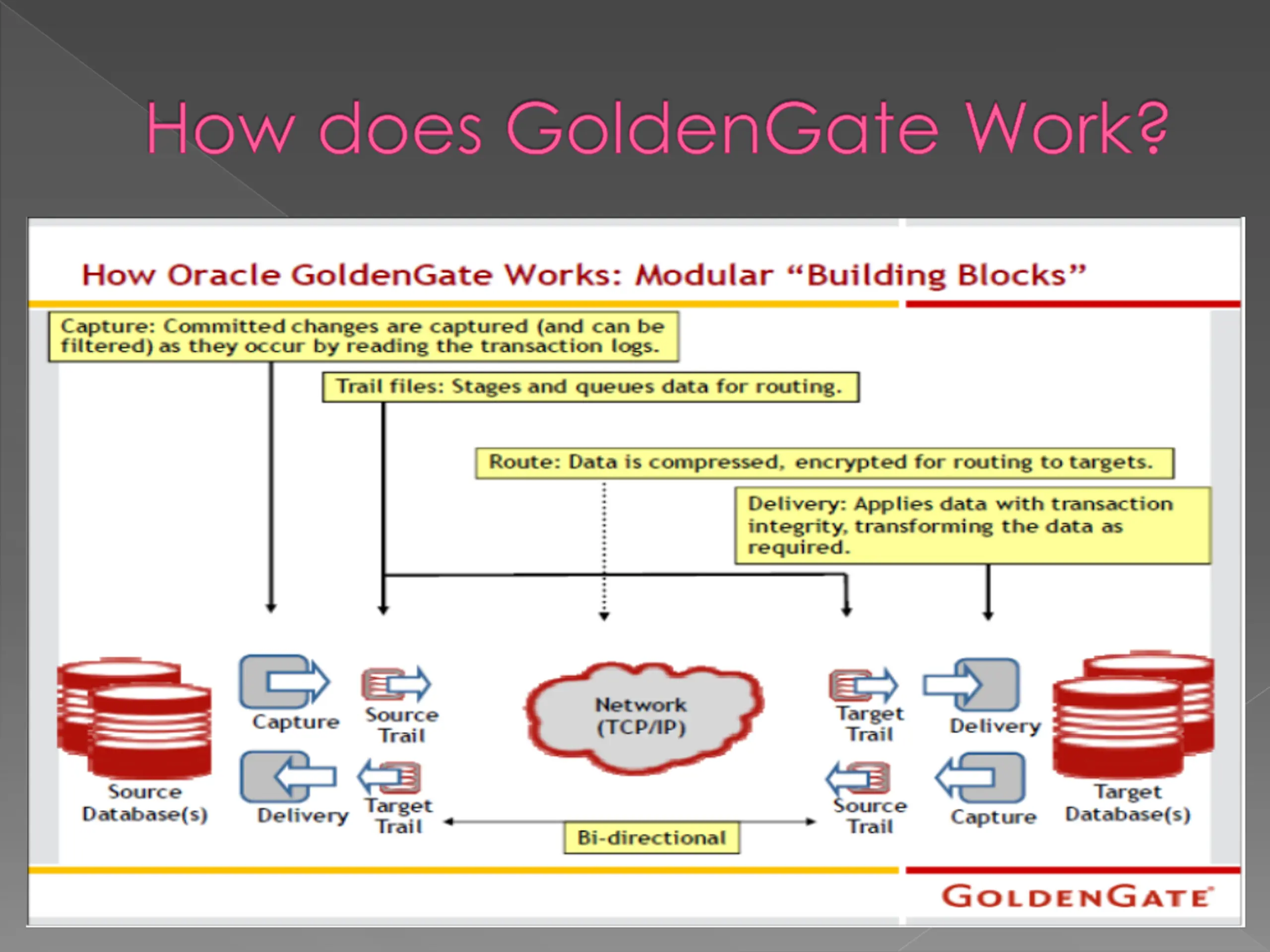

Oracle GoldenGate consists of decoupled modules that are combined to create the best possible solution for your business requirements. On the source system(s): 1. Oracle GoldenGate s Capture (Extract) process reads data transactions as they occur,by reading the native transaction log, typically the redo log. Oracle GoldenGate only moves changed, committed transactional data, which is only a % of all transactions therefore operating with extremely high performance and very low impact on the data infrastructure. 2. Filtering can be performed at the source or target -at table, column and/or row level. 3. Transformations can be applied at the capture or delivery stages. 4. Advanced queuing (trail files): To move transactional data efficiently and accurately across systems, Oracle GoldenGate converts the captured data into a Oracle GoldenGate data format in trail files. With both source an d target trail files, Oracle GoldenGate s unique architecture eliminates any single point of failure and ensures data integrity is maintained even in the event of a system error or outage.

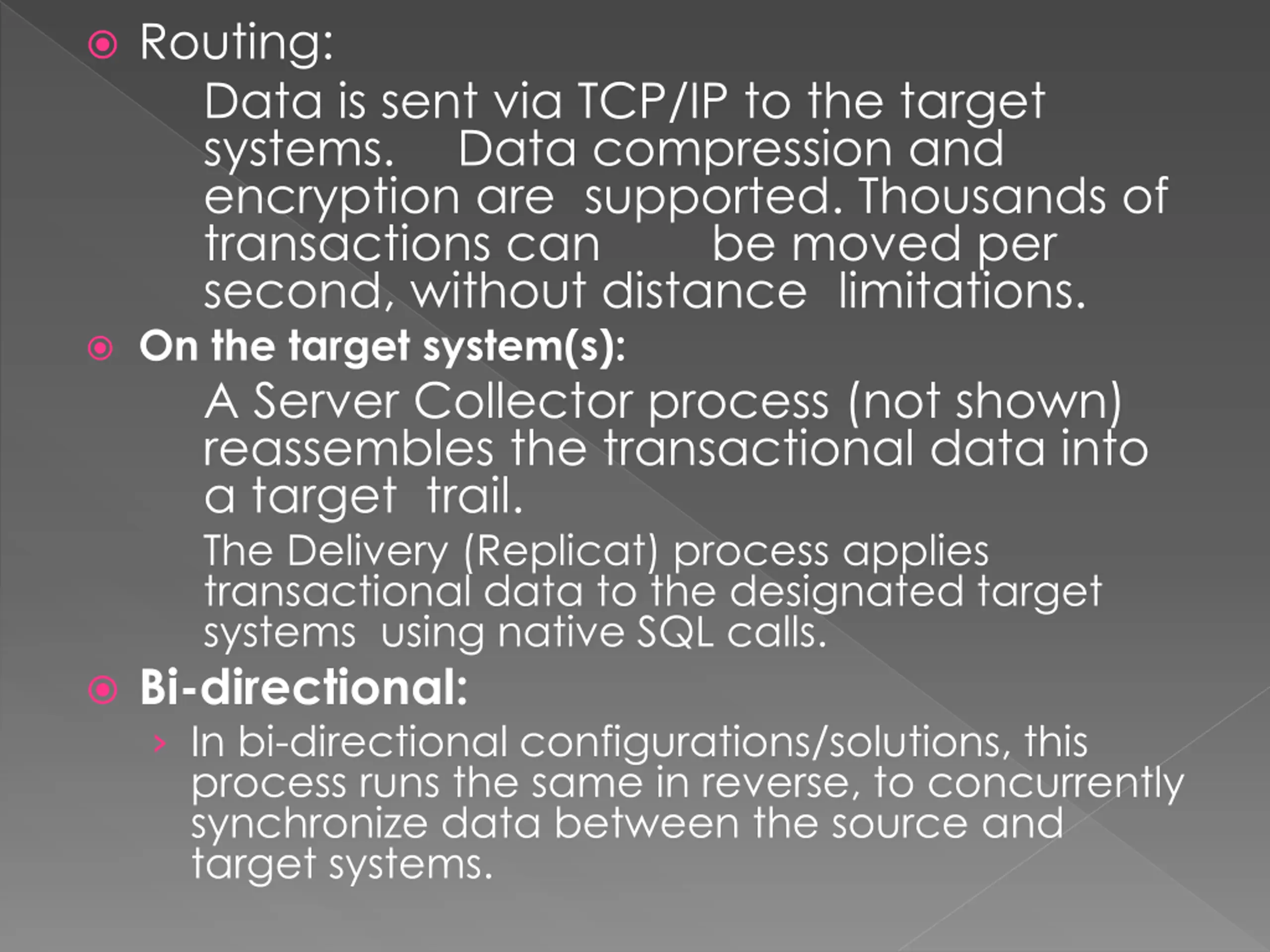

Routing: Data is sent via TCP/IP to the target systems. Data compression and encryption are supported. Thousands of transactions can second, without distance limitations. On the target system(s): A Server Collector process (not shown) reassembles the transactional data into a target trail. The Delivery (Replicat) process applies transactional data to the designated target systems using native SQL calls. Bi-directional: In bi-directional configurations/solutions, this process runs the same in reverse, to concurrently synchronize data between the source and target systems. be moved per

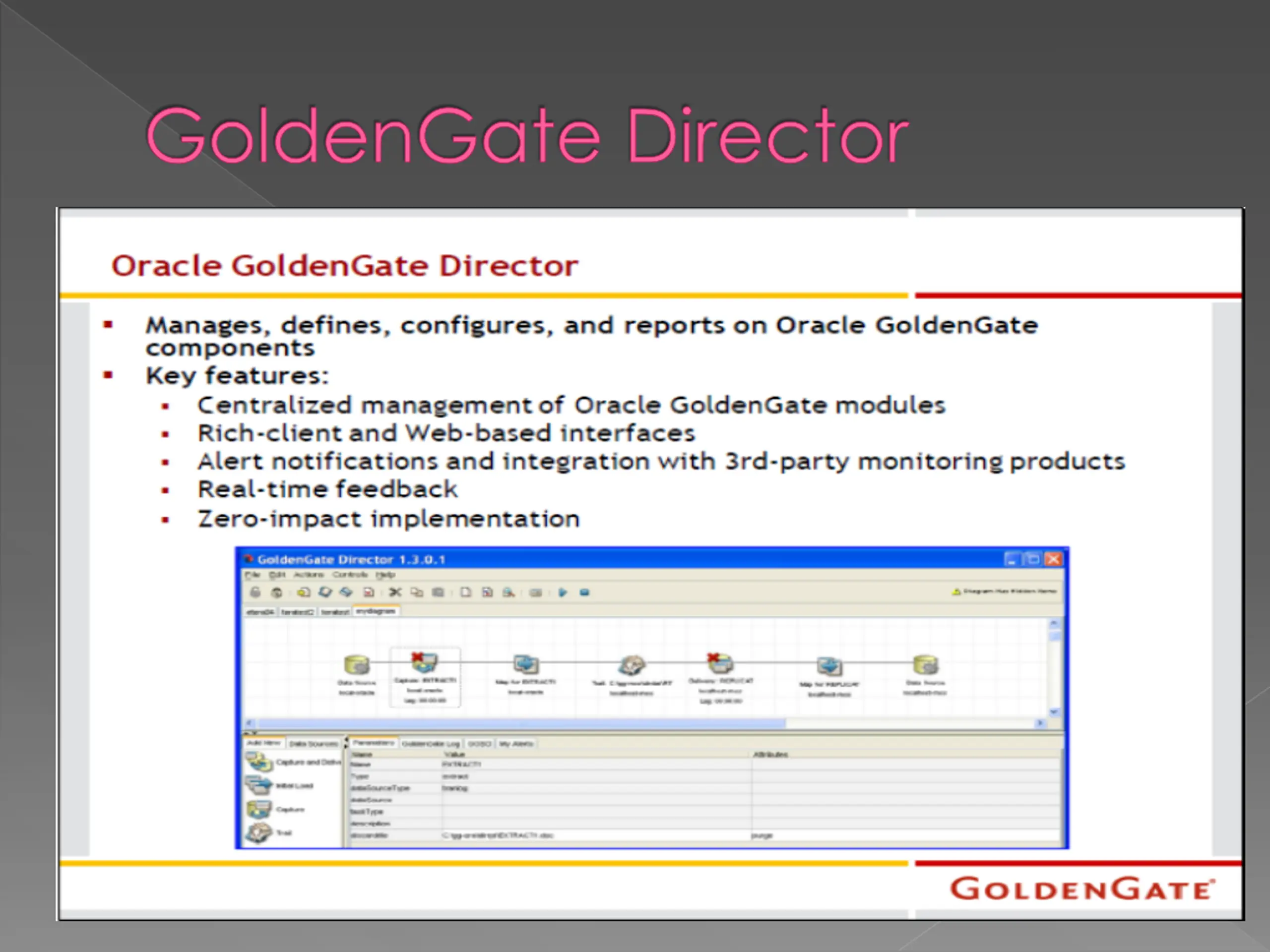

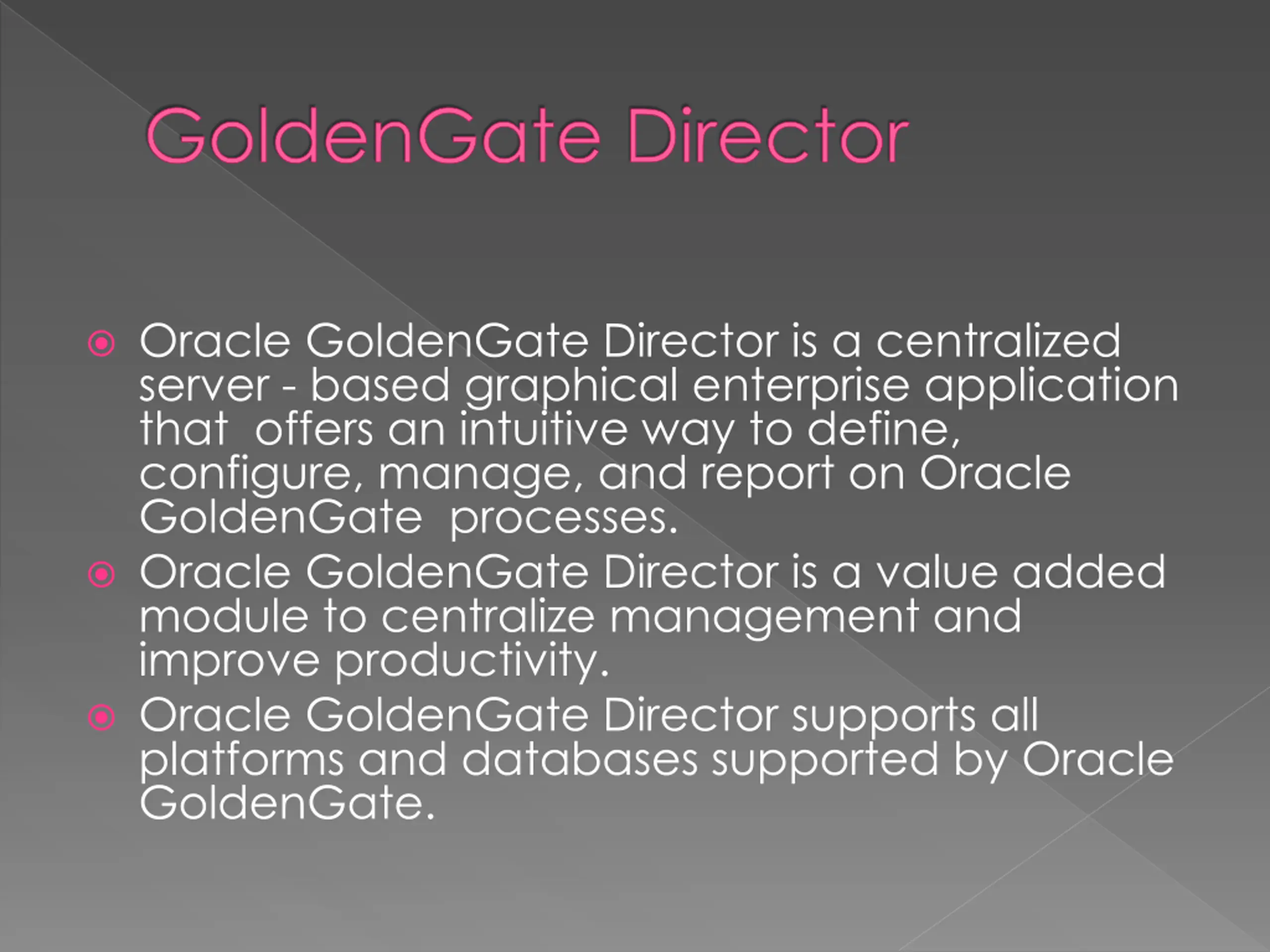

GoldenGate Director Oracle GoldenGate Director is a centralized server - based graphical enterprise application that offers an intuitive way to define, configure, manage, and report on Oracle GoldenGate processes. Oracle GoldenGate Director is a value added module to centralize management and improve productivity. Oracle GoldenGate Director supports all platforms and databases supported by Oracle GoldenGate.

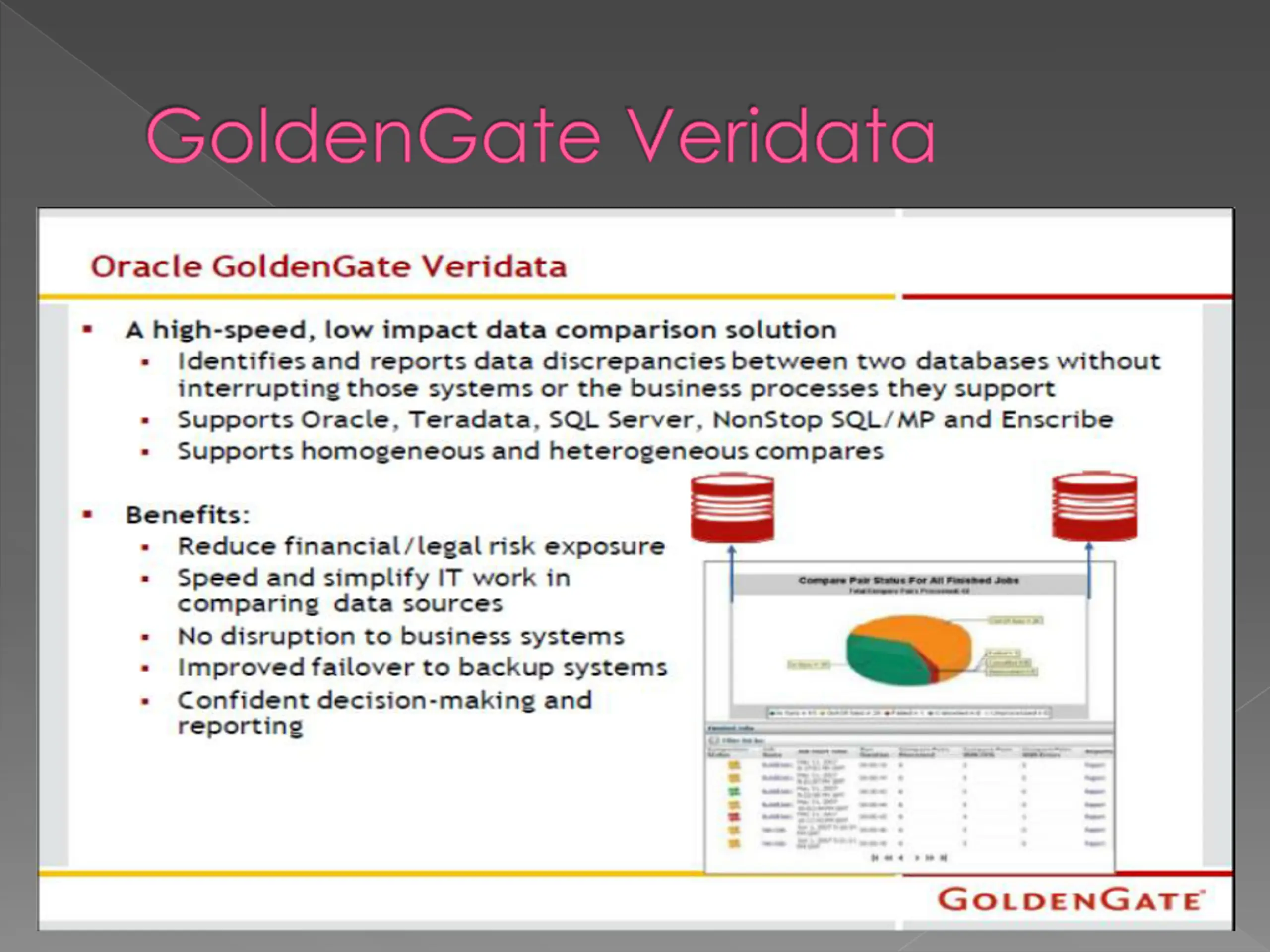

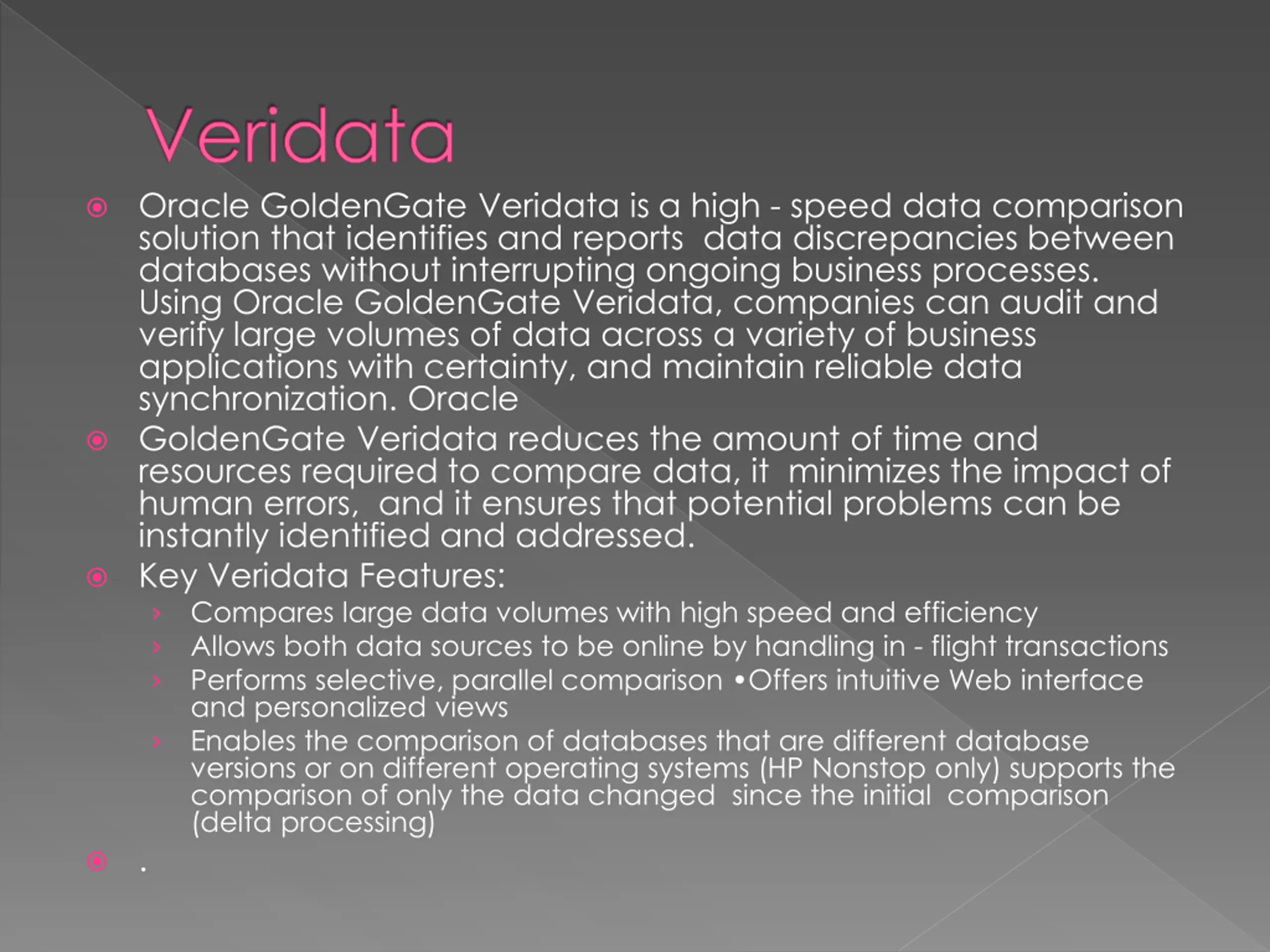

Veridata Oracle GoldenGate Veridata is a high - speed data comparison solution that identifies and reports data discrepancies between databases without interrupting ongoing business processes. Using Oracle GoldenGate Veridata, companies can audit and verify large volumes of data across a variety of business applications with certainty, and maintain reliable data synchronization. Oracle GoldenGate Veridata reduces the amount of time and resources required to compare data, it minimizes the impact of human errors, and it ensures that potential problems can be instantly identified and addressed. Key Veridata Features: Compares large data volumes with high speed and efficiency Allows both data sources to be online by handling in - flight transactions Performs selective, parallel comparison Offers intuitive Web interface and personalized views Enables the comparison of databases that are different database versions or on different operating systems (HP Nonstop only) supports the comparison of only the data changed since the initial comparison (delta processing) .
