Nucleon Spin Decomposition and Proton Spin Problem


N
ucleon spi
n decomposition

Yoshitaka Hatta
(Yukawa institute, Kyoto U.)


The proton spin problem

The proton has spin ½.

The proton is not an elementary particle.

Longitudinal double spin asymmetry in polarized DIS

           from polarized DIS

`Spin crisis’

In 1987, EMC (European Muon Collaboration) announced a very small value
of the quark helicity contribution

Recent value from NLO QCD global analysis

!?

Gluon polarization

DeFlorian, Sassot,
 Stratmann, Vogelsang (2014)

Note that the
 uncertainty
from
the small-x region
 is huge!

R
esult from the NLO global analysis
after the RHIC 200 GeV

pp
 data
 QCD angular momentum tensor
QCD Lagrangian
 Lorentz invariant

 Noether current

Jaffe-Manohar decomposition
(1990)

Based on the
canonical
 energy momentum tensor

Operators
NOT
 gauge invariant.

Partonic interpretation in the light-cone gauge
Ji  decomposition
(1997)
Improved (Belinfante)
energy momentum tensor

 One can add a total derivative.

Generalized parton distributions (GPD)

Non
-forward proton matrix element

Twist-
two
 GPDs, accessible
in
Deeply Virtual Compton Scattering (DVCS)

Lattice test of spin sum rule

Alexandrou et al. (2013)

Deka et al. (2015)

`Disconnected insertions’ included
Two spin communities divided
Jaffe-Manohar
Ji

Complete decomposition

Chen, Lu, Sun, Wang, Goldman (2008)
                                   Wakamatsu (2010)
                                                 Y.H. (2011)

Gauge invariant completion of Jaffe-Manohar

    where
 (
my
 choice)
OAM from the Wigner distribution
Lorce, Pasquini (2011)
Wigner distribution in QCD
Belitsky, Ji, Yuan (2003)

Which
 OAM is this??
Define

Engelhardt, talk at POETIC VI (2015)

Jaffe-Manohar

Ji

 vs.         on a lattice

s
taple length
Density of OAM
Understand
this relation
at the
density
 level
Deconstructing
 OAM
 Ji’s OAM                         canonical OAM                    `potential OAM’

``
D-type

``F
-type
Eguchi, Koike, Tanaka (2006)
The D-type and F-type correlators are related.
Relation to twist-three GPD
 twist-2
 YH. Yoshida (2012)

Quark canonical OAM density

First moment:

Wandzur
a-Wilczek
part

g
enuine
twist-three


The b
ridge between JM and Ji

G
luon canonical OAM density

 twist-three gluon GPD
Transverse spin decomposition
U
se the
Pauli-Lubanski vector

instead of the angular momentum tensor              .

Ji
 (1996)
Ji, Xiong, Yuan (2012)

Complete transverse
spin
decomposition?

Longitudinal




Transverse

c
annot be separated in a
frame-independent way
s
ame!

YH, Tanaka, Yoshida (2012)
Computing

on a lattice?
Consider the usual quark distribution function
Nonlocal operator along the light-cone

Real
-time problem
Becomes local
 after taking the x-moment.
Compute the naïve gluon helicity in
some
gauge
…gauge dependent, frame dependent.

Preliminary lattice study by
xQCD collaboration

Conclusions

Complete gauge invariant decomposition of nucleon spin
now available in QCD, even at the density level



Relation between Jaffe-Manohar vs Ji fully understood
in terms of twist and GPD
.
Can we measure          in experiment?
    Hint: Wigner distribution measurable


YH, Xiao, Yuan (2016)
Slide Note
Embed
Share

Explore the complex realm of nucleon spin decomposition and the enigmatic proton spin problem, delving into concepts like orbital angular momentum, quarks and gluons' helicity, and longitudinal double spin asymmetry in polarized deep inelastic scattering. Learn about the spin crisis, gluon polarization, QCD angular momentum tensor, Jaffe-Manohar and Ji decompositions, generalized parton distributions, and lattice tests of spin sum rule.

  • Nucleon Spin
  • Proton Spin Problem
  • Quarks
  • Gluons
  • QCD Angular Momentum

Uploaded on Sep 16, 2024 | 0 Views


Download Presentation

Please find below an Image/Link to download the presentation.

The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.

E N D

Presentation Transcript

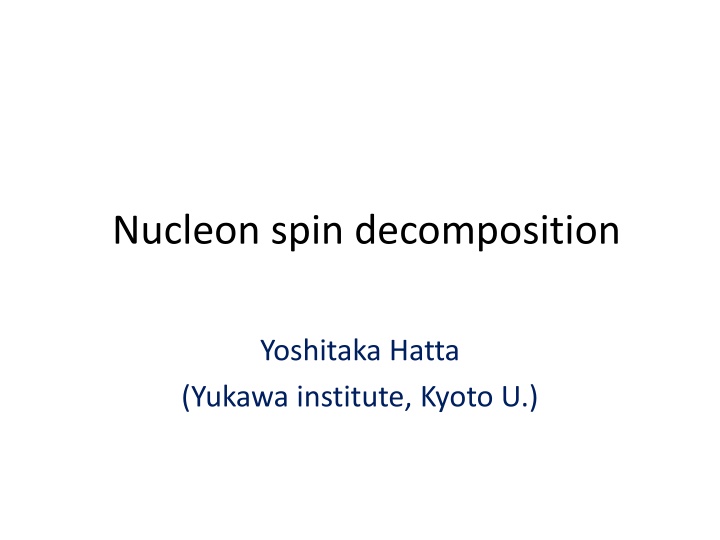

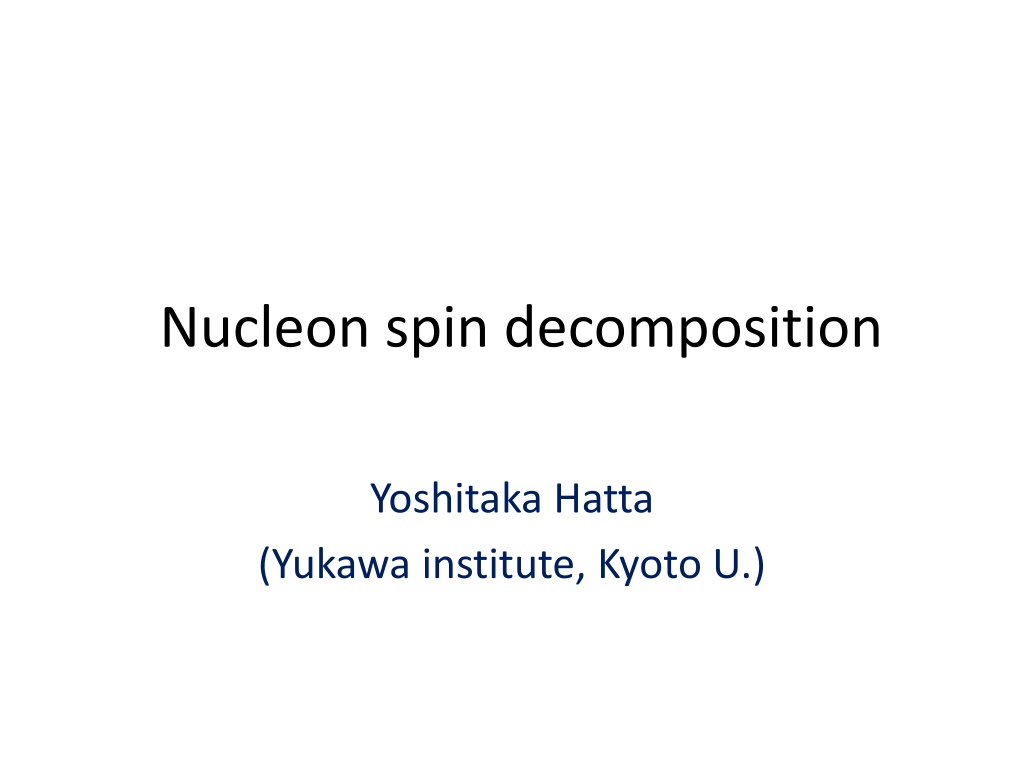

  1. Nucleon spin decomposition Yoshitaka Hatta (Yukawa institute, Kyoto U.)

  2. The proton spin problem The proton has spin . The proton is not an elementary particle. Orbital angular Momentum (OAM) Quarks helicity Gluons helicity In the quark model, with relativistic effects,

  3. from polarized DIS Longitudinal double spin asymmetry in polarized DIS p X

  4. `Spin crisis In 1987, EMC (European Muon Collaboration) announced a very small value of the quark helicity contribution !? Recent value from NLO QCD global analysis

  5. Gluon polarization Result from the NLO global analysis after the RHIC 200 GeV pp data DeFlorian, Sassot, Stratmann, Vogelsang (2014) Note that the uncertainty from the small-x region is huge!

  6. QCD angular momentum tensor QCD Lagrangian Lorentz invariant Noether current QCD angular momentum tensor quark helicity gluon helicity canonical energy momentum tensor Quark OAM Gluon OAM

  7. Jaffe-Manohar decomposition (1990) Based on the canonical energy momentum tensor Operators NOT gauge invariant. Partonic interpretation in the light-cone gauge

  8. Ji decomposition (1997) Improved (Belinfante) energy momentum tensor One can add a total derivative. Further decomposition in the quark part (but not in the gluon part)

  9. Generalized parton distributions (GPD) Non-forward proton matrix element Twist-two GPDs, accessible in Deeply Virtual Compton Scattering (DVCS)

  10. Lattice test of spin sum rule Alexandrou et al. (2013) Deka et al. (2015) `Disconnected insertions included

  11. Two spin communities divided measured by PHENIX, STAR, COMPASS, HERMES Nonexistent in Ji s scheme Jaffe-Manohar common and well-known not measured yet not even well-defined? Ji Define rigorously. Must be related to GPD! accessible from GPD measured at JLab, COMPASS, HERMES, J-PARC also calculable in lattice QCD

  12. Complete decomposition Chen, Lu, Sun, Wang, Goldman (2008) Wakamatsu (2010) Y.H. (2011) where (my choice) Gauge invariant completion of Jaffe-Manohar

  13. OAM from the Wigner distribution Wigner distribution in QCD Belitsky, Ji, Yuan (2003) Need a Wilson line ! Define Lorce, Pasquini (2011) Which OAM is this??

  14. Canonical OAM from the light-cone Wilson line YH (2011) Ji s OAM from the straight Wilson line Ji, Xiong, Yuan (2012) `Potential OAM Torque acting on a quark Burkardt (2012)

  15. vs. on a lattice Engelhardt, talk at POETIC VI (2015) Ji Jaffe-Manohar staple length

  16. Density of OAM Understand this relation at the density level ??

  17. Deconstructing OAM Ji s OAM canonical OAM `potential OAM ``F-type For a 3-body operator, it is natural to define the double density. ``D-type

  18. The D-type and F-type correlators are related. Eguchi, Koike, Tanaka (2006) doubly-unintegrate Canonical OAM density The gluon has zero energy partonic interpretation! YH. Yoshida (2012)

  19. Relation to twist-three GPD YH. Yoshida (2012) twist-2 twist-3 Penttinen, Polyakov, Shuvaev, Strikman (2000) integrate

  20. Quark canonical OAM density Wandzura-Wilczek part genuine twist-three First moment: The bridge between JM and Ji

  21. Gluon canonical OAM density twist-three gluon GPD WW part genuine twist-three first moment:

  22. Transverse spin decomposition Use the Pauli-Lubanski vector instead of the angular momentum tensor . Ji (1996) Ji, Xiong, Yuan (2012) YH, Tanaka, Yoshida (2012) Leader (2012) Frame dependent!

  23. Complete transverse spin decomposition? YH, Tanaka, Yoshida (2012) Longitudinal Transverse same! cannot be separated in a frame-independent way

  24. Computing on a lattice? Consider the usual quark distribution function Nonlocal operator along the light-cone Real-time problem Becomes local after taking the x-moment. nonlocal even though it is a moment. Local only in the light-cone gauge.

  25. Compute the nave gluon helicity in some gauge gauge dependent, frame dependent. Boost it to large momentum and do the matching Ji, Zhang, Zhao (2013) The limits and do not commute Not all gauges are allowed. The allowed gauges form a universality class. YH, Ji, Zhao (2013) Preliminary lattice study by xQCD collaboration Even the parton densities (PDF, , etc.) can be directly calculable? Ji (2013)

  26. Conclusions Complete gauge invariant decomposition of nucleon spin now available in QCD, even at the density level Relation between Jaffe-Manohar vs Ji fully understood in terms of twist and GPD. Can we measure in experiment? Hint: Wigner distribution measurable YH, Xiao, Yuan (2016)
