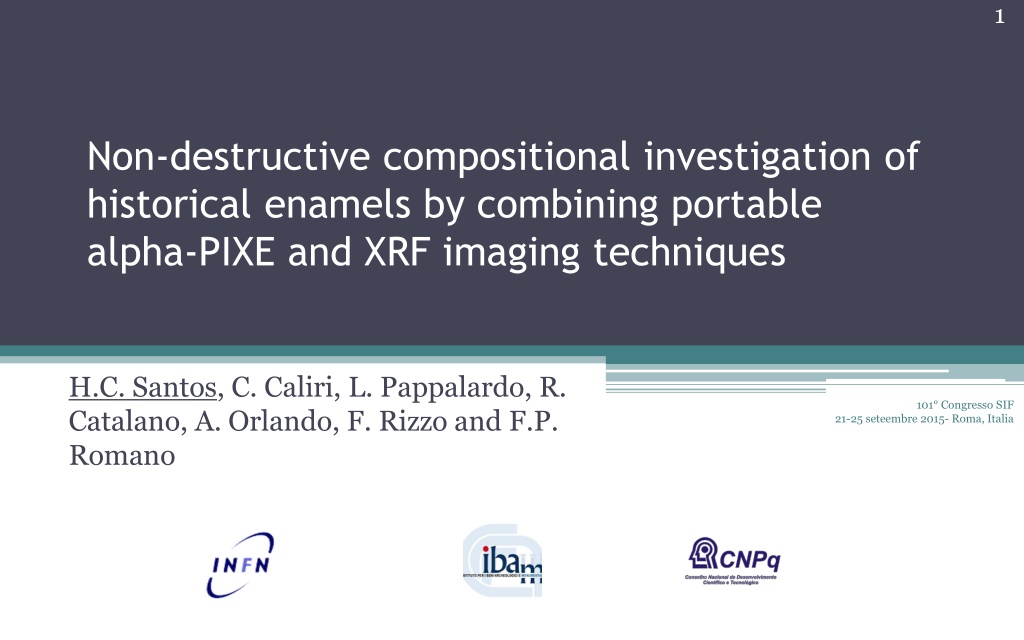

1. 1 Non-destructive compositional investigation of historical enamels by combining portable alpha-PIXE and XRF imaging techniques H.C. Santos, C. Caliri, L. Pappalardo, R. Catalano, A. Orlando, F. Rizzo and F.P. Romano 101 Congresso SIF 21-25 seteembre 2015- Roma, Italia

2. 2 101 Congresso SIF Outline 21-25 seteembre 2015- Roma, Italia Samples Experimental Setup portable Alpha-PIXE portable XRF scanner Results and Discussion

3. 3 Samples 101 Congresso SIF 21-25 seteembre 2015 - Roma, Italia Artwork enamels(smalto) on silvered support dated back to XI-XII century A) A. Plaque white, yellow, brown, blue and red; B. Pot white C. Bottle blue and green 8 B) C) Are they forgeries?

4. 4 Approach non-destructive techniques 101 Congresso SIF 21-25 seteembre 2015 - Roma, Italia Alpha-PIXE (Particle Induced X-ray Emission) Characterize the glass matrix high ionization cross section for low Z identify the former, fluxes and stabilizers low penetration XRF (X-ray Fluorescence) Identify the elemental composition of the colorants and opacifier High ionization cross section for medium and high Z

5. 5 101 Congresso SIF 21-25 seteembre 2015 - Roma, Italia Experimental setup

6. 6 Alpha-PIXE 101 Congresso SIF 21-25 seteembre 2015 - Roma, Italia Parameter Value particle of 5 MeV energy (depth 10-20 m) Primary beam Beam size 8 mm diameter obtained by using a collimator SDD Detector 20 mm2active area; 125 eV energy resolution at 5.9 keV Measurement time Measurement geometry 3600 sec. 45 and 90 incidence and detecting angles; 4 mm and 6 mm incidence and detecting distances

7. 7 XRF scanning 101 Congresso SIF - 21-25 seteembre 2015 - Roma, Italia Parameter Value X-ray source 30 W Rh-anode tube Focusing Optic Polycapillary with a focal distance of 1 cm 26 m diameter at the Rh K-lines Beam size at the focus SDD Detector 50 mm2active area; 133 eV energy resolution at 5.9 keV Measurement geometry 45 and 45 incidence and detecting angles Area of scansion 20x20 cm2(max.) 50 m in the scanning micro-XRF Step-size 500 m in the scanning macro-XRF Dwell time 150 ms (including overhead) Measurement time 6.5 h for a 400x400 pixel image

8. 8 101 Congresso SIF 21-25 seteembre 2015 - Roma, Italia Results and Discussion

9. 9 Alpha-PIXE PIXE quantitative data obtained by measuring some enamels decorating artworks Former (matrix of the glass): SiO2 Flux (decrease the melting temperature): Na2O and K2O Stabilizer: CaO Typology: alkali silica glass 101 Congresso SIF 21-25 seteembre 2015 - Roma, Italia Compounds presented higher values compared with ancient glass (XI-XII century) Na2O MgO Al2O3 SiO2 K2O CaO Fe2O3 PbO Enamel (Sample) White (Plaque) 6.6 1.9 1.1 36.8 3.7 2.0 - 38.4 Blue (Plaque) - - 2.4 34.5 3.3 4.8 0.7 24.2 Brown (Plaque) - - 2.4 32.2 4.5 1.4 2.3 27.4 Light blue (Bottle) White (Pot) - - 4.3 - 49.0 34.1 7.9 2.0 1.0 1.4 - 18.8 29.8 9.0 1.8 -

10. 10 XRF scanner - Plaque PyMca -Fast Fit (~2x104 spectra) 101 Congresso SIF 21-25 seteembre 2015 - Roma, Italia Elemental distribution maps Lead less in the red Blue - Co Yellow - Cr(As,Pb) White - As Brown - Mn Red Zn Zn in the red, As in the Yellow/white indicate recent manufacture

11. 11 Red enamel NNMA (PyMca) 101 Congresso SIF 21-25 seteembre 2015 - Roma, Italia ZnS.CdSSe.BaSO4 (cadmium lithopone)

12. 12 101 Congresso SIF 21-25 seteembre 2015 - Roma, Italia XRF scanner: Bottle and Pot Bottle Green Cr Blue Co Pot White As, Pb

13. 13 -XRF scanner: green enamel (Bottle) 101 Congresso SIF 21-25 seteembre 2015 - Roma, Italia Analysis of homogeneity of the green enamel Cr, Ca, K and Pb: homogeneous Fe - inlay Conclusion: Cr was used as colorant agent in the green enamel

14. 14 101 Congresso SIF 21-25 seteembre 2015 - Roma, Italia Conclusions Alpha-PIXE Na, K and Ca characterize the enamels as alkali silica glass and the presence of Pb in high concentration(>20) suggests modern manufacture XRF scanner The elements Cr(green/yellow), Zn[Se, Ba, Cd](red) and the use of As characterize the enamels as modern XVIII-XIX century Reference: Identification of forgeries in historical enamels by combining the non-destructive scanning XRF imaging and alpha-PIXE portable techniques DOI:10.1016/j.microc.2015.08.025

15. 15 101 Congresso SIF 21-25 seteembre 2015 - Roma, Italia Grazie
