MINTWeb-Based DICOM Storage Overview
MINTWeb-Based DICOM Storage is a system designed for efficient transport and long-term storage of DICOM objects using web technologies. It aims to provide fast transport of studies over the web, eliminate end-of-study problems, and support multiple PACS systems. The essence of MINT lies in its RESTful interface and normalized study management, eliminating the need for PACS migrations and enabling easy study transmission and storage indexing.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

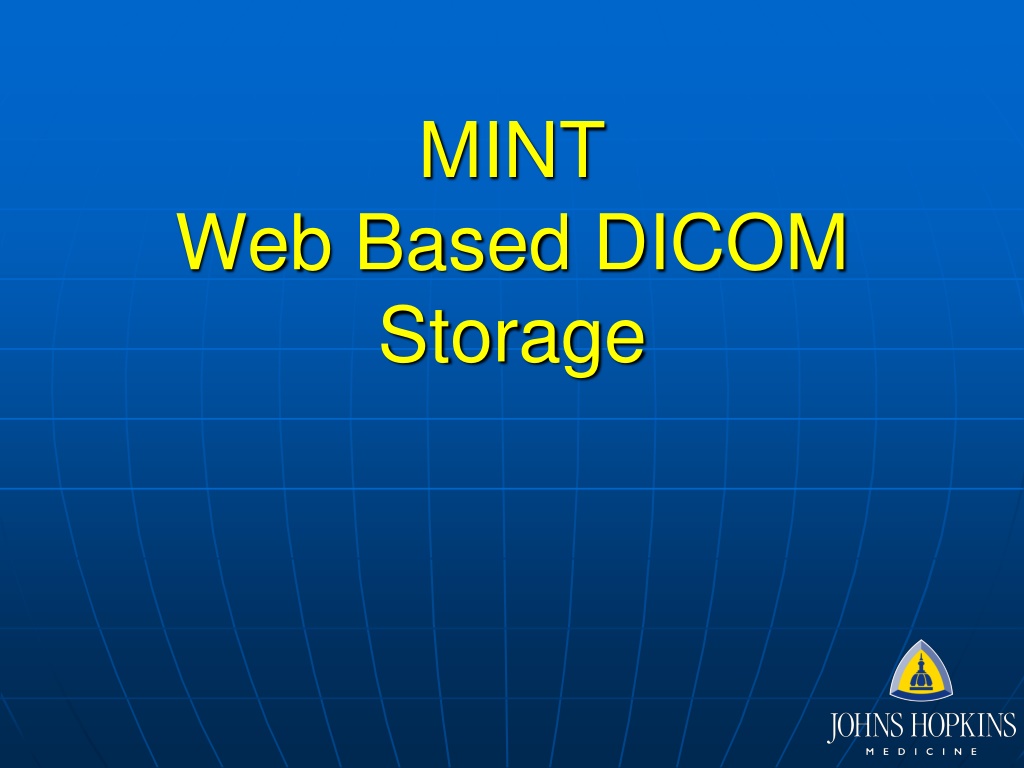

MINT Web Based DICOM Storage

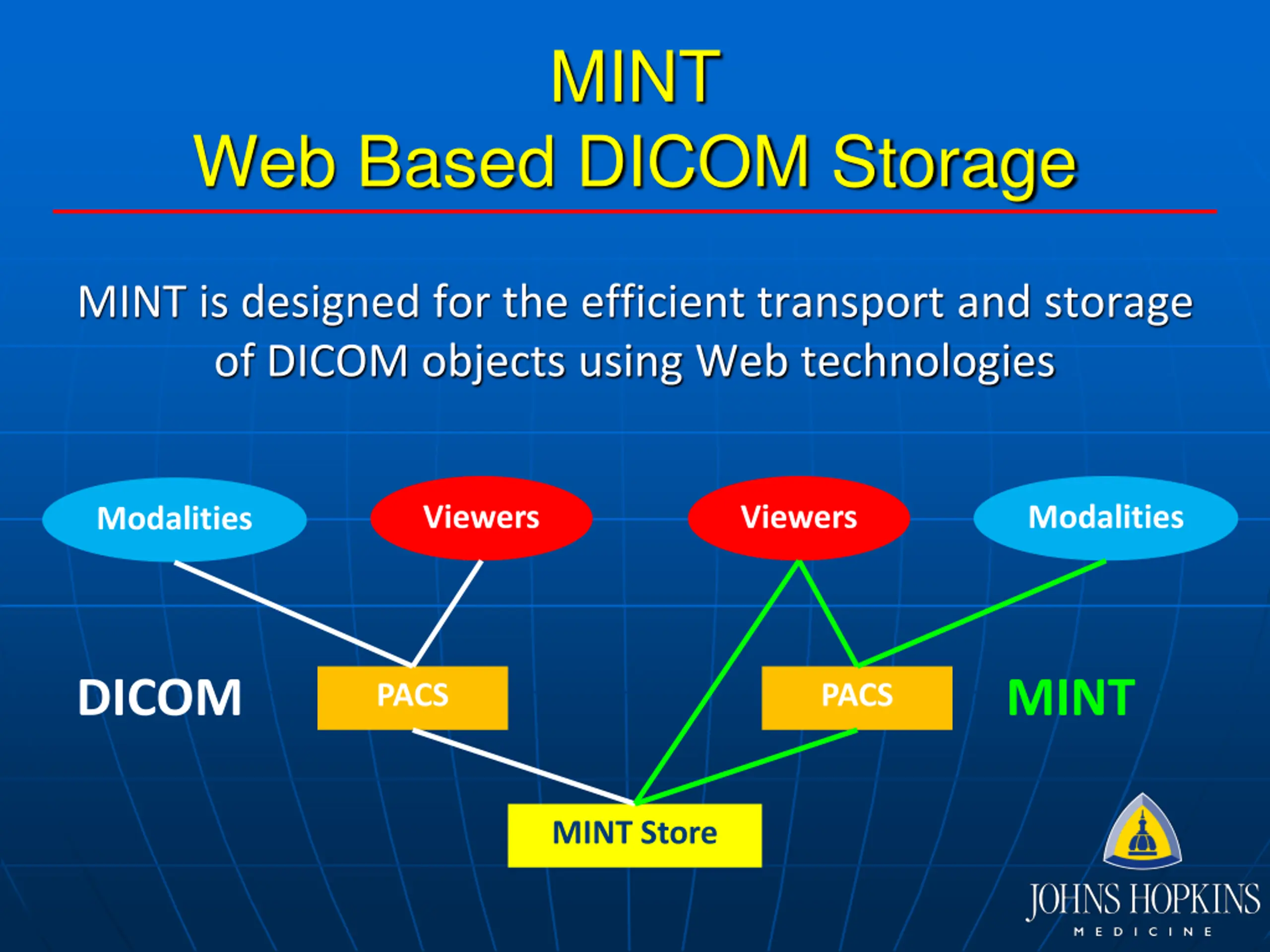

MINT Web Based DICOM Storage MINT is designed for the efficient transport and storage of DICOM objects using Web technologies Viewers Viewers Modalities Modalities DICOM MINT PACS PACS MINT Store

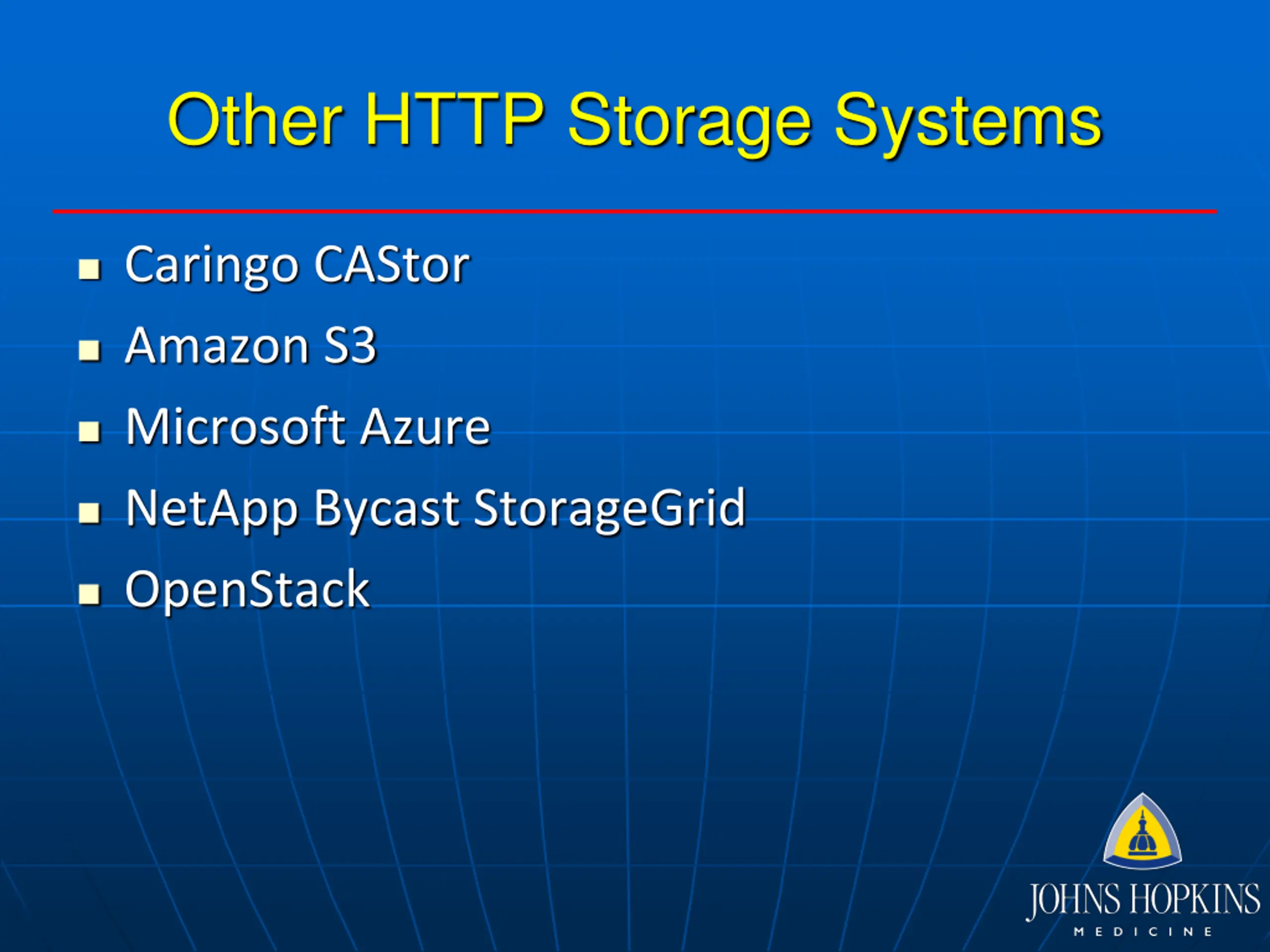

Other HTTP Storage Systems Caringo CAStor Amazon S3 Microsoft Azure NetApp Bycast StorageGrid OpenStack

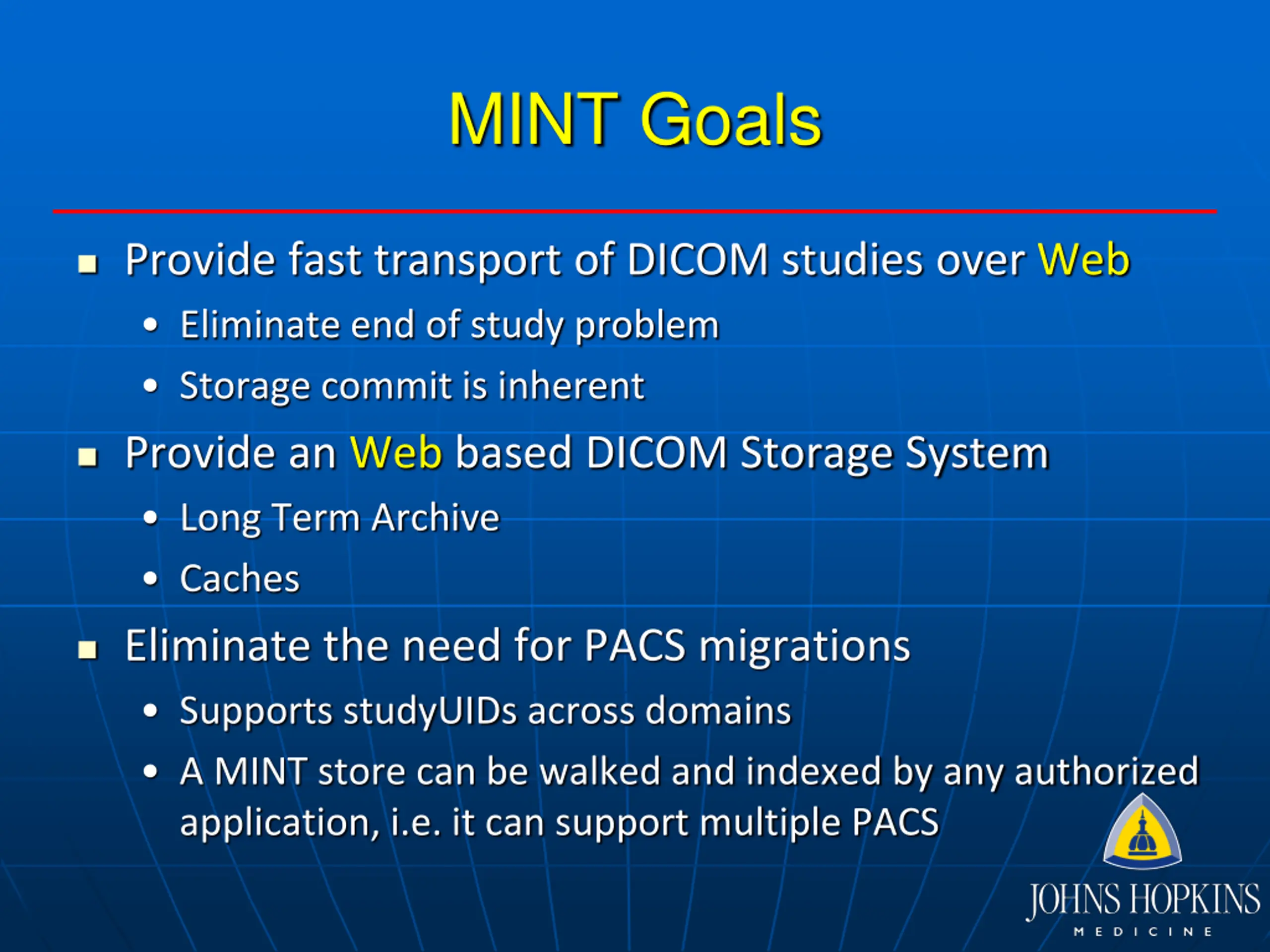

MINT Goals Provide fast transport of DICOM studies over Web Eliminate end of study problem Storage commit is inherent Provide an Web based DICOM Storage System Long Term Archive Caches Eliminate the need for PACS migrations Supports studyUIDs across domains A MINT store can be walked and indexed by any authorized application, i.e. it can support multiple PACS

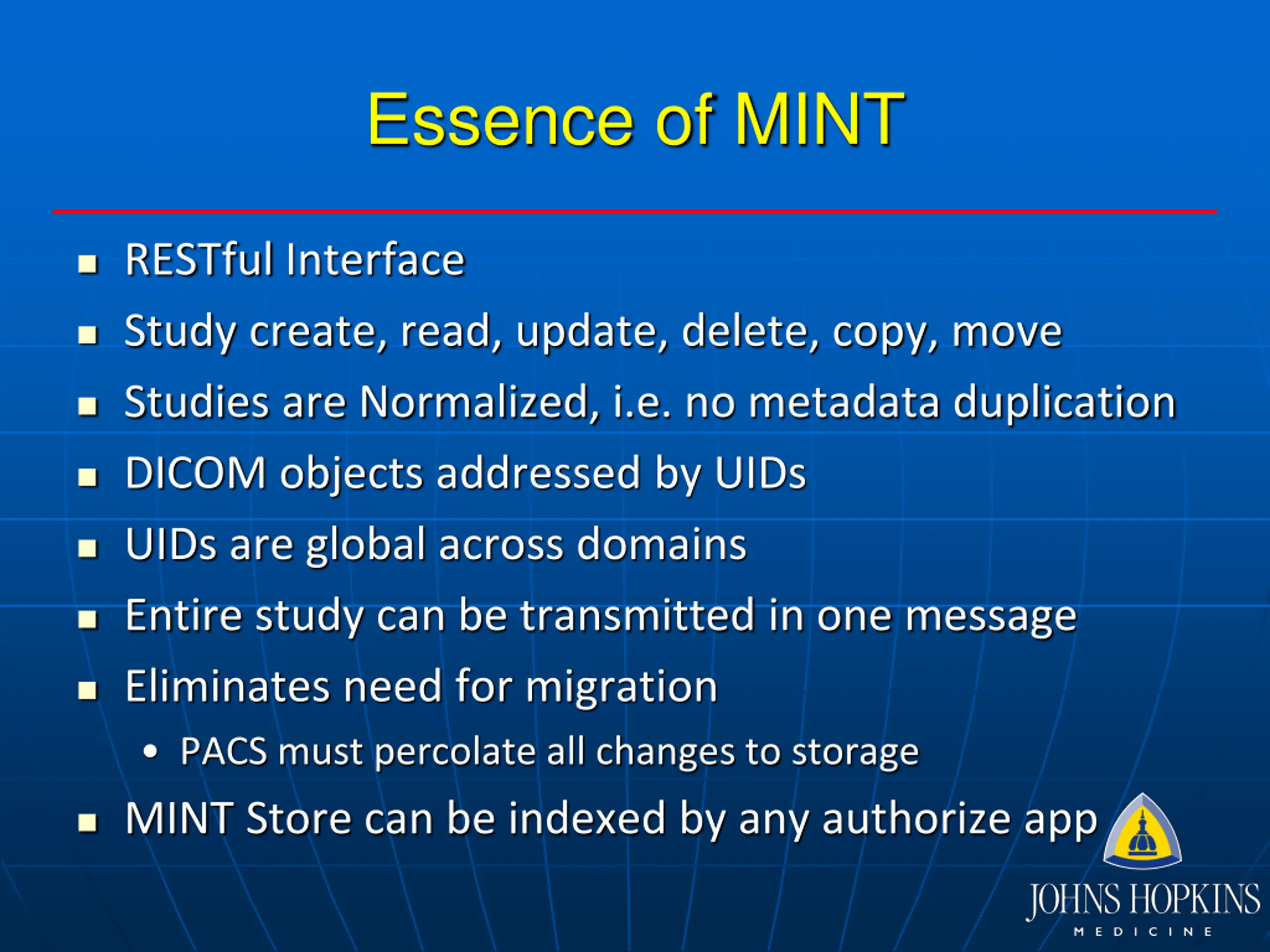

Essence of MINT RESTful Interface Study create, read, update, delete, copy, move Studies are Normalized, i.e. no metadata duplication DICOM objects addressed by UIDs UIDs are global across domains Entire study can be transmitted in one message Eliminates need for migration PACS must percolate all changes to storage MINT Store can be indexed by any authorize app

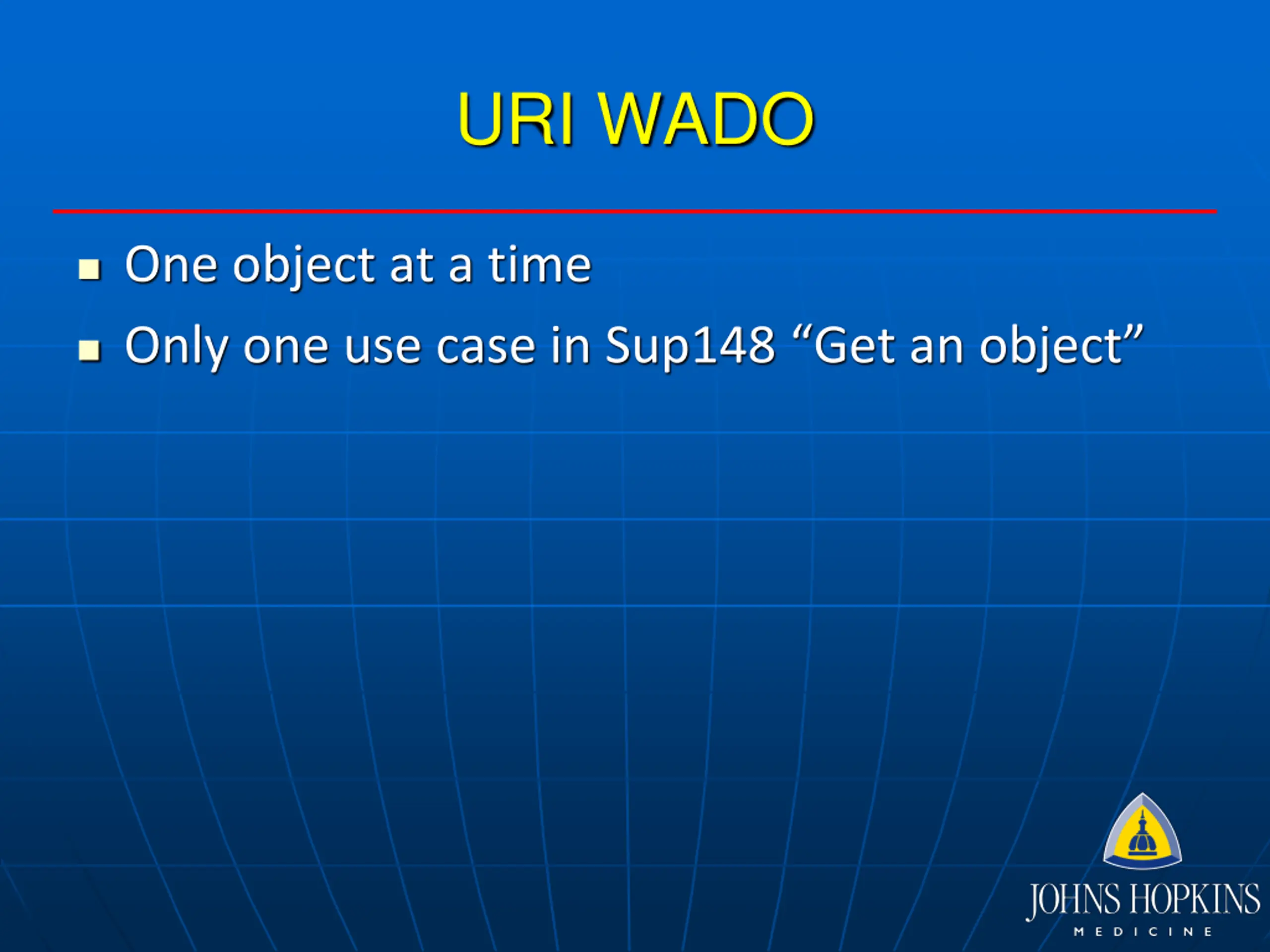

URI WADO One object at a time Only one use case in Sup148 Get an object

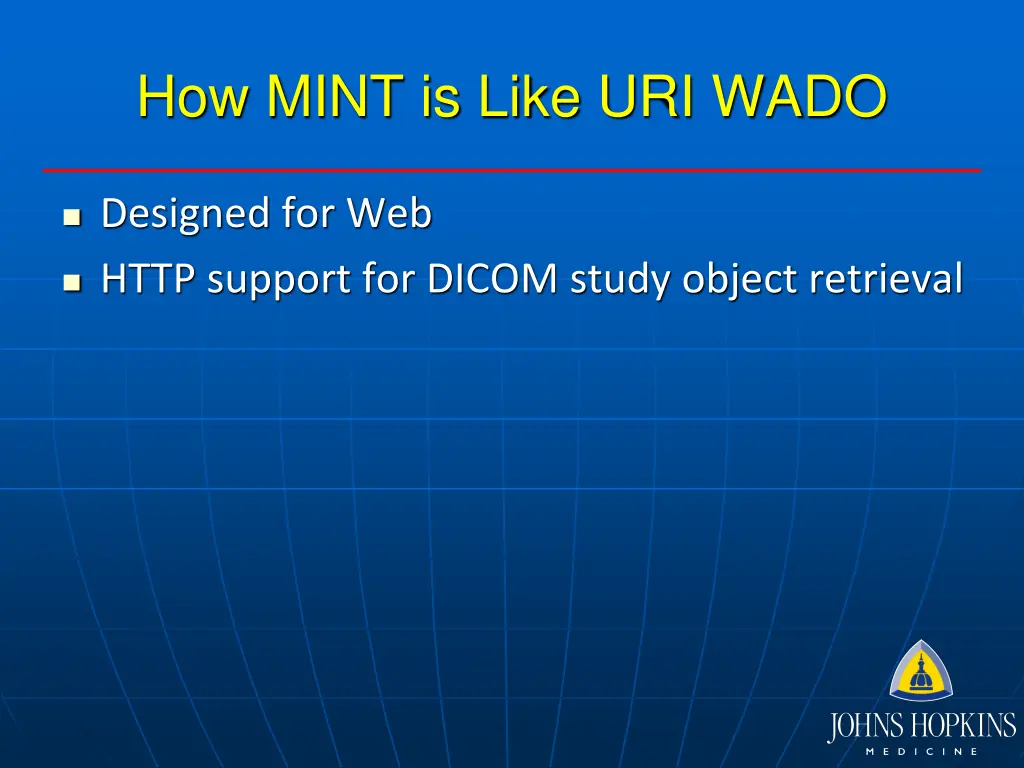

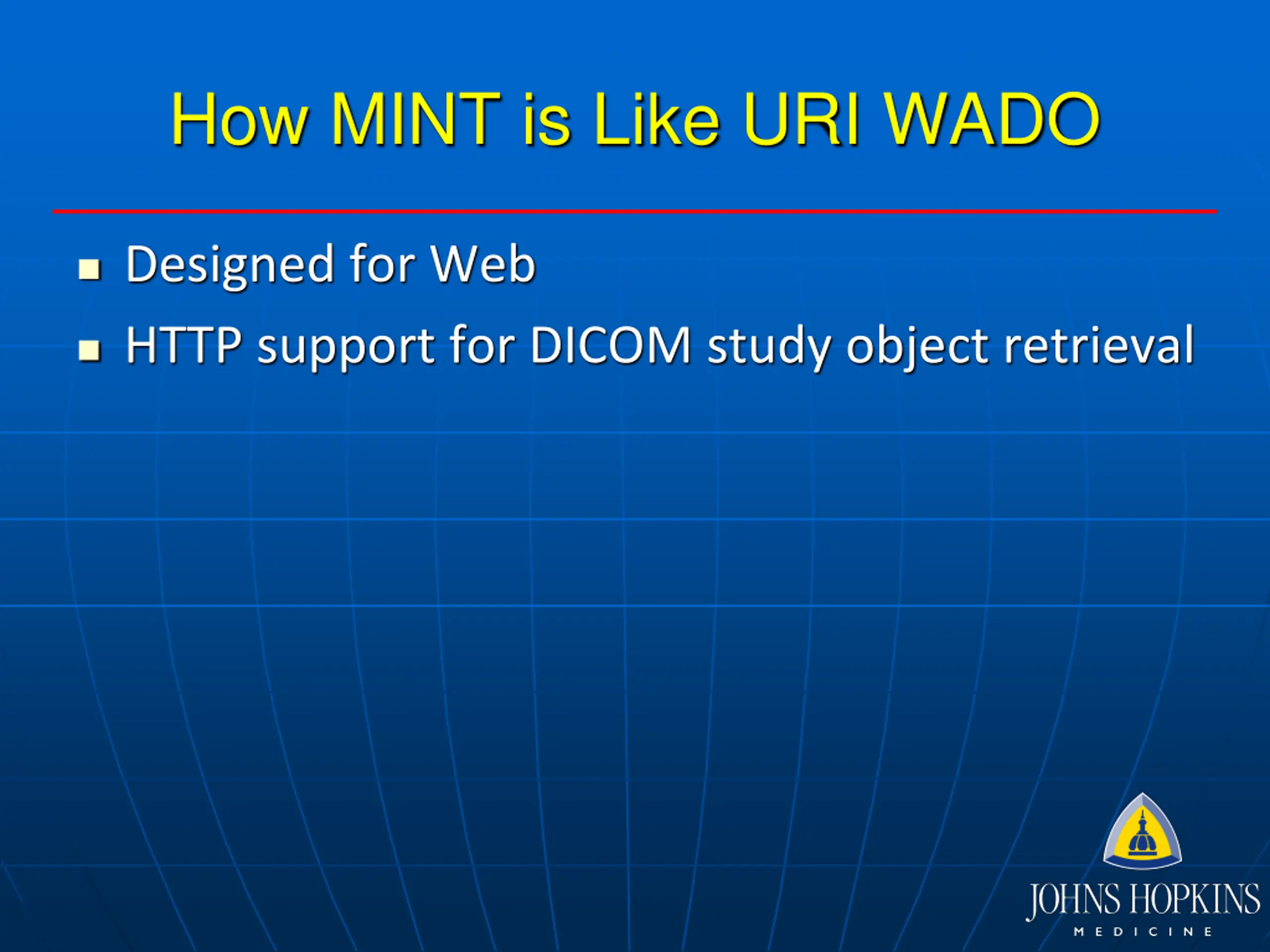

How MINT is Like URI WADO Designed for Web HTTP support for DICOM study object retrieval

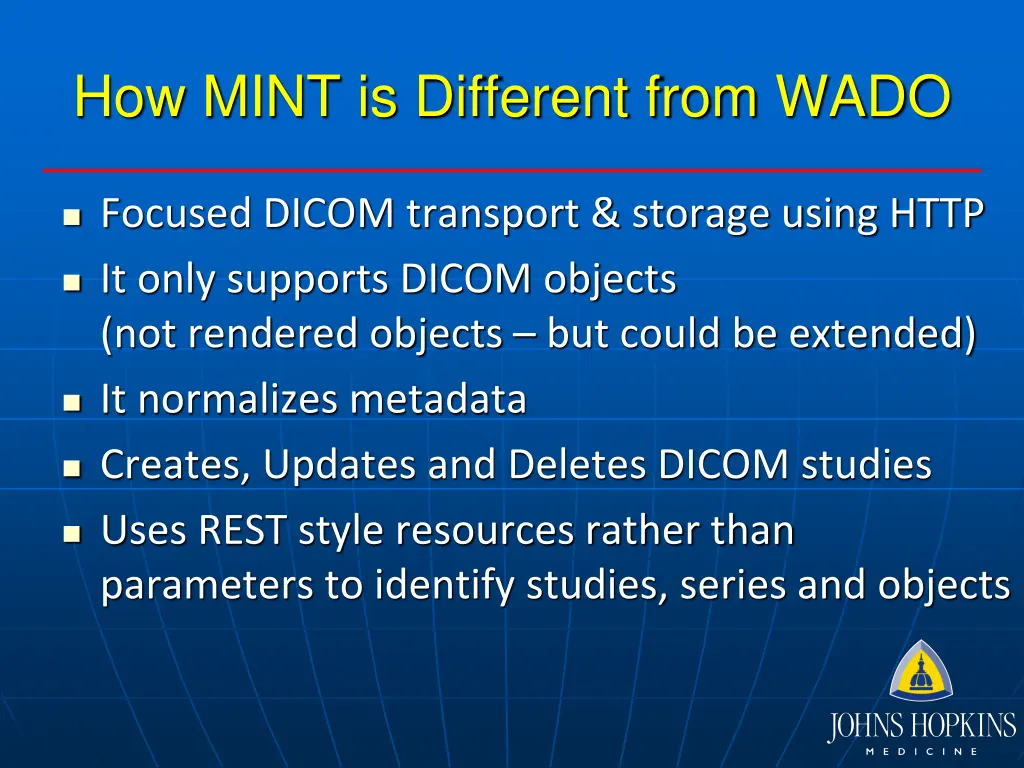

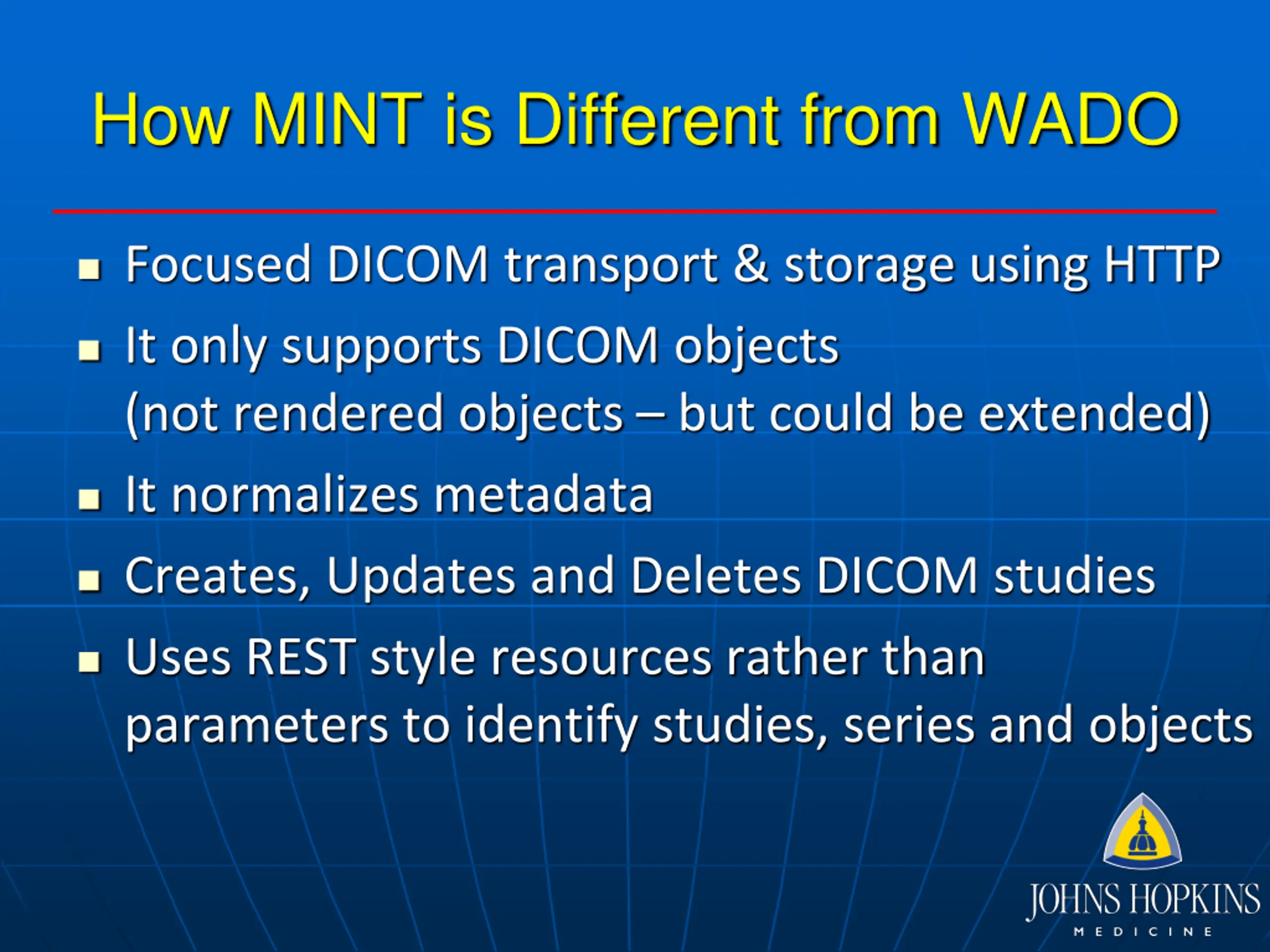

How MINT is Different from WADO Focused DICOM transport & storage using HTTP It only supports DICOM objects (not rendered objects but could be extended) It normalizes metadata Creates, Updates and Deletes DICOM studies Uses REST style resources rather than parameters to identify studies, series and objects

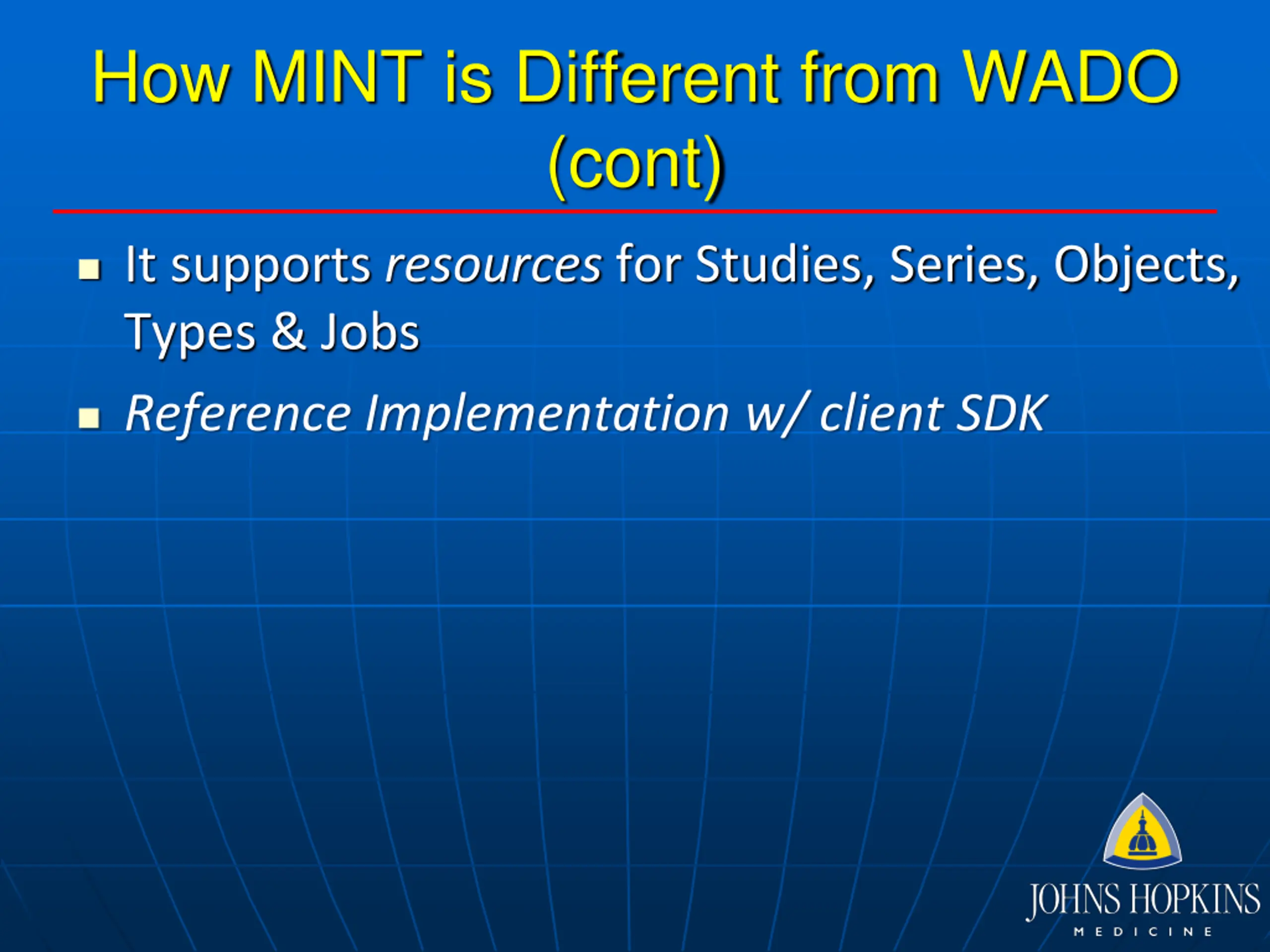

How MINT is Different from WADO (cont) It supports resources for Studies, Series, Objects, Types & Jobs Reference Implementation w/ client SDK

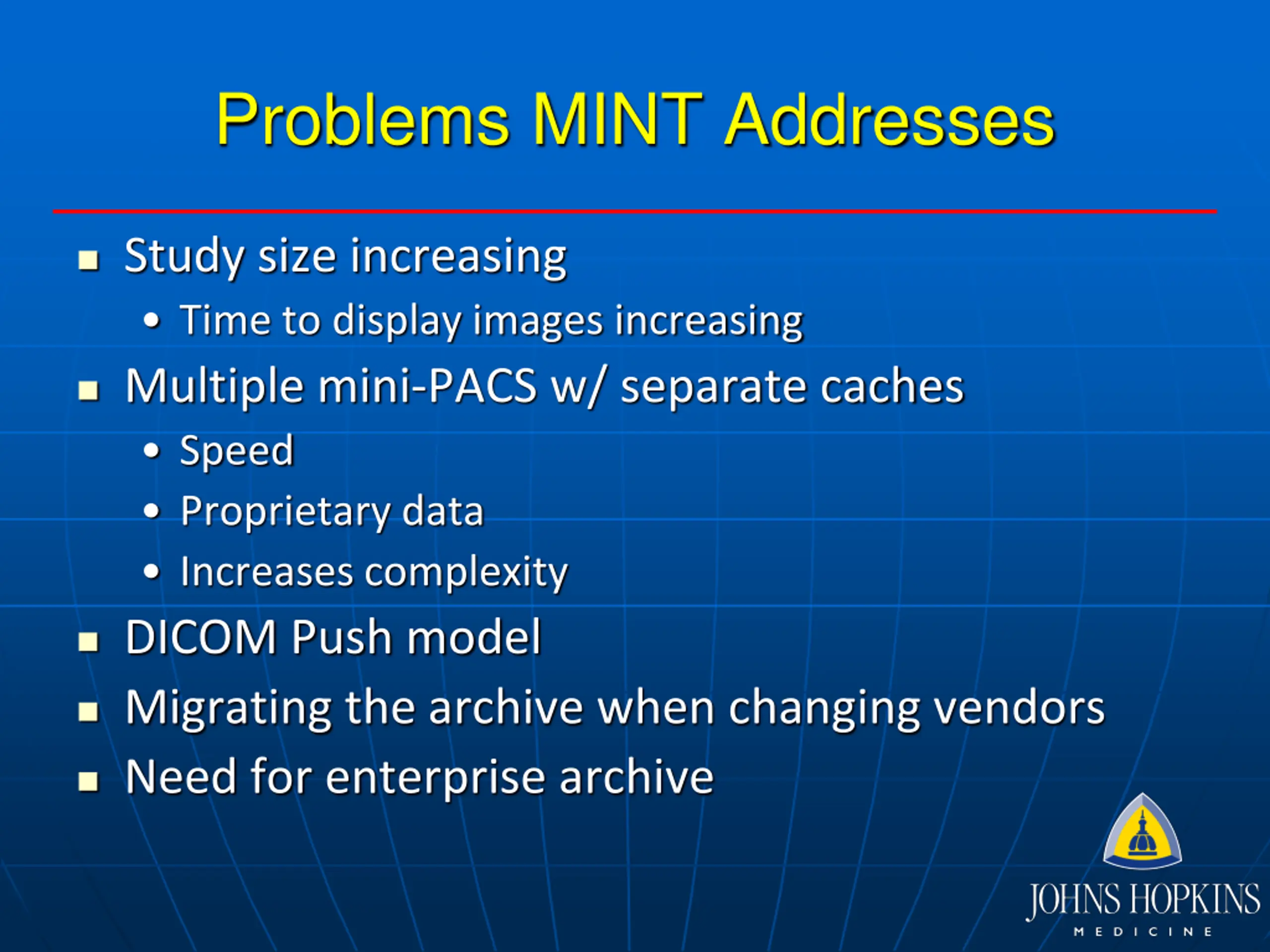

Problems MINT Addresses Study size increasing Time to display images increasing Multiple mini-PACS w/ separate caches Speed Proprietary data Increases complexity DICOM Push model Migrating the archive when changing vendors Need for enterprise archive

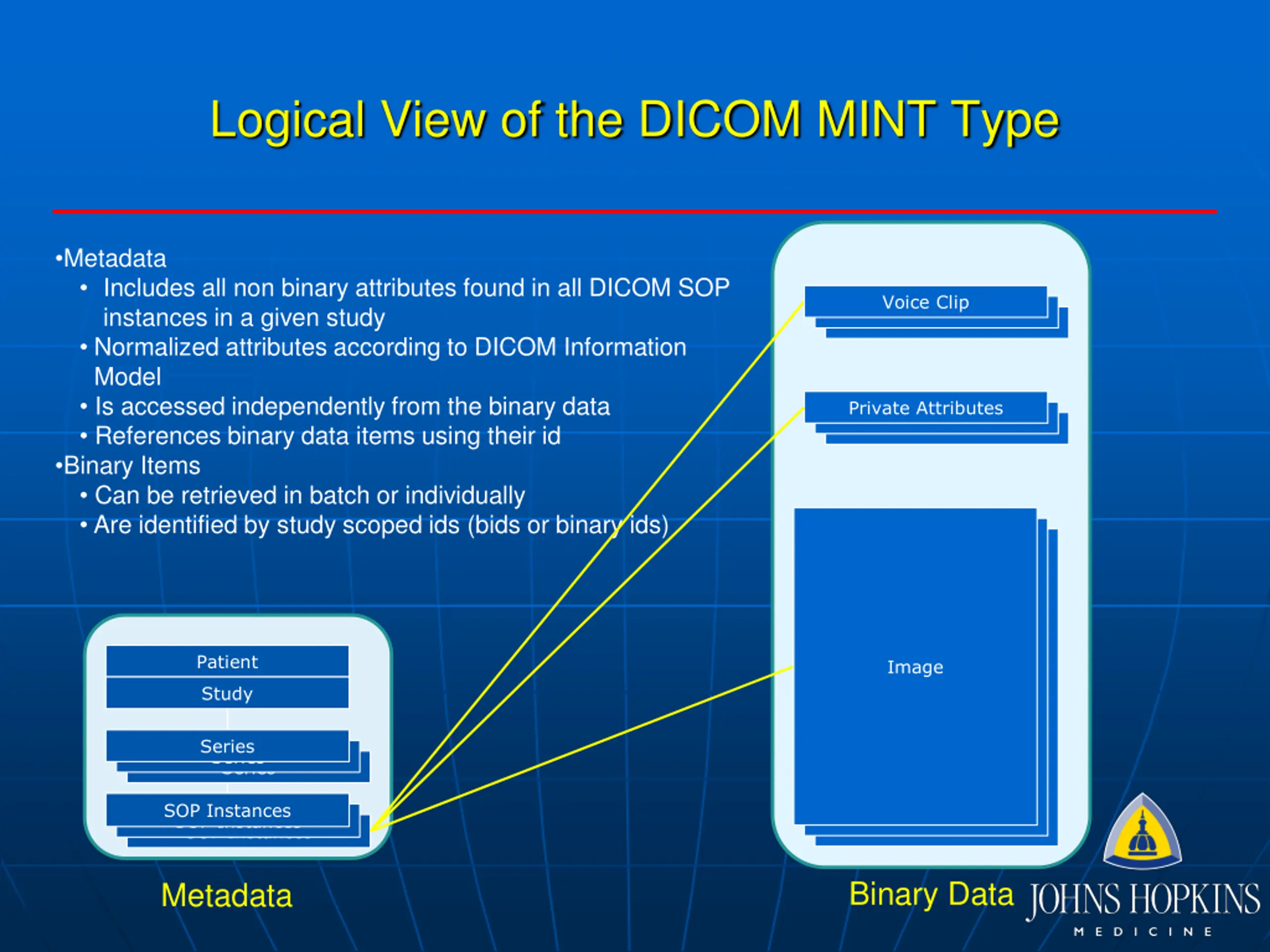

Logical View of the DICOM MINT Type Metadata Includes all non binary attributes found in all DICOM SOP instances in a given study Normalized attributes according to DICOM Information Model Is accessed independently from the binary data References binary data items using their id Binary Items Can be retrieved in batch or individually Are identified by study scoped ids (bids or binary ids) Voice Clip Private Attributes x Patient Image Study Series Series Series SOP Instances SOP Instances SOP Instances Binary Data Metadata

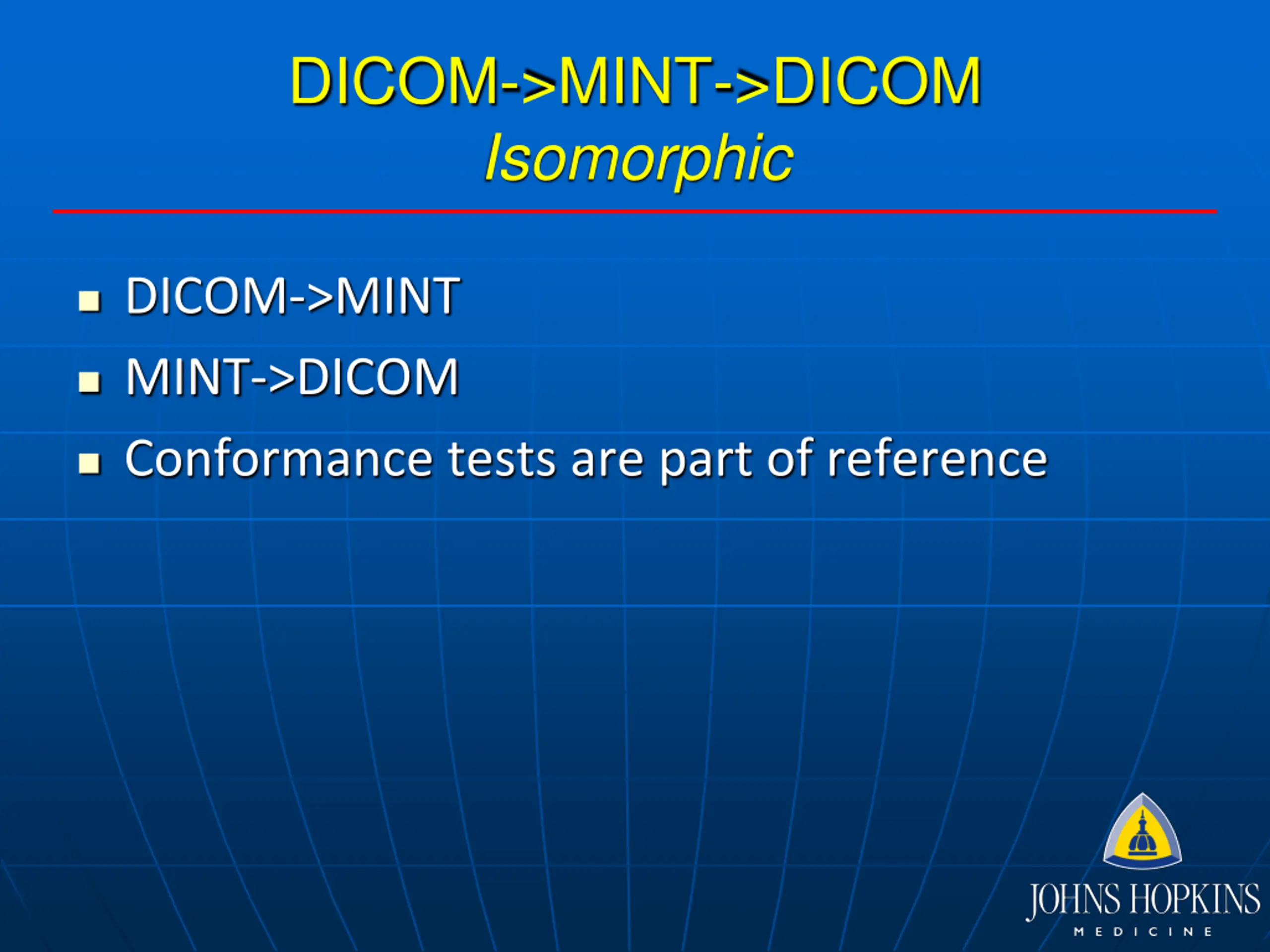

DICOM->MINT->DICOM Isomorphic DICOM->MINT MINT->DICOM Conformance tests are part of reference
Proposed MINT Operations

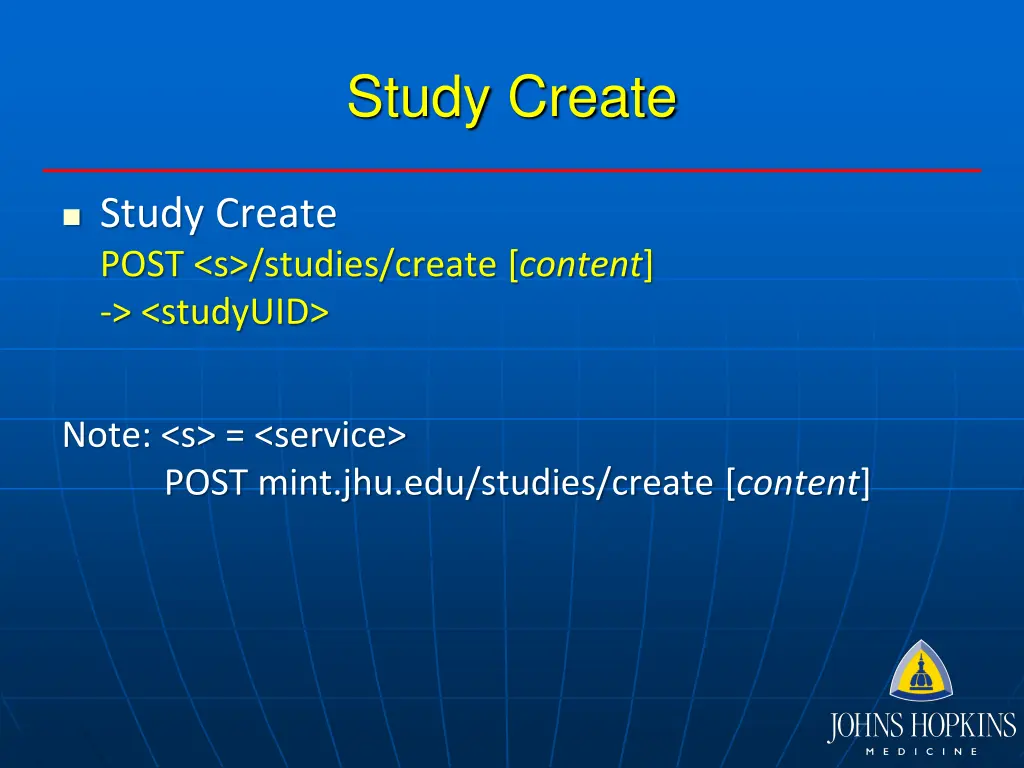

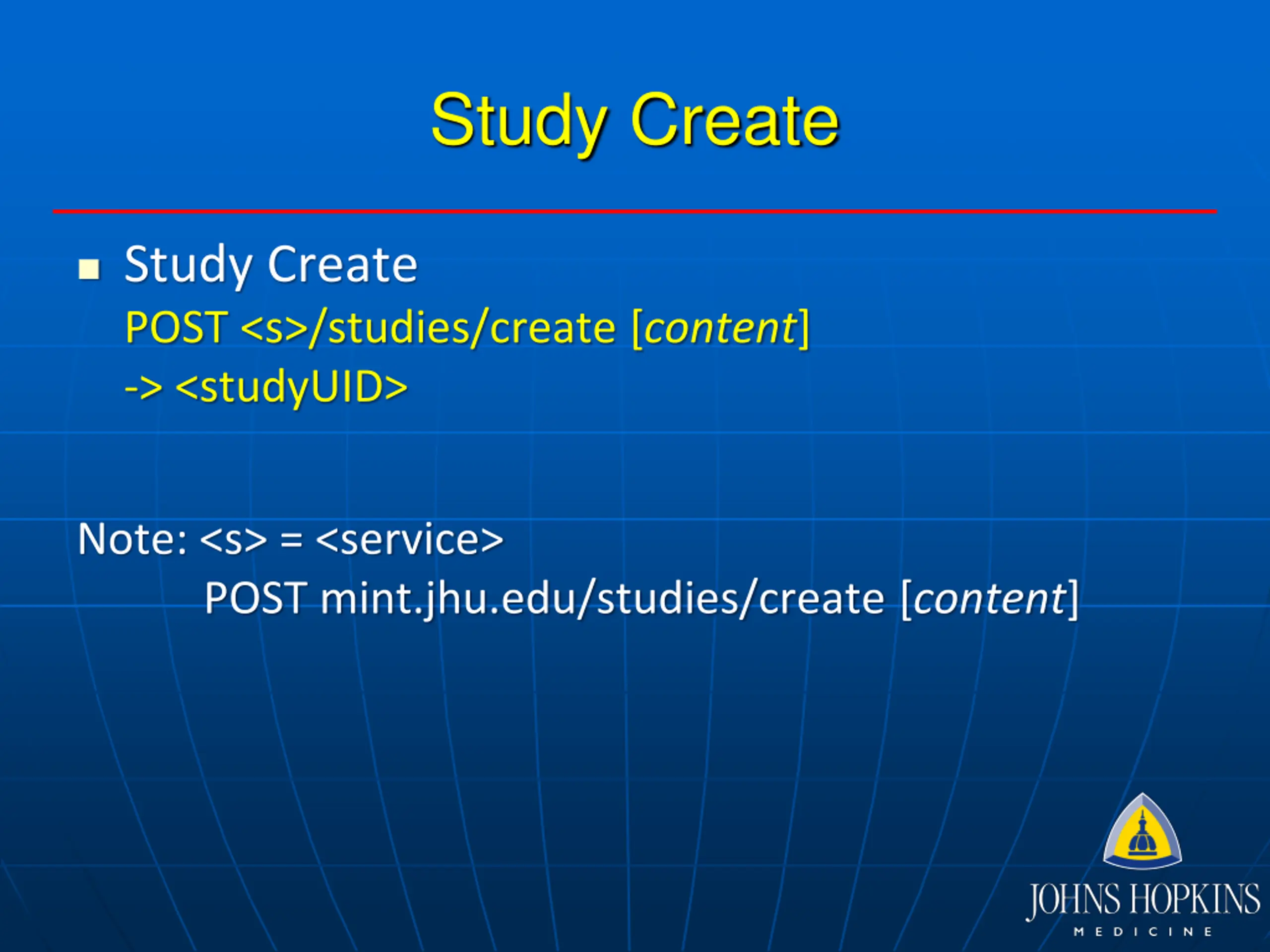

Study Create Study Create POST <s>/studies/create [content] -> <studyUID> Note: <s> = <service> POST mint.jhu.edu/studies/create [content]

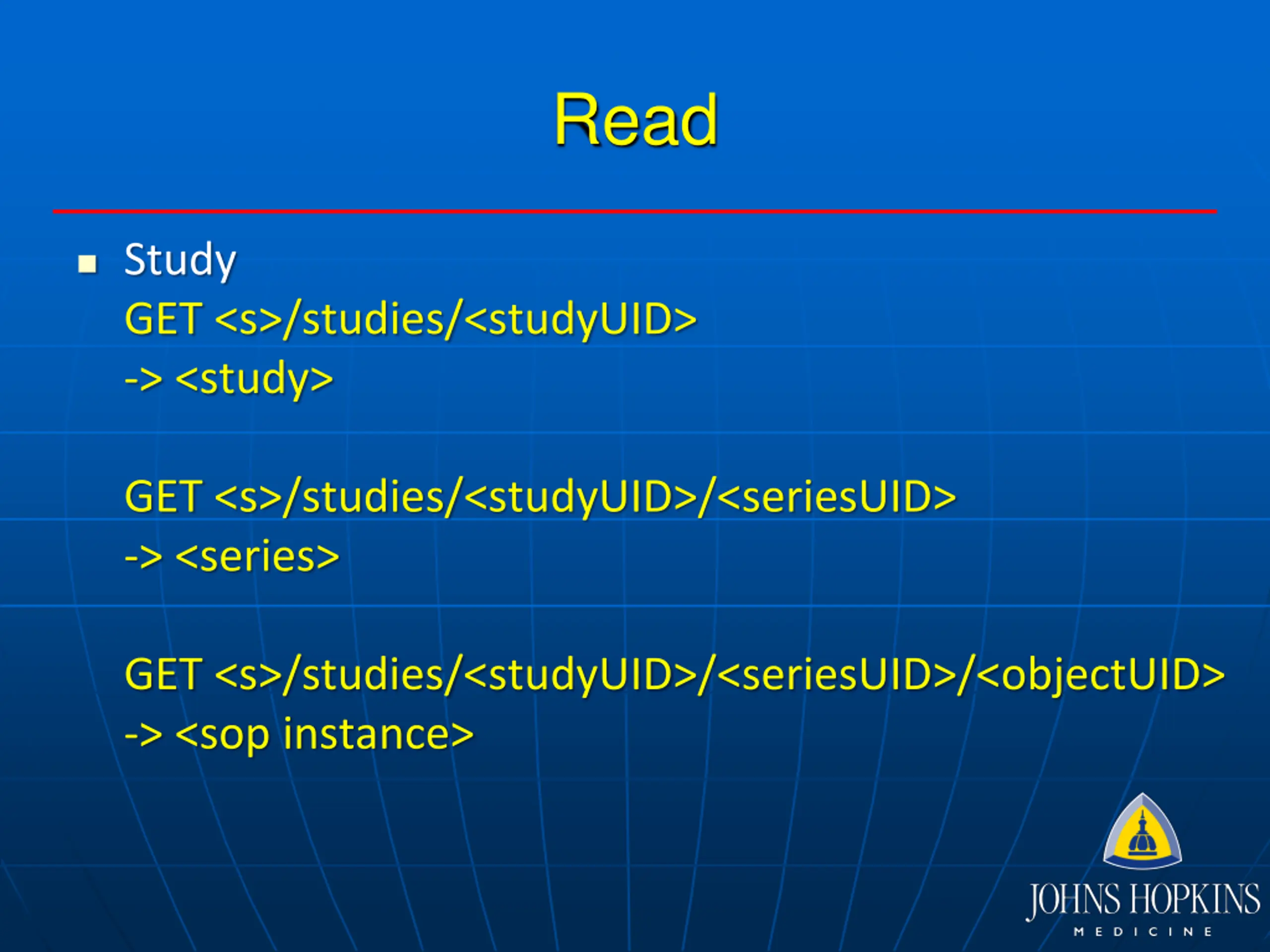

Read Study GET <s>/studies/<studyUID> -> <study> GET <s>/studies/<studyUID>/<seriesUID> -> <series> GET <s>/studies/<studyUID>/<seriesUID>/<objectUID> -> <sop instance>

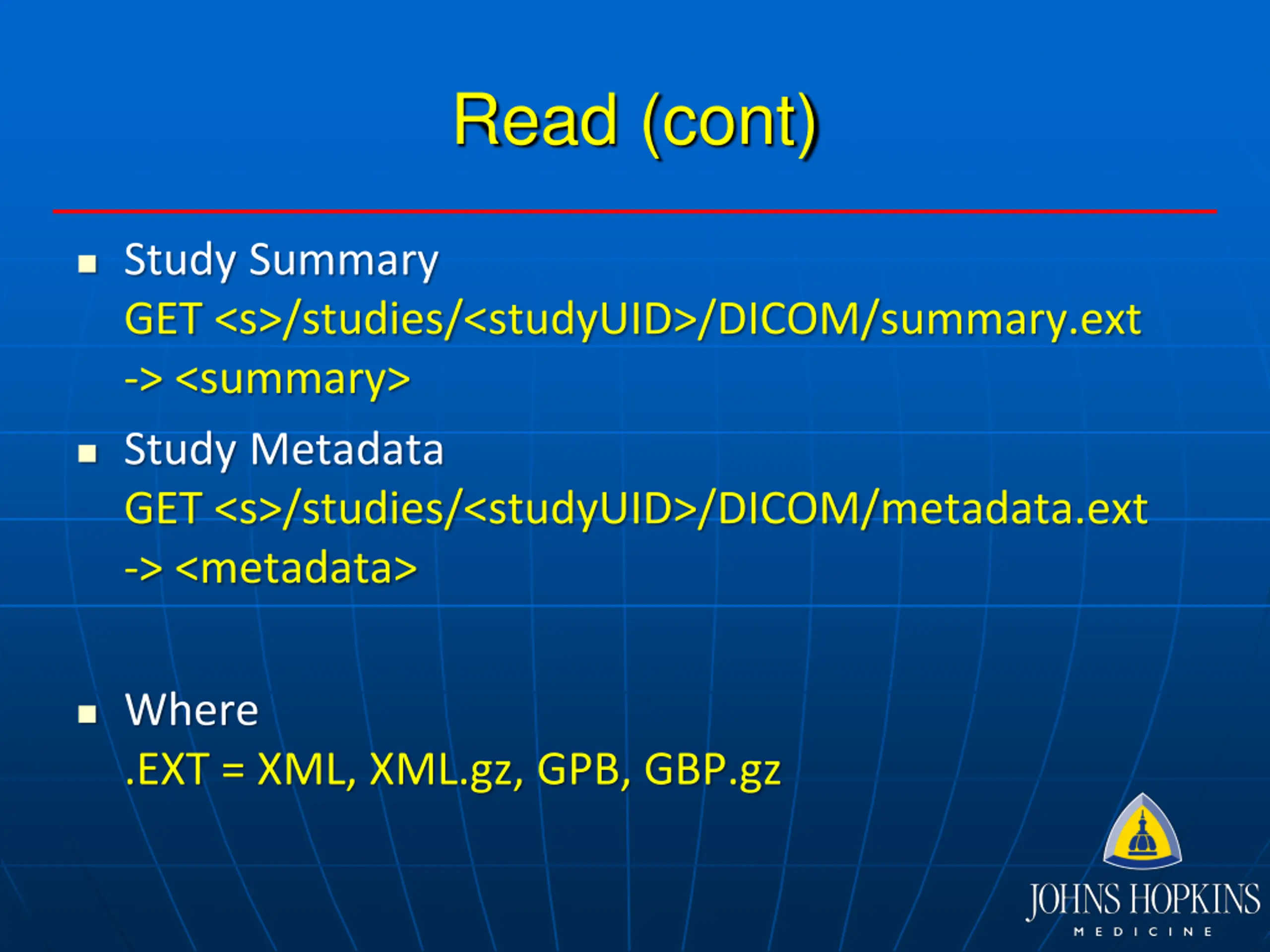

Read (cont) Study Summary GET <s>/studies/<studyUID>/DICOM/summary.ext -> <summary> Study Metadata GET <s>/studies/<studyUID>/DICOM/metadata.ext -> <metadata> Where .EXT = XML, XML.gz, GPB, GBP.gz

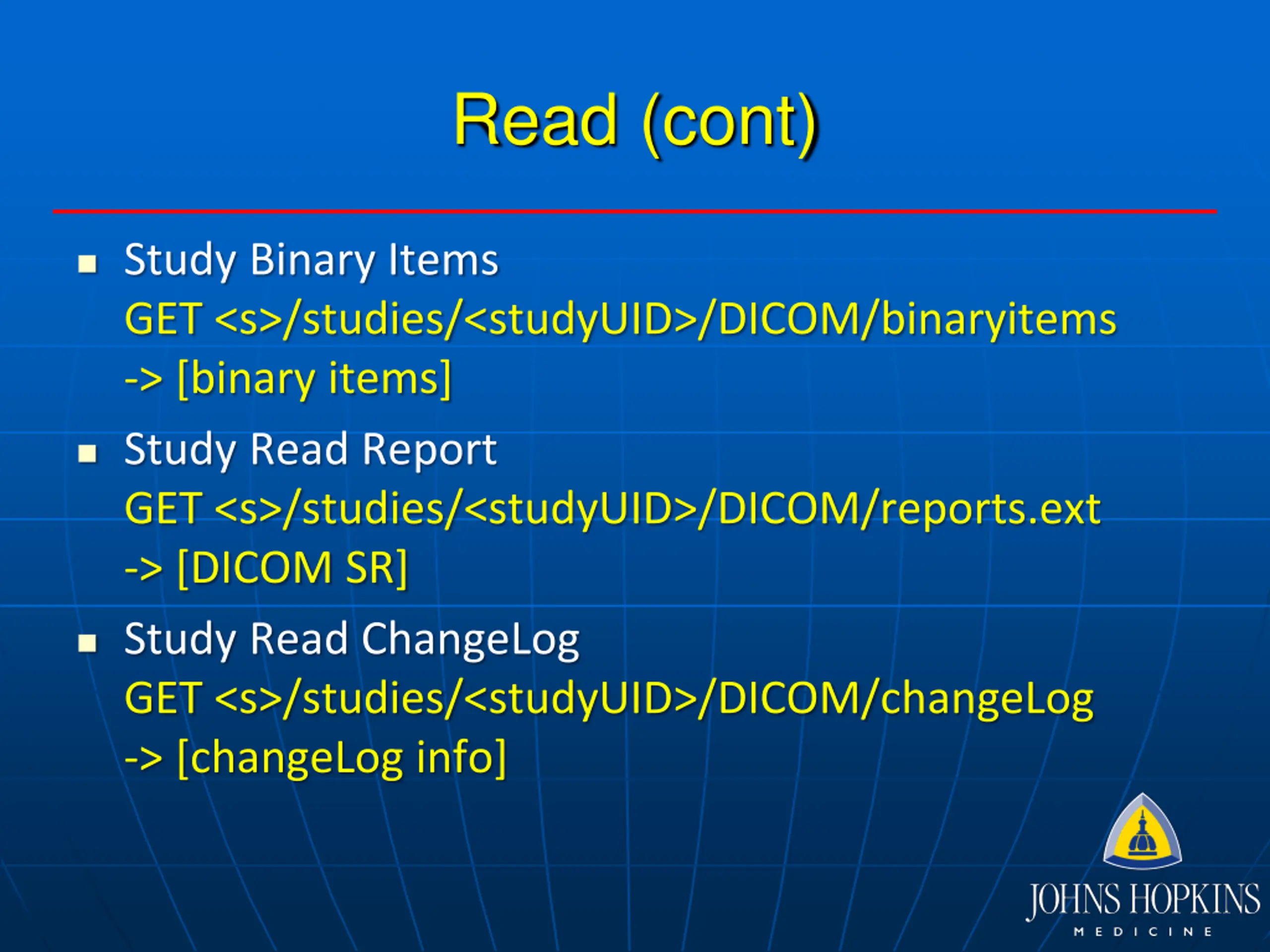

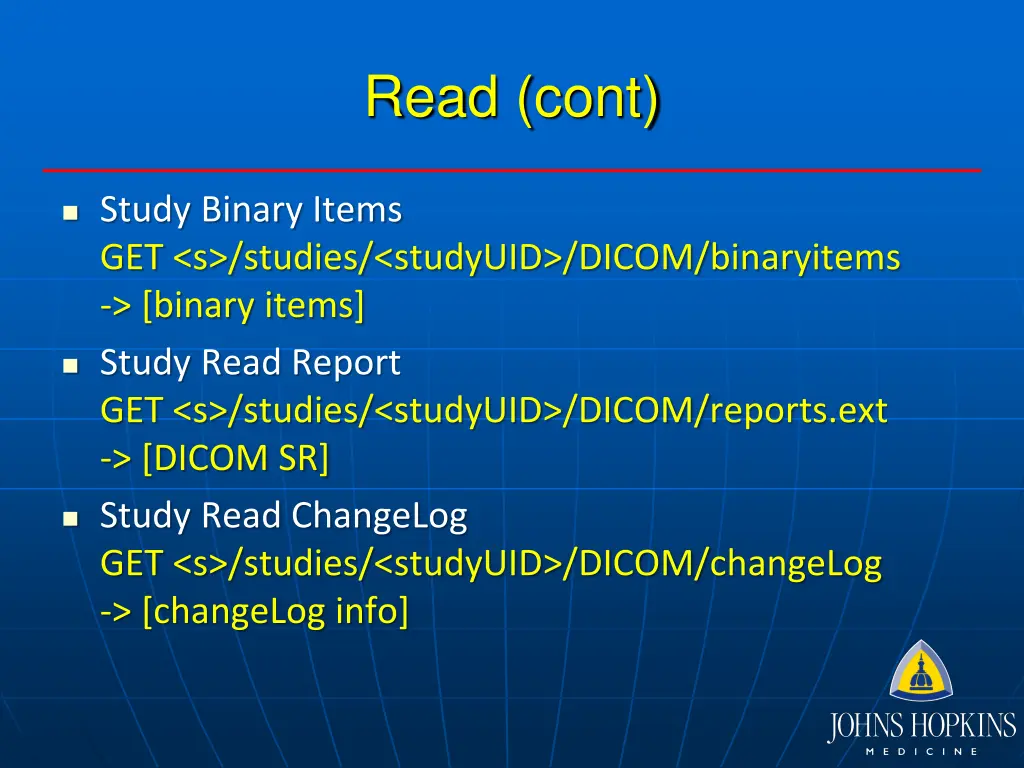

Read (cont) Study Binary Items GET <s>/studies/<studyUID>/DICOM/binaryitems -> [binary items] Study Read Report GET <s>/studies/<studyUID>/DICOM/reports.ext -> [DICOM SR] Study Read ChangeLog GET <s>/studies/<studyUID>/DICOM/changeLog -> [changeLog info]

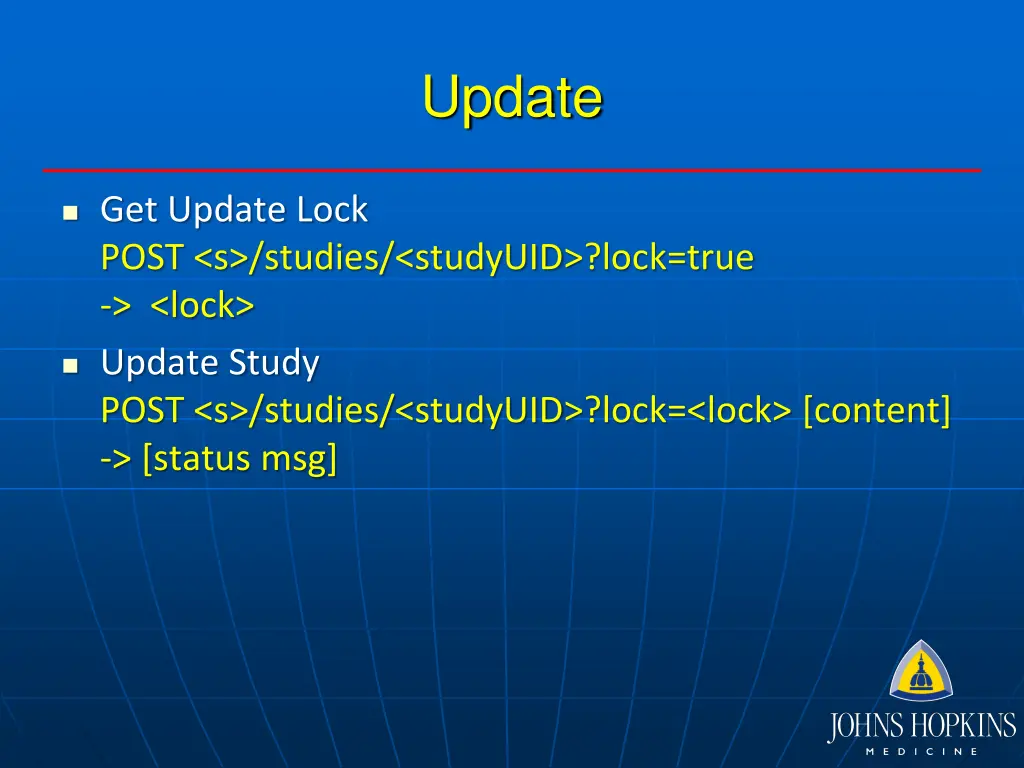

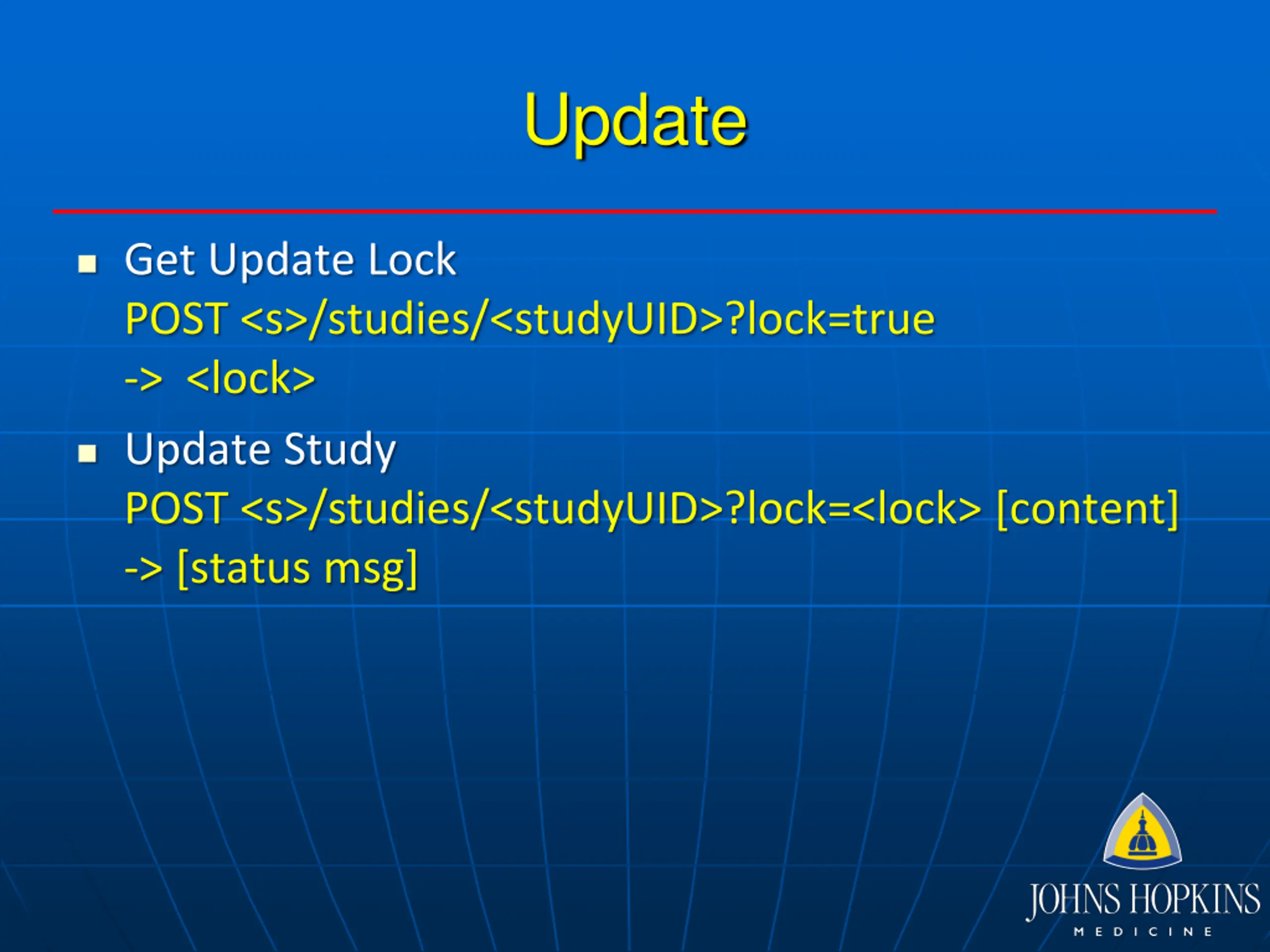

Update Get Update Lock POST <s>/studies/<studyUID>?lock=true -> <lock> Update Study POST <s>/studies/<studyUID>?lock=<lock> [content] -> [status msg]

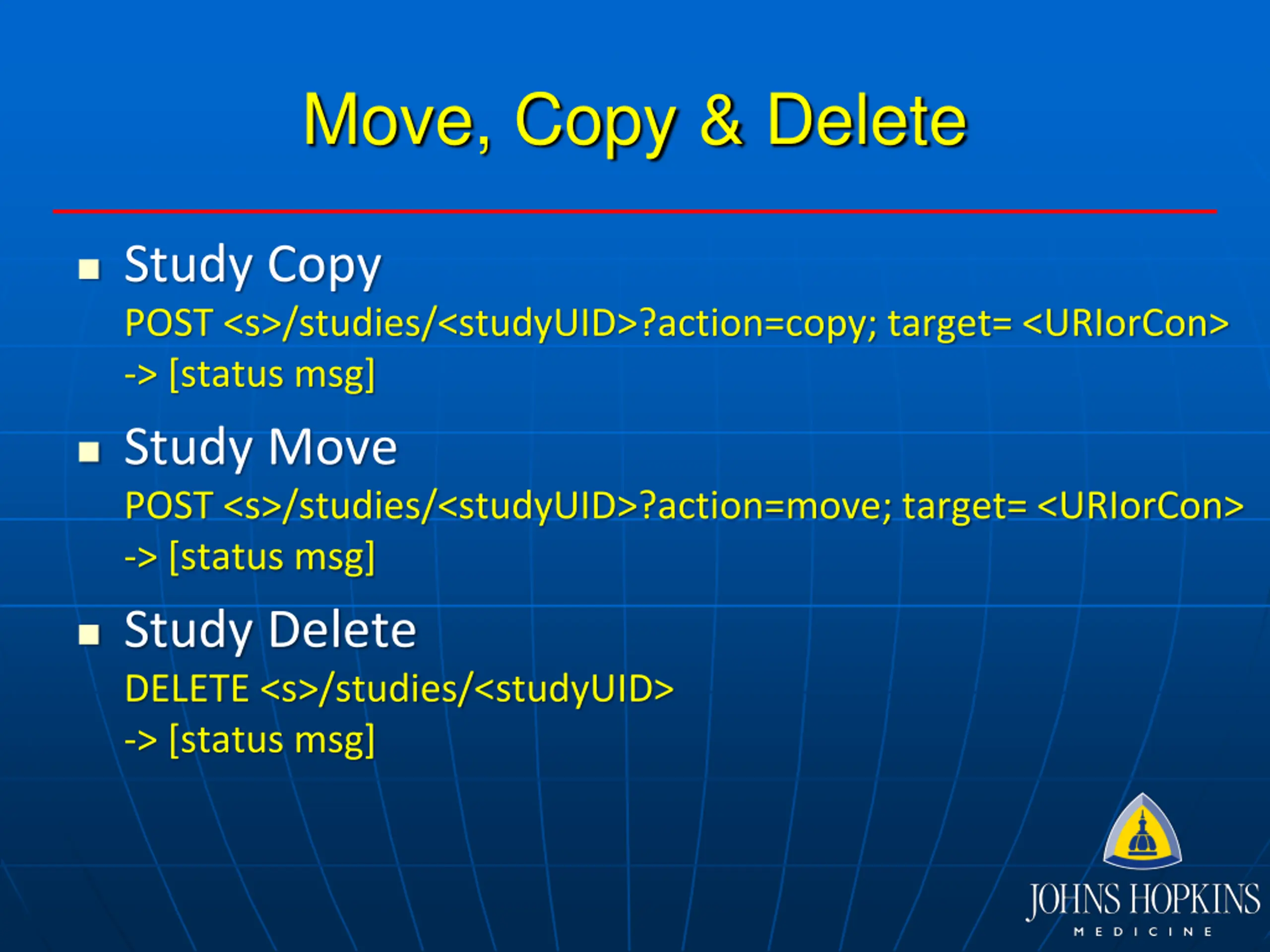

Move, Copy & Delete Study Copy POST <s>/studies/<studyUID>?action=copy; target= <URIorCon> -> [status msg] Study Move POST <s>/studies/<studyUID>?action=move; target= <URIorCon> -> [status msg] Study Delete DELETE <s>/studies/<studyUID> -> [status msg]

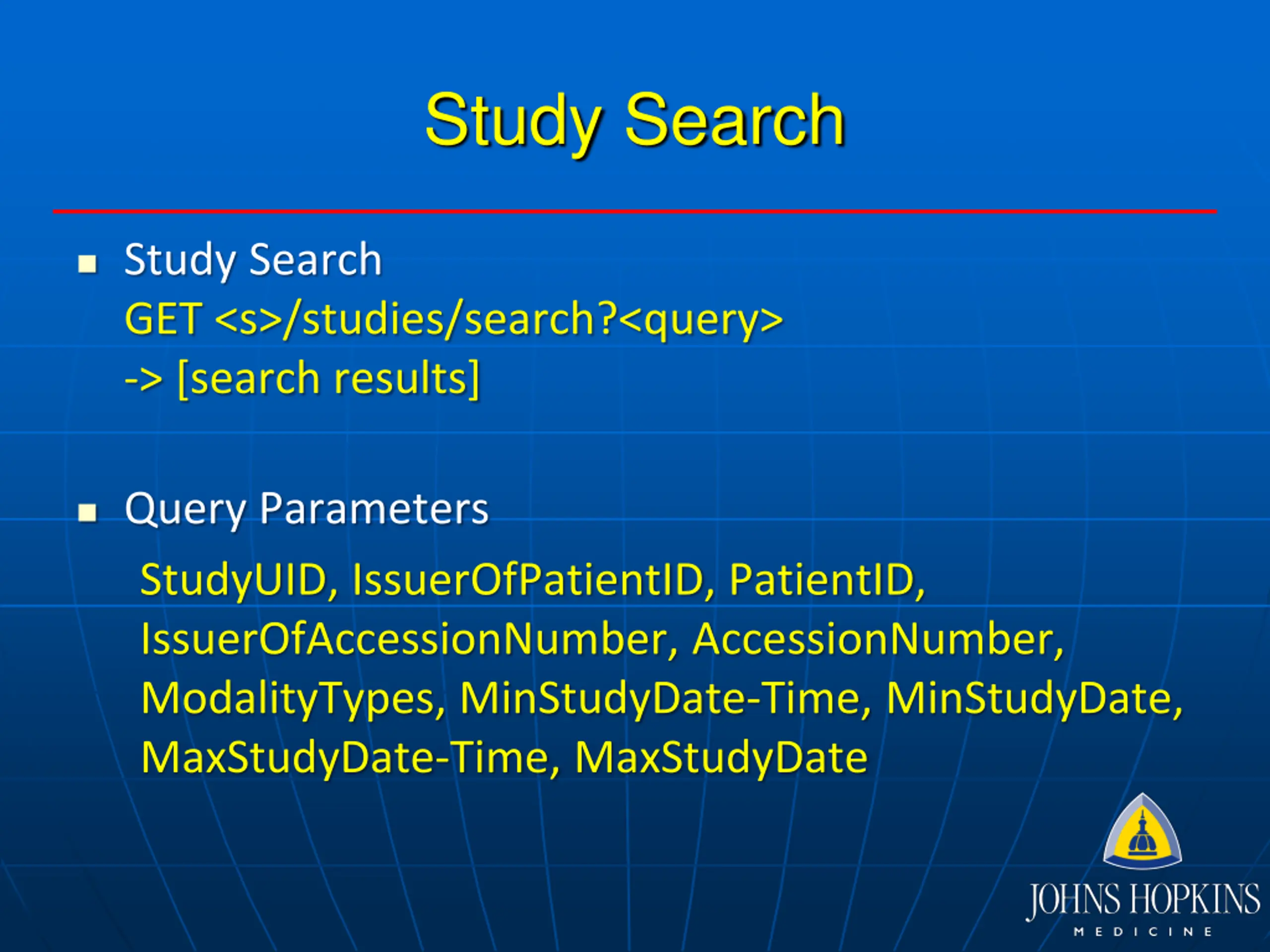

Study Search Study Search GET <s>/studies/search?<query> -> [search results] Query Parameters StudyUID, IssuerOfPatientID, PatientID, IssuerOfAccessionNumber, AccessionNumber, ModalityTypes, MinStudyDate-Time, MinStudyDate, MaxStudyDate-Time, MaxStudyDate

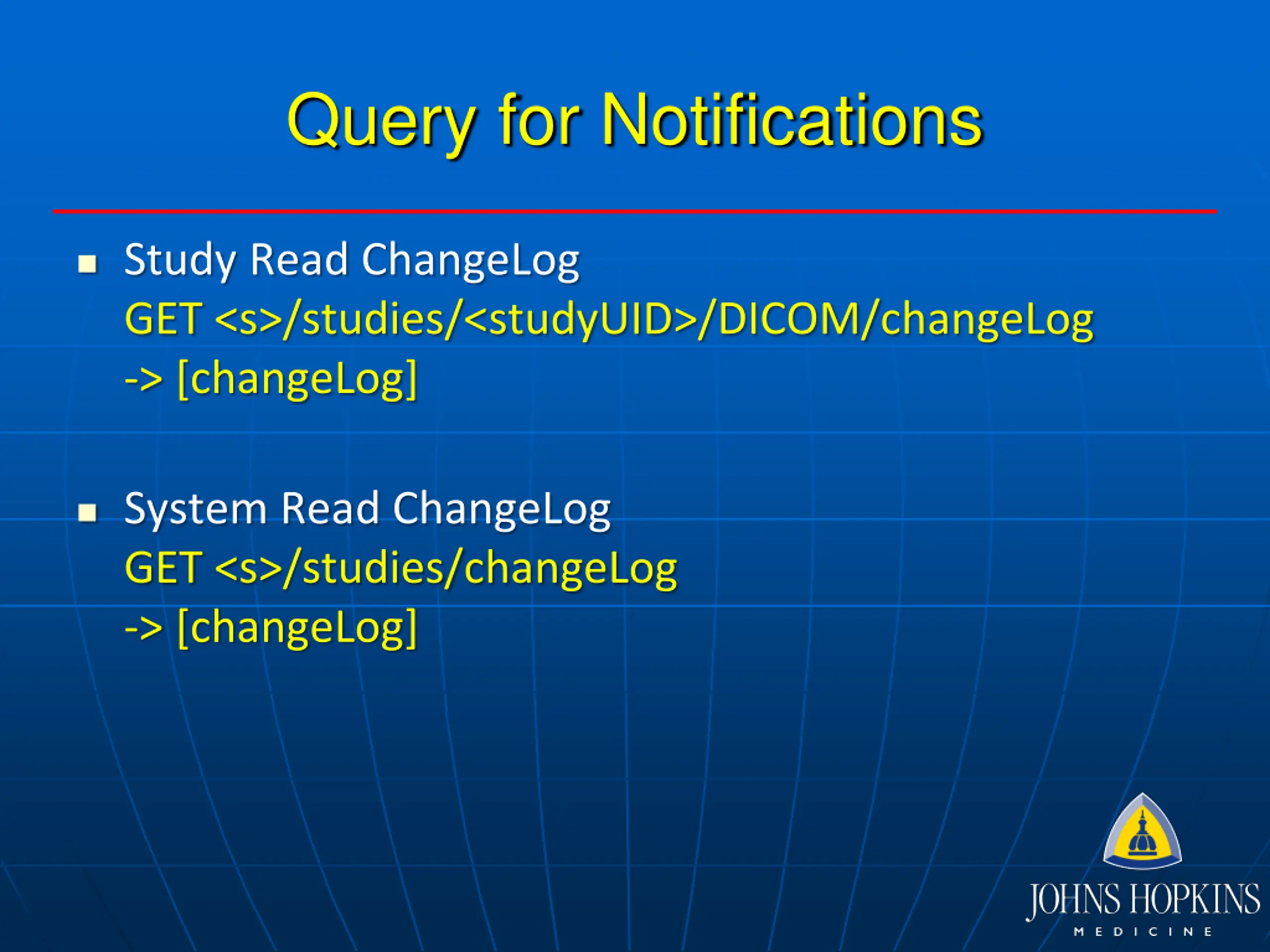

Query for Notifications Study Read ChangeLog GET <s>/studies/<studyUID>/DICOM/changeLog -> [changeLog] System Read ChangeLog GET <s>/studies/changeLog -> [changeLog]

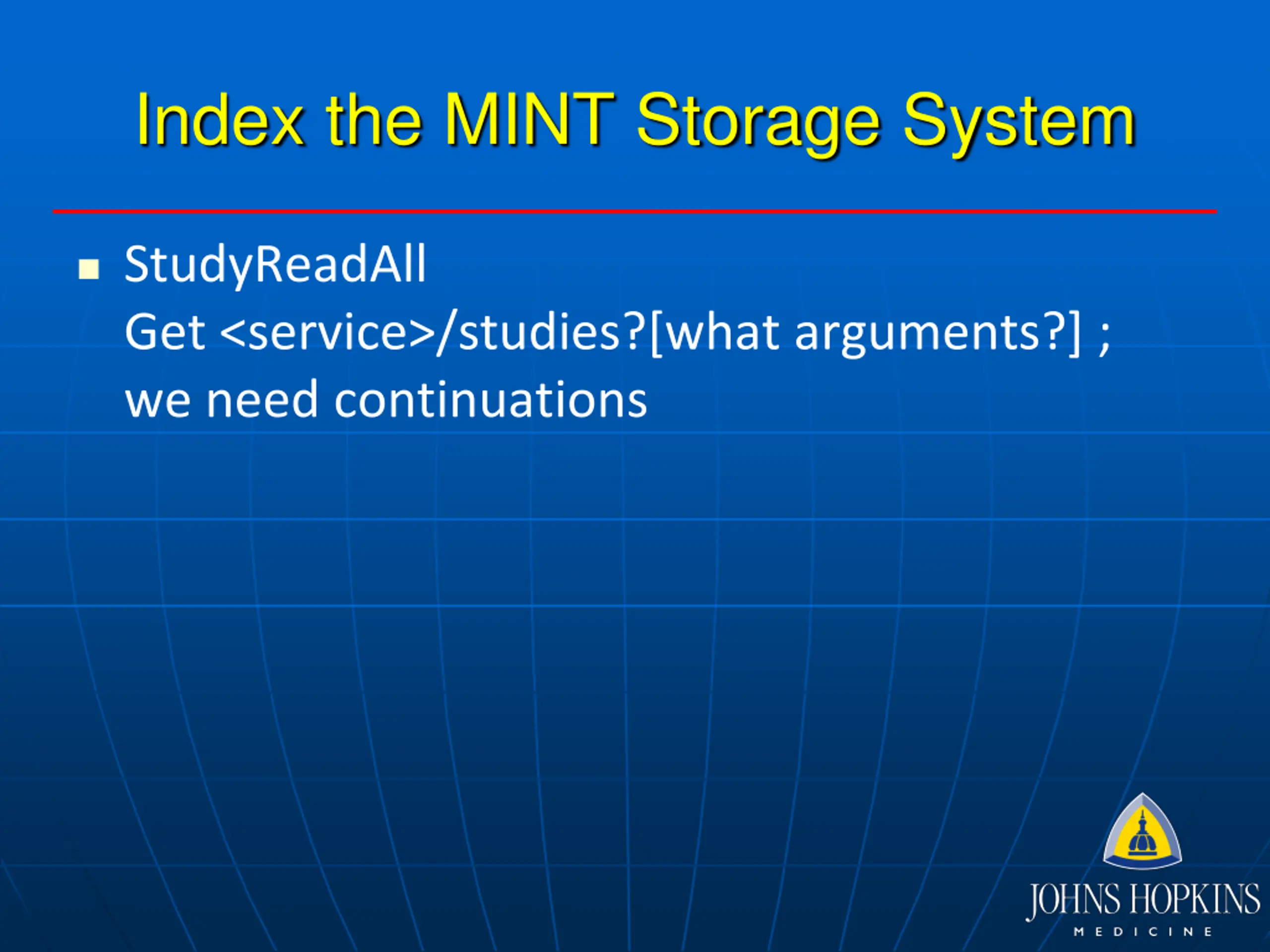

Index the MINT Storage System StudyReadAll Get <service>/studies?[what arguments?] ; we need continuations

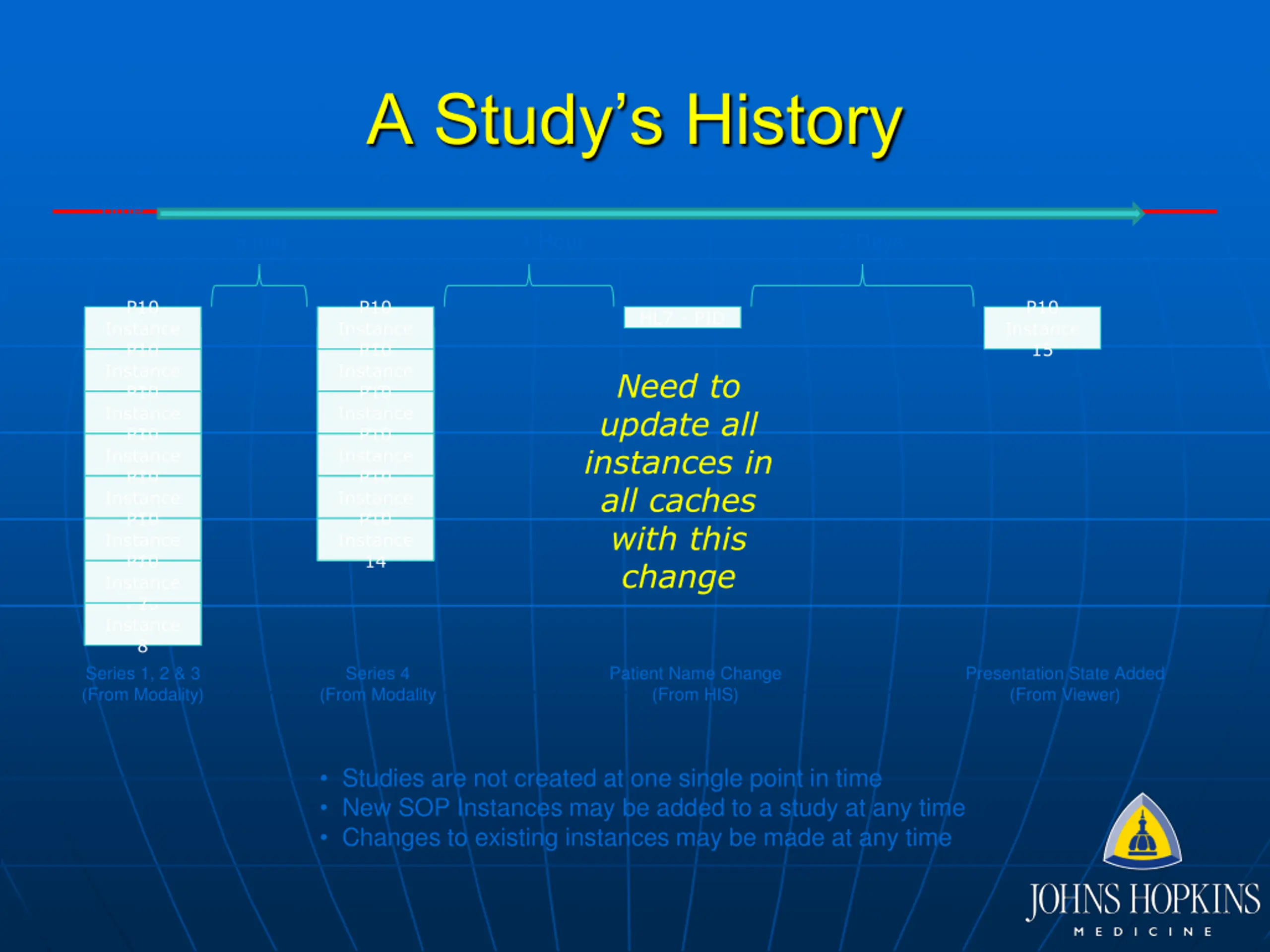

A Studys History Time 5 min 1 Hour 2 Days P10 P10 P10 HL7 - PID Instance 1 P10 Instance 2 P10 Instance 3 P10 Instance 4 P10 Instance 5 P10 Instance 6 P10 Instance 7 Instance 9 P10 Instance 10 P10 Instance 11 P10 Instance 12 P10 Instance 13 P10 Instance 14 Instance 15 Need to update all instances in all caches with this change P10 Instance 8 Series 1, 2 & 3 (From Modality) Series 4 (From Modality Patient Name Change (From HIS) Presentation State Added (From Viewer) Studies are not created at one single point in time New SOP Instances may be added to a study at any time Changes to existing instances may be made at any time

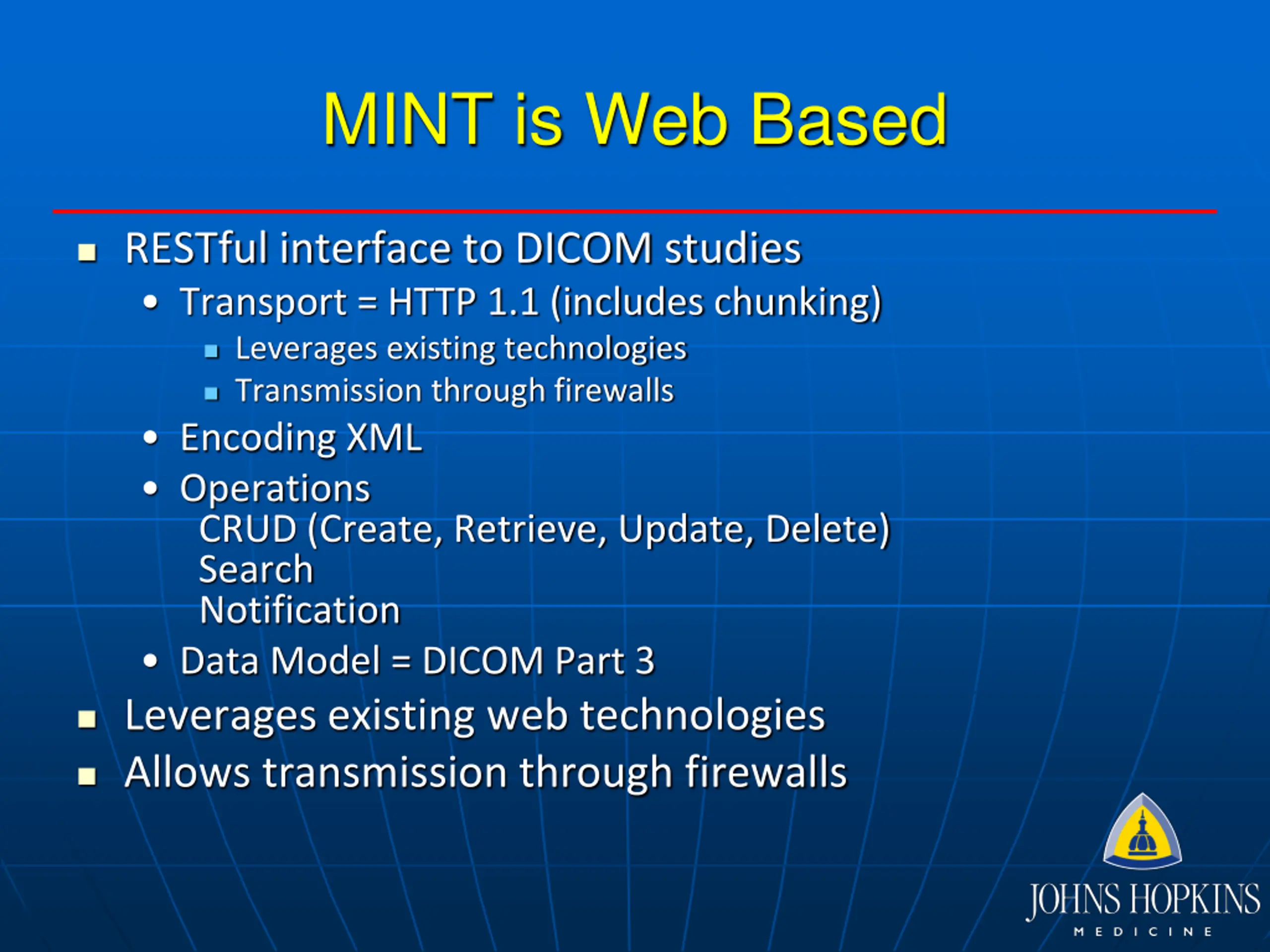

MINT is Web Based RESTful interface to DICOM studies Transport = HTTP 1.1 (includes chunking) Leverages existing technologies Transmission through firewalls Encoding XML Operations CRUD (Create, Retrieve, Update, Delete) Search Notification Data Model = DICOM Part 3 Leverages existing web technologies Allows transmission through firewalls

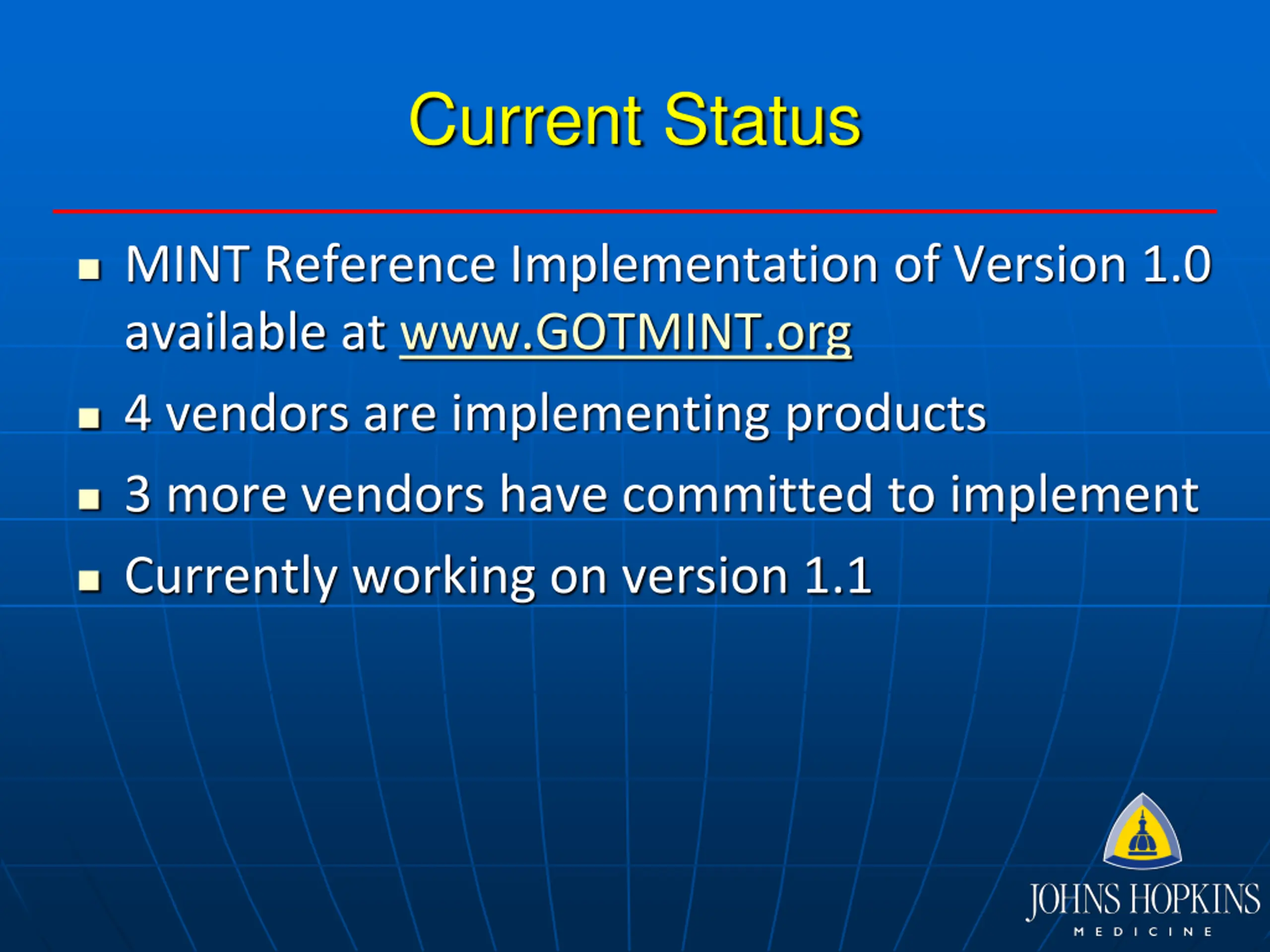

Current Status MINT Reference Implementation of Version 1.0 available at www.GOTMINT.org 4 vendors are implementing products 3 more vendors have committed to implement Currently working on version 1.1
