In this image series, the process of de-capsulating the LMX9838 chip and removing the antenna is demonstrated step by step. From laser de-capsulation to replacing with a 0-ohm resistor and removing the chip antenna, each stage is visually documented. The final images show the populated 10 pf cap and SMA connector installation. These detailed visuals provide valuable insights into the decap and antenna removal procedures for the LMX9838.

  • Decap
  • Antenna Removal
  • LMX9838
  • Chip Resistor
  • Installation

Uploaded on Mar 07, 2025 | 0 Views


Download Presentation

Please find below an Image/Link to download the presentation.

The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.

You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.

The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.

E N D

Presentation Transcript

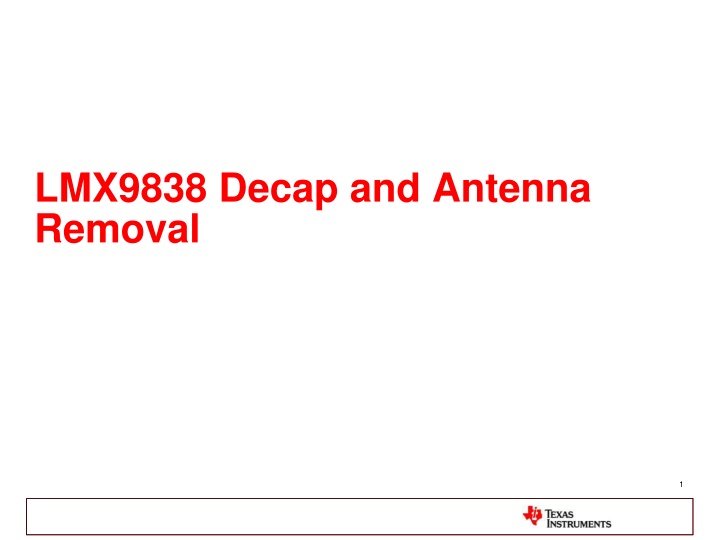

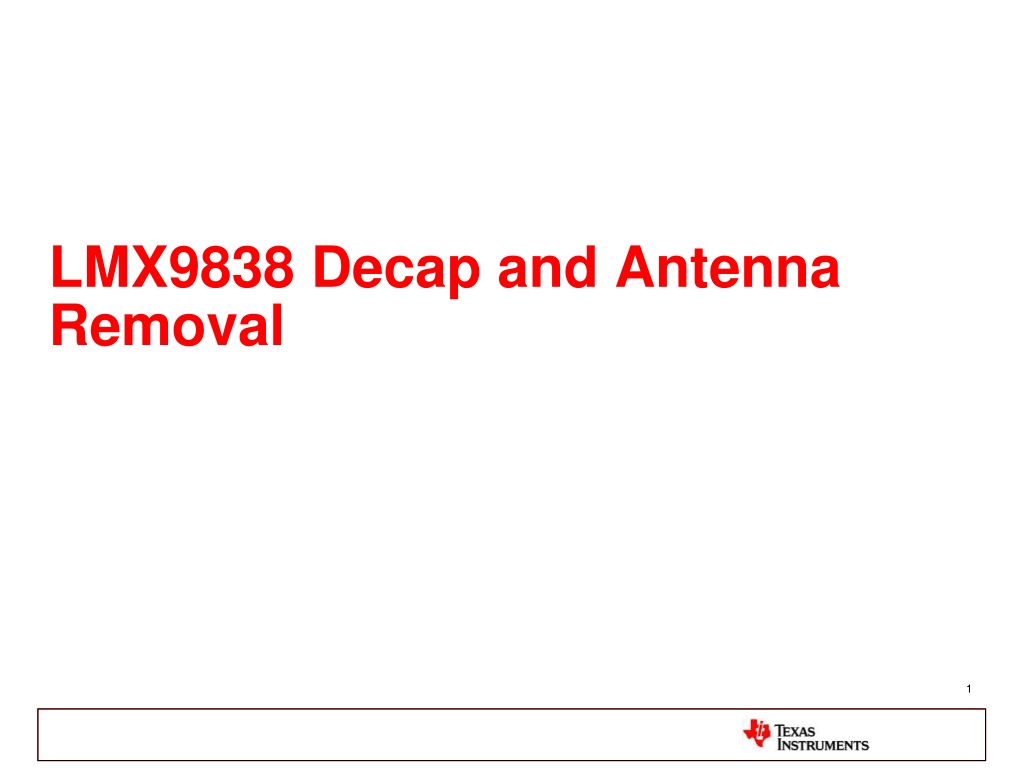

  1. LMX9838 Decap and Antenna Removal 1

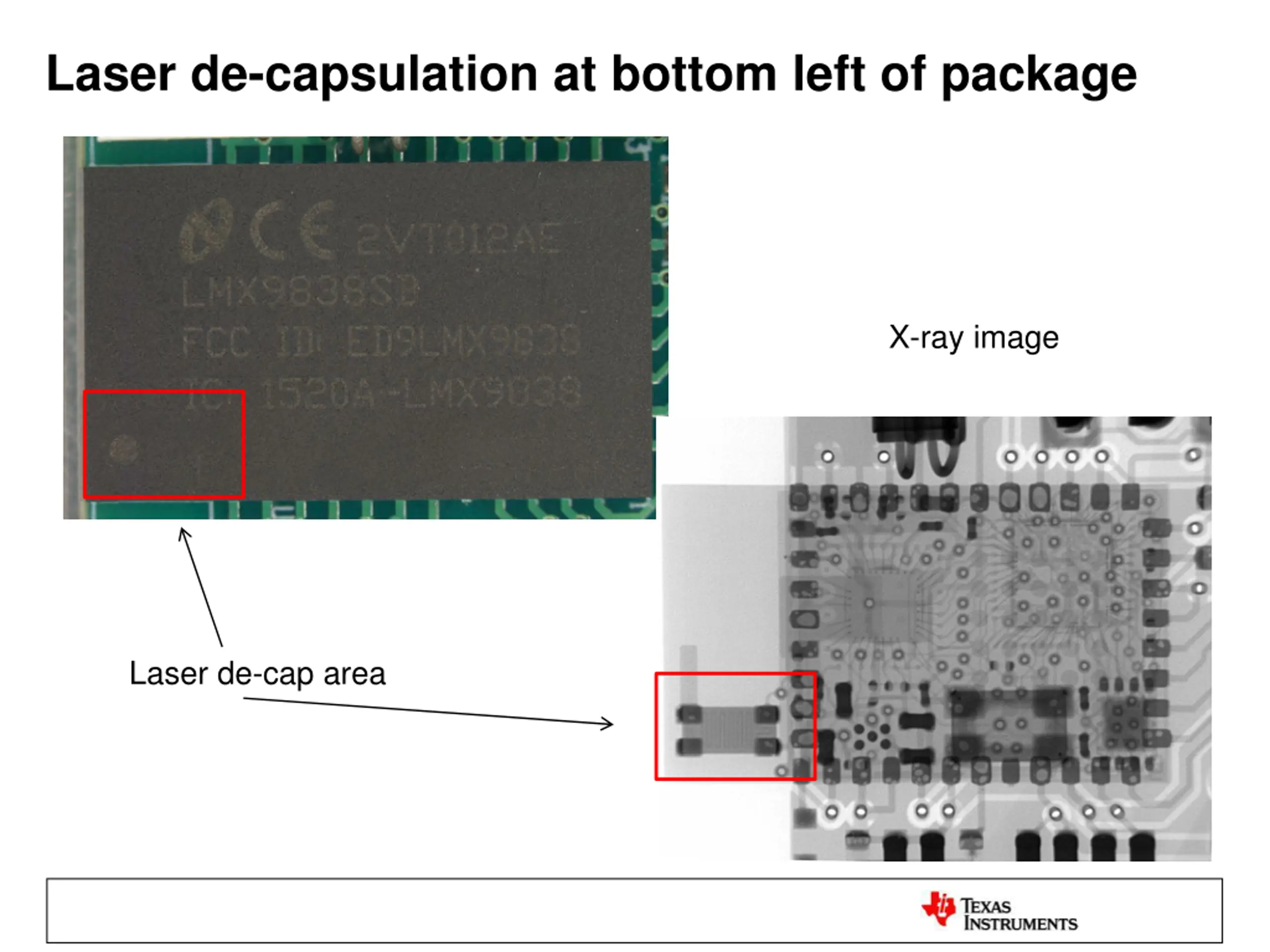

  2. Laser de-capsulation at bottom left of package X-ray image Laser de-cap area

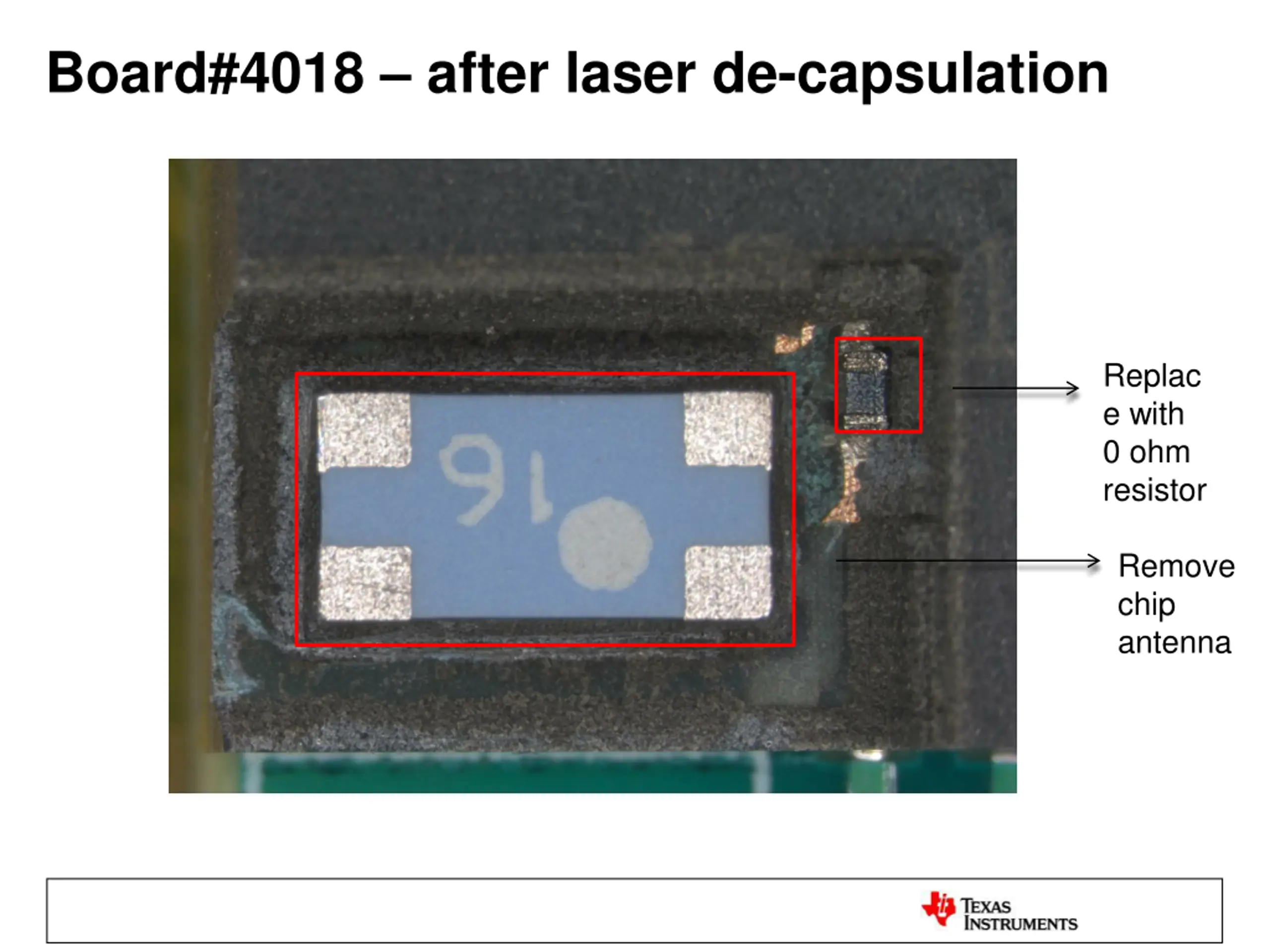

  3. Board#4018 after laser de-capsulation Replac e with 0 ohm resistor Remove chip antenna

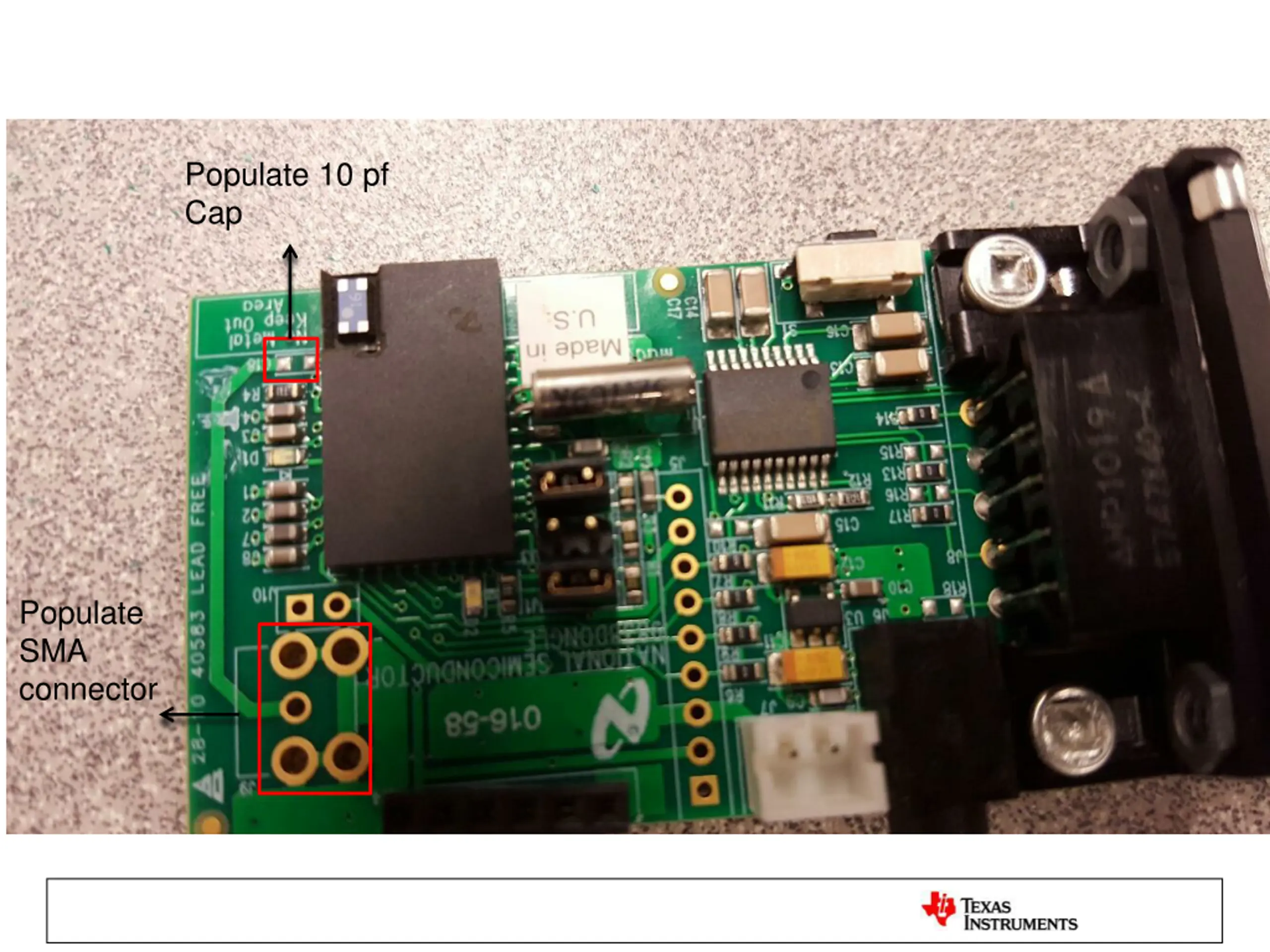

  4. Populate 10 pf Cap Populate SMA connector
