IP OSPF Routing and Network Architectures
1
Computer Networks Architectures and
Protocol
s
Shortest-Path Routing
and IP
OSPF Routing
Departamento de Informática da
FCT/UNL
2
Lecture Outline
•
What is routing, shortest-path routing
•
One
routing protocol example
–
Link state: Open Shortest Path First (OSPF)
3
Why Does Routing Matter?
•
End-to-end performance
–
Quality of the path affects user performance
–
Propagation delay, throughput, and packet loss
•
Transient disruptions during changes
–
Failures, maintenance, and load balancing
–
Limiting packet loss and delay during changes
•
Use of network resources
–
Balance of the traffic over the routers and links
–
Avoiding congestion by directing traffic to lightly-
loaded links
4
Some Routing Facets
•
Static versus dynamic routing
–
Static routing: when routing decisions are seldom or
never changed
–
Dynamic routing: when routing decisions are
evaluated periodically or when a network modification
takes place
•
Criteria for routing
–
Shortest-path routing
–
Network usage
maxi
mi
s
ation (load distribution,
traffic engineering, ...)
–
Policy routing (e.g. Inter-AS routing, BGP, routing
based on the origin of packets, ...)
5
Forwarding v
ersus
Routing
•
Forwarding:
data plane
–
Directing a data packet to an outgoing link
–
Individual router
using
a forwarding table
•
Routing:
control plane
–
Computing paths the packets will follow
–
Routers talking amongst themselves
–
Individual router
creating
a forwarding table
6

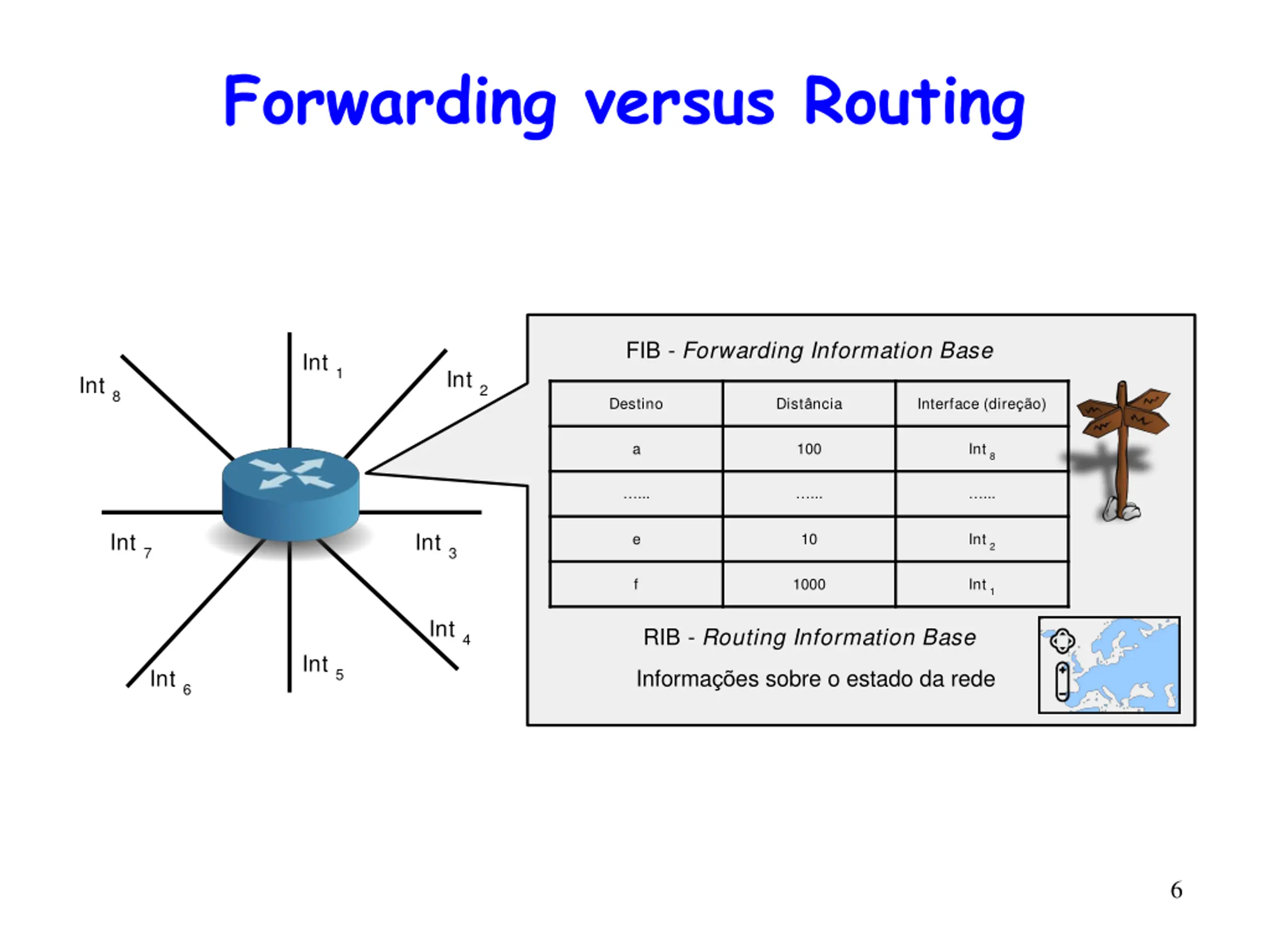

Forwarding v
ersus
Routing
7
Static Routing
!
!
hostname R1
!
ip route 10.1.5.0
255.255.255.0
10.1.3.253
!
!
This kind of configuration is only used to enter
specific and static routes in the routing table.
Entering a default route is an example of such
usage:
ip route 0.0.0.0 0.0.0.0 10.1.2.100
10.1.5.0/24
10.1.3.253
10.1.5.254
10.1.3.0/24
10.1.2.0/24
10.1.4.0/24
10.1.3.254
10.1.4.254
10.1.2.254
R2
R1
R3
8
Open Shortest-Path Protocol
9
Modelling a Network as a Graph
10
Dijkstra Algorithm: Shortest-Paths Tree
11
Link-State Routing
•
Each router keeps track of its incident links
–
Whether the link is up or down
–
The cost on the link
•
Each router broadcasts the link state (LSA)
–
To give every router a complete view of the graph
•
Each router runs Dijkstra’s algorithm
–
To compute the shortest paths
–
… and constructs the forwarding table
•
Example protocols
–
Open Shortest Path First (OSPF)
–
Intermediate System – Intermediate System (IS-IS)
12
Detecting Topology Changes
13
Broadcasting the Link State
•
Reliable flooding
–
Ensure all nodes receive link-state information
–
… and that they use the latest version
•
Challenges
–
Packet loss
–
Out-of-order arrival
–
Crash and quickly rebooting a router
•
Solutions
–
Acknowledgments and retransmissions
–
Sequence numbers
–
Time-to-live for each packet
14
When to Initiate Flooding
•
Topology change
–
Link or node failure
–
Link or node recovery
•
Configuration change
–
Link cost change
•
Periodically
–
Refresh the link-state information
–
Typically (say) 30 minutes
–
Corrects for possible corruption of the data
15

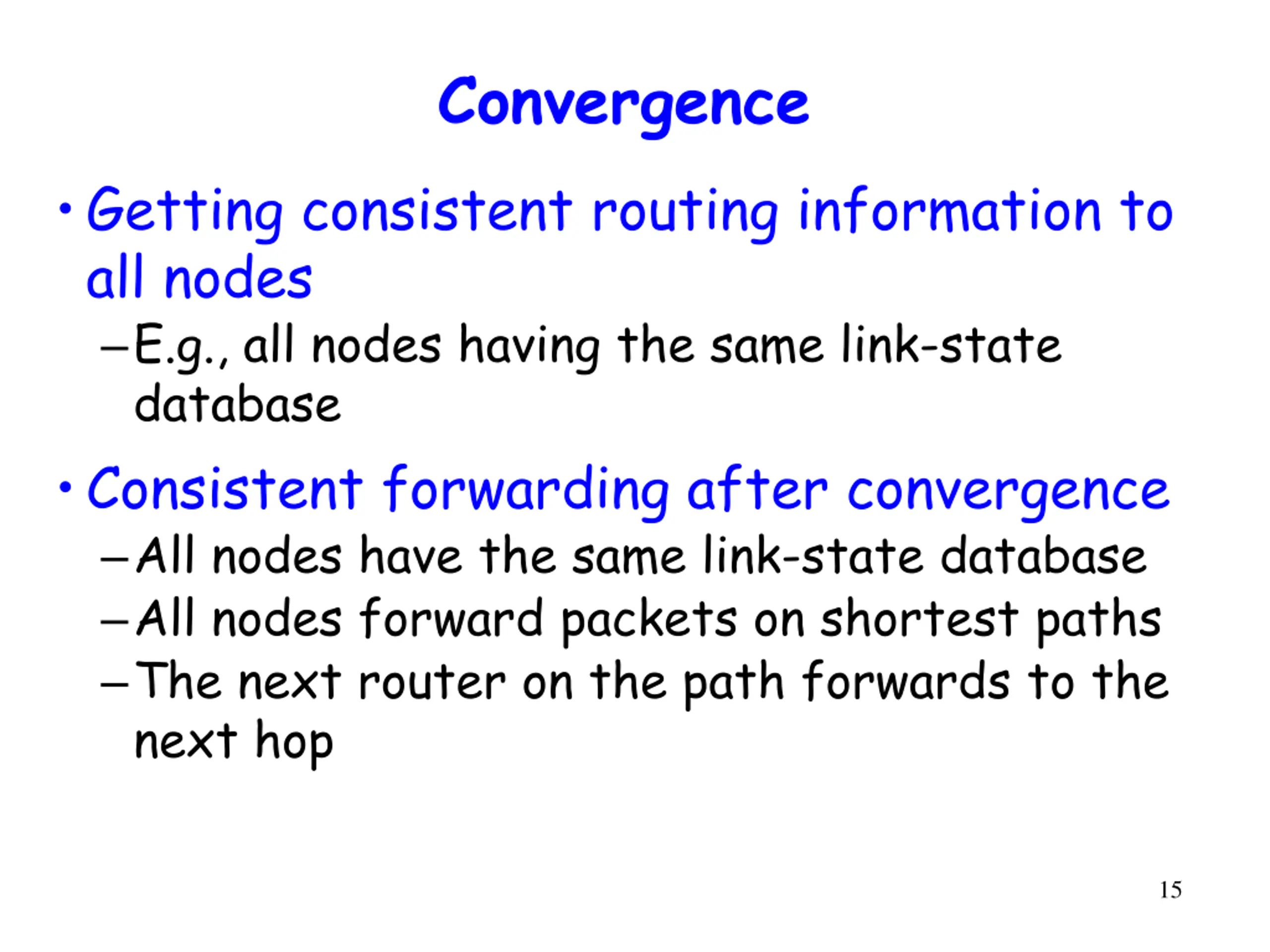

Convergence
•
Getting consistent routing information to
all nodes
–
E.g., all nodes having the same link-state
database
•
Consistent forwarding after convergence
–
All nodes have the same link-state database
–
All nodes forward packets on shortest paths
–
The next router on the path forwards to the
next hop
16
Transient Disruptions
•
Detection delay
–
A node does not detect a failed link
immediately
–
… and forwards data packets into a “blackhole”
–
Depends on timeout for detecting lost hellos
–
Some routers know about failure before
others
–
The shortest paths are no longer consistent
–
Can cause transient forwarding loops
Inconsistency Example
17
18

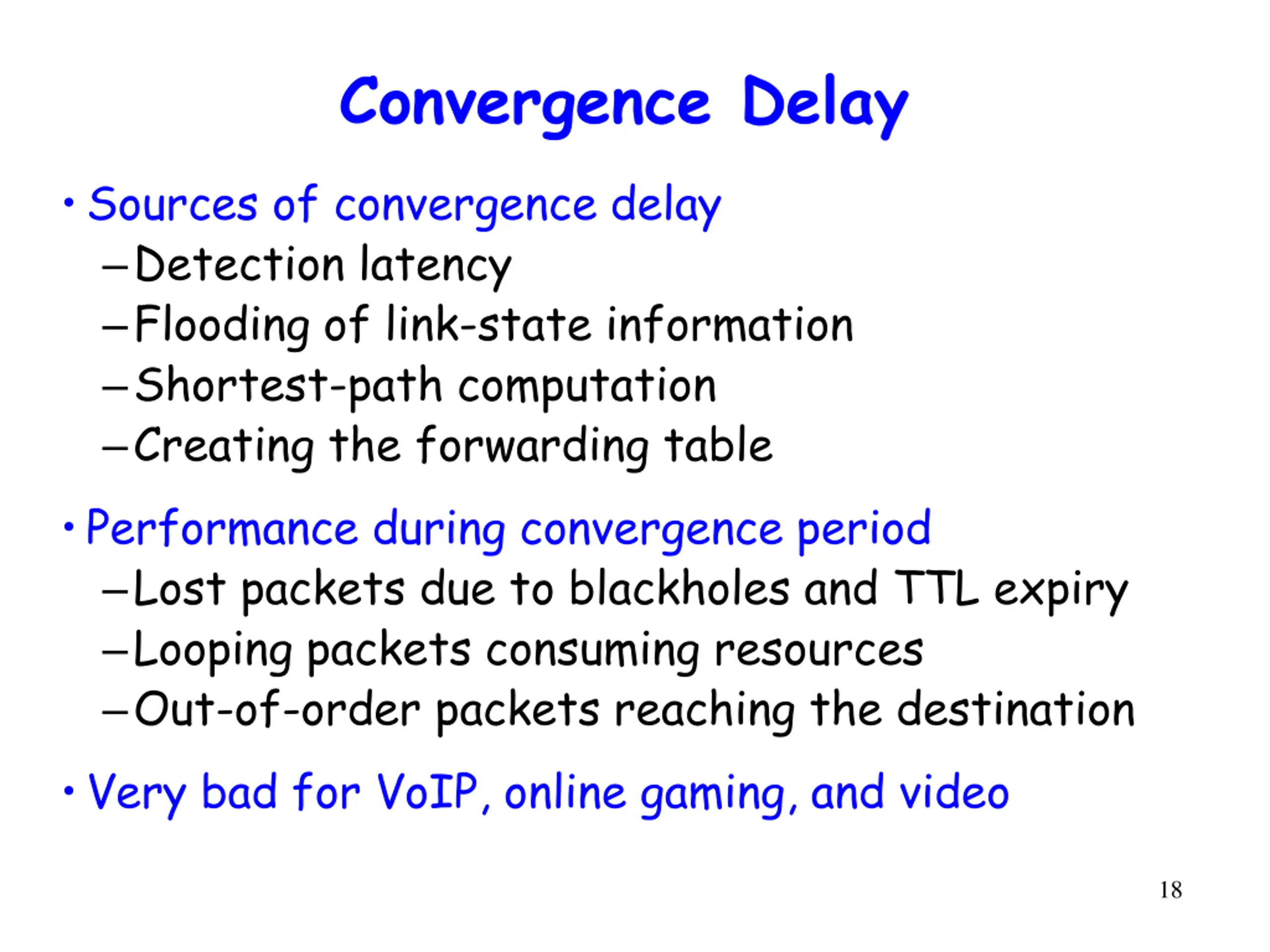

Convergence Delay
•
Sources of convergence delay
–
Detection latency
–
Flooding of link-state information
–
Shortest-path computation
–
Creating the forwarding table
•
Performance during convergence period
–
Lost packets due to blackholes and TTL expiry
–
Looping packets consuming resources
–
Out-of-order packets reaching the destination
•
Very bad for VoIP, online gaming, and video
19
Reducing Convergence Delay
•
Faster detection
–
Smaller hello timers
–
Link-layer technologies that can detect failures
•
Faster flooding
–
Flooding immediately
–
Sending link-state packets with high-priority
•
Faster computation
–
Faster processors on the routers
–
Incremental Dijkstra algorithm
•
Faster forwarding-table update
–
Data structures supporting incremental updates
Paper
P. François, C. Filsfils, J. Evans and O. Bonaventure,
“Achieving Sub-Second IGP Convergence in Large IP
Networks,” in Computer Communications Review, Volume
35, Number 2, July 2005, pp.s 35 - 44
20
21
Hierarchical OSPF and OSPF Areas
22
•
Two level hierarchy:
local areas and backbone area
•
Link-state announcements are only flooded in one area
•
Other areas are not known in detail but their list of
networks.
•
Area border routers:
announce network summaries from
one area to the other
•
Backbone routers:
these are the routers of area 0
•
Boundary routers:
are connected to other Ass
•
Therefore, besides link-state announcements, there are
also network summaries announcements
Hierarchical OSPF
23

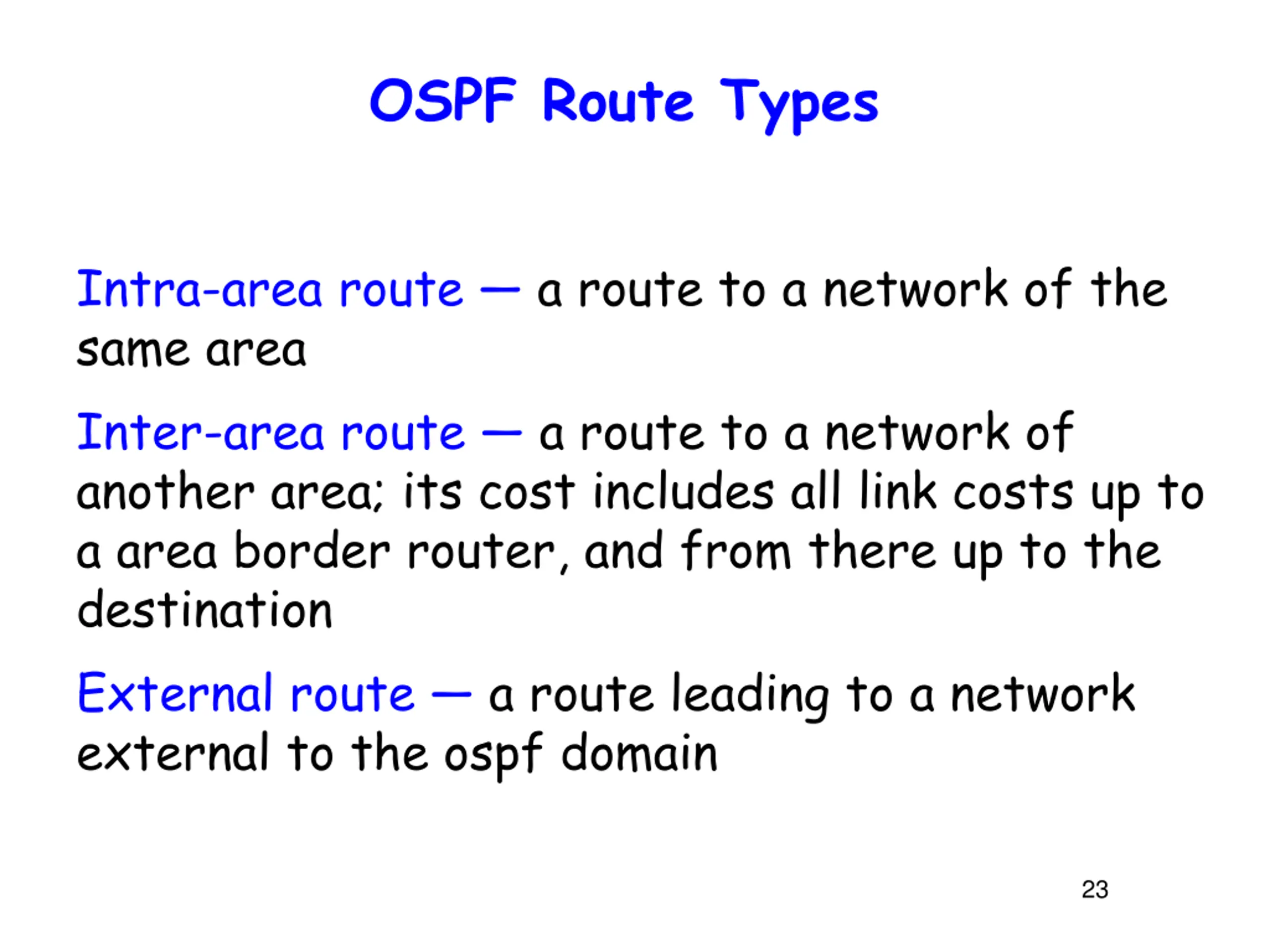

OSPF Route Types
Intra-area route —
a route to a network of the
same area
Inter-area route —
a route to a network of
another area; its cost includes all link costs up to
a area border router, and from there up to the
destination
External route —
a route leading to a network
external to the ospf domain
24
Designated Router
•
Designated Router
— if a certain number of
different OSPF routers are connected to the
same broadcast network, one is in charge of all
the locally reachable networks
•
The
Designated Router is elected
by the way
of a manually set priority
–
ip ospf priority number
•
To avoid partitions, there is a
Backup
Designated Router
announcing the same
networks
25
OSPF Database Exchanges
•
OSPF “database state exchanges”
take place among adjacent OSPF
routers
•
These are known as LSAs or
“Link State Announcements”
•
The header of these packets has the following information:
sequence number, router ID of the sender router, type,
announcement ID, authentication information, ...
•
The exchange transaction begins with an
exchange proposal
. If the
receiver does not know the announcement ID, or has one with an
older sequence number, it sends a
link-state request,
otherwise it
declines the update
•
The answer is a
link-state update
which must be acknowledge by a
link-state acknowledgement
26
Route Aggregation Summaries
•
To avoid the explosion of route propagation information,
routes should be aggregated as much as possible
— this
allows shorter route announcements
•
Routers can try to perform automatic route aggregation
which is a computationally intensive task. Another way
consists in doing aggregation by hand, which can be
error prone
•
Aggregation efficiency can be improved by carefully
choosing network numbers
— for example all “totally-
stubby areas” (areas only connecting to the backbone
area) should have, as much as possible, networks sharing
the same prefix
•
This is yet another example of the
interactions of
routing scalability and network addressing
27
Link flapping
•
If an interface goes up and down too frequently, this will constantly
flood the network with new link-state announcements, and will
require, a new computation of the new shortest paths (SPF
algorithm) per each link-state announcement (LS) received
•
The command:
show ip ospf
shows the number of times the
algorithm has been executed recently
•
By default, the SPF algorithm is only executed 5 seconds after
a LS announcement arrives, and at least 10 seconds should
separate each SPF execution
•
The command
ospf timers
allows the modification of these values
router ospf
timers spf <schedule delay in seconds>
<hold-time in seconds
28
Conclusions
•
Routing may be treated by a distributed
algorithm
–
React to changes in the topology
–
Compute the shortest paths
•
Two main shortest-path algorithms
–
Dijkstra
→
link-state routing (e.g., OSPF and IS-IS)
–
Bellman-Ford
→
distance vector routing (e.g., RIP)
•
Convergence process
–
Changing from one topology to another
–
Transient periods of inconsistency across routers
–
Big problem if the convergence process is slow
29
Written assignment
Each student must
deliver
a written report of at
most 5 pages (12 dots, double spaced) on the
subject of the following paper:
–
P. François, C. Filsfils, J. Evans and O. Bonaventure, “Achieving
Sub-Second IGP Convergence in Large IP Networks,” in
Computer Communications Review, Volume 35, Number 2, July
2005, pp.s 35 - 44
Deliver date:
5
th
of April 2018
