  1. ASPLOS 2013 GPUfs: Integrating a file system with GPUs Mark Silberstein (UTAustin/Technion) Bryan Ford (Yale), Idit Keidar (Technion) Emmett Witchel (UTAustin) 1 Mark Silberstein - UTAustin

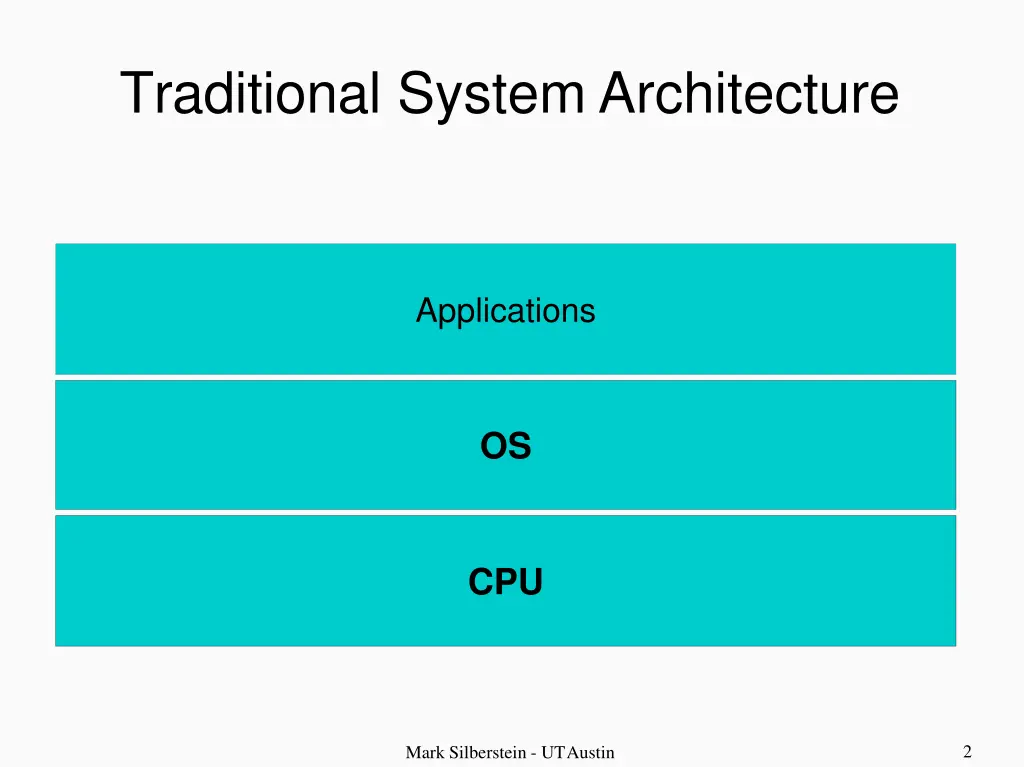

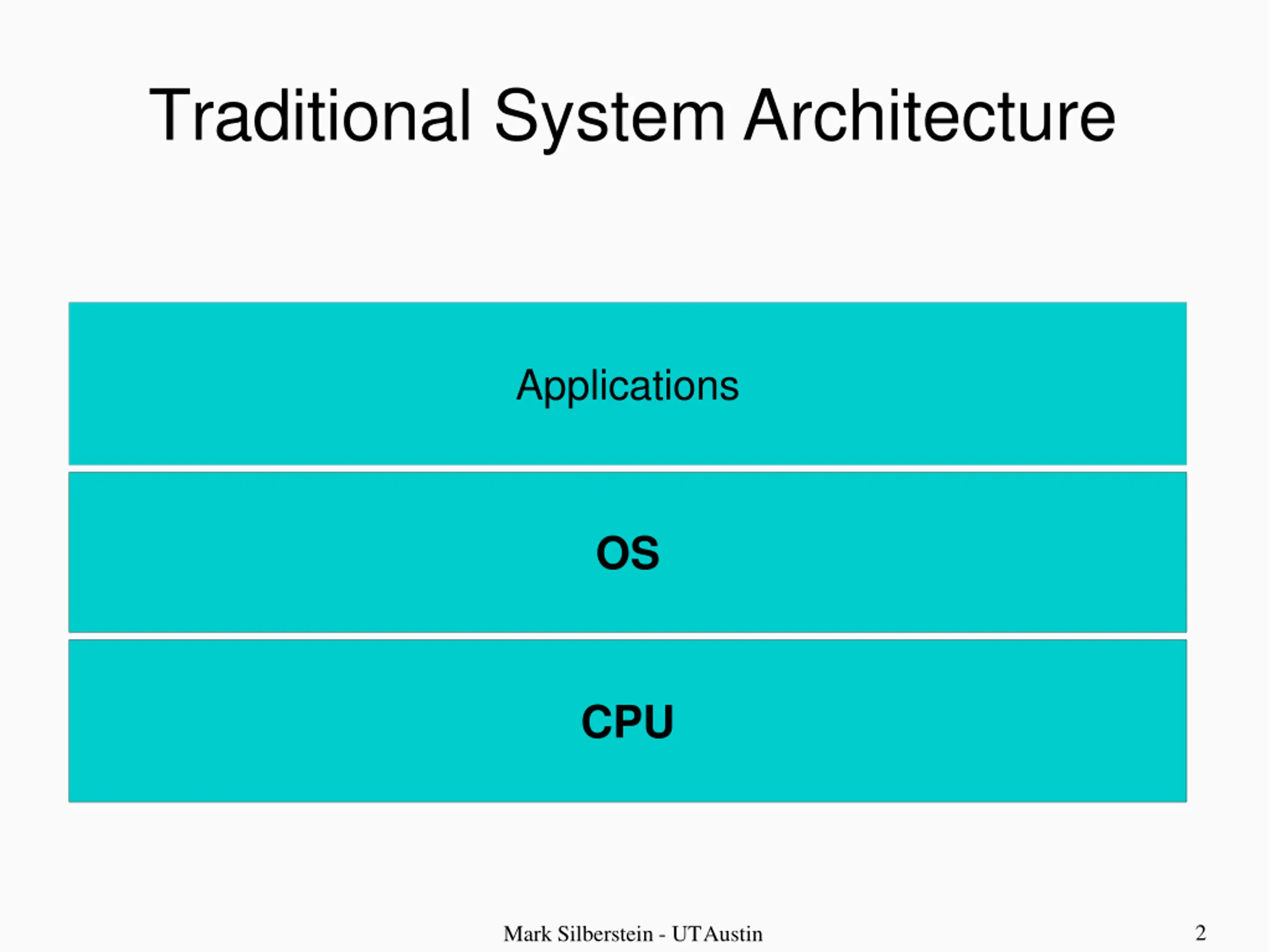

  2. Traditional System Architecture Applications OS CPU 2 Mark Silberstein - UTAustin

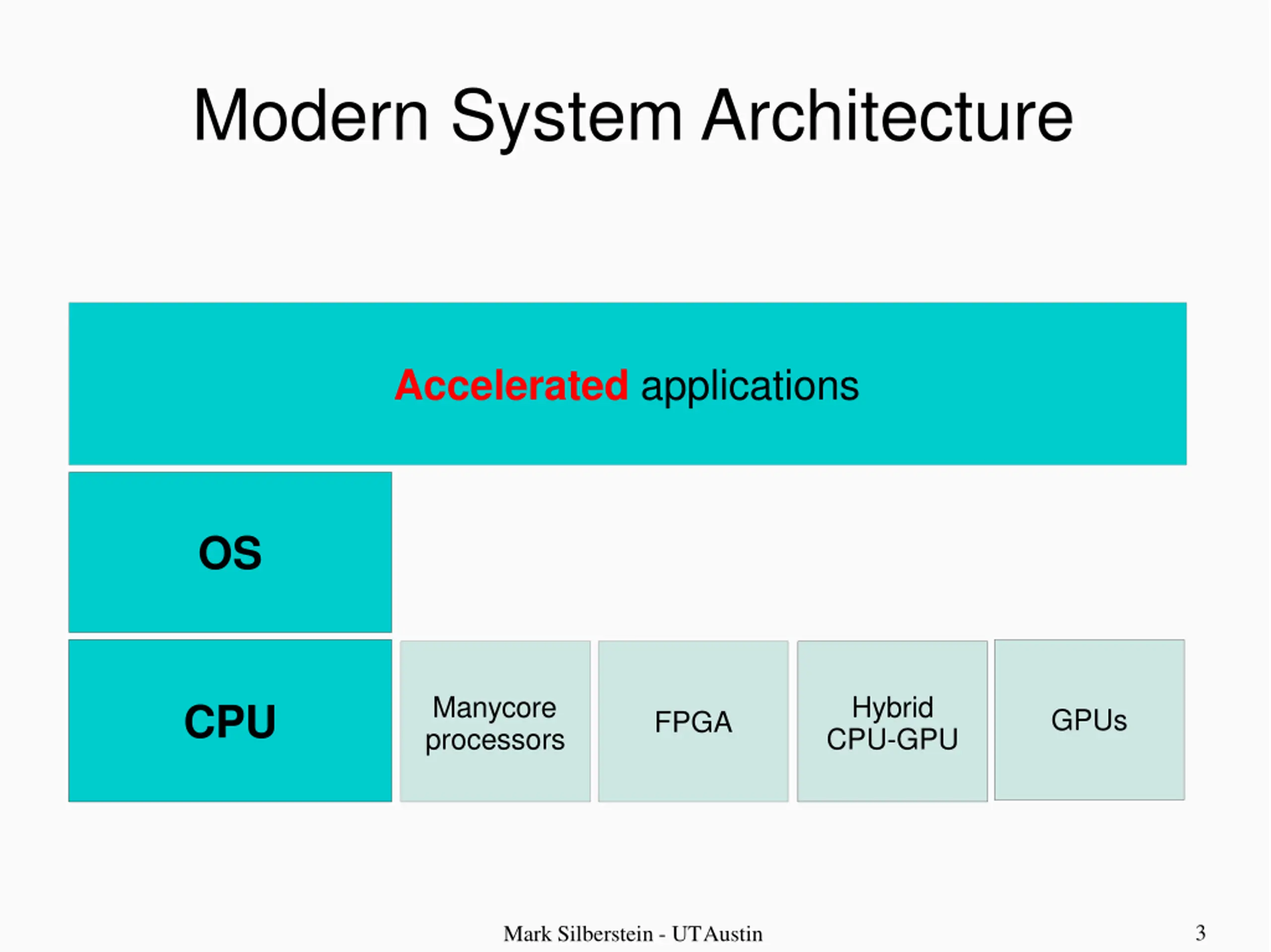

  3. Modern System Architecture Accelerated applications OS Manycore processors Hybrid CPU-GPU CPU GPUs FPGA 3 Mark Silberstein - UTAustin

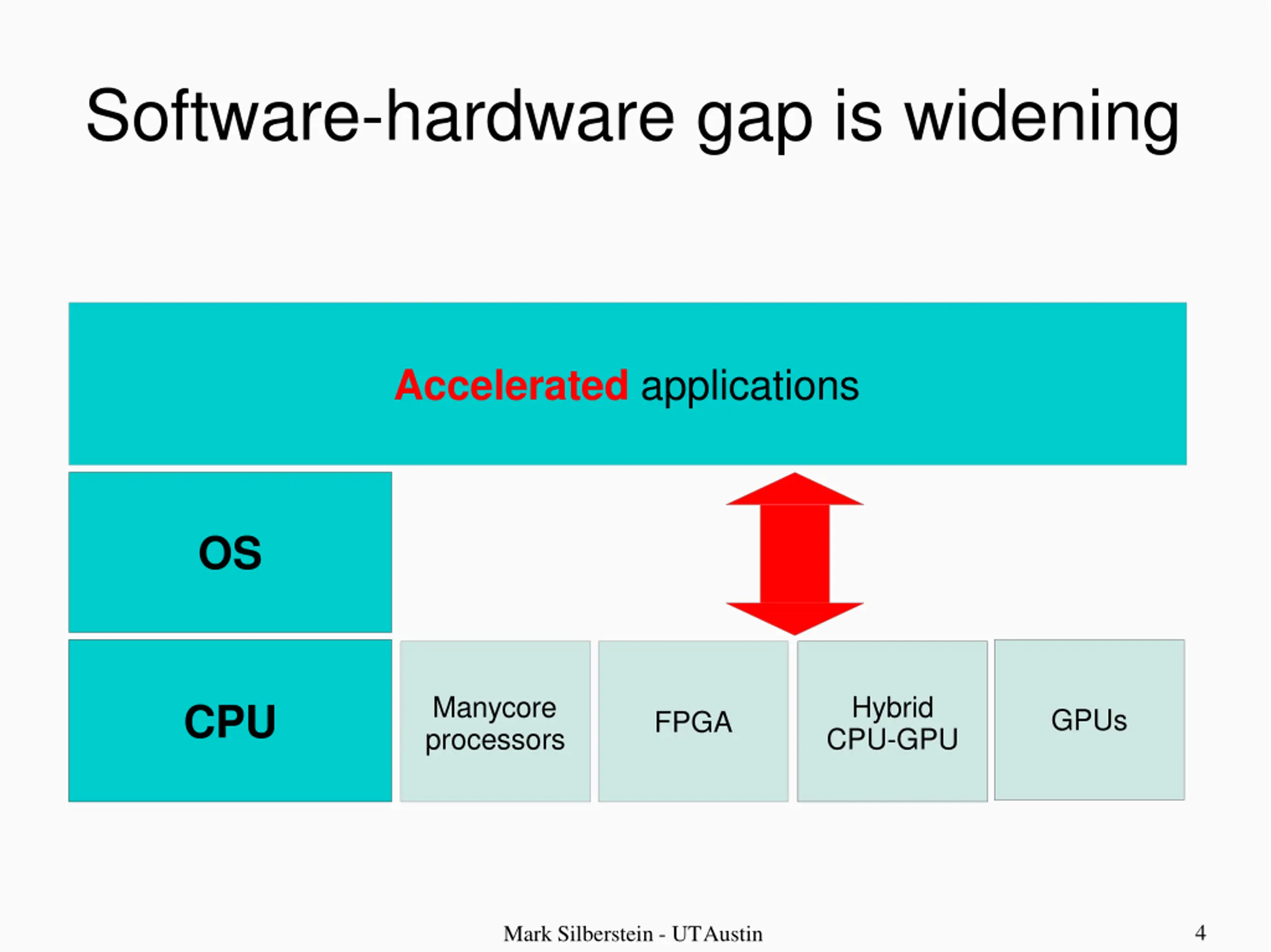

  4. Software-hardware gap is widening Accelerated applications OS Manycore processors Hybrid CPU-GPU CPU GPUs FPGA 4 Mark Silberstein - UTAustin

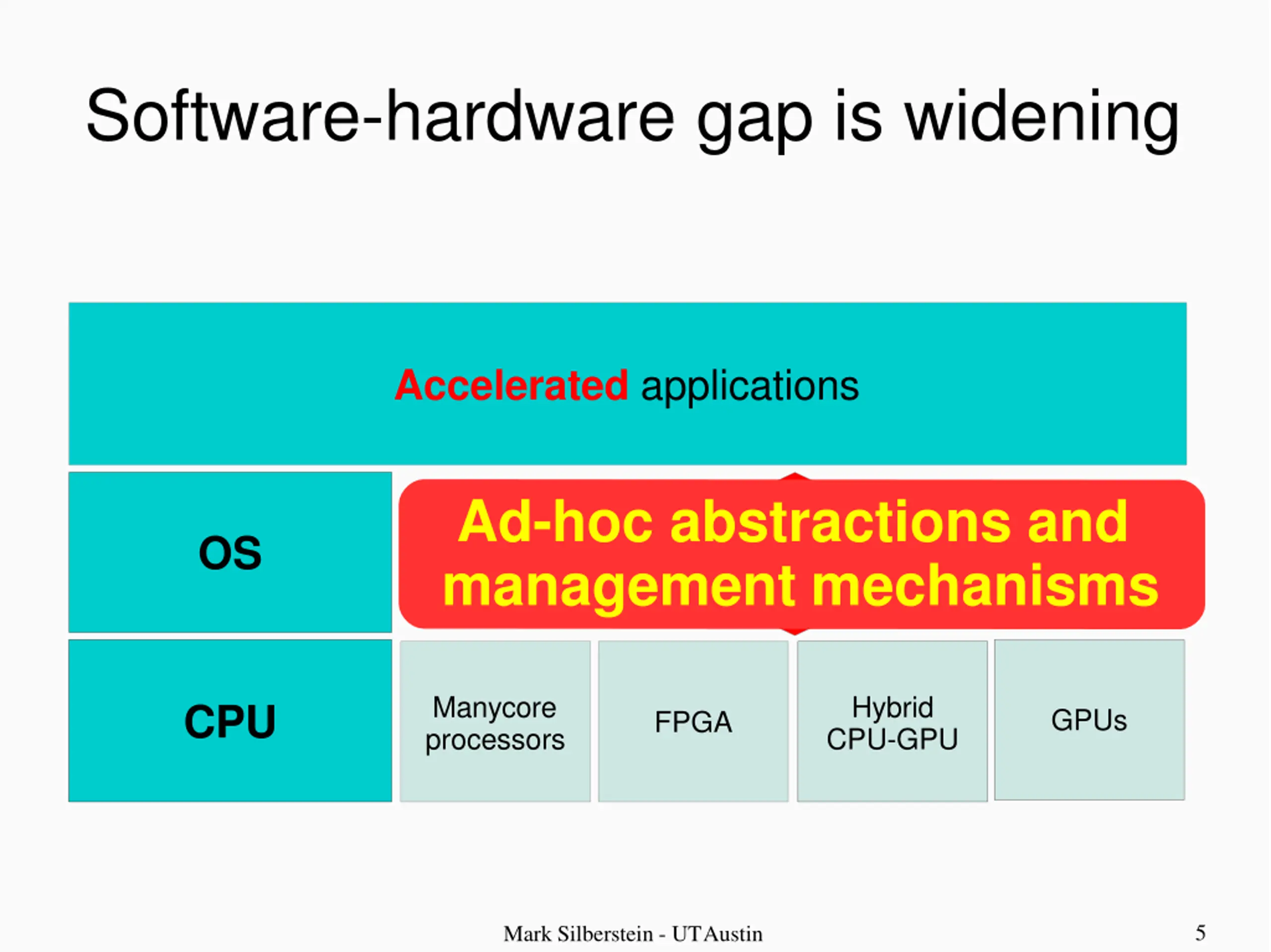

  5. Software-hardware gap is widening Accelerated applications Ad-hoc abstractions and management mechanisms OS Manycore processors Hybrid CPU-GPU CPU GPUs FPGA 5 Mark Silberstein - UTAustin

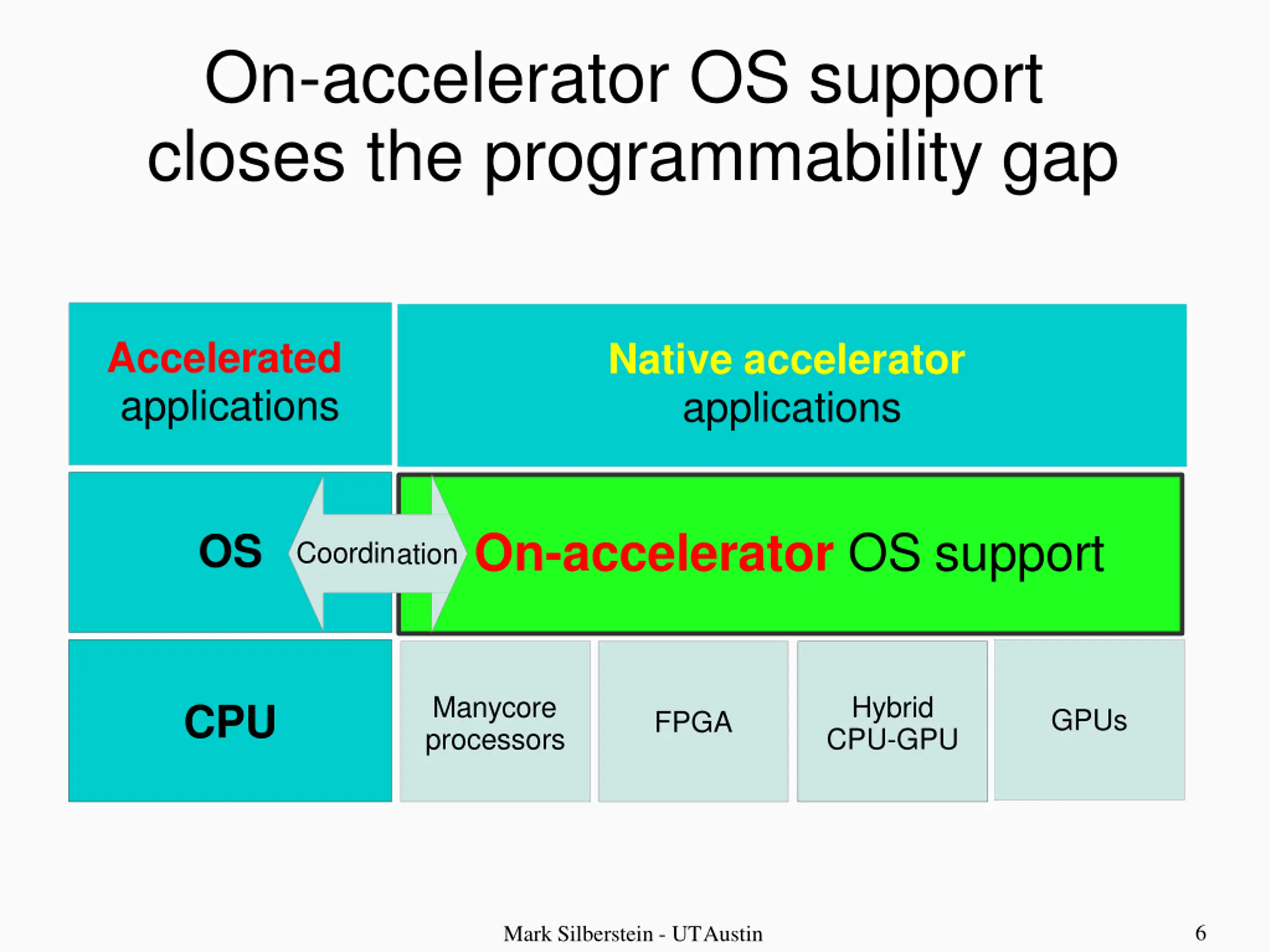

  6. On-accelerator OS support closes the programmability gap Accelerated applications Native accelerator applications ation On-accelerator OS support OS Coordin Manycore processors Hybrid CPU-GPU CPU GPUs FPGA 6 Mark Silberstein - UTAustin

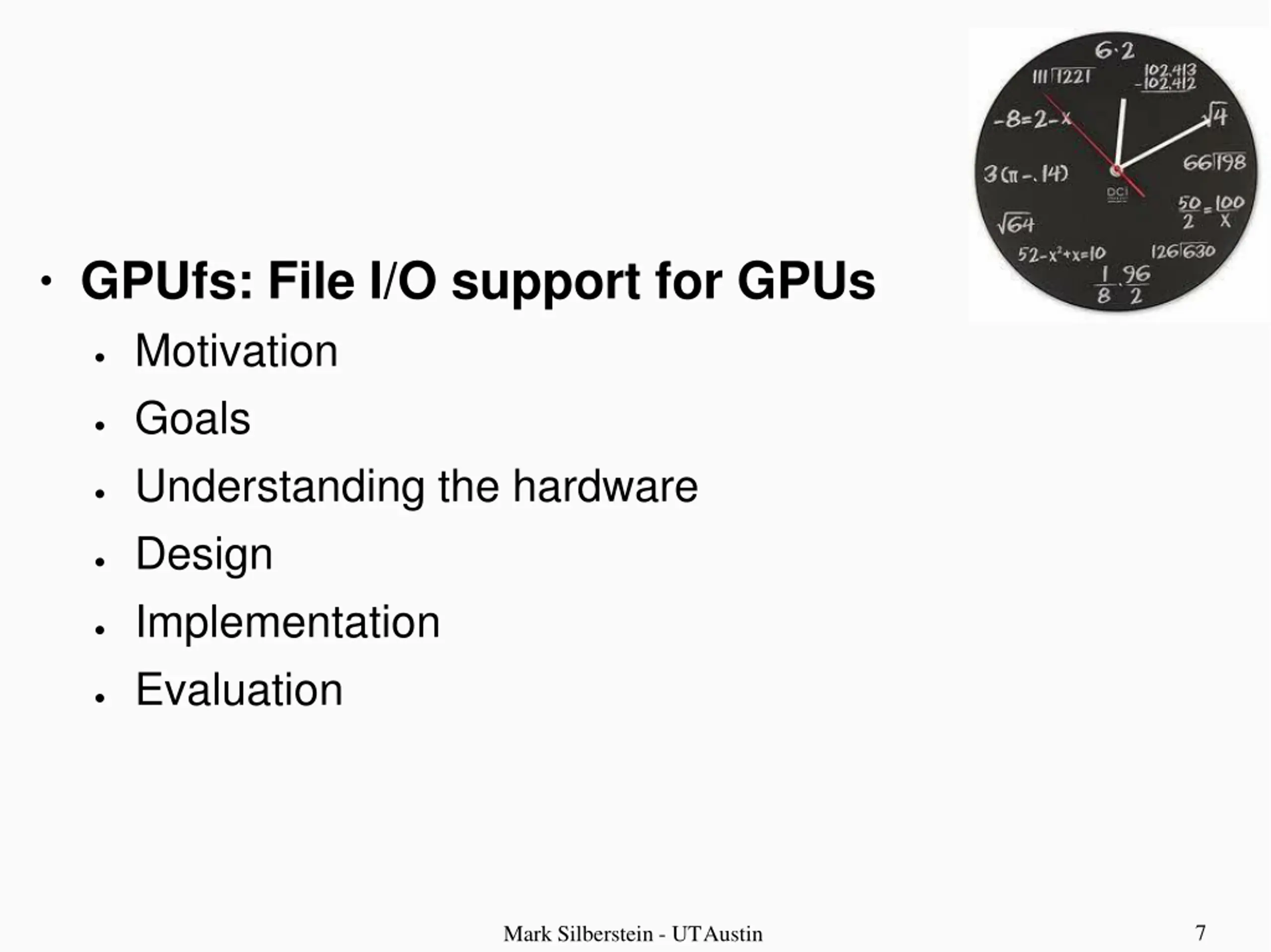

  7. GPUfs: File I/O support for GPUs Motivation Goals Understanding the hardware Design Implementation Evaluation 7 Mark Silberstein - UTAustin

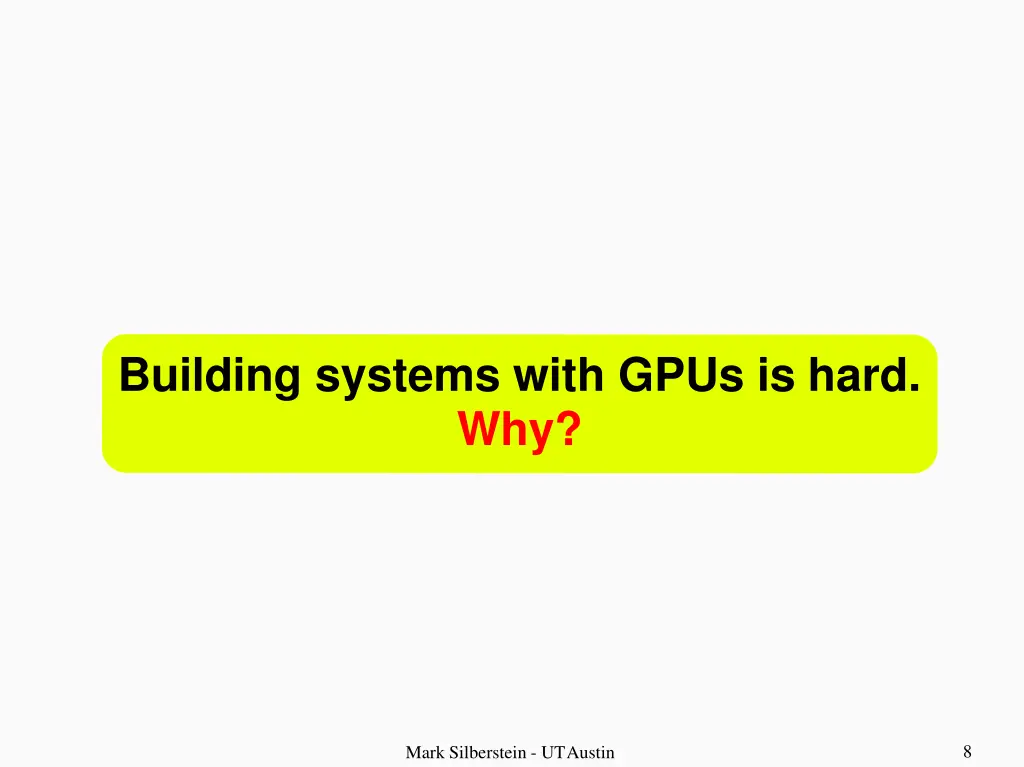

  8. Building systems with GPUs is hard. Why? 8 Mark Silberstein - UTAustin

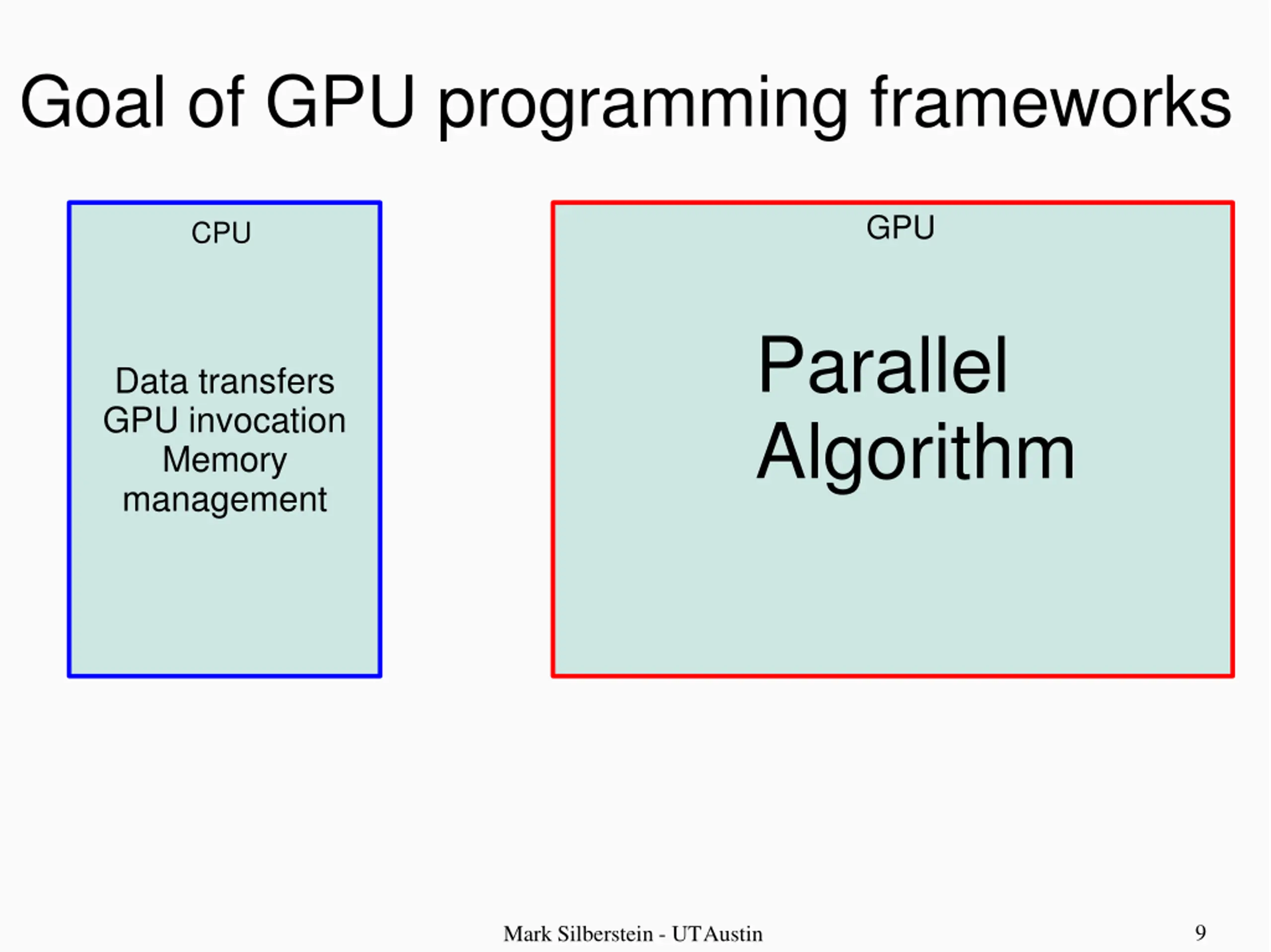

  9. Goal of GPU programming frameworks GPU CPU Parallel Algorithm Data transfers GPU invocation Memory management 9 Mark Silberstein - UTAustin

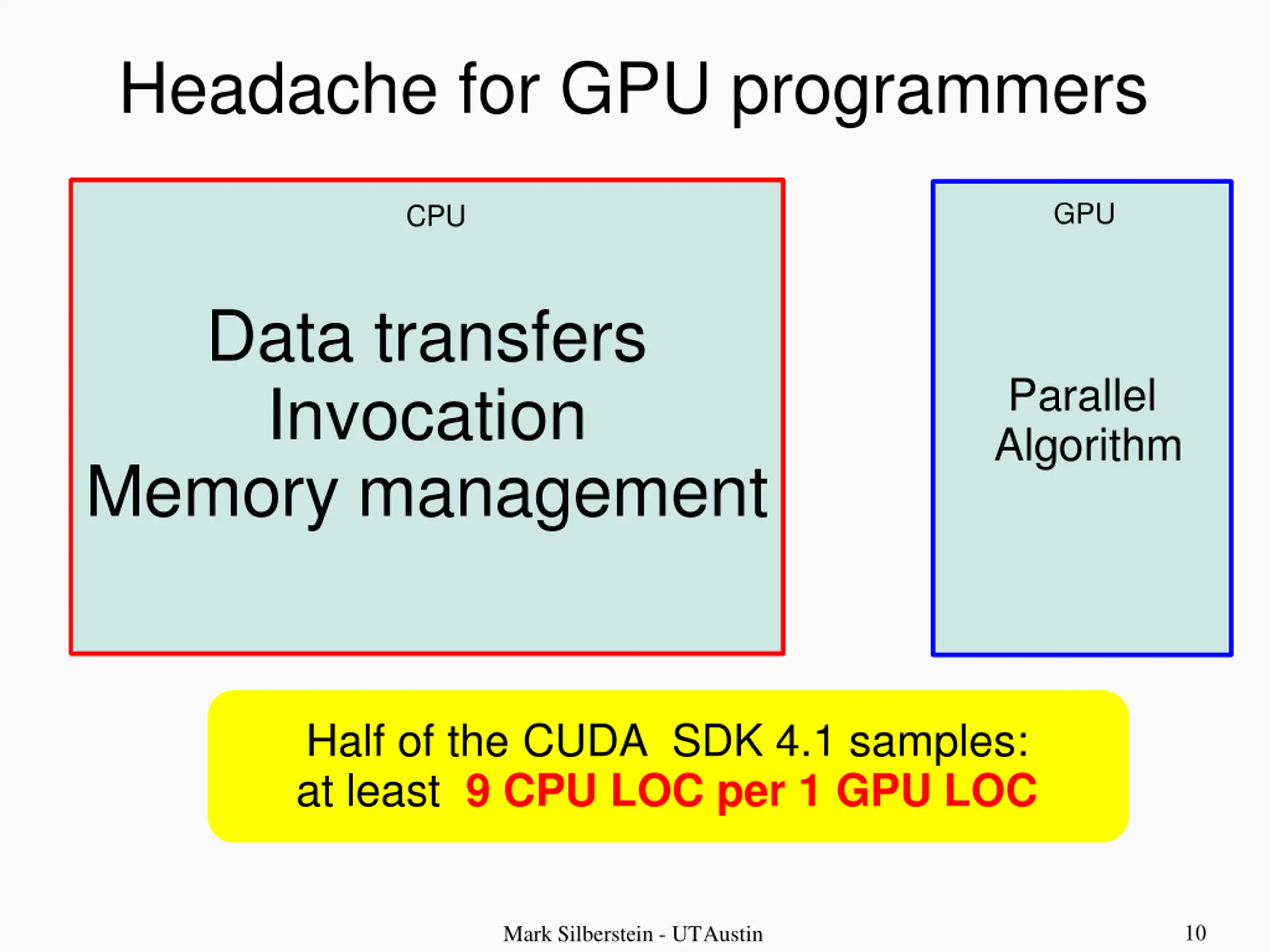

  10. Headache for GPU programmers GPU CPU Data transfers Invocation Memory management Parallel Algorithm Half of the CUDA SDK 4.1 samples: at least 9 CPU LOC per 1 GPU LOC 10 Mark Silberstein - UTAustin

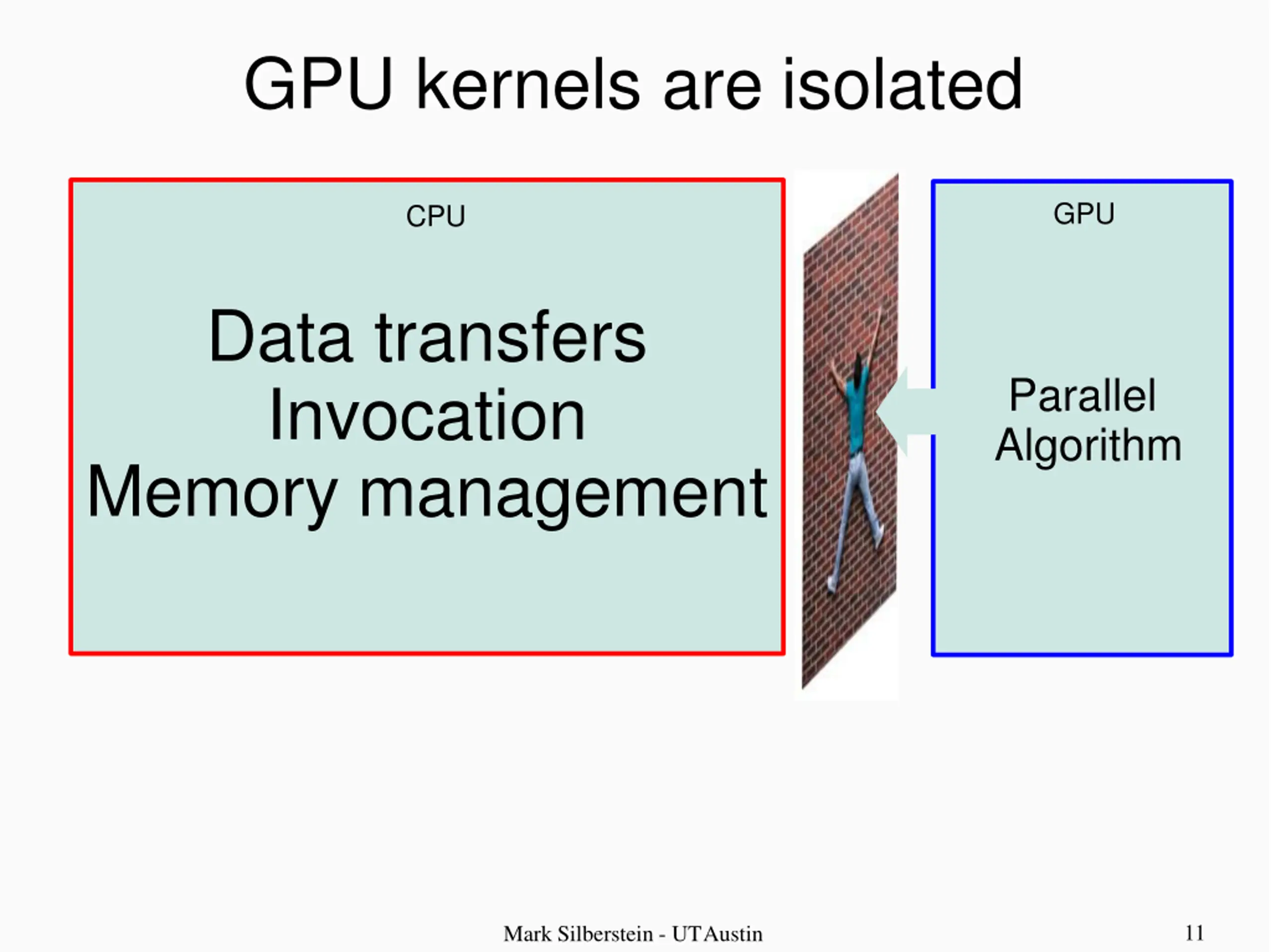

  11. GPU kernels are isolated GPU CPU Data transfers Invocation Memory management Parallel Algorithm 11 Mark Silberstein - UTAustin

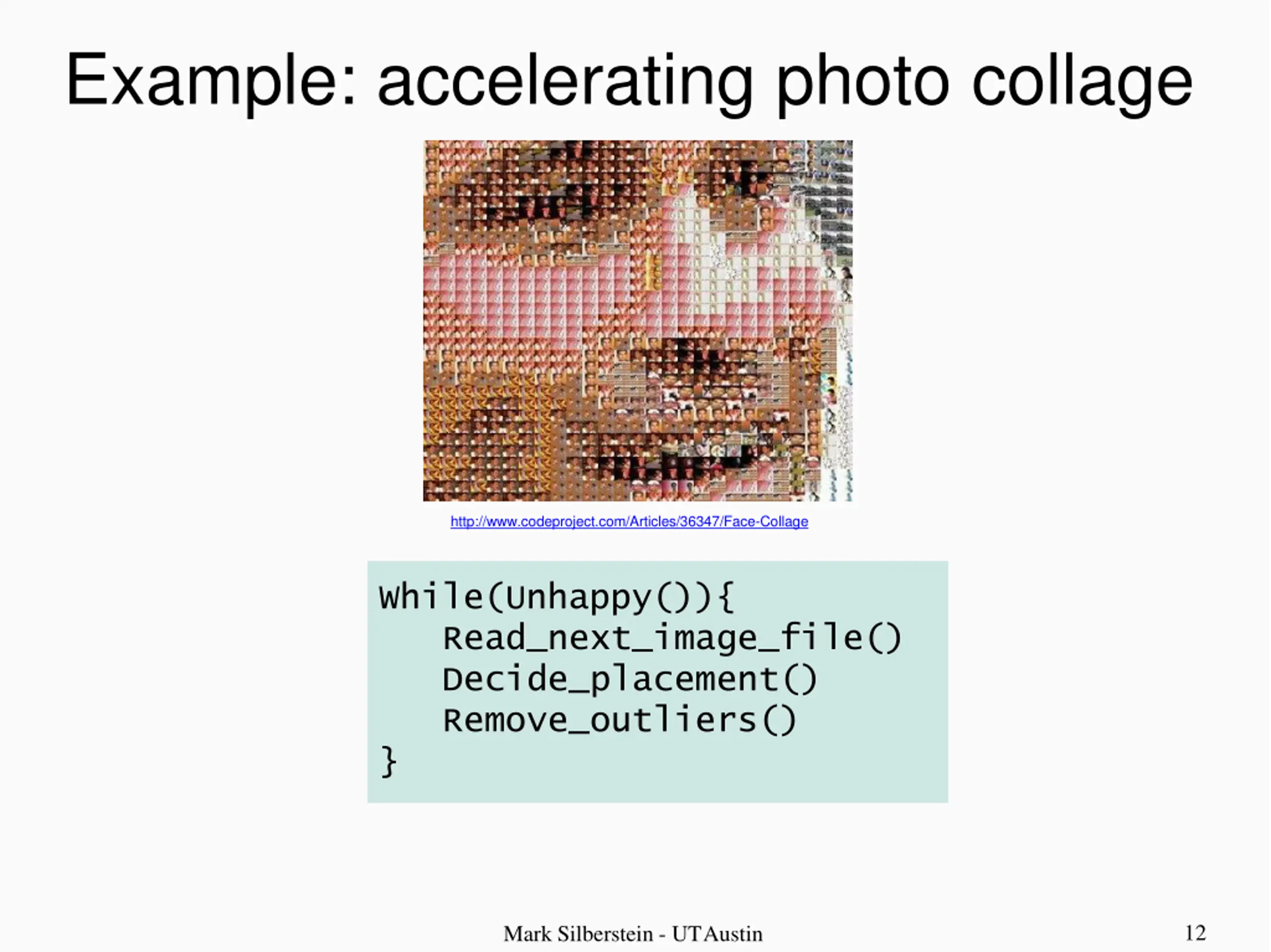

  12. Example: accelerating photo collage http://www.codeproject.com/Articles/36347/Face-Collage While(Unhappy()){ Read_next_image_file() Decide_placement() Remove_outliers() } 12 Mark Silberstein - UTAustin

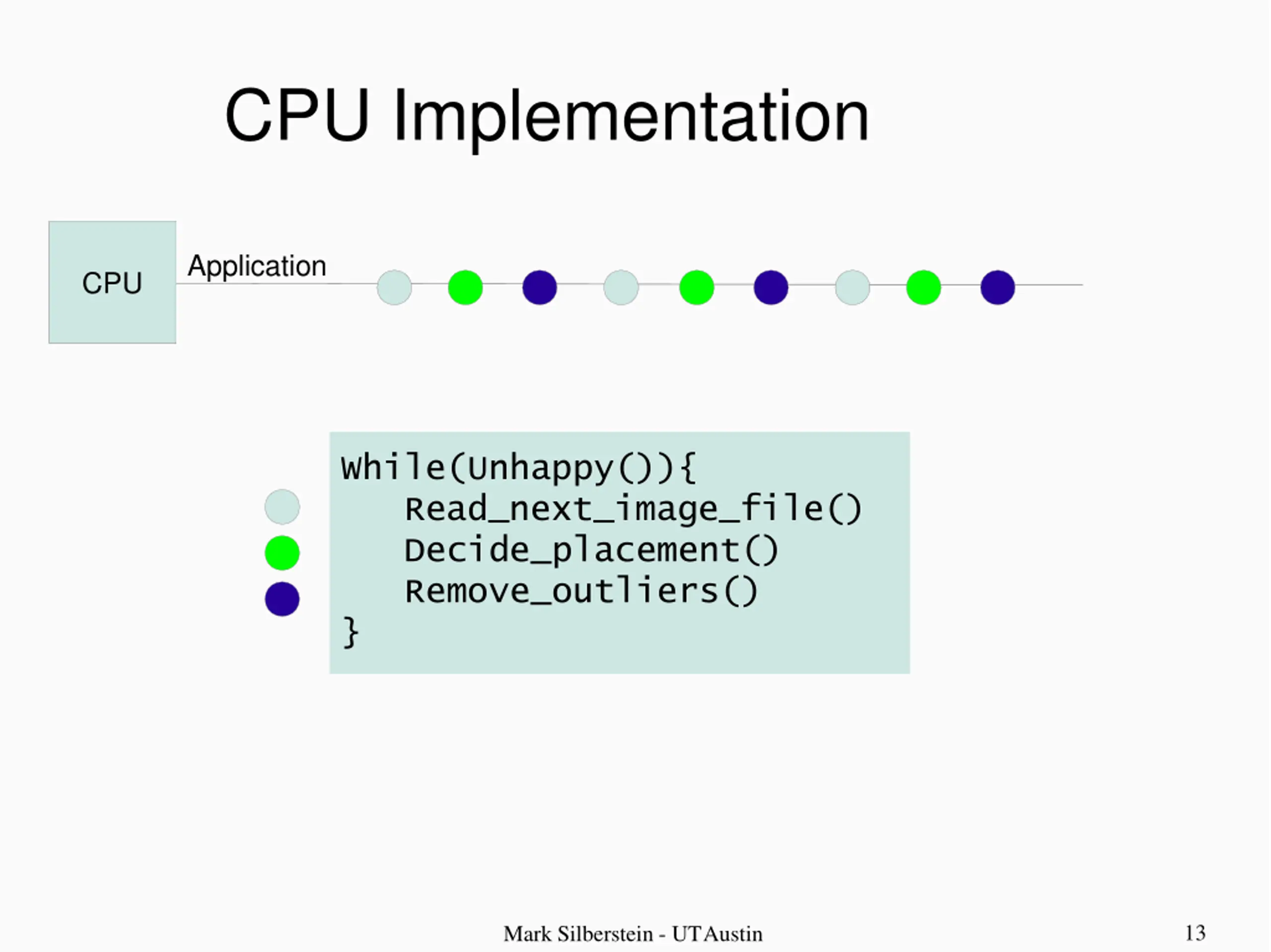

  13. CPU Implementation Application CPU CPU CPU While(Unhappy()){ Read_next_image_file() Decide_placement() Remove_outliers() } 13 Mark Silberstein - UTAustin

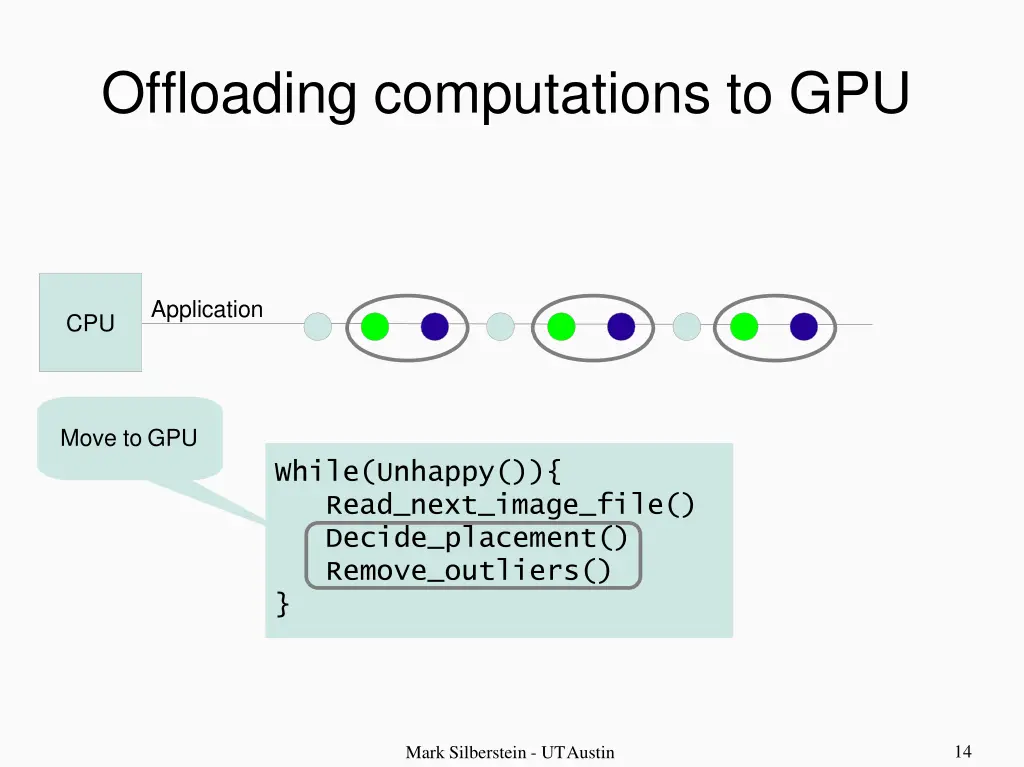

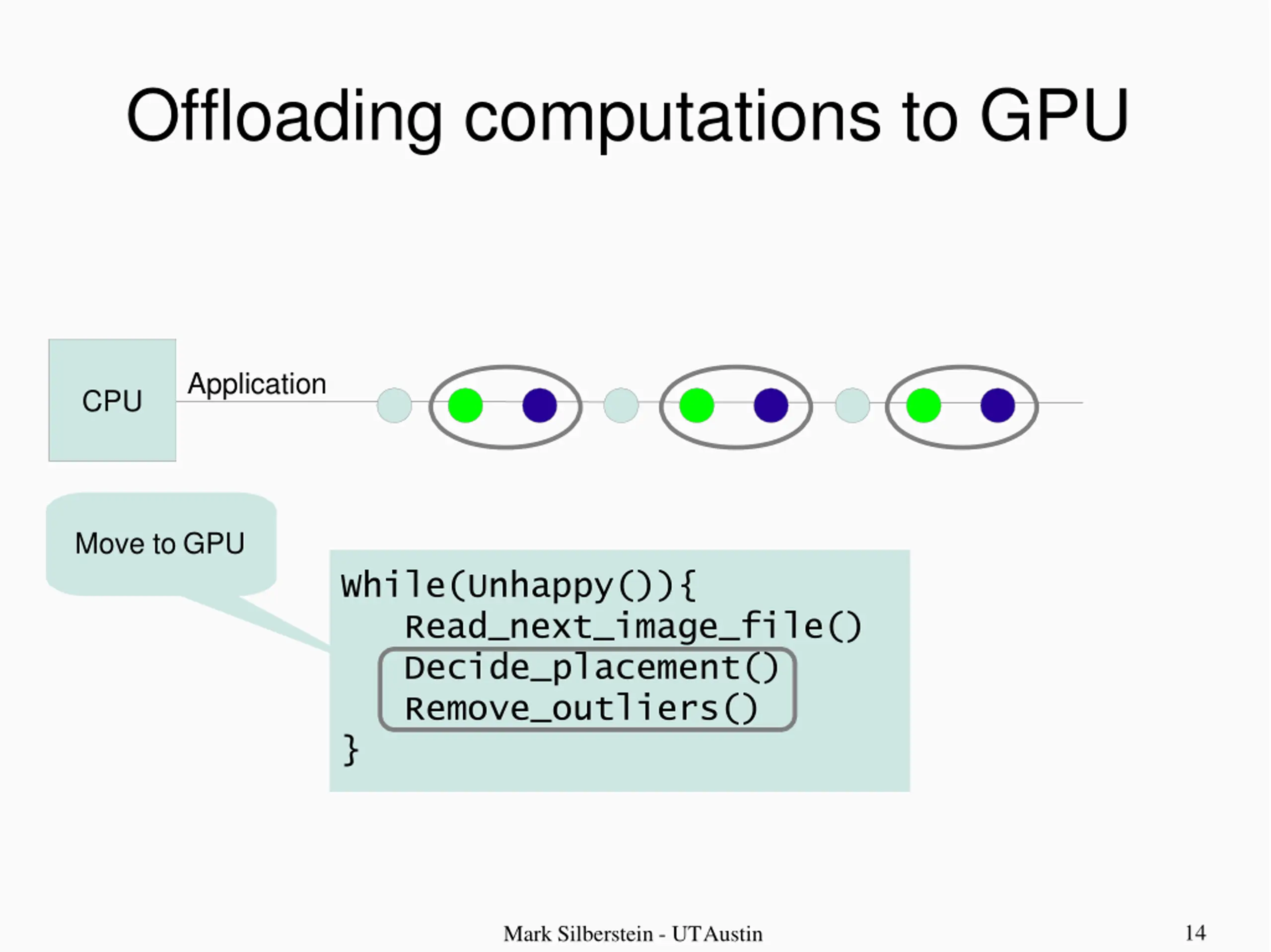

  14. Offloading computations to GPU Application CPU CPU CPU Move to GPU While(Unhappy()){ Read_next_image_file() Decide_placement() Remove_outliers() } 14 Mark Silberstein - UTAustin

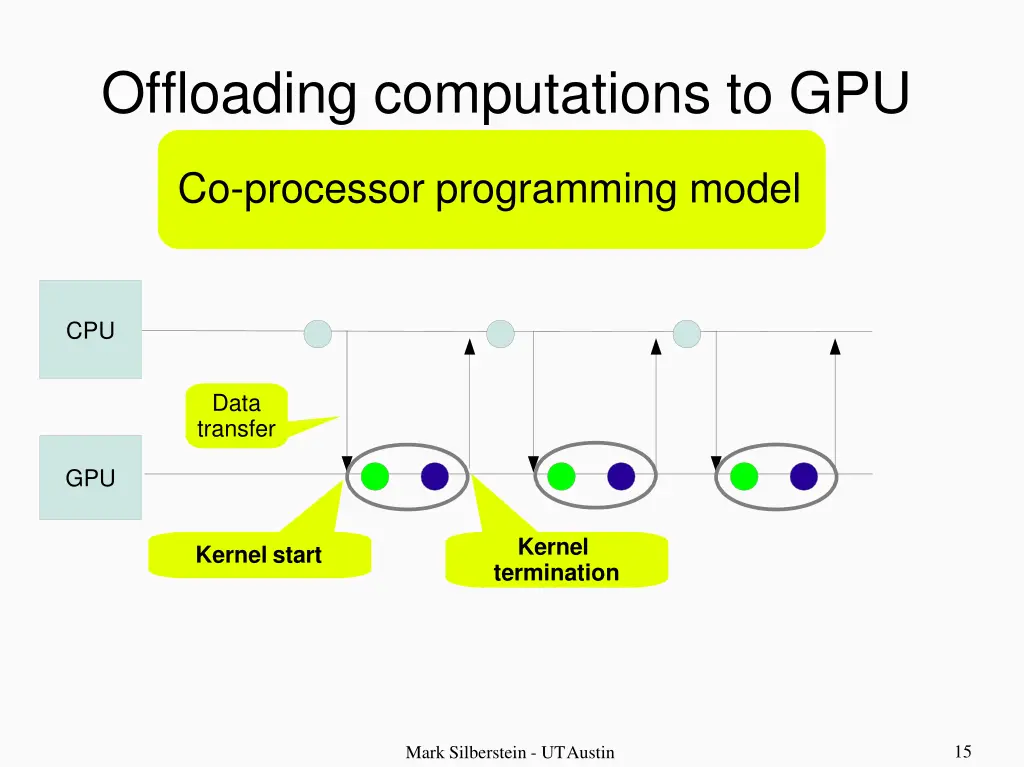

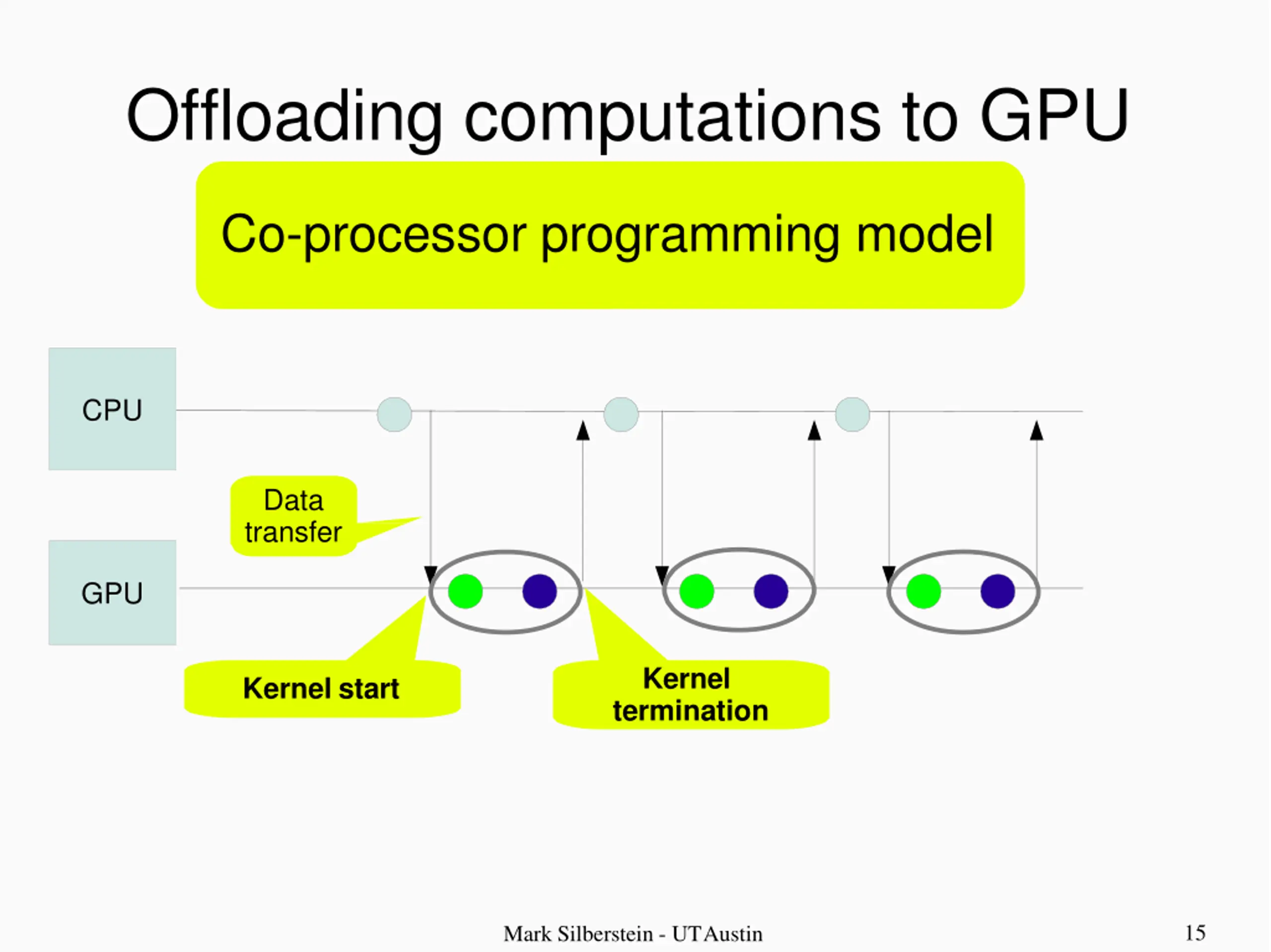

  15. Offloading computations to GPU Co-processor programming model CPU Data transfer GPU Kernel termination Kernel start 15 Mark Silberstein - UTAustin

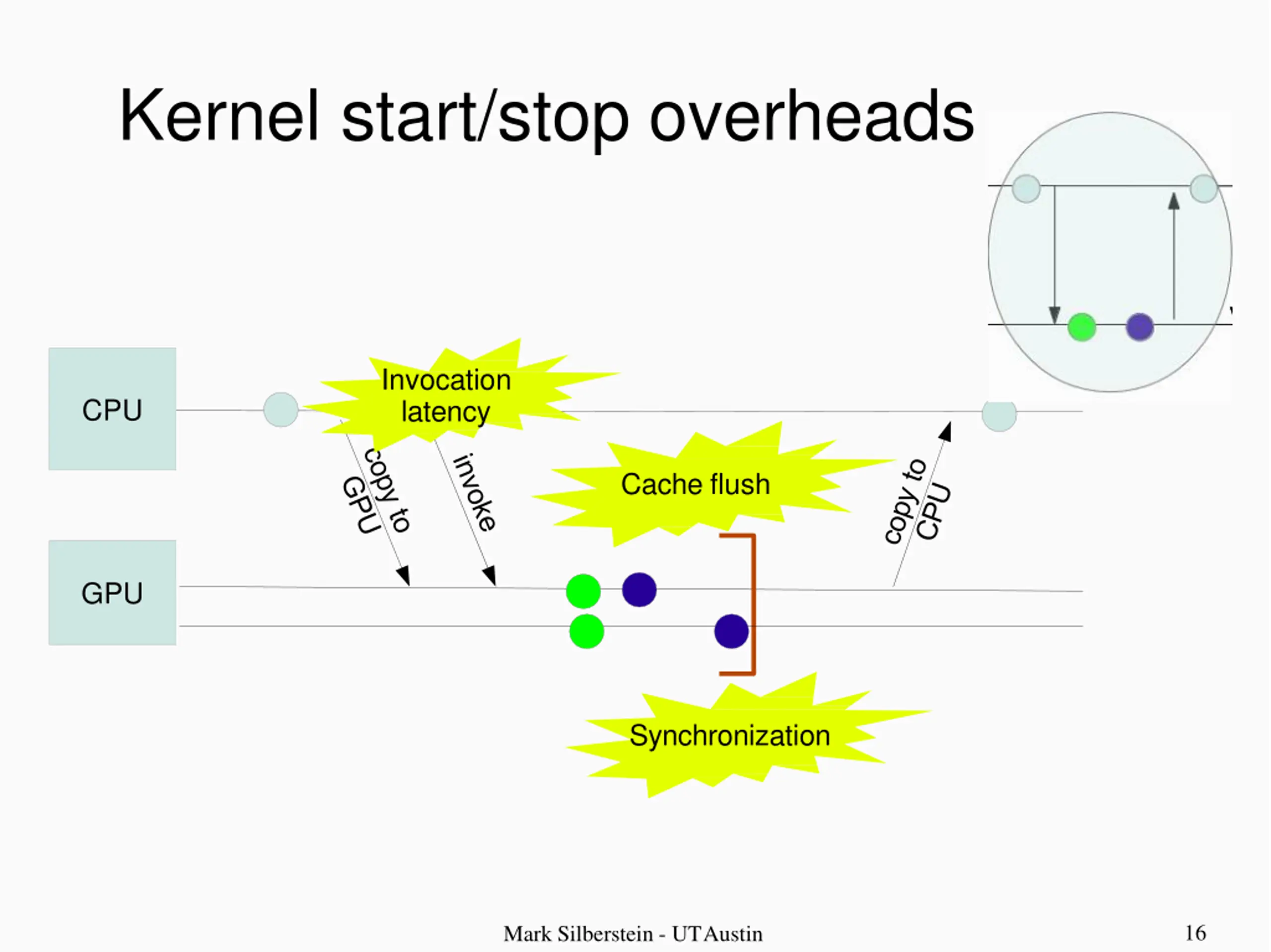

  16. Kernel start/stop overheads Invocation latency CPU Cache flush GPU Synchronization 16 Mark Silberstein - UTAustin

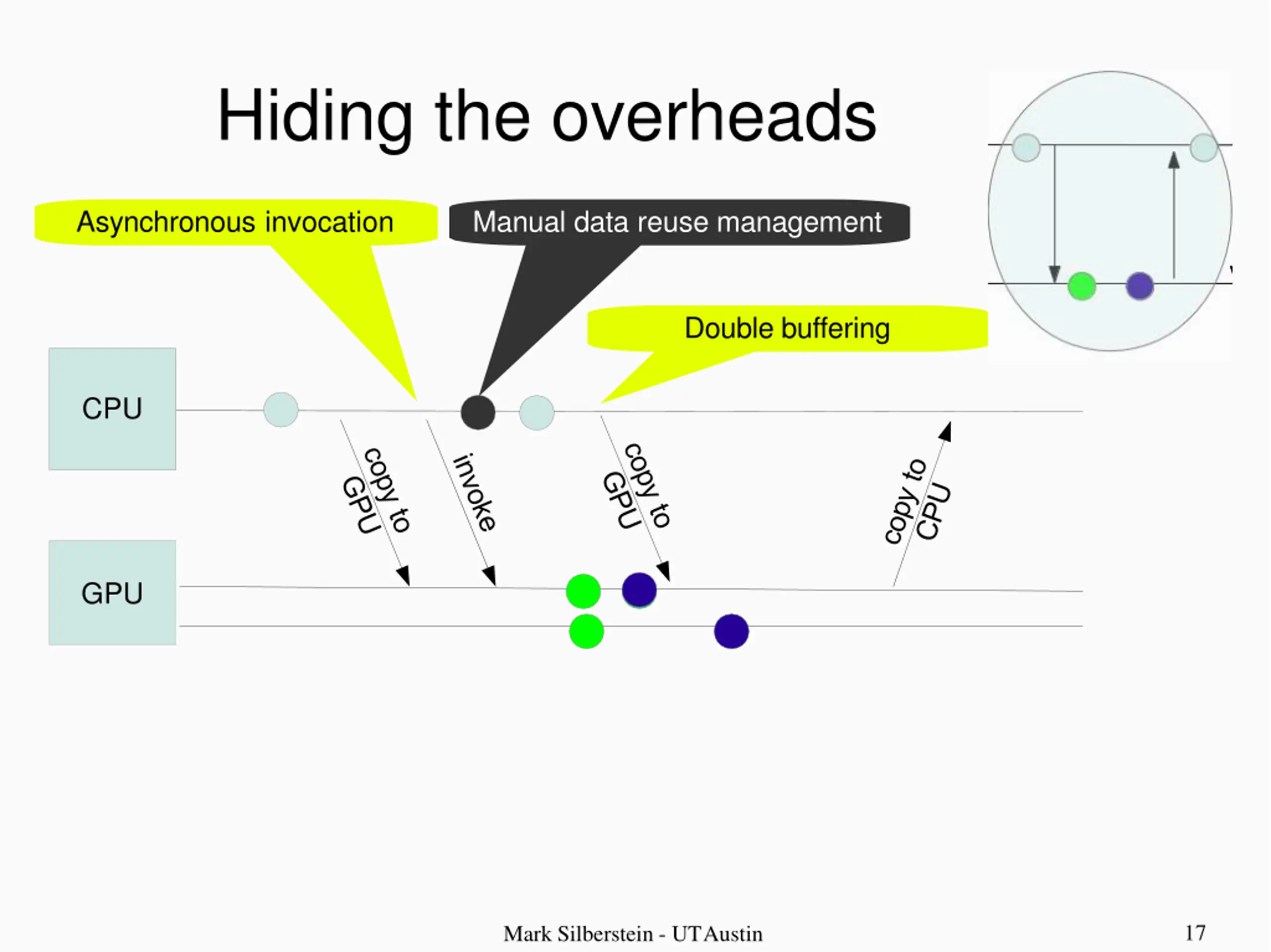

  17. Hiding the overheads Asynchronous invocation Manual data reuse management Double buffering CPU GPU 17 Mark Silberstein - UTAustin

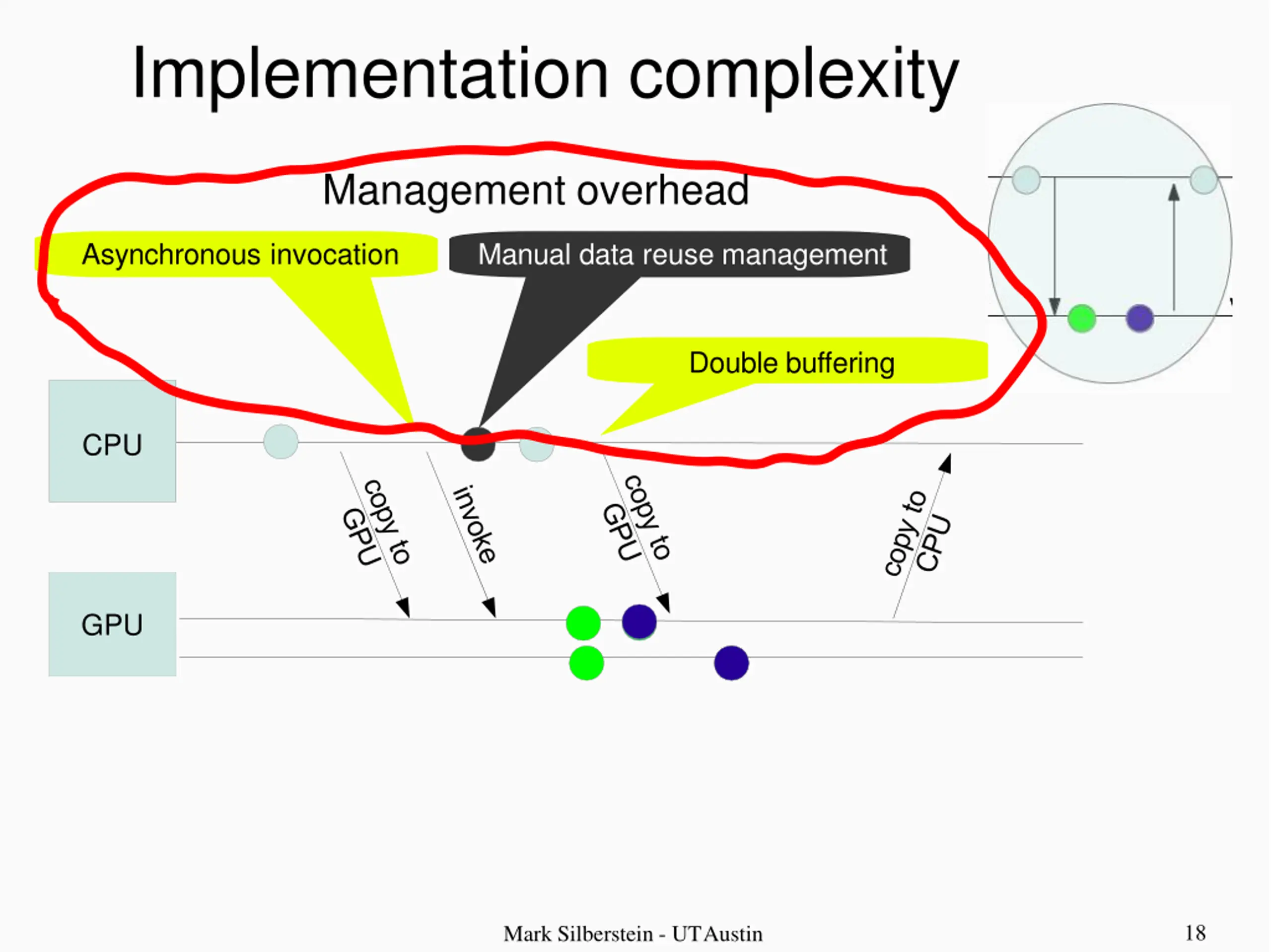

  18. Implementation complexity Management overhead Asynchronous invocation Manual data reuse management Double buffering CPU GPU 18 Mark Silberstein - UTAustin

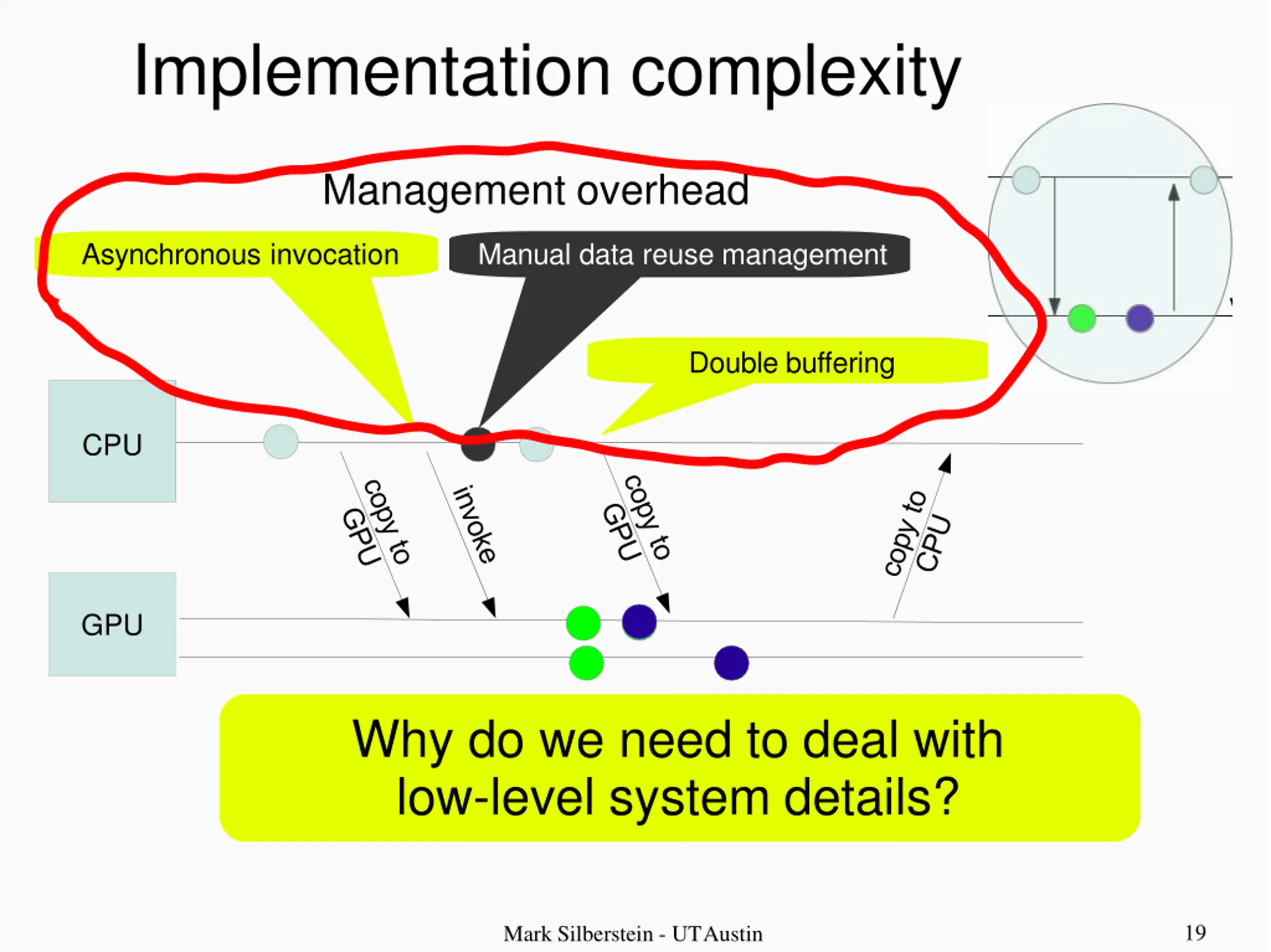

  19. Implementation complexity Management overhead Asynchronous invocation Manual data reuse management Double buffering CPU GPU Why do we need to deal with low-level system details? 19 Mark Silberstein - UTAustin

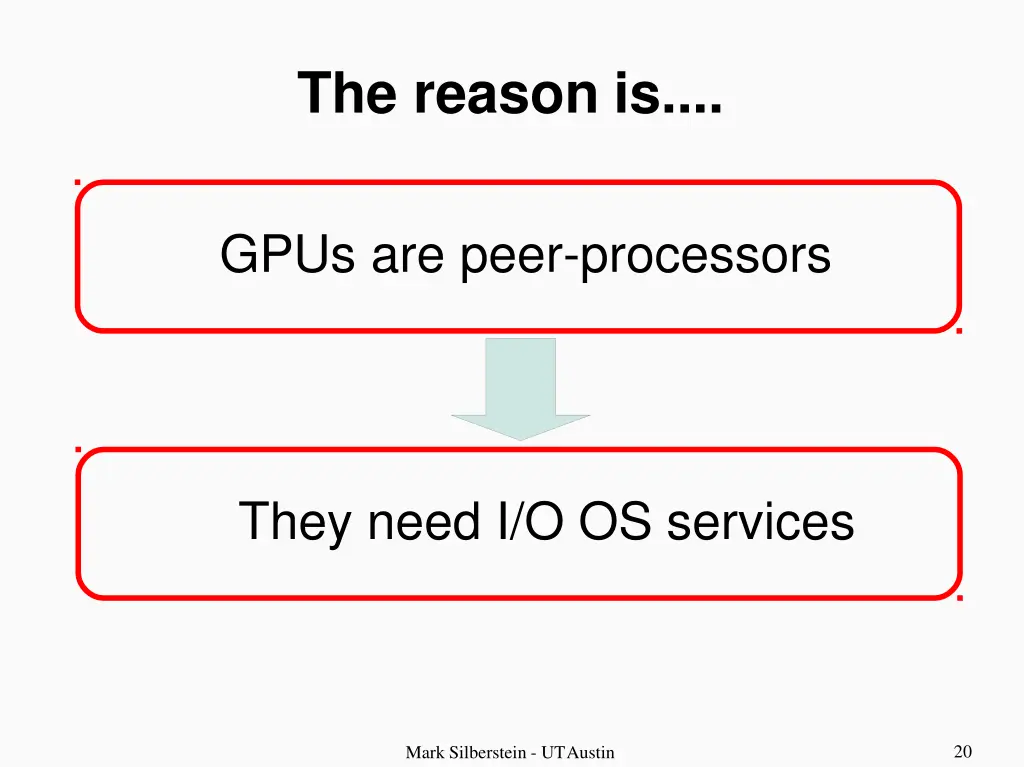

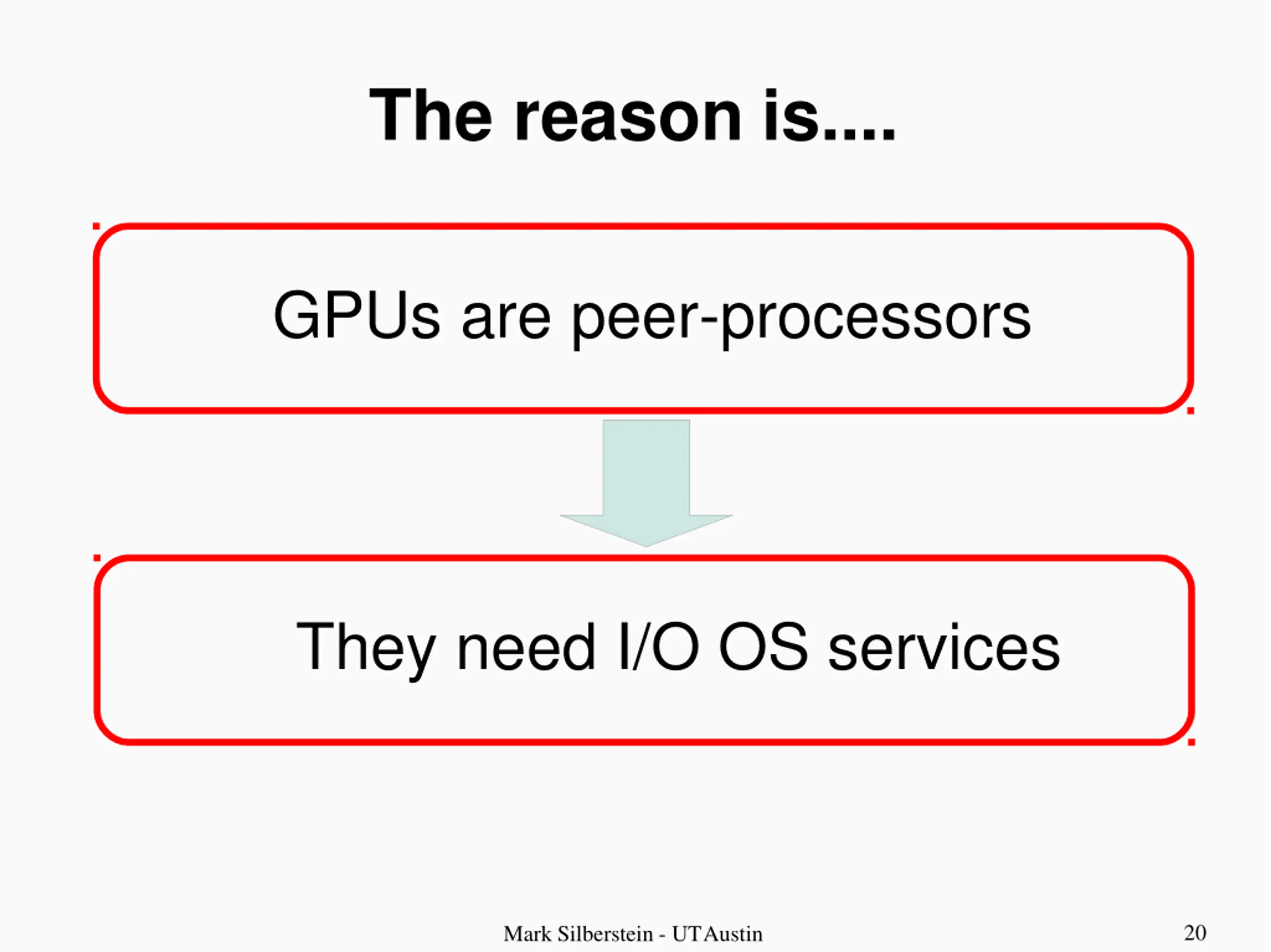

  20. The reason is.... GPUs are peer-processors They need I/O OS services 20 Mark Silberstein - UTAustin

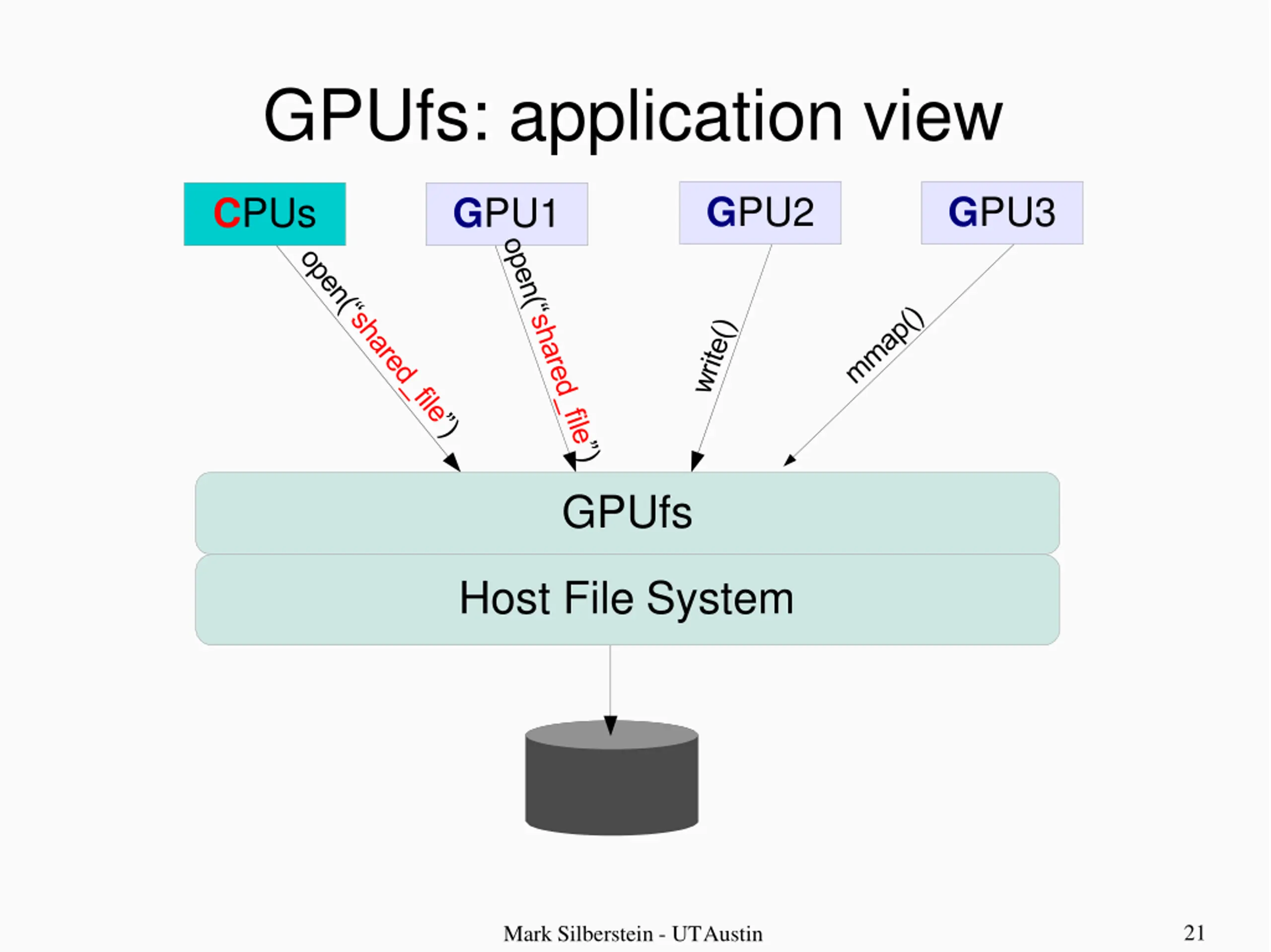

  21. GPUfs: application view GPU2 GPU3 CPUs GPU1 GPUfs Host File System 21 Mark Silberstein - UTAustin

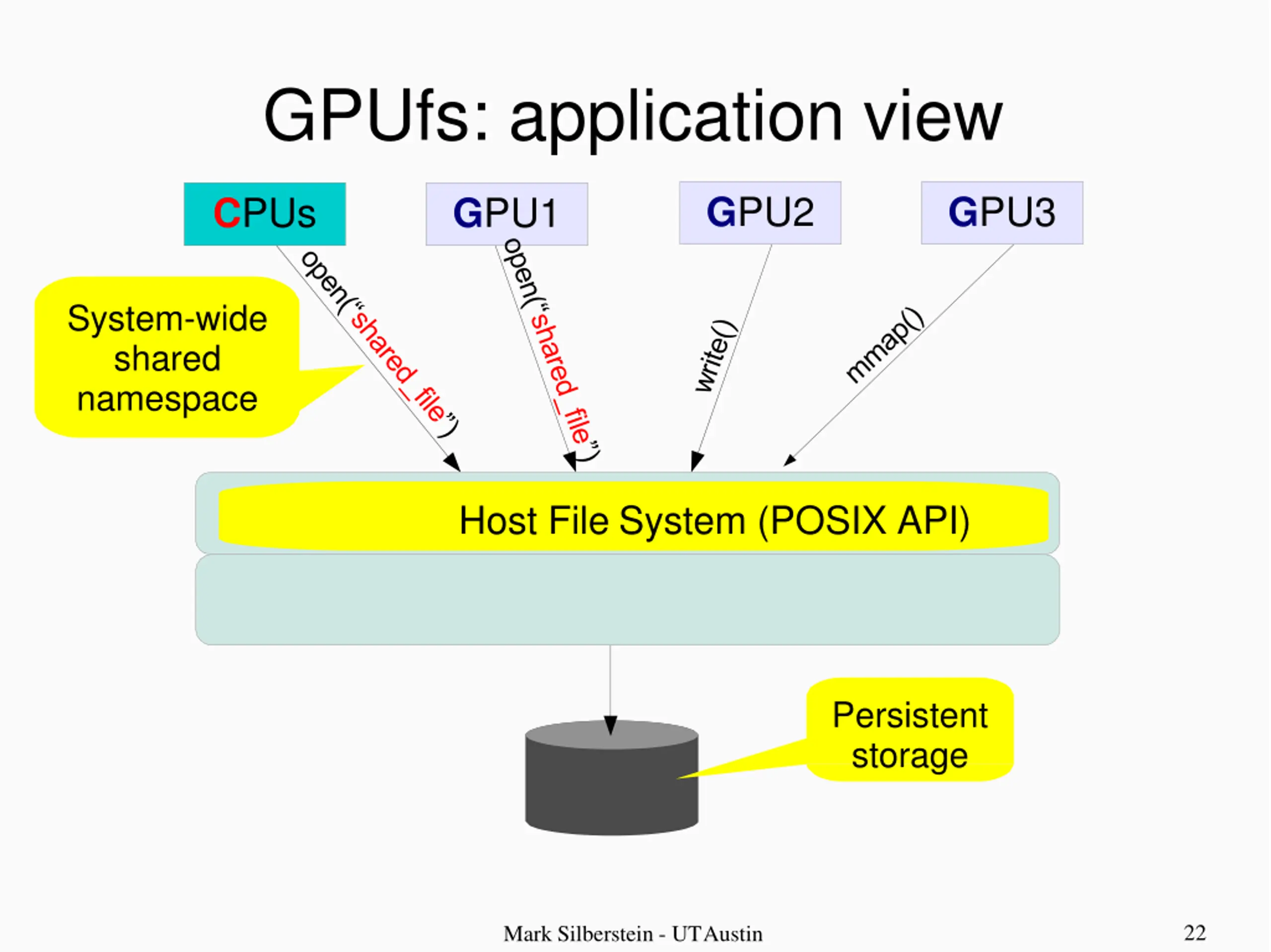

  22. GPUfs: application view GPU2 GPU3 CPUs GPU1 System-wide shared namespace Host File System (POSIX API) Persistent storage 22 Mark Silberstein - UTAustin

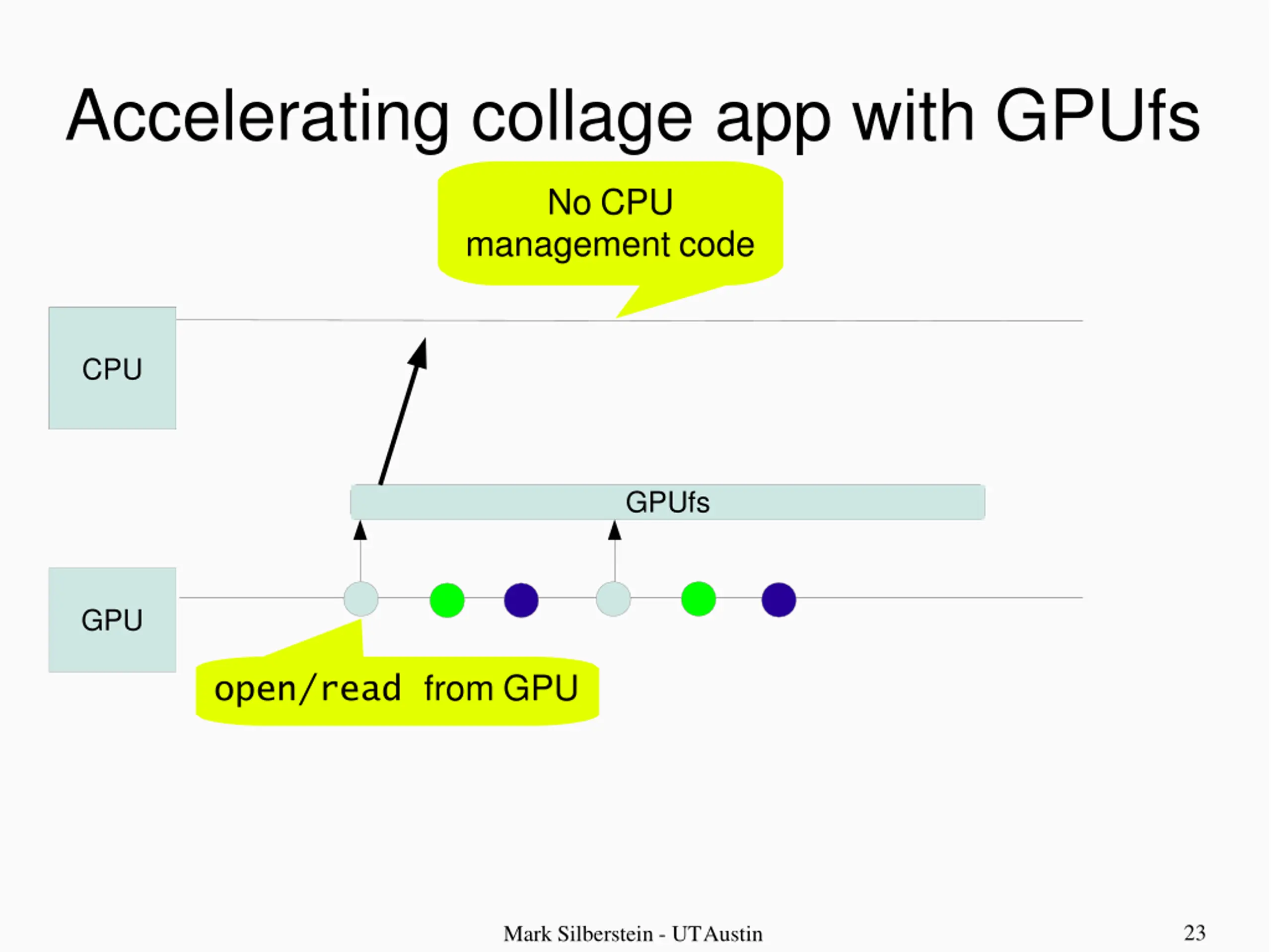

  23. Accelerating collage app with GPUfs No CPU management code CPU CPU CPU GPUfs GPU open/read from GPU 23 Mark Silberstein - UTAustin

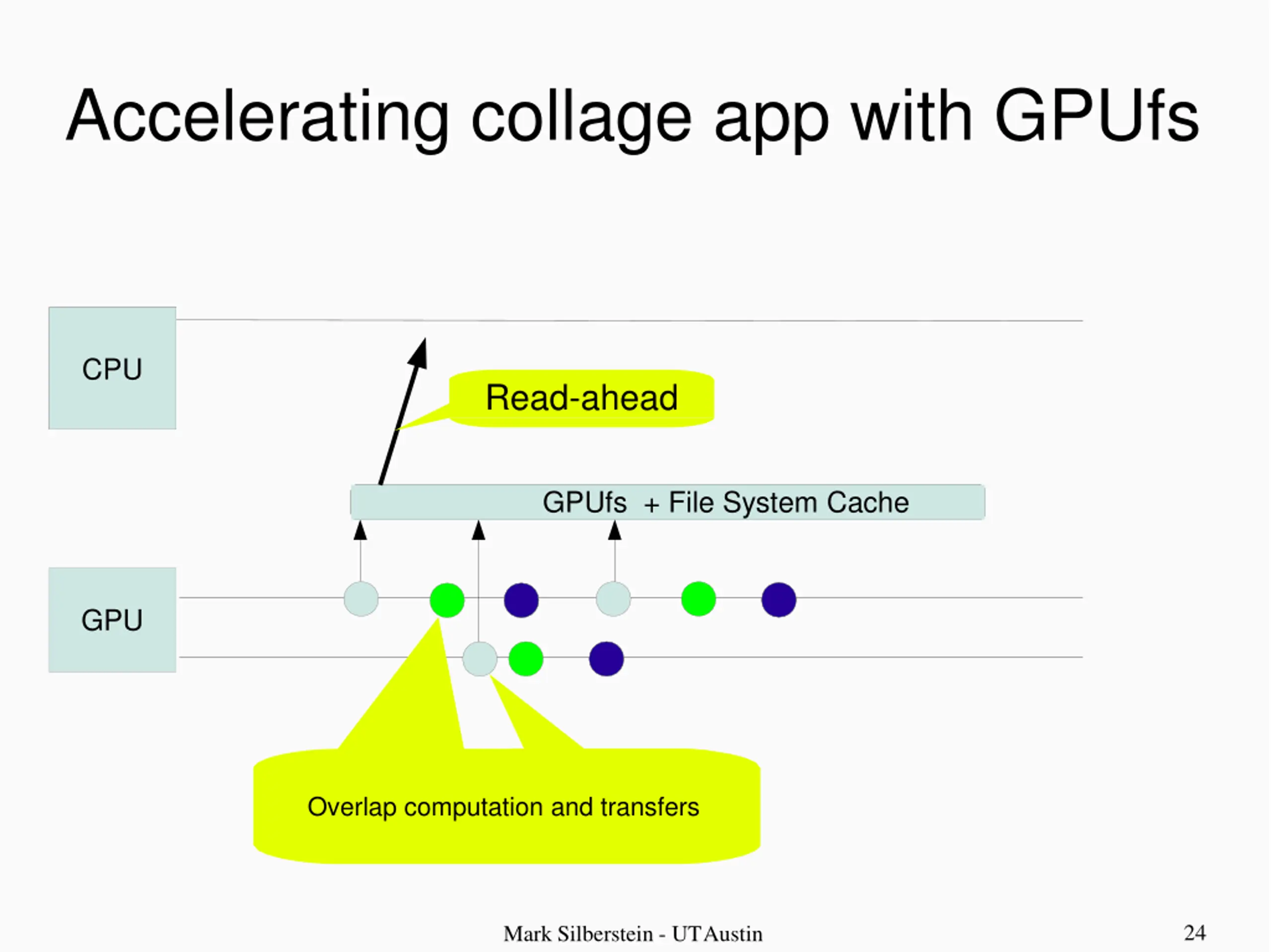

  24. Accelerating collage app with GPUfs CPU CPU CPU Read-ahead GPUfs + File System Cache GPU Overlap computation and transfers 24 Mark Silberstein - UTAustin

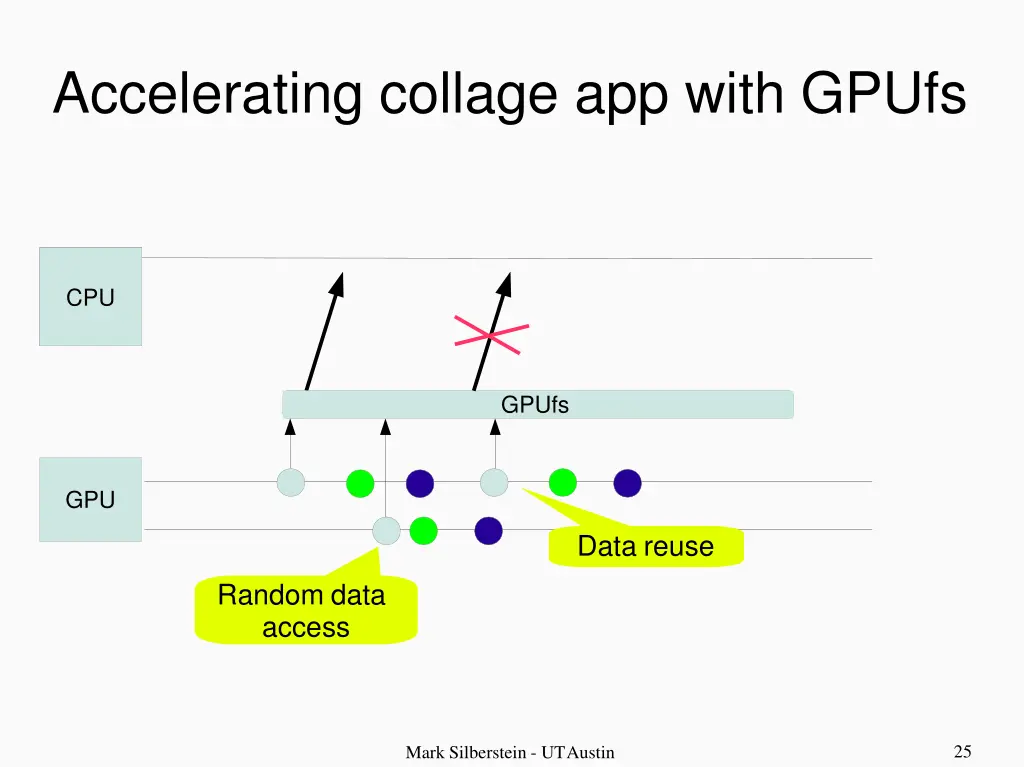

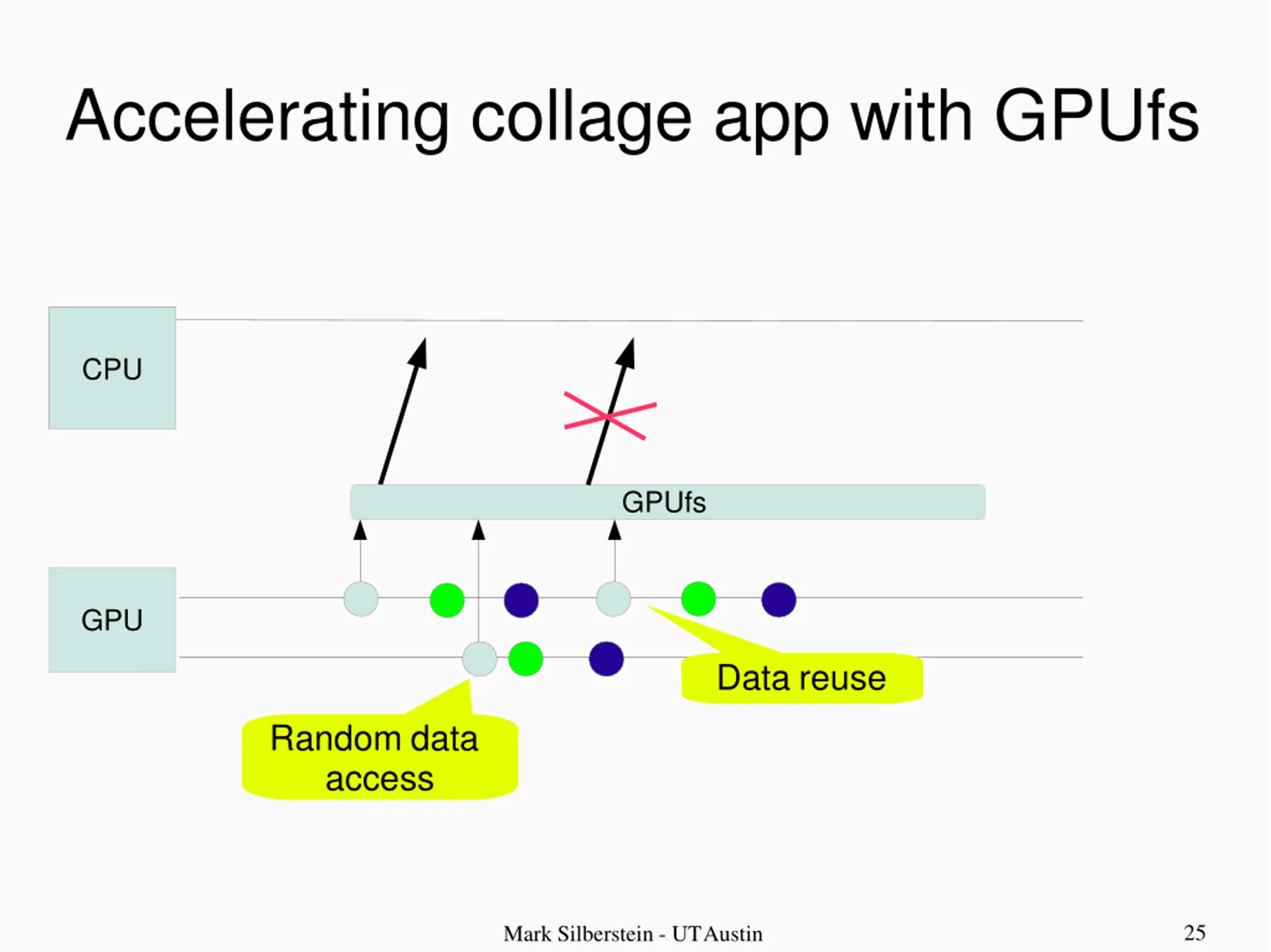

  25. Accelerating collage app with GPUfs CPU CPU CPU GPUfs GPU Data reuse Random data access 25 Mark Silberstein - UTAustin

  26. Challenge GPU CPU 26 Mark Silberstein - UTAustin

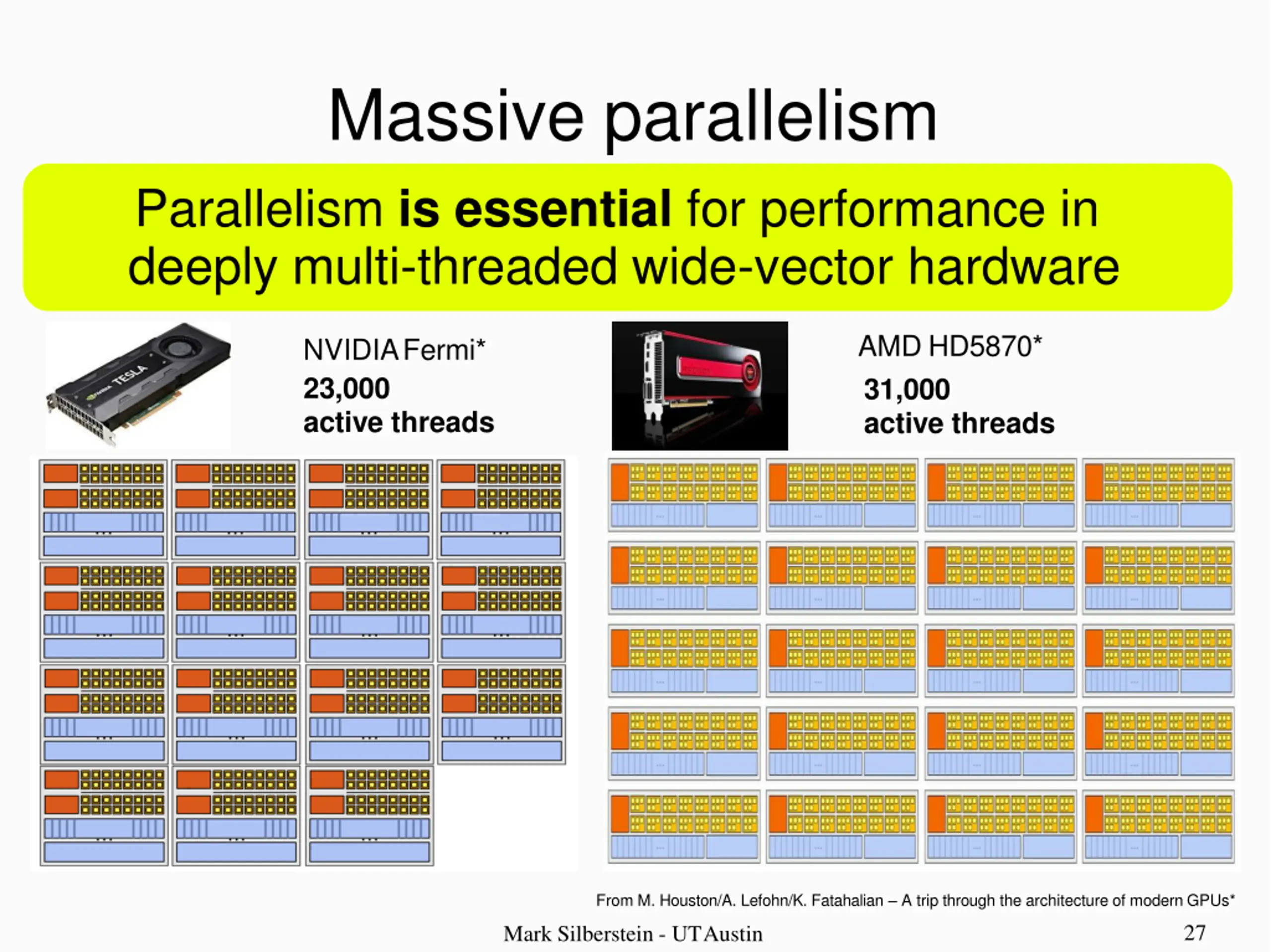

  27. Massive parallelism Parallelism is essential for performance in deeply multi-threaded wide-vector hardware AMD HD5870* 31,000 active threads NVIDIAFermi* 23,000 active threads From M. Houston/A. Lefohn/K. Fatahalian A trip through the architecture of modern GPUs* Mark Silberstein - UTAustin 27

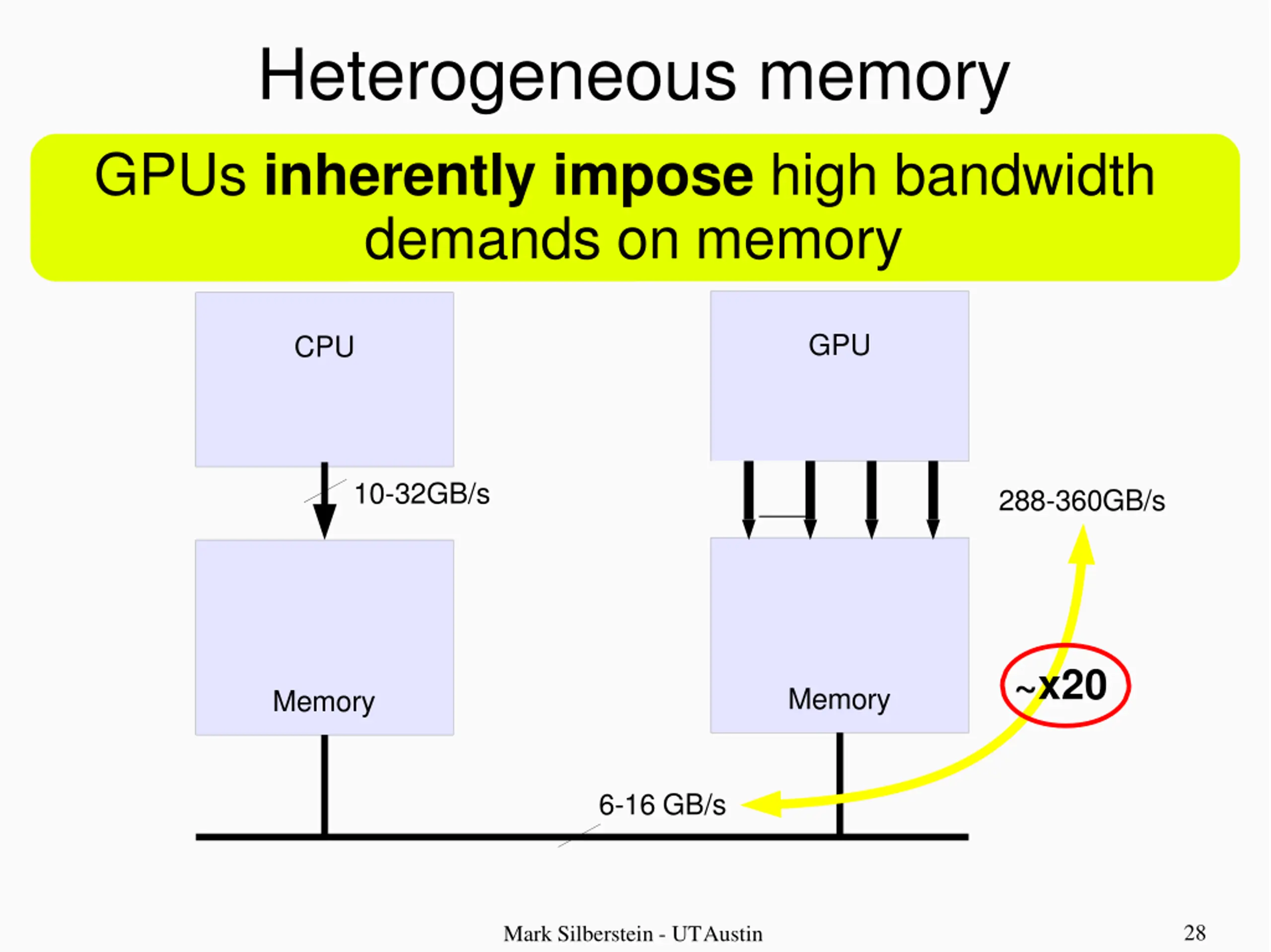

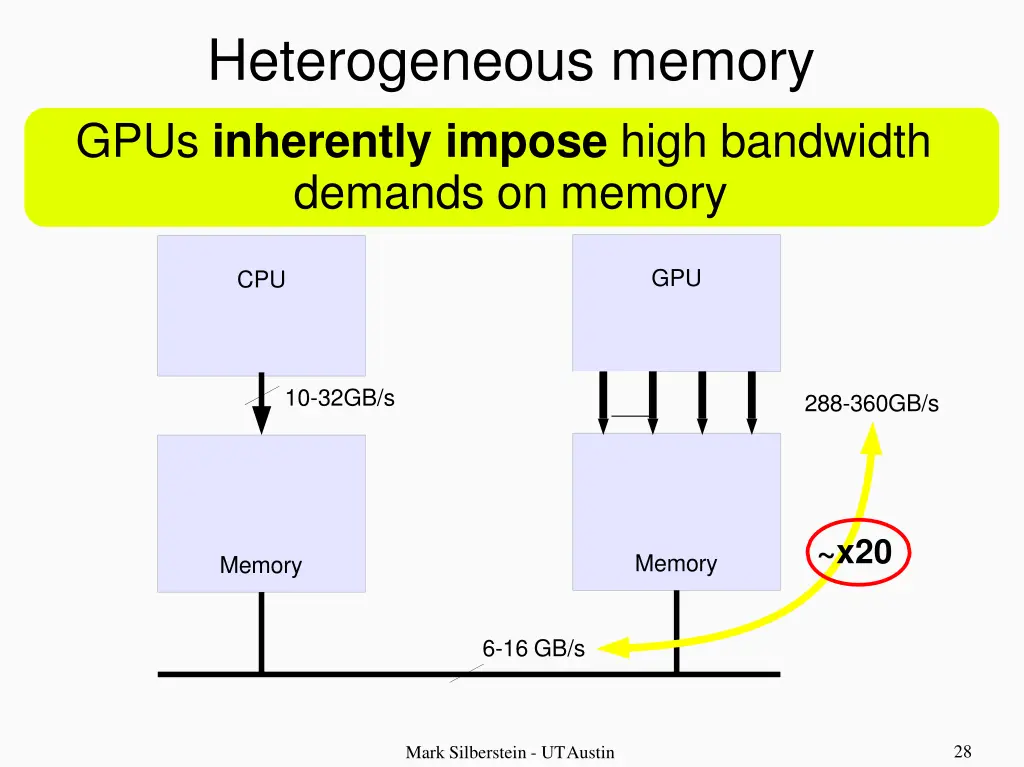

  28. Heterogeneous memory GPUs inherently impose high bandwidth demands on memory GPU CPU 10-32GB/s 288-360GB/s ~x20 Memory Memory 6-16 GB/s 28 Mark Silberstein - UTAustin

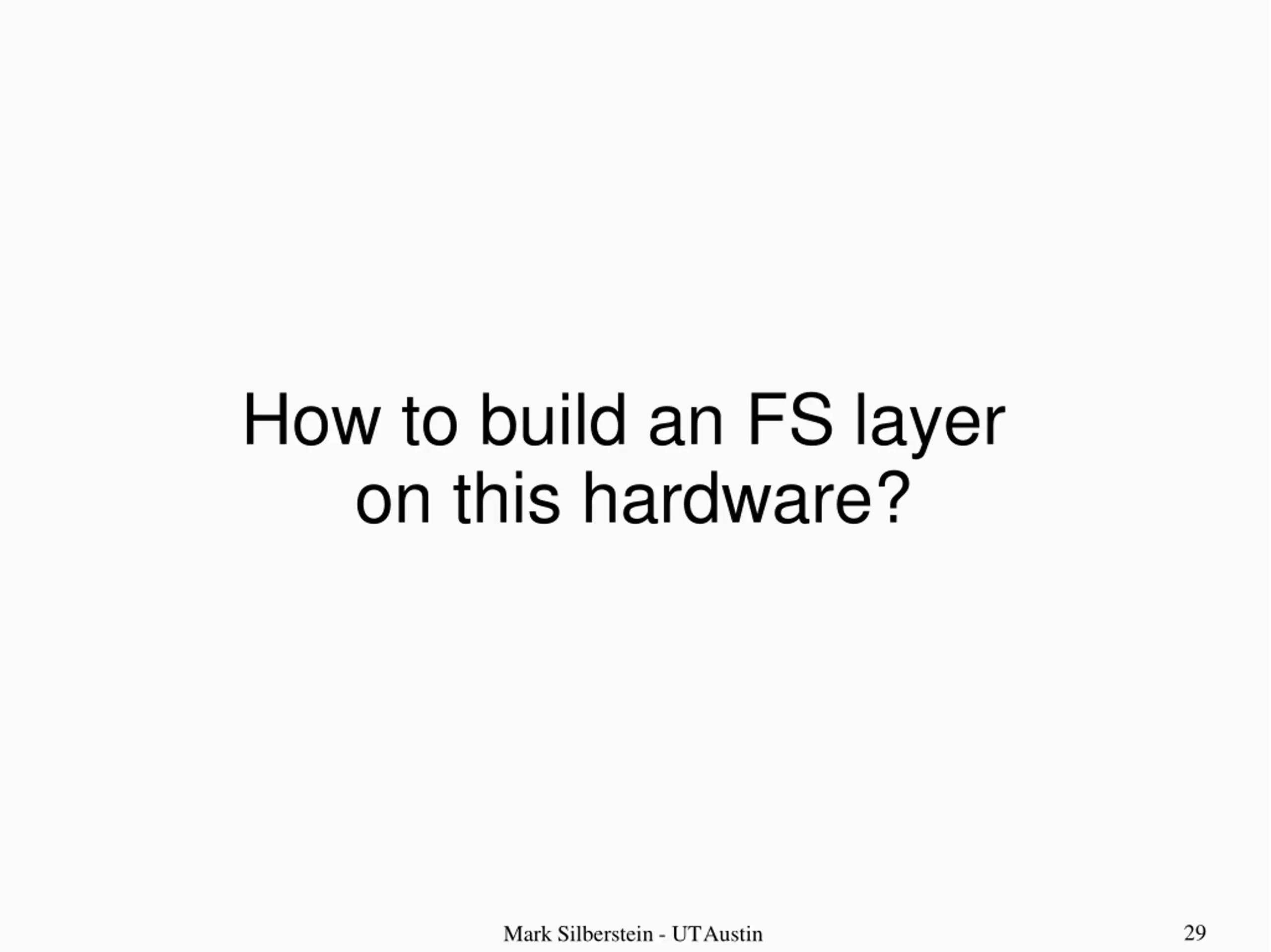

  29. How to build an FS layer on this hardware? 29 Mark Silberstein - UTAustin

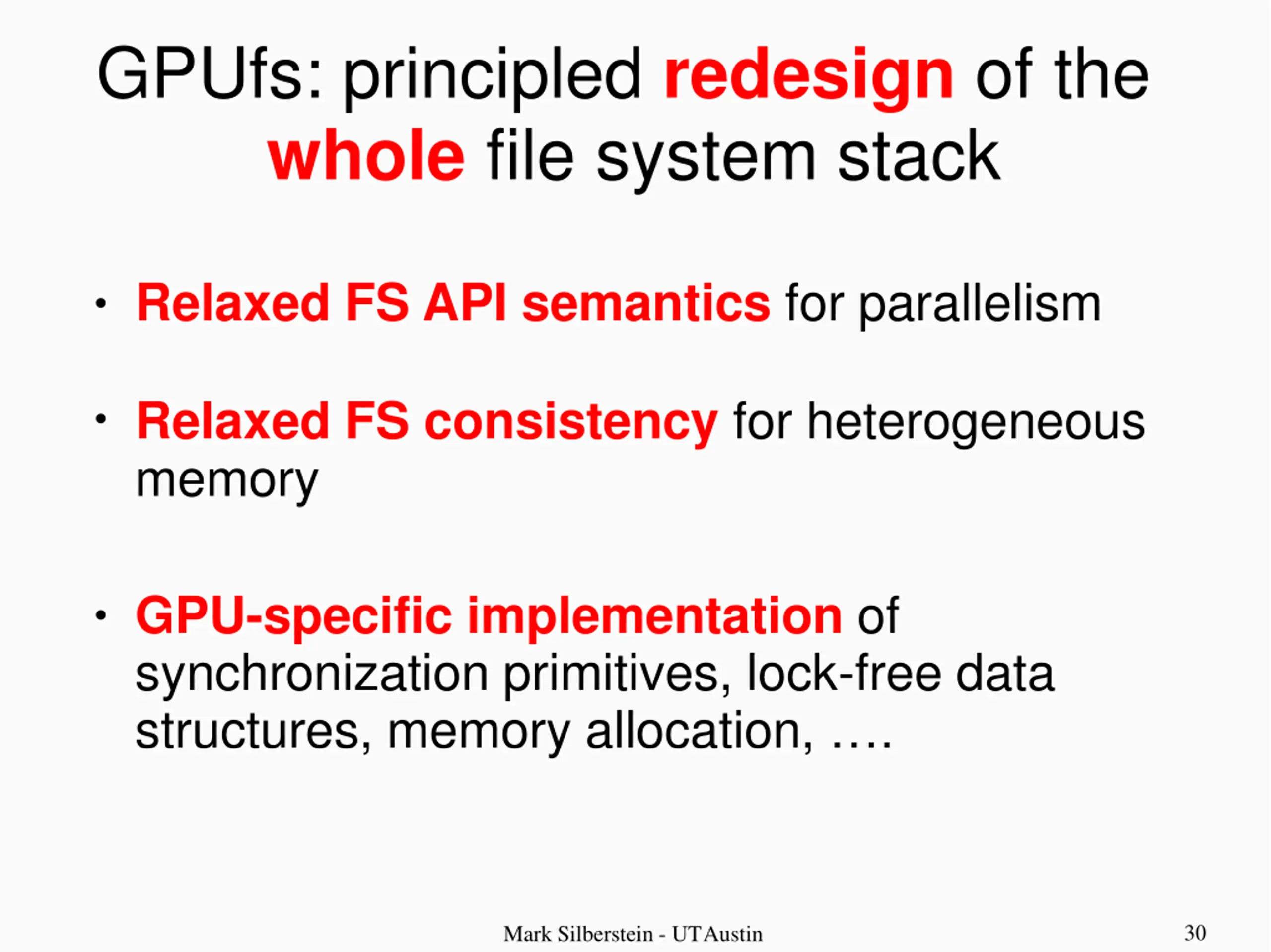

  30. GPUfs: principled redesign of the whole file system stack Relaxed FS API semantics for parallelism Relaxed FS consistency for heterogeneous memory GPU-specific implementation of synchronization primitives, lock-free data structures, memory allocation, . 30 Mark Silberstein - UTAustin

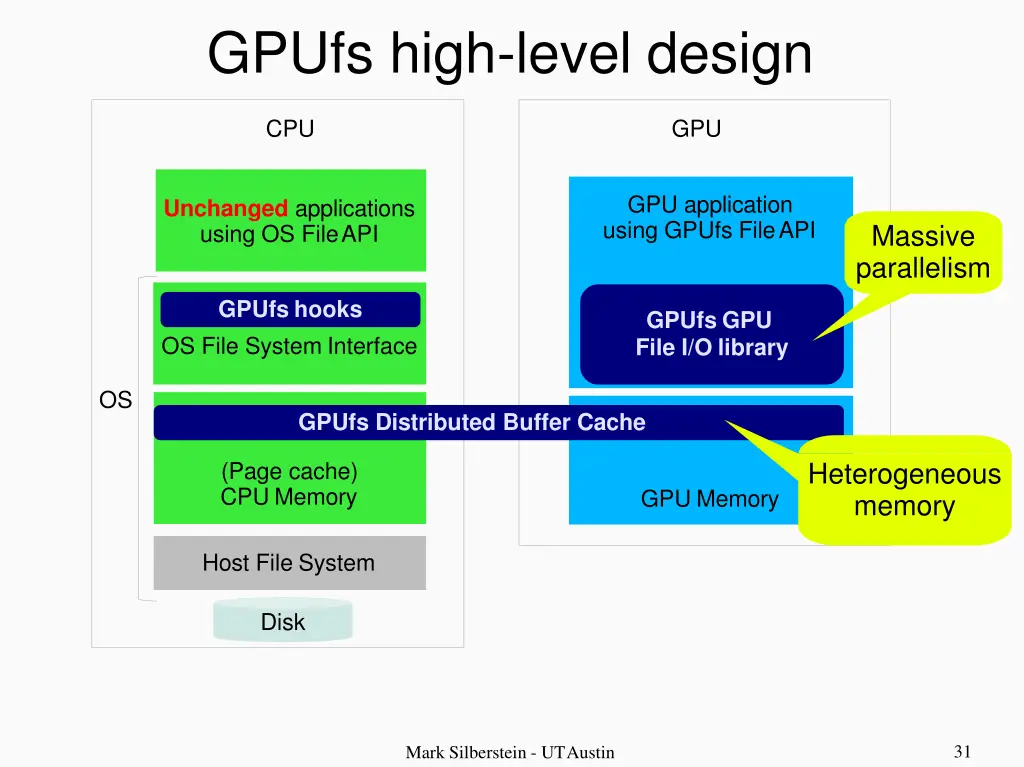

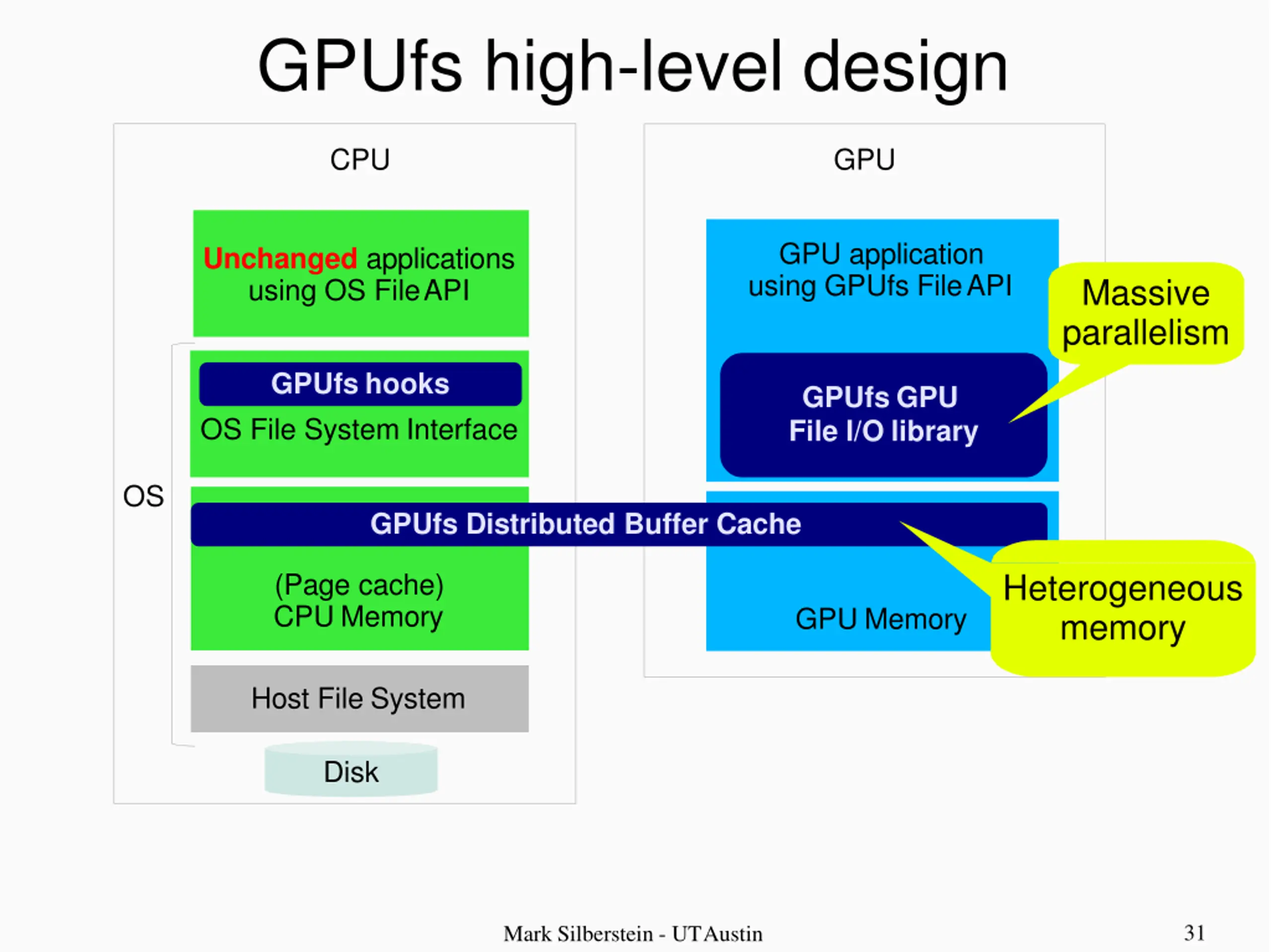

  31. GPUfs high-level design CPU GPU GPU application using GPUfs FileAPI Unchanged applications using OS FileAPI Massive parallelism GPUfs hooks OS File System Interface GPUfs GPU File I/O library OS GPUfs Distributed Buffer Cache Heterogeneous memory (Page cache) CPU Memory GPU Memory Host File System Disk 31 Mark Silberstein - UTAustin

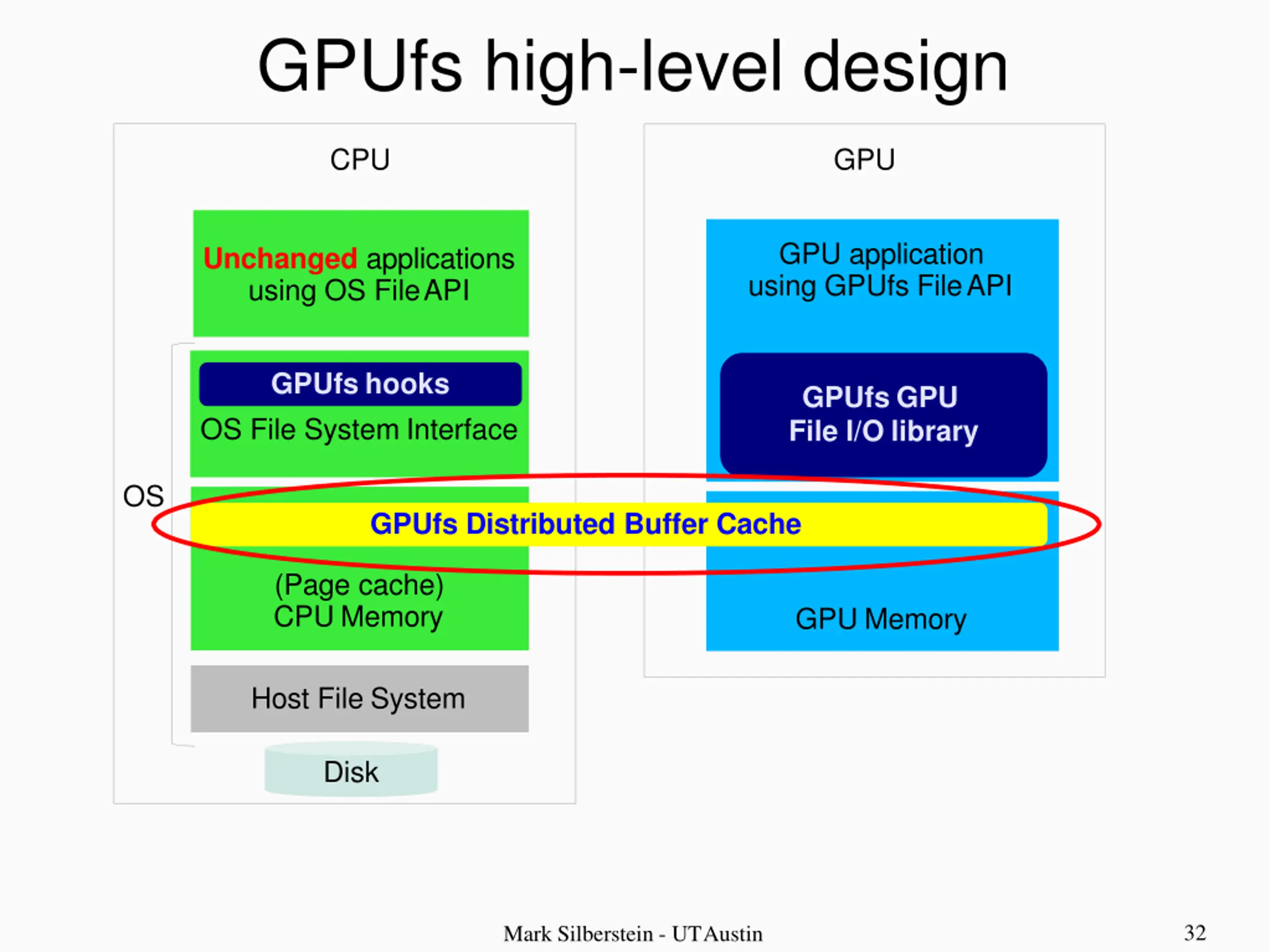

  32. GPUfs high-level design CPU GPU GPU application using GPUfs FileAPI Unchanged applications using OS FileAPI GPUfs hooks OS File System Interface GPUfs GPU File I/O library OS GPUfs Distributed Buffer Cache (Page cache) CPU Memory GPU Memory Host File System Disk 32 Mark Silberstein - UTAustin

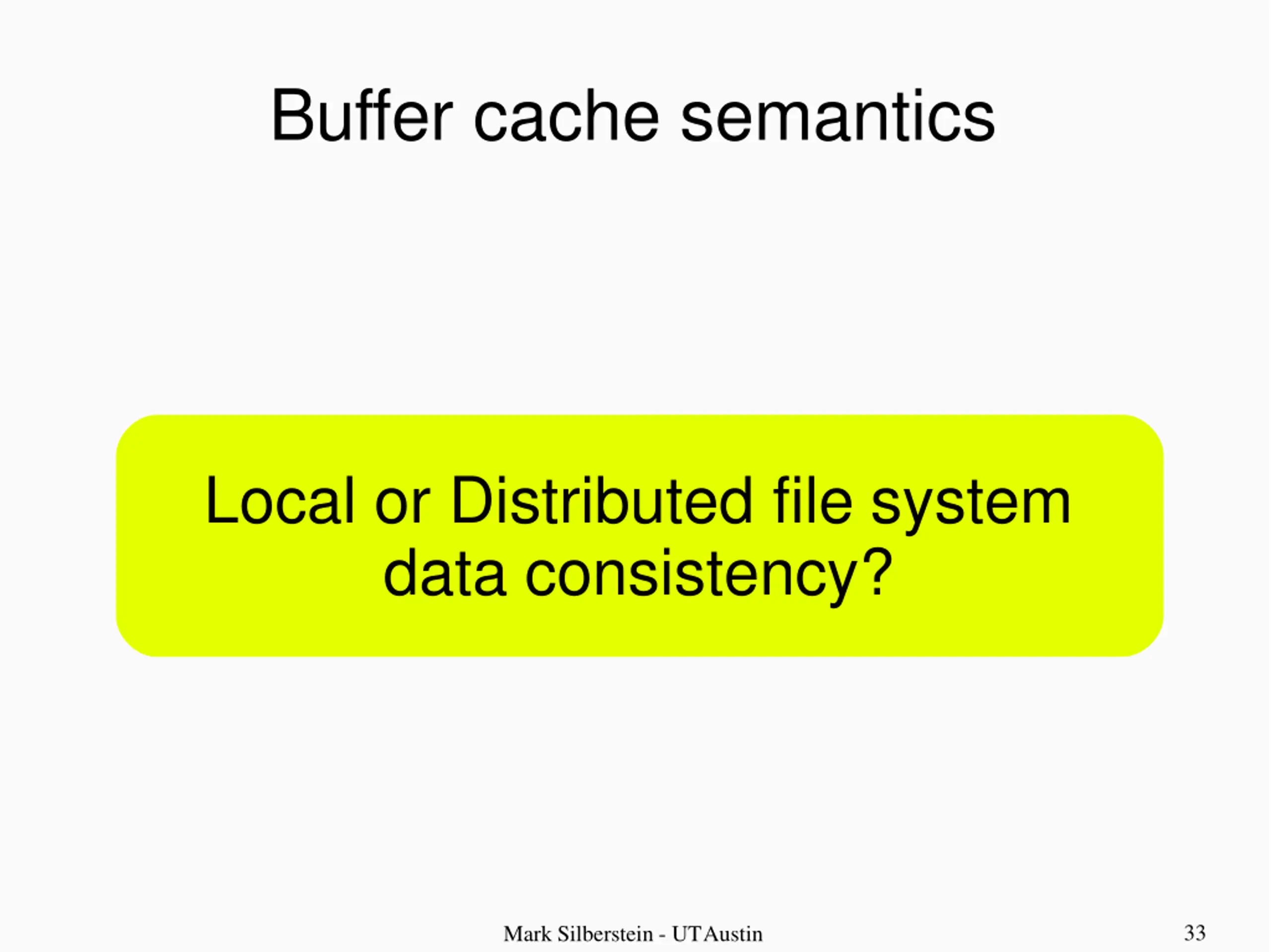

  33. Buffer cache semantics Local or Distributed file system data consistency? 33 Mark Silberstein - UTAustin

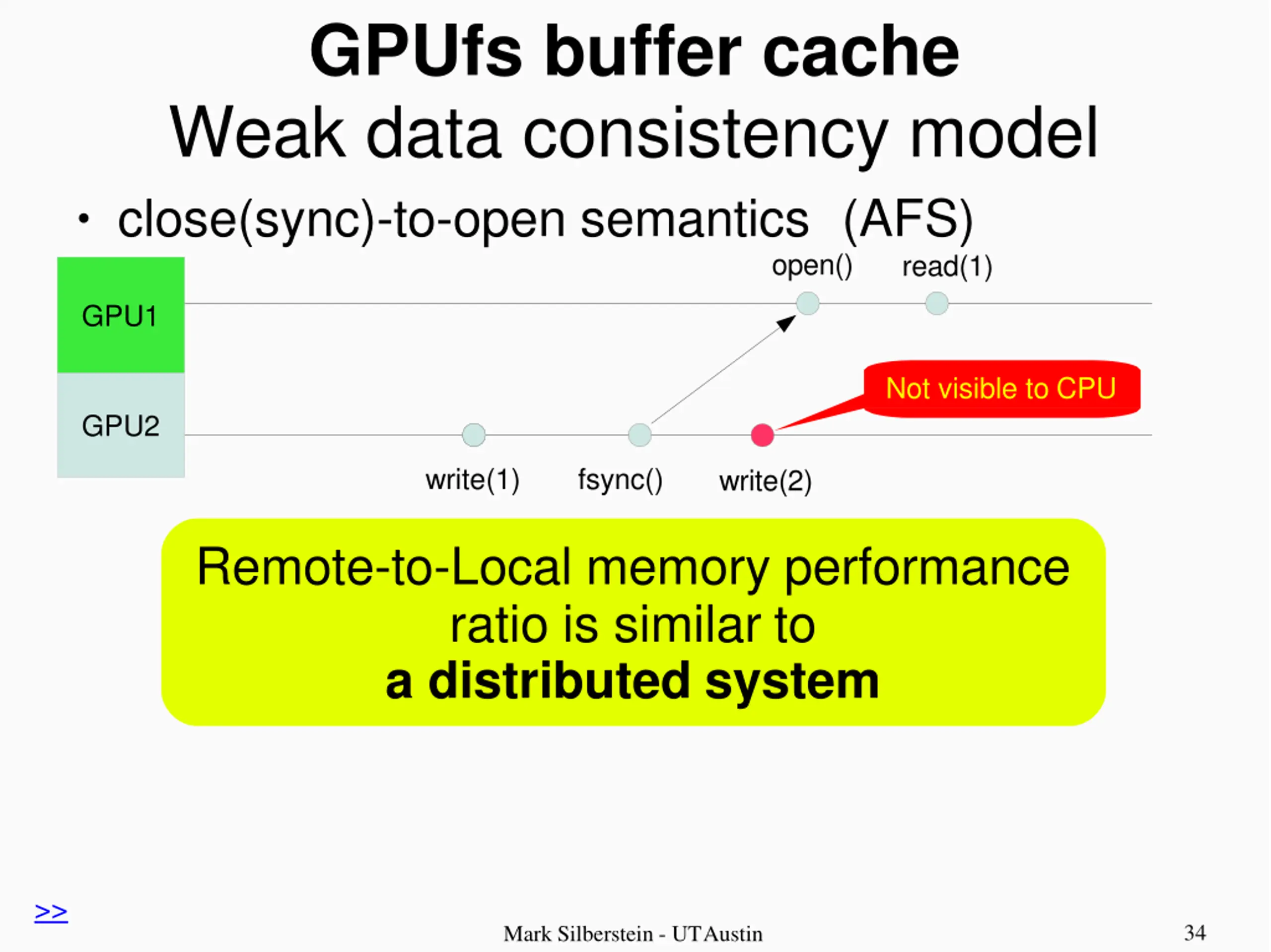

  34. GPUfs buffer cache Weak data consistency model close(sync)-to-open semantics (AFS) open() read(1) GPU1 Not visible to CPU GPU2 write(1) fsync() write(2) Remote-to-Local memory performance ratio is similar to a distributed system >> 34 Mark Silberstein - UTAustin

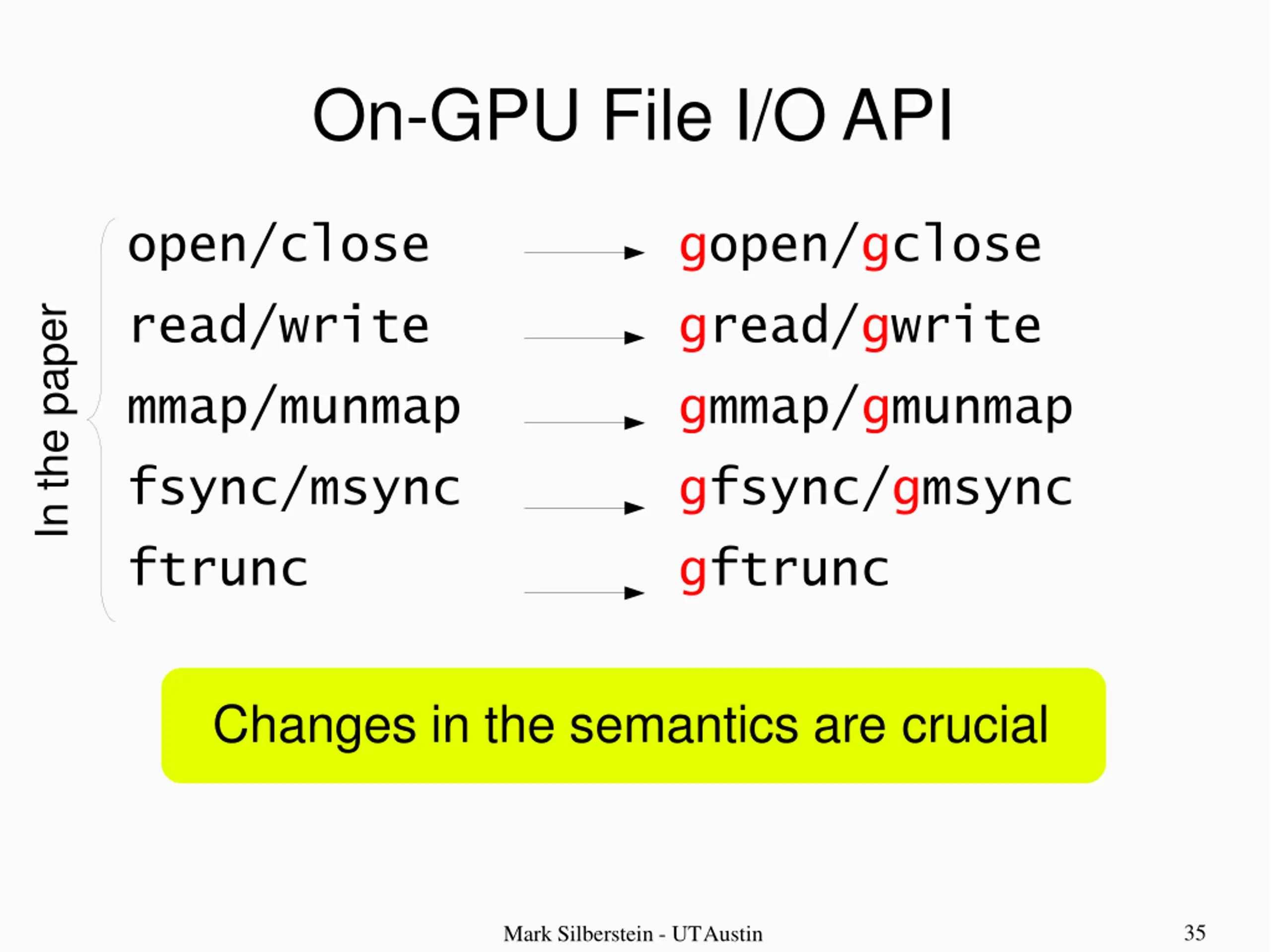

  35. On-GPU File I/O API open/close gopen/gclose read/write gread/gwrite In the paper mmap/munmap gmmap/gmunmap fsync/msync gfsync/gmsync ftrunc gftrunc Changes in the semantics are crucial 35 Mark Silberstein - UTAustin

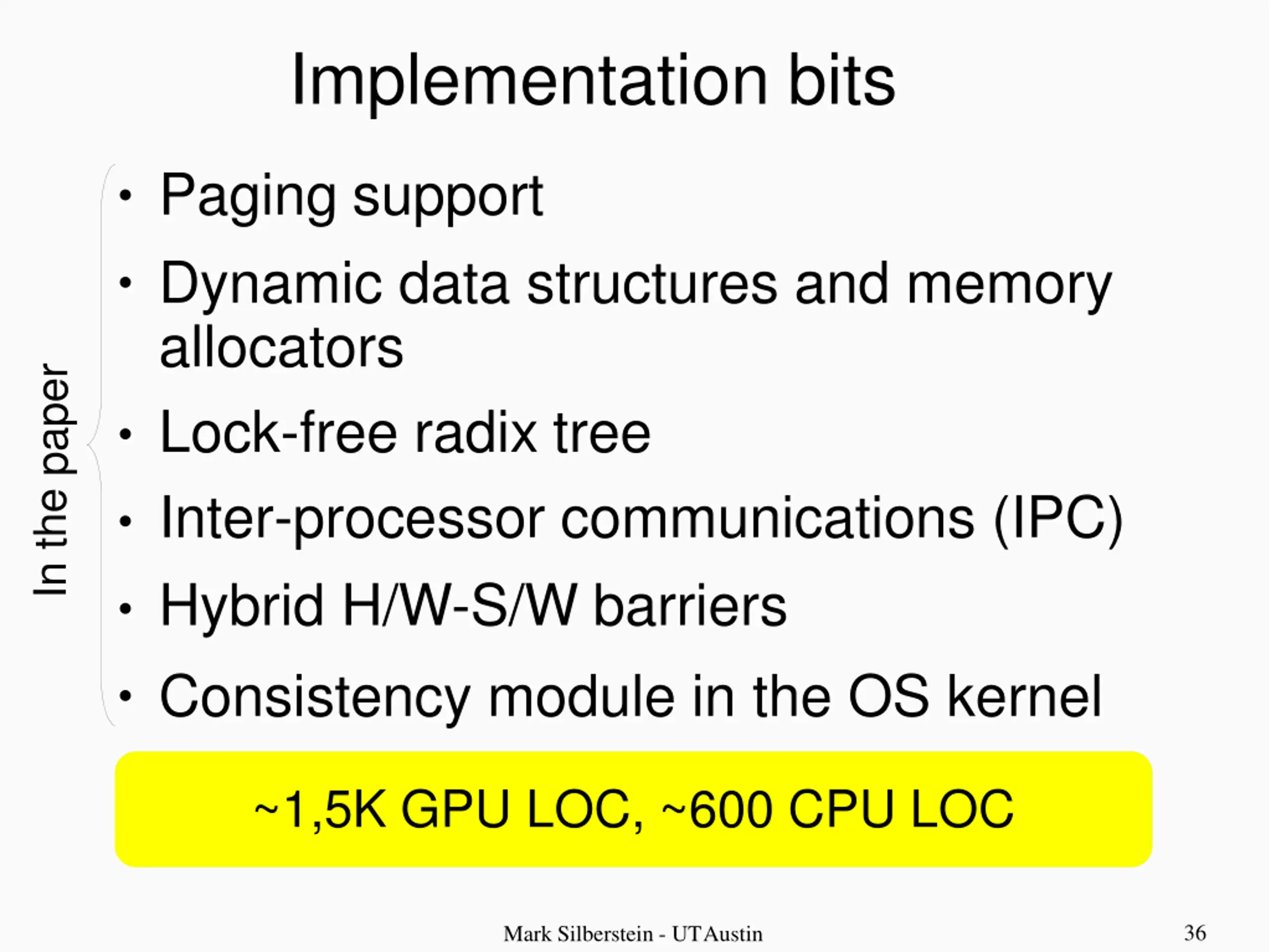

  36. Implementation bits Paging support Dynamic data structures and memory allocators Lock-free radix tree Inter-processor communications (IPC) Hybrid H/W-S/W barriers Consistency module in the OS kernel In the paper ~1,5K GPU LOC, ~600 CPU LOC 36 Mark Silberstein - UTAustin

  37. Evaluation All benchmarks are written as a GPU kernel: no CPU-side development 37 Mark Silberstein - UTAustin

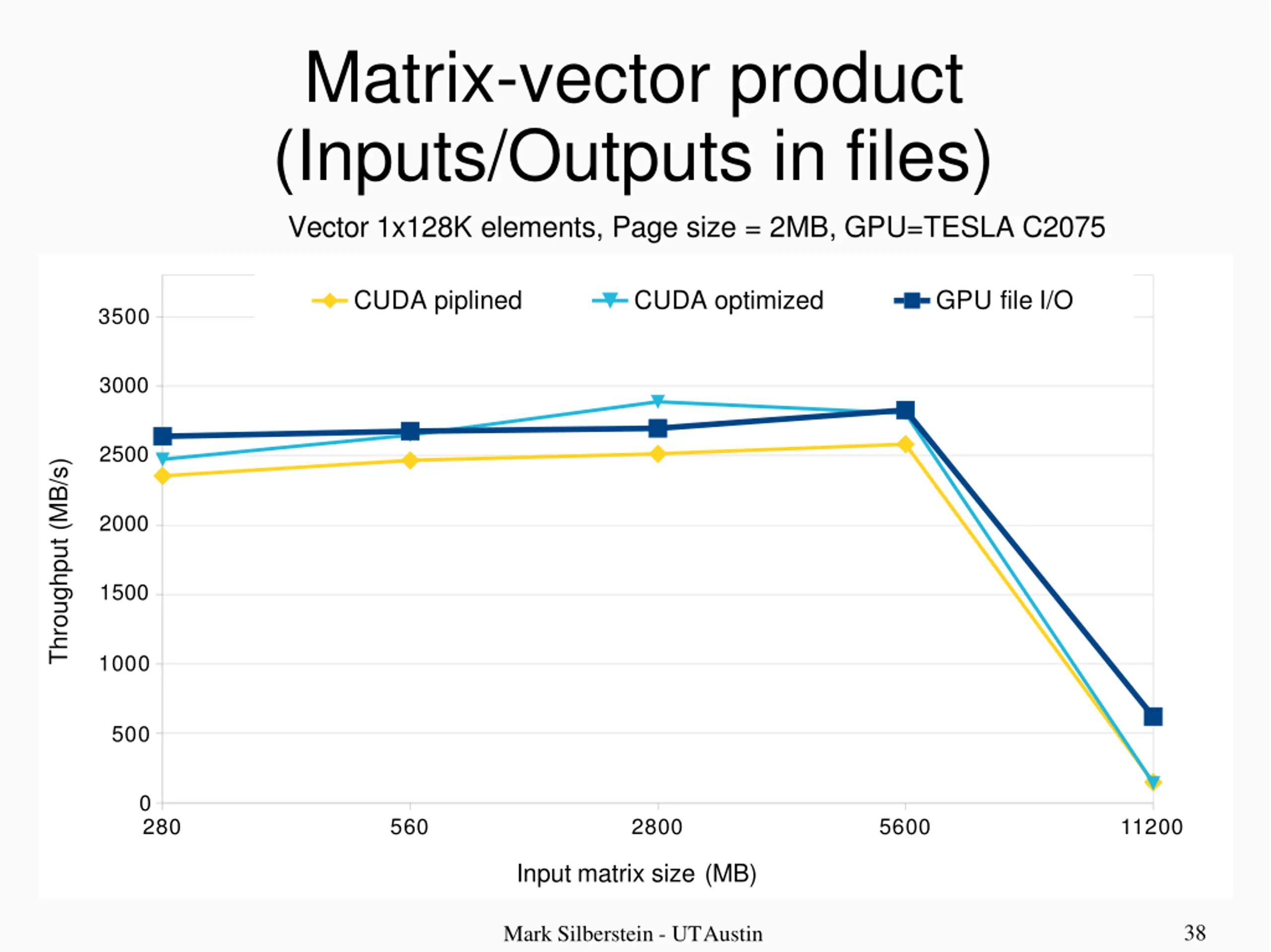

  38. Matrix-vector product (Inputs/Outputs in files) Vector 1x128K elements, Page size = 2MB, GPU=TESLA C2075 CUDA piplined CUDA optimized GPU file I/O 3500 3000 2500 Throughput (MB/s) 2000 1500 1000 500 0 280 560 2800 5600 11200 Input matrix size (MB) 38 Mark Silberstein - UTAustin

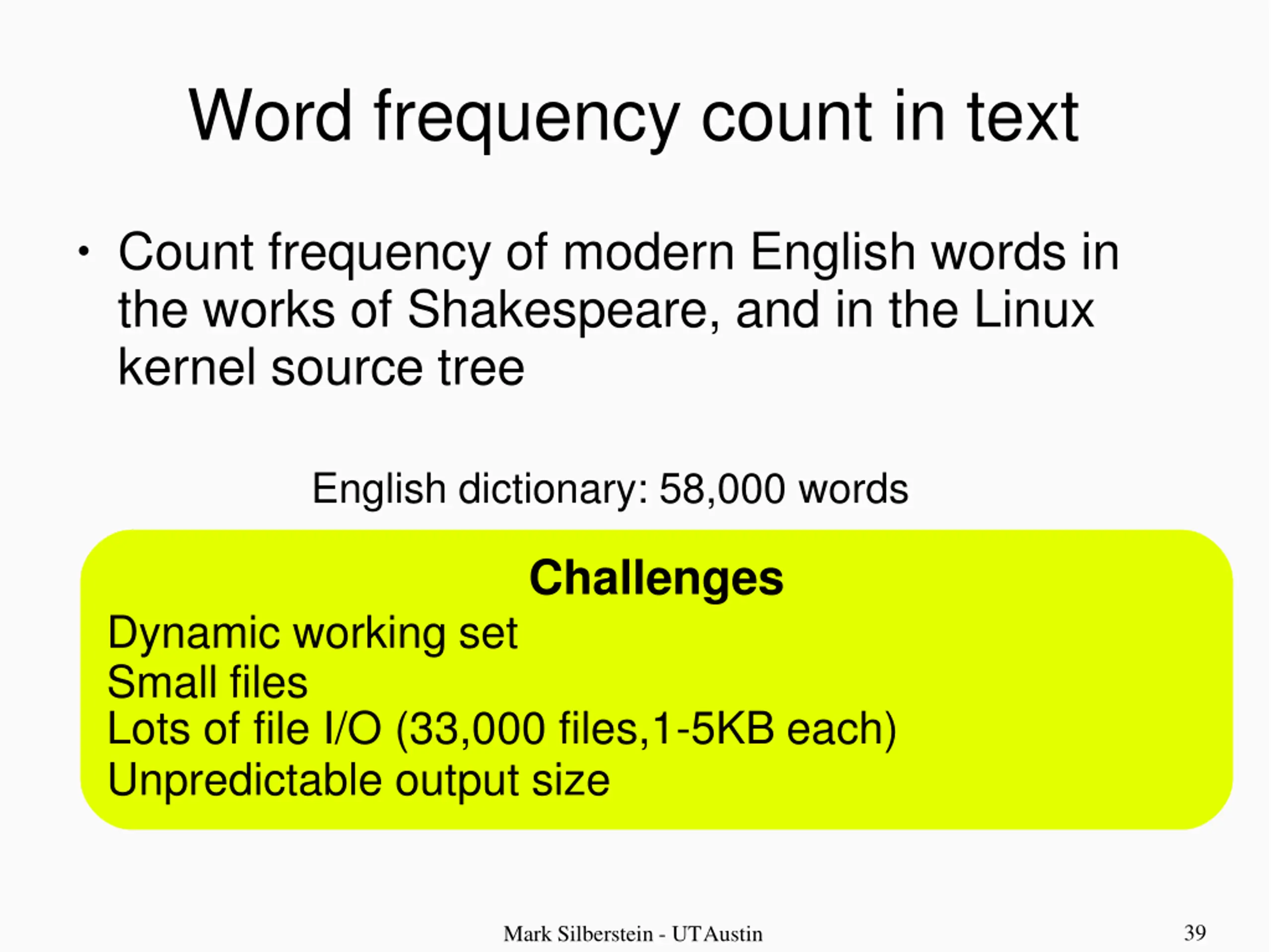

  39. Word frequency count in text Count frequency of modern English words in the works of Shakespeare, and in the Linux kernel source tree English dictionary: 58,000 words Challenges Dynamic working set Small files Lots of file I/O (33,000 files,1-5KB each) Unpredictable output size 39 Mark Silberstein - UTAustin

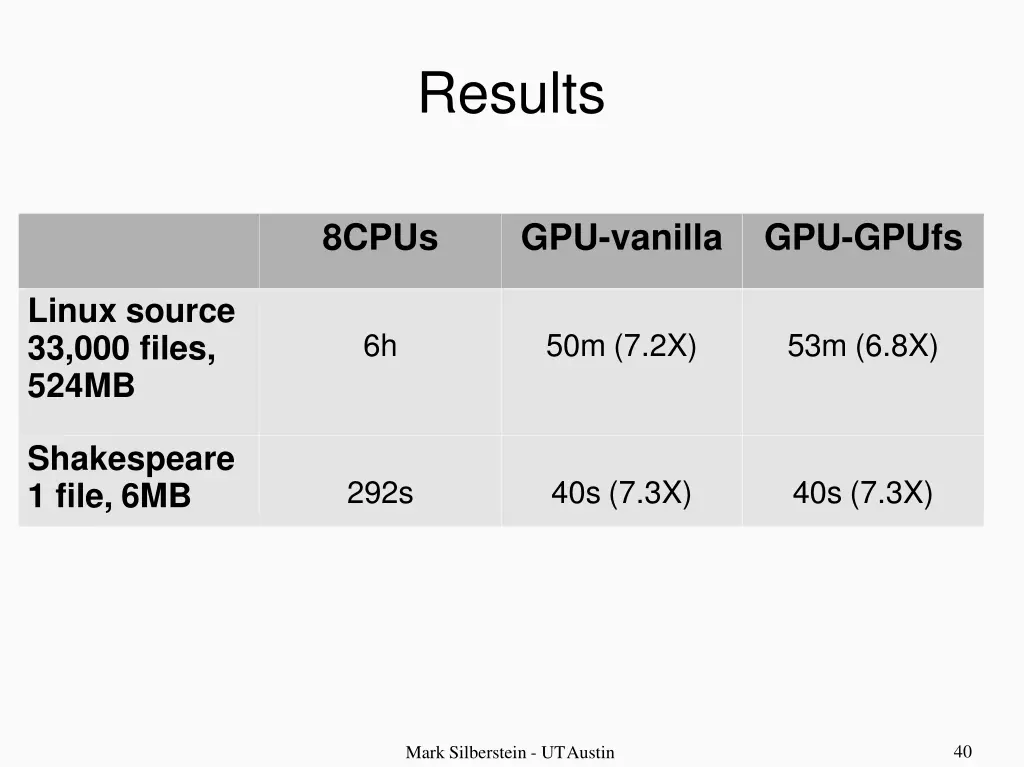

  40. Results 8CPUs GPU-vanilla GPU-GPUfs Linux source 33,000 files, 524MB 6h 50m (7.2X) 53m (6.8X) Shakespeare 1 file, 6MB 292s 40s (7.3X) 40s (7.3X) 40 Mark Silberstein - UTAustin

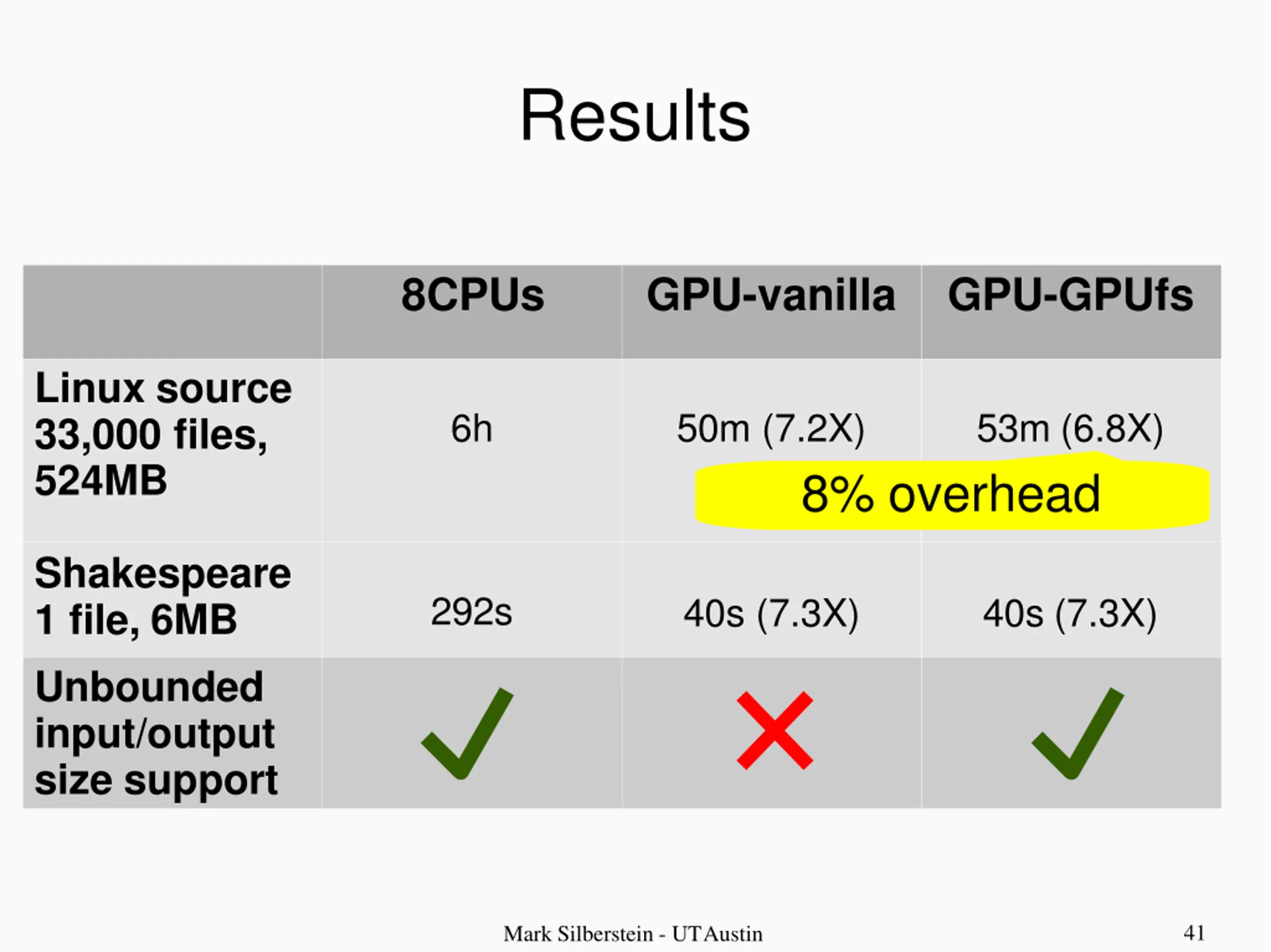

  41. Results 8CPUs GPU-vanilla GPU-GPUfs Linux source 33,000 files, 524MB 6h 50m (7.2X) 53m (6.8X) 8% overhead Shakespeare 1 file, 6MB Unbounded input/output size support 292s 40s (7.3X) 40s (7.3X) 41 Mark Silberstein - UTAustin

  42. GPUfs is the first system to provide native access to host OS services from GPU programs GPUfs CPU CPU GPU GPU Code is available for download at: https://sites.google.com/site/silbersteinmark/Home/gpufs http://goo.gl/ofJ6J 42 Mark Silberstein - UTAustin
