Importance of Mechanical Properties in Materials Science and Engineering
Mechanical properties play a crucial role in designing materials for high strength, understanding real-life performance, and correlating with structure. Key concepts include stress, strain, tension tests, compression tests, shear tests, and torsional tests, which help in assessing a material's behavior under various loading conditions. Elastic deformation and stress-strain behavior, including Hooke's Law and Young's modulus, provide fundamental insights into material response to external forces.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
E N D
Presentation Transcript

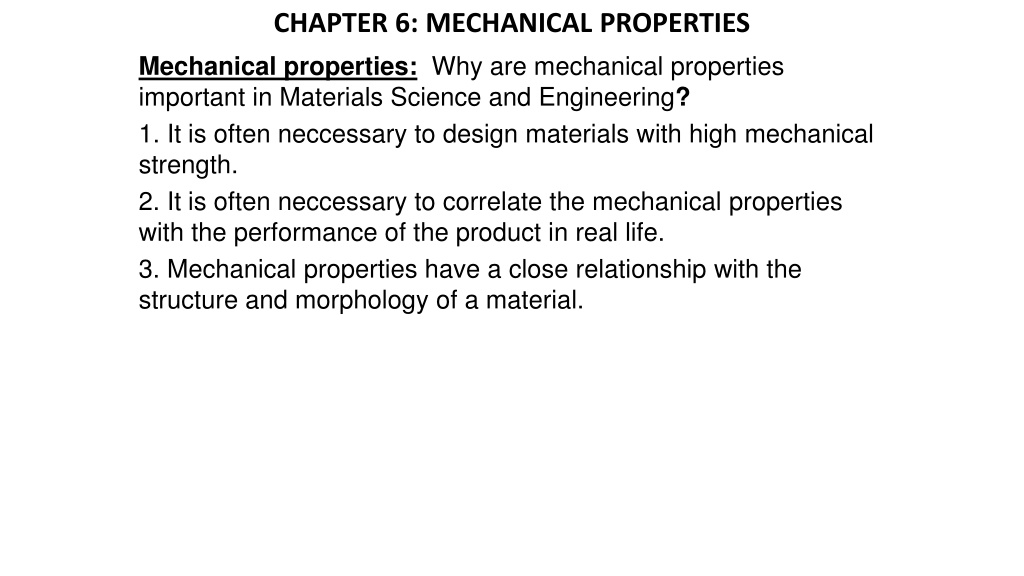

CHAPTER 6: MECHANICAL PROPERTIES Mechanical properties: Why are mechanical properties important in Materials Science and Engineering? 1. It is often neccessary to design materials with high mechanical strength. 2. It is often neccessary to correlate the mechanical properties with the performance of the product in real life. 3. Mechanical properties have a close relationship with the structure and morphology of a material.
CHAPTER 6: MECHANICAL PROPERTIES Stress: It is the ratio of a load (usually in N) applied to the surface area of a material to the cross-sectional area. = Force/Area The unit of the stress is Pascal (1 N/m2). Strain: It is the ratio of the change in the length of a material to its initial length. Tension Tests: An increasing load, F is applied uniaxially along the long axis of a specimen.
Compression Tests: This test is the opposite of tension test. During the compression test, the specimen contracts along the direction of the stress. The force that is applied to the specimen is compressive. Figure 6.1 Engineering Stress: It is the force or load that is applied to the specimen divided by the initial cross-sectional area. = Force / Initial Area = F/Ao Engineering Strain: It is the change of the length of a specimen (the final length-the initial length) that is divided by the initial length. = (l-lo)/lo
Shear Tests: A force, F is applied parallel to the upper and lower faces of a specimen, and the specimen is deformed along the direction of the applied force. Figure 6.2 Torsional Tests: During the torsion test, torsional forces produce a rotational motion about the long axis of the specimen. Figure 6.3
Torsional stress
ELASTIC DEFORMATION: In elastic deformation, the stress and strain are linearly proportional to each other. In other words, the plot of stress versus strain is a linear line. The slope of this line is E (Young s modulus). Figure 6.4: Stress-strain plot for an elastic deformation STRESS STRAIN BEHAVIOR: For most metals, at low stress and strain values, the stress and strain are proportional to each other. = E This relation is called Hooke s Law. E is called the Modulus of elasticity or Young s modulus. The unit of E is psi (pounds per square inch) or MPa (Megapascal=106Pascal).
