Implementation and Demonstration of eBCS Concept in IEEE 802.11-19/1999r0
This presentation showcases the implementation and demonstration of the eBCS concept, including the system architecture, utilization of eBCS AP and STA, web server functionality, and data transmission processes. It covers the use of LDPC-Staircase/Triangle for packet transmission, IP multicast for data delivery, and digital signature for security. The presentation also details the interaction between eBCS AP and eBCS STA, the process of receiving and reconstructing contents, and enabling transmission rate configuration. Overall, it provides a comprehensive overview of how eBCS operates within the IEEE 802.11 framework.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
E N D
Presentation Transcript

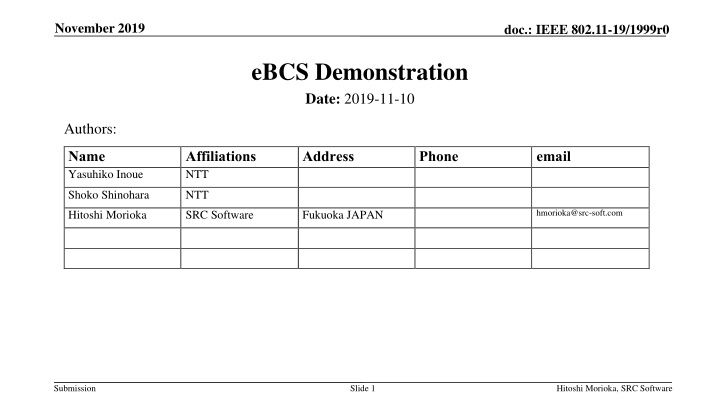

November 2019 doc.: IEEE 802.11-19/1999r0 eBCS Demonstration Date: 2019-11-10 Authors: Name Yasuhiko Inoue Affiliations NTT Address Phone email Shoko Shinohara NTT hmorioka@src-soft.com Hitoshi Morioka SRC Software Fukuoka JAPAN Submission Slide 1 Hitoshi Morioka, SRC Software
November 2019 doc.: IEEE 802.11-19/1999r0 Abstract This presentation introduces an implementation and demonstration of the concept of eBCS. Submission Slide 2 Hitoshi Morioka, SRC Software
November 2019 doc.: IEEE 802.11-19/1999r0 System Architecture eBCS AP eBCS STA Web server eBCS AP eBCS STA Web server eBCS STA eBCS AP Web server eBCS (broadcast) HTTP (unicast) Submission Slide 3 Hitoshi Morioka, SRC Software
November 2019 doc.: IEEE 802.11-19/1999r0 Web Server Usual Web server Nginx No modifications Provide contents Web pages Live video streaming (HLS) Provide contents information Title File list Hash value of each file Destination multicast IP address / UDP port Storage Write contents information HTTP Read contents bcsgenci nginx Submission Slide 4 Hitoshi Morioka, SRC Software
November 2019 doc.: IEEE 802.11-19/1999r0 eBCS AP Get contents By HTTP bcstx bcsap Kernel Get contents from web servers by HTTP Serialize, compress, separate into packets Apply LDPC-Staircase/Triangle (RFC5170) Transmit the packets to loopback interface as IP multicast Serialize/compress/separate LDPC-Starcase/Triangle bcstx IP multicast Loopback I/F Receive IP multicast packets from loopback interface Generate keys Transmit eBCS Info frames and eBCS Data frames Use digital signature and TESLA Please refer 11-19/451r5 for the frame sequence Both eBCS Info frames and eBCS Data frames are Action frames IP multicast Generate keys Generate eBCS Info/Data frames bcsap eBCS Info eBCS Data Modify to enable configuring transmission rate Submission Slide 5 Hitoshi Morioka, SRC Software
November 2019 doc.: IEEE 802.11-19/1999r0 eBCS STA eBCS Info/Data (PCAP) bcssta bcsrx nginx bcsplay Kernel bcssta Authenticate Receive eBCS frames via PCAP Authenticate eBCS frames Transmit the packets to loopback interface as IP multicast Display IP multicast Loopback I/F Receive IP multicast packets from loopback interface Reconstruct contents with LDPC-Staircase/Triangle Write contents to the storage bcsplay IP multicast HTTP bcsrx nginx Reconstruct contents Provide contents to bcsplay Contents Poll contents Display contents Storage Modify the driver to enable monitor mode Submission Slide 6 Hitoshi Morioka, SRC Software
November 2019 doc.: IEEE 802.11-19/1999r0 Parameters WLAN eBCS Application Layer LDPC-Triangle Code rate: 2/3 Packet transmission interval: 1ms 2.4GHz 20MHz bandwidth (Ch11) IEEE 802.11n (HT) MCS3 for eBCS Data IEEE 802.11n (HT) MCS1 for eBCS Info Digital signature: RSA2048 Hash for TESLA: SHA256 eBCS Info interval: 1s TESLA Key Change Interval: 100ms Submission Slide 7 Hitoshi Morioka, SRC Software
November 2019 doc.: IEEE 802.11-19/1999r0 Demonstration Video Submission Slide 8 Hitoshi Morioka, SRC Software
November 2019 doc.: IEEE 802.11-19/1999r0 References 11-19/451r5 eBCS Frame Authentication Proposal 11-19/850r0 Expected Total System Architecture Submission Slide 9 Hitoshi Morioka, SRC Software
