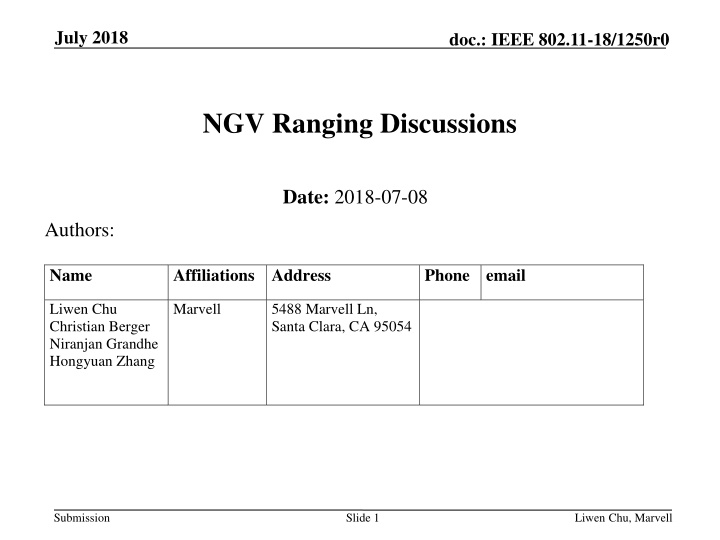

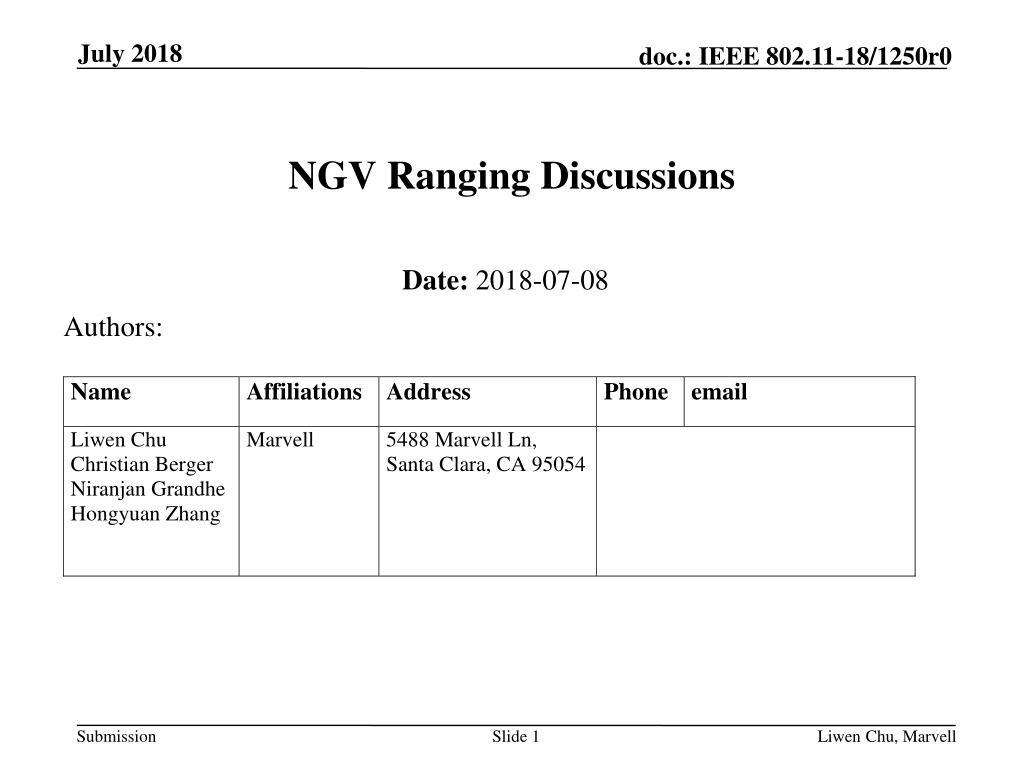

1. July 2018 doc.: IEEE 802.11-18/1250r0 NGV Ranging Discussions Date: 2018-07-08 Authors: Name Affiliations Address Phone email Liwen Chu Christian Berger Niranjan Grandhe Hongyuan Zhang Marvell 5488 Marvell Ln, Santa Clara, CA 95054 Submission Slide 1 Liwen Chu, Marvell

2. July 2018 doc.: IEEE 802.11-18/1250r0 Use Cases Related Ranging Ranging measurement between cars (V2V): Find the range between cars when other technology is not applicable Locationing of car (V2I): Find the car s location when other technology is not applicable. Example: the Urban canyon scenario, where GPS is not available or not accurate. Submission Slide 2 Liwen Chu, Marvell

3. 03/06/2018 doc.: IEEE 802.11-18/1250r0 Recap: Ranging/Locationing in 802.11 11mc: FTM based ranging Multiple TXOPs for one ranging (one Action (FTM Request, FTM) and its acknowledgment in one TXOP) Applicable to associated/unassociated STAs 11az: NDP SU ranging At least Three TXOPs for one ranging (11az FTM Request + Ack, 11az FTM + Ack, UL NDPA + UL NDP + DL NDP + DL measurement feedback) Applicable to associated/unassociated STAs 11az: NDP MU ranging one negotiation + multiple MU NDP measurement where each measurement is in one TXOP Applicable to associated/unassociated STAs with one AP 11az: snoop-based ranging variant of NDP MU ranging Listening STAs need to decode Trigger frame Submission Slide 3 Hongyuan Zhang, Marvell, et al

4. July 2018 doc.: IEEE 802.11-18/1250r0 Possible Enhancement for NGV Ranging NDP based ranging Decreasing the number of TXOPs for each non-snoop based ranging Enabling decoding of Trigger for snoop-based NDP ranging Either OCB based or BSS based MAC may be used for ranging. Submission Slide 4 Liwen Chu, Marvell
