The document discusses the mapping of TGbh use cases to WBA use cases, aiming to provide a response to a liaison request. It covers various WBA use cases such as network access restrictions, device diagnostics, network band steering, and more. Additionally, it outlines TGbh use cases related to client steering, device identification, home automation, security, and more. The status and scope of each use case are highlighted, indicating whether it falls within the project's purview. Overall, the goal is to achieve consensus on use case mapping for constructing an appropriate response.

borboa_f Follow

Uploaded on Nov 14, 2024 | 0 Views

Download Presentation

Please find below an Image/Link to download the presentation.

The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.

E N D

Presentation Transcript

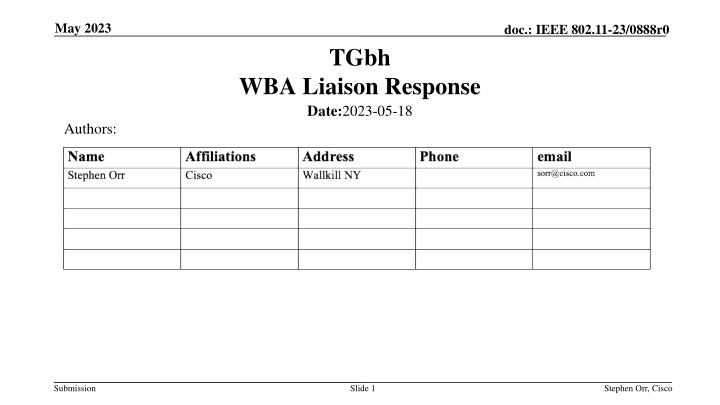

May 2023 doc.: IEEE 802.11-23/0888r0 TGbh WBA Liaison Response Date:2023-05-18 Authors: Submission Slide 1 Stephen Orr, Cisco

May 2023 doc.: IEEE 802.11-23/0888r0 Objective Map TGbh Use cases to WBA use cases and provide a response to the 2021 Liaison request. Goal is to get consensus on the mapping of the use cases so a response can be constructed. Submission Slide 2 Stephen Orr, Cisco

May 2023 doc.: IEEE 802.11-23/0888r0 Reference documents 11-21/0703r0: Liaison from Wireless Broadband Alliance (WBA) 11-21/1141r0: Excerpts of WBA Document Wi-Fi Identification Scope 11-22/0668r0: Liaison Statement to IEEE 802.11 11-22/0653r0: Wi-Fi Devices Identification 11-21/0332r37: TGbh issues tracking document Submission Slide 3 Stephen Orr, Cisco

May 2023 doc.: IEEE 802.11-23/0888r0 WBA Use Cases WBA Use Case # WBA Use Case Name For private home network access restrictions / privileges (including parental controls, per-device or per-user QoS) For Pay-per-Use networks - identification of complementary and paid-up users or devices 1 2 IP Address allocation in private, public and enterprise networks 3 Private home network device diagnostics and performance monitoring Enterprise network or device diagnostics and performance monitoring 4 5 6 Private home networks and enterprise networks band steering with multi-ESS networks (e.g., split-SSID installations) Hospitality and venue network access with varying service levels Pay-per-Use network access 7 Operators public networks block devices that have expired or invalidated credentials and rapidly and repeatedly reattempt to connect Network blocks devices due to abusive behavior or upon lawful demand 8 9 Passpoint networks record the acceptance of T&Cs on the AAA Networks, typically using 802.1X, that use the device MAC to tie devices to certificates for certificate enrolment Any network operator responding to requests for communications records, lawful interception, and other law enforcement purposes 10 11 Stephen Orr, Cisco Submission Slide 4

May 2023 doc.: IEEE 802.11-23/0888r0 TGbh Uses Cases TGbh Use Case # TGbh Use Case Name TGbh Status TGbh Comments 4.1 4.2 4.3 4.4 4.5 4.6 4.7 4.8 4.9 Pre-association client steering During associating/Post-association (returning) device identification per network/SSID basis Post-association home automation/arrival detection Airport security queue Grocery store customer (movement) analysis Grocery store frequent shopper Infrastructure with different SSIDs Infrastructure use of probes Unapproved client detection In scope In scope In scope Out of scope Out of scope In scope Out of scope In scope Out of scope assuming we evaluate criteria assuming we evaluate criteria assuming we evaluate criteria but drives can t track criteria but drives can t track criteria assuming we evaluate criteria assuming we evaluate criteria 4.10 Approved client in secured environment In scope Maps partially to post-association use cases, and partially a pre-association issue? 4.11 4.12 Approved and secured client taking unexpected actions Unapproved AP detection Out of scope Out of scope Not an RCM issue 4.13 Mobile AP Recommendation might consider a solution, if one presented would need to address the lack of this terminology in 802.11 4.14 Recommendation Can be solved with 802.1X security, or SAE passwords, or Wi-Fi Easy Connect, or BRSKI (where does the list end out of band anything?)?. Onboarding a known MAC address 4.15 Customer support and troubleshooting In scope Aspects are within our scope, might be alternative interface(s) to access and/or control the MAC address behavior. 4.16 4.17 4.18 4.19 Residential gateway with public hotspot Lawful surveillance Emergency services Public Wi-Fi hotspot roaming Out of scope Out of scope Out of scope Out of scope covered by above use cases 4.20 MAC address collisions (WBA) Out of scope Could add recommendations on ways to help avoid the problem 4.21 Accounting and billing issues (WBA) Out of scope Nothing new. Was a broken idea (not an appropriate/reliable identifier) in the first place. 4.22 QoS and QoE (WBA) Recommendation Can be solved with 802.1X security, or SAE passwords, or Wi-Fi Easy Connect, or BRSKI (where does the list end out of band anything?)?. 4.23 DHCP pool exhaustion Recommendation 4.24 Inconsistent DHCP address assignment (WBA) Recommendation At best, recommendations (same recommendations as 4.23?). Really out of scope. 4.25 4.26 ACLs/firewalls (WBA) Virtual BSSID (follow the user) In scope In scope Same as use case 4.2 (IP-based ACL is out of Scope) assuming we evaluate criteria Submission Slide 5 Stephen Orr, Cisco

May 2023 doc.: IEEE 802.11-23/0888r0 Mapping TGbh to WBA use cases TGbh Use Case # TGbh Use Case Name TGbh Status TGbh Comments WBA Mapped Use Case 4.1 4.2 4.3 4.6 4.8 Pre-association client steering During associating/Post-association (returning) device identification per network/SSID basis Post-association home automation/arrival detection Grocery store frequent shopper Infrastructure use of probes In scope In scope In scope In scope In scope assuming we evaluate criteria assuming we evaluate criteria assuming we evaluate criteria assuming we evaluate criteria assuming we evaluate criteria 4 1,5,6 1 5 1,4,5,6,10 Maps partially to post-association use cases, and partially a pre-association issue? 4.10 Approved client in secured environment In scope 1,4,5,6,10 might consider a solution, if one presented would need to address the lack of this terminology in 802.11 4.13 Mobile AP Recommendation 1 Can be solved with 802.1X security, or SAE passwords, or Wi-Fi Easy Connect, or BRSKI (where does the list end out of band anything?)?. 4.14 Recommendation 1,5,6,10 Onboarding a known MAC address Aspects are within our scope, might be alternative interface(s) to access and/or control the MAC address behavior. 4.15 Customer support and troubleshooting In scope 3 Can be solved with 802.1X security, or SAE passwords, or Wi-Fi Easy Connect, or BRSKI (where does the list end out of band anything?)?. 4.22 QoS and QoE (WBA) Recommendation 1,5,6,10 4.23 DHCP pool exhaustion Recommendation 2 At best, recommendations (same recommendations as 4.23?). Really out of scope. 4.24 Inconsistent DHCP address assignment (WBA) Recommendation 2 4.25 4.26 ACLs/firewalls (WBA) Virtual BSSID (follow the user) In scope In scope Same as use case 4.2 (IP-based ACL is out of Scope) assuming we evaluate criteria 1,7,8 1,5,6,10 Submission Slide 6 Stephen Orr, Cisco

May 2023 doc.: IEEE 802.11-23/0888r0 WBA Use Cases not in Scope 8 9 Network blocks devices due to abusive behavior or upon lawful demand Passpoint networks record the acceptance of T&Cs on the AAA Any network operator responding to requests for communications records, lawful interception, and other law enforcement purposes 11 Submission Slide 7 Stephen Orr, Cisco
