IEEE 802.11-21/1321r1 WLAN Sensing Procedure Proposal
This document by Solomon Trainin from Qualcomm presents a proposal on aligning the SFD for the WLAN sensing procedure. It aims to resolve contradictions, optimize behavior, and introduce a structured WLAN sensing procedure. The content outlines phases, terminology, setup, measurement, and reporting aspects to enhance the efficiency of the sensing process.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
E N D
Presentation Transcript

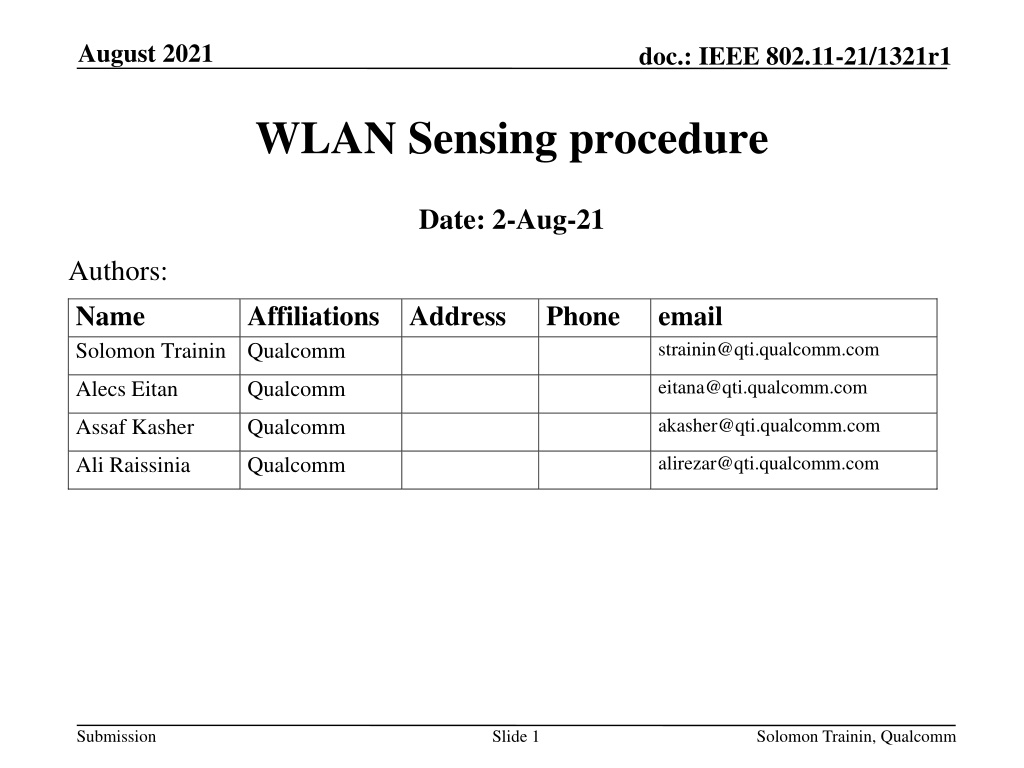

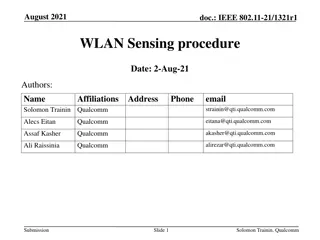

August 2021 doc.: IEEE 802.11-21/1321r1 WLAN Sensing procedure Date: 2-Aug-21 Authors: Name Solomon Trainin Qualcomm Affiliations Address Phone email strainin@qti.qualcomm.com eitana@qti.qualcomm.com Alecs Eitan Qualcomm akasher@qti.qualcomm.com Assaf Kasher Qualcomm alirezar@qti.qualcomm.com Ali Raissinia Qualcomm Submission Slide 1 Solomon Trainin, Qualcomm
August 2021 doc.: IEEE 802.11-21/1321r1 Abstract A proposal on how to align the SFD and to be ready to draft the spec Submission Slide 2 Solomon Trainin, Qualcomm
August 2021 doc.: IEEE 802.11-21/1321r1 General 1. Resolve contradictions in the existent SFD text 2. Comment on Introduce the entire WLAN Sensing procedure Organize the procedure, setup, measurement, and reporting Present an example of the timeline 3. Optimize behavior avoid excessive link accesses Submission Slide 3 Solomon Trainin, Qualcomm
August 2021 doc.: IEEE 802.11-21/1321r1 Very few about terminology We already have the WLAN sensing procedure keep it as a container of the entire behavior Phase is an atomic part, Atomic, this is the part that can no longer be divided. For example, there is no NDPA without NDP. The measurement is not a phase because it contains many parts, and we already have the measurement instance that pretends to cover multiple parts Example of phase: polling, NDPA sounding, TF sounding, reporting Submission Slide 4 Solomon Trainin, Qualcomm
August 2021 doc.: IEEE 802.11-21/1321r1 WLAN sensing procedure outline WLAN sensing procedure WLAN sensing session setup WLAN sensing measurement setup General TB sensing measurement setup Non-TB sensing measurement setup WLAN sensing measurement instance General TB sensing measurement instance Polling phase NDPA sounding phase TF sounding phase Reporting phase Non-TB sensing measurement instance WLAN sensing measurement setup termination WLAN sensing session termination Threshold-based measurement and reporting Submission Slide 5 Solomon Trainin, Qualcomm
August 2021 doc.: IEEE 802.11-21/1321r1 WLAN sensing (SENS) procedure Measurement instance ID Measurement instance ID Measurement instance ID Measurement instance ID Measurement instance ID Measurement instance ID Measurement setup ID Measurement setup ID Measurement setup ID Measurement setup ID Measurement setup ID Measurement setup ID Measurement setup ID Measurement setup ID Measurement setup ID Measurement setup ID Measurement setup ID AID/UID AID/UID AID/UID AID/UID AID/UID AID/UID AID/UID AID/UID AID/UID AID/UID Measurement setup Measurement setup Measurement setup Measurement setup Measurement setup Sensing session Measurement Instance: Measurement, reporting. Measurement Instance: Measurement, reporting. Measurement Instance: Measurement, reporting. Measurement Instance: Measurement, reporting. Measurement Instance: Measurement, reporting. Measurement Instance: Measurement, reporting. Session setup Session setup Session setup termination termination . . . . . . . . . T One to many announcement/ triggering. One to many and many to one sounding Pairwise conversation Measurement setup Measurement setup Sensing session Measurement Instance: Measurement, reporting. Session setup termination termination Submission Slide 6 Solomon Trainin, Qualcomm
August 2021 doc.: IEEE 802.11-21/1321r1 TB sensing measurement instance (examples) (example 5) TB sensing measurement instance (1) TB sensing measurement instance (2) TB sensing measurement instance (example 1) TB sensing measurement instance (example 2) TB sensing measurement instance (example 3) TB sensing measurement instance (example 4) LTF sec. update LTF sec. update LTF sec. update LTF sec. update LTF sec. update LTF sec. update LTF sec. update LTF sec. update LTF sec. update NDPA sounding LTF sec. update NDPA sounding NDPA sounding NDPA sounding Reporting + Reporting + Reporting + Reporting + TF sounding TF sounding TF sounding TF sounding Reporting + Reporting + Reporting + Reporting + Polling Polling Polling Polling Polling Polling TBD how to define the sounding order, as in example 3 or as in example 4. TBD The polling on reporting phase in example 5 could be addressed to responders other than those involved in the sounding. TBD The reporting phase in example 5 may be separated from the sounding phases. TBD LTF security update Submission Slide 7 Solomon Trainin, Qualcomm
August 2021 doc.: IEEE 802.11-21/1321r1 SP1 Do you agree that the WLAN sensing procedure is defined as outlined in slide 5? Submission Slide 8 Solomon Trainin, Qualcomm
