IEEE 802.11-17/1428r1 Deterministic Backoff Rules
Deterministic Backoff

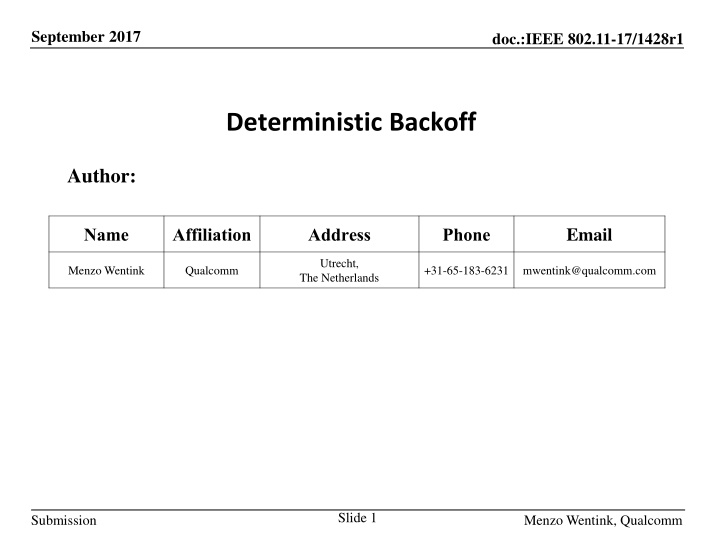

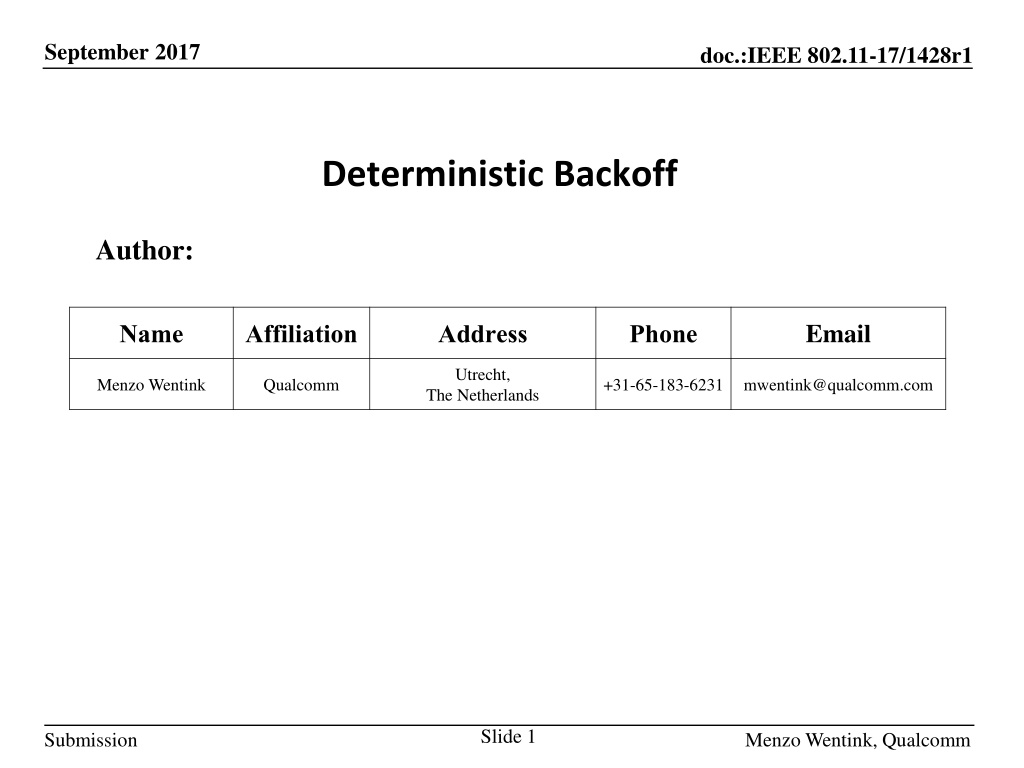

Slide 1
Author:
Deterministic Backoff
–
Rules
•
If less than three consecutive collisions occurred
–
backoff
= 10 + i
•
i = number of interruptions during past backoff (CCA busy events)
•
Else
–
backoff = random between 0 and 3
•
i is not updated after a random backoff
Slide 2
Simulation 1: 2x7 APs
•
Simulation settings
–
2 clusters
–
7 APs per cluster
–
No contended uplink
–
Full buffer traffic
–
5 m distance, 10 dBm Tx power (no hidden nodes)
Slide 3
2x7 APs
Deterministic Backoff
Slide 4
2x7 APs
Exponential Backoff
Slide 5
Simulation 2: 10x7 APs
•
Simulation settings
–
10 clusters
–
7 APs per cluster
–
No contended uplink
–
Full buffer traffic
–
20 m distance, 10 dBm Tx power
Slide 6
10x7 APs
Deterministic Backoff
Slide 7
10x7 APs
Exponential Backoff
Slide 8
Simulation 3: Mixing Deterministic and Exponential
•
Simulation settings
–
2 clusters
–
7 APs per cluster
–
No contended uplink
–
Full buffer traffic
–
5 m distance, 10 dBm Tx power (no hidden nodes)
Slide 9
14x Exponential
Slide 10
13x Exponential
1x Deterministic
Slide 11
7x Exponential
7x Deterministic
Slide 12
1x Exponential
13x Deterministic
Slide 13

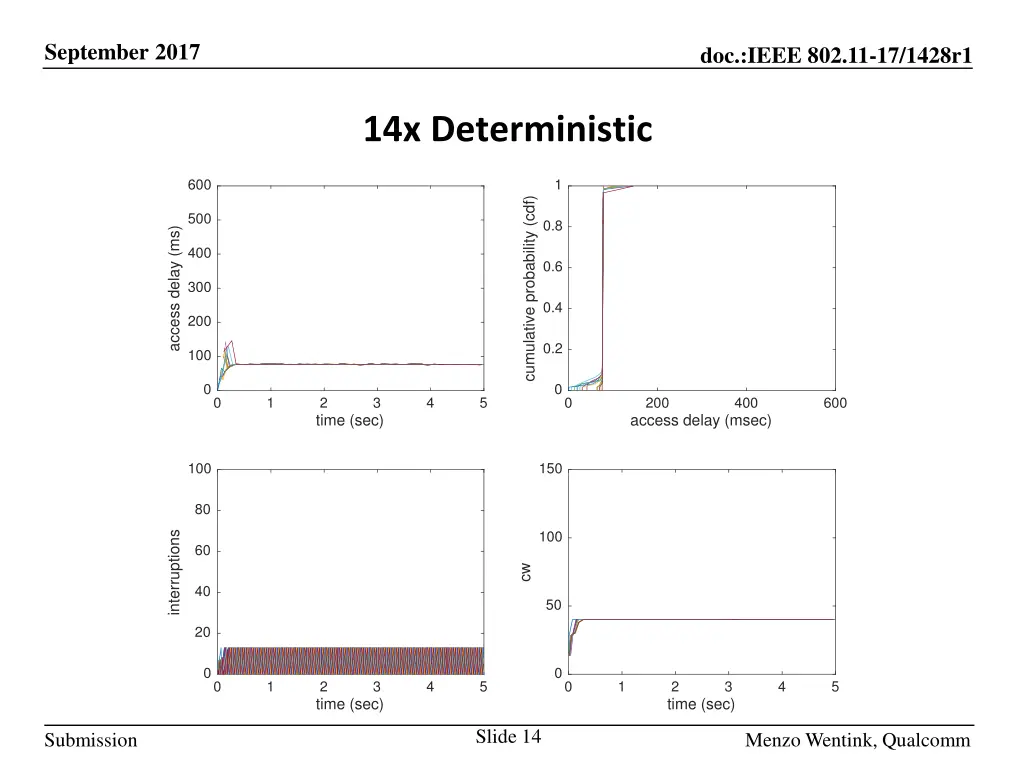

14x Deterministic
Slide 14
References
•
11-15-1152-01-000m-moderated-backoff
•
11-15-1437-00-000m-experimental-evaluation-of-moderated-edca-over-wmp
•
MAC Design on Real 802.11 Devices: from Exponential to Moderated Backoff
–
WoWMon paper by Ilenia Tinnirello, Menzo Wentink, Domenico Garlisi, Fabrizio Giuliano, Giuseppe
Bianchi (Universita ́ di Palermo, Qualcomm, Universita ́ di Roma Tor Vergata)
Slide 15
This document dated September 2017 discusses deterministic backoff rules for IEEE 802.11-17/1428r1, outlining specific algorithms for managing backoff periods in wireless communication systems. It delves into scenarios of collisions, interruptions, and access delays, providing insights into how to optimize network performance.
