Hyper.block Concept for Efficient NBA-MMS Slot Resource Management

Slide Note
Embed
Share

Utilizing a hyper.block-based mode for NBA-MMS can provide enhanced slot resource efficiency in densely populated areas. This approach addresses the need for improved coverage and reliability while optimizing slot allocation based on channel conditions and factors affecting preamble transmission. The hyper.block configuration defined by HBS IEs offers a solution to efficiently manage slot resources in high-traffic scenarios.


Uploaded on Oct 10, 2024 | 0 Views


Download Presentation

Please find below an Image/Link to download the presentation.

The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.

E N D

Presentation Transcript

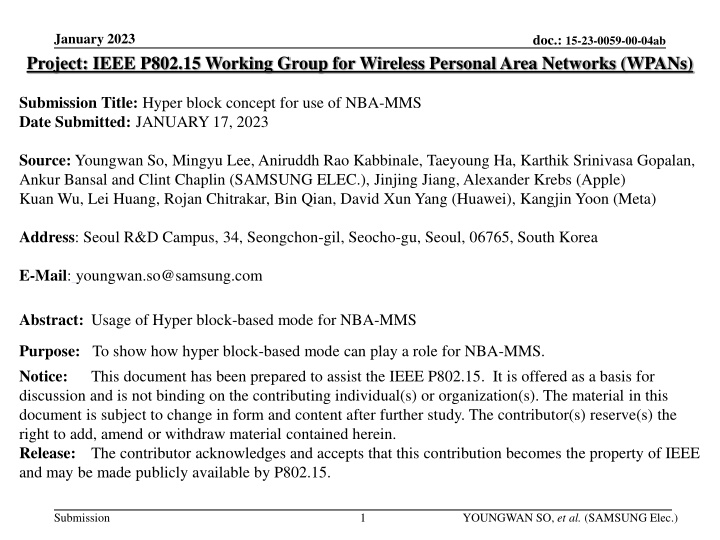

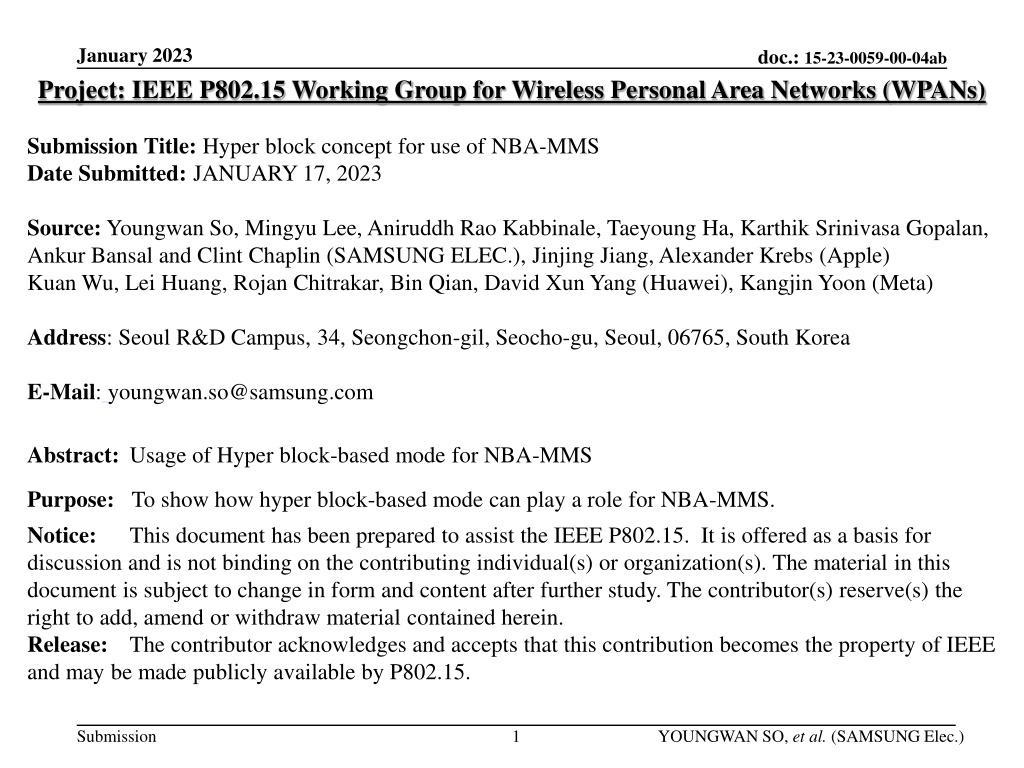

  1. January 2023 Project: IEEE P802.15 Working Group for Wireless Personal Area Networks (WPANs) doc.: 15-23-0059-00-04ab Submission Title: Hyper block concept for use of NBA-MMS Date Submitted: JANUARY 17, 2023 Source: Youngwan So, Mingyu Lee, Aniruddh Rao Kabbinale, Taeyoung Ha, Karthik Srinivasa Gopalan, Ankur Bansal and Clint Chaplin (SAMSUNG ELEC.), Jinjing Jiang, Alexander Krebs (Apple) Kuan Wu, Lei Huang, Rojan Chitrakar, Bin Qian, David Xun Yang (Huawei), Kangjin Yoon (Meta) Address: Seoul R&D Campus, 34, Seongchon-gil, Seocho-gu, Seoul, 06765, South Korea E-Mail: youngwan.so@samsung.com Abstract: Usage of Hyper block-based mode for NBA-MMS Purpose: To show how hyper block-based mode can play a role for NBA-MMS. Notice: This document has been prepared to assist the IEEE P802.15. It is offered as a basis for discussion and is not binding on the contributing individual(s) or organization(s). The material in this document is subject to change in form and content after further study. The contributor(s) reserve(s) the right to add, amend or withdraw material contained herein. Release: The contributor acknowledges and accepts that this contribution becomes the property of IEEE and may be made publicly available by P802.15. Submission 1 YOUNGWAN SO, et al. (SAMSUNG Elec.)

  2. January 2023 doc.: 15-23-0059-00-04ab PAR Objective Safeguards so that the high throughput data use cases will not cause significant disruption to low duty-cycle ranging use cases Interference mitigation techniques to support higher density and higher traffic use cases Other coexistence improvement Backward compatibility with enhanced ranging capable devices (ERDEVs) Improved link budget and/or reduced air-time Additional channels and operating frequencies Improvements to accuracy / precision / reliability and interoperability for high-integrity ranging Reduced complexity and power consumption Hybrid operation with narrowband signaling to assist UWB Enhanced native discovery and connection setup mechanisms Sensing capabilities to support presence detection and environment mapping Low-power low-latency streaming Higher data-rate streaming allowing at least 50 Mbit/s of throughput Support for peer-to-peer, peer-to-multi-peer, and station-to- infrastructure protocols Infrastructure synchronization mechanisms Proposed Solution (how addressed) Hyper block-based mode to support usage of NBA- MMS mode Submission Slide 2 YOUNGWAN SO, et al. (SAMSUNG Elec.)

  3. January 2023 doc.: 15-23-0059-00-04ab Recap and Background NBA-MMS is one of enhancement in 4ab to extend coverage and reliability. Fundamentally, it gains performance improvement by transmitting preamble multiple times, which means it may occupy more slots than legacy. Moreover, the number of preamble transmission will be varying according to many factors such as channel condition, etc. This trade-off may necessitates efficient use of slot resources in MMS, especially in dense area where slot resource may be scarce. Hyper block configuration is being defined by HBS IE [1]. Each block can be configured by the legacy IEs (e.g. ARC IE, RIU IE) or new IEs like AC IE. We thought about hyper block-based mode as one of way to contribute efficient usage of slot resources in MMS. [1] 15-22-0591-00-04ab-Proposed Text for 4ab MAC - Hyper Block-based Mode (November, 2022) Submission Slide 3 YOUNGWAN SO, et al. (SAMSUNG Elec.)

  4. January 2023 doc.: 15-23-0059-00-04ab Motivation MMS transmits the same signal multiple times which may differ per devices. The number of transmission in MMS can be determined based on link channel condition [2]. It means every block/rounds may have different lengths each other upon channel condition. RESPONSE REPORT POLL [NB] : Good Channel Condition [UWB] : 1 1 Round RESPONSE Bad Channel Condition REPORT POLL [NB] : [UWB] : 1 1 2 2 3 3 4 4 Worse Channel Condition Round RESPONSE REPORT POLL [NB] : [UWB] : 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 Round [2] 15-22-0378-00-04ab-On the selection of number of fragments in MMS UWB (July 22, 2022) Submission Slide 4 YOUNGWAN SO, et al. (SAMSUNG Elec.)

  5. January 2023 doc.: 15-23-0059-00-04ab Example of Hyper block-based mode for NBA-MMS Use Case : Supporting various ranging modes within a session. A session may be comprised of a concatenation of multiple different ranging modes. For example, a certain round may be comprised of a few one-to-one ranging, while another certain rounds are one-to-Many or Many-to-one ranging. That implies every round may require different length to do a certain ranging. MMS improves ranging performance such as link budget and reliability enhancement, but consumes more slots, which is a trade-off. One-to-M Ranging One-to-One Ranging One-to-One Ranging RESPONSE RESPONSE RESPONSE RESPONSE RESPONSE POLL REPORT REPORT REPORT REPORT REPORT POLL POLL POLL POLL [NB] : [UWB] : 1 1 4 4 1 1 2 2 3 3 6 6 1 1 4 4 1 1 2 2 5 5 3 3 1 1 4 4 2 2 3 3 One Ranging Round One Ranging Round One Ranging Round Submission Slide 5 YOUNGWAN SO, et al. (SAMSUNG Elec.)

  6. January 2023 doc.: 15-23-0059-00-04ab Example of Hyper block-based mode for NBA-MMS Hyper Block K+1 Hyper Block K Hyper Block K-1 Block 2 Block 0 Block 1 Block 0 Block 1 Block 2 Block 0 Block 1 Block 2 Hyper Block K Block 0 Block 2 Block 1 Round 5 Round 0 Round 0 Round 2 Round 0 Round 1 Round 1 RESPONSE RESPONSE RESPONSE RESPONSE RESPONSE RESPONSE RESPONSE RESPONSE POLL REPORT REPORT REPORT REPORT REPORT REPORT REPORT REPORT POLL POLL POLL POLL POLL POLL POLL [NB] : [UWB] : 1 1 1 1 4 4 1 1 4 4 1 1 2 2 2 2 1 1 3 3 3 3 6 6 1 1 4 4 1 1 2 2 5 5 3 3 1 1 4 4 2 2 3 3 One Ranging Round One Ranging Round One Ranging Round One Ranging Round One Ranging Round One Ranging Round RESPONSE REPORT POLL [NB] : 1ms 1ms 1ms 1ms 1ms [UWB] : 1 1 4 4 2 2 3 3 1ms 1ms Submission Slide 6 YOUNGWAN SO, et al. (SAMSUNG Elec.)

  7. January 2023 doc.: 15-23-0059-00-04ab Summary Hyper block-based mode can be a good match with NBA-MMS. Can allocate block/round (= time) resources adaptively to fit as demanded. Especially, hyper block-based mode may contribute in aspect of improving slot resource usage efficiency. We propose further development of hyper block-based mode as a tool for NBA-MMS enhancement. Submission Slide 7 YOUNGWAN SO, et al. (SAMSUNG Elec.)

  8. January 2023 doc.: 15-23-0059-00-04ab APPENDIX Submission Slide 8 YOUNGWAN SO, et al. (SAMSUNG Elec.)
