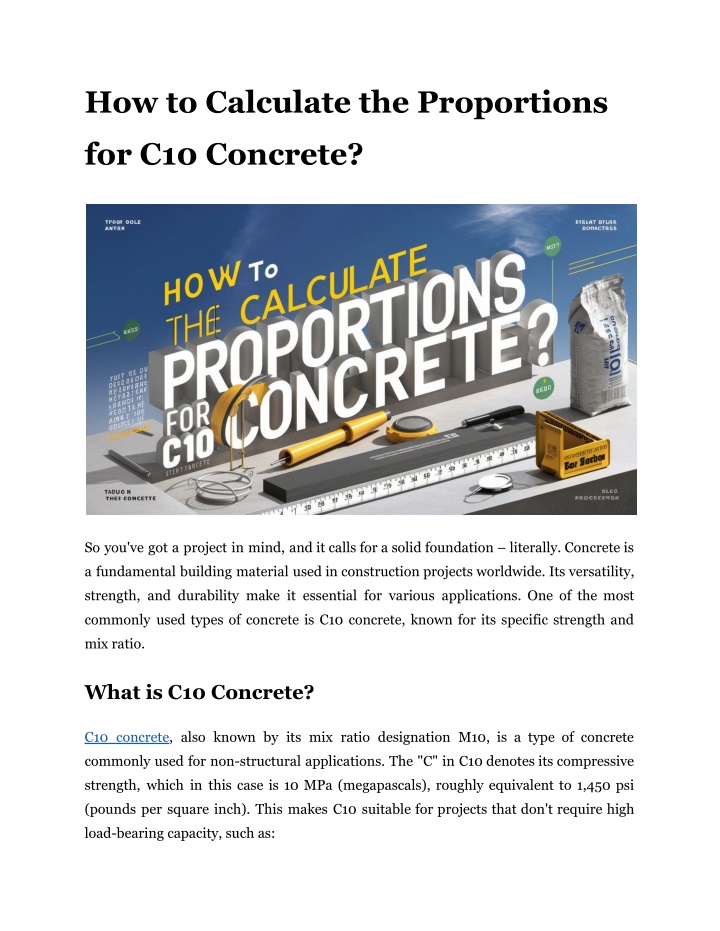

How to Calculate the Proportions for C10 Concrete?

How to Calculate the Proportions for C10 Concrete? So you've got a project in mind, and it calls for a solid foundation literally. Concrete is a fundamental building material used in construction projects worldwide. Its versatility, strength, and durability make it essential for various applications. One of the most commonly used types of concrete is C10 concrete, known for its specific strength and mix ratio. What is C10 Concrete? C10 concrete, also known by its mix ratio designation M10, is a type of concrete commonly used for non-structural applications. The "C" in C10 denotes its compressive strength, which in this case is 10 MPa (megapascals), roughly equivalent to 1,450 psi (pounds per square inch). This makes C10 suitable for projects that don't require high load-bearing capacity, such as:

Driveways Patios Walkways Shed slabs Pool surrounds Basement floors (non-load bearing) While C10 is a cost-effective option for these applications, it's important to remember that it's not meant for structural elements like walls, columns, or beams. For those projects, you'll need a higher-strength concrete mix like C15, C20, or even C30. Read More Articles: Decoding Manhattan Condo Listings: What Every Buyer Should Know Understanding The C10 Concrete Mix Ratio The magic behind C10 concrete lies in its mix ratio. This refers to the specific proportions of cement, sand (fine aggregate), and coarse aggregate (gravel or crushed rock) that are combined to create the concrete. A typical C10 concrete mix ratio is 1 part cement: 3 parts sand: and 6 parts coarse aggregate. Here's a closer look at each component: Cement: The binding agent that holds everything together as the concrete hydrates (cures). Sand (Fine Aggregate): Fills the voids between the cement particles and contributes to the overall strength and workability of the concrete. Coarse Aggregate (Gravel or Crushed Rock): Provides bulk and strength to the concrete mix. It's important to note that this is a volumetric ratio, meaning the parts are measured by volume, not weight. While it seems straightforward, there can be variations depending on the specific materials you're using. For instance, the density of different types of sand or gravel can affect the final volume needed to achieve the desired ratio.

Factors Affecting C10 Concrete Mix Proportions Water content Water plays a crucial role in the hydration process but too much water can weaken the concrete. A good rule of thumb is to use the minimum amount of water required to achieve a workable mix. Aggregate size and gradation The size and distribution (gradation) of the coarse aggregate can impact the amount of sand needed to fill the voids effectively. Desired workability Depending on your application, you might need a stiffer or more fluid mix. This will influence the amount of water used, which can then slightly alter the proportions of the other ingredients. Pro Tip: It's always recommended to consult with a concrete professional or use a reliable online concrete mix calculator to account for these variables and ensure you get the most accurate mix ratio for your specific needs. Step-by-Step Guide to Calculating Proportions for C10 Concrete Step 1: Determine the Total Volume of Concrete Needed The first step is to calculate the total volume of concrete required for your project. This can be done by measuring the length, width, and depth of the area where the concrete will be poured. Multiply these dimensions to get the volume in cubic meters (m ). If you need to pour a concrete slab measuring 5 meters long, 4 meters wide, and 0.1 meters thick, the volume would be:

Volume = 5m 4m 0.1m = 2m Step 2: Calculate the Proportions of Each Component Once you know the total volume of concrete needed, you can calculate the amount of each component using the C10 concrete mix ratio. Let s assume we are preparing 1 cubic meter of concrete. The proportions are based on the mix ratio of 1:4:8 (cement:sand:aggregate). Cement For 1 cubic meter of C10 concrete: Proportion of cement = 1 part Total parts = 1 + 4 + 8 = 13 parts Thus, the volume of cement required: Volume of cement = 1/13m Sand Proportion of sand = 4 parts Thus, the volume of sand required: Volume of sand = 4/13 m Aggregate Proportion of aggregate = 8 parts Thus, the volume of aggregate required: Volume of aggregate = 8/13 m

Step 3: Convert Volumes to Weights Since concrete materials are typically measured by weight for accuracy, you need to convert the volumes to weights. The densities of the materials are approximately: Cement: 1,440 kg/m Sand: 1,600 kg/m Aggregate: 1,450 kg/m Using these densities: Cement Weight of cement = (1/13) 1,440 kg 111 kg Sand Weight of sand = (4/13) 1,600 kg 492 kg Aggregate Weight of aggregate = (8/13) 1,450 kg 892 kg Step 4: Adjust for Water Content Water is a critical component of the concrete mix, influencing its workability and strength. The water-cement ratio for C10 concrete is typically around 0.5 by weight. Therefore, if you have 111 kg of cement, you would need approximately 55.5 kg of water: Weight of water = 0.5 Weight of cement = 0.5 111 kg = 55.5 kg Step 5: Mix the Concrete Once all the components are measured, mix them thoroughly to achieve a uniform consistency. This can be done using a concrete mixer for larger quantities or manually for smaller batches. Ensure that the mix is even and free of lumps or dry spots.

Read More Articles: Why Manhattan Condos Are a Smart Investment: Insights from Real Estate Experts Tips for Ensuring Quality C10 Concrete 1. Use Quality Materials: Ensure that the cement, sand, and aggregate are of high quality and free from impurities. 2. Measure Accurately: Use precise measurements for each component to maintain the correct mix ratio. 3. Mix Evenly: Thoroughly mix the components to achieve a uniform consistency. 4. Add Water Gradually: Add water slowly while mixing to avoid making the mix too wet, which can weaken the concrete. 5. Cure Properly: After pouring, cure the concrete properly to ensure it reaches its full strength. This involves keeping it moist and protected from extreme temperatures. Start With The Project Follow the correct C10 concrete mix ratio and accurately measure each component. This is how you will achieve a durable and strong concrete mix that meets the required standards. If you need assistance or have specific requirements, feel free to contact Pro-Mix Concrete for expert advice and services. The professionals are here to help you with everything. Site Article: How to Calculate the Proportions for C10 Concrete?
