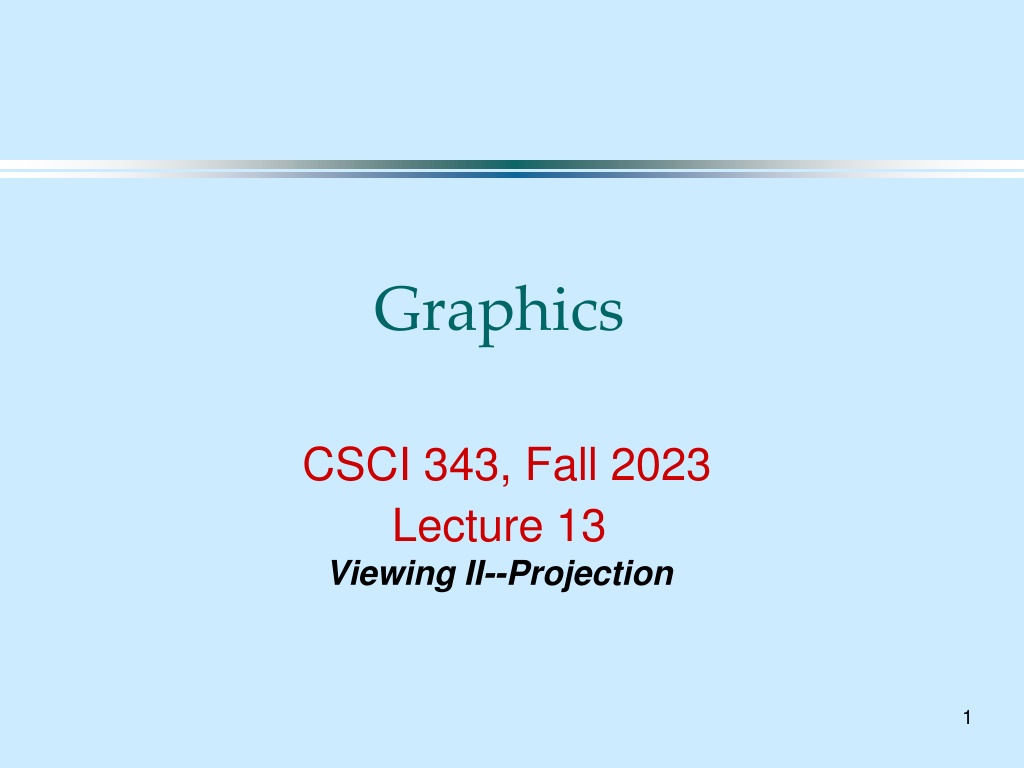

Graphics CSCI 343, Fall 2023 Lecture 13 Viewing II--Projection 1
A Note on 3D Surfaces When we create 3D surfaces, we need a way to specify the front and back of the surface, so that we only display what s necessary. This will be important for shading and texture mapping. In OpenGL, the order of vertices determines the front face of the surface using the right-hand rule. p0-p1-p2-p3 correctly specifies the outer face as the front. p2 p3 p3-p2-p1-p0 specifies the inner face as front. p0 p1 Make sure the triangles conform to this order as well. 2

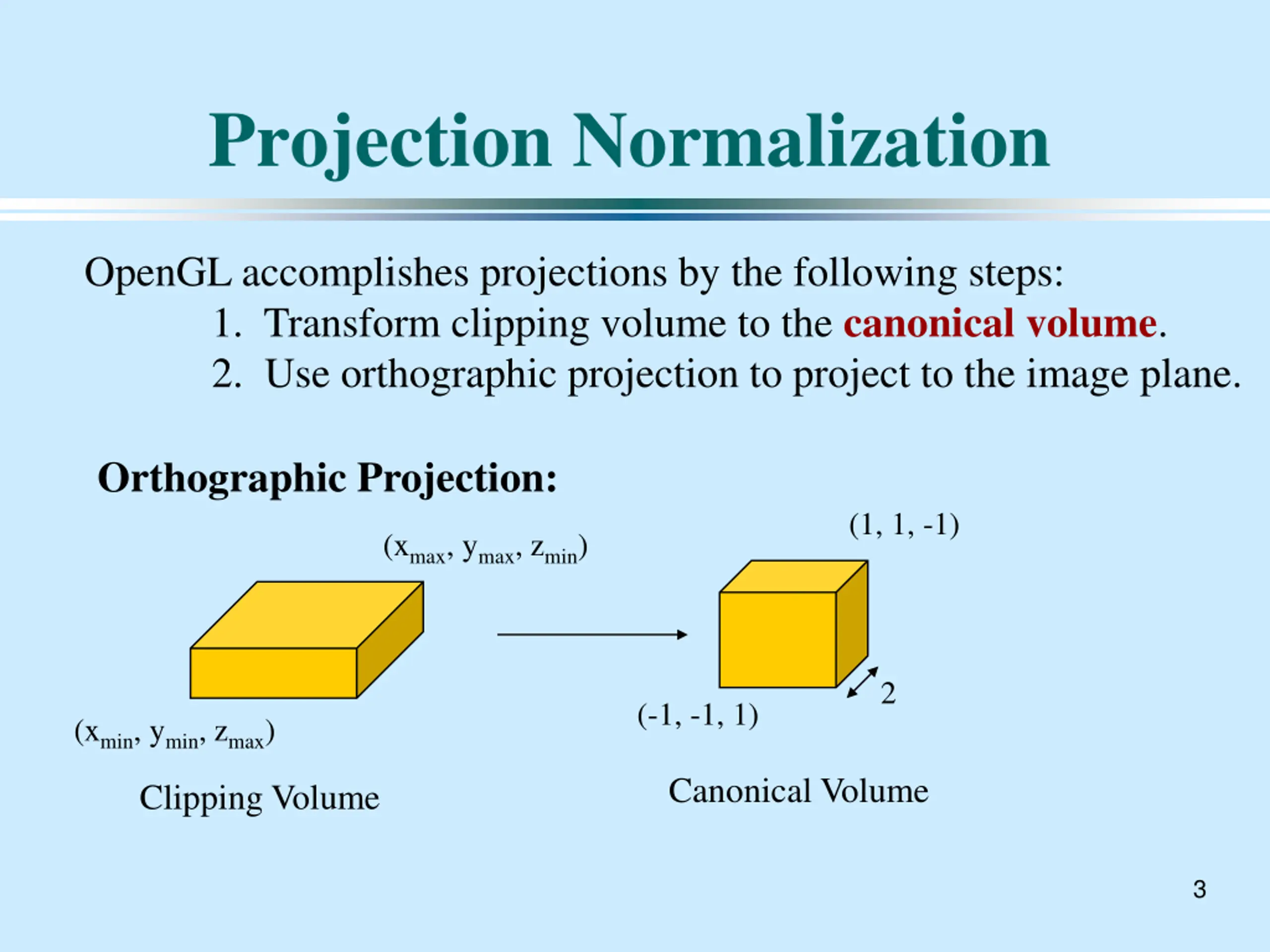

Projection Normalization OpenGL accomplishes projections by the following steps: 1. Transform clipping volume to the canonical volume. 2. Use orthographic projection to project to the image plane. Orthographic Projection: (1, 1, -1) (xmax, ymax, zmin) 2 (-1, -1, 1) (xmin, ymin, zmax) Canonical Volume Clipping Volume 3
Transforming the clipping volume To transform the clipping volume for orthographic projection we must: 1. Translate it so it is centered on the origin. 2. Scale it so the length of each side is 2. Translation: Scaling: 4

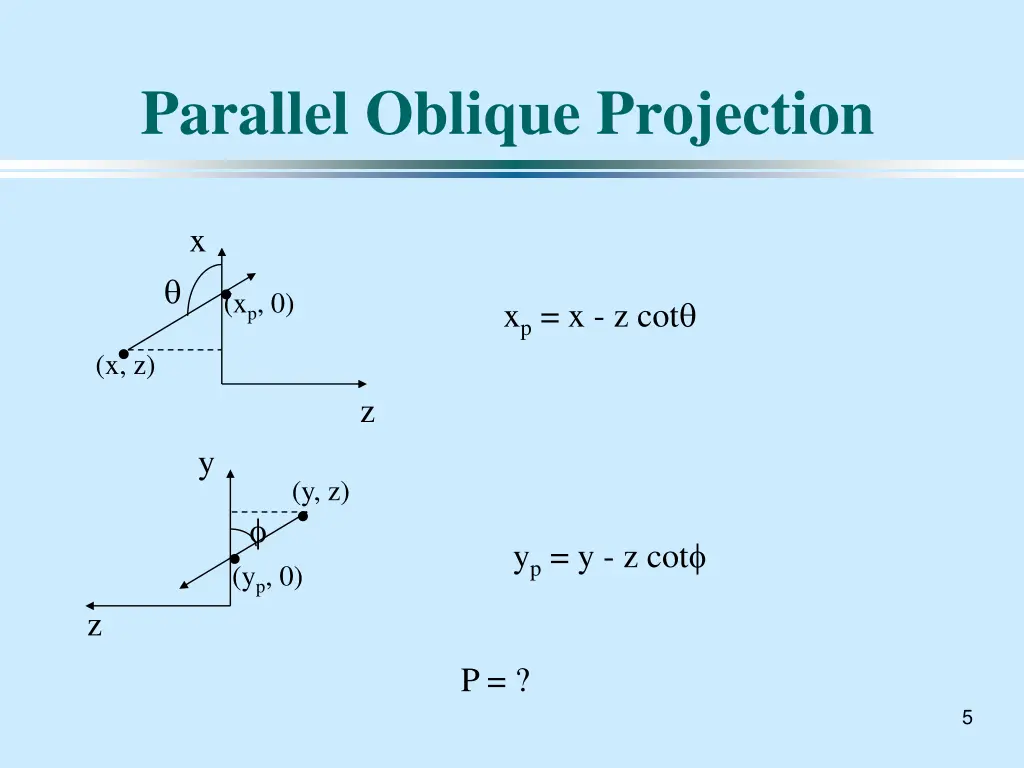

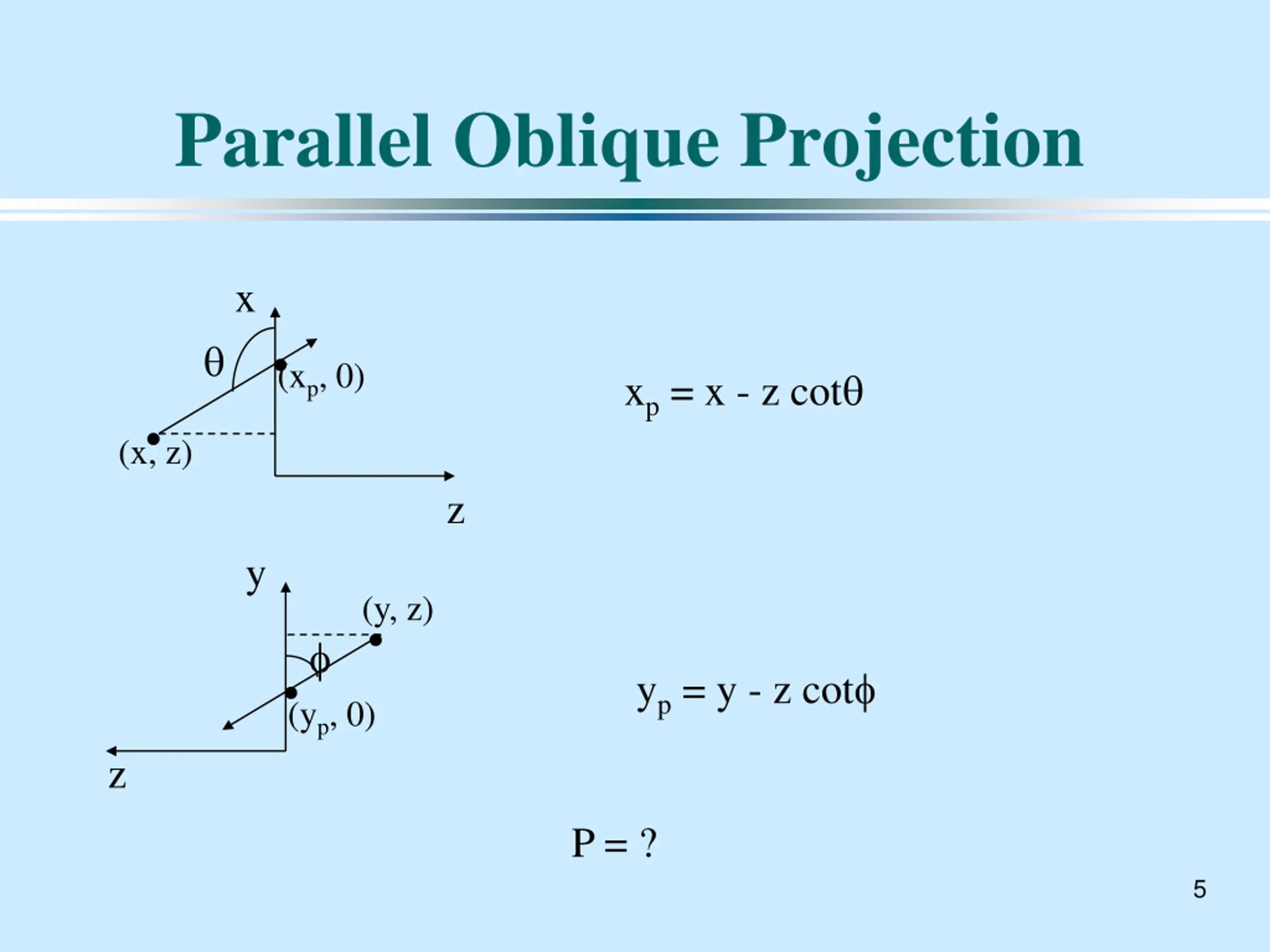

Parallel Oblique Projection x (xp, 0) xp = x - z cot (x, z) z y (y, z) yp = y - z cot (yp, 0) z P = ? 5
Matrices for Oblique Projection -cotq -cotf 0 0 -cotq -cotf 1 0 1 0 0 0 0 1 0 0 0 0 0 1 1 0 0 0 0 1 0 0 0 0 0 0 0 0 0 1 1 0 0 0 0 1 0 0 0 0 0 1 P = = = MORTHH(q,f) Shear Matrix To transform to canonical volume, use scale and translation after shear: P = MORTHSTH( ) 6
Orthographic and Oblique projections Orthographic Projection: 1) Translate clipping volume to origin 2) Scale sides of clipping volume to be 2x2x2 M = MORTHOST Oblique Projection: 1) Shear clipping volume to be rectangular box. 2) Translate to origin 3) Scale sides to 2x2x2 M = MORTHOSTH 7
Perspective Normalization Consider a perspective projection where the viewing angle is 90 deg and the focal distance is 1. x x = -z 1 0 0 0 0 1 0 0 0 0 1 -1 0 0 0 0 PPROJ= z -1 Clipping Volume enclosed by: x = +/- z, y = +/- z, zmin < z < zmax x = z 8

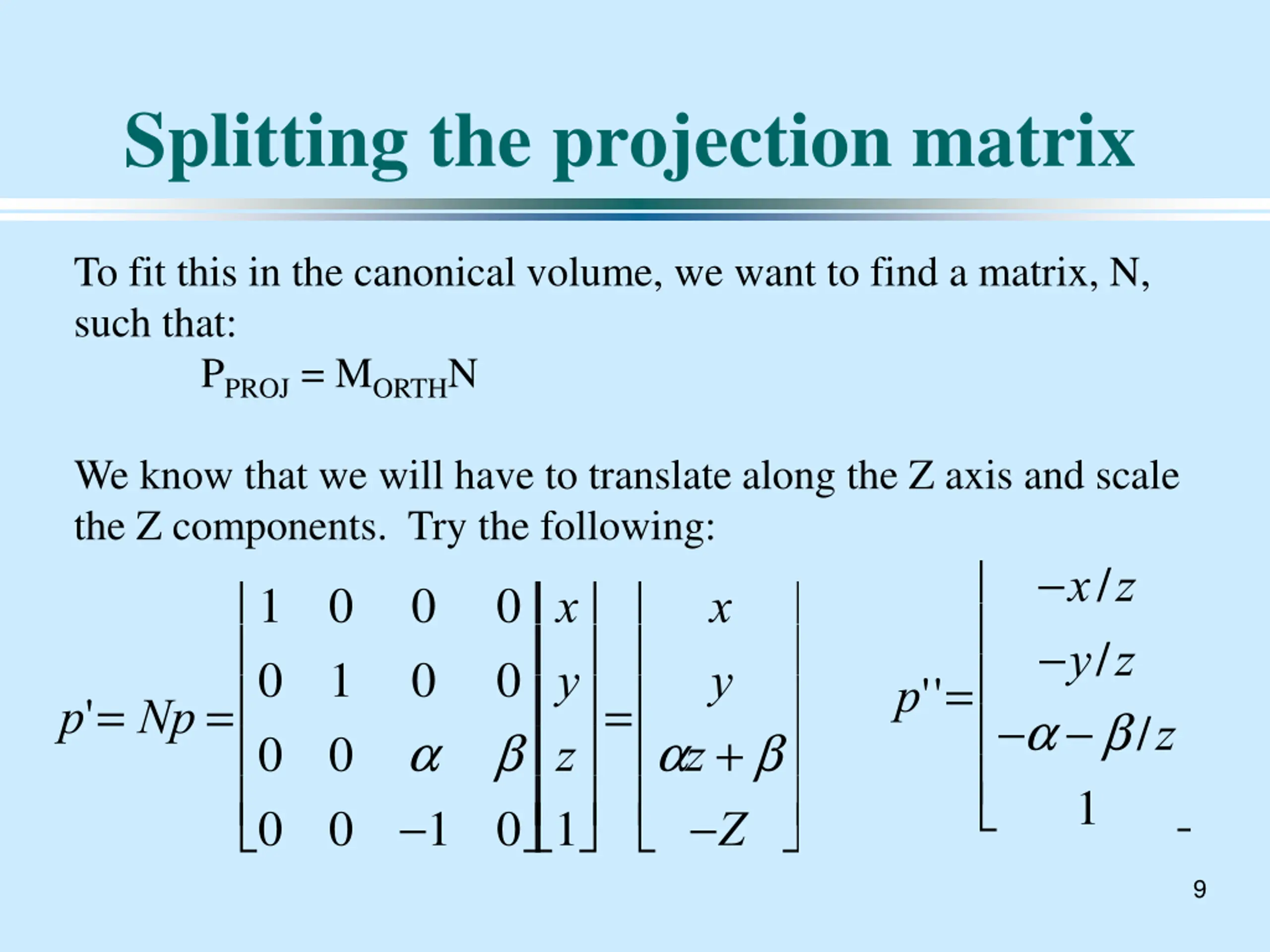

Splitting the projection matrix To fit this in the canonical volume, we want to find a matrix, N, such that: PPROJ = MORTHN We know that we will have to translate along the Z axis and scale the Z components. Try the following: 1 -x/z -y/z -a -b/z 1 1 0 0 0 0 1 0 0 0 0 a -1 0 0 b 0 x y z x y p''= p'= Np = = az + b -Z 9
Fitting the canonical volume Sides of canonical volume At x = -z, x'' = (-(-z/z)) = 1 At x = z, x'' = (-z/z) = -1 The same is true for y. For zmax and zmin: zmin'' = -( + /zmin) = -1 zmax'' = -( + /zmax) = +1 Solve for and : a =- zmax+ zmin zmax-zmin ( ( ) 2zmaxzmin zmax-zmin b = ( ) ) 10

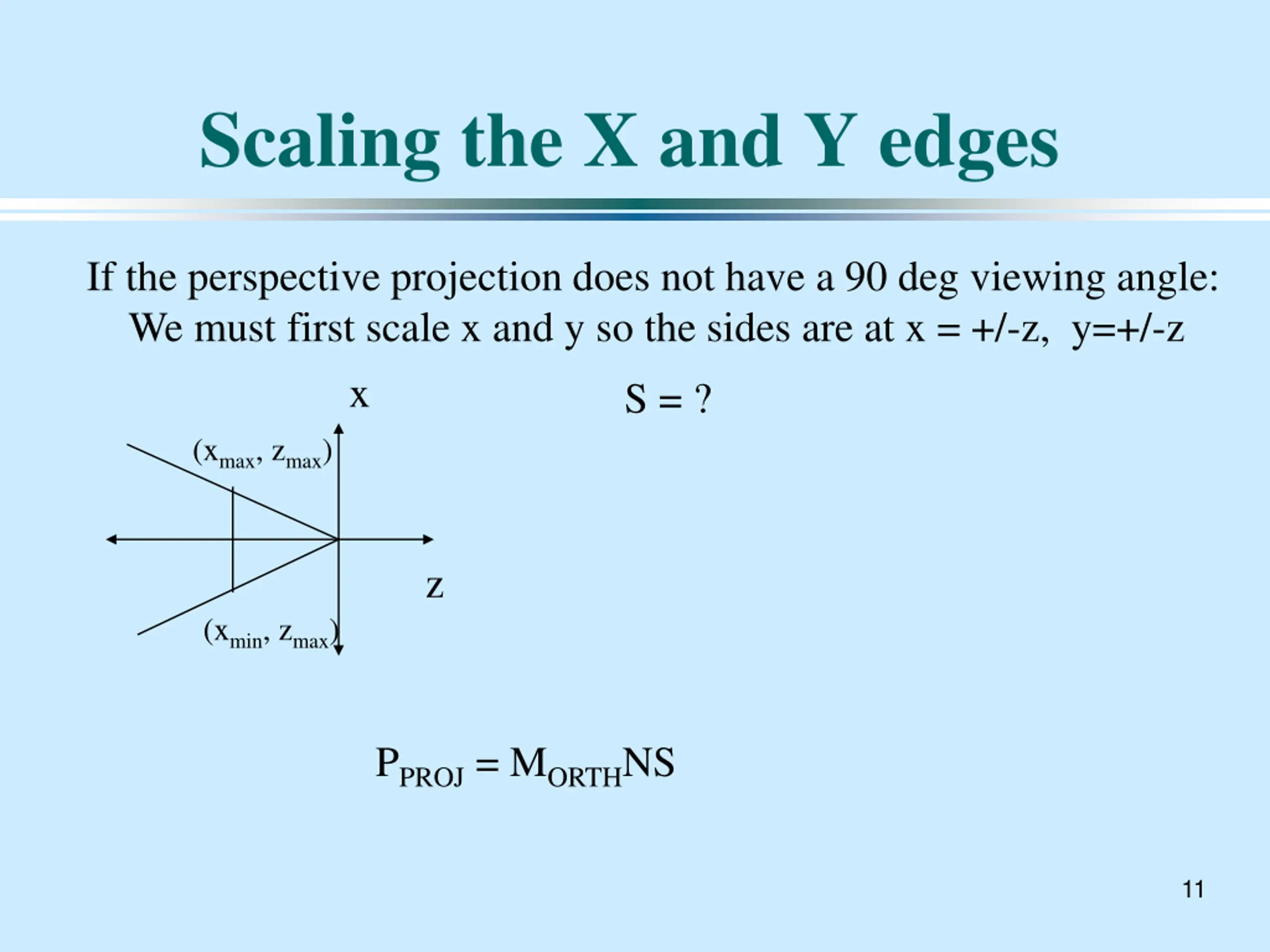

Scaling the X and Y edges If the perspective projection does not have a 90 deg viewing angle: We must first scale x and y so the sides are at x = +/-z, y=+/-z x (xmax, zmax) S = ? z (xmin, zmax) PPROJ = MORTHNS 11

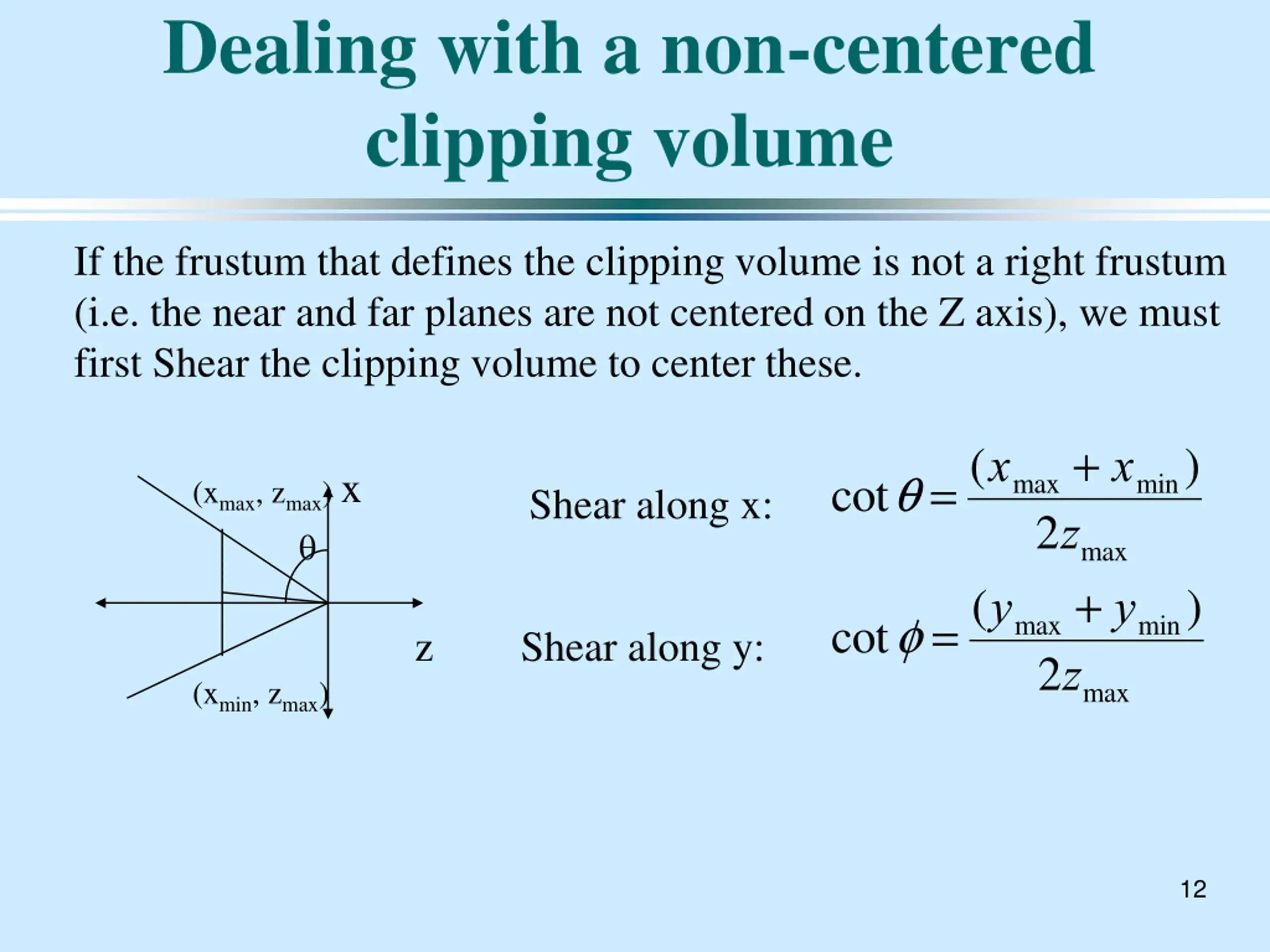

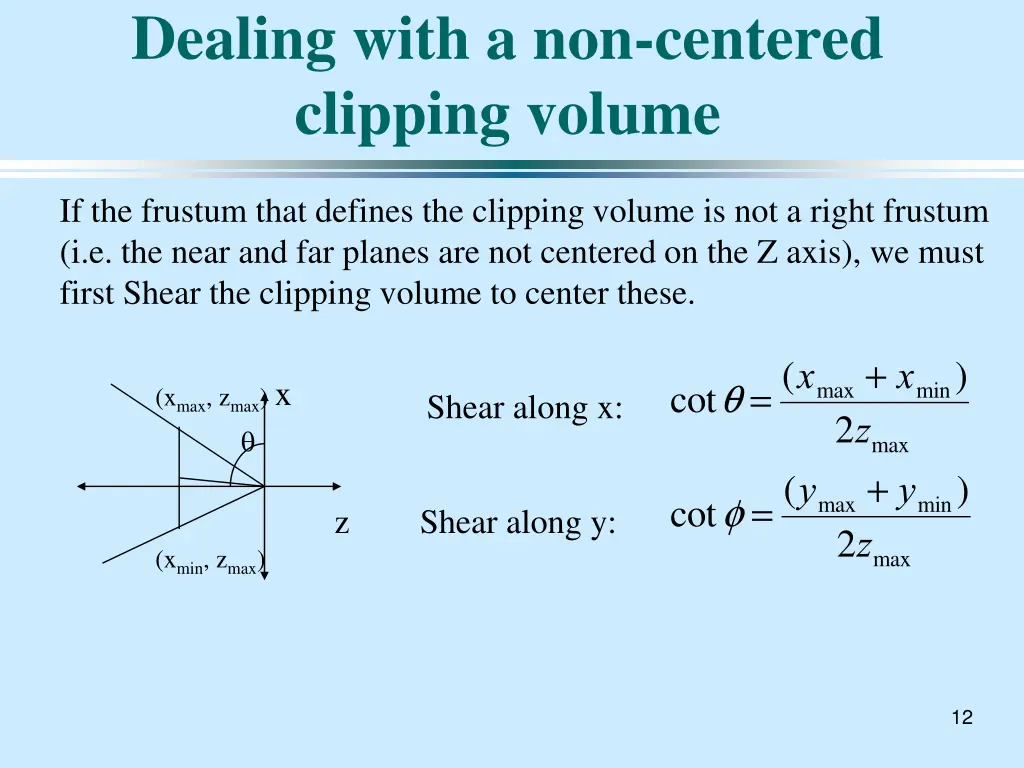

Dealing with a non-centered clipping volume If the frustum that defines the clipping volume is not a right frustum (i.e. the near and far planes are not centered on the Z axis), we must first Shear the clipping volume to center these. cotq =(xmax+ xmin) x (xmax, zmax) Shear along x: 2zmax cotf =(ymax+ ymin) z Shear along y: 2zmax (xmin, zmax) 12
The Shear Matrix -(xmax+ xmin) 2zmax -(ymax+ ymin) 2zmax 1 0 1 0 0 -cotq -cotf 1 0 1 0 0 0 0 1 0 0 0 0 0 1 H q,f ( )= 0 1 0 = 0 0 0 0 0 1 Note that this matrix transforms the center point: p'= 0,0,zmax ( ) xmin+ xmax 2 ,ymin+ ymax p= to ,zmax 2 Full Perspective Projection: P = MORTHONSH 13

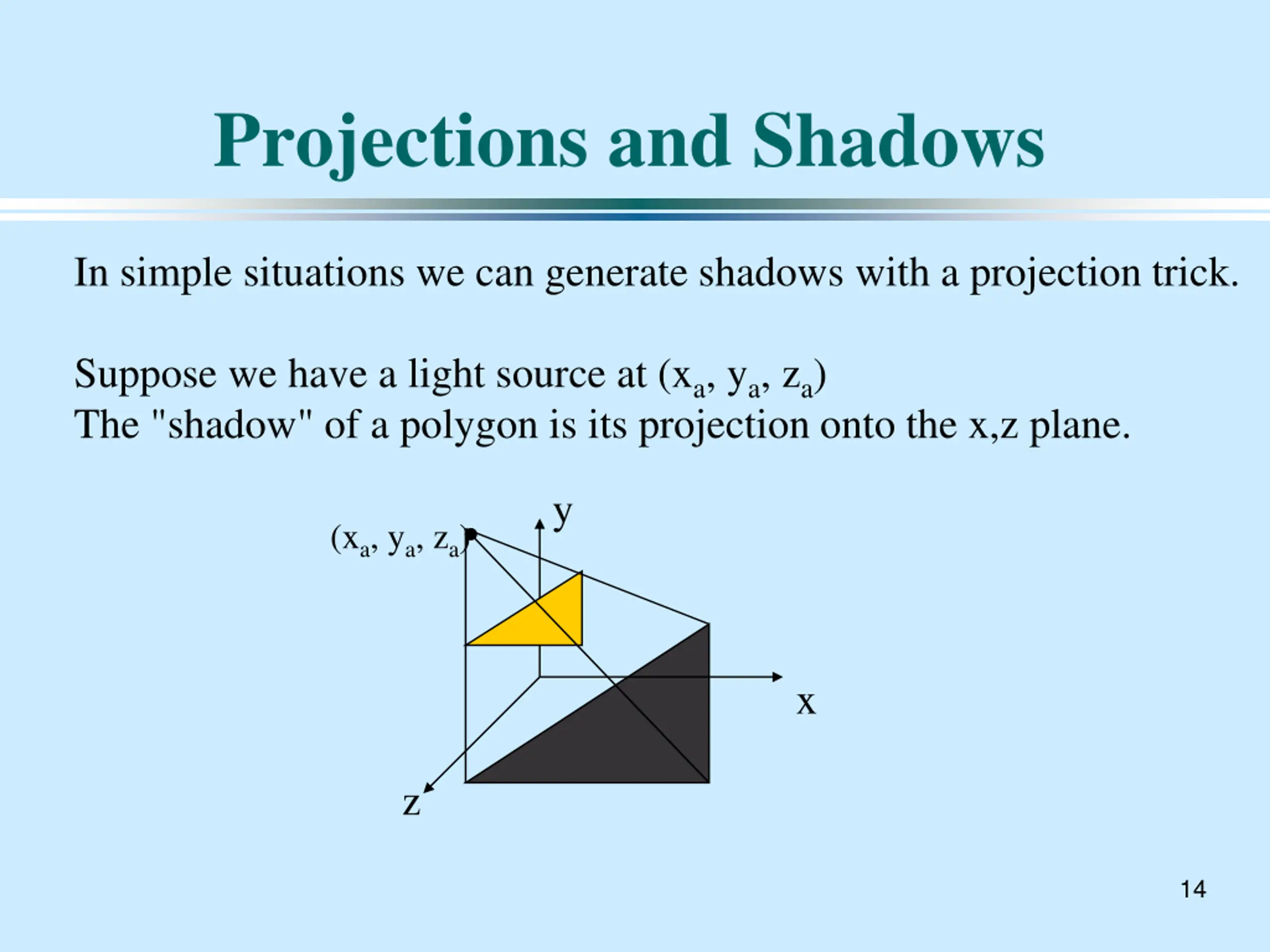

Projections and Shadows In simple situations we can generate shadows with a projection trick. Suppose we have a light source at (xa, ya, za) The "shadow" of a polygon is its projection onto the x,z plane. y (xa, ya, za) x z 14

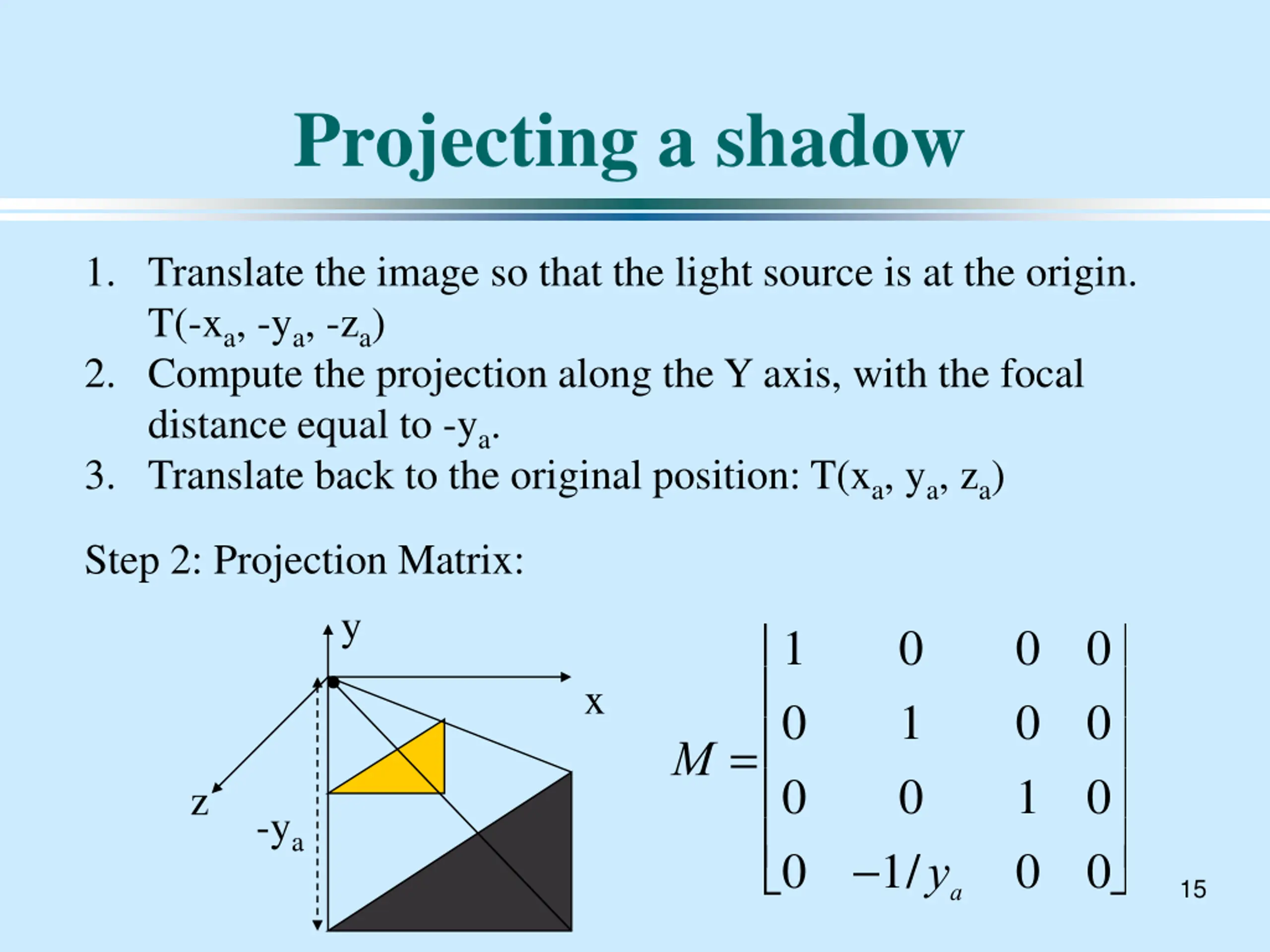

Projecting a shadow 1. Translate the image so that the light source is at the origin. T(-xa, -ya, -za) 2. Compute the projection along the Y axis, with the focal distance equal to -ya. 3. Translate back to the original position: T(xa, ya, za) Step 2: Projection Matrix: y 1 0 0 0 0 1 0 0 0 1 0 0 0 0 0 x M = z -ya -1/ya 15

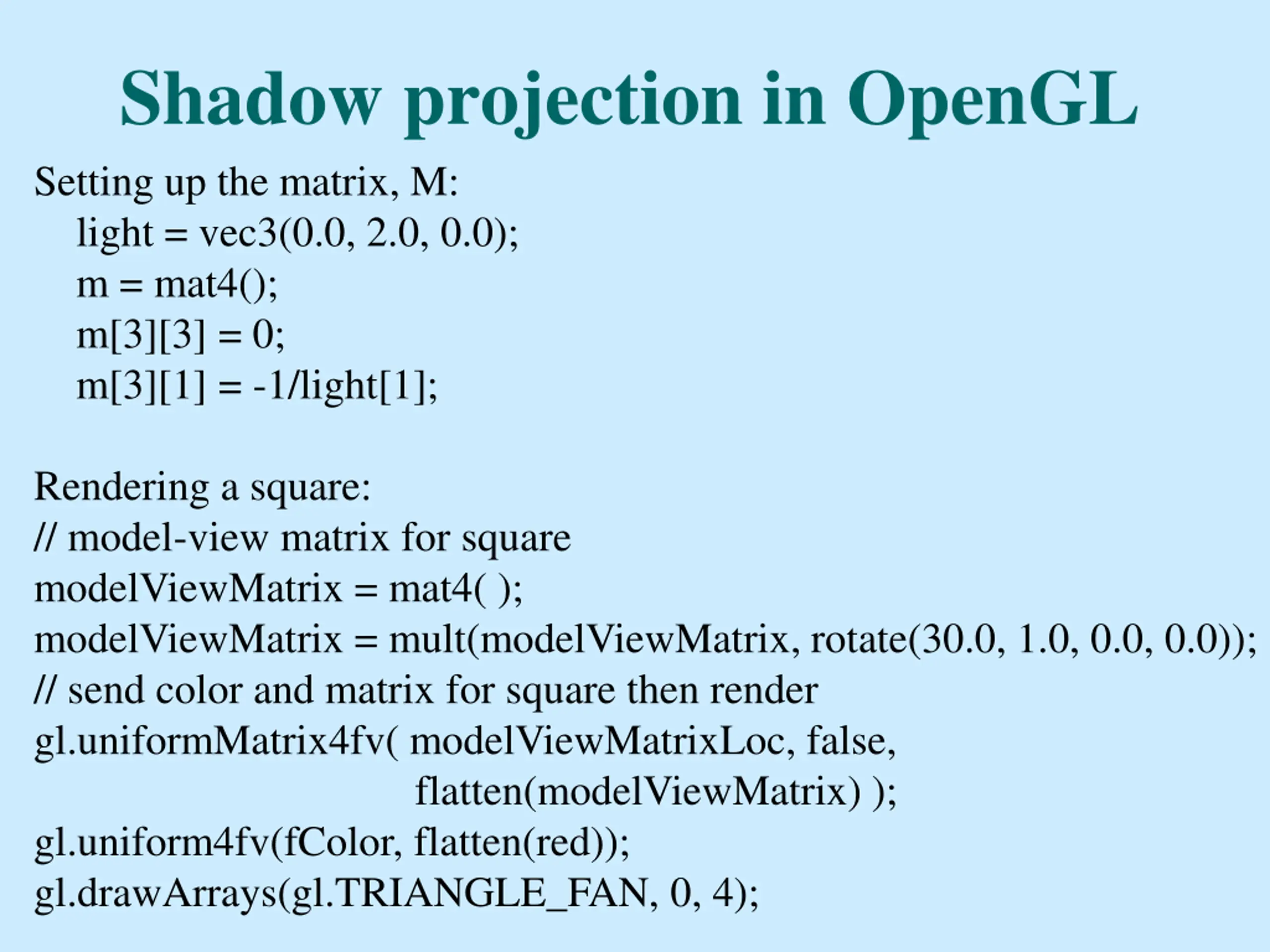

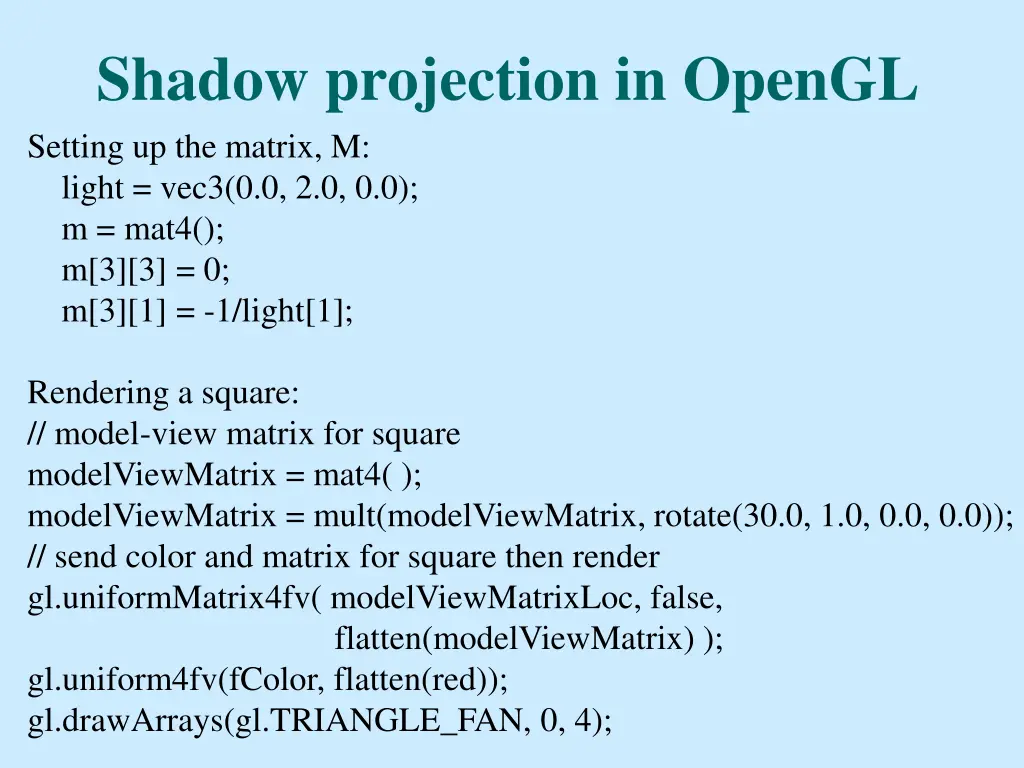

Shadow projection in OpenGL Setting up the matrix, M: light = vec3(0.0, 2.0, 0.0); m = mat4(); m[3][3] = 0; m[3][1] = -1/light[1]; Rendering a square: // model-view matrix for square modelViewMatrix = mat4( ); modelViewMatrix = mult(modelViewMatrix, rotate(30.0, 1.0, 0.0, 0.0)); // send color and matrix for square then render gl.uniformMatrix4fv( modelViewMatrixLoc, false, flatten(modelViewMatrix) ); gl.uniform4fv(fColor, flatten(red)); gl.drawArrays(gl.TRIANGLE_FAN, 0, 4);

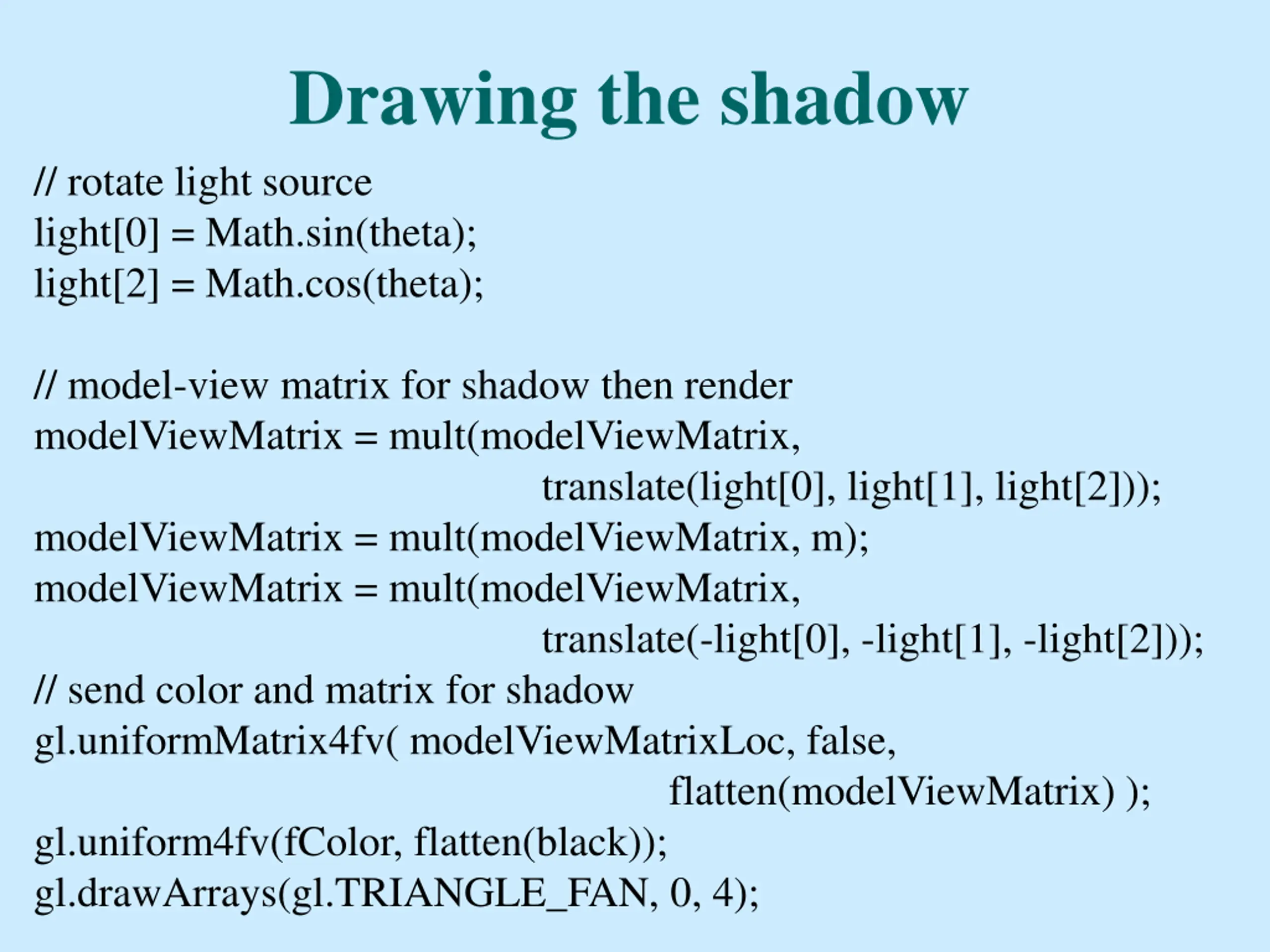

Drawing the shadow // rotate light source light[0] = Math.sin(theta); light[2] = Math.cos(theta); // model-view matrix for shadow then render modelViewMatrix = mult(modelViewMatrix, modelViewMatrix = mult(modelViewMatrix, m); modelViewMatrix = mult(modelViewMatrix, // send color and matrix for shadow gl.uniformMatrix4fv( modelViewMatrixLoc, false, gl.uniform4fv(fColor, flatten(black)); gl.drawArrays(gl.TRIANGLE_FAN, 0, 4); translate(light[0], light[1], light[2])); translate(-light[0], -light[1], -light[2])); flatten(modelViewMatrix) );
