CSCE-411 Design and Analysis of Algorithms Spring 2025 Instructor: Jianer Chen Office: PETR 428 Phone: 845-4259 Email: chen@cse.tamu.edu Notes 30: Finding an augmenting path

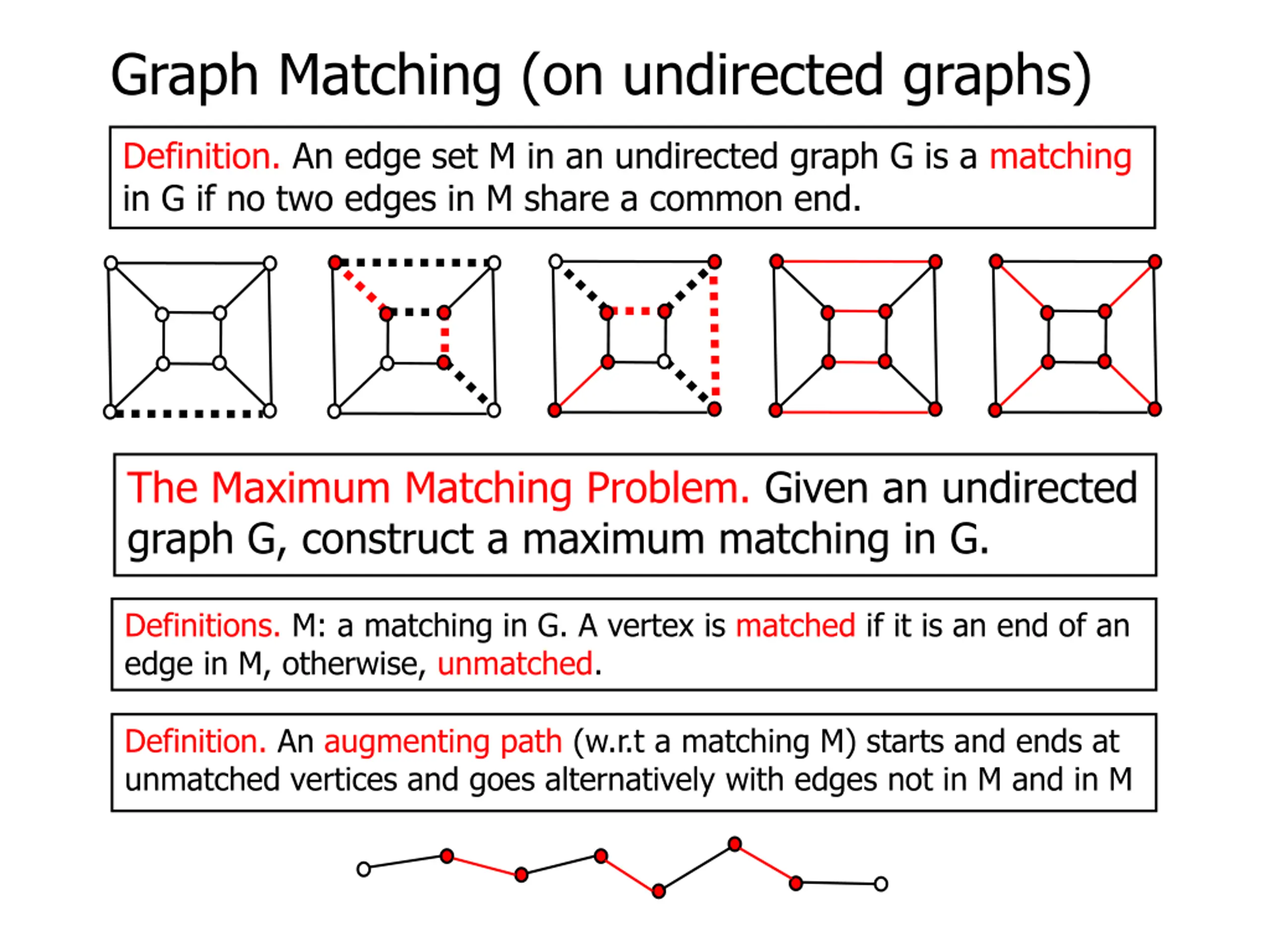

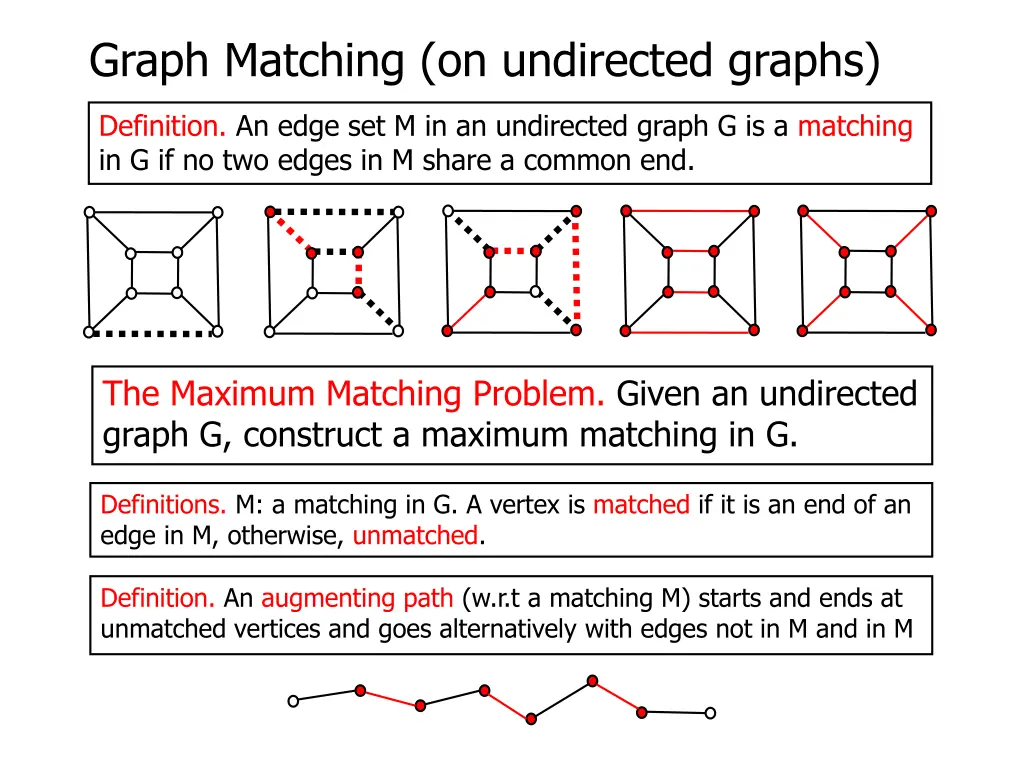

Graph Matching (on undirected graphs) Definition. An edge set M in an undirected graph G is a matching in G if no two edges in M share a common end. The Maximum Matching Problem. Given an undirected graph G, construct a maximum matching in G. Definitions. M: a matching in G. A vertex is matched if it is an end of an edge in M, otherwise, unmatched. Definition. An augmenting path (w.r.t a matching M) starts and ends at unmatched vertices and goes alternatively with edges not in M and in M

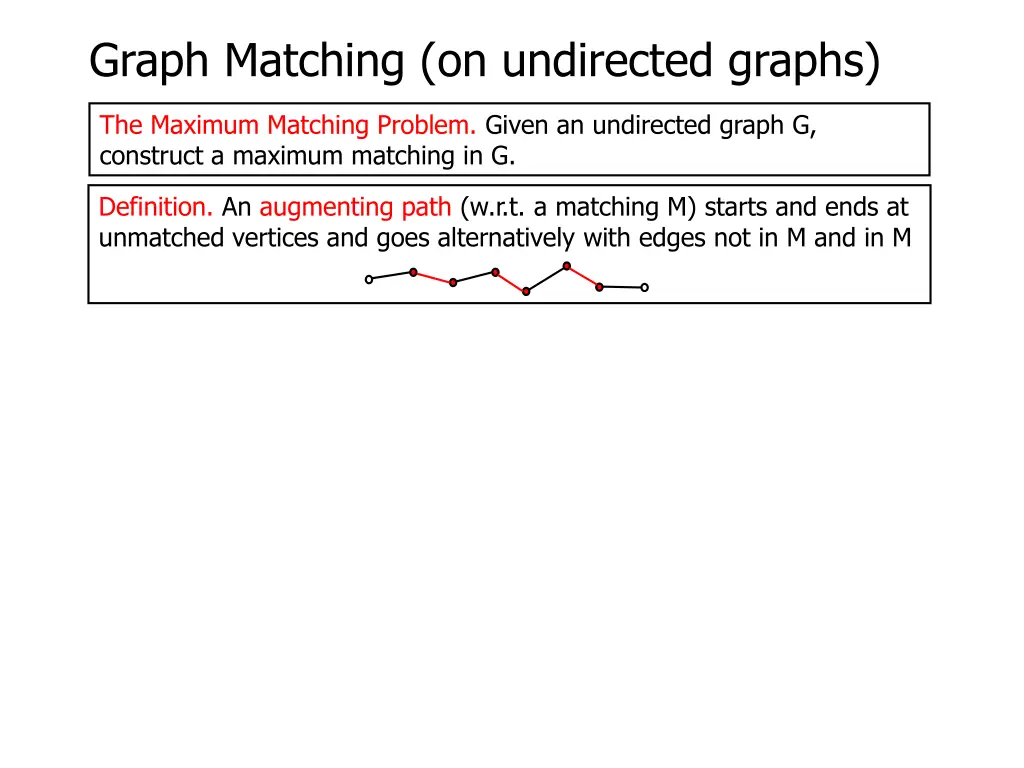

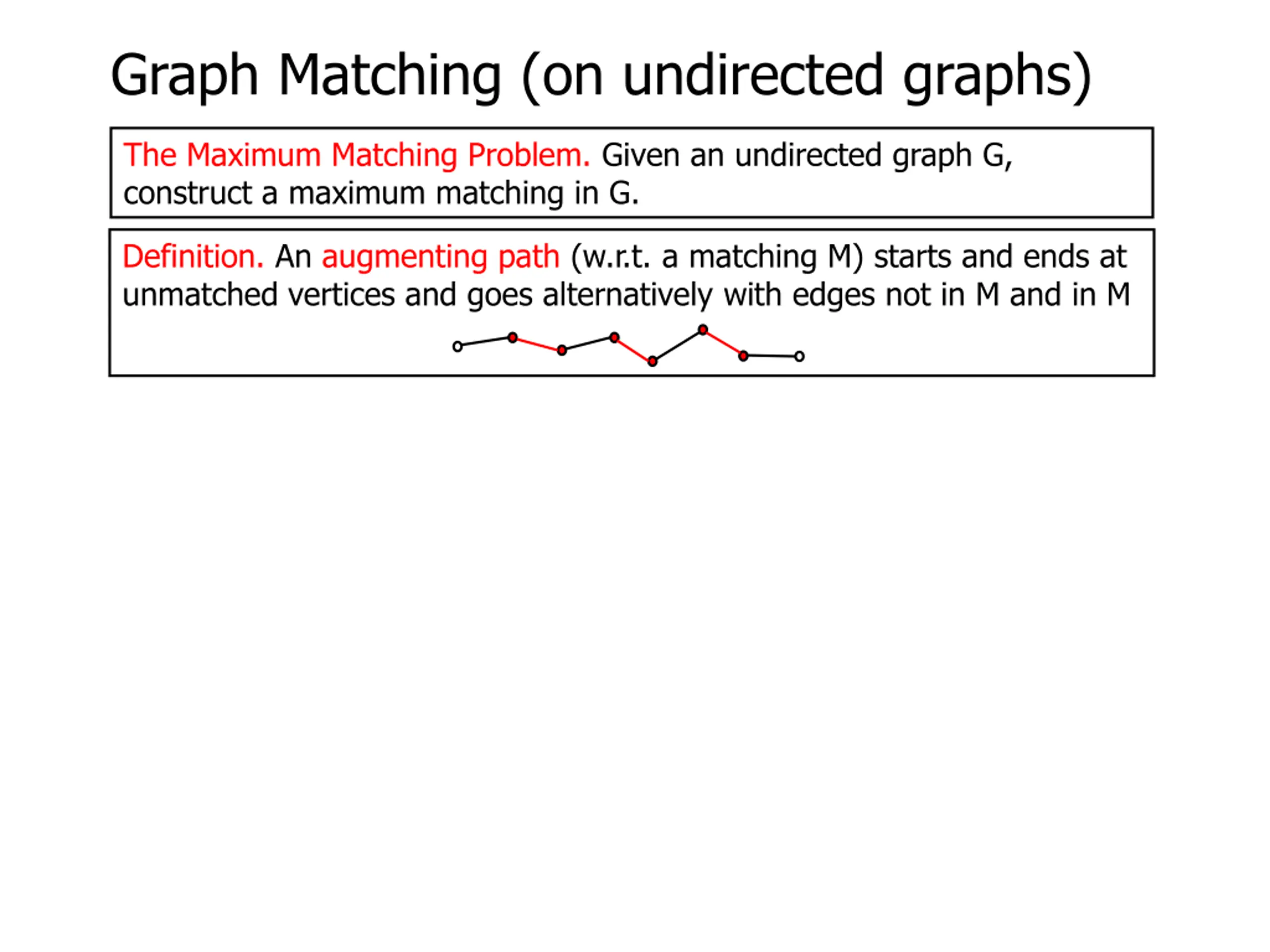

Graph Matching (on undirected graphs) The Maximum Matching Problem. Given an undirected graph G, construct a maximum matching in G. Definition. An augmenting path (w.r.t. a matching M) starts and ends at unmatched vertices and goes alternatively with edges not in M and in M

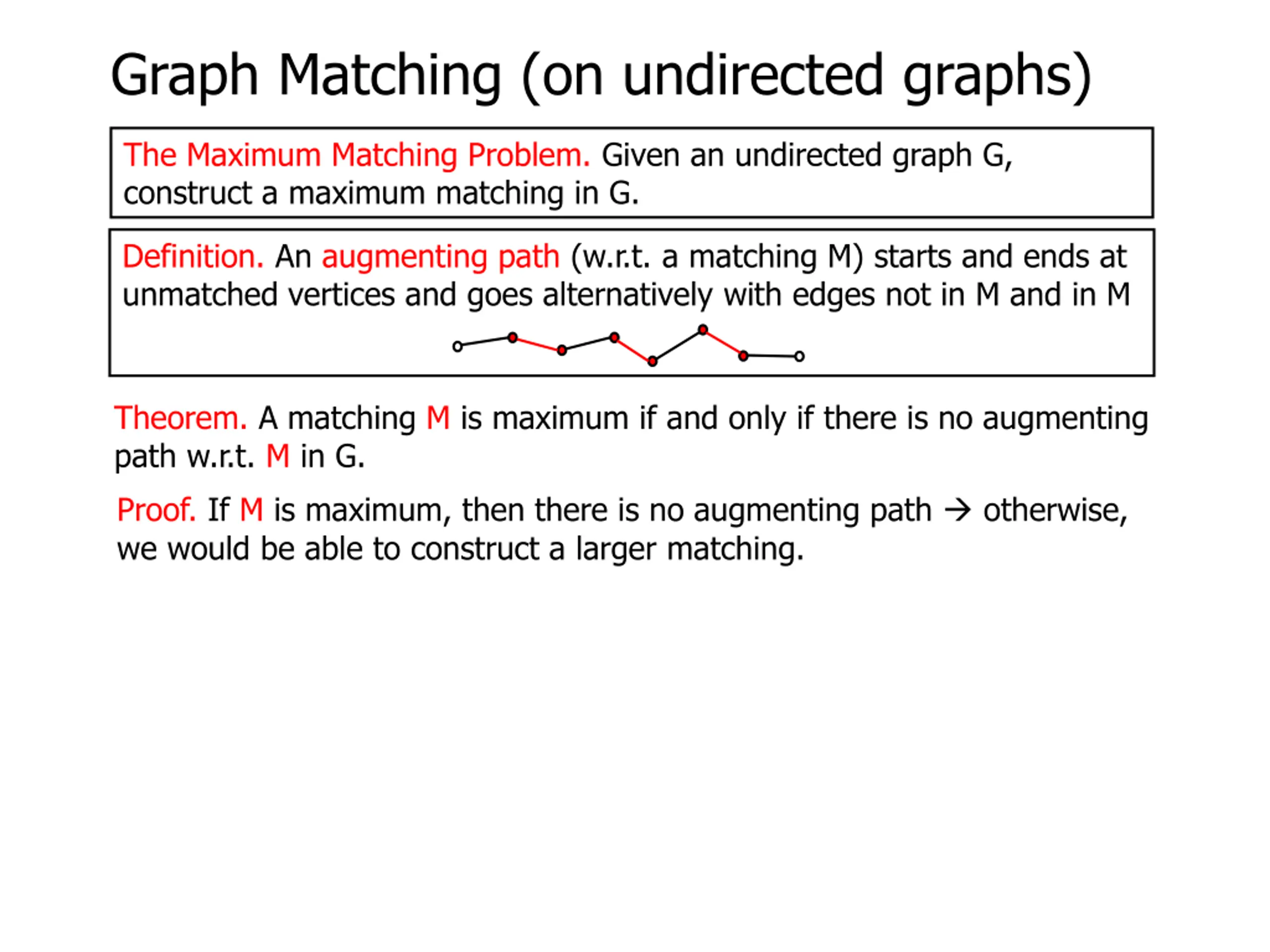

Graph Matching (on undirected graphs) The Maximum Matching Problem. Given an undirected graph G, construct a maximum matching in G. Definition. An augmenting path (w.r.t. a matching M) starts and ends at unmatched vertices and goes alternatively with edges not in M and in M Theorem. A matching M is maximum if and only if there is no augmenting path w.r.t. M in G. Proof. If M is maximum, then there is no augmenting path otherwise, we would be able to construct a larger matching.

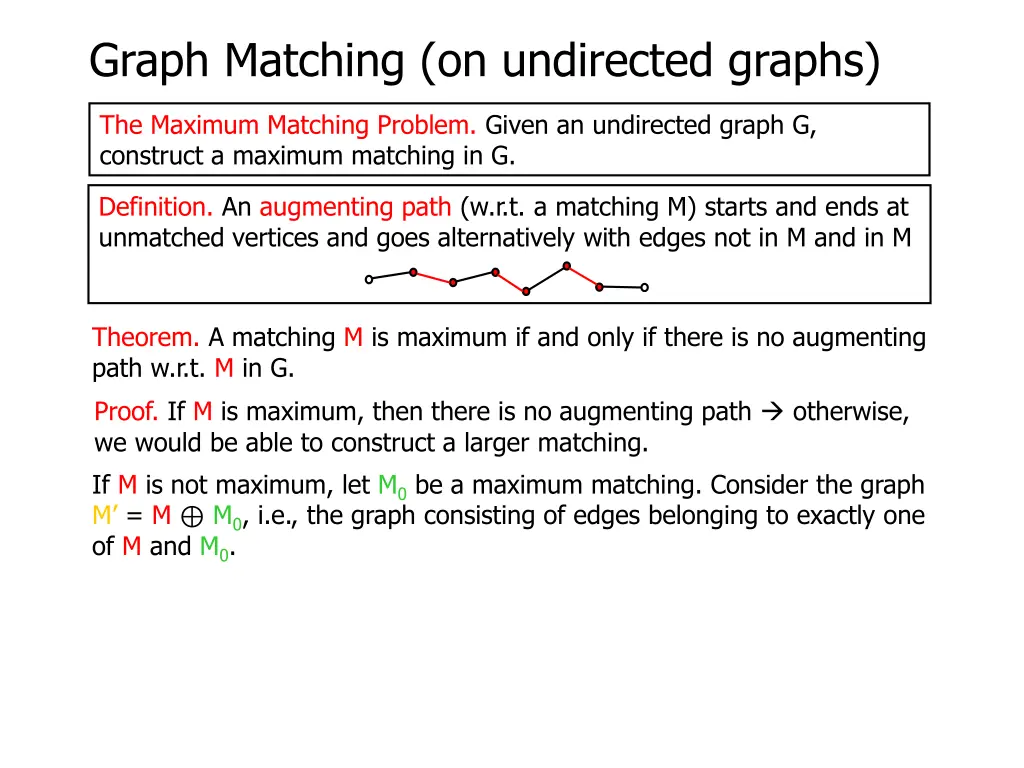

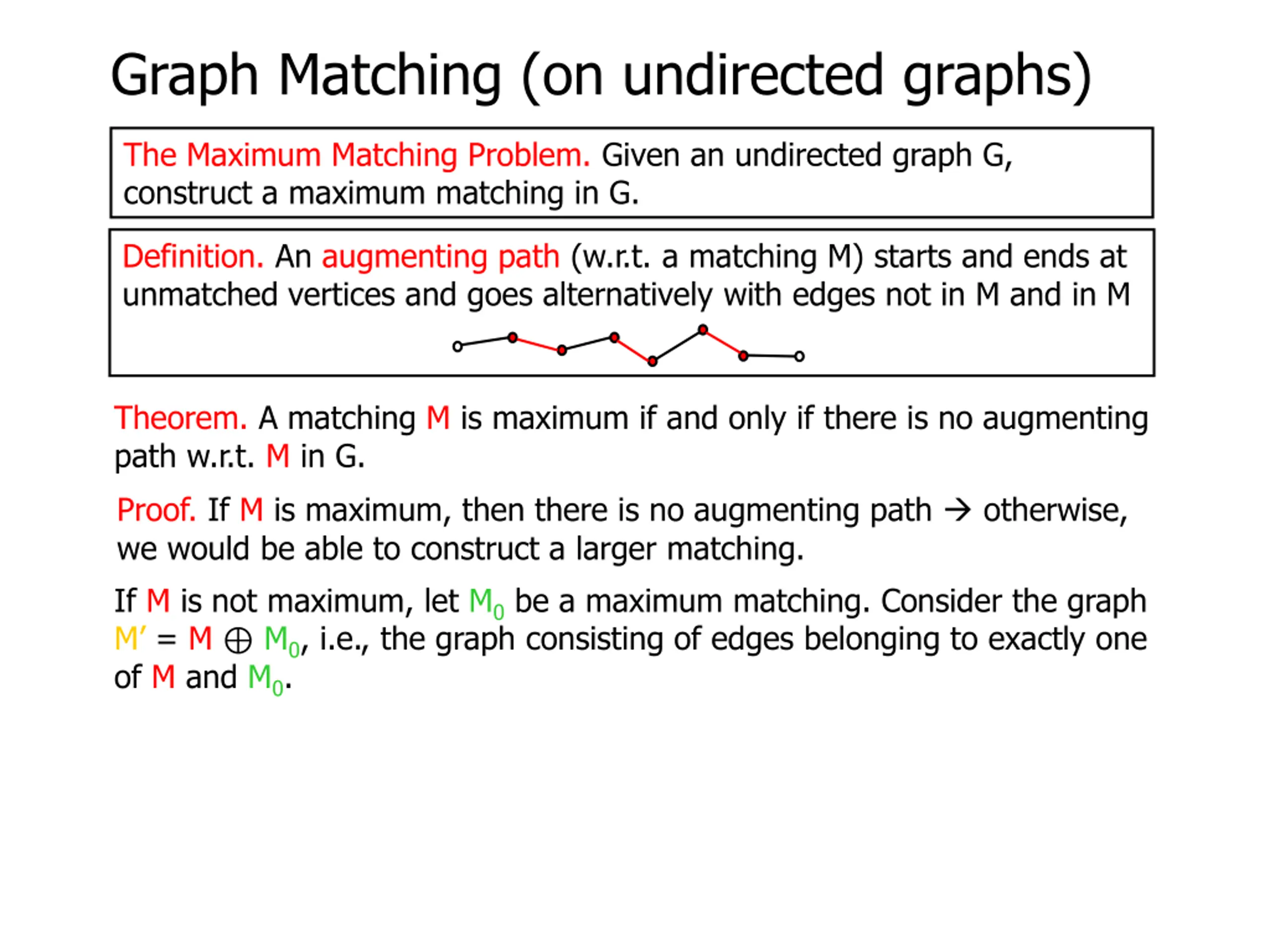

Graph Matching (on undirected graphs) The Maximum Matching Problem. Given an undirected graph G, construct a maximum matching in G. Definition. An augmenting path (w.r.t. a matching M) starts and ends at unmatched vertices and goes alternatively with edges not in M and in M Theorem. A matching M is maximum if and only if there is no augmenting path w.r.t. M in G. Proof. If M is maximum, then there is no augmenting path otherwise, we would be able to construct a larger matching. If M is not maximum, let M0 be a maximum matching. Consider the graph M = M M0, i.e., the graph consisting of edges belonging to exactly one of M and M0.

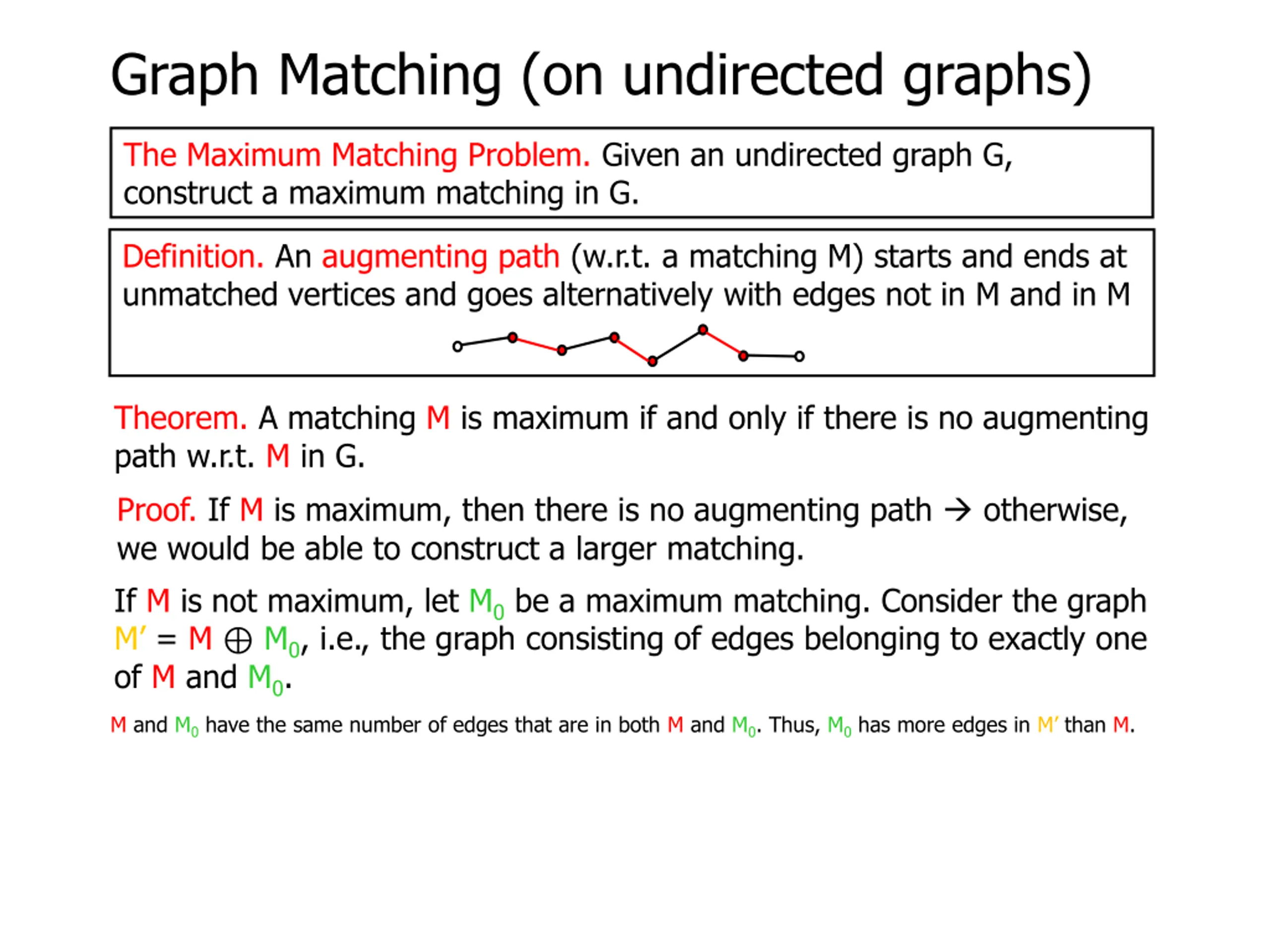

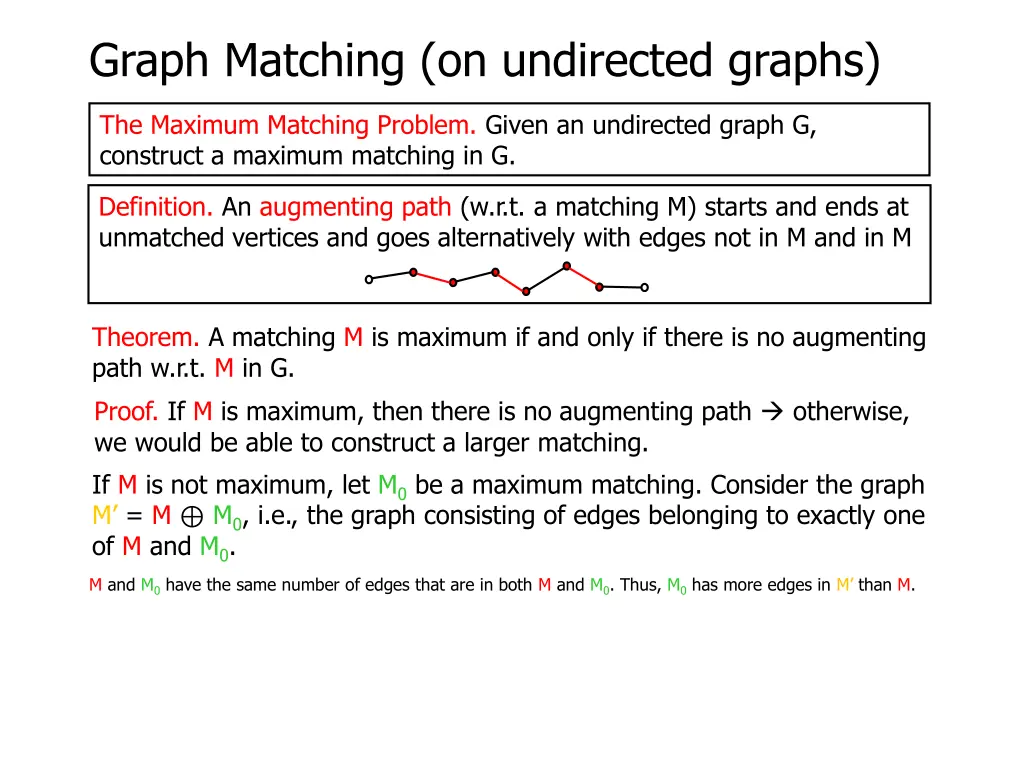

Graph Matching (on undirected graphs) The Maximum Matching Problem. Given an undirected graph G, construct a maximum matching in G. Definition. An augmenting path (w.r.t. a matching M) starts and ends at unmatched vertices and goes alternatively with edges not in M and in M Theorem. A matching M is maximum if and only if there is no augmenting path w.r.t. M in G. Proof. If M is maximum, then there is no augmenting path otherwise, we would be able to construct a larger matching. If M is not maximum, let M0 be a maximum matching. Consider the graph M = M M0, i.e., the graph consisting of edges belonging to exactly one of M and M0. M and M0 have the same number of edges that are in both M and M0. Thus, M0 has more edges in M than M.

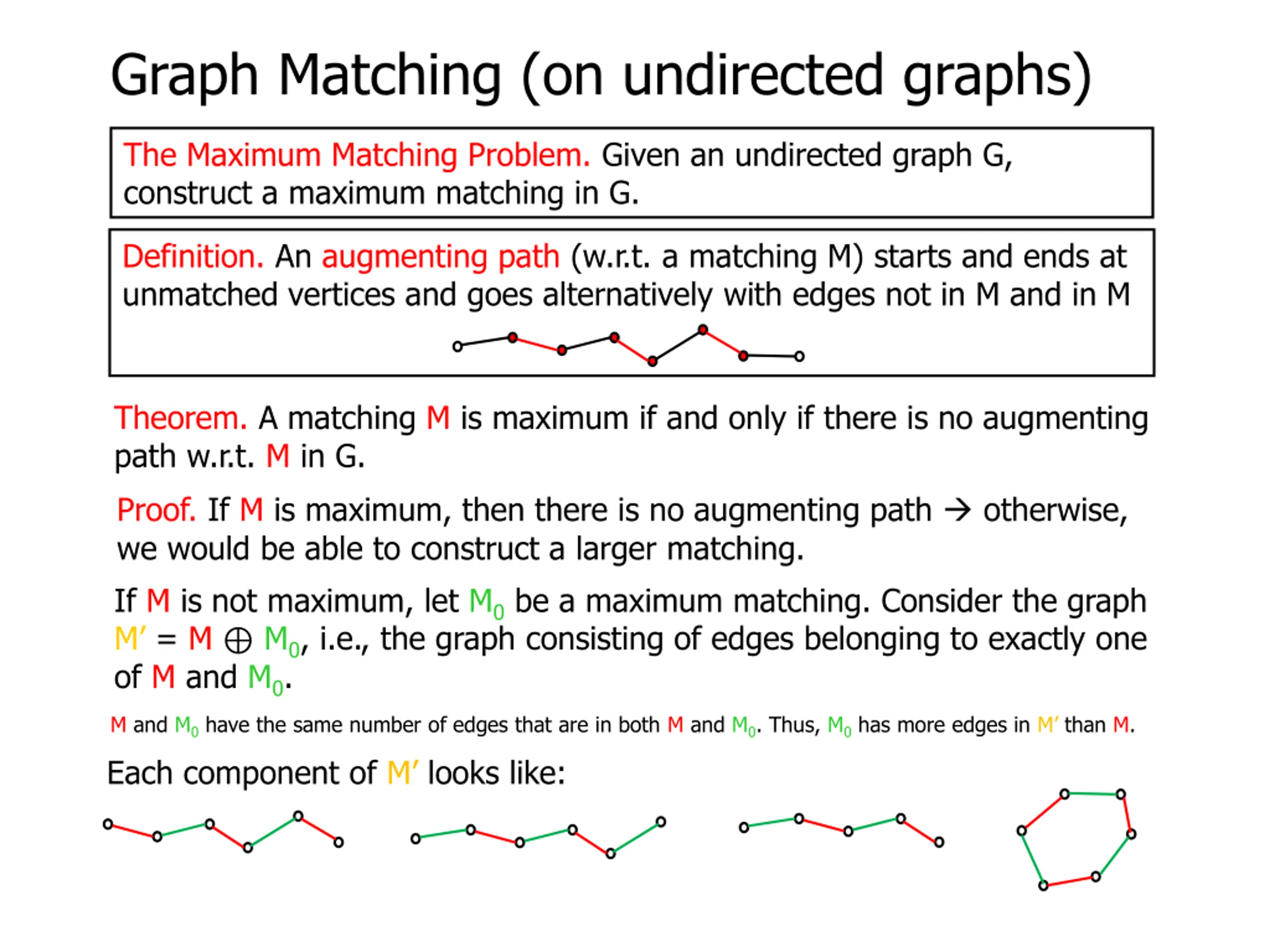

Graph Matching (on undirected graphs) The Maximum Matching Problem. Given an undirected graph G, construct a maximum matching in G. Definition. An augmenting path (w.r.t. a matching M) starts and ends at unmatched vertices and goes alternatively with edges not in M and in M Theorem. A matching M is maximum if and only if there is no augmenting path w.r.t. M in G. Proof. If M is maximum, then there is no augmenting path otherwise, we would be able to construct a larger matching. If M is not maximum, let M0 be a maximum matching. Consider the graph M = M M0, i.e., the graph consisting of edges belonging to exactly one of M and M0. M and M0 have the same number of edges that are in both M and M0. Thus, M0 has more edges in M than M. Each component of M looks like:

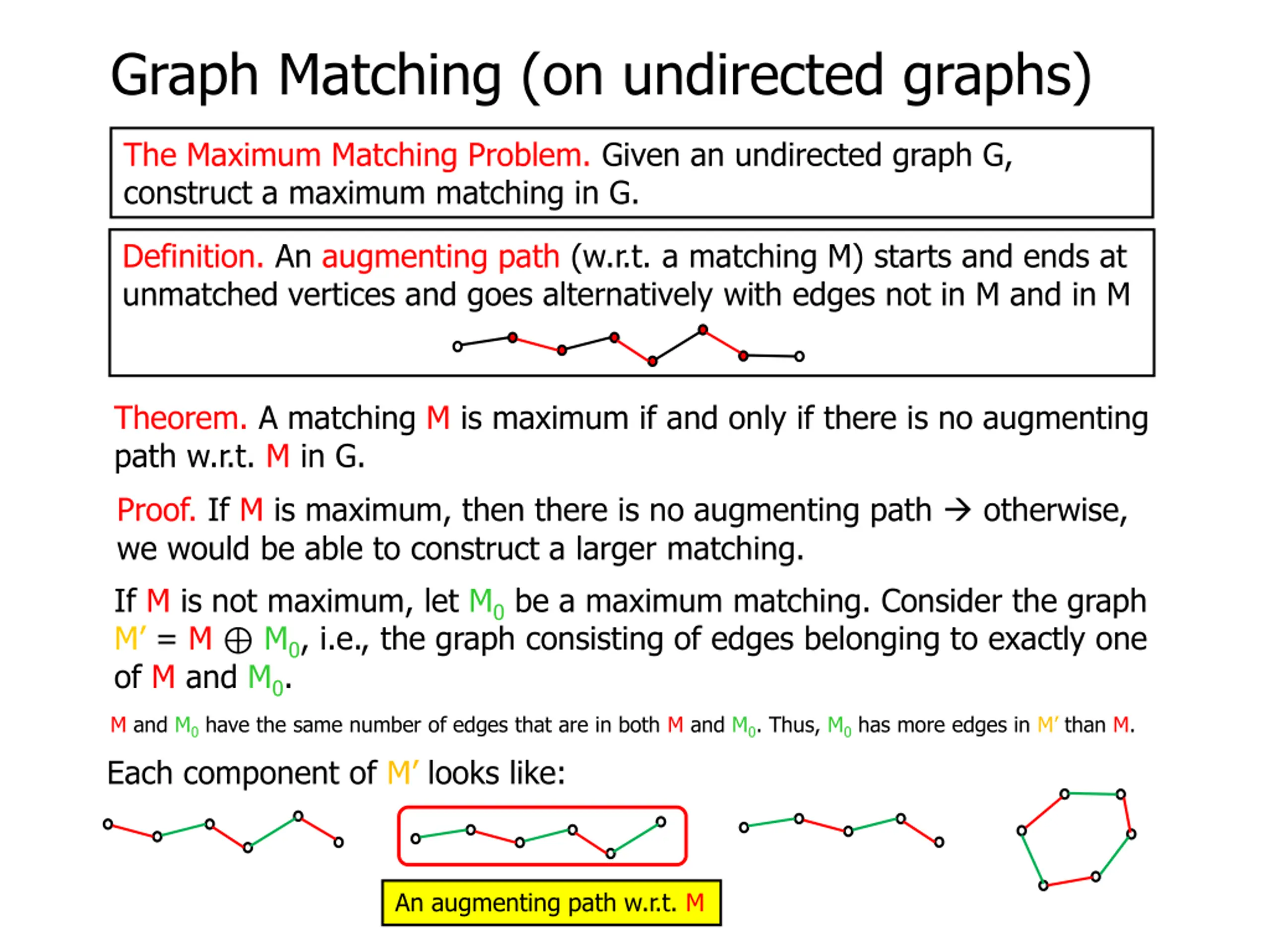

Graph Matching (on undirected graphs) The Maximum Matching Problem. Given an undirected graph G, construct a maximum matching in G. Definition. An augmenting path (w.r.t. a matching M) starts and ends at unmatched vertices and goes alternatively with edges not in M and in M Theorem. A matching M is maximum if and only if there is no augmenting path w.r.t. M in G. Proof. If M is maximum, then there is no augmenting path otherwise, we would be able to construct a larger matching. If M is not maximum, let M0 be a maximum matching. Consider the graph M = M M0, i.e., the graph consisting of edges belonging to exactly one of M and M0. M and M0 have the same number of edges that are in both M and M0. Thus, M0 has more edges in M than M. Each component of M looks like: An augmenting path w.r.t. M

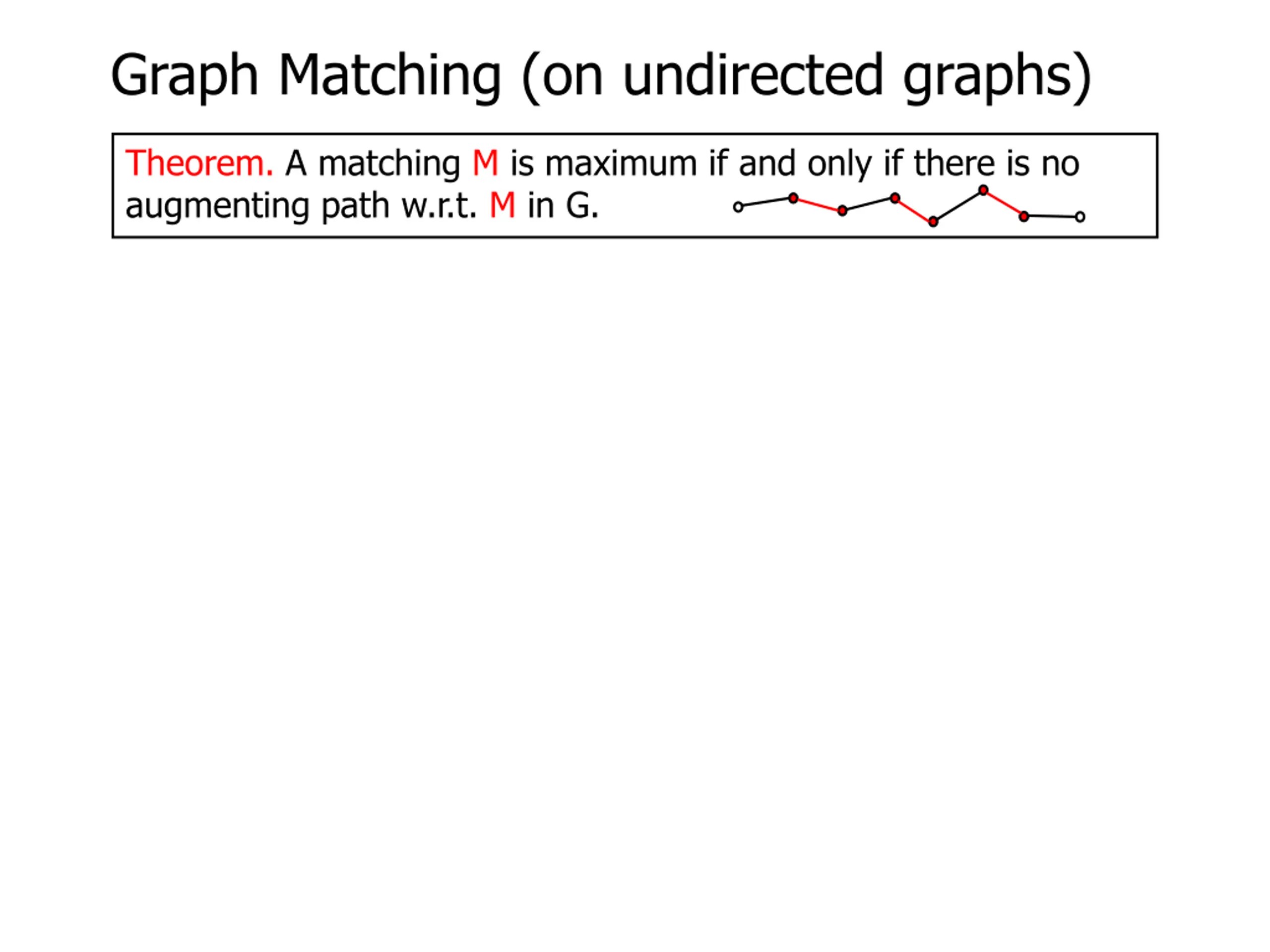

Graph Matching (on undirected graphs) Theorem. A matching M is maximum if and only if there is no augmenting path w.r.t. M in G.

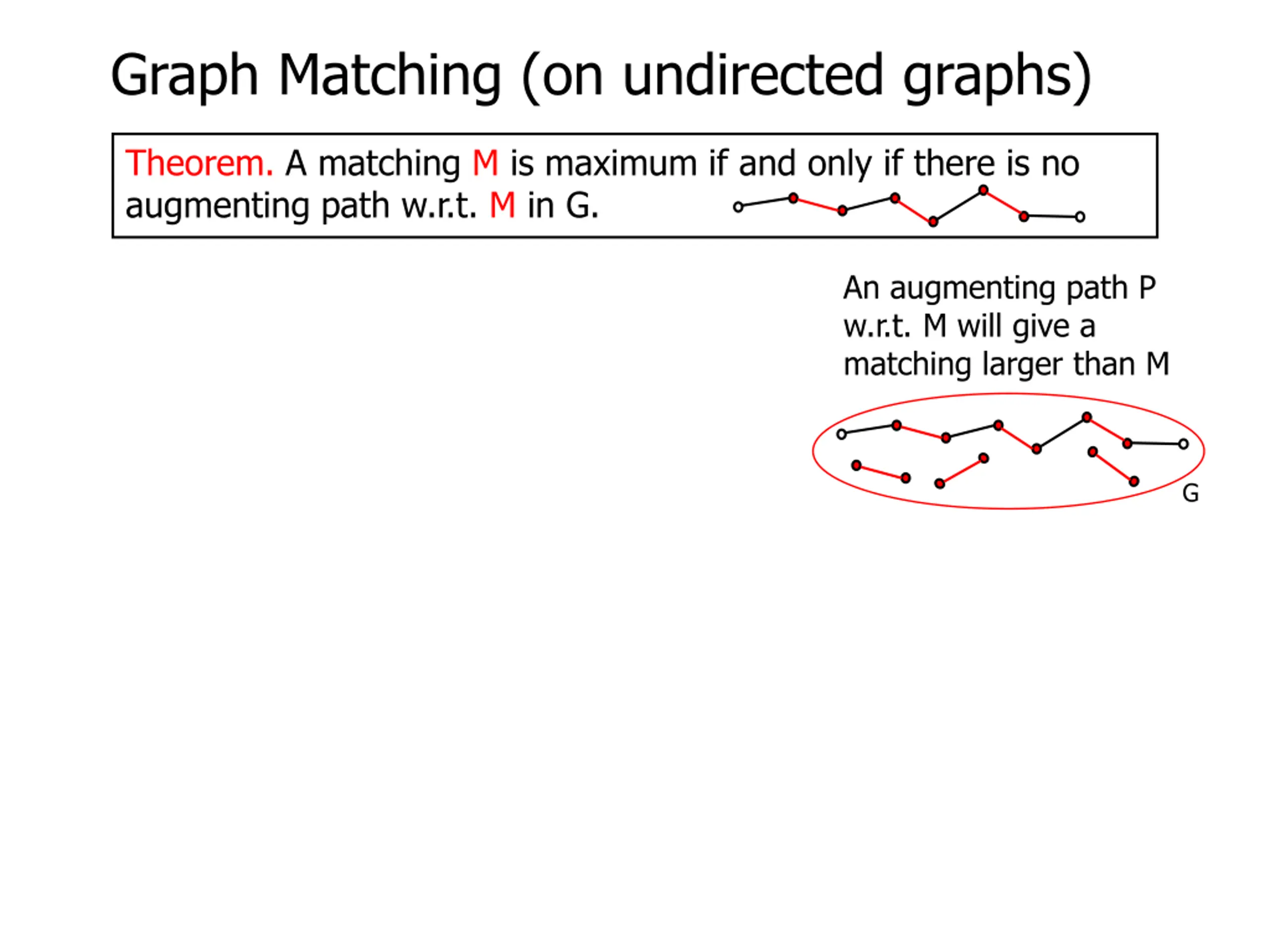

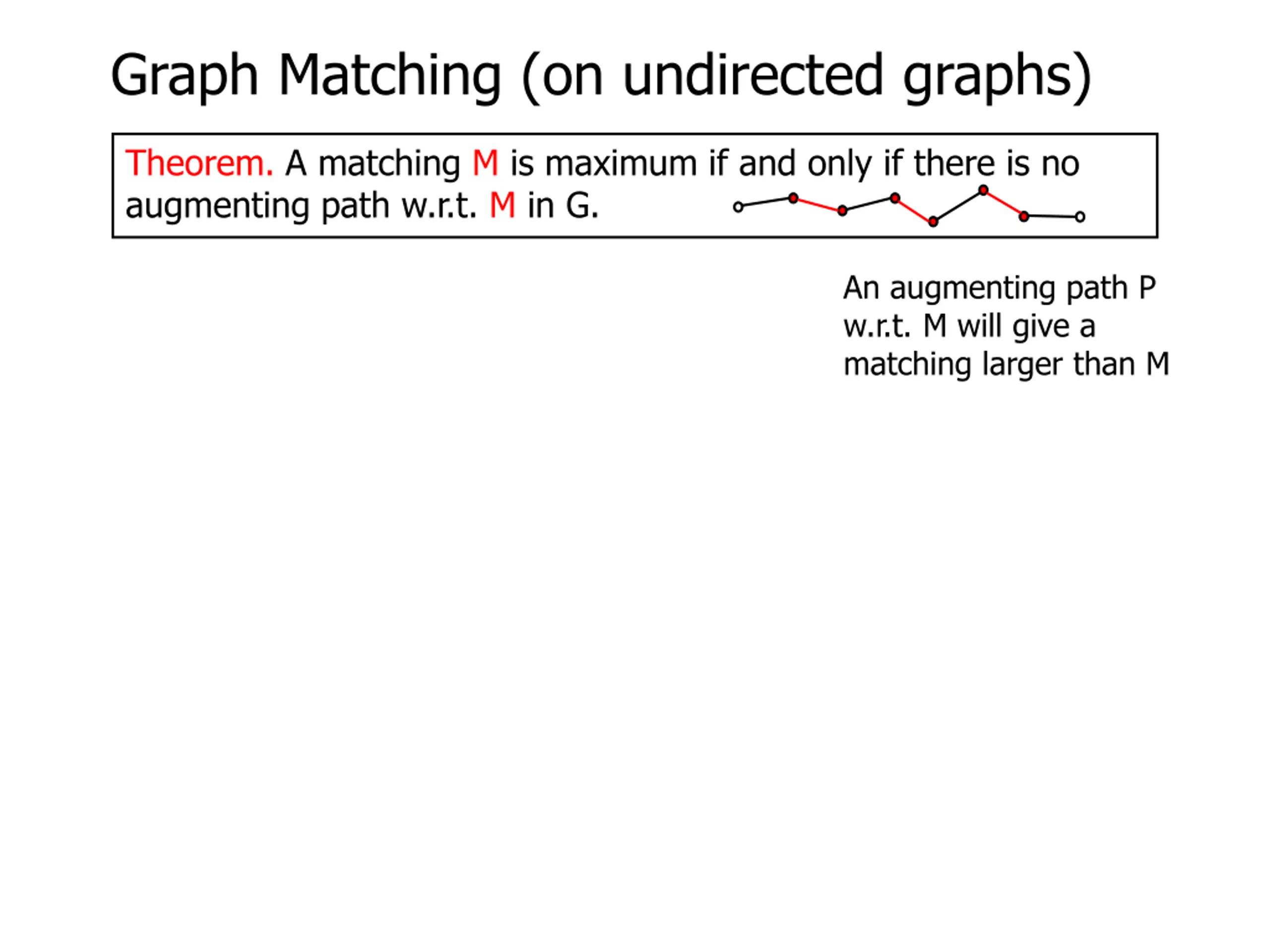

Graph Matching (on undirected graphs) Theorem. A matching M is maximum if and only if there is no augmenting path w.r.t. M in G. An augmenting path P w.r.t. M will give a matching larger than M

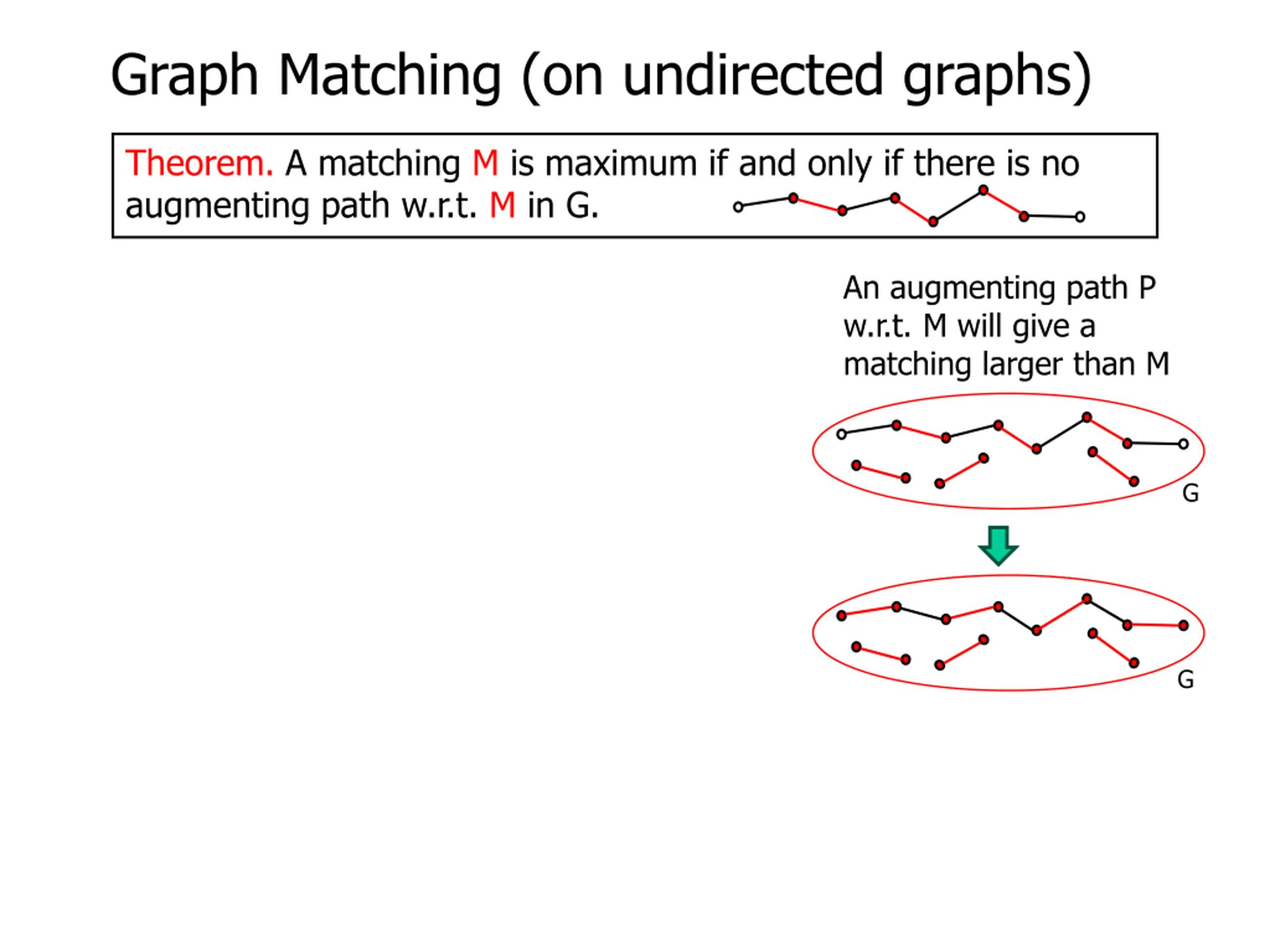

Graph Matching (on undirected graphs) Theorem. A matching M is maximum if and only if there is no augmenting path w.r.t. M in G. An augmenting path P w.r.t. M will give a matching larger than M G
Graph Matching (on undirected graphs) Theorem. A matching M is maximum if and only if there is no augmenting path w.r.t. M in G. An augmenting path P w.r.t. M will give a matching larger than M G G

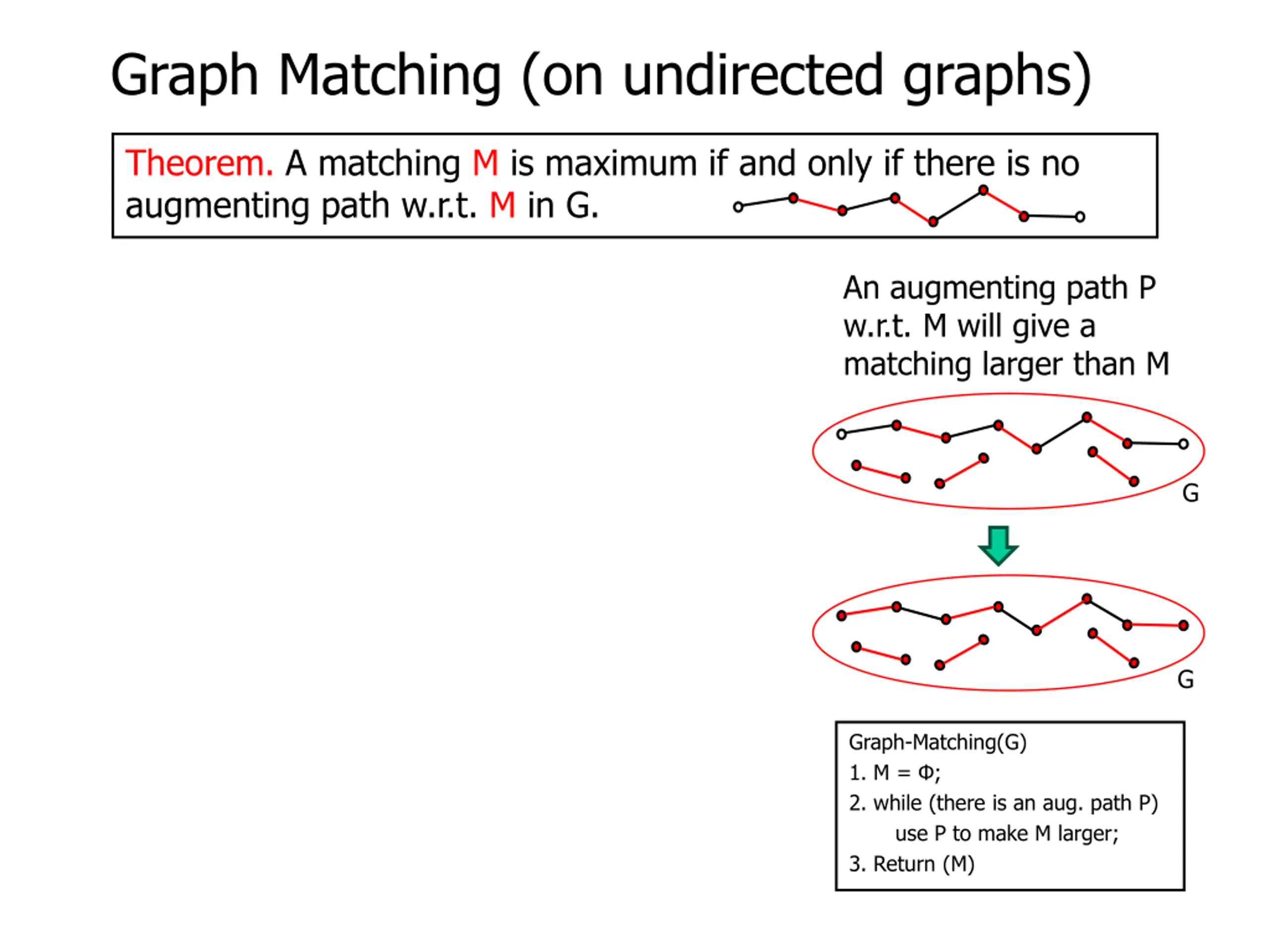

Graph Matching (on undirected graphs) Theorem. A matching M is maximum if and only if there is no augmenting path w.r.t. M in G. An augmenting path P w.r.t. M will give a matching larger than M G G Graph-Matching(G) 1. M = ; 2. while (there is an aug. path P) use P to make M larger; 3. Return (M)

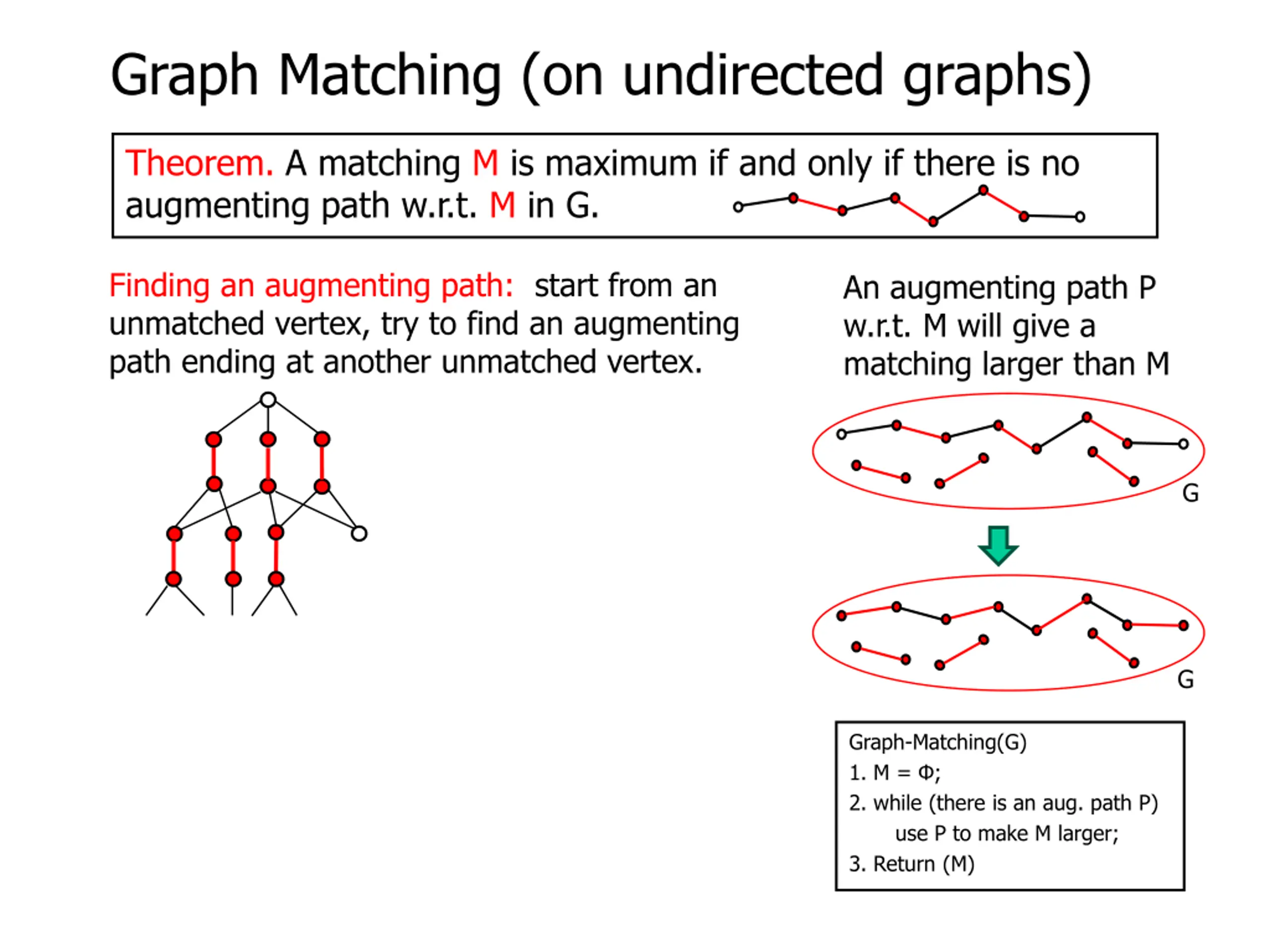

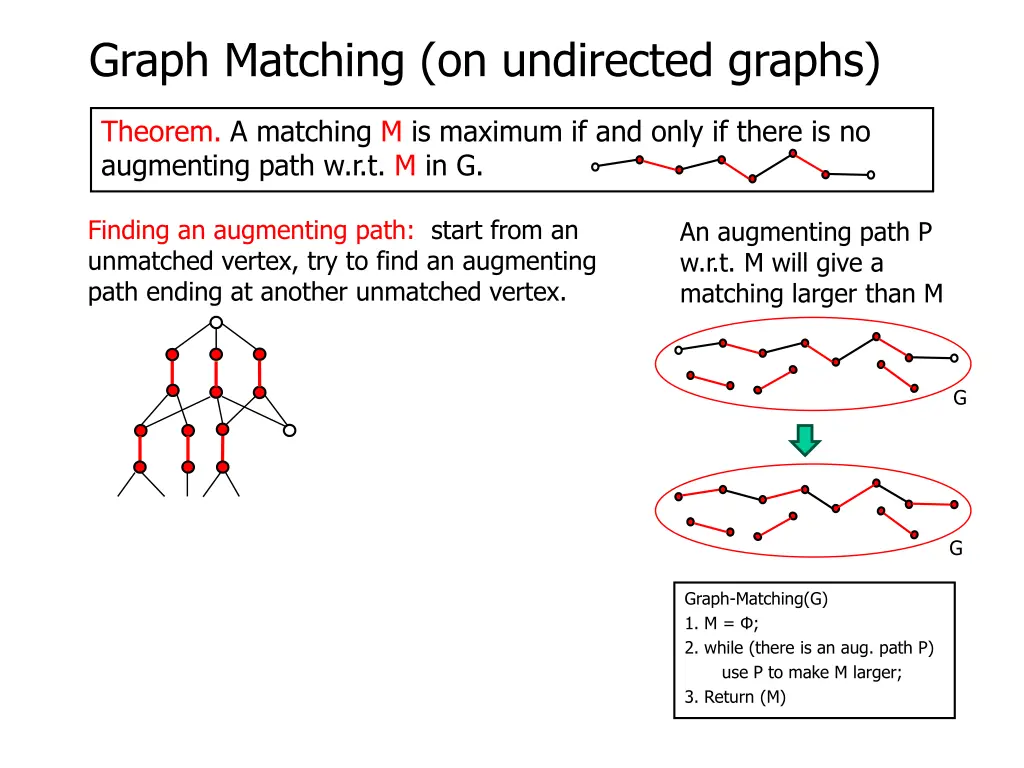

Graph Matching (on undirected graphs) Theorem. A matching M is maximum if and only if there is no augmenting path w.r.t. M in G. Finding an augmenting path: start from an unmatched vertex, try to find an augmenting path ending at another unmatched vertex. An augmenting path P w.r.t. M will give a matching larger than M G G Graph-Matching(G) 1. M = ; 2. while (there is an aug. path P) use P to make M larger; 3. Return (M)

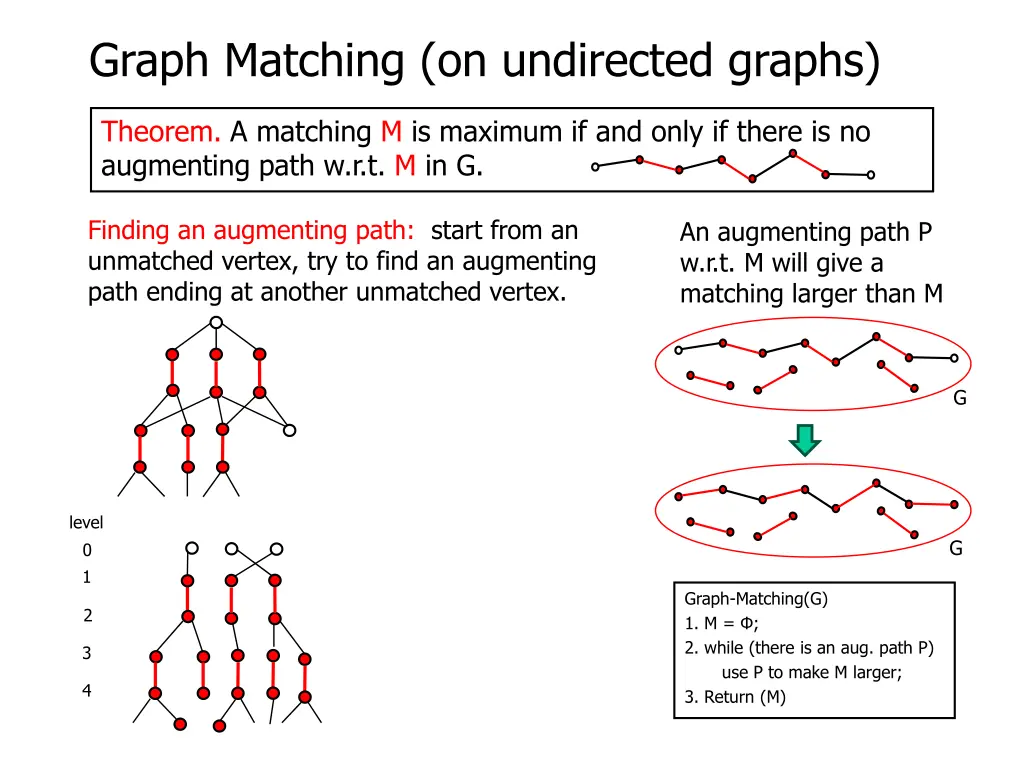

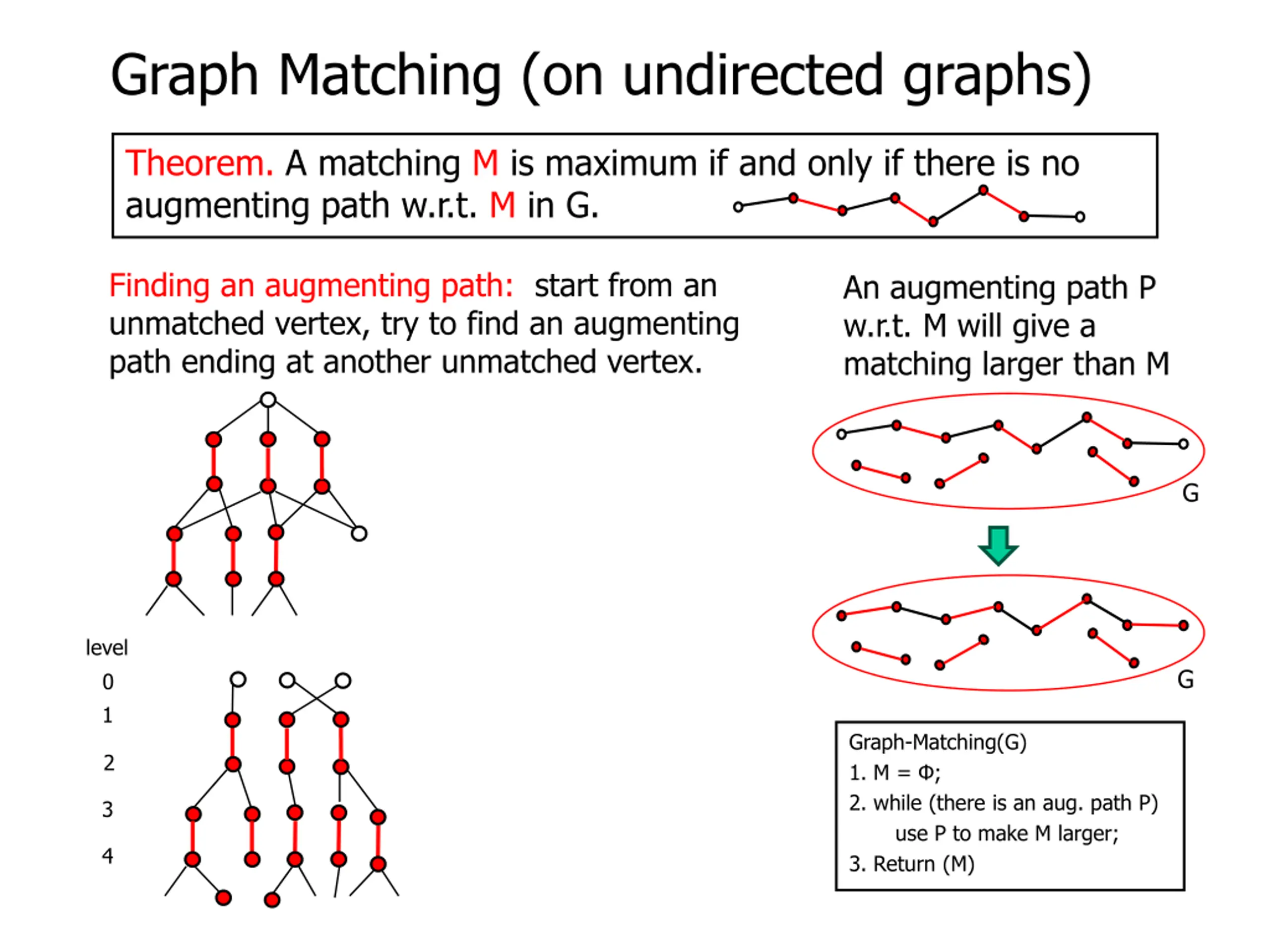

Graph Matching (on undirected graphs) Theorem. A matching M is maximum if and only if there is no augmenting path w.r.t. M in G. Finding an augmenting path: start from an unmatched vertex, try to find an augmenting path ending at another unmatched vertex. An augmenting path P w.r.t. M will give a matching larger than M G level 0 1 G Graph-Matching(G) 1. M = ; 2. while (there is an aug. path P) use P to make M larger; 3. Return (M) 2 3 4

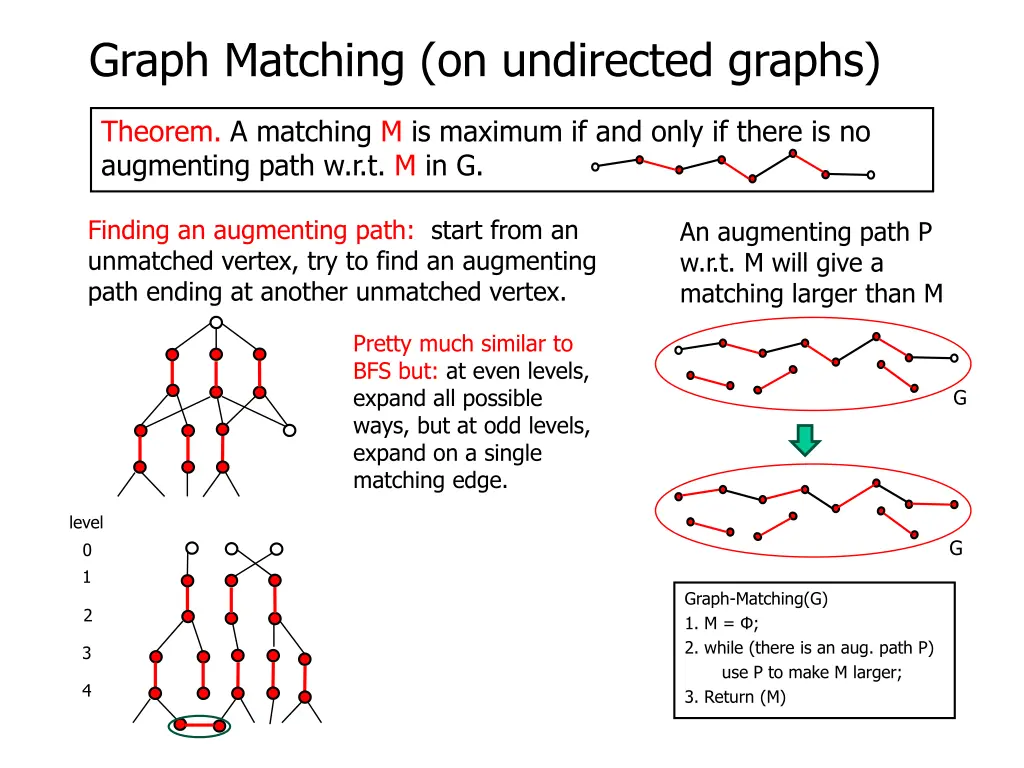

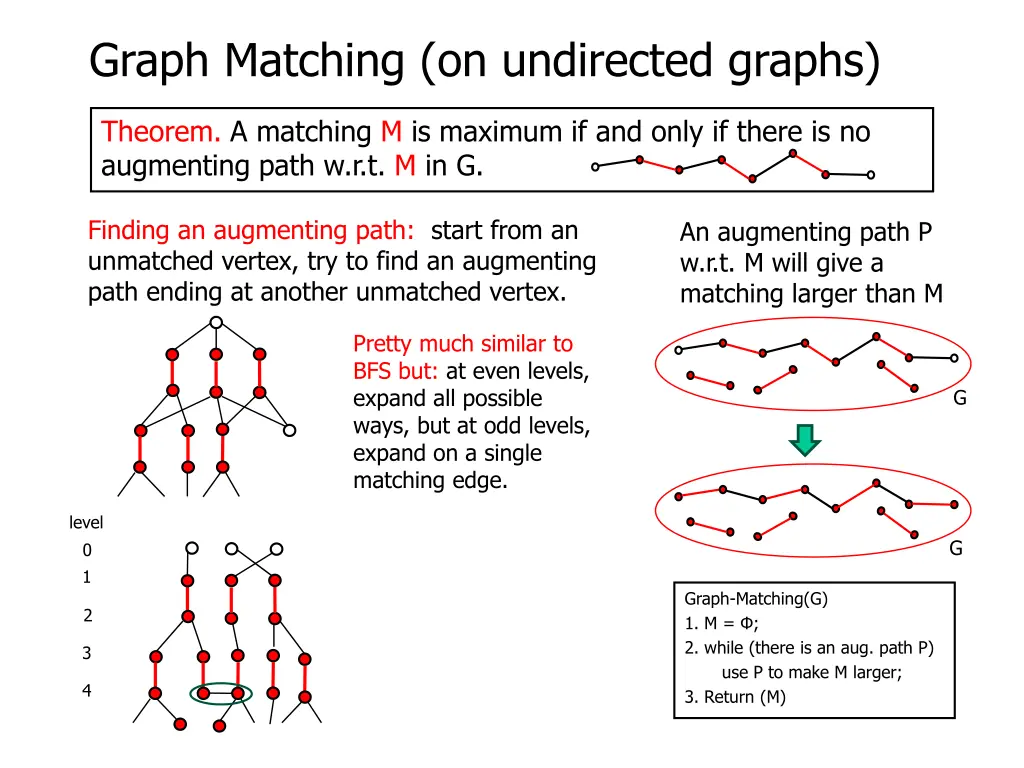

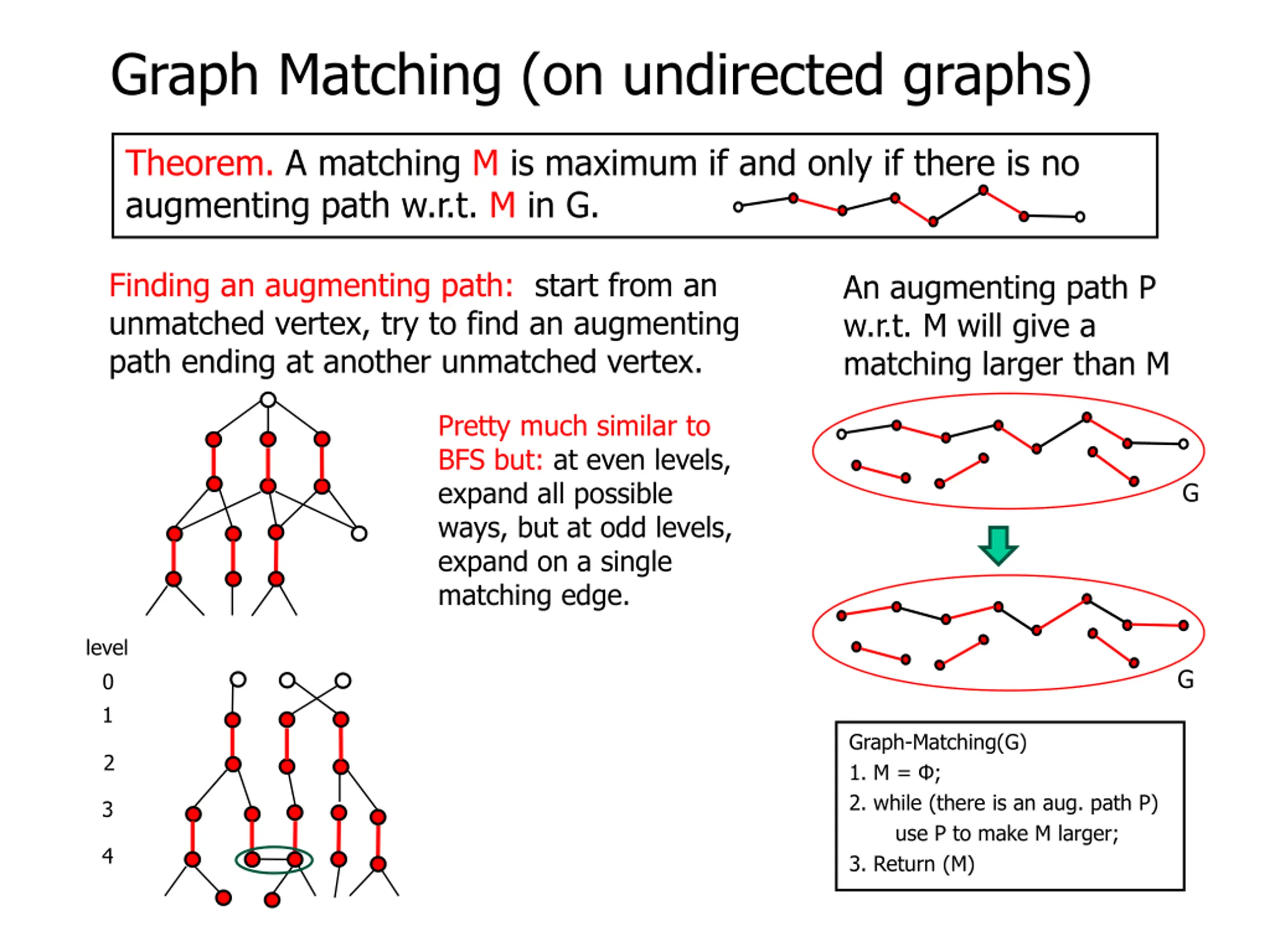

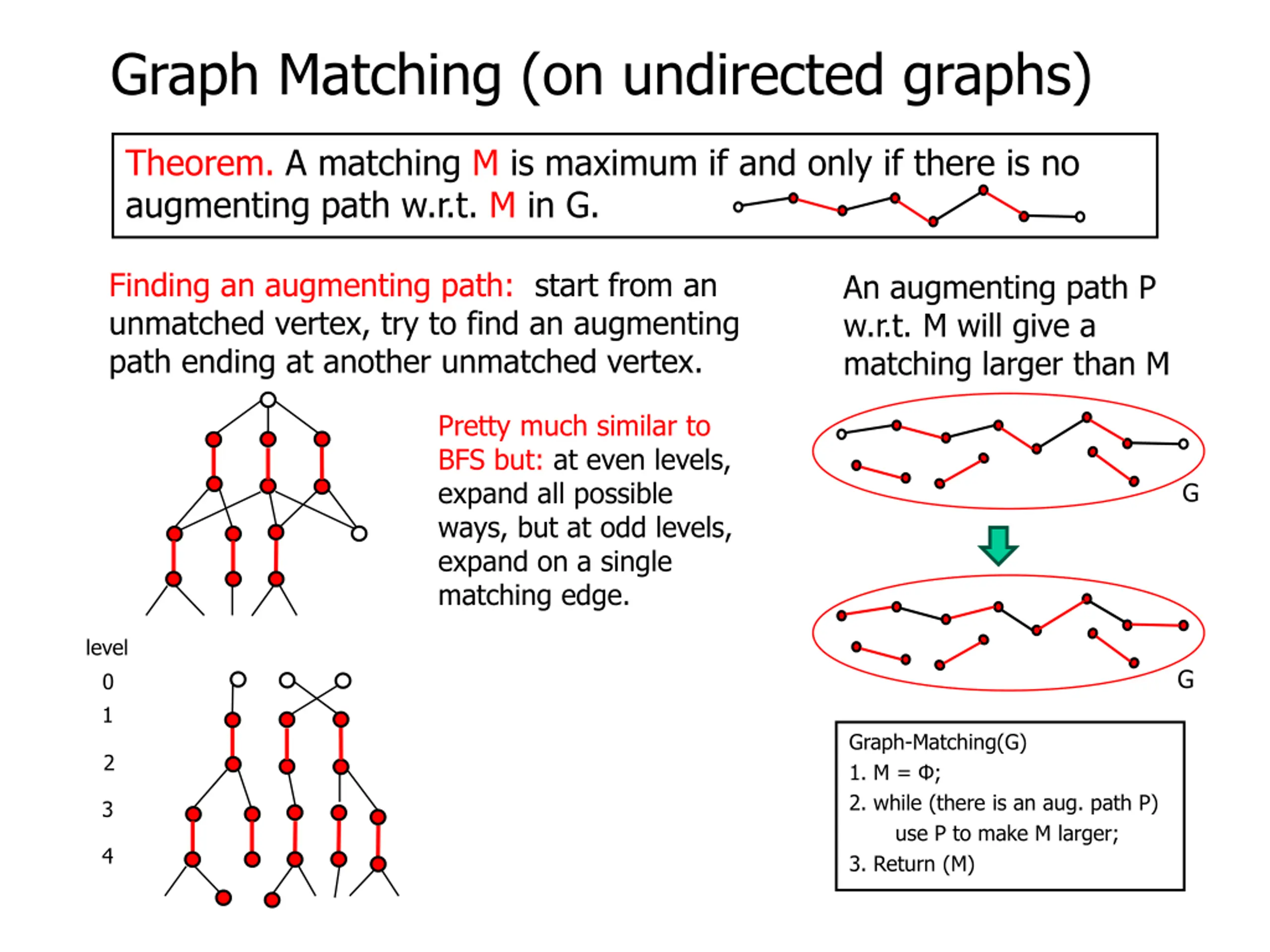

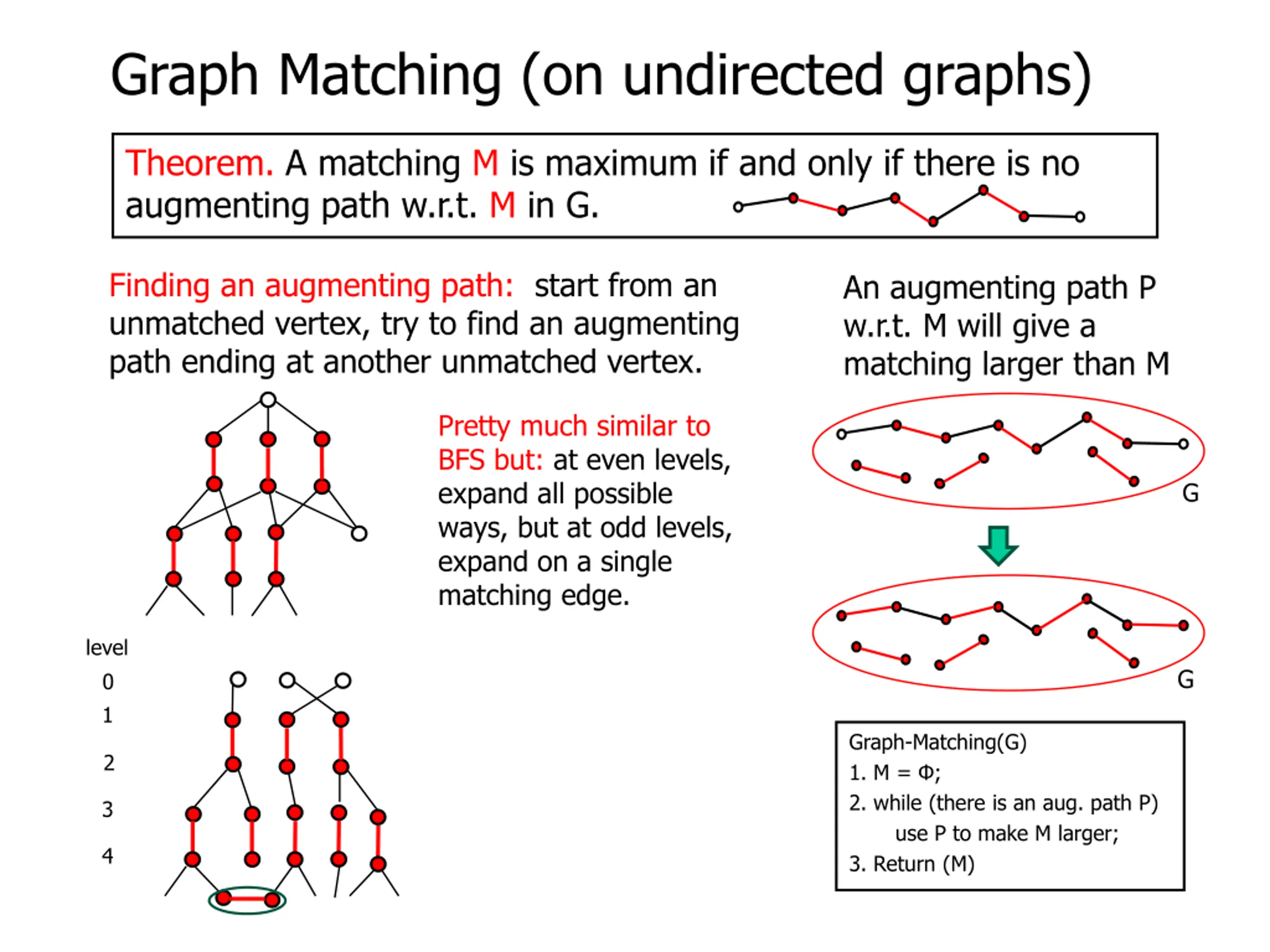

Graph Matching (on undirected graphs) Theorem. A matching M is maximum if and only if there is no augmenting path w.r.t. M in G. Finding an augmenting path: start from an unmatched vertex, try to find an augmenting path ending at another unmatched vertex. An augmenting path P w.r.t. M will give a matching larger than M Pretty much similar to BFS but: at even levels, expand all possible ways, but at odd levels, expand on a single matching edge. G level 0 1 G Graph-Matching(G) 1. M = ; 2. while (there is an aug. path P) use P to make M larger; 3. Return (M) 2 3 4
Graph Matching (on undirected graphs) Theorem. A matching M is maximum if and only if there is no augmenting path w.r.t. M in G. Finding an augmenting path: start from an unmatched vertex, try to find an augmenting path ending at another unmatched vertex. An augmenting path P w.r.t. M will give a matching larger than M Pretty much similar to BFS but: at even levels, expand all possible ways, but at odd levels, expand on a single matching edge. G level 0 1 G Graph-Matching(G) 1. M = ; 2. while (there is an aug. path P) use P to make M larger; 3. Return (M) 2 3 4
Graph Matching (on undirected graphs) Theorem. A matching M is maximum if and only if there is no augmenting path w.r.t. M in G. Finding an augmenting path: start from an unmatched vertex, try to find an augmenting path ending at another unmatched vertex. An augmenting path P w.r.t. M will give a matching larger than M Pretty much similar to BFS but: at even levels, expand all possible ways, but at odd levels, expand on a single matching edge. G level 0 1 G Graph-Matching(G) 1. M = ; 2. while (there is an aug. path P) use P to make M larger; 3. Return (M) 2 3 4

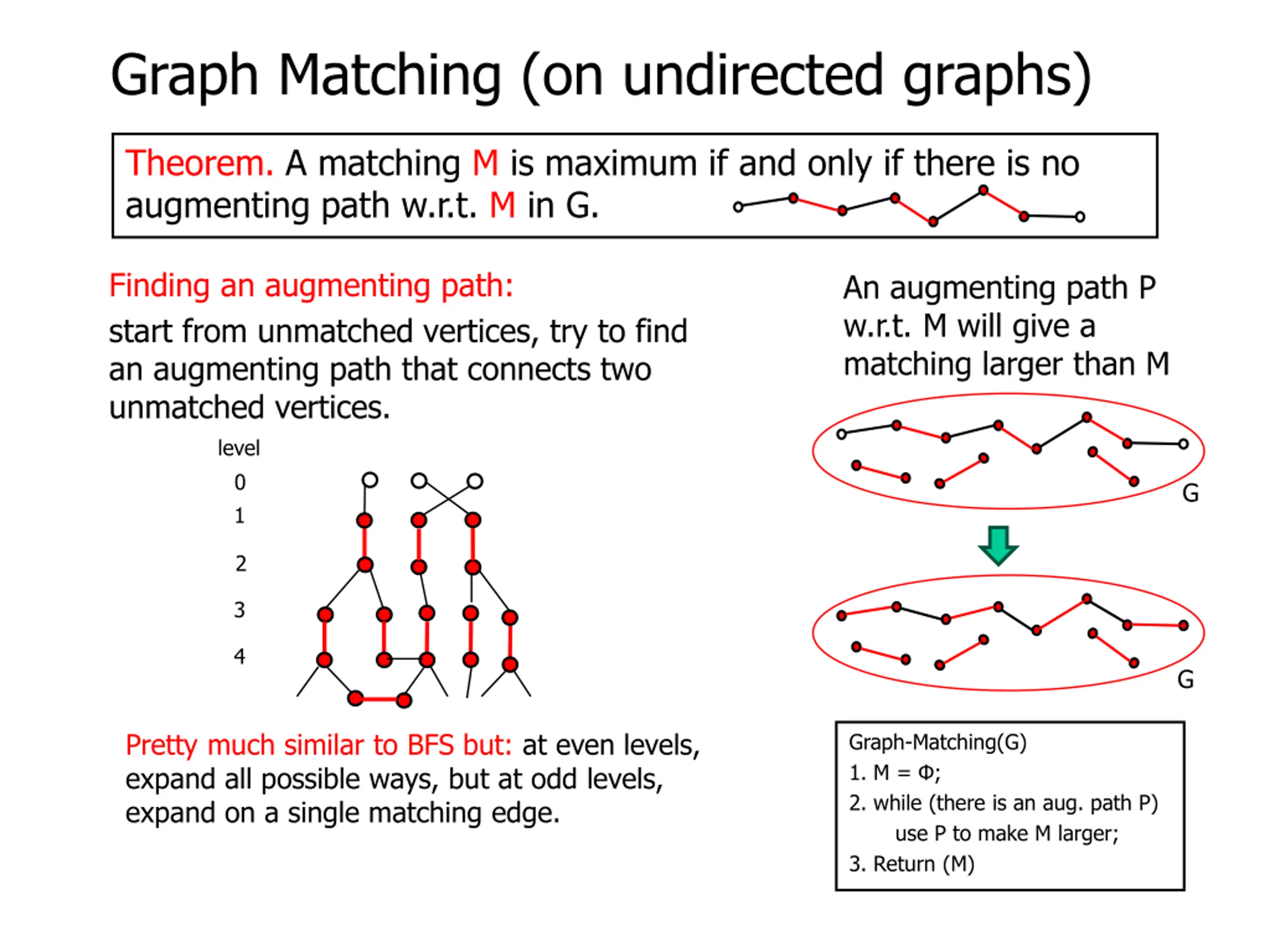

Graph Matching (on undirected graphs) Theorem. A matching M is maximum if and only if there is no augmenting path w.r.t. M in G. Finding an augmenting path: start from unmatched vertices, try to find an augmenting path that connects two unmatched vertices. level 0 1 An augmenting path P w.r.t. M will give a matching larger than M G 2 3 4 G Pretty much similar to BFS but: at even levels, expand all possible ways, but at odd levels, expand on a single matching edge. Graph-Matching(G) 1. M = ; 2. while (there is an aug. path P) use P to make M larger; 3. Return (M)

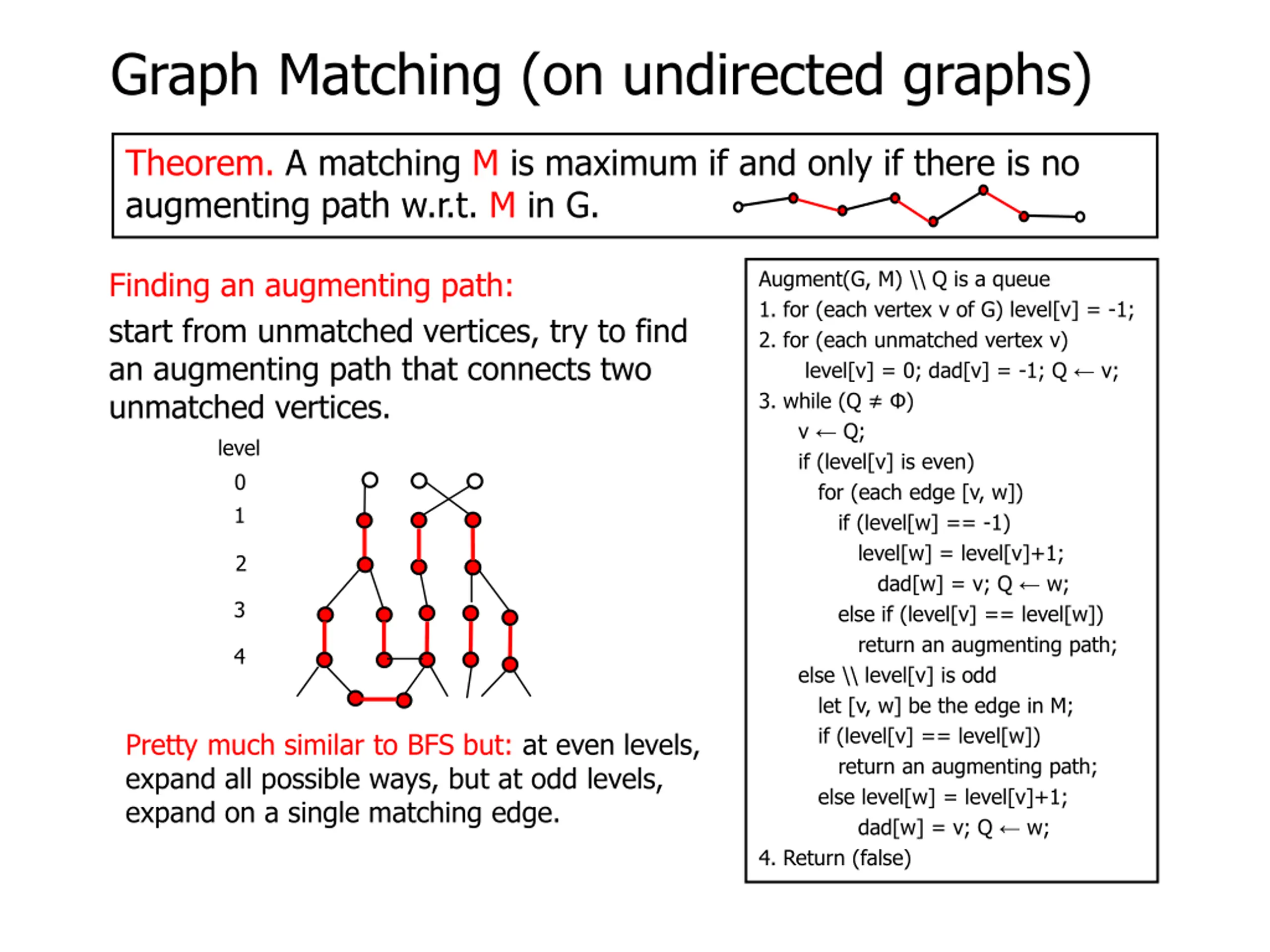

Graph Matching (on undirected graphs) Theorem. A matching M is maximum if and only if there is no augmenting path w.r.t. M in G. Finding an augmenting path: start from unmatched vertices, try to find an augmenting path that connects two unmatched vertices. level 0 1 Augment(G, M) \\ Q is a queue 1. for (each vertex v of G) level[v] = -1; 2. for (each unmatched vertex v) level[v] = 0; dad[v] = -1; Q v; 3. while (Q ) v Q; if (level[v] is even) for (each edge [v, w]) if (level[w] == -1) level[w] = level[v]+1; dad[w] = v; Q w; else if (level[v] == level[w]) return an augmenting path; else \\ level[v] is odd let [v, w] be the edge in M; if (level[v] == level[w]) return an augmenting path; else level[w] = level[v]+1; dad[w] = v; Q w; 4. Return (false) 2 3 4 Pretty much similar to BFS but: at even levels, expand all possible ways, but at odd levels, expand on a single matching edge.

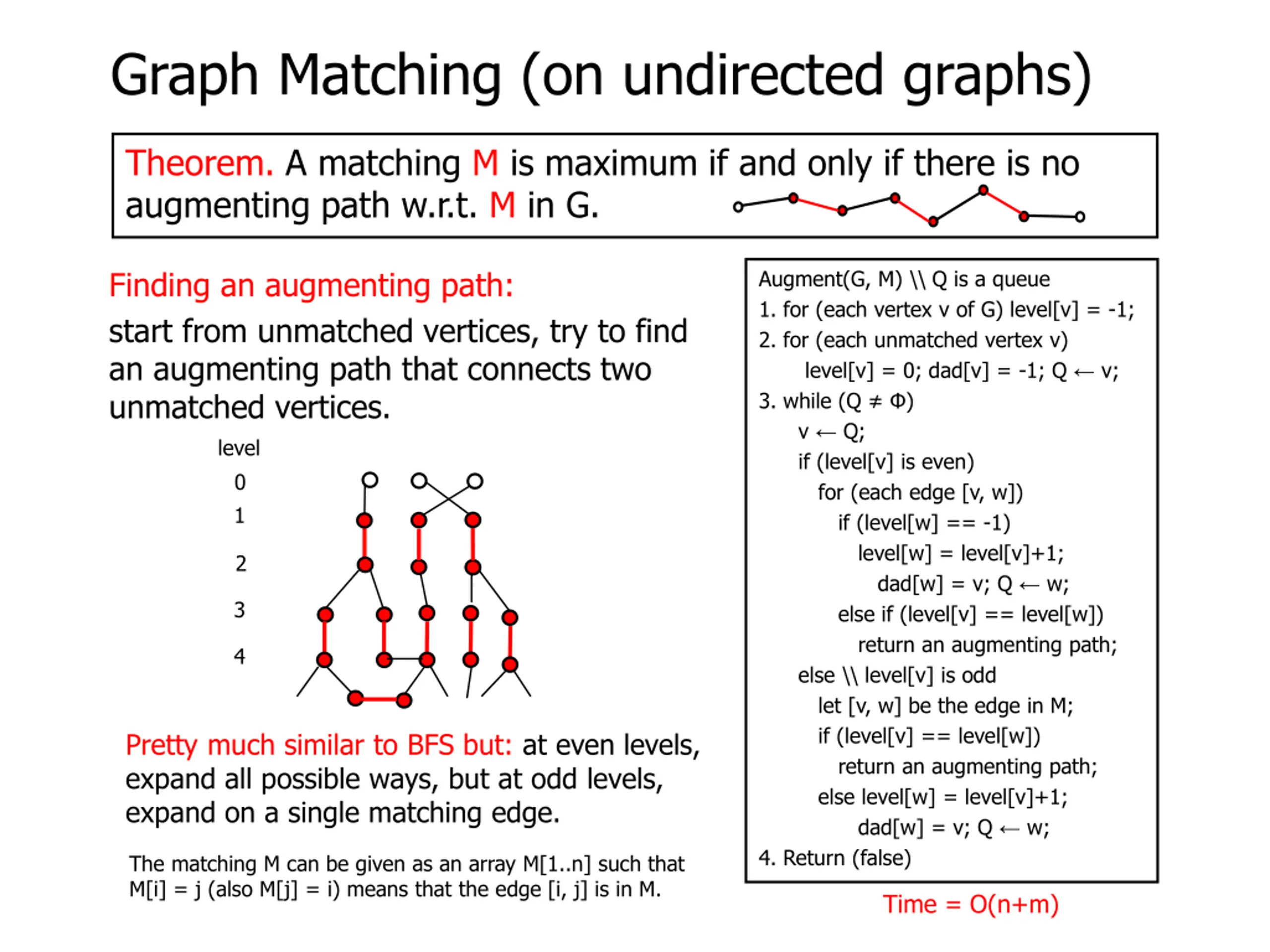

Graph Matching (on undirected graphs) Theorem. A matching M is maximum if and only if there is no augmenting path w.r.t. M in G. Finding an augmenting path: start from unmatched vertices, try to find an augmenting path that connects two unmatched vertices. level 0 1 Augment(G, M) \\ Q is a queue 1. for (each vertex v of G) level[v] = -1; 2. for (each unmatched vertex v) level[v] = 0; dad[v] = -1; Q v; 3. while (Q ) v Q; if (level[v] is even) for (each edge [v, w]) if (level[w] == -1) level[w] = level[v]+1; dad[w] = v; Q w; else if (level[v] == level[w]) return an augmenting path; else \\ level[v] is odd let [v, w] be the edge in M; if (level[v] == level[w]) return an augmenting path; else level[w] = level[v]+1; dad[w] = v; Q w; 4. Return (false) 2 3 4 Pretty much similar to BFS but: at even levels, expand all possible ways, but at odd levels, expand on a single matching edge. The matching M can be given as an array M[1..n] such that M[i] = j (also M[j] = i) means that the edge [i, j] is in M. Time = O(n+m)
