Examining the Applicability of Hanski's Incidence Function Model for Urban Biodiversity Planning
Laura Graham, an ESRC-funded PhD candidate, aims to investigate the suitability of using the Incidence Function Model (IFM) in urban biodiversity planning at a landscape scale. The research involves sensitivity analysis of available data and exploring policy questions of local and national relevance. The IFM, a spatially realistic metapopulation model with low data requirements, is being used to address the importance of urban ecosystems for human well-being and biodiversity conservation. Implications of data quality, study site, and landscape data, as well as species data from Nottinghamshire Birdwatchers Map, are also being considered.
- urban biodiversity planning
- landscape scale
- sensitivity analysis
- Incidence Function Model
- metapopulation model
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
E N D
Presentation Transcript

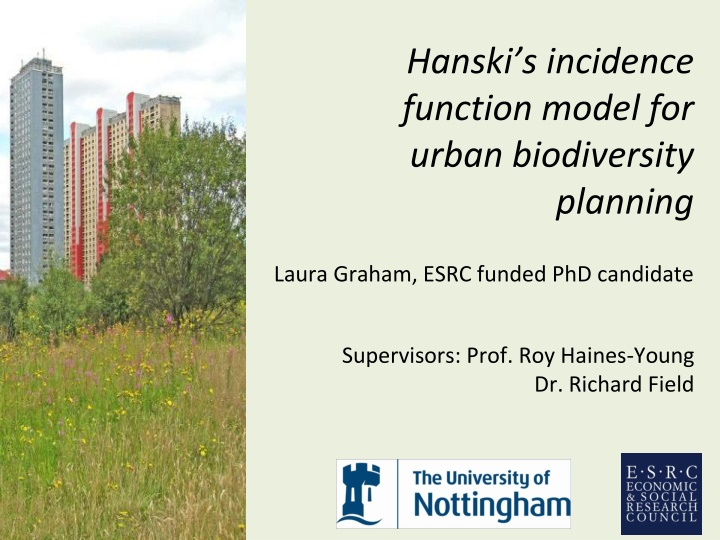

Hanskis incidence function model for urban biodiversity planning Laura Graham, ESRC funded PhD candidate Supervisors: Prof. Roy Haines-Young Dr. Richard Field
Background Importance of urban ecosystems to both human well-being and biodiversity prevalent in conservation policy Lawton Report implies a need for conservation planning at a landscape level Does not seem to have formed part of local authority policy
Research Aim To investigate the applicability of the IFM to urban biodiversity planning at landscape scale by testing suitability of available data through sensitivity analysis To use the IFM to explore policy questions of both local and national relevance
Incidence function model (IFM) Spatially realistic metapopulation model Low data requirements Urban landscapes are fragmented
Incidence function model (IFM) Time (t) = 0
Incidence function model (IFM) Time (t) = 0 t = 1
Incidence function model (IFM) Time (t) = 0 t = 1 t = 2
Incidence function model (IFM) Time (t) = 0 t = 1 t = 2 t = 3
Incidence function model (IFM) Time (t) = 0 t = 1 t = 2 t = 3
Implications of data quality Mis-estimated patch areas Habitat patches not identified False absences in species dataset Moilanen, 2002
Species Data Data from Nottinghamshire Birdwatchers Map shows surveyed grid squares (1998-2011) Data from 1998-2009 grouped into 3 survey windows
Patch Occupancy 1. 2. 1. Survey data 2. Interpolated data (kriging) 3. Random at surveyed % 3. 4. 4. Random at interpolated %
Blackbird (Turdus merula) Effects of occupancy level Effects of spatial structure Patches Occupied Photo credit: Oystercatcher on flickr Time
Corn Bunting (Miliaria calandra) Effects of occupancy level Effects of spatial structure Patches Occupied Photo credit: Steve Riall on flickr Time
Marsh Tit (Poecile palustris) Effects of occupancy level Effects of spatial structure Patches Occupied Photo credit: Steffen Hannert Time
Parameterise on subset of survey data Parameterise on subsets comprising grid squares surveyed in both 1st and 2nd survey window Run model for each set of parameters
Results of subsetting Patches Occupied Time
Conservation policy implications If IFM has potential to be used to for urban biodiversity planning: Need for intensive monitoring and surveying Need for more joined up and centralised databases Compare relative effects of varying management scenarios
