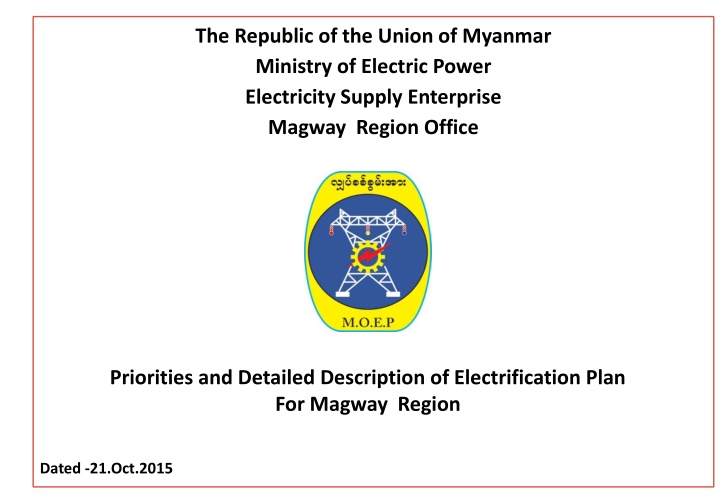

  1. The Republic of the Union of Myanmar Ministry of Electric Power Electricity Supply Enterprise Magway Region Office Priorities and Detailed Description of Electrification Plan For Magway Region Dated -21.Oct.2015

  2. As Per DE Idea after discussion with Local government We always face and solve the case of compensate dealing with the field in construction of lines and substations. Although some farmers are agreed to get the suitable rate identified by the MOEP, some are not. When they want to get more than the suitable rate , we will face with many difficulties ( problems ) We want to construct new substations and upgrade the present distribution substation such as magway (Natmout Street) substation , Pakokku substation , Kanma substation , Pakhangyi substation, etc according to the ratio of increasing electrification rate. In my opnion , Kanpyar , myothit , myinkin substation in Manway district , Myaing , Yesakyo (Tamartan) substation in Pakokku district , Thayet substation in Thayet district and Hnan khar substation in Gangaw township should be constructed extensively in magway region. 2

  3. The additional electrification statement due to Newly and Replacement 66/33/11kV substation and related power line for Magway Region Estimated cost (million kyats) To be constructed The effective area No Township 66kV Line (mile) 33kV Line (mile) Total House hold Total Popu lation Total Villages Instal lation Substation Material Total Replacement 66/11 kV 10 MVA to 20 MVA Sustation Replacement 66/11 kV 5 MVA to 10 MVA Sustation 1 Pakokku (Substation 1) 41 208058 832232 501.25 4.668 505.9 2 Pakokku (Substation 2) 25 150000 600000 397.44 3.5 400.9 3 Pakokku 66kV Line 12.8 1025.2 141.66 1167 Newly 33/11 kV 10 MVA Sustation 4 Magway (KanPya) 21 4398 20171 698.63 127.47 826.1 5 Magway (KanPya) 33kV Line 8 324.69 46.24 370.9 Newly 33/11 kV 5 MVA Sustation 6 Magway (Myin Kin) 1 65 442 599.73 105.83 705.6 7 Magway (Myin Kin) 33 kV Line 4.5 182.64 26.01 208.6 REMARK - The former 66/11 kV, 10 MVA TR; from Pakokku(1) is intended to use for Pakokku(2) 3

  4. Electrification Plan for Villages of Magway Union Territory (Within 2 miles from Existing 11 kV Distribution Line) Pakokku District Number of Village Household Estimate Cost - 10197.94(Million Kyats) Transformer - 232 Nos - 209 - 24156 Gangaw District Number of Village Household Estimate Cost -528.23(Million Kyats) Transformer - 31 Nos - 24 - 2832 Magway District Number of Village Household Estimate Cost - 8827.89(Million Kyats) Transformer - 236 Nos - 203 - 33105 Minbu District Number of Village Household Estimate Cost - 6148.63(Million Kyats) Transformer - 153 Nos -139 - 19228 Thayet District Number of Village Household Estimate Cost - 3735.87(Million Kyats) Transformer - 104 Nos - 90 - 10105 Magway Region Number of Village Household Proposal 11kV Line Transformer Estimate Cost (Million Kyats) - 29438.4 - 665 - 89426 - 708.51 - 756 Nos 4

  5. Detailed Electrification Plan for Magway Region (Within 2 miles from Existing 11 kV Distribution Line) Task by regional To be constructed Name Of Village to be Electrif- ied Estimate d cost (Mil Kyates) No of Hous e Hous e hold Cost for 11 kV Line 11/0.4 kV Transformer Popu lation 400 V Lines (Miles ) Estimate d Cost (Mil Kyats) No District Tran sport Cost Constr uction Cost Tran sport Cost Constr uction Cost mileMaterial KVA NoMateri Total Total Cost al Cost 3285 7 3307 5 15887 8 192. 5 4607.624 250.4737.52 5595.5 5 2594 0 2362954.7 188.87 3 3226.2 6 8827.89192.2 1 Magway 203 82.6 8631.52 9 3 2 1922 8 1922 8 83945145. 3479.331189.1 557.38 4225.91431 1531745.6 54.606122.47 1922.7 3 6148.628109.3 2 Min Bu 139 4908.61 5 9 0 5 3 5 2415 6 2415 6 12535 7 248. 8 5901.879335.8 945.08 7 7182.8 4 2419 0 2322731.3 97.04186.69 3015.1 10197.94163.8 7354.164 9 3 Pakokku 209 7 7 5 3 1010 5 1010 5 3995790.7 2034.273154.3 324.31 1 2512.9 1 88701041175.9 1295.5 5 3735.868 68.13056.940 4 Thayet 90 36.4 83.2 8 3 5 9 938 479131.2 321.5626 17.6251.513 390.69 6 2750 31124.88 137.53 528.2286 28.49479.8634 5 Gangaw 24 938 3.85 8.8 3 5 3 1 8728 4 8750 2 41292 8 708. 5 16344.6 7 947.4 1 2615.8 2 19907. 9 7610 0 7568732.5 274.49 6 590.04 1 9597.1 7 29438.4 1 Total 665 568.8 24431.1 8 5

  6. Location Map Of Electrification Plan for Magway District (Within 2 miles from Existing 11 kV Distribution Line) Chauk Township Number of Village Household Estimate Cost (Million Kyats) Transformer Yenangyaung Township Number of Village Household Estimate Cost (Million Kyats) Transformer - 15 - 2224 - 552.48 - 30 - 3525 - 978.12 - 12 Nos - 35 Nos Salay Town Natmauk Township Number of Village Household Estimate Cost (Million Kyats) Transformer Number of Village Household Estimate Cost (Million Kyats) Transformer - 8 - 1221 - 332.14 - 8 - 1491 - 421.48 - 8 Nos - 11 Nos Magway Township Number of Village Household Estimate Cost (Million Kyats) Transformer - 34 - 6779 - 1781.5 Minbu District Myothit Township Number of Village Household Estimate Cost (Million Kyats) Transformer - 44 - 8545 - 1831.29 - 49 Nos Myingon Town Number of Village Household Estimate Cost (Million Kyats) Transformer - 49 Nos - 8 - 1147 - 319.16 - 10 Nos Taungdwingyi Township Number of Village Household Estimate Cost (Million Kyats) Transformer Magway District Michaungye Town Number of Village Household Estimate Cost (Million Kyats) Transformer - 46 - 6344 - 2150.748 Number of Village Household Proposal 11kV Line Transformer Estimate Cost (Million Kyats) - 203 - 33105 - 192.2 - 236 Nos - 8827.29 - 10 - 1829 - 459.82 - 47 Nos - 16 Nos 6

  7. Detailed Electrification Plan for Magway Township(Within 2 miles from Existing 11 kV Distribution Line) Task by regional Name Of Villag e to be Electri fied To be constructed Estima ted cost (Mil Kyates ) Cost for 11 kV Line 11/0.4 kV Transformer Town Ship No of House House hold Popu lation 400 V Lines (Miles ) Estimate d Cost (Mil Kyats) No Tran sport Cost Constr uction Cost Tran sport Cost Constr uction Cost mileMateri al Cost NoMateri al Cost Total KVA Total 6561 6779 30921 36.9887.06 48.09 141.511076.7 49 648.5217.15039.200704.87 1781.5 0 1 Magway 34 5340 42.39 1905.8 0 0 0 6.49155.16 2 Myyincon 8 1147 1147 4670 8.44 24.86 188.46 980 10 119.20 3.500 8.000 130.70319.16 7.19 322.75 0 Miechau ngyie 8.49202.98 16 194.89 5.600 12.800213.29 3 10 1829 1829 9192 11.04 32.52 246.53 1300 459.82 11.1 498.27 0 0 Yaenanch aung 2224 2224 10577 13.60324.91 12 144.05 4.200 9.600157.85 4 15 17.67 52.05 394.63 1420 552.48 8.1 363.60 0 0 3525 3525 17327 17.40416.00 35 427.6012.25028.000467.90 5 Chauk 30 22.620 66.64 505.26 3780 978.12 21.08 946.26 0 0 7.63182.42 101.38 2.800 6.400110.58 6 Salay 8 1191 1191 6000 9.919 29.22 221.56 1050 8 332.14 4.62 207.39 0 0 Taungtwi ngyi 6344 6344 29423 52.751261.1 68.575202.031531.7 47 564.8716.45037.673618.99 2150.7 5 7 46 4910 40.74 1828.78 4 6 3 8545 8545 44925 40.00957.03 52.039153.311162.3 48 613.7016.80038.400668.90 1831.2 9 421.48 0 8 Myothit 44 6020 51.2 2298.32 7 9 2 9.24 220.9112.01035.389268.311140. 11 140.52 3.850 8.800153.17 9 Natmauk 8 1491 1491 5843 5.800 260.356 0 0 203 32857 3307515887 192.5 0 4607. 62 250.4 00 737.5 29 5595. 55 25940 2362954. 82.60 0 188.8 73 3226. 26 8827. 29 192.2 2 8631.52 7 Total 8 73

  8. Location Map of Electrification Plan for Minbu District (Within 2 miles from Existing 11 kV Distribution Line) 6148.6 1462.8 1462.8 2554.45 2554.4 198.8 198.8 272.43 272.4 1128. 182.89 182.9 348.9 348.9 8

  9. Detailed Electrification Plan for Minbu District (Within 2 miles from Existing 11 kV Distribution Line) Task by regional To be constructed Name Of Villag e to be Electri fied Cost for 11 kV Line 11/0.4 kV Transformer Estimat ed cost (Mil Kyates) Town Ship No of House House hold Popu lation 400 V Lines (Miles ) Estimat ed Cost (Mil Kyats) No Tran sport Cost Constr uction Cost Mater ial Cost Tran sport Cost Constr uction Cost Materi al Cost mile Total KVA No Total 91.328 5 71.97182.89 1 Min Bu 5 852 852 3581 3.82 4.966 14.63 110.93 800 5 66.22 1.75 4 5.54 248.69 5 4433 18944 24.37582.63 31.68 1 93.33 7 382.7 2 11.55 26.4 420.671128.3 2 Sagu 24 4433 707.66 2600 33 16.14 724.51 8 3 4.45 106.39 5.78517.04 130.5 6 8.8 143.21272.42 3 PwintPhyu 10 118 1118 5336 129.22 1280 11 3.85 5.9 264.85 3 5 8152 36284 61.541471.2 80.00 2 235.6 9 1786.9 9 696.1 7 22.40 6 48.87 3 767.452554.4 4 Salin 62 8152 5910 61 54.95 2466.6 9 5 5Sinbyugyu n 2359 10857 39.05933.60 50.76 5 149.5 6 1133.9 3 298.9 6 20.8 328.861462.7 28 2359 2720 26 9.1 17.5 785.56 7 9 172.13 8 27.57 6 209.07 4 124.8 8 6 Nga Pe 6 1971 1971 7364 7.2 9.36 600 13 4.55 10.4 139.83 348.91 6 269.33 19.53 3 148.09 4 7 Sidoktaya 4 343 343 1579 5.1 121.93 6.63 400 4 46.14 1.4 3.2 50.74 198.83 3.32 149.03 19228 19228 83945145.5 3479.3189.1 557.3 8 4225.9 14310 1531745. 54.60 6 122.4 7 1922. 7 Total 6148.6 109.4 4908.6 3 9 7 9

  10. Location Map Of Electrification Plan for Pakokku District (Within 2 miles from Existing 11 kV Distribution Line) Myaing Township Number of Village Household Estimate Cost (Million Kyats) - 50 - 4417 - 2215.6357 Pauk Township Number of Village Household Estimate Cost (Million Kyats) Yesagyo Township Number of Village Household Estimate Cost (Million Kyats) - 50 - 6457 - 2387.106 - 37 - 5327 - 2111.18354 Pakokku Township Number of Village Household Estimate Cost (Million Kyats) - 58 - 6598 - 3112.32004 Seikphyu Township Number of Village Household Estimate Cost (Million Kyats) - 14 - 1357 -371.6964 Pakokku District Number of Village Household Proposal 11kV Line Transformer Estimate Cost (Million Kyats) - 209 - 24156 - 248.88 - 232 Nos - 10197.942 10

  11. Detailed Electrification Plan for Pakokku District (Within 2 miles from Existing 11 kV Distribution Line) Task by regional To be constructed Name Of Village to be Electrifie d Estimate d cost (Mil Kyates) Town Ship No of House House hold Popu lation Cost for 11 kV Line 11/0.4 kV Transformer 400 V Lines (Miles ) Estimate d Cost (Mil Kyats) No Mater ial Cost Tran sport Cost Const ructio n Cost Mater ial Cost Tran sport Cost Const ructio n Cost mile Total KVA No Total 1Pakokk u 6598 6598 30079 78.581878. 102.1 5 300.9 6 2281. 8 7040 63758.0 830.5 1 58 22.05 50.4 3112.32 43.97 1973.8 6 6 5327 5327 28856 54.831310. 71.27 9 209.9 9 1592. 2 4280 40473.0 519.0 3 2 Yesakyo 38 14 32 2111.18 33.36 1497.5 9 3 4417 4417 24858 51.731236. 67.24 9 198.1 2 1502. 1 5080 55650.2 3 Myaing 50 19.25 44 713.5 2215.63 34.27 1538.3 8 5 1326. 9 72.15212.5 1611. 6 6480 59707.6 775.4 9 2387.10 6 4 Pauk 50 6457 6457 29072 55.5 20.65 47.2 42.23 1895.7 7 5 5SeikPhy u 148.6 6 23.04 2 23.43 5 195.1 4 1310 15142.3 21.0913.09 176.5 6 371.696 4 14 1357 1357 12492 8.2 10 448.89 8 5 24156 2415612535 248.8 4 5901. 335.8 7 945.0 8 7182. 8 241902322731. 97.04 0 186.6 9 3015. 1 10197.9 4 163.8 3 Total 7354.2 7 9 4 11

  12. Location Map of Electrification Plan for Thayet District (Within 2 miles from Existing 11 kV Distribution Line) 519.13 3735.9 238.37 836.1 572.71 1569.58 12

  13. Detailed Electrification Plan for Thayet District (Within 2 miles from Existing 11 kV Distribution Line) Task by regional Name Of Village to be Electrif i- ed To be constructed Estimate d cost (Mil Kyates) No of Hous e Hous e hold Cost for 11 kV Line 11/0.4 kV Transformer Town Ship Popu lation 400 V Lines (Mile s) Estimate d Cost (Mil Kyats) No Const ructio n Cost Const ructio n Cost Mate rial Cost Tran sport Cost Mate rial Cost Tran sport Cost mile Total KVA No Total 1121 1121 4635 15.2363.4 19.7658.21 441.3 8 900 11118.6 131.3 3 1 Thayet 11 3.85 8.8 572.71 4.85 217.71 0 6 8 126.7 1 6.8920.29 153.9 900 677.57 84.47 3 2 Aunglan 6 806 806 4050 5.3 2.1 4.8 238.374 6.5 291.78 9 3 3Sinpaun g wae 1604 1604 7479 12.28293.5 15.96 4 47.03 2 356.5 9 110 0 13147.5 4.55 10.4162.5 11 519.126 10.5 471.33 9 9 4 4663 46631712 34.45823.6 45.54131.4 1000. 6 390 0 52581.7 18.2 41.6641.5 4 Kanma 41 1569.58 33.45 1501.5 4 3 6 5 5 1911 1911 6669 23.55426.9 66.1767.30 560.4 2 207 0 22250.3 17.6275.6 5 Mintone 21 7.7 836.075 12.8 574.58 4 6 6 6 1010 5 1010 5 3995 7 90.782034. 154.3 3 324.3 1 2512. 9 887 0 10 4 1175. 9 36.40 0 83.20 0 1295. 6 Total 3735.87 68.1 3056.9 3 13

  14. Location Map of Electrification Plan for Gangaw District (Within 2 miles from Existing 11 kV Distribution Line) No. of villages Household Proposal 11 kV Line Proposal 11/0.4 kV Tr; - 31 Estimate Cost (Mil kyats) - 24 - 2832 - 31.23 Ganggaw Township No. of villages Household Estimate Cost (Mil kyats) - 6 - 871 336.925 - 1307.615 Htilin Township No. of villages Household Estimate Cost (Mil kyats) - 4 - 564 - 263.752 Kyaukhtu Township No. of villages Household Estimate Cost (Mil kyats) - 10 - 938 -528.2286 Saw Township No. of villages Household Estimate Cost (Mil kyats) - 4 - 459 - 178.707 14

  15. Detailed Electrification Plan for Gangaw District (Within 2 miles from Existing 11 kV Distribution Line) Task by regional To be constructed Name Of Village to be Electrifie d Estimate d cost (Mil Kyates) Cost for 11 kV Line 11/0.4 kV Transformer Town Ship No of House House hold Popu lation 400 V Lines (Miles ) Estimate d Cost (Mil Kyats) No Mater ial Cost Tran sport Cost Const ructio n Cost Mater ial Cost Tran sport Cost Const ructio n Cost mile Total KVA No Total 3385 7.126170.3 9.263 8 27.29 3 1 Gangaw 6 871 871 206.92 750 10 118.5 3.5 8 130 336.925 7 314.22 7 158.9 9 8.711 5 25.46 9 64.83 5 70.58 5 2 Htilin 4 564 564 2689 6.65 193.17 600 5 1.75 4 263.754 5.8 260.36 95.63 2 56.76 5 62.51 5 3 Saw 4 459 459 2198 4 5.24 15.32 116.19 400 5 1.75 4 178.707 5 224.45 4791 13.45321.5 17.61 9 51.51 1 390.69 1000 11124.8 137.5 3 4 Kyaukhtu 10 938 938 3.85 8.8 528.229 10.69 479.86 6 8 2832 2832 13063 31.23746.5 40.83 5 119.5 9 906.98 2750 31364.9 10.85 0 24.80 0 400.6 3 Total 1307.62 28.49 1278.9 5 8 15

  16. The Statement of Fiscal Year Budget and Electrical Connection for Magway Region State/Region Capital Budget for DRD(mil, Kyats) State/Region Capital Budget for ESE(mil, Kyats) Electrified Connection Sr.No Fiscal Year ON Grid Off Grid Total Cost for 11kV Line & 11/0.4kV TR Total Cost for 400V Line Total Off Grid Village (Nos) Consumer (Nos) Village (Nos) Consume r (Nos) 2014-2015 Estimate (BE+RE) 1 537.272 362.487 899.759 2784.529 42 8389 71 8998 2015-2016 Estimate (BE+RE) 2 10645.43 2209.45 12854.88 3283.61 264 33831 185 12559 1497.42411005.82 3 2016-2017 Estimate (BE) 9508.403 19093.672 198 36468 554 74998 7 20691.105 4069.36124760.46 Grand Total 25161.811 504 78688 810 96555 6 16

  17. Main Materials List Transported to Magway Region Office Sr No Description Quantites Transported Site 1 Distribution Transformer 756 2 Concrete Poles 33449 3 Medium Voltage Conductor 24080 4 Insulator 103296 5 Surge Arresters, Disconnectors, Fuses 2271 6 Other Assorted Accessories Total 163852 17

  18. Main Materials List Transported to Magway District Office Sr No Description Quantites Transported Site 1 Distribution Transformer 236 2 Concrete Poles 9123 3 Medium Voltage Conductor 7481 To Magway District 4 Insulator 31251 5 Surge Arresters, Disconnectors, Fuses 711 6 Other Assorted Accessories 18

  19. Main Materials List Transported to Minbu District Office Sr No Description Quantites Transported Site 1 Distribution Transformer 153 2 Concrete Poles 6855 3 Medium Voltage Conductor 4871 To Minbu District 4 Insulator 23368 Surge Arresters, Disconnectors, Fuses 5 459 6 Other Assorted Accessories 19

  20. Main Materials List Transported to Pakokku District Office Sr No Description Quantites Transported Site 1 Distribution Transformer 232 2 Concrete Poles 11664 3 Medium Voltage Conductor 7441 To Pakokku District 4 Insulator 33663 5 Surge Arresters, Disconnectors, Fuses 696 6 Other Assorted Accessories 20

  21. Main Materials List Transported to Thayet District Office Sr No Description Quantites Transported Site 1 Distribution Transformer 104 2 Concrete Poles 4294 3 Medium Voltage Conductor 3296 To Thayet District 4 Insulator 14672 5 Surge Arresters, Disconnectors, Fuses 312 6 Other Assorted Accessories 21

  22. Main Materials List Transported to Gangaw District Office Sr No Description Quantites Transported Site 1 Distribution Transformer 31 2 Concrete Poles 1513 3 Medium Voltage Conductor 991 To Gangaw District 4 Insulator 341 5 Surge Arresters, Disconnectors, Fuses 93 6 Other Assorted Accessories 22
