Presentation Transcript
Small-footprint Keyword Spotting C.Y.Eddie Lin ( ) MIR Lab, CSIE Dept. National Taiwan University eddie.lin@mirlab.org 2020/01/13

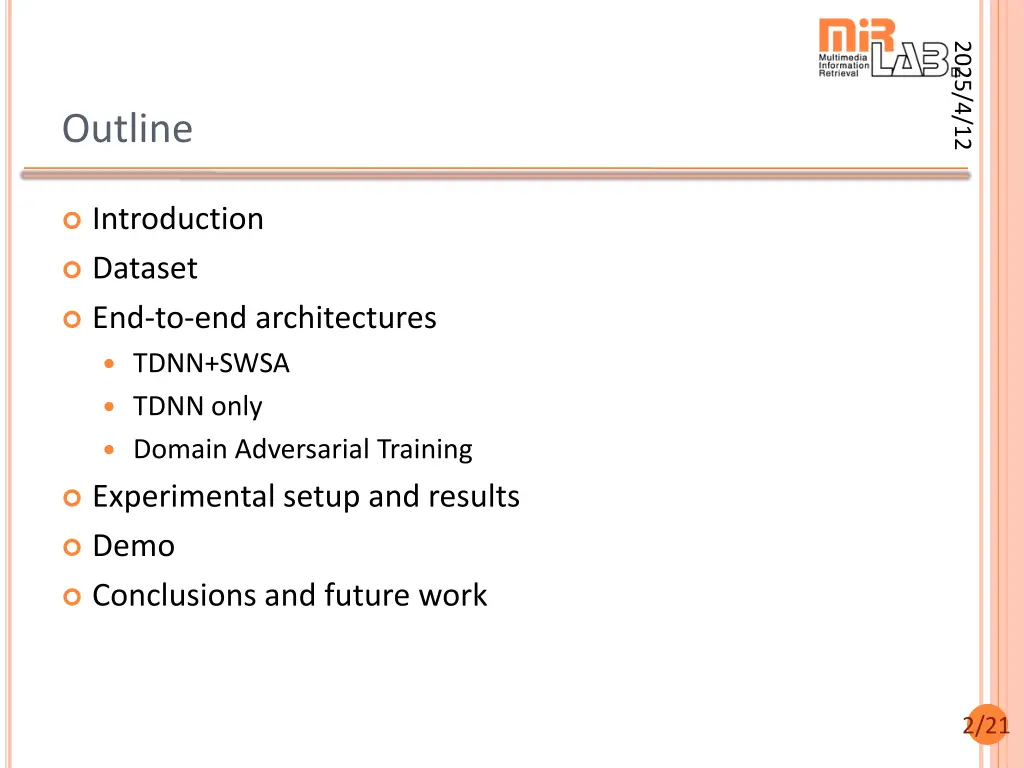

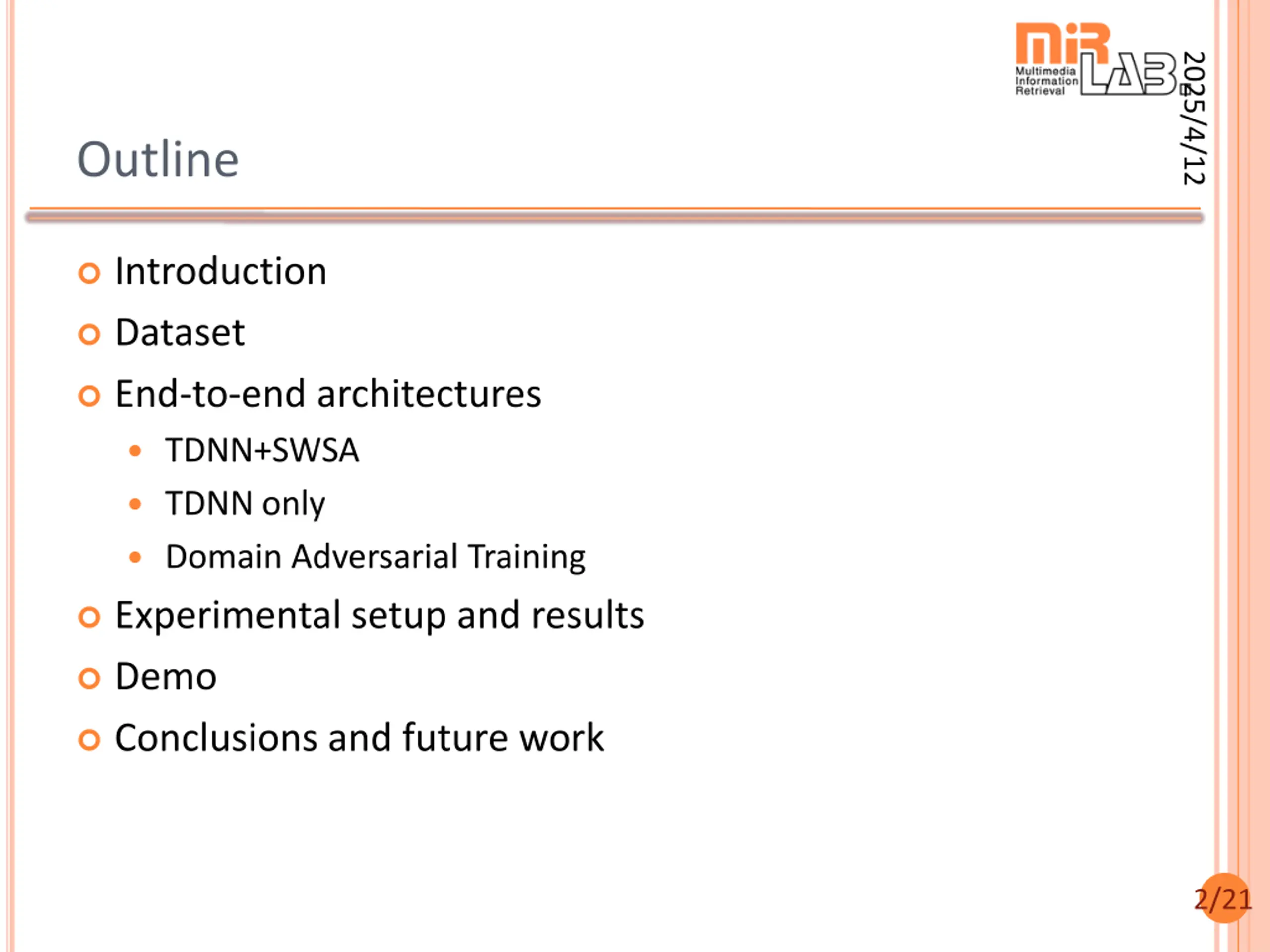

2025/4/12 Outline Introduction Dataset End-to-end architectures TDNN+SWSA TDNN only Domain Adversarial Training Experimental setup and results Demo Conclusions and future work 2/21

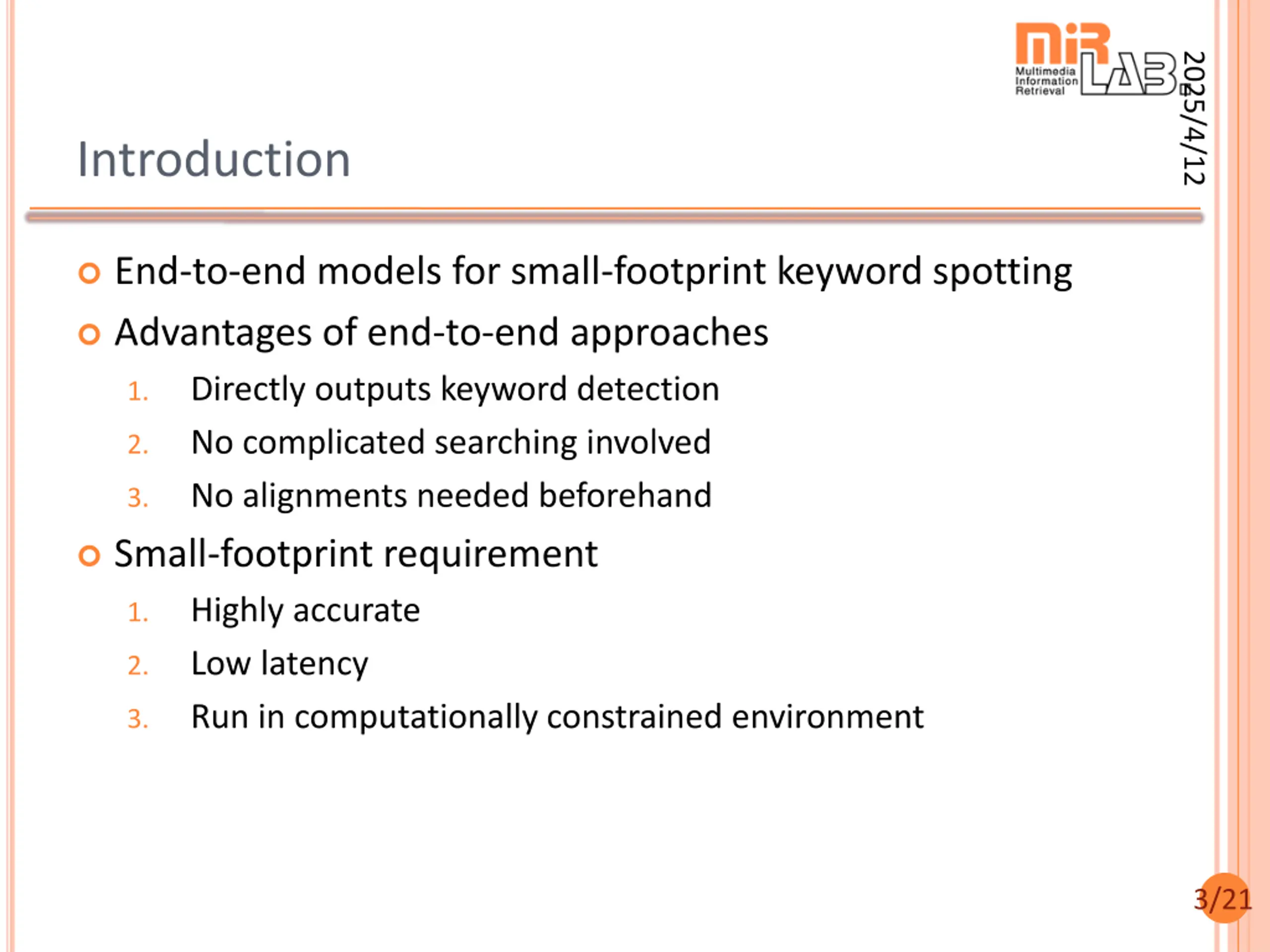

2025/4/12 Introduction End-to-end models for small-footprint keyword spotting Advantages of end-to-end approaches Directly outputs keyword detection No complicated searching involved No alignments needed beforehand 1. 2. 3. Small-footprint requirement Highly accurate Low latency Run in computationally constrained environment 1. 2. 3. 3/21

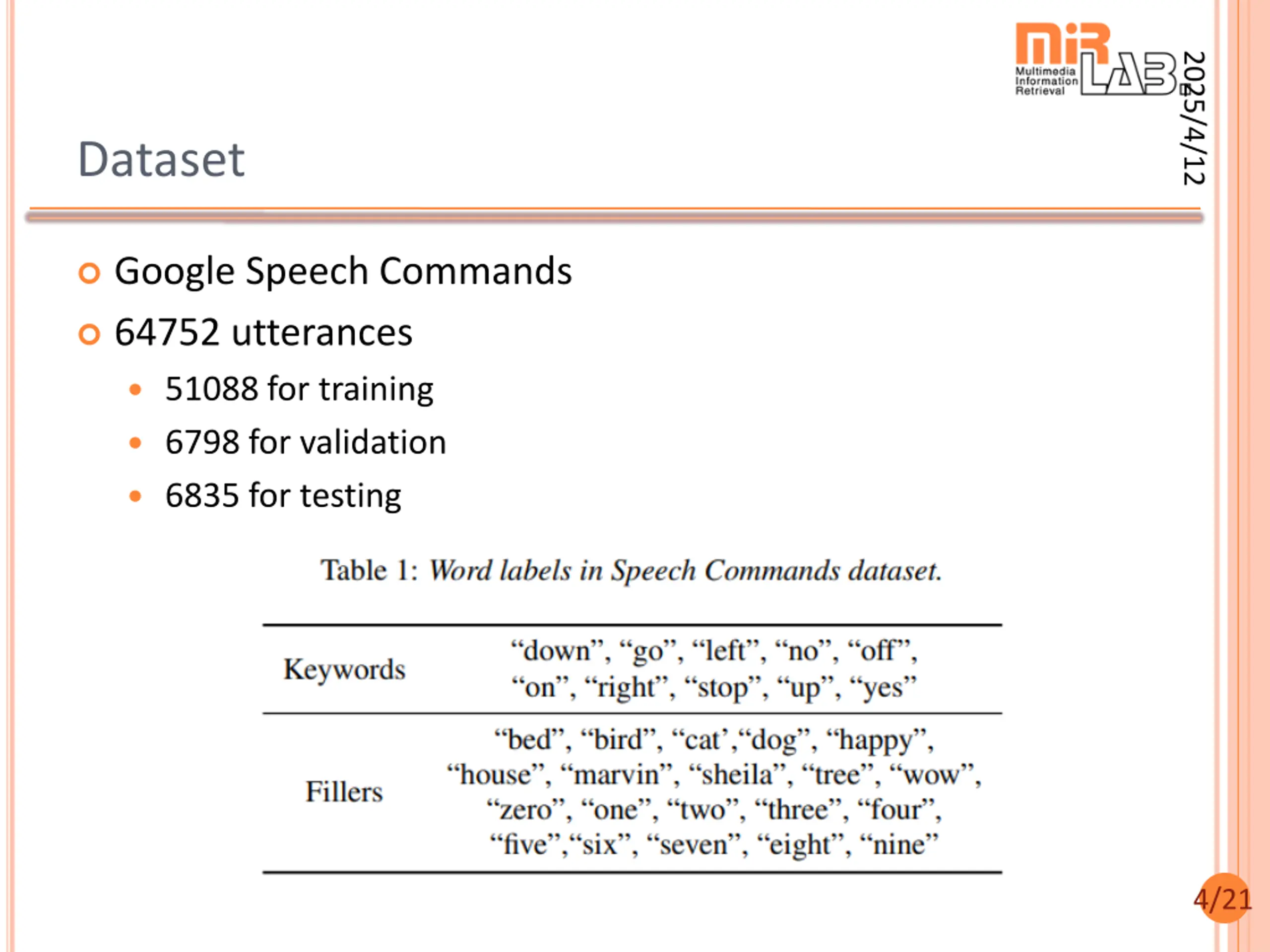

2025/4/12 Dataset Google Speech Commands 64752 utterances 51088 for training 6798 for validation 6835 for testing 4/21

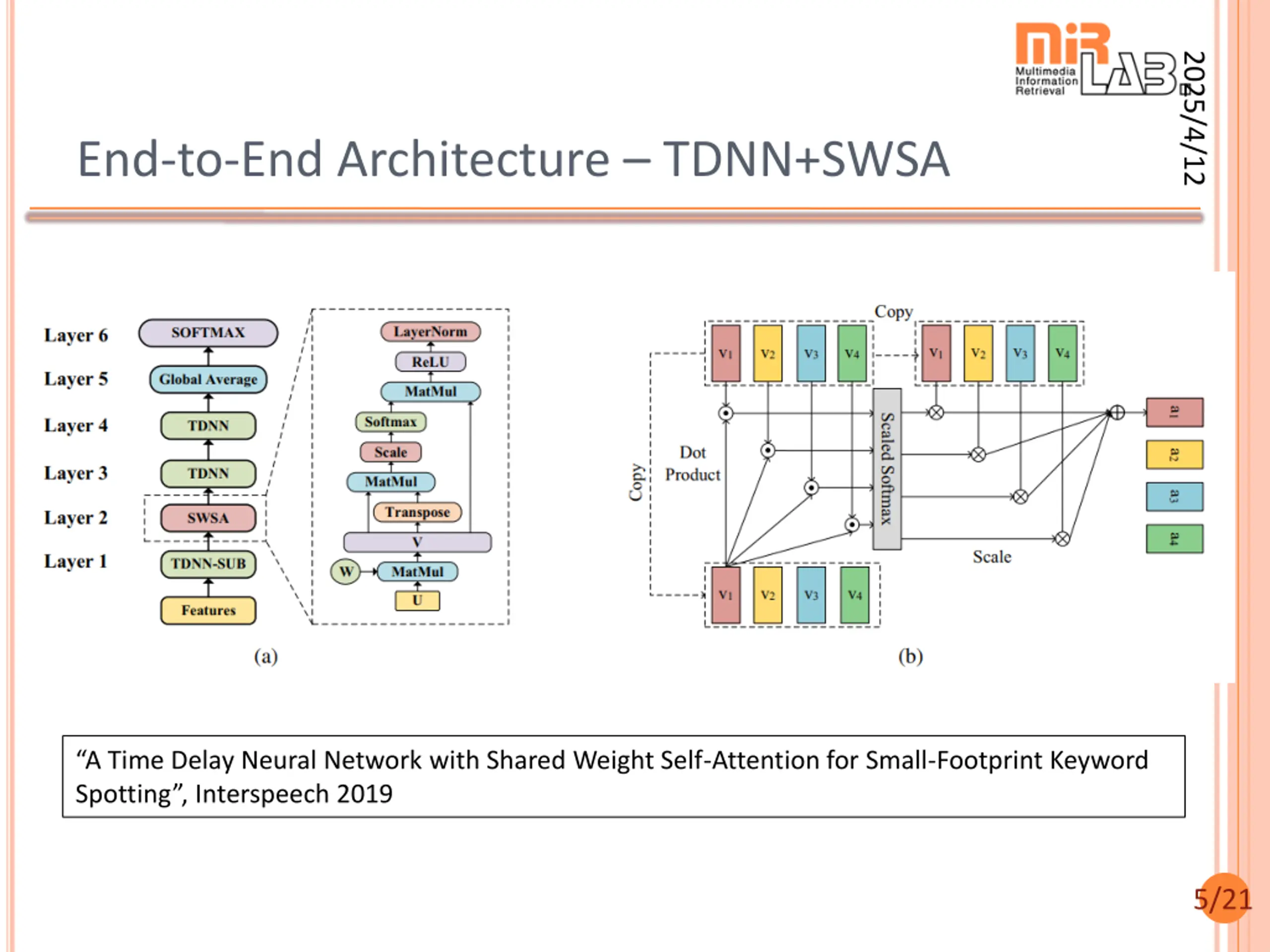

2025/4/12 End-to-End Architecture TDNN+SWSA A Time Delay Neural Network with Shared Weight Self-Attention for Small-Footprint Keyword Spotting , Interspeech 2019 5/21

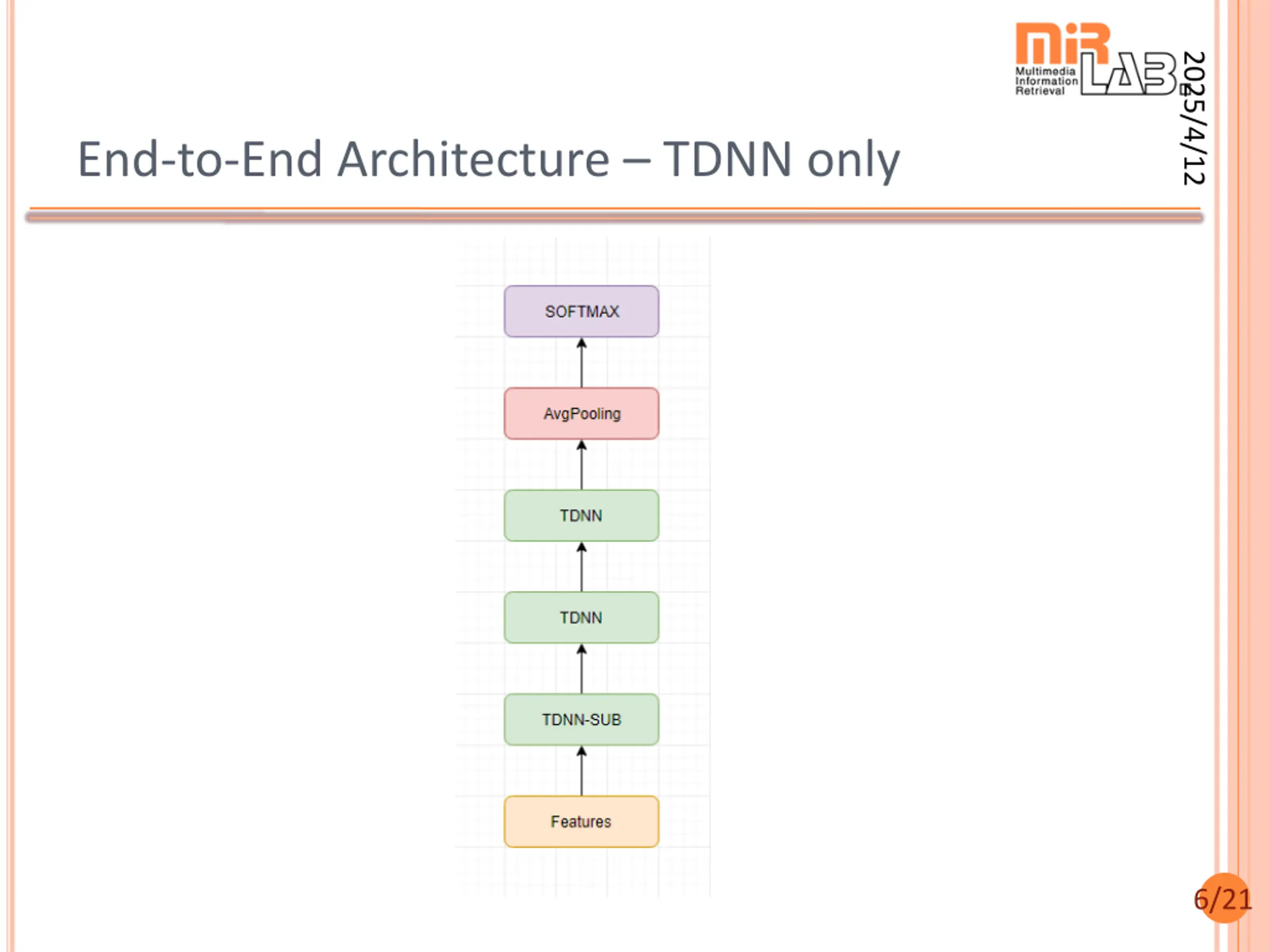

2025/4/12 End-to-End Architecture TDNN only 6/21

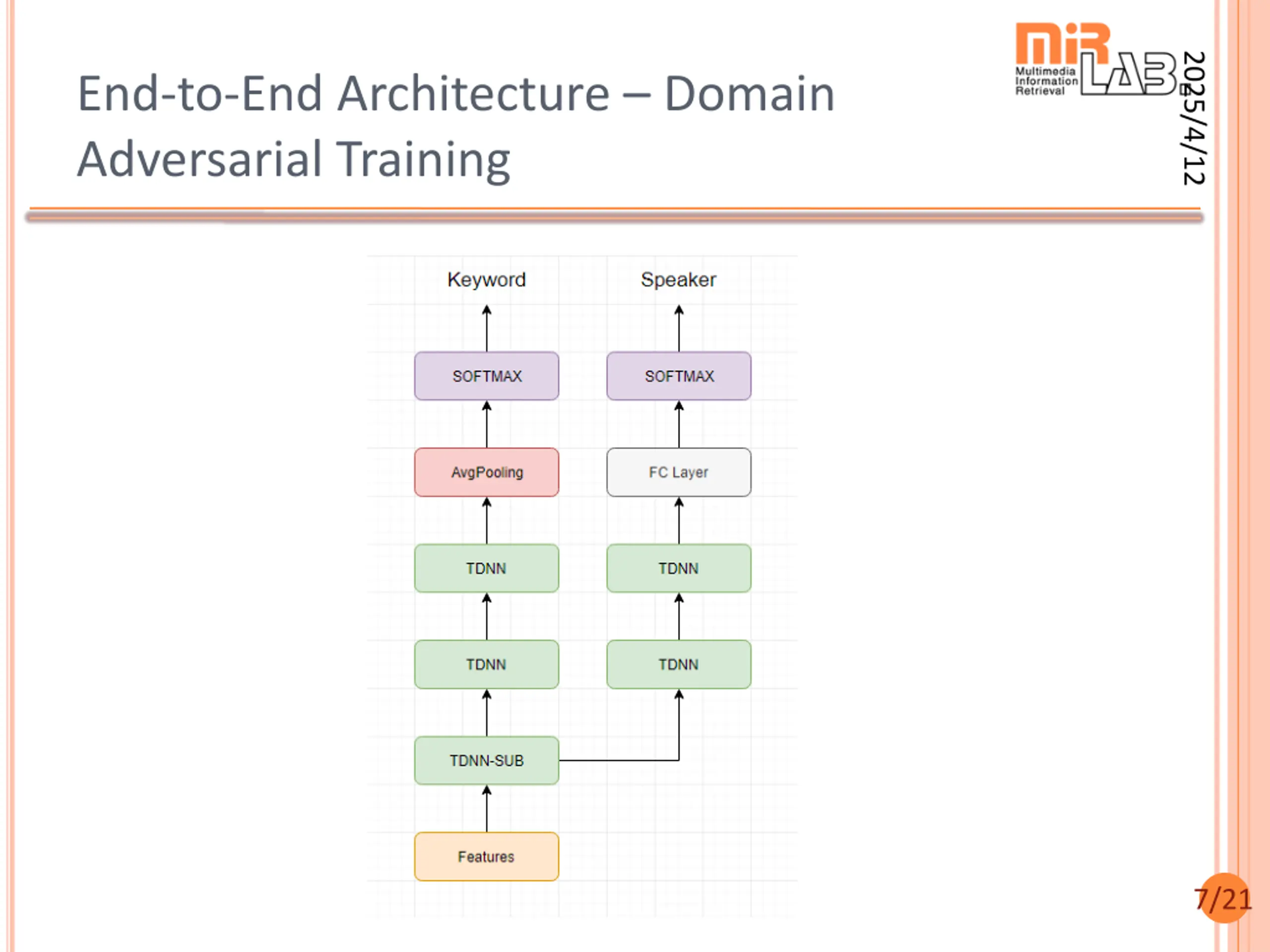

2025/4/12 End-to-End Architecture Domain Adversarial Training 7/21

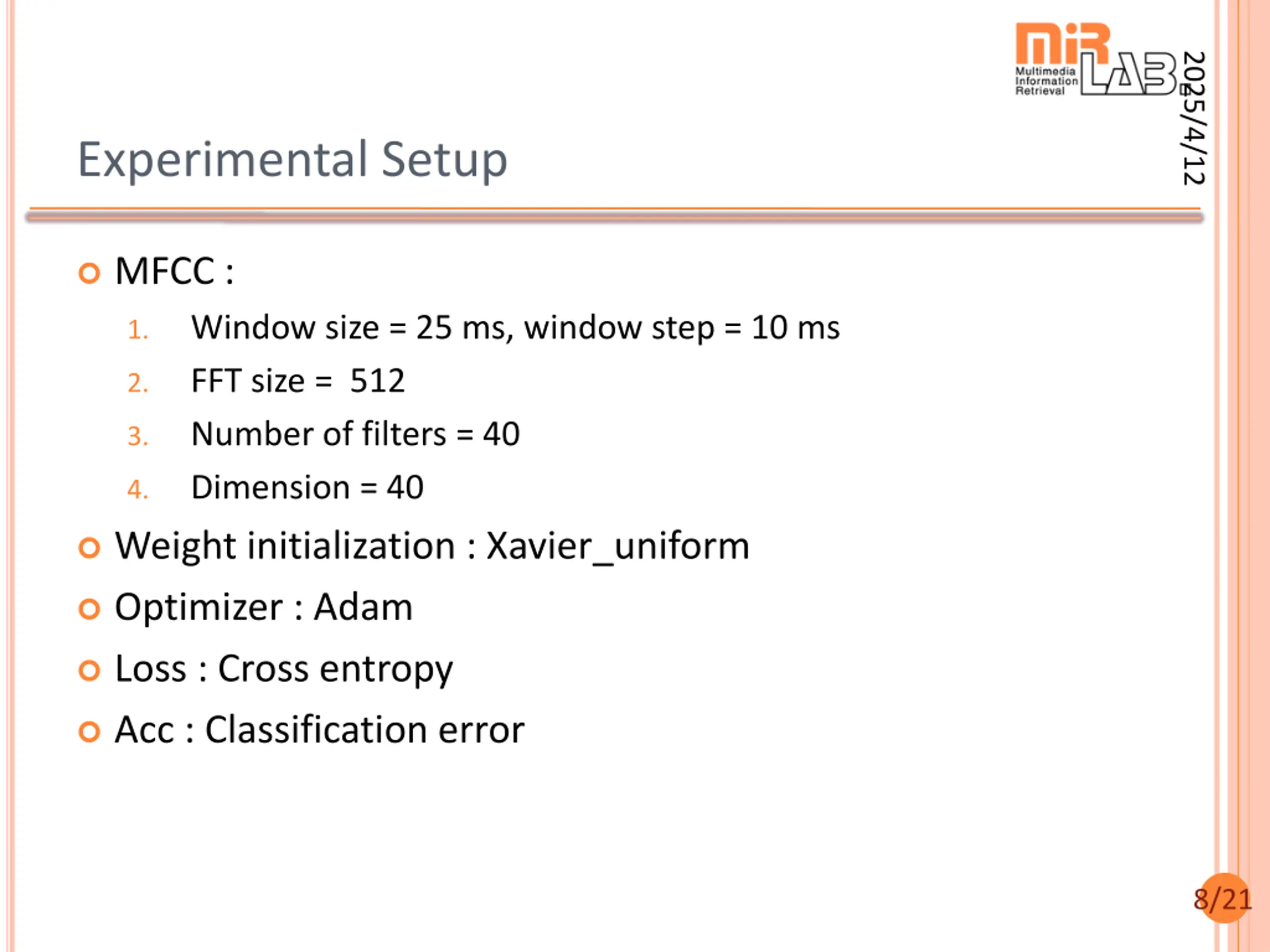

2025/4/12 Experimental Setup MFCC : Window size = 25 ms, window step = 10 ms FFT size = 512 Number of filters = 40 Dimension = 40 1. 2. 3. 4. Weight initialization : Xavier_uniform Optimizer : Adam Loss : Cross entropy Acc : Classification error 8/21

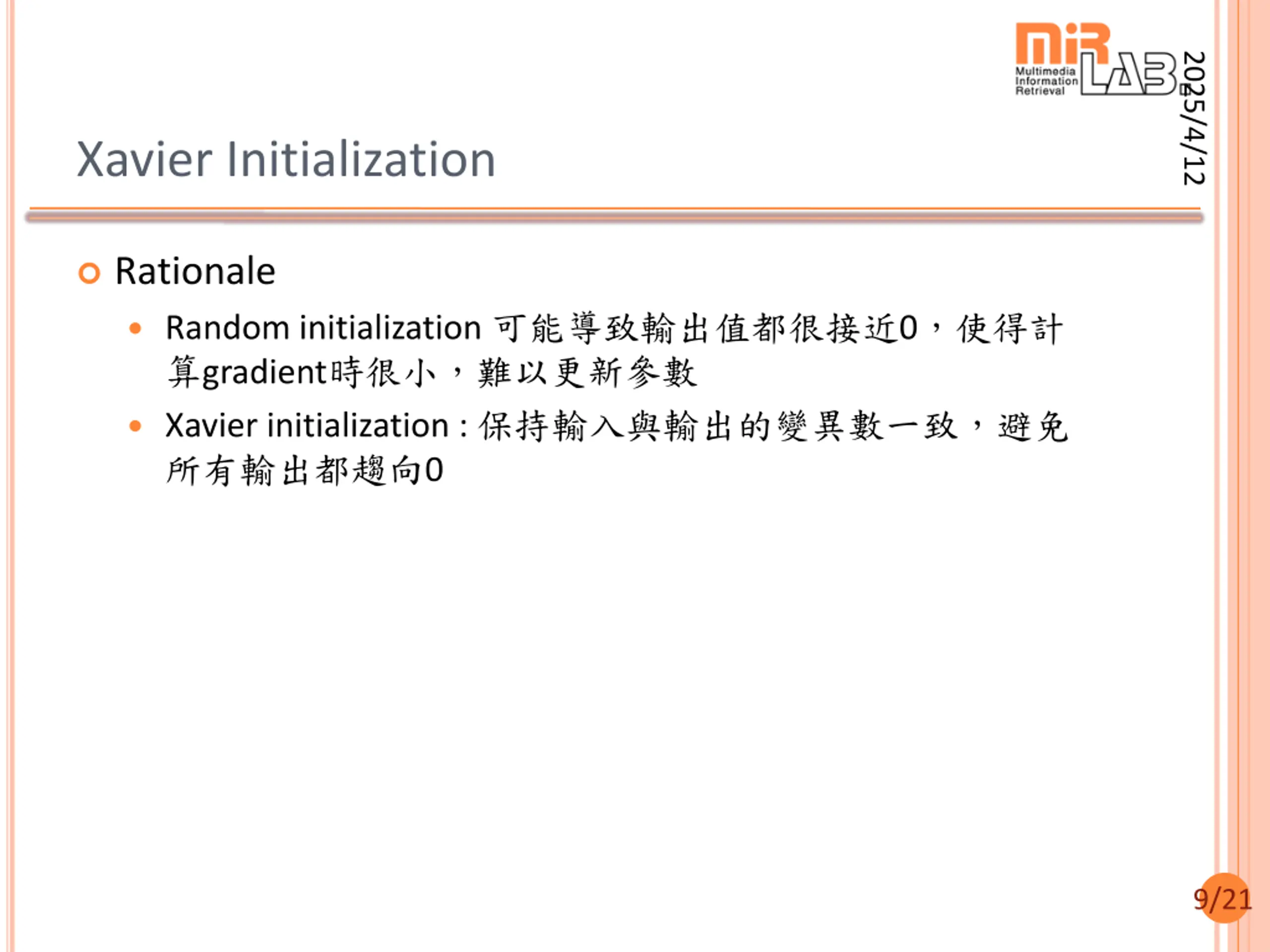

2025/4/12 Xavier Initialization Rationale Random initialization 0 gradient Xavier initialization : 0 9/21

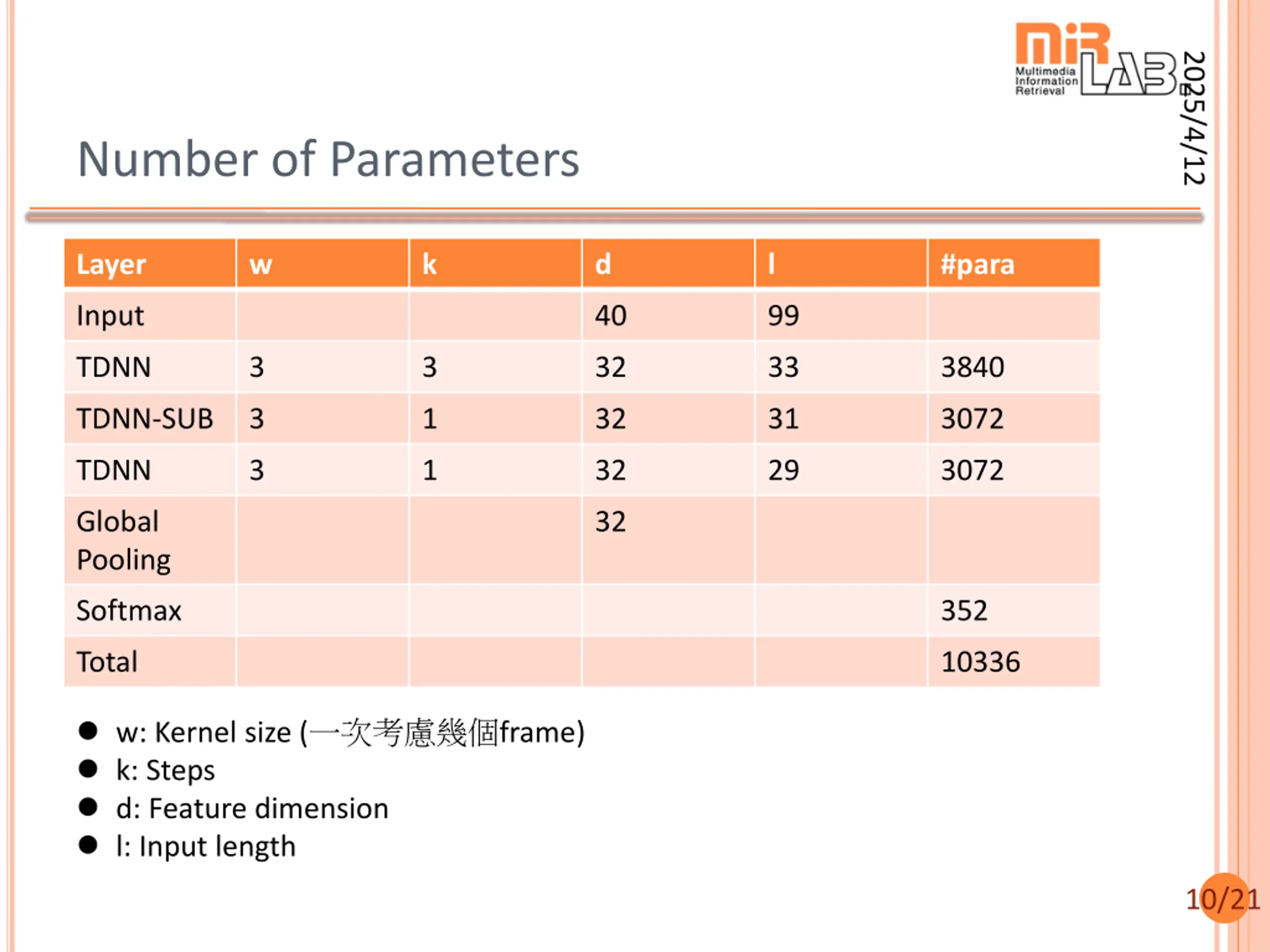

2025/4/12 Number of Parameters Layer w k d l #para Input 40 99 TDNN 3 3 32 33 3840 TDNN-SUB 3 1 32 31 3072 TDNN 3 1 32 29 3072 Global Pooling 32 Softmax 352 Total 10336 w: Kernel size ( frame) k: Steps d: Feature dimension l: Input length 10/21

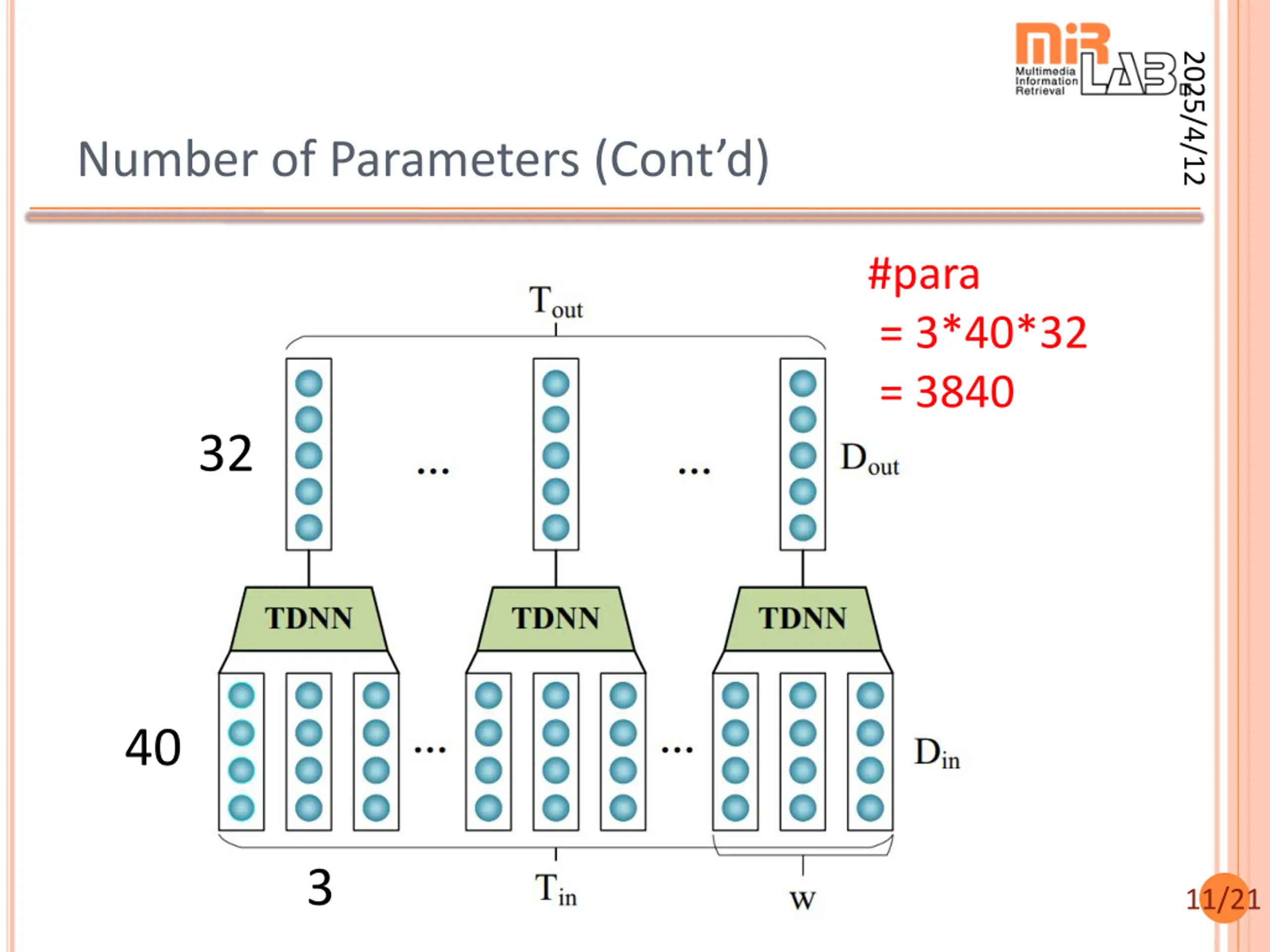

2025/4/12 Number of Parameters (Cont d) #para = 3*40*32 = 3840 32 40 3 11/21

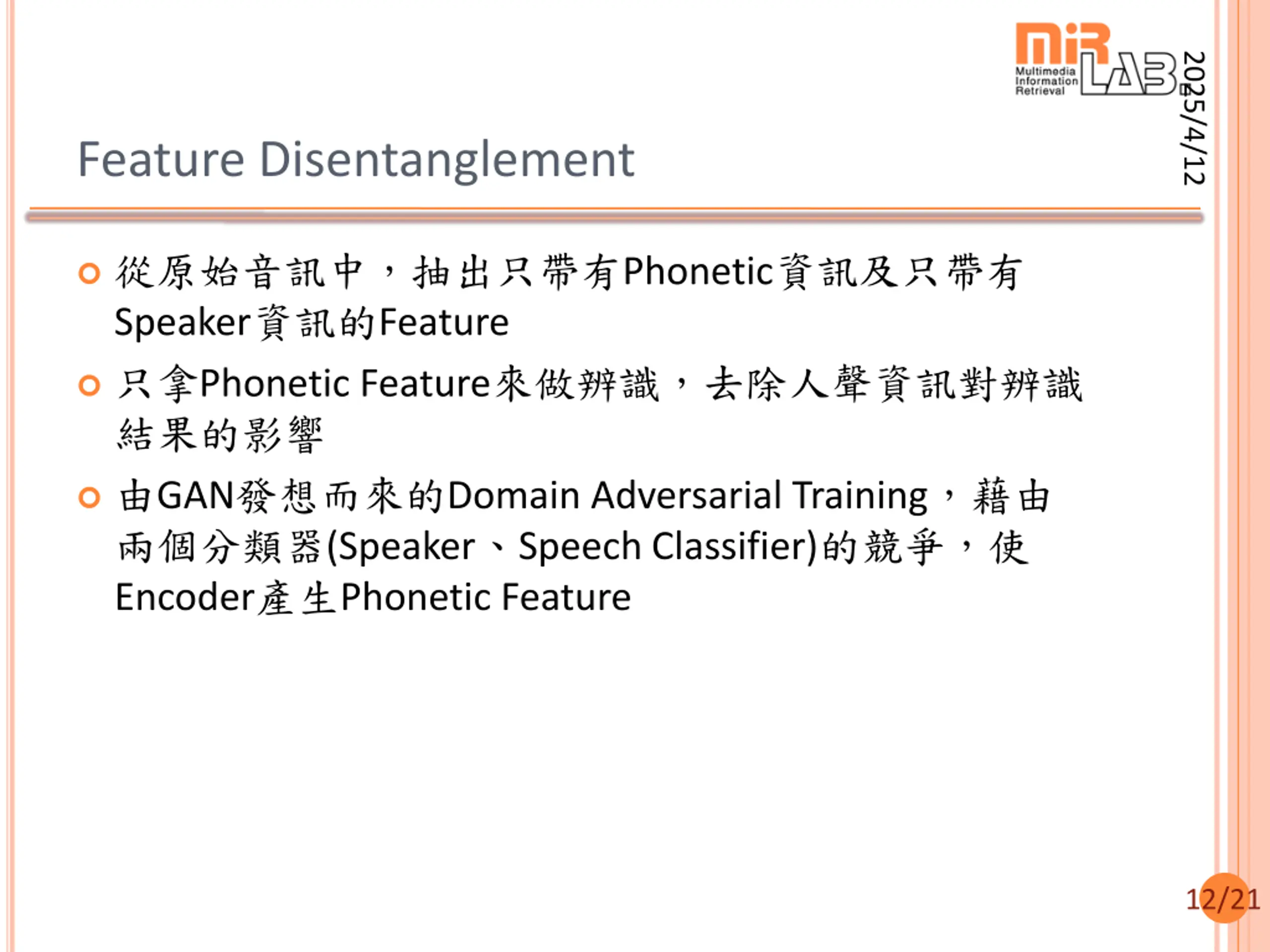

2025/4/12 Feature Disentanglement Phonetic Speaker Feature Phonetic Feature GAN Domain Adversarial Training (Speaker Speech Classifier) Encoder Phonetic Feature 12/21

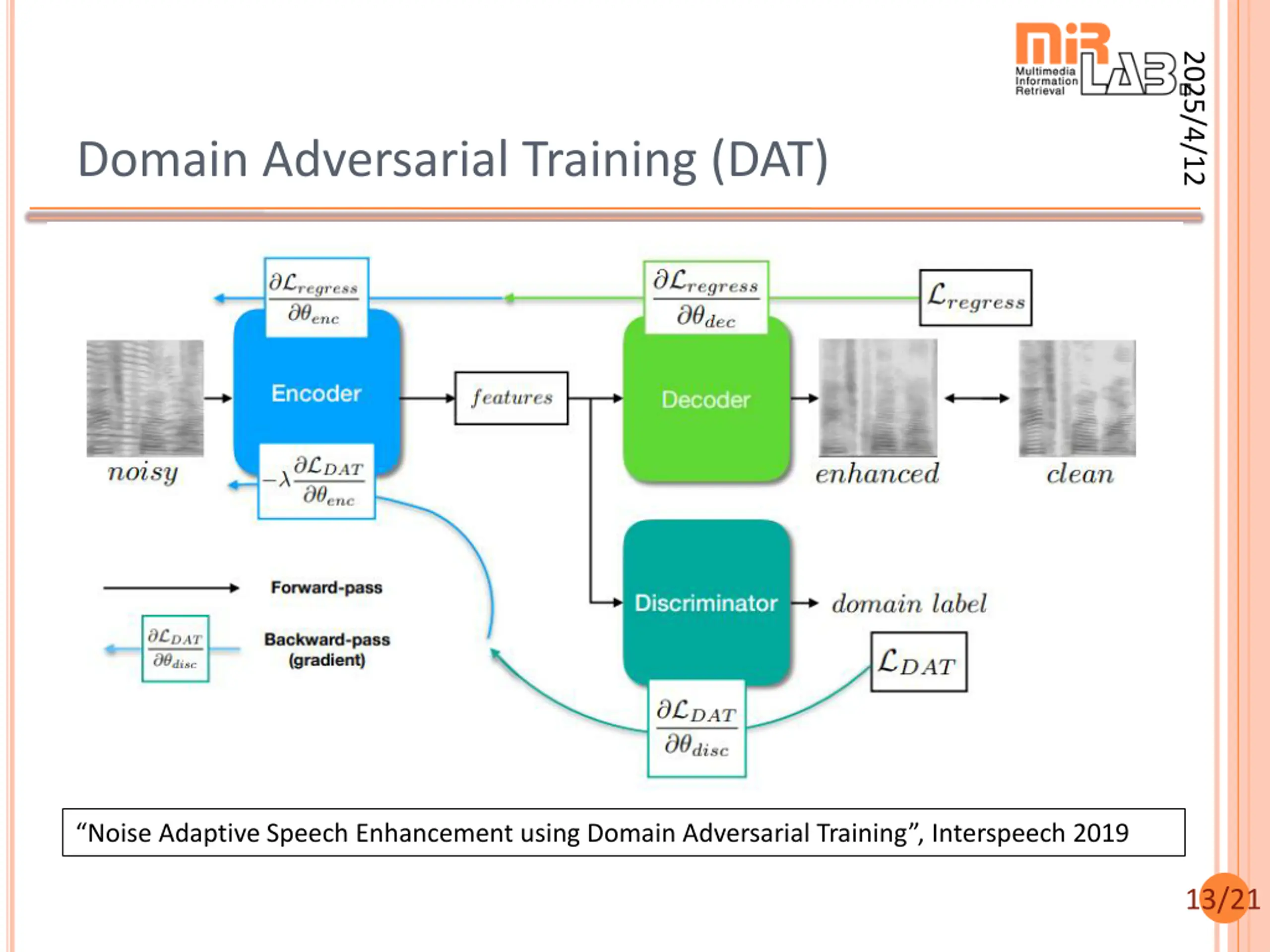

2025/4/12 Domain Adversarial Training (DAT) Noise Adaptive Speech Enhancement using Domain Adversarial Training , Interspeech 2019 13/21

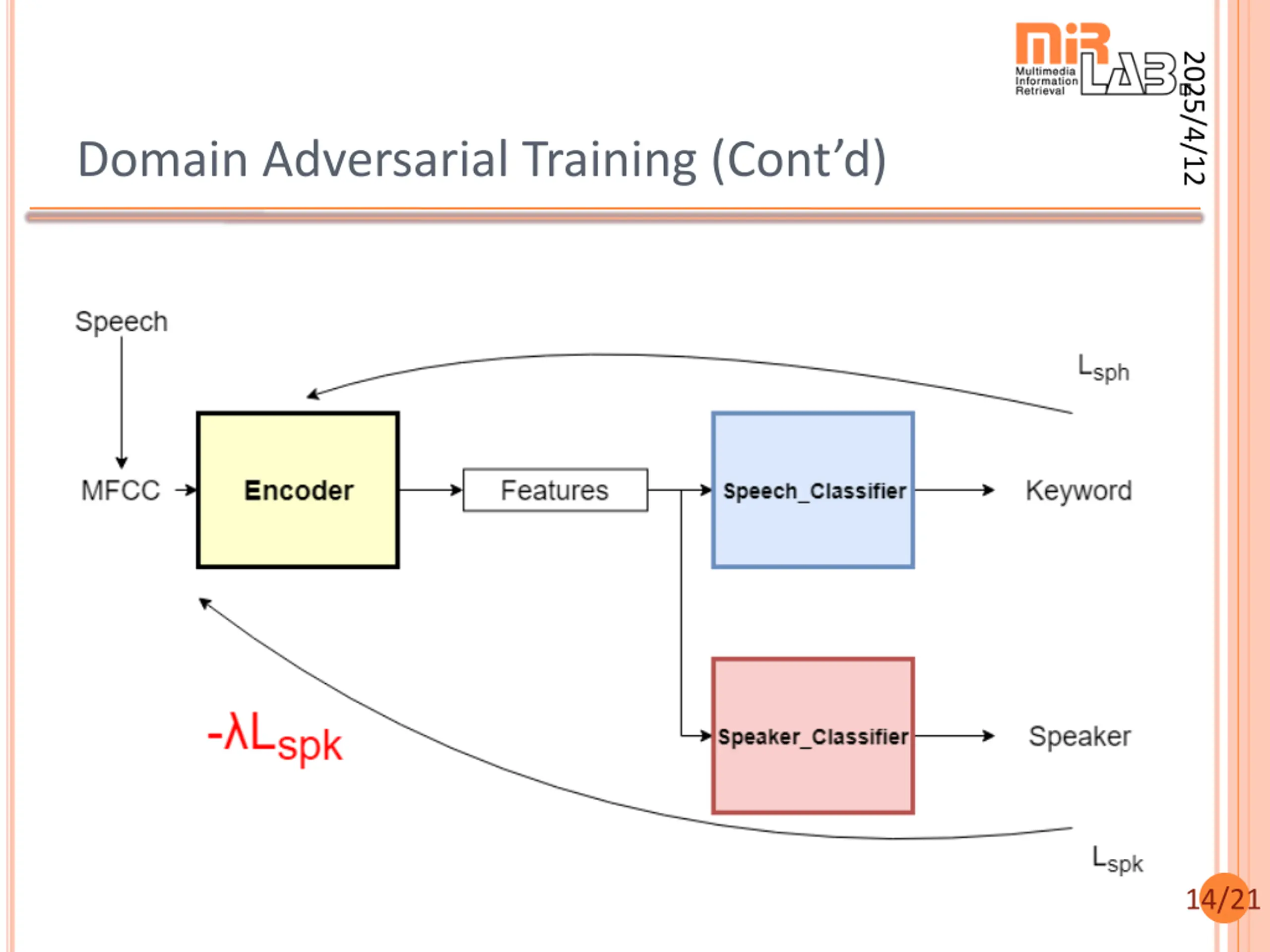

2025/4/12 Domain Adversarial Training (Cont d) 14/21

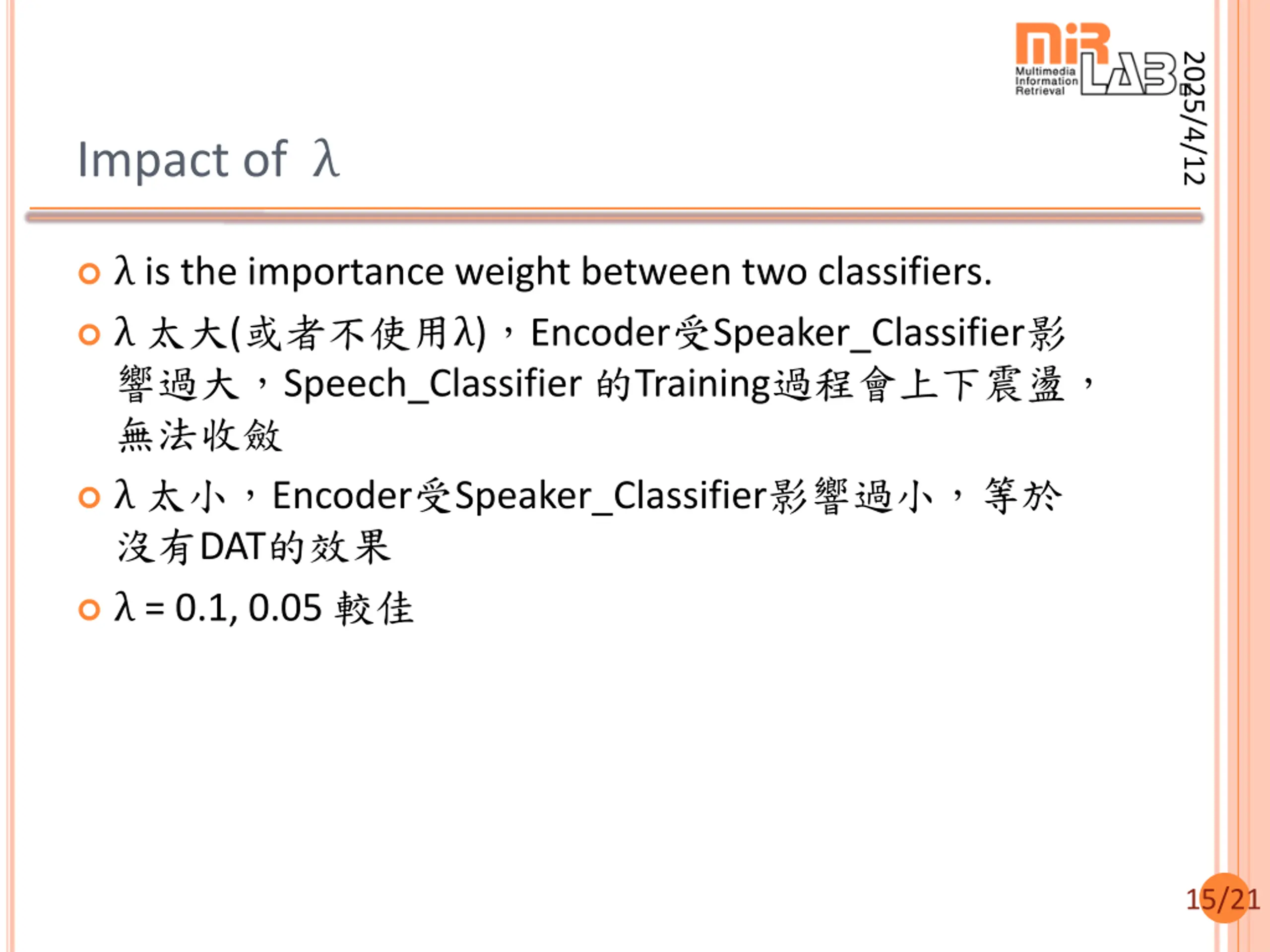

2025/4/12 Impact of is the importance weight between two classifiers. ( ) Encoder Speaker_Classifier Speech_Classifier Training Encoder Speaker_Classifier DAT = 0.1, 0.05 15/21

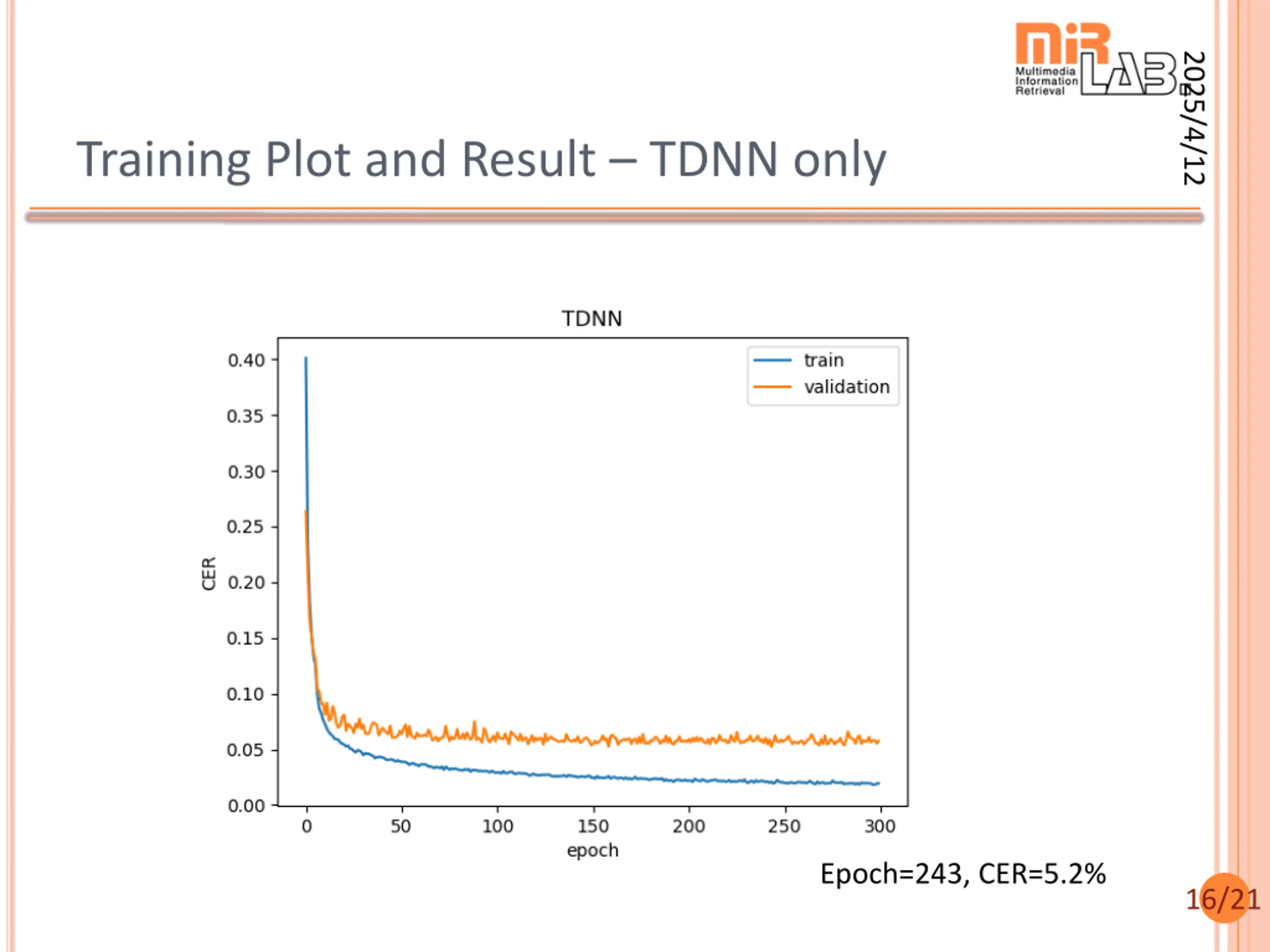

2025/4/12 Training Plot and Result TDNN only Epoch=243, CER=5.2% 16/21

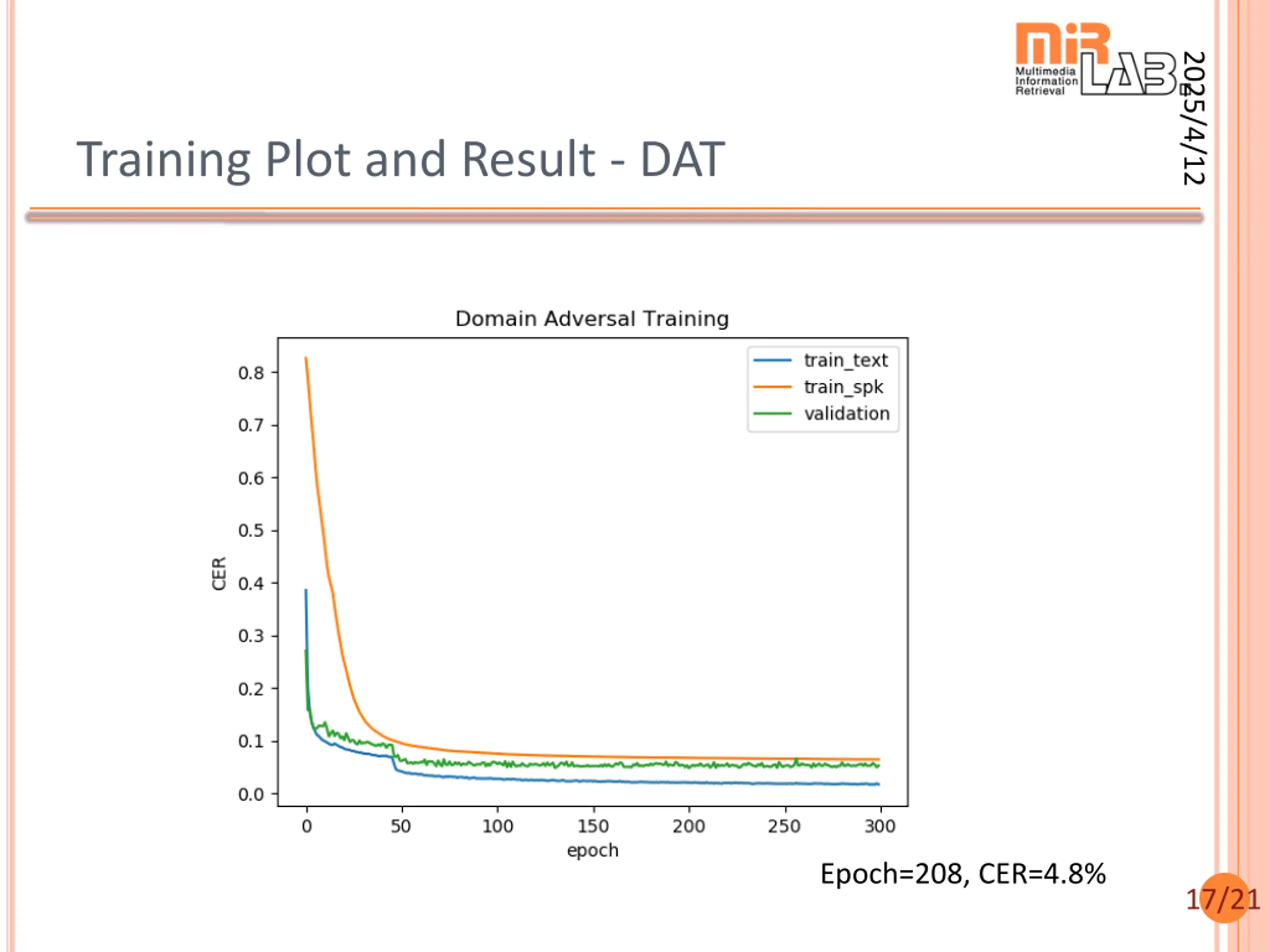

2025/4/12 Training Plot and Result - DAT Epoch=208, CER=4.8% 17/21

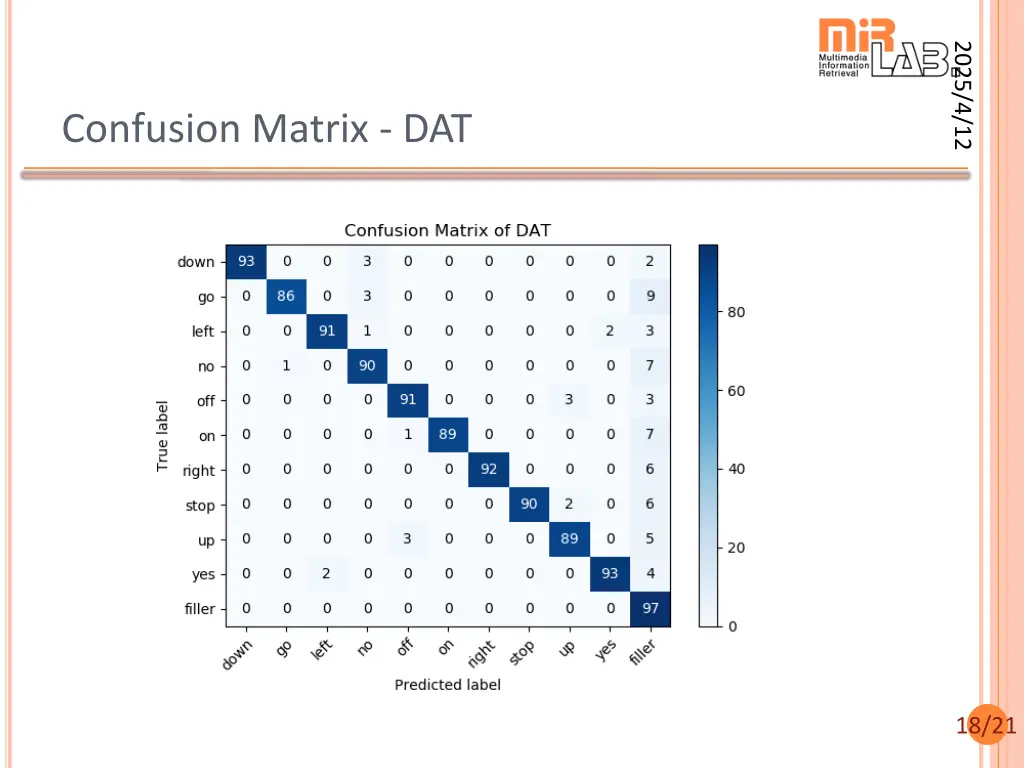

2025/4/12 Confusion Matrix - DAT 18/21

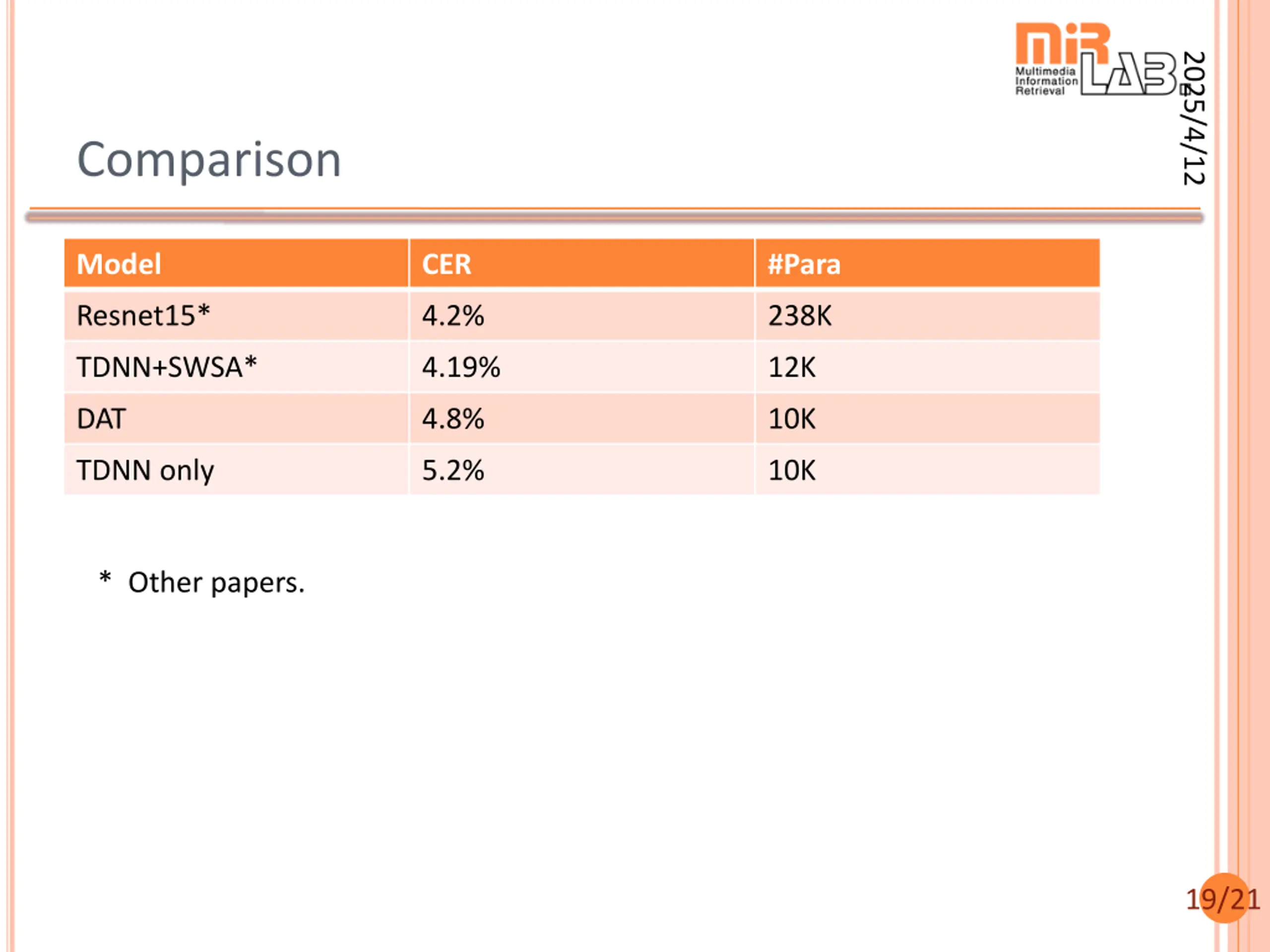

2025/4/12 Comparison Model CER #Para Resnet15* 4.2% 238K TDNN+SWSA* 4.19% 12K DAT 4.8% 10K TDNN only 5.2% 10K * Other papers. 19/21

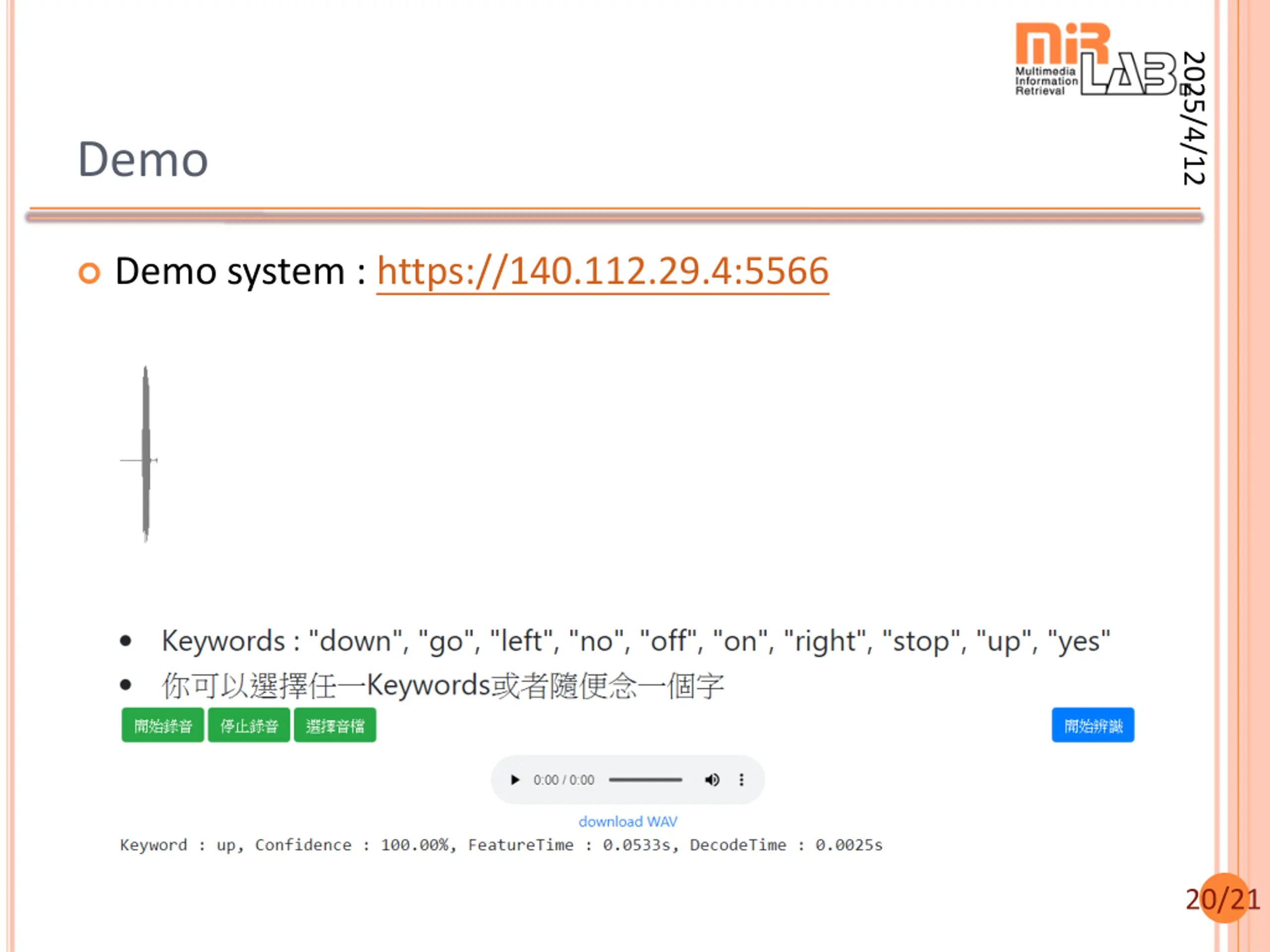

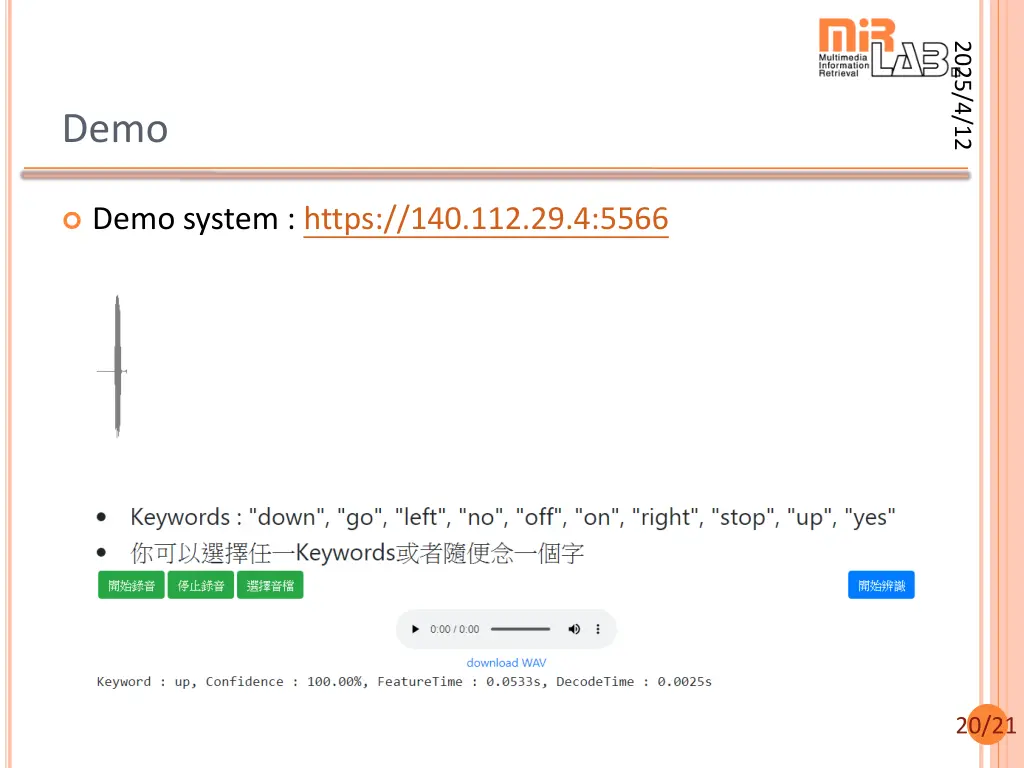

2025/4/12 Demo Demo system : https://140.112.29.4:5566 20/21

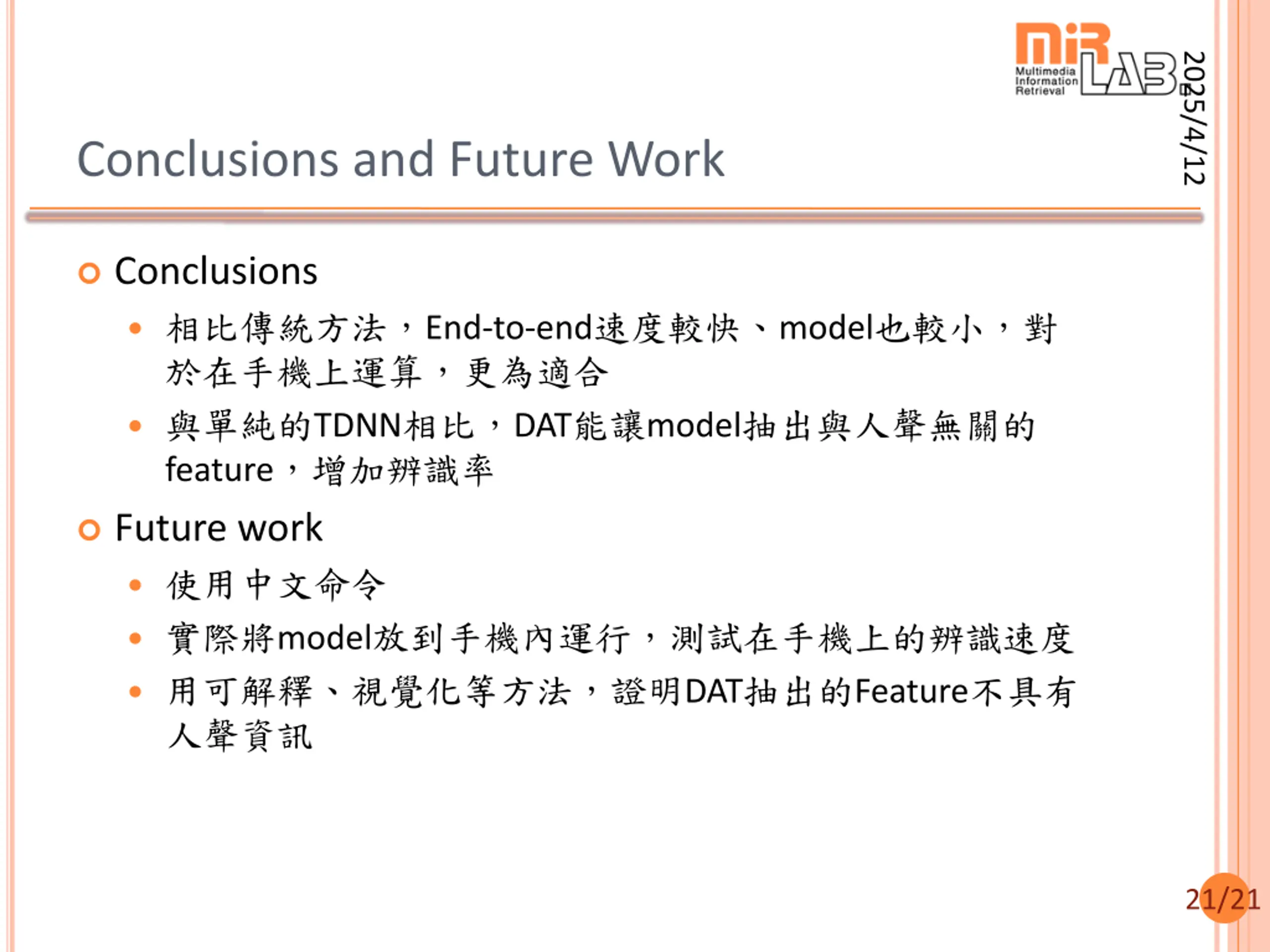

2025/4/12 Conclusions and Future Work Conclusions End-to-end model TDNN DAT model feature Future work model DAT Feature 21/21
