High Speed Video Compression/Decompression Pipeline Ariana Einsenstein Yuan Cao

Objective Transfer video frames to FPGA quickly Video data has high bit rate Compress the data before transfering 1 Byte 512 bits De- compression Modules Some Interface Dram Wrapper DDR3 Dram PC 1 Byte 512 bits Compression Modules 50 MHz

Some standards JPEG Discrete Cosine Transform -medium Huffman Encoder -medium JPEG-2000 -Better Discrete Wavelet Transform -complicated Entropy Encoder -very complicated MPEG -Even Better Motion predictor -very complicated

Discrete Wavelet Transform (DWT) Low Pass High Pass

DWT vs. FFT Keep 40 Largest Components

DWT 2-dimensional Non-zero Original 4-level DWT LL2 LH2 LL LH HL2 HH2 Close to zero HL HH

Lifting scheme y=(x0+x2)*a+x1

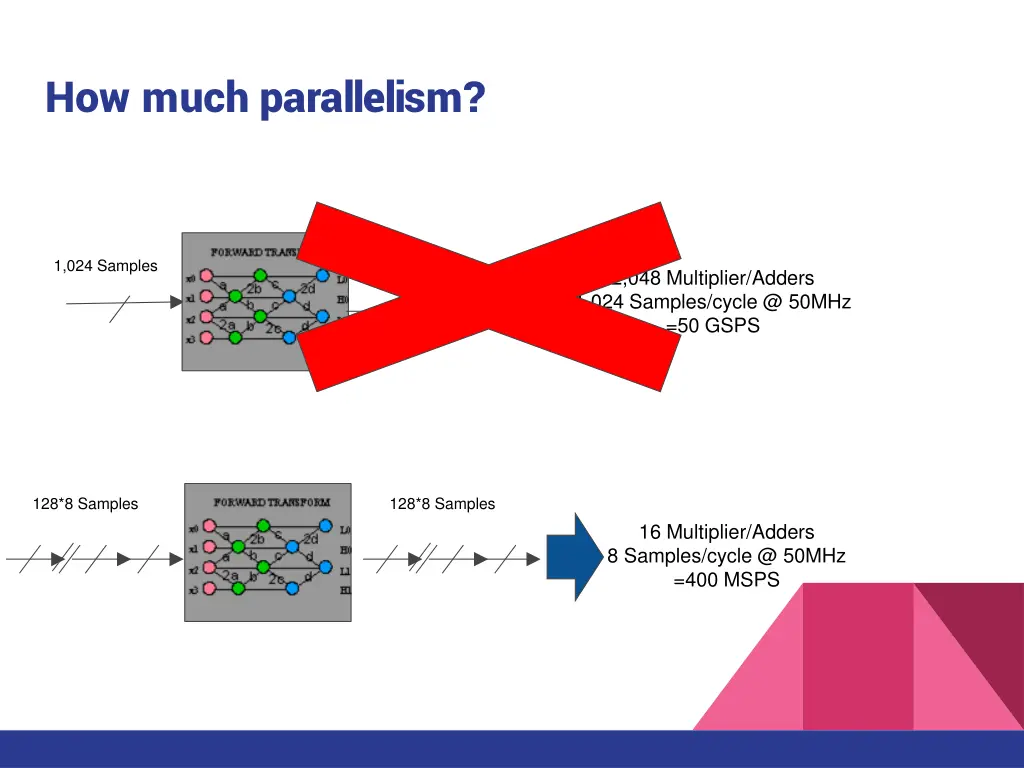

How much parallelism? 1,024 Samples 1,024 Samples 2,048 Multiplier/Adders 1,024 Samples/cycle @ 50MHz =50 GSPS 128*8 Samples 128*8 Samples 16 Multiplier/Adders 8 Samples/cycle @ 50MHz =400 MSPS

Dummy FIFOs S1 S2 S3 S4 Sc S1 S2 S3 S4 Sc FIFO l0 l0 x0 x0 h0 h0 x1 x1 l1 l1 x2 x2 h1 h1 x3 x3 (2)Modified with dummy buffers (1)Original lifting scheme

DWT 1D micro-architecture Stage_2 Stage_1 ififo_history s1xfifo s2save Coef_b Coef_a Mult- Adder Mult- Adder s1fifo s2fifo Vector#(B, WSample) =0 =0 ififo -1 counter +1 counter Stage_3 Stage_4 s3xfifo Coef_c Coef_d Mult- Adder Mult- Adder s3fifo s4fifo =0 =0 -1 counter +1 counter coef_scale Latency insensitive Fully pipelined Scale Vector#(B, WSample) Scale 1/coef_scale ofifo

DWT 2D signal coef_a Vector#(B,WSample) Stage1 s1fifo[0] Vector#(B,WSample) DWT1D Mult- Add s1fifo[1] s1save Distributor signal coef_b Large BRAM buffers to store full lines s2fifo[0] Stage2 Mult- Add s2fifo[1] Vector#(B,WSample) signal coef_c output_fifo Assembler Stage3 s3fifo[0] Mult- Add s3fifo[1] s3save Distributor signal coef_d 1/s s Scale Scale s4fifo[0] Stage4 Mult- Add Stage_sc s4fifo[1]

Multi-level DWT ofifo Low Low Vector#(B, WSample) DWT2D N/2 DWT2D N/4 DWT2D N Vector#(B, WSample) High High BRAM FIFO 16 lines capacity 512kbit BRAM FIFO 16 lines capacity 512kbit Everything is pipelined! Throughput=B Sample/cycle

Histogram of Samples -Output from 1-level DWT

Huffman Encoding Tree and Table 1 0 1 0:10 1:1100 -1:1101 2:11100 -2:11001 3:111100 -3:111101 -4:111110 x:111111 0 0 1 1 0 0 1 1 -1 0 1 0 1 2 -2 0 1 0 1 3 -3 -4

Encoder Architecture Coeff In Vector FIFO Encoded Value Vector FIFO Circle Buffer (EHR) Byte Out FIFO Write Index Read Index Encoding Table

Decoder Architecture Byte In FIFO Circle Buffer (EHR) Coeff Out FIFO Write Index Read Index Read Index + 6 Encoding Table

FPGA Results -1024x1024 Monochrome Initial Image (Padded to 1024x1024) Matlab and FPGA Compressed Image Matlab Compressed Image

FPGA Results -512x512 Color Initial Image (Padded to 512x512) Matlab and FPGA Compressed Image Matlab Compressed Image 3-level DWT compression, 0.23 compression ratio (lossy)

Performance Throughput: 50MHz * Fully pipelined 1 Sample/cycle = 50 MSPS = 1280x720 RGB @ 18FPS Compression Ratio Down to 0.23 (5.5 bit/pixel) for lossy compression Utilization on FPGA synthesization 88k LUT, 41k Register, 300 Block RAM tiles Code 2,620L in BSV, 126L in C++ and 391L in MATLAB

Thank you!

DWT 1D module w/ serialization & dummy FIFOs S1 S2 S3 S4 L0~L3 x0~x7 H0~H3 L4~L7 x8~x15 H4~H7 L8~L11 x16~x23 H8~H11 L12~L15 x24~x31 H12~H15
