A Fast Kernel for Attributed Graphs Yu Su University of California at Santa Barbara with Fangqiu Han, Richard E. Harang, and Xifeng Yan
INTRODUCTION A Fast Kernel for Attributed Graphs

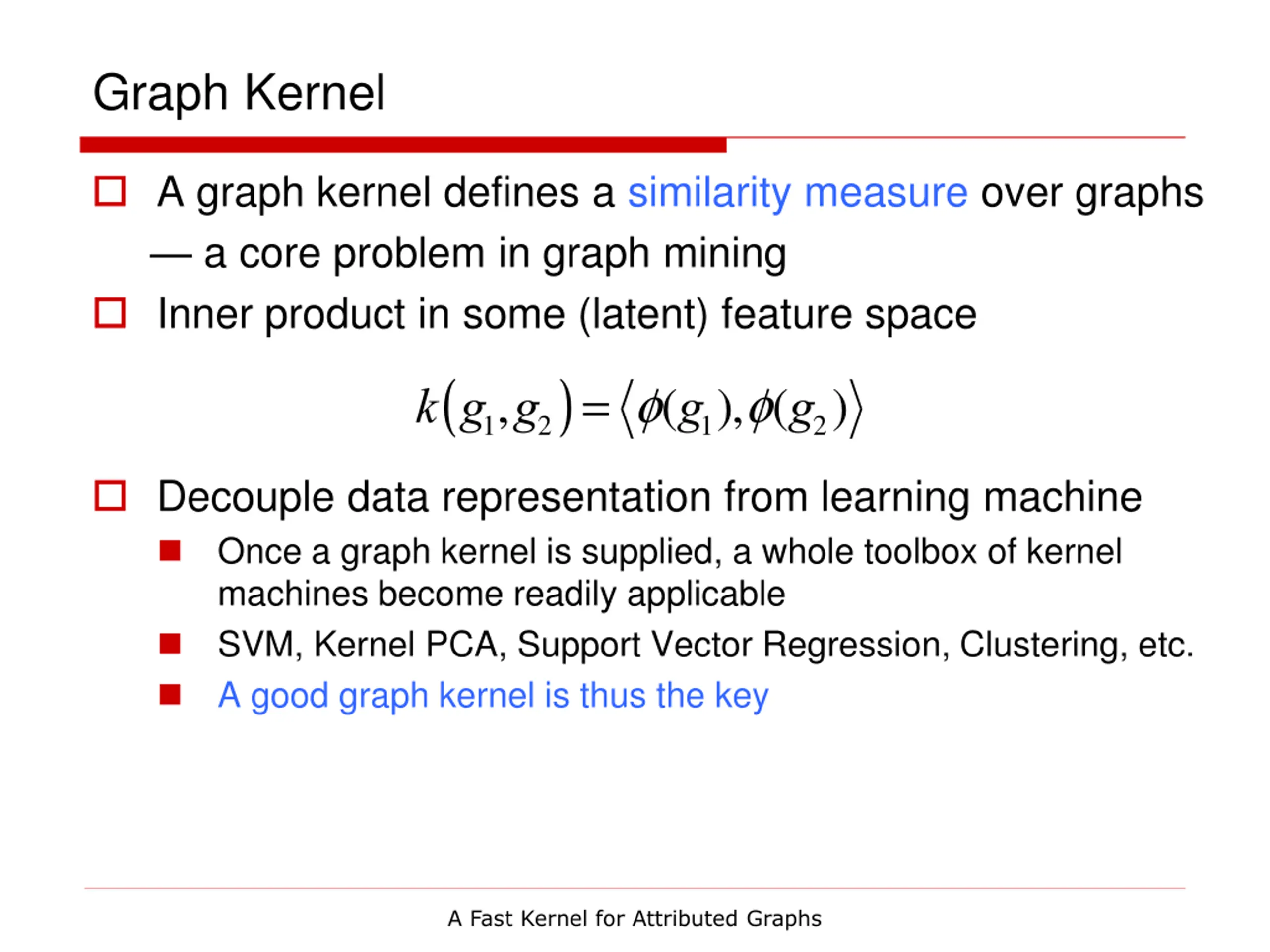

Graph Kernel A graph kernel defines a similarity measure over graphs a core problem in graph mining Inner product in some (latent) feature space ( )= f(g1),f(g2) k g1,g2 Decouple data representation from learning machine Once a graph kernel is supplied, a whole toolbox of kernel machines become readily applicable SVM, Kernel PCA, Support Vector Regression, Clustering, etc. A good graph kernel is thus the key A Fast Kernel for Attributed Graphs

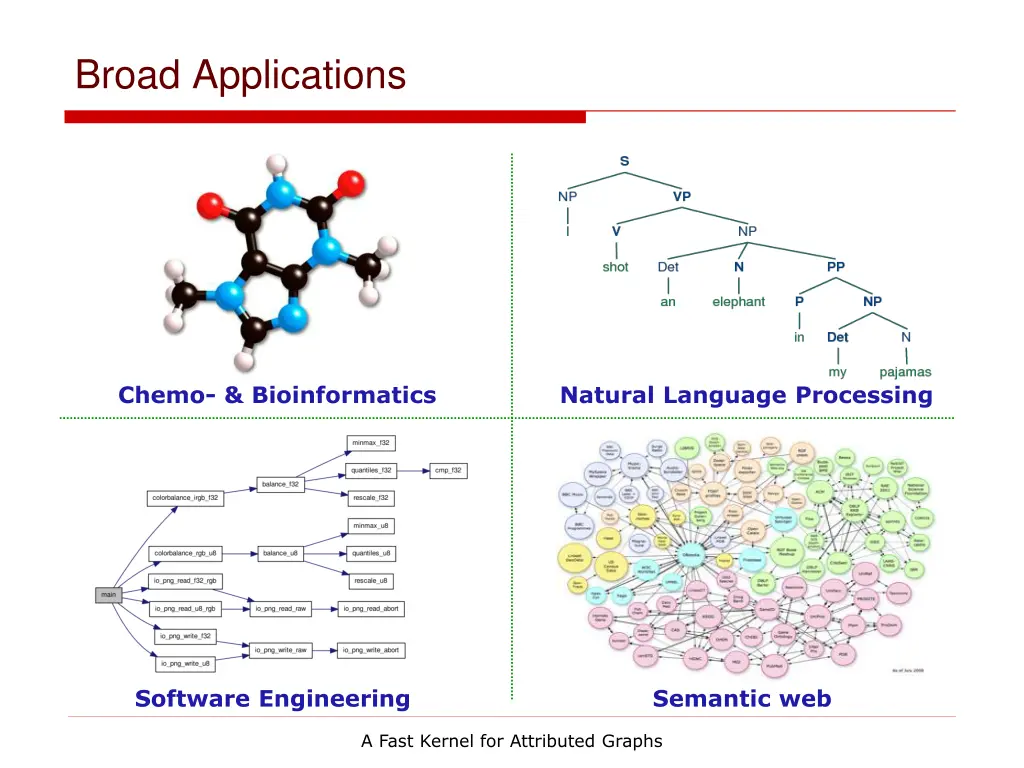

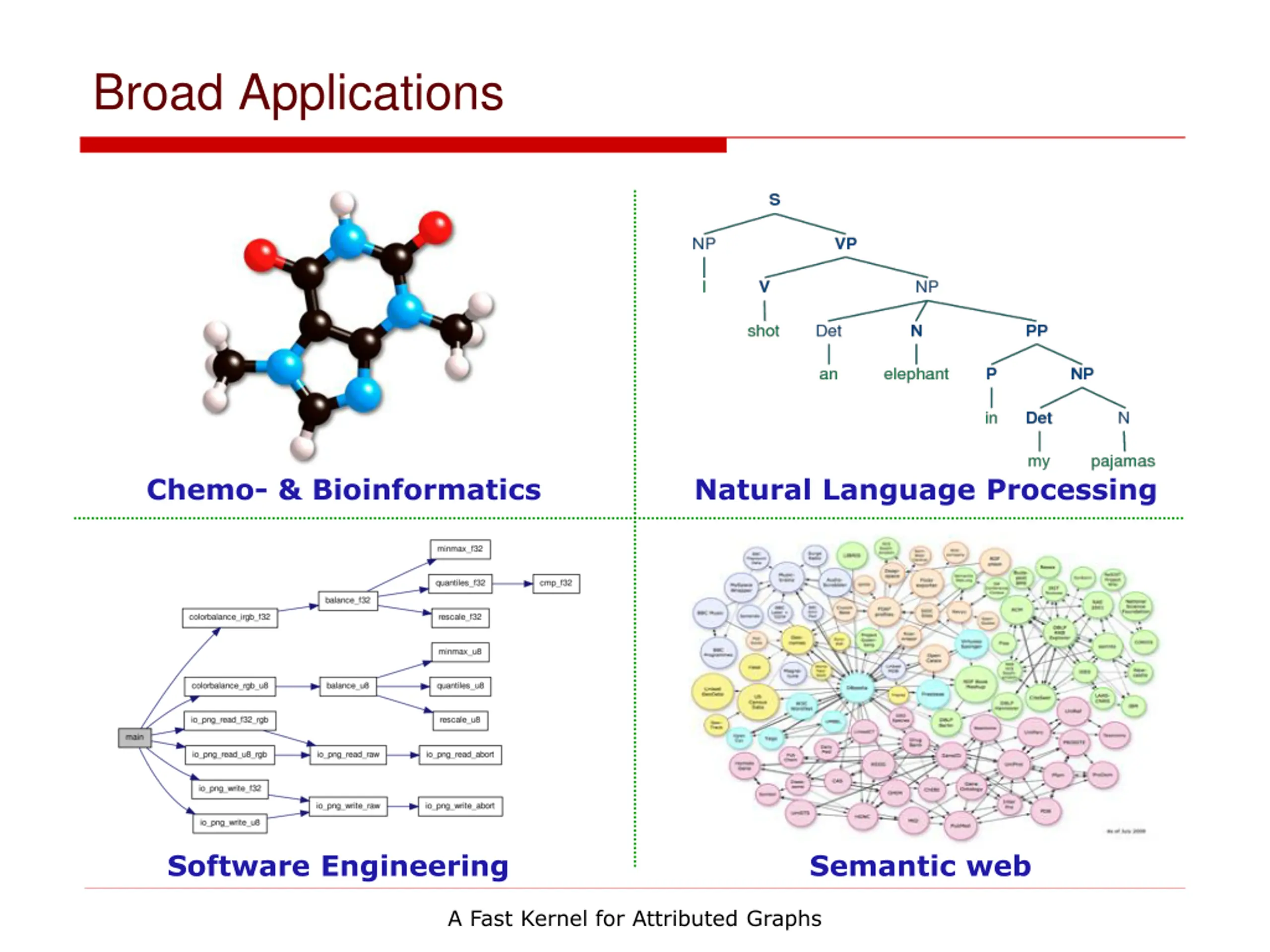

Broad Applications Chemo- & Bioinformatics Natural Language Processing Software Engineering Semantic web A Fast Kernel for Attributed Graphs

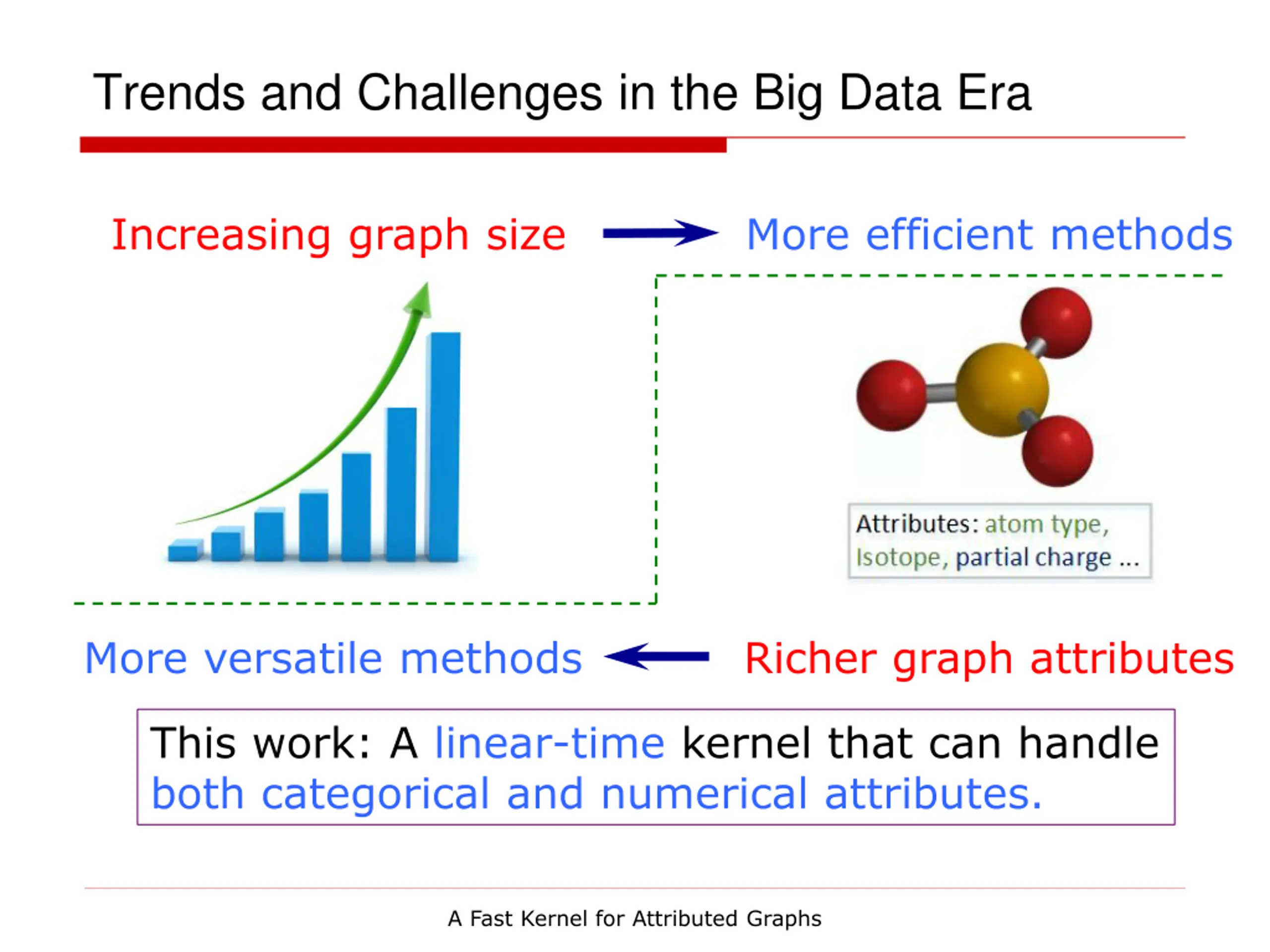

Trends and Challenges in the Big Data Era Increasing graph size More efficient methods More versatile methods Richer graph attributes This work: A linear-time kernel that can handle both categorical and numerical attributes. A Fast Kernel for Attributed Graphs

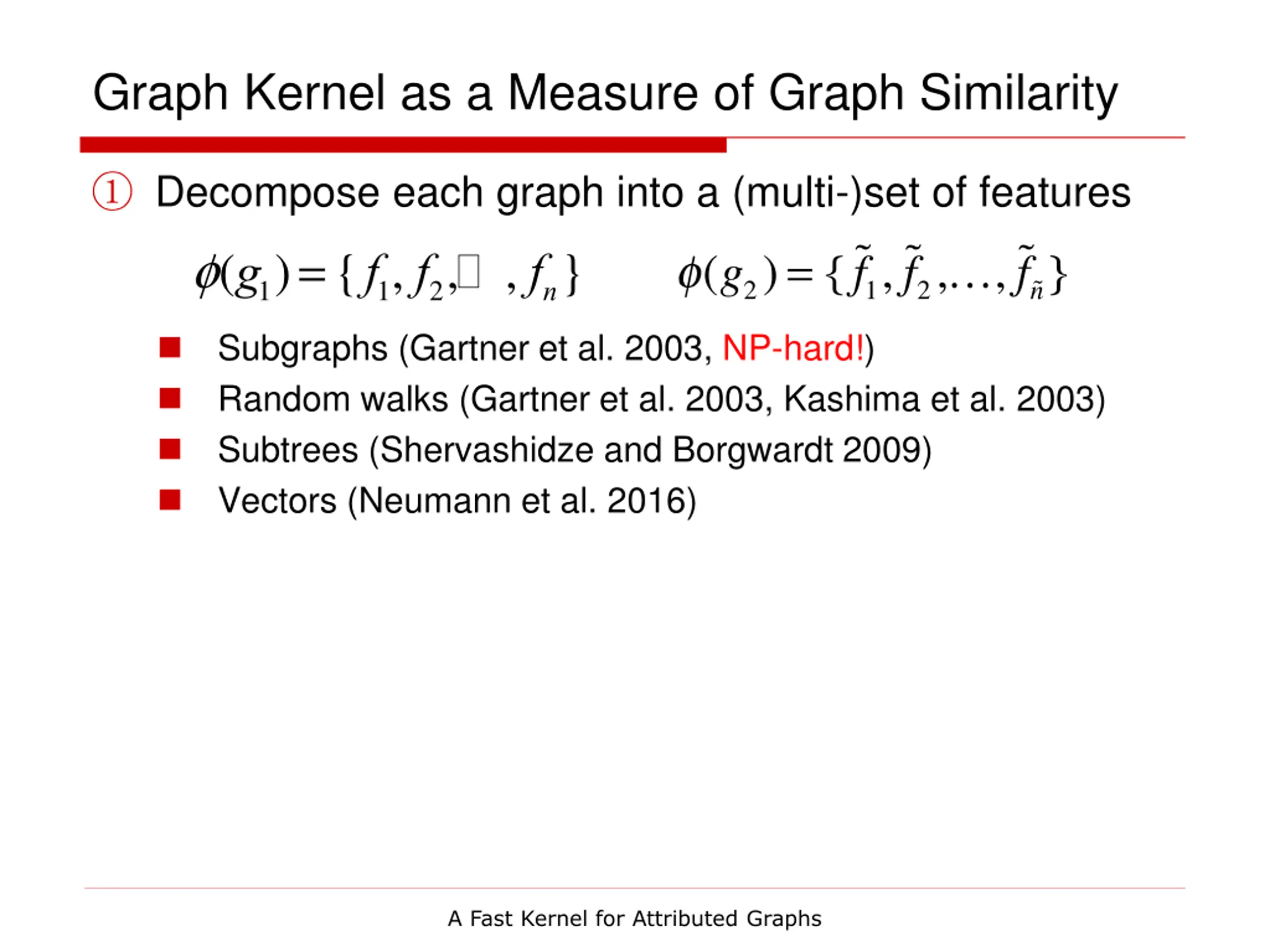

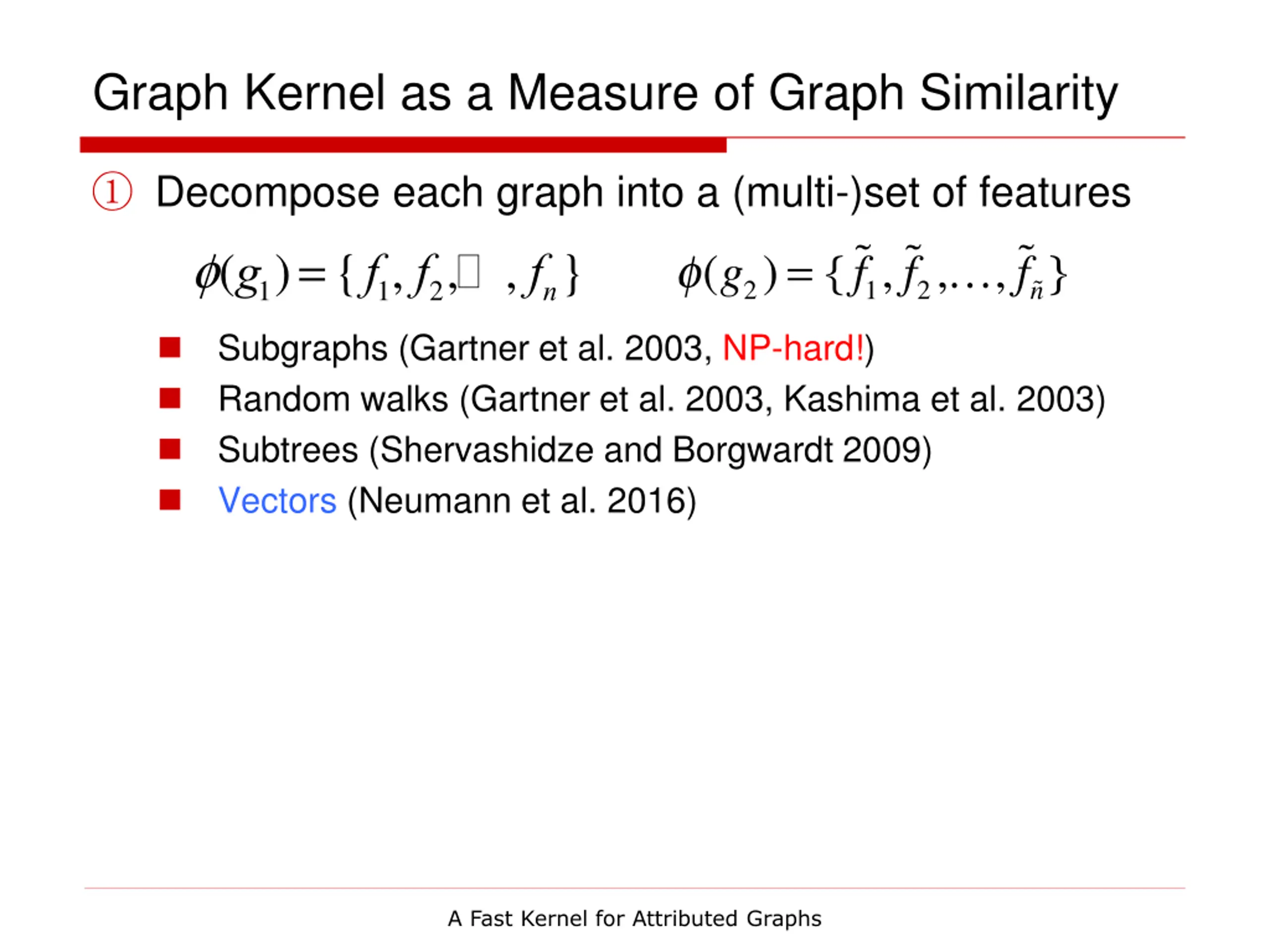

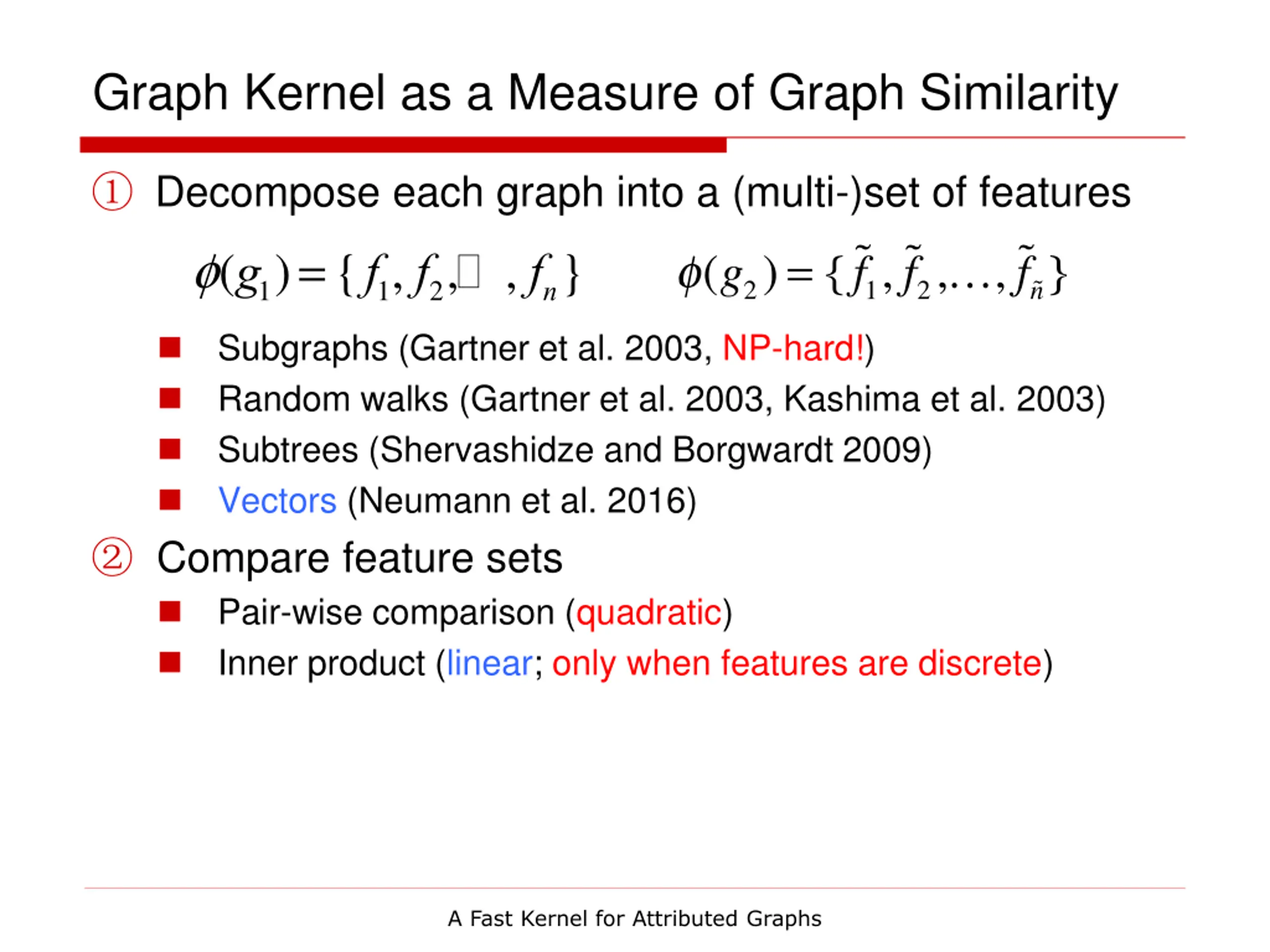

Graph Kernel as a Measure of Graph Similarity Decompose each graph into a (multi-)set of features f(g1)={f1, f2, , fn} Subgraphs (Gartner et al. 2003, NP-hard!) Random walks (Gartner et al. 2003, Kashima et al. 2003) Subtrees (Shervashidze and Borgwardt 2009) Vectors (Neumann et al. 2016) A Fast Kernel for Attributed Graphs
Graph Kernel as a Measure of Graph Similarity Decompose each graph into a (multi-)set of features f(g1)={f1, f2, , fn} Subgraphs (Gartner et al. 2003, NP-hard!) Random walks (Gartner et al. 2003, Kashima et al. 2003) Subtrees (Shervashidze and Borgwardt 2009) Vectors (Neumann et al. 2016) A Fast Kernel for Attributed Graphs

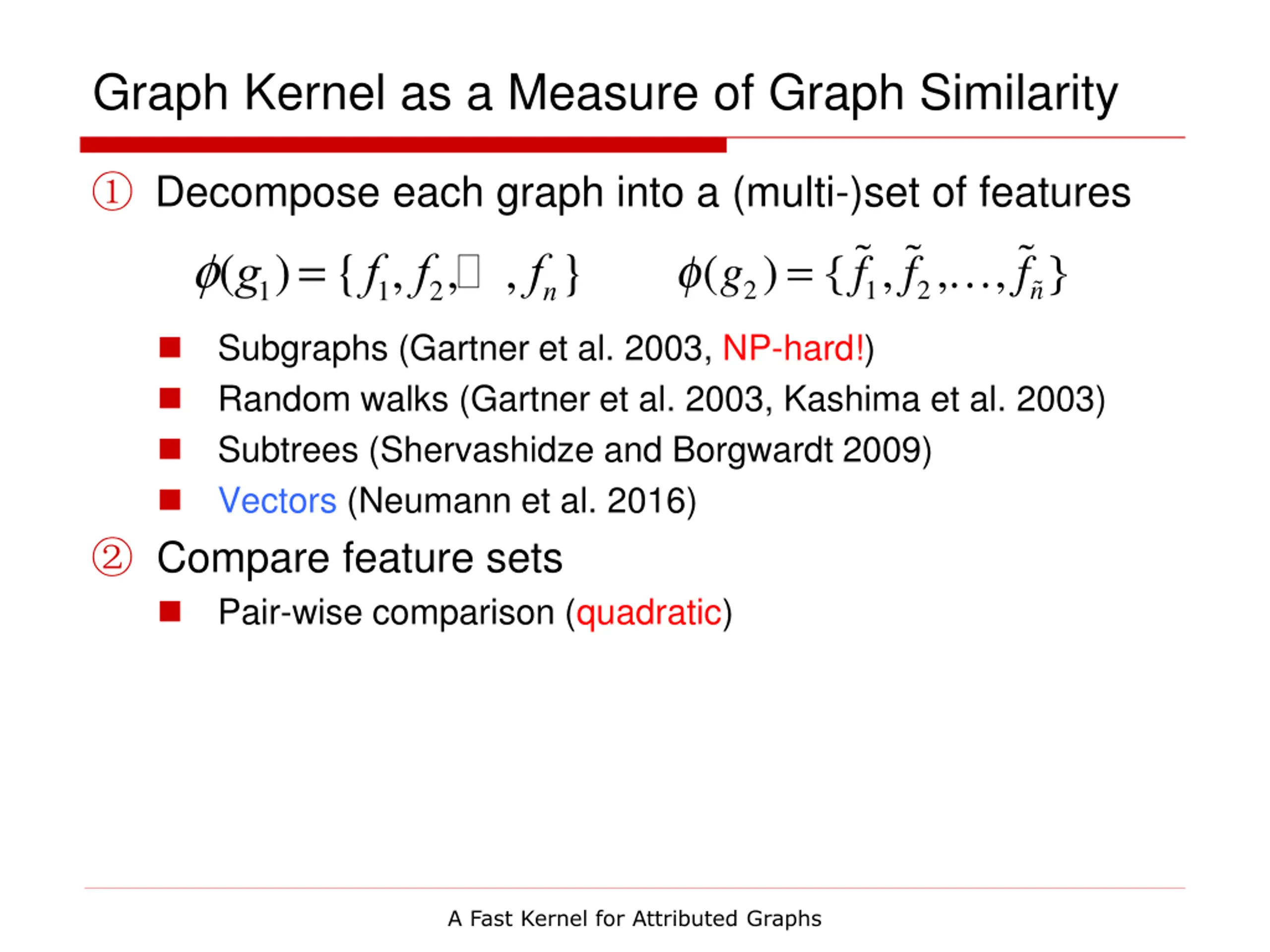

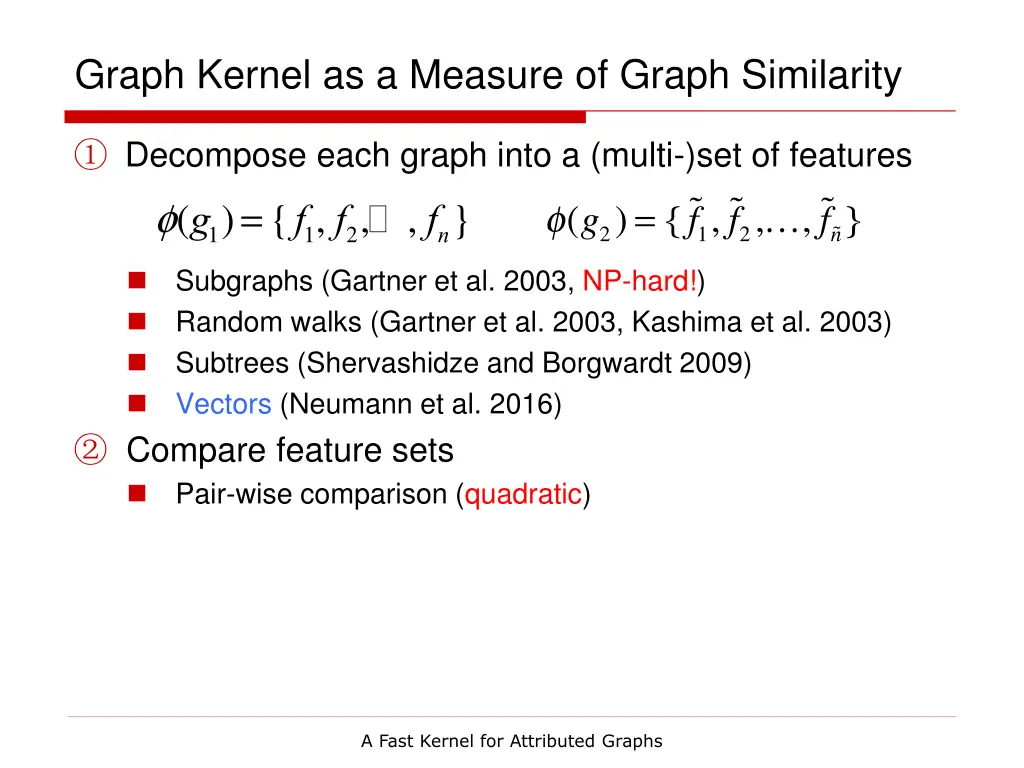

Graph Kernel as a Measure of Graph Similarity Decompose each graph into a (multi-)set of features f(g1)={f1, f2, , fn} Subgraphs (Gartner et al. 2003, NP-hard!) Random walks (Gartner et al. 2003, Kashima et al. 2003) Subtrees (Shervashidze and Borgwardt 2009) Vectors (Neumann et al. 2016) Compare feature sets Pair-wise comparison (quadratic) A Fast Kernel for Attributed Graphs
Graph Kernel as a Measure of Graph Similarity Decompose each graph into a (multi-)set of features f(g1)={f1, f2, , fn} Subgraphs (Gartner et al. 2003, NP-hard!) Random walks (Gartner et al. 2003, Kashima et al. 2003) Subtrees (Shervashidze and Borgwardt 2009) Vectors (Neumann et al. 2016) Compare feature sets Pair-wise comparison (quadratic) Inner product (linear; only when features are discrete) A Fast Kernel for Attributed Graphs

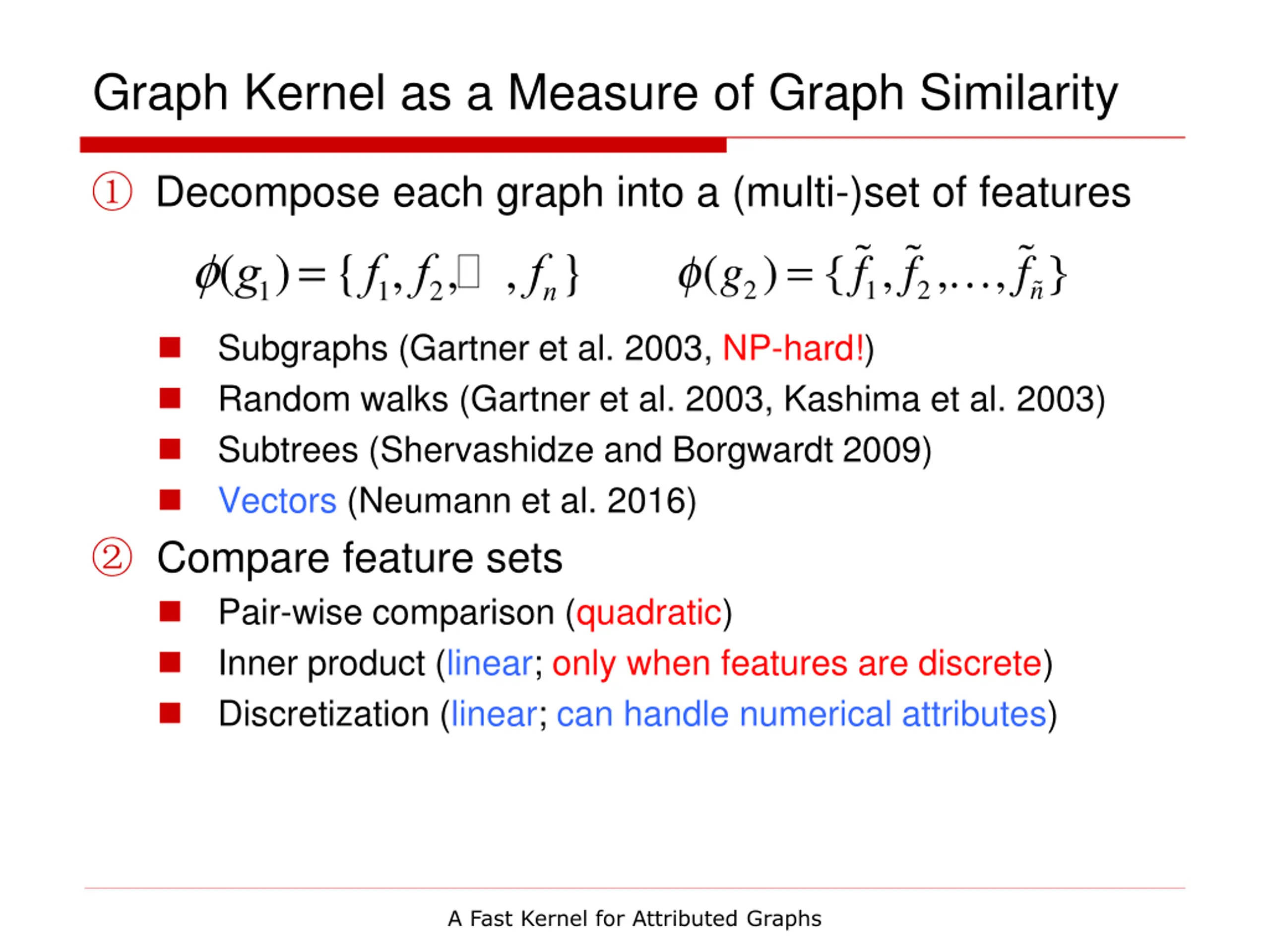

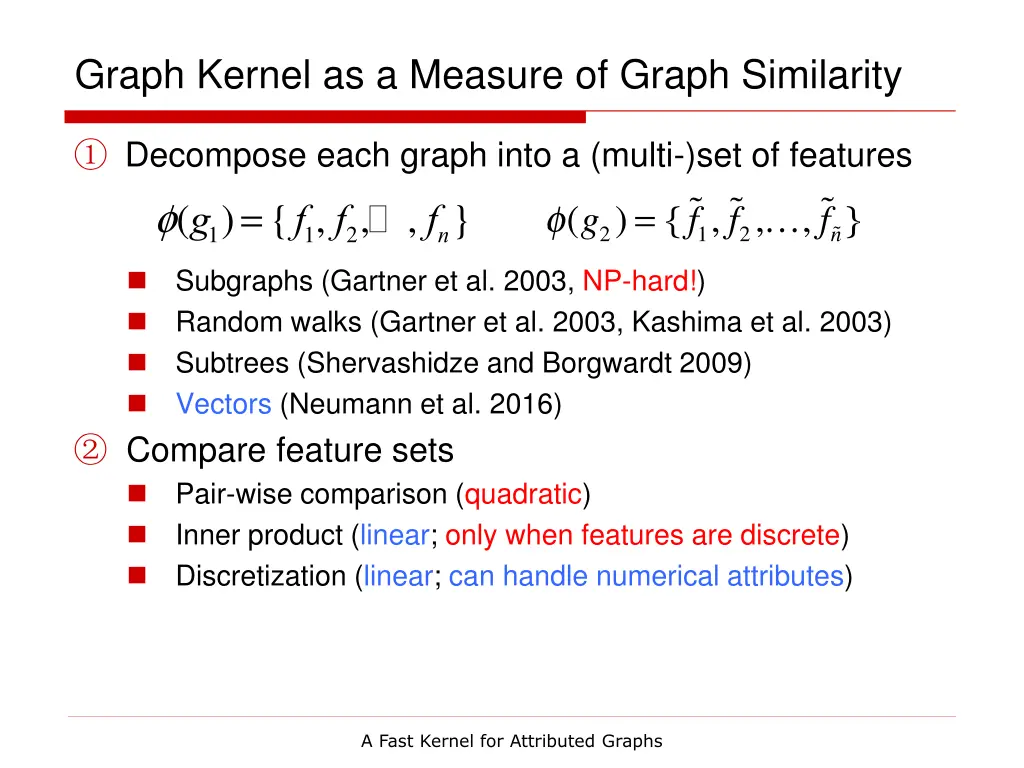

Graph Kernel as a Measure of Graph Similarity Decompose each graph into a (multi-)set of features f(g1)={f1, f2, , fn} Subgraphs (Gartner et al. 2003, NP-hard!) Random walks (Gartner et al. 2003, Kashima et al. 2003) Subtrees (Shervashidze and Borgwardt 2009) Vectors (Neumann et al. 2016) Compare feature sets Pair-wise comparison (quadratic) Inner product (linear; only when features are discrete) Discretization (linear; can handle numerical attributes) A Fast Kernel for Attributed Graphs

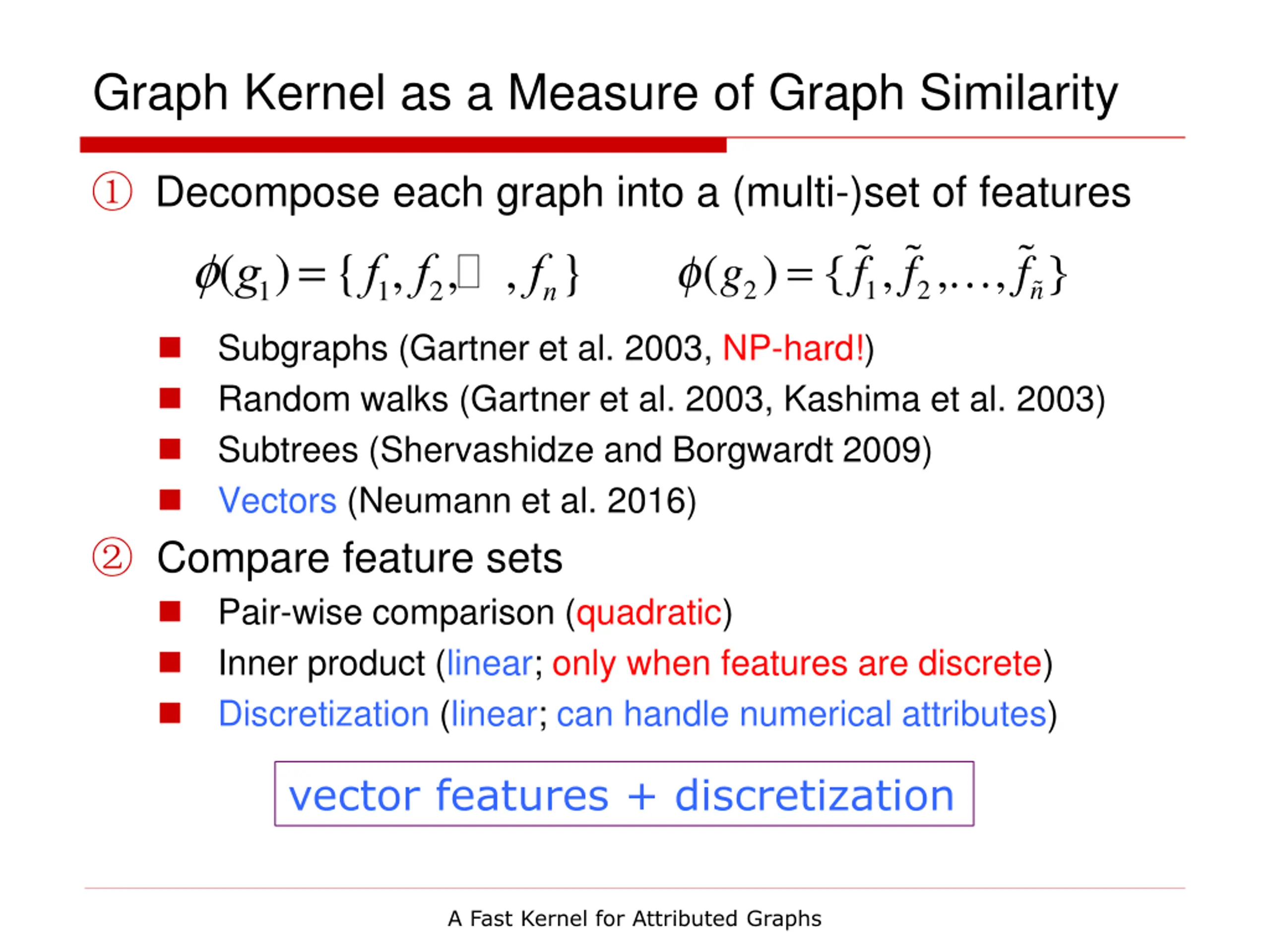

Graph Kernel as a Measure of Graph Similarity Decompose each graph into a (multi-)set of features f(g1)={f1, f2, , fn} Subgraphs (Gartner et al. 2003, NP-hard!) Random walks (Gartner et al. 2003, Kashima et al. 2003) Subtrees (Shervashidze and Borgwardt 2009) Vectors (Neumann et al. 2016) Compare feature sets Pair-wise comparison (quadratic) Inner product (linear; only when features are discrete) Discretization (linear; can handle numerical attributes) vector features + discretization A Fast Kernel for Attributed Graphs
METHOD A Fast Kernel for Attributed Graphs

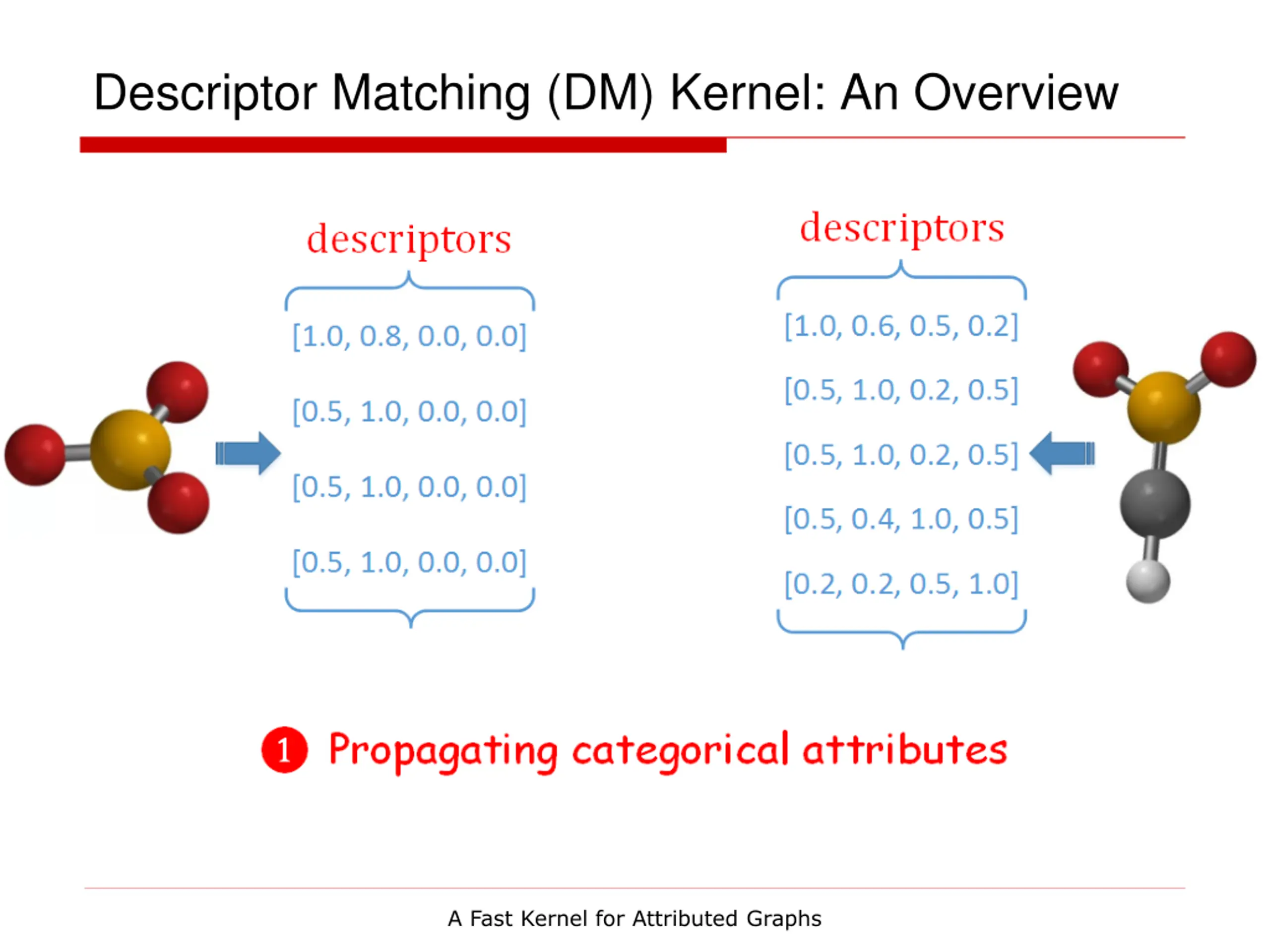

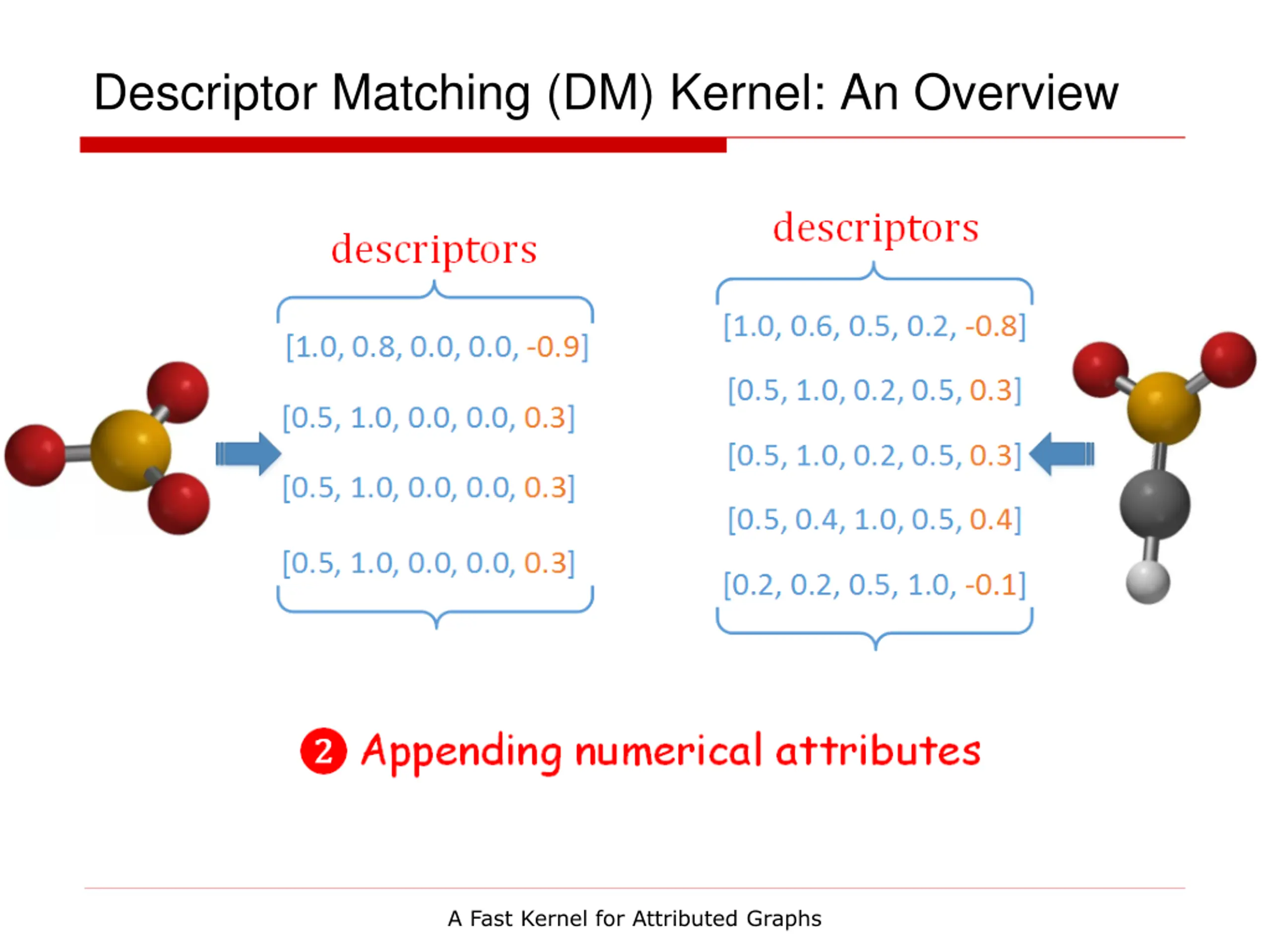

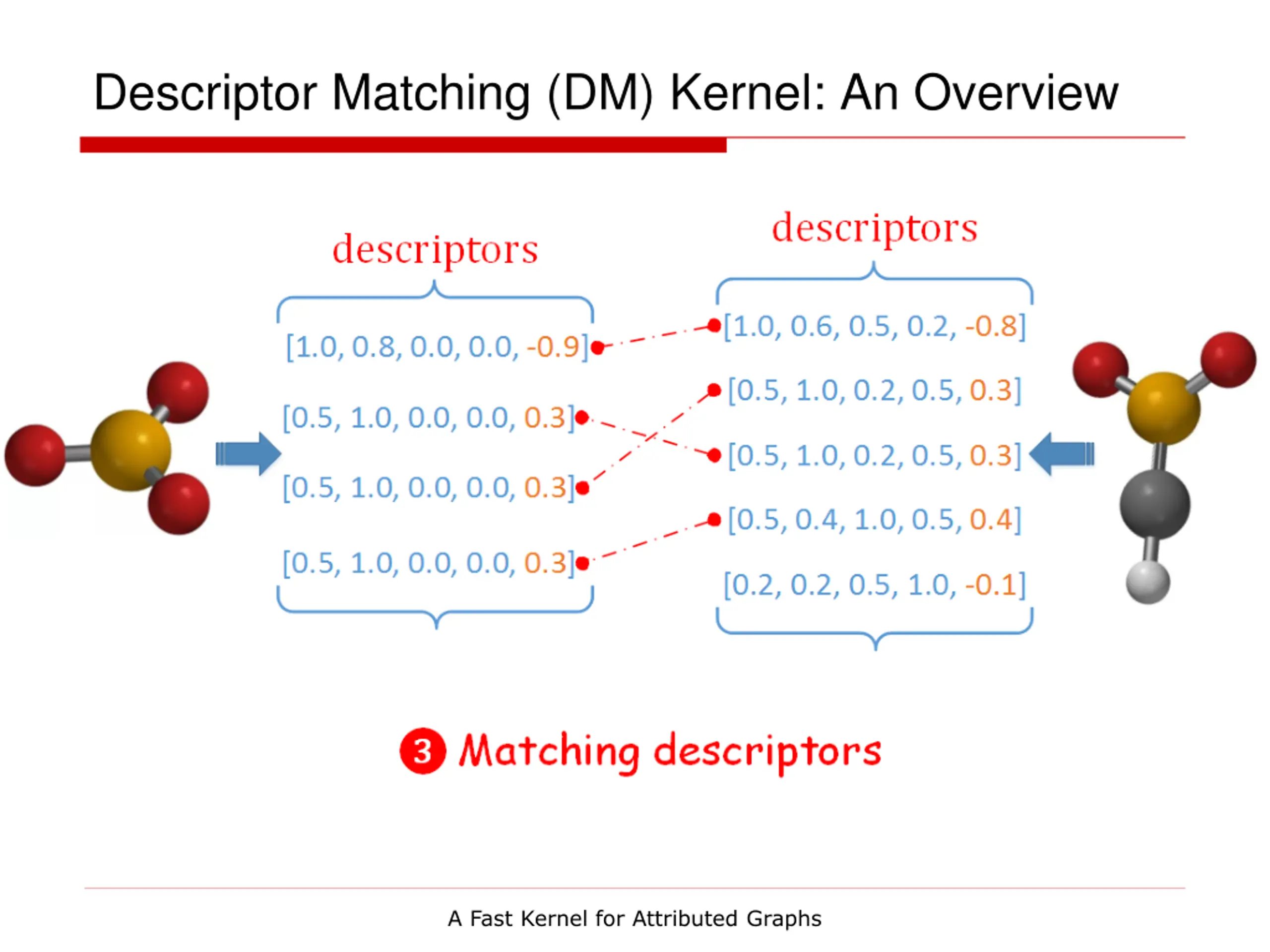

Descriptor Matching (DM) Kernel: An Overview A Fast Kernel for Attributed Graphs
Descriptor Matching (DM) Kernel: An Overview A Fast Kernel for Attributed Graphs
Descriptor Matching (DM) Kernel: An Overview A Fast Kernel for Attributed Graphs

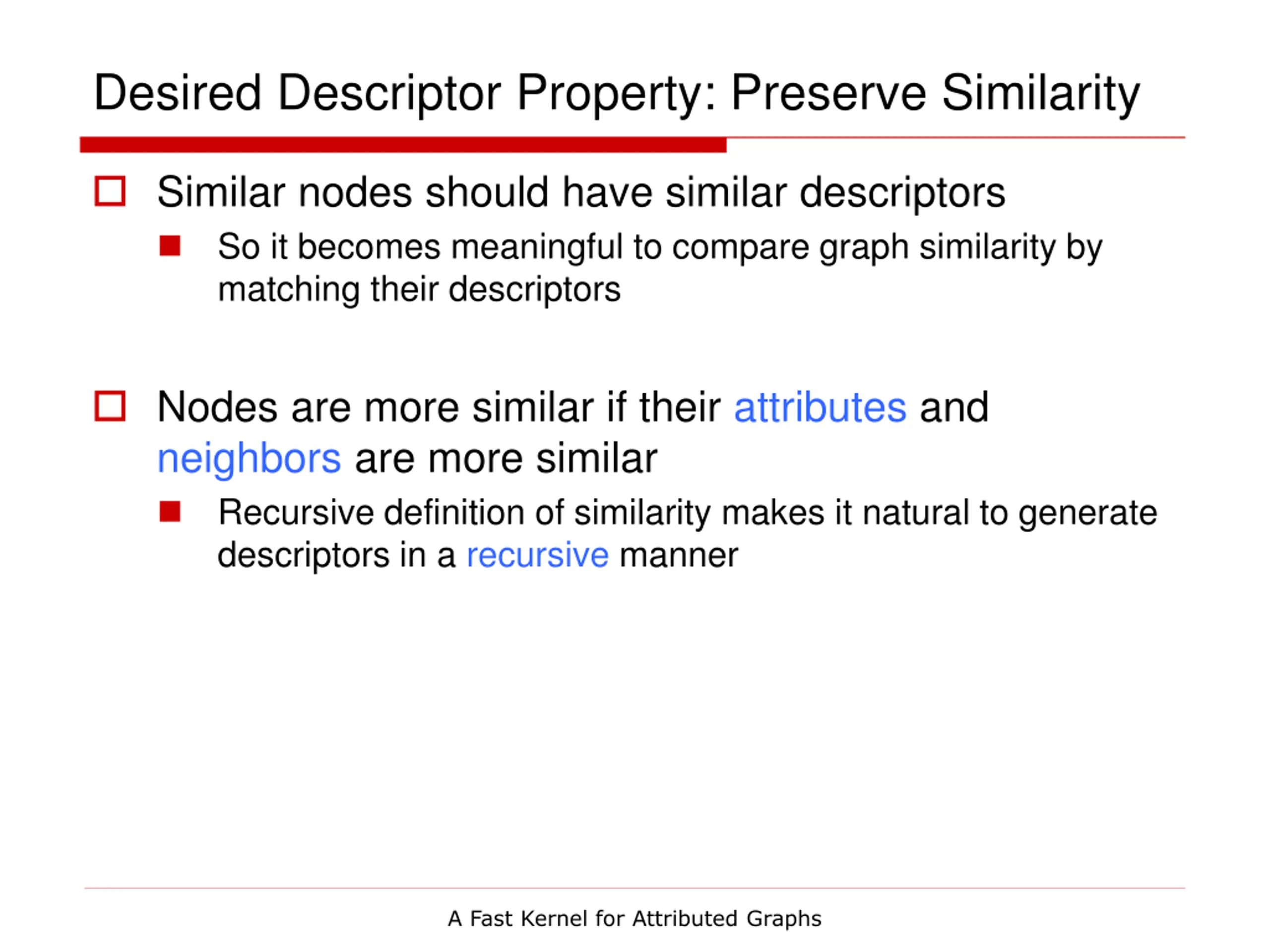

Desired Descriptor Property: Preserve Similarity Similar nodes should have similar descriptors So it becomes meaningful to compare graph similarity by matching their descriptors Nodes are more similar if their attributes and neighbors are more similar Recursive definition of similarity makes it natural to generate descriptors in a recursive manner A Fast Kernel for Attributed Graphs

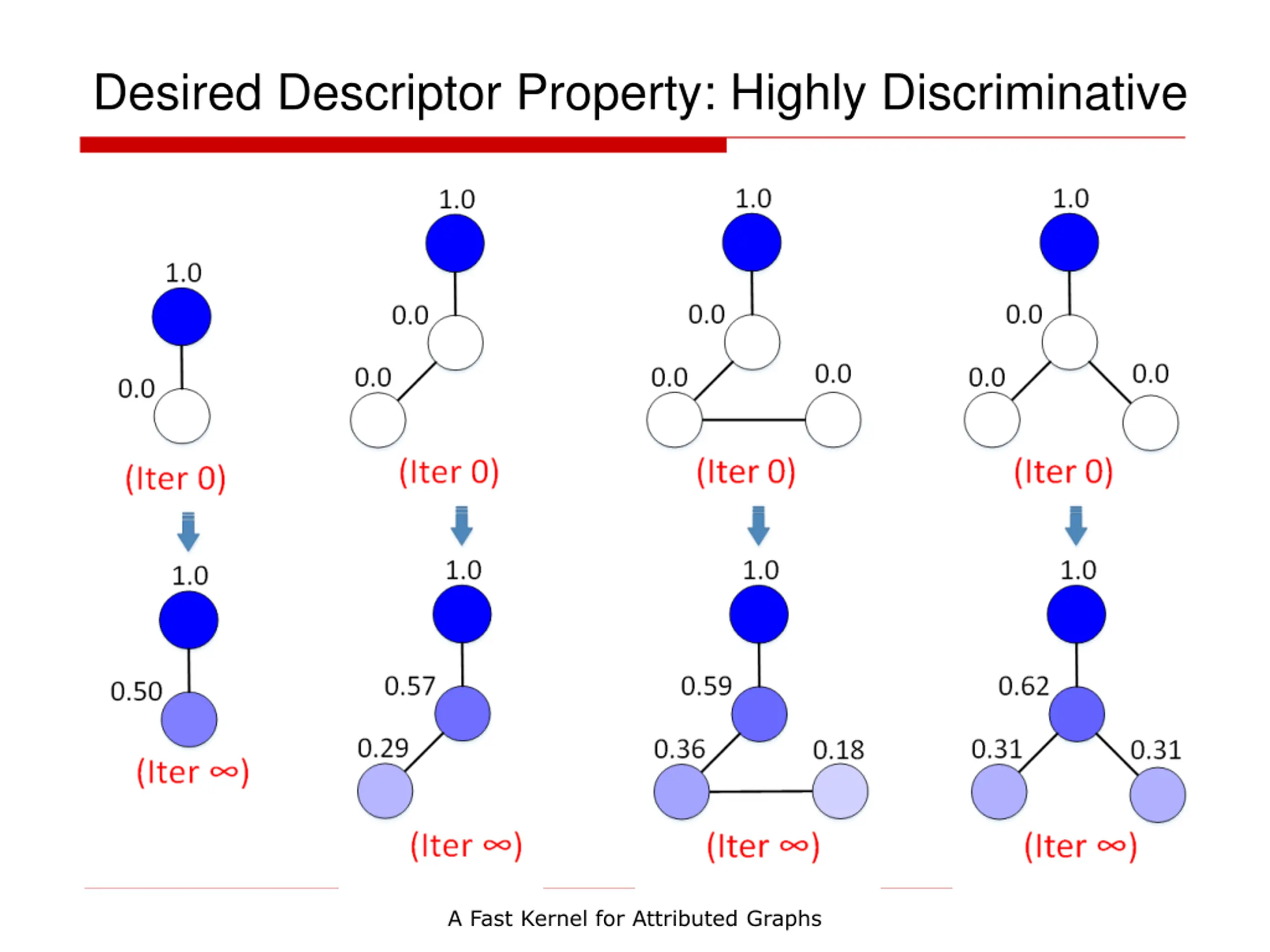

Desired Descriptor Property: Highly Discriminative A Fast Kernel for Attributed Graphs

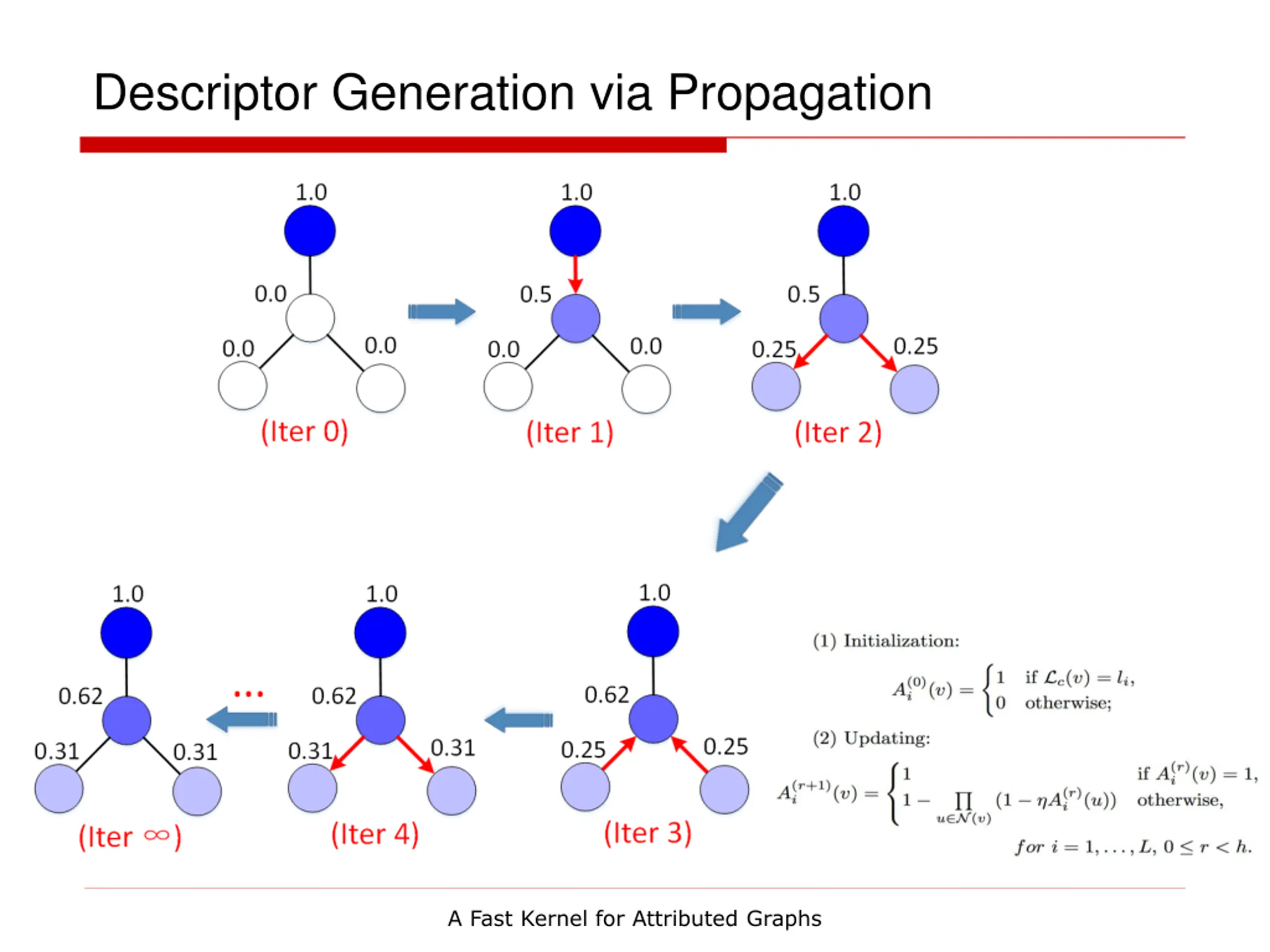

Descriptor Generation via Propagation A Fast Kernel for Attributed Graphs

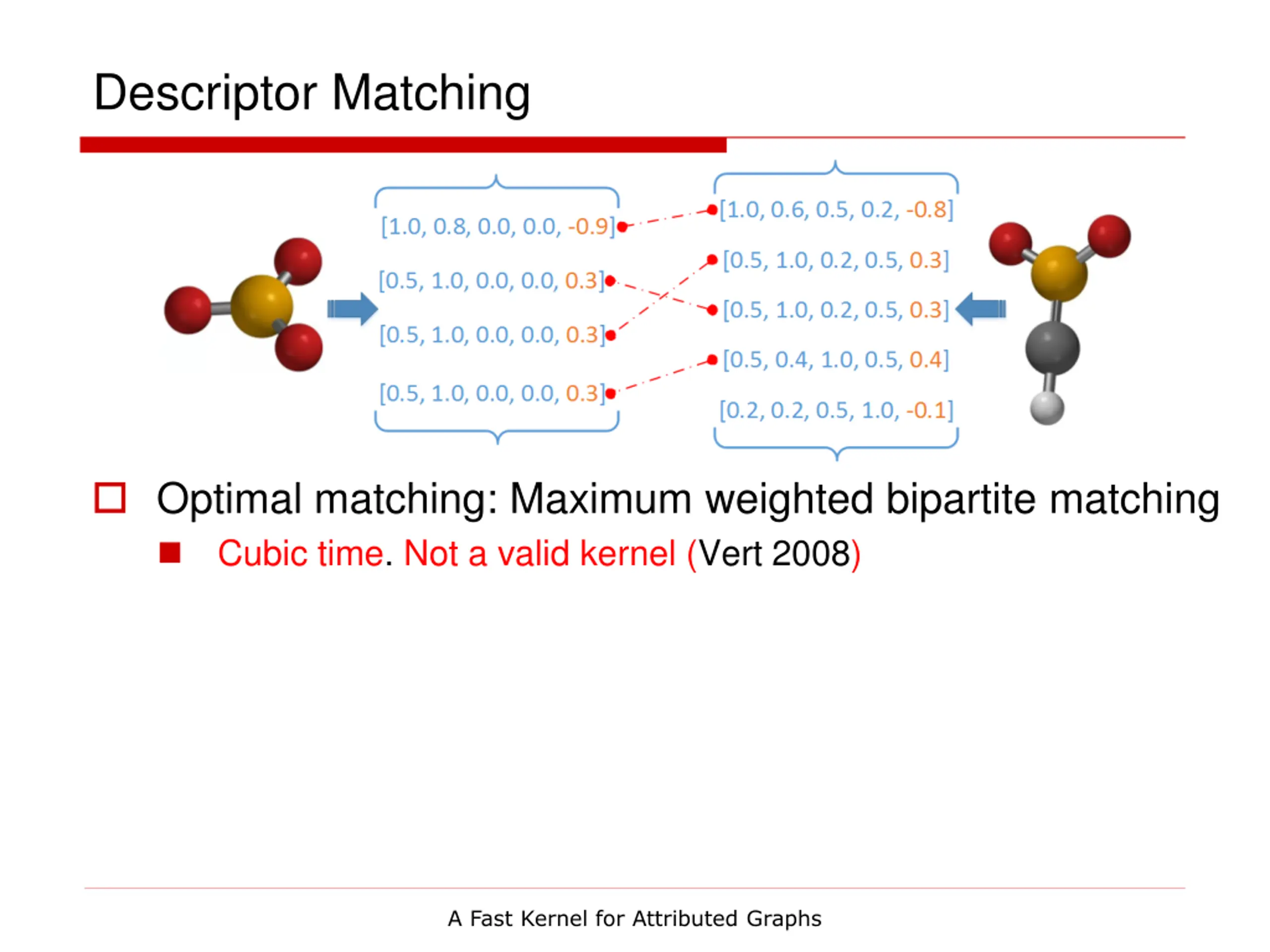

Descriptor Matching Optimal matching: Maximum weighted bipartite matching Cubic time. Not a valid kernel (Vert 2008) A Fast Kernel for Attributed Graphs

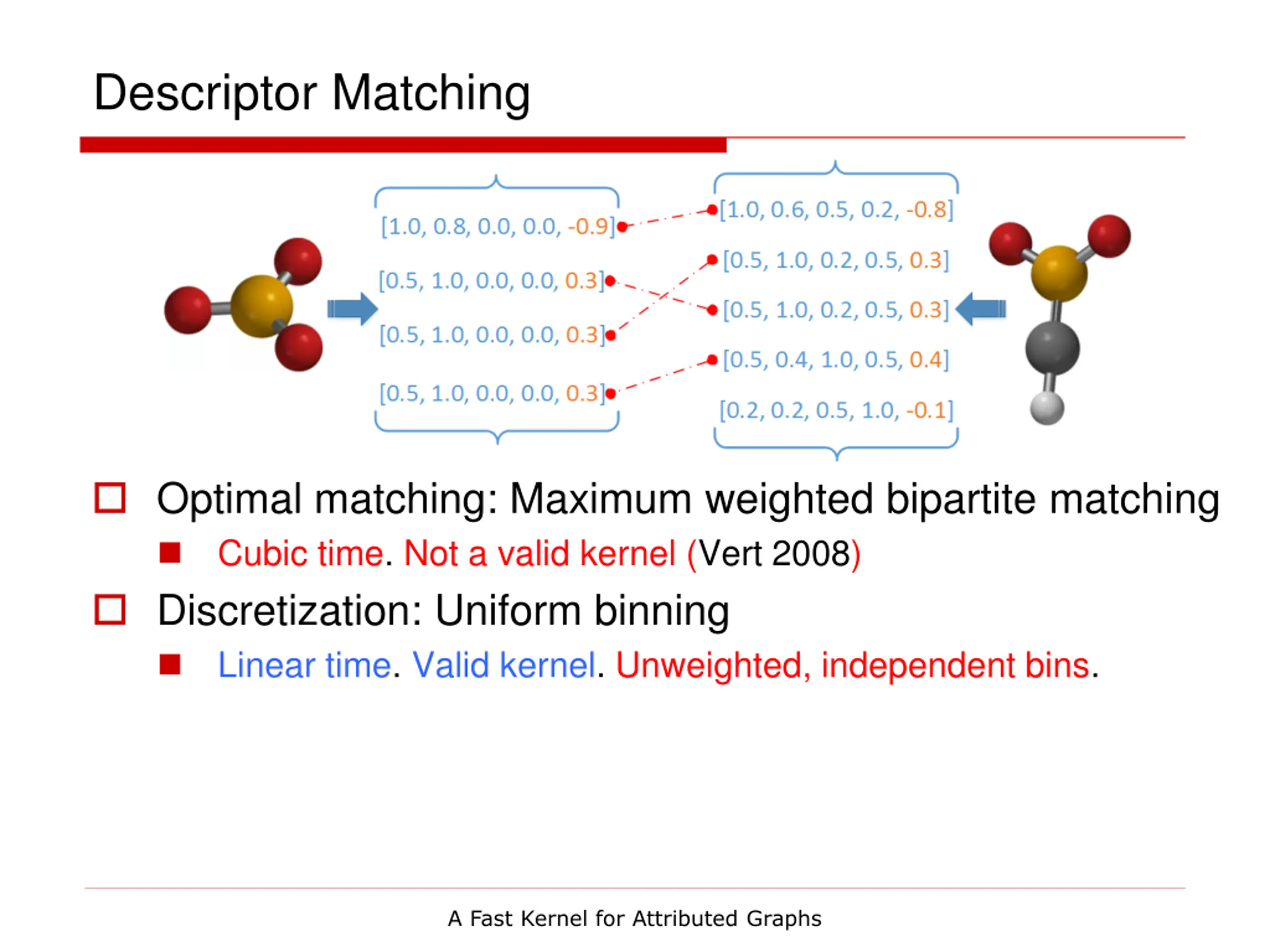

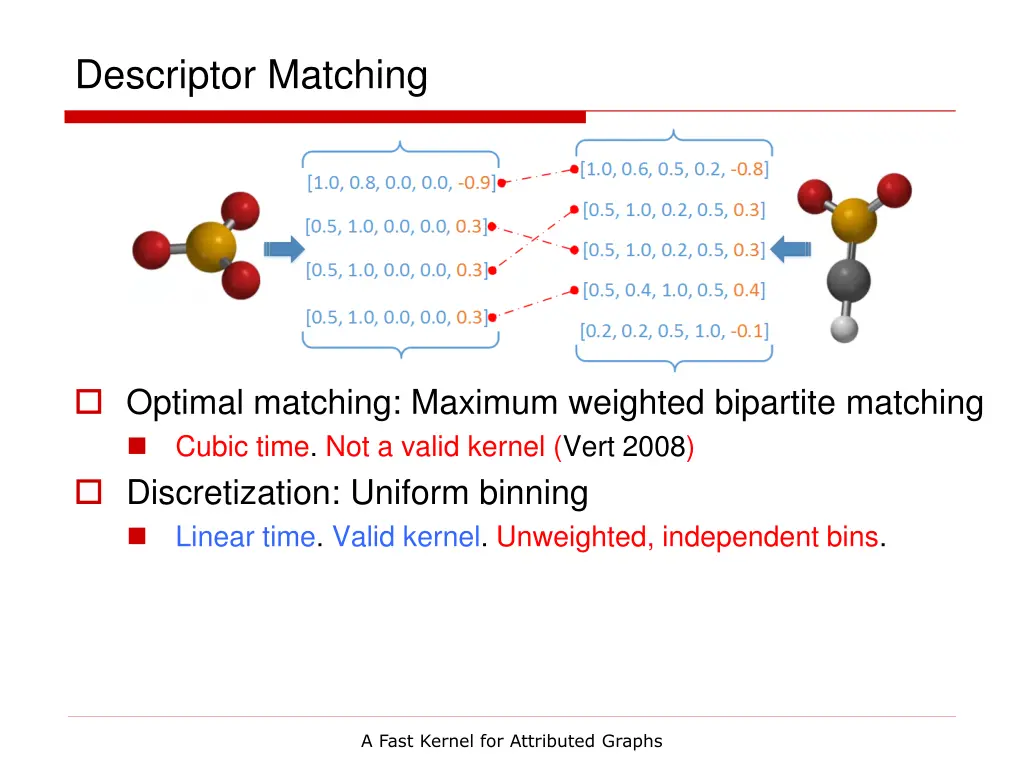

Descriptor Matching Optimal matching: Maximum weighted bipartite matching Cubic time. Not a valid kernel (Vert 2008) Discretization: Uniform binning Linear time. Valid kernel. Unweighted, independent bins. A Fast Kernel for Attributed Graphs

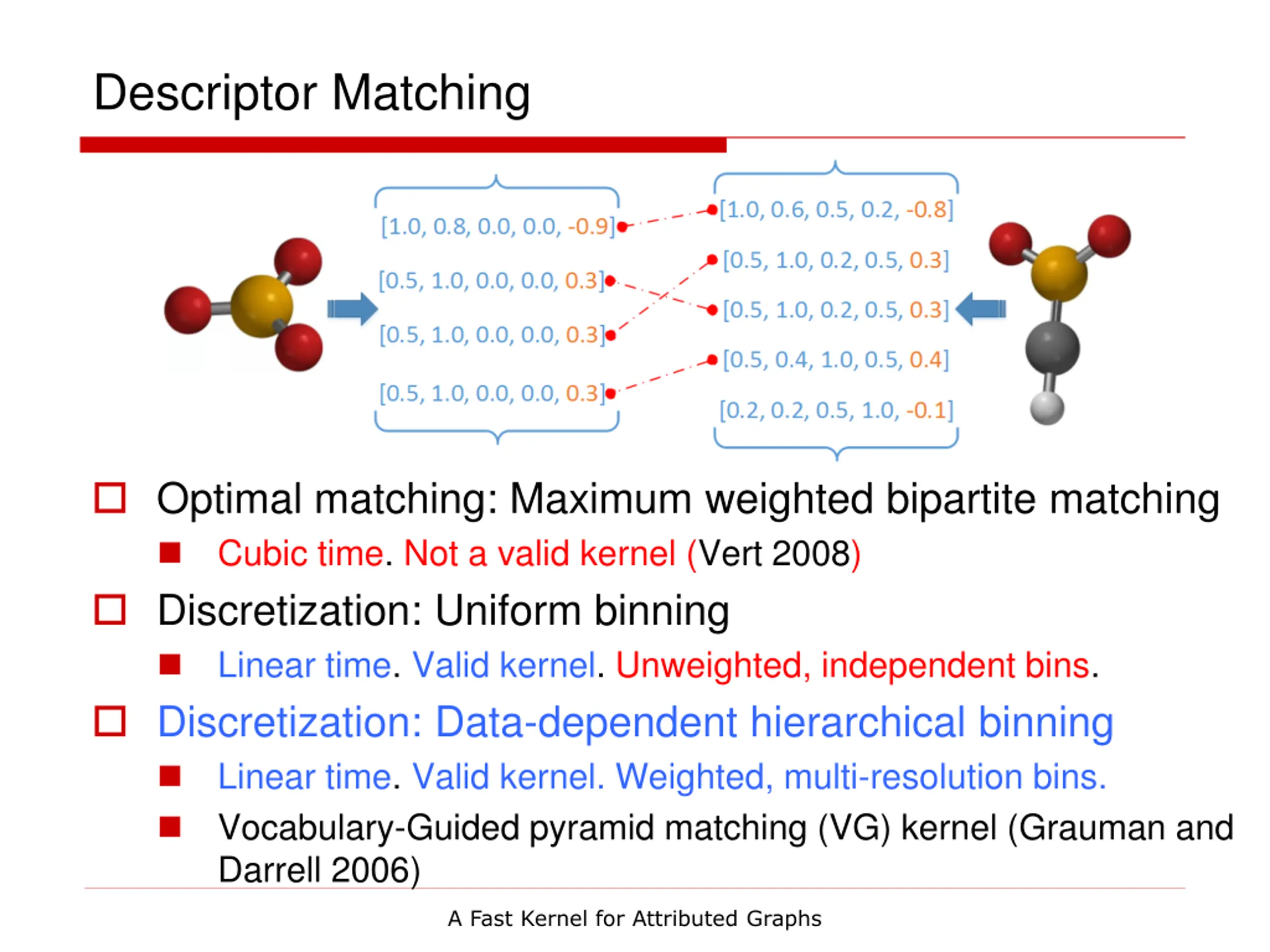

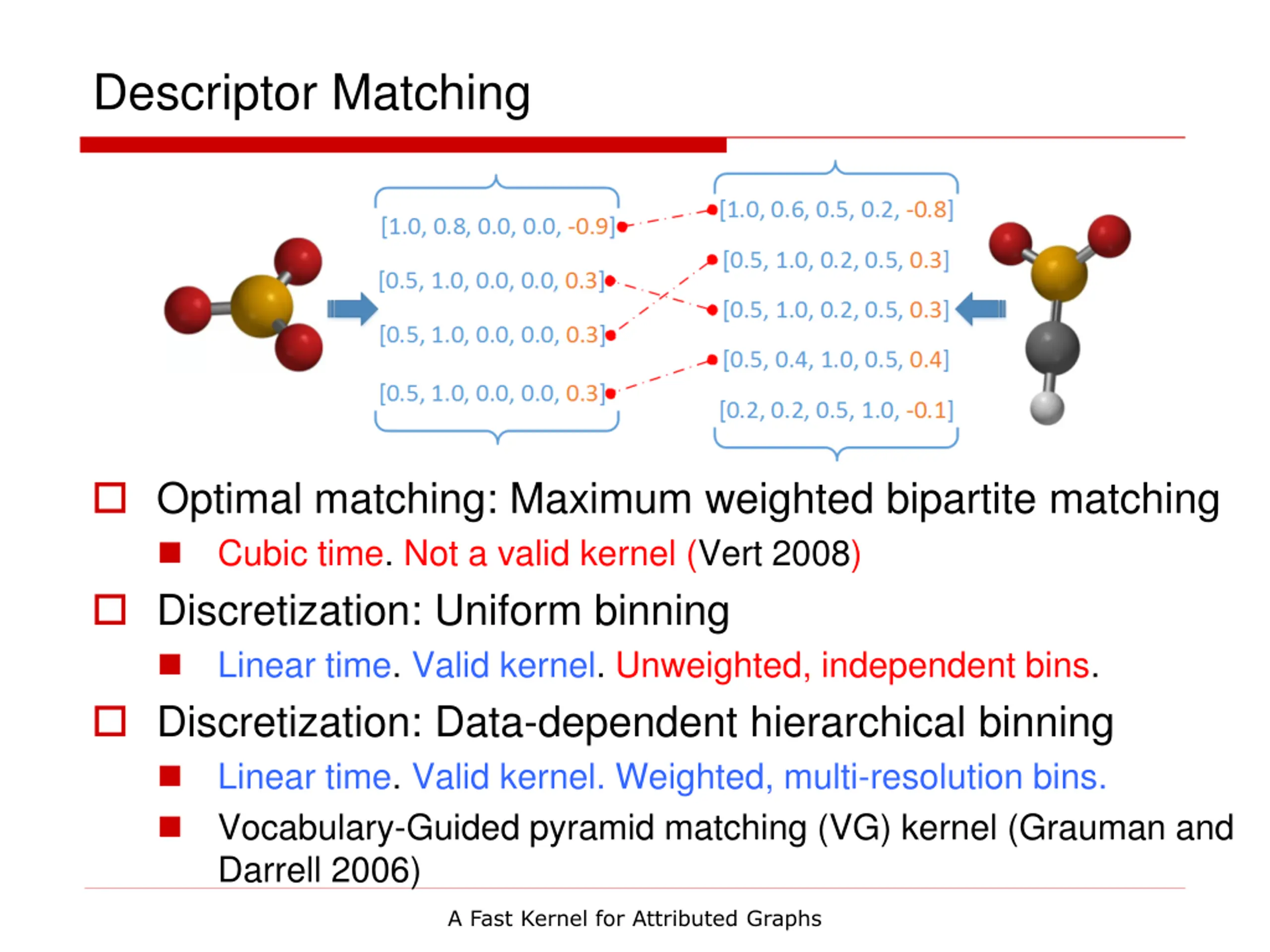

Descriptor Matching Optimal matching: Maximum weighted bipartite matching Cubic time. Not a valid kernel (Vert 2008) Discretization: Uniform binning Linear time. Valid kernel. Unweighted, independent bins. Discretization: Data-dependent hierarchical binning Linear time. Valid kernel. Weighted, multi-resolution bins. Vocabulary-Guided pyramid matching (VG) kernel (Grauman and Darrell 2006) A Fast Kernel for Attributed Graphs
Descriptor Matching Optimal matching: Maximum weighted bipartite matching Cubic time. Not a valid kernel (Vert 2008) Discretization: Uniform binning Linear time. Valid kernel. Unweighted, independent bins. Discretization: Data-dependent hierarchical binning Linear time. Valid kernel. Weighted, multi-resolution bins. Vocabulary-Guided pyramid matching (VG) kernel (Grauman and Darrell 2006) A Fast Kernel for Attributed Graphs

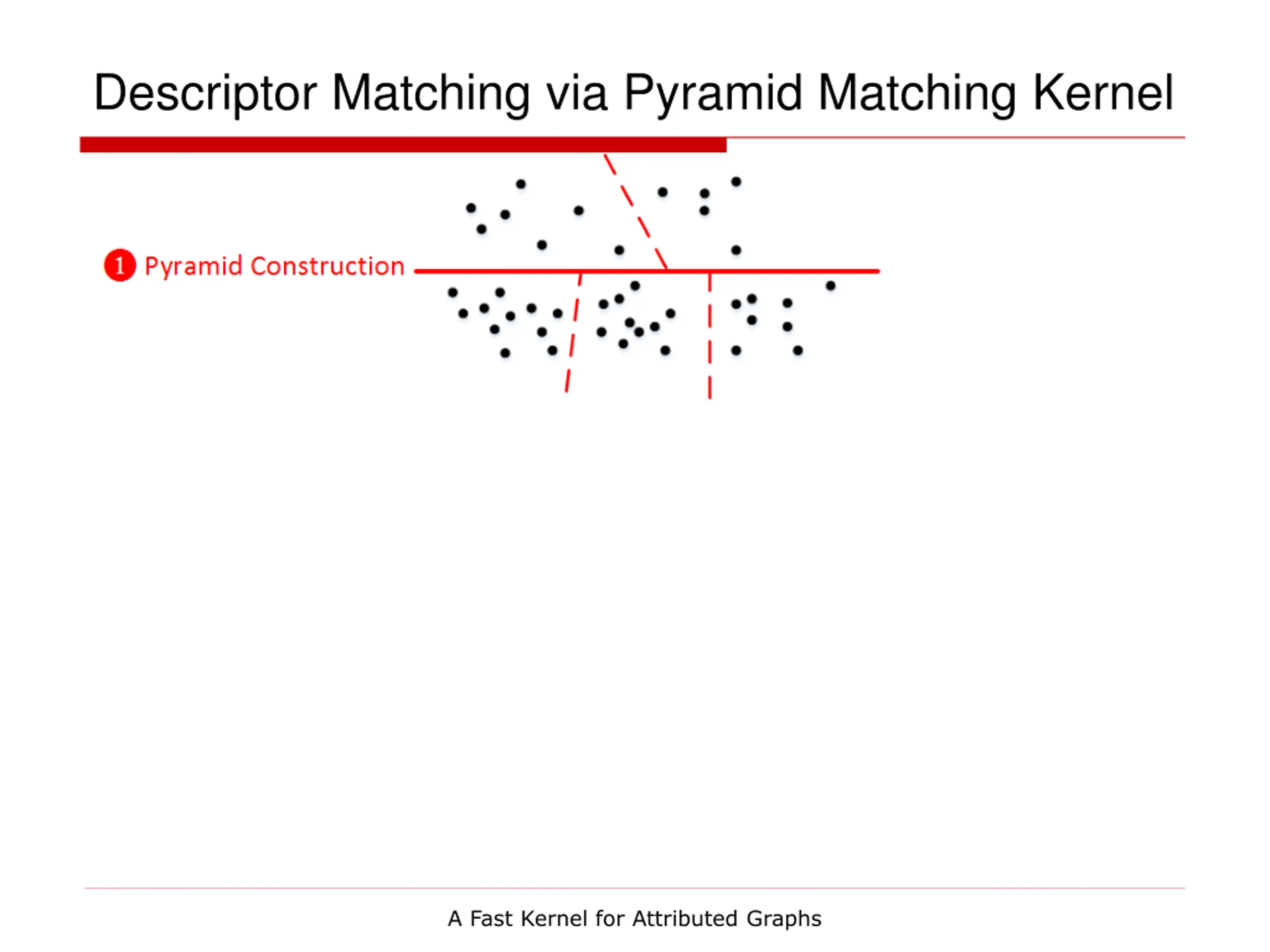

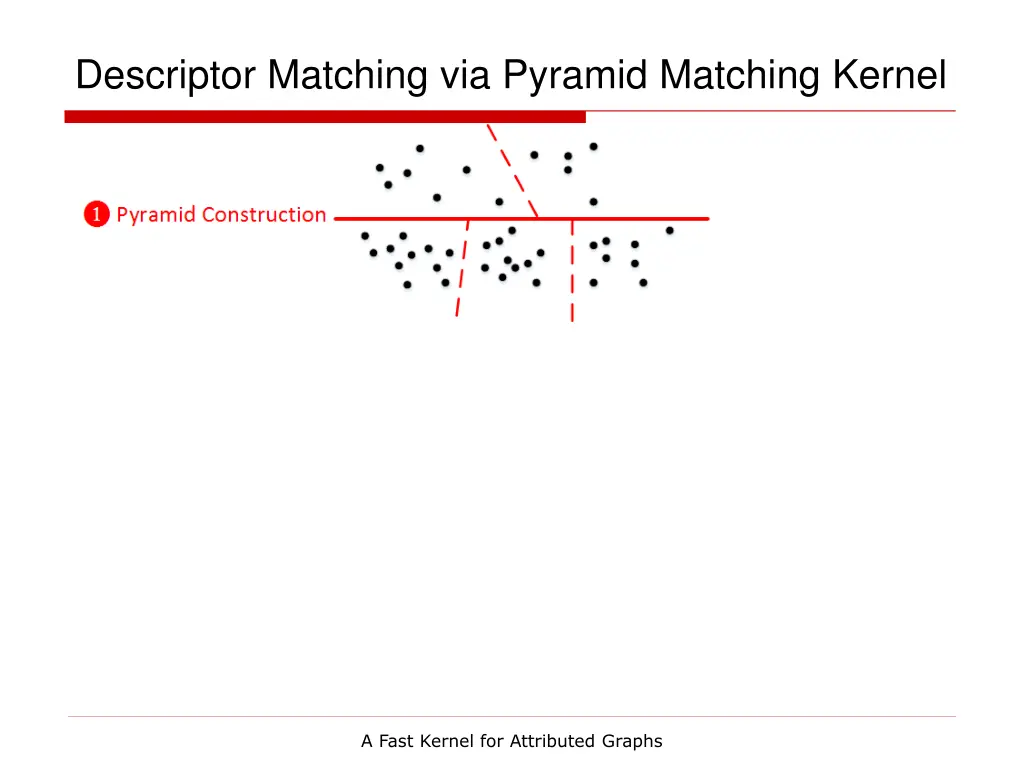

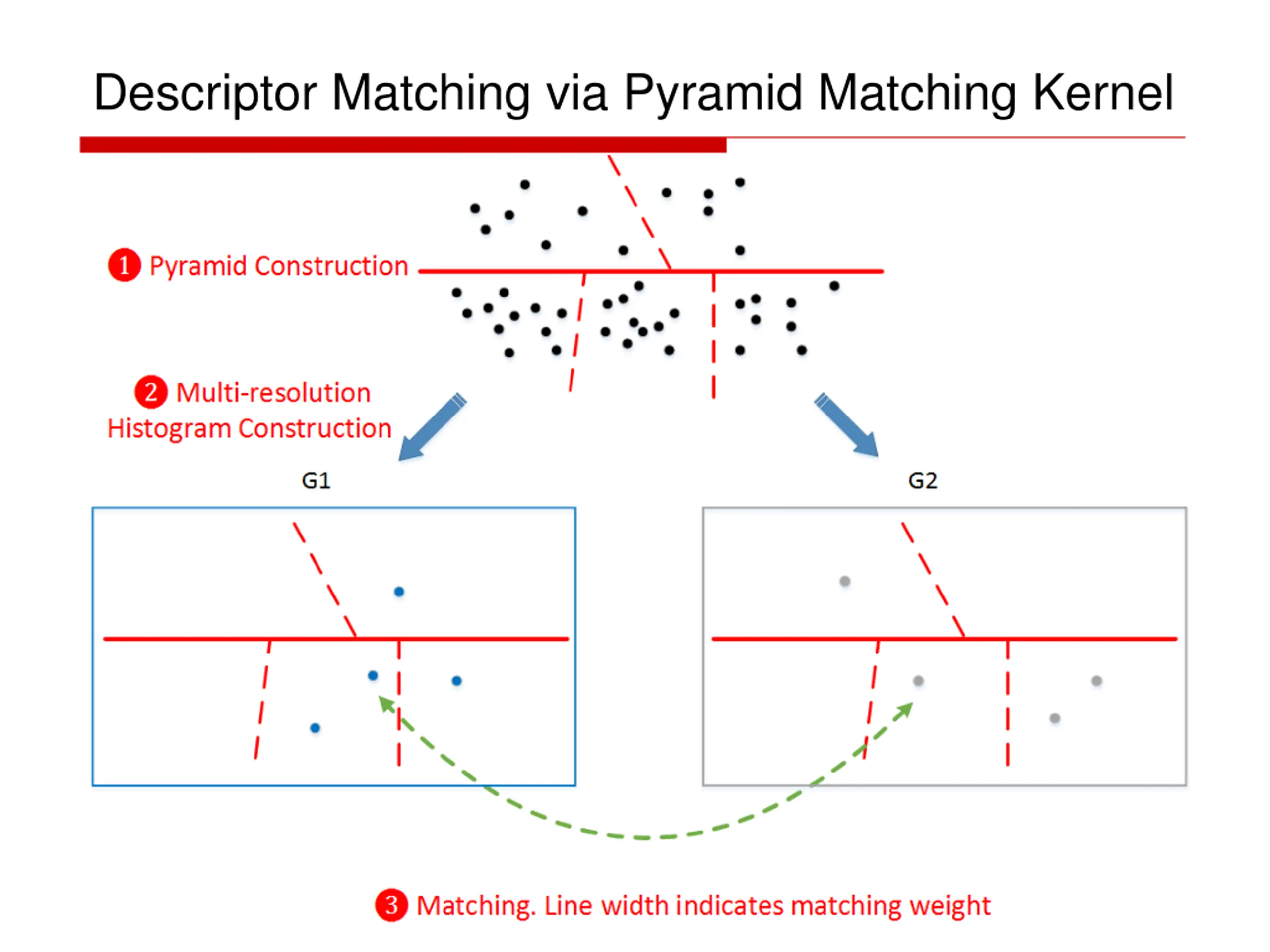

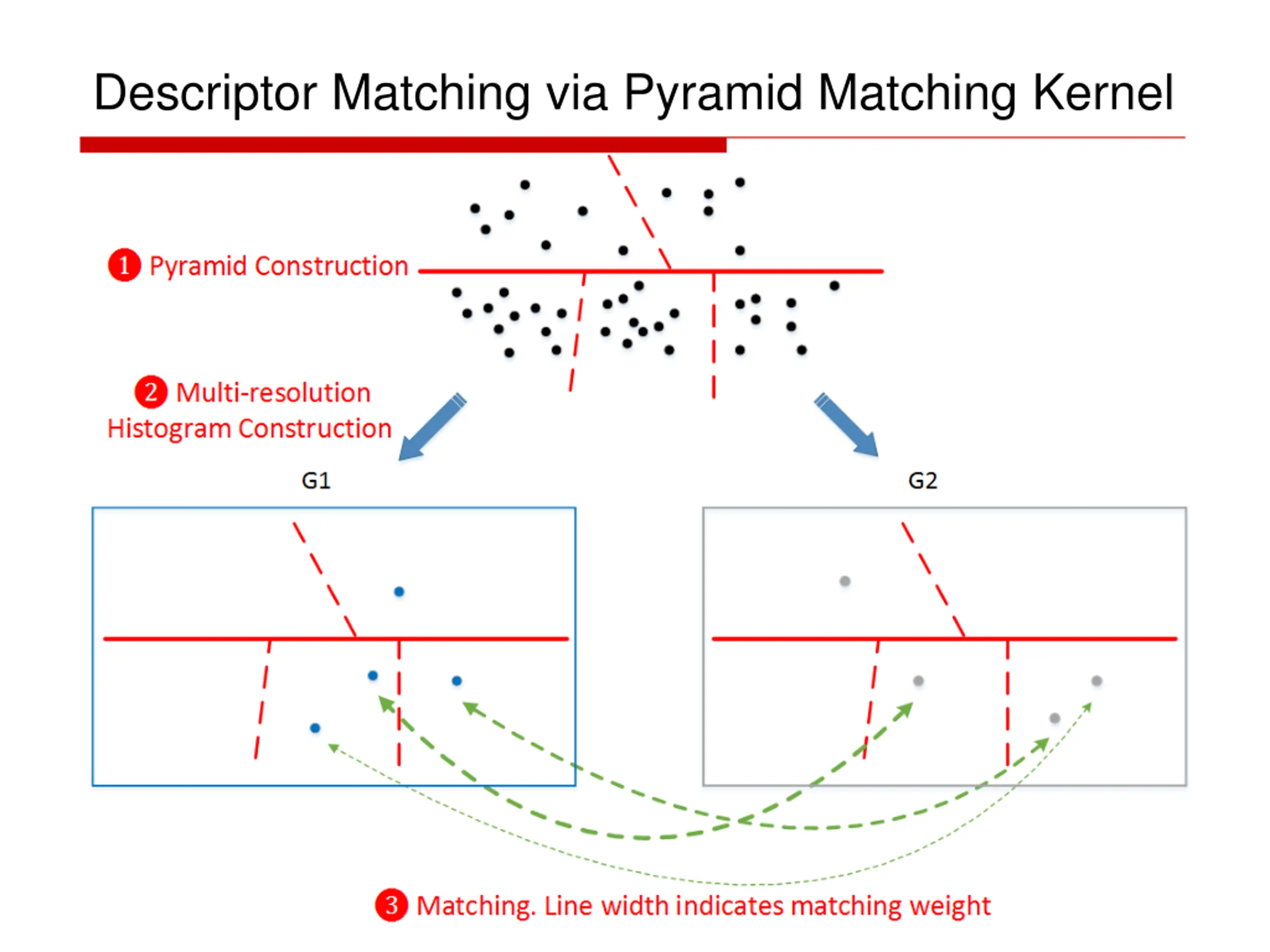

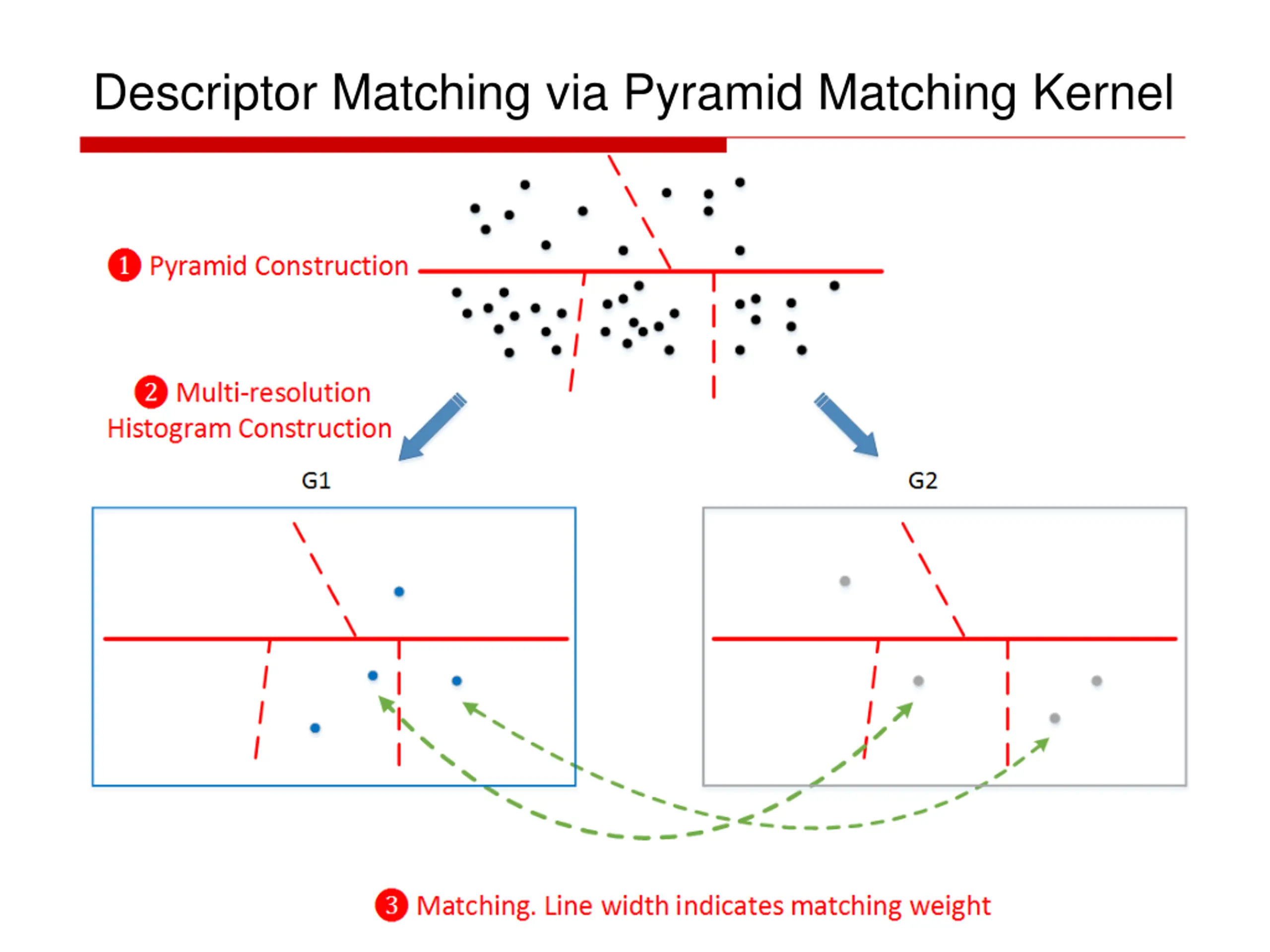

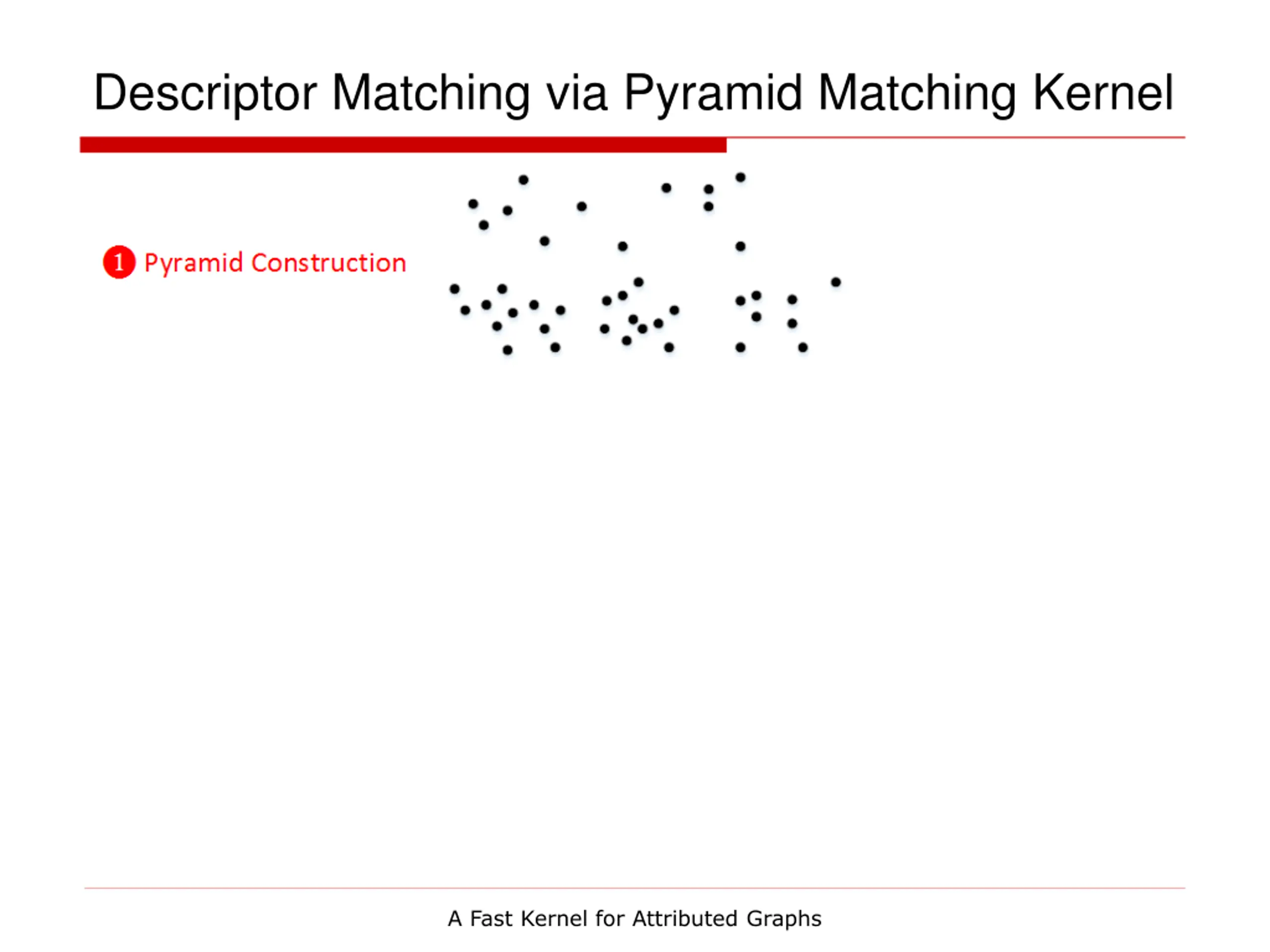

Descriptor Matching via Pyramid Matching Kernel A Fast Kernel for Attributed Graphs

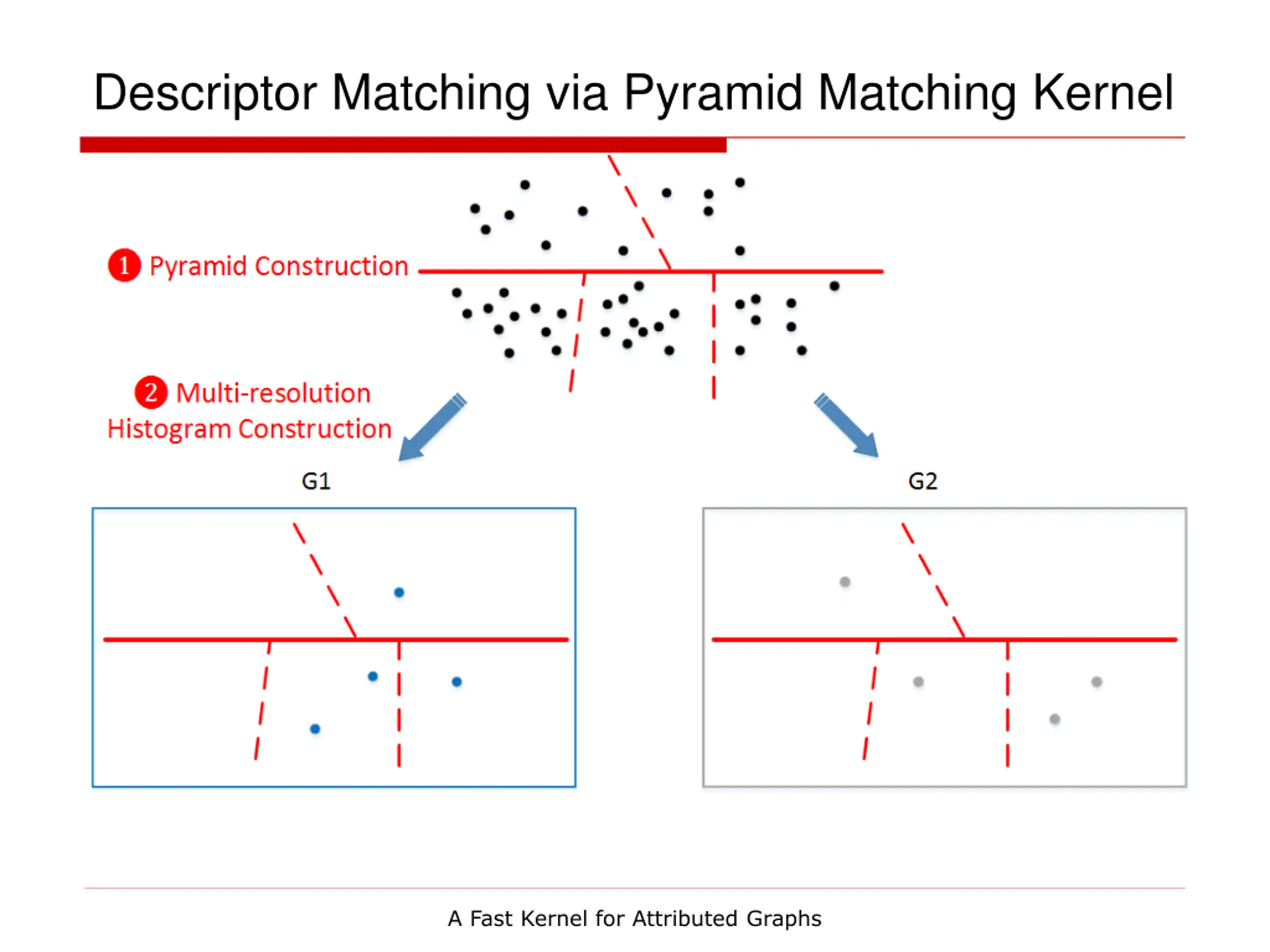

Descriptor Matching via Pyramid Matching Kernel A Fast Kernel for Attributed Graphs
Descriptor Matching via Pyramid Matching Kernel A Fast Kernel for Attributed Graphs
Descriptor Matching via Pyramid Matching Kernel A Fast Kernel for Attributed Graphs
Descriptor Matching via Pyramid Matching Kernel A Fast Kernel for Attributed Graphs
Descriptor Matching via Pyramid Matching Kernel A Fast Kernel for Attributed Graphs
Descriptor Matching via Pyramid Matching Kernel A Fast Kernel for Attributed Graphs
Descriptor Matching via Pyramid Matching Kernel A Fast Kernel for Attributed Graphs
EVALUATION A Fast Kernel for Attributed Graphs

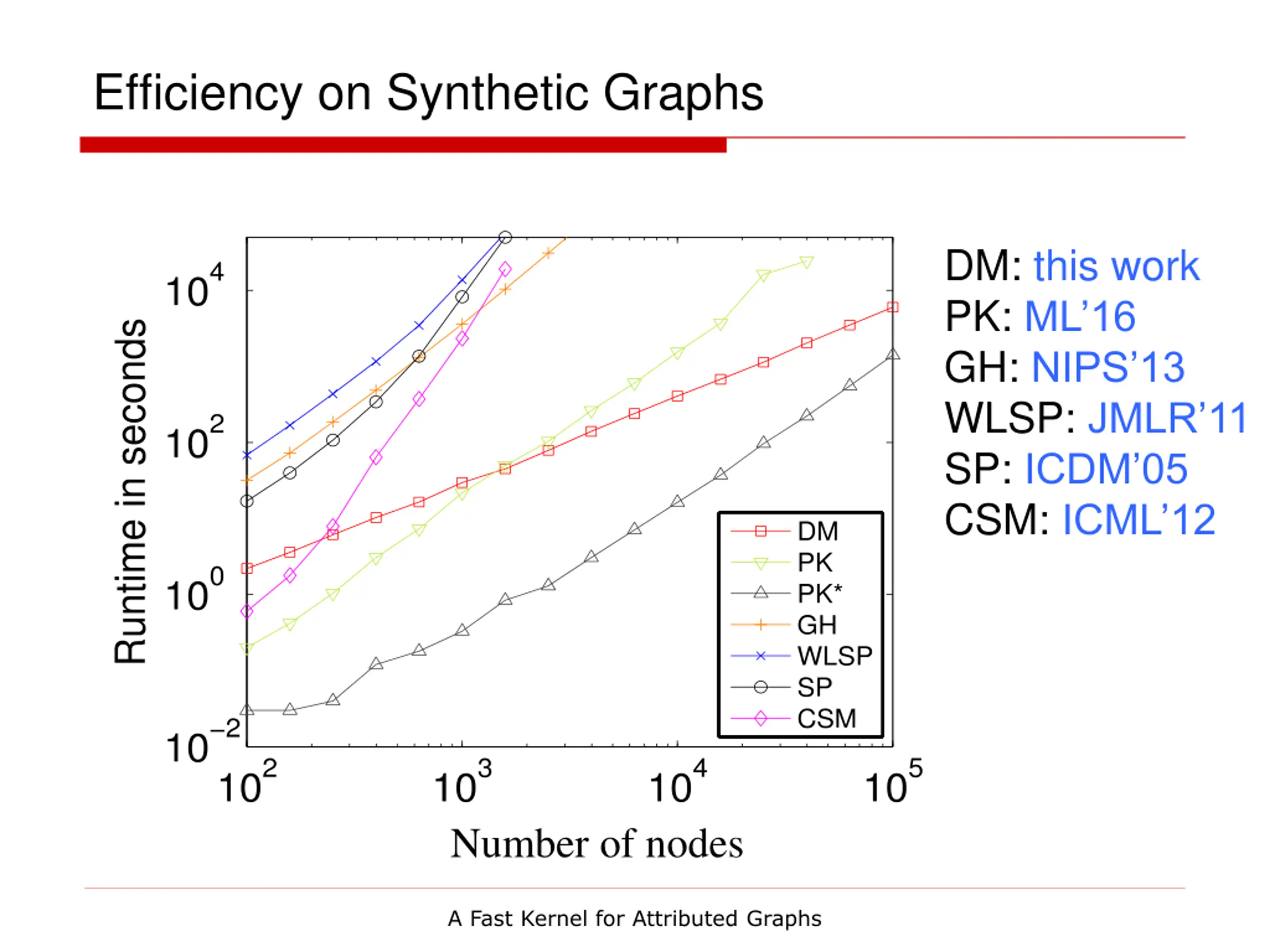

Efficiency on Synthetic Graphs DM: this work PK: ML 16 GH: NIPS 13 WLSP: JMLR 11 SP: ICDM 05 CSM: ICML 12 Number of nodes A Fast Kernel for Attributed Graphs

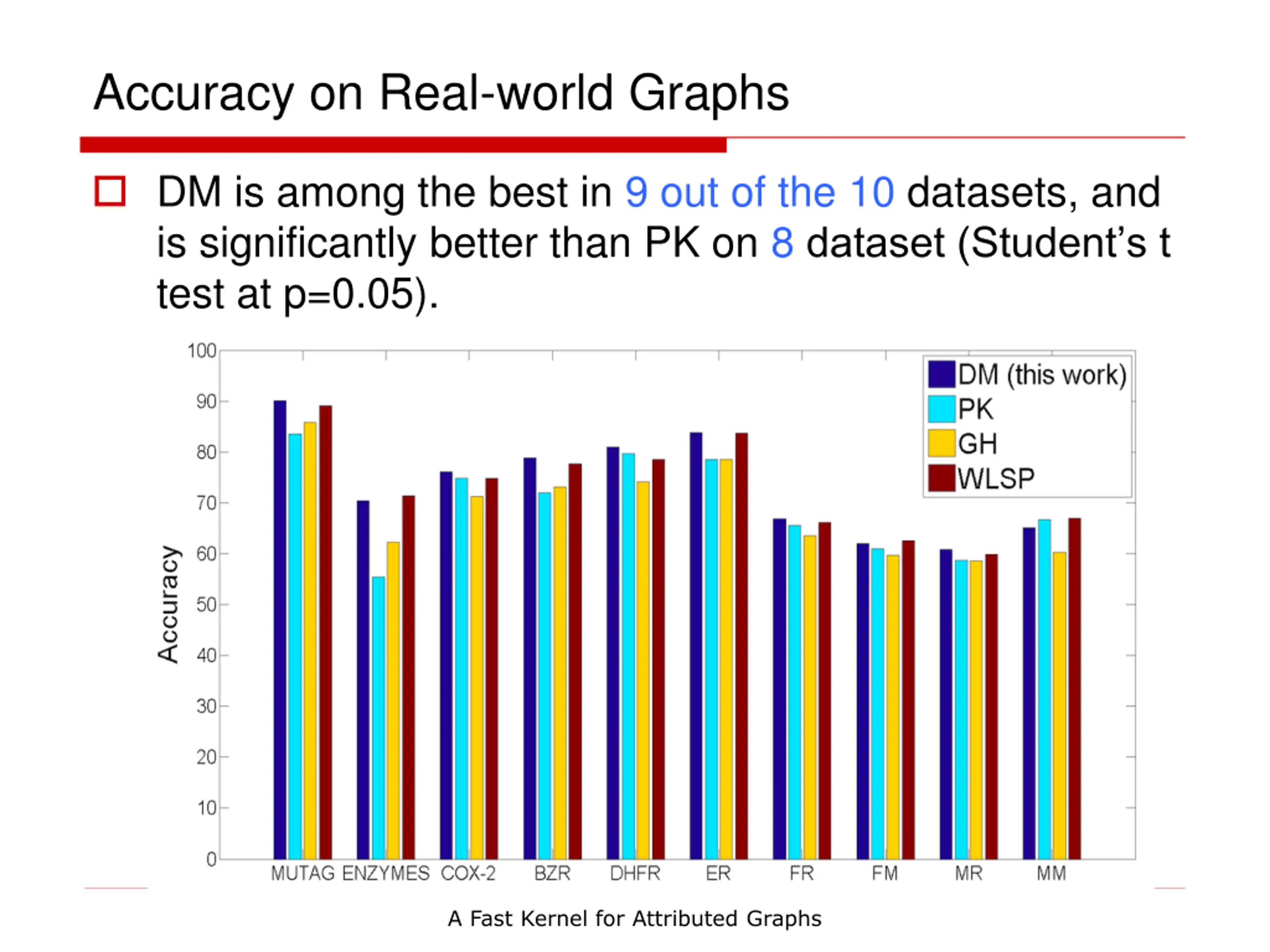

Accuracy on Real-world Graphs DM is among the best in 9 out of the 10 datasets, and is significantly better than PK on 8 dataset (Student s t test at p=0.05). A Fast Kernel for Attributed Graphs

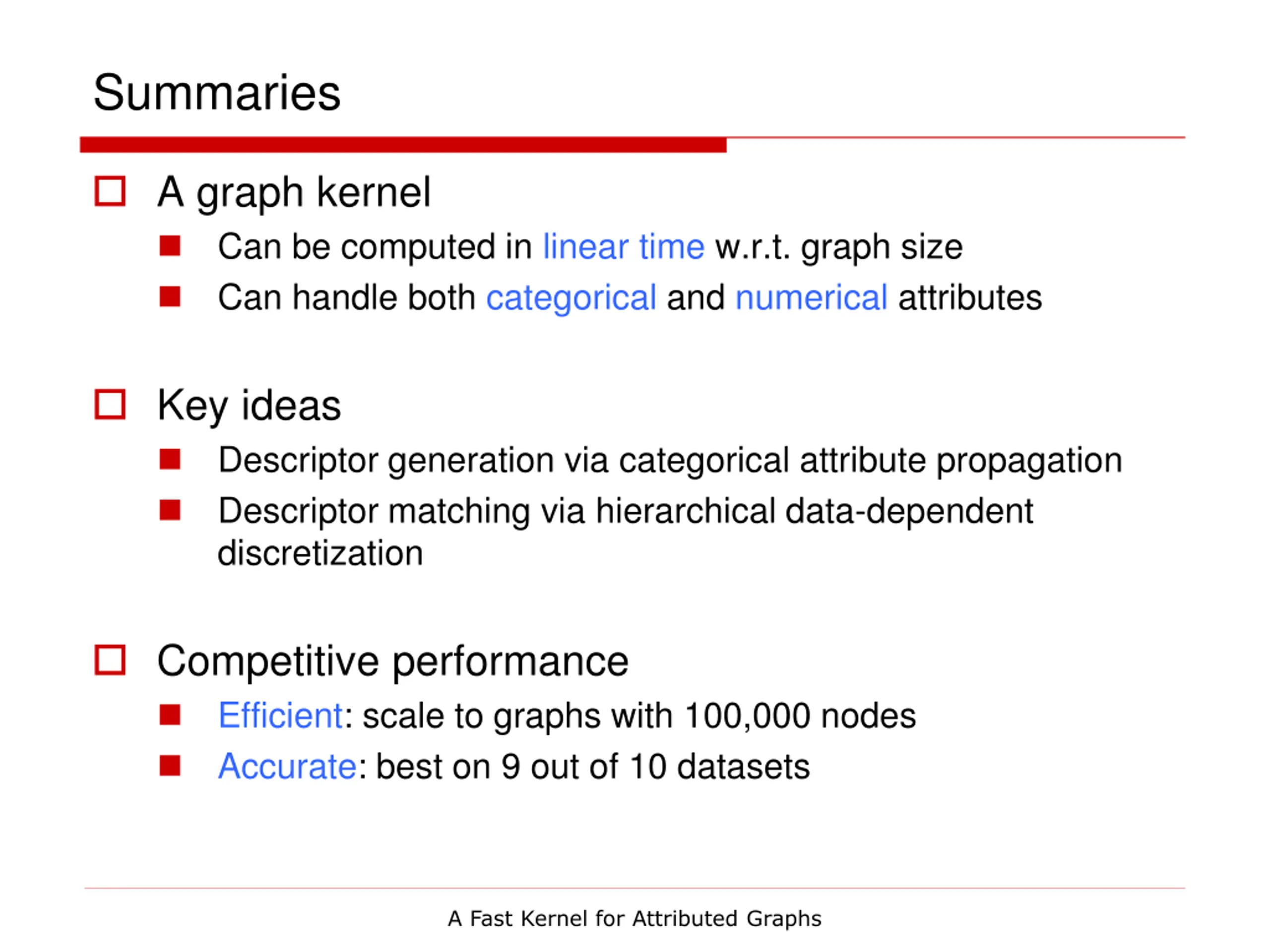

Summaries A graph kernel Can be computed in linear time w.r.t. graph size Can handle both categorical and numerical attributes Key ideas Descriptor generation via categorical attribute propagation Descriptor matching via hierarchical data-dependent discretization Competitive performance Efficient: scale to graphs with 100,000 nodes Accurate: best on 9 out of 10 datasets A Fast Kernel for Attributed Graphs
Thank You! A Fast Kernel for Attributed Graphs
