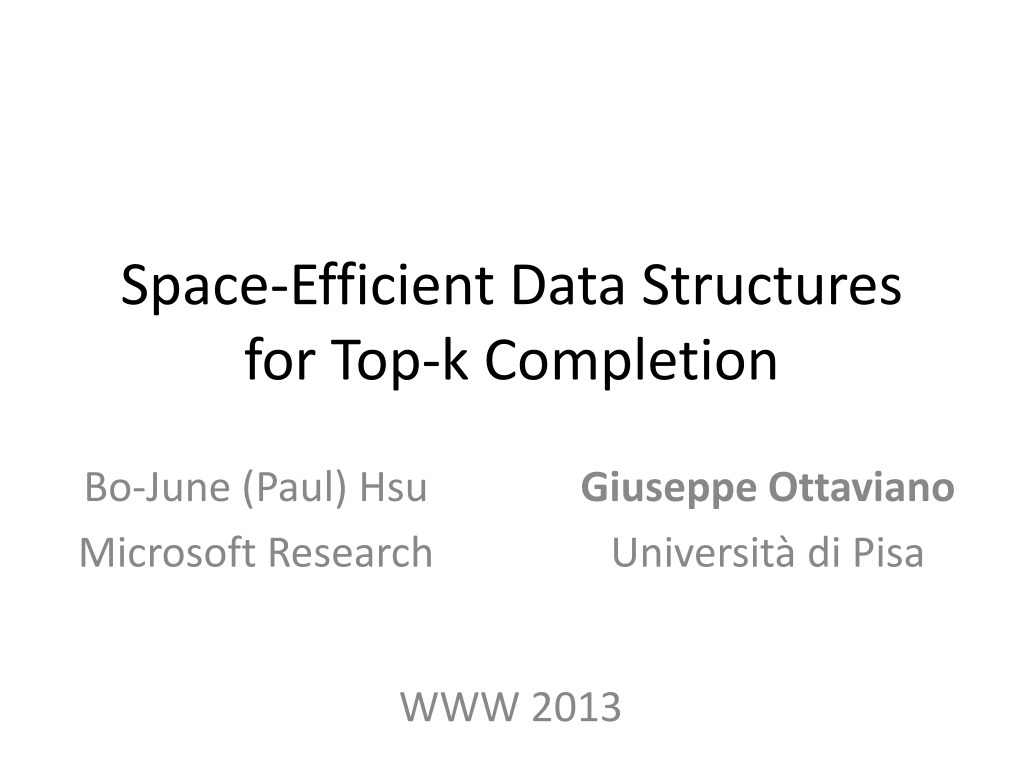

Efficient Data Structures for Top-k Completion Queries
Space-Efficient Data Structures
for Top-k Completion
Giuseppe Ottaviano
Università di Pisa
Bo-June (Paul) Hsu
Microsoft Research
WWW 2013
String auto-completion
Scored string sets
Top-k Completion query:
Given prefix p, return k strings prefixed by p with highest
scores
Example: p=“tr”, k=2
(triangle, 9), (trie, 5)
Space-Efficiency
•
Scored string sets can be very large
–
Hundreds of millions of queries for web search auto-
suggest
•
Must fit in RAM for fast access
–
Need space-efficient solutions!
•
We compare three solutions
–
RMQ Trie, based on Range Minimum Queries
–
Completion Trie, based on a modified trie with
variable-sized pointers
–
Score-Decomposed Trie, based on succinct data
structures
RMQ TRIE (RT)
RMQ Trie
•
Lexicographic order → strings starting with given
prefix in a contiguous range
•
If we can find the max in a range, it is top-1
•
Range is split in two subranges, can proceed
recursively using a heap to retrieve top-k
RMQ Trie
•
To store the strings we can use any data
structure that keeps the strings sorted
–
We use a compressed trie
•
To find max score in a range we use a succinct
Range Minimum Query (RMQ) data structure
–
Needs only 2.6 additional bits per score, answers
queries in O(log n) time
•
This is a standard strategy, but not very fast.
We use it as a baseline.
COMPLETION TRIE (CT)
t
i
ree
ε
ε
l
ε
ε
ε
gle
h
r
e
p
a
l
n
(Scored) compacted tries
y
e
t
i
ree
ε
ε
l
ε
ε
ε
gle
h
r
e
p
a
l
n
Completion Trie
y
e
Completion Trie
t
i
ree
ε
ε
l
ε
ε
ε
gle
h
r
e
p
a
l
n
y
e
Completion Trie
•
Scores encoded differentially (either from
parent or previous sibling)
•
Pointers and score deltas encoded with
variable bytes
•
All node information in the same stream,
favoring cache-efficiency
SCORE-DECOMPOSED TRIE (SDT)
Trees as balanced parentheses
(()()())
(()(()()()))
2n bits are sufficient (and necessary) to represent a tree
Can support O(1) operations with 2n + o(n) bits
Score-decomposed trie
•
Builds on compressed path-decomposed tries
[Grossi-Ottaviano ALENEX 2012]
•
Parentheses-based representation of trees
•
Dictionary-compression of node labels
Score-decomposed trie
t
i
ree
ε
ε
l
ε
ε
ε
gle
h
r
e
p
a
l
n
y
e
2
1
4
3
5
9
L :
t
1
ri
2
a
1
ngle
BP: ( ((( )
B : h epl
R : 2 541
Score compression
... 3 5 1 2 3 0 0 1 2 4 1900 1 1 2 3 2 1 10000 ...
•
Data structure to store scores in RT and SDT
•
Packed-blocks array
–
“Folklore” data structure, similar to many existing packed
arrays, Frame-Of-Reference, PFORDelta,…
•
Divide the array into fixed-size blocks
•
Encode the values of each block with the same number
of bits
•
Store separately the block offsets
Score compression
... 3 5 1 2 3 0 0 1 2 4 1900 1 1 2 3 2 1 10000 ...
•
Can be unlucky
–
Each block may contain a large value
•
But scores are power-law distributed
•
Also, tree-wise monotone sorting
•
On average, 4 bits per score
Space
Space
Time
Time per returned completion
on a top-10 query
Thanks for your attention!
Questions?
Explore space-efficient data structures for top-k completion queries, particularly focusing on scored string sets and trie-based solutions. The research compares three solutions: RMQ Trie, Completion Trie, and Score-Decomposed Trie, emphasizing space efficiency and fast access for large sets of scored strings.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
E N D
Presentation Transcript
Space-Efficient Data Structures for Top-k Completion Bo-June (Paul) Hsu Microsoft Research Giuseppe Ottaviano Universit di Pisa WWW 2013
Scored string sets three trial triangle trie triple triply 2 1 9 5 4 3 Top-k Completion query: Given prefix p, return k strings prefixed by p with highest scores Example: p= tr , k=2 (triangle, 9), (trie, 5)
Space-Efficiency Scored string sets can be very large Hundreds of millions of queries for web search auto- suggest Must fit in RAM for fast access Need space-efficient solutions! We compare three solutions RMQ Trie, based on Range Minimum Queries Completion Trie, based on a modified trie with variable-sized pointers Score-Decomposed Trie, based on succinct data structures
RMQ Trie three trial triangle trie triple triply 2 1 9 5 4 3 Lexicographic order strings starting with given prefix in a contiguous range If we can find the max in a range, it is top-1 Range is split in two subranges, can proceed recursively using a heap to retrieve top-k
RMQ Trie To store the strings we can use any data structure that keeps the strings sorted We use a compressed trie To find max score in a range we use a succinct Range Minimum Query (RMQ) data structure Needs only 2.6 additional bits per score, answers queries in O(log n) time This is a standard strategy, but not very fast. We use it as a baseline.
(Scored) compacted tries Node label Branching character t h r three trial triangle 9 trie triple triply 2 1 ree i 2 e a p 5 4 3 l y 5 e n l gle 4 1 3 9
Completion Trie t 9 h r three trial triangle 9 trie triple triply 2 1 ree i 9 2 e a p 5 4 3 l y 4 5 9 e n l gle 4 1 3 9
Completion Trie t 9 t 9 h r hree 2 ri 9 ree i 9 2 e a p a 9 e 5 pl 4 l y 4 5 9 e n l ngle 9 l 1 e 4 y 3 gle 4 1 3 9
Completion Trie t 9 ri 9 e 5 pl 4 hree 2 a 9 ngle 9 l 1 e 4 y 3 Scores encoded differentially (either from parent or previous sibling) Pointers and score deltas encoded with variable bytes All node information in the same stream, favoring cache-efficiency
Trees as balanced parentheses (()(()()())) () (()()()) () () () 2n bits are sufficient (and necessary) to represent a tree Can support O(1) operations with 2n + o(n) bits
Score-decomposed trie Builds on compressed path-decomposed tries [Grossi-Ottaviano ALENEX 2012] Parentheses-based representation of trees Dictionary-compression of node labels
Score-decomposed trie 9 t triangle h r h,2 e,5 p,4 l,1 ree i 2 e a p L : t1ri2a1ngle BP: ( ((( ) B : h epl R : 2 541 l y 5 e n l gle 4 1 3 9
three trial triangle 9 trie triple triply 2 1 5 4 3
Score compression ... 3 5 1 2 3 0 0 1 2 4 1900 1 1 2 3 2 1 10000 ... 3 bits/value 11 bits/value 16 bits/value Data structure to store scores in RT and SDT Packed-blocks array Folklore data structure, similar to many existing packed arrays, Frame-Of-Reference, PFORDelta, Divide the array into fixed-size blocks Encode the values of each block with the same number of bits Store separately the block offsets
Score compression ... 3 5 1 2 3 0 0 1 2 4 1900 1 1 2 3 2 1 10000 ... 3 bits/value 11 bits/value 16 bits/value Can be unlucky Each block may contain a large value But scores are power-law distributed Also, tree-wise monotone sorting On average, 4 bits per score
Space Dataset gzip CT SDT RT QueriesA 57% 30% 31% 27% QueriesB 25% 48% 26% 27% URLs 24% 57% 26% 27% Unigrams 39% 43% 35% 37%
Space 30 Raw 25 Bytes / String CT 20 RT 15 SDT 10 GZip 5 1 1K 1M # Strings
Time 8 6 Time ( s) RT SDT CT 4 2 0 1 1K 1M # Strings Time per returned completion on a top-10 query
Thanks for your attention! Questions?
