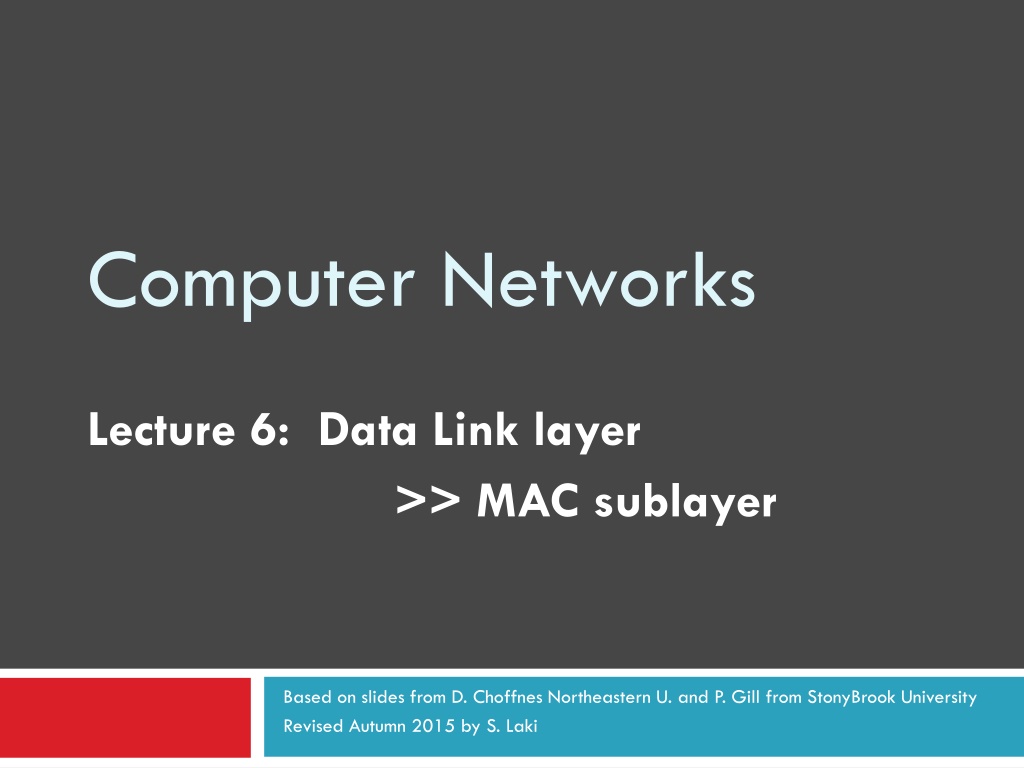

Computer Networks

Lecture
6
:

Data Link
 layer

>> MAC sublayer


Based on slides from D. Choffnes Northeastern U.
and P. Gill from StonyBrook University
Revised
Autumn
 2015 by
S
.
Laki

Dynamic Channel Allocation in LANs and MANs

1.
Station Model.
N terminals/hosts
The prob. of a frame being generated in
Δ
t is
λΔ
t,
where the arrival rate is
λ
.

2. Single Channel Assumption.
All stations are equivalent
A single channel is available for all communications

3. Collision Assumption.
If two frames are transmitted simultaneously, they
overlap in time which results a garbled signal
This event is called collision

4. Continuous Time VS Slotted Time.

5. Carrier Sense VS No Carrier Sense.

Dynamic Channel Allocation in LANs and MANs


4. Continuous Time VS Slotted
Time.



5. Carrier Sense VS No Carrier
Sense.

Time

Time
How can the efficiency be measured?

Throughput (S)
Number of packets/frames transmitted in a time unit
(successfully)

Delay
The time needs for transmitting a packet

Fairness
All the terminals are treated as equals
Throughput and offered load

Offered load (G)
The number of packets in a time unit that the protocol must
handle
G>1: overloading

An ideal protocol
If G<1, S=G
If G≥1, S=1
where sending out a packet takes 1 time unit.
Strategies for Media Access
6

Channel partitioning
Divide the resource into small pieces
Allocate each piece to one host
Example: Time Division Multi-Access (TDMA) cellular
Example: Frequency Division Multi-Access (FDMA) cellular
Taking turns
Tightly coordinate shared access to avoid collisions
Example: Token ring networks
Contention
Allow collisions, but use strategies to recover
Examples: Ethernet, Wifi
Contention MAC Goals
7

Share the medium
Two hosts sending at the same time collide, thus causing
interference
If no host sends, channel is idle
Thus, want one user sending at any given time
High utilization
TDMA is low utilization
Just like a circuit switched network
Simple, distributed algorithm
Multiple hosts that cannot directly coordinate
No fancy (complicated) token-passing schemes
Contention Protocol Evolution
8

ALOHA
Developed in the 70’s for packet radio networks
Stations transmit data immedately
If there is a collision, it retransmits the packet later.
Slotted ALOHA
Start transmissions only at fixed time slots
Significantly fewer collisions than ALOHA
Carrier Sense Multiple Access (CSMA)
Start transmission only if the channel is idle
CSMA / Collision Detection (CSMA/CD)
Stop ongoing transmission if collision is detected
Pure ALOHA

The goal was to use low-cost commercial radio equipment to
connect
 users on Oahu and the other Hawaiian islands with
a central time-sharing computer on the main Oahu campus.

Algorithm was developed by Uni. of Hawaii
If you have data to send, send the data
Low-cost and very simple

ALOHA
10
Topology: radio broadcast with multiple stations
Protocol:
Stations transmit data immediately
Receivers ACK all packets
No ACK = collision, wait a random time then retransmit

Performance analysis -
Poisson Process

The Poisson Process is a celebrated model used in
Queuing Theory for “
random arrivals
”. Assumptions
leading to this model include:
The probability of an arrival during a short time interval
Δ
t
is proportional to the length of the interval, and does not
depend on the origin of the time interval (memory-less
property)
The probability of having multiple arrivals during a short
time interval
Δ
t
approaches zero.

Performance analysis -
Poisson Distribution

The probability of having
k

arrivals during a time
interval of  length
t

is given by:

where
λ
 is the arrival rate. Note that this is a single-
parameter model; all we have to know is
λ
.

13

FYI: Poisson Distribution

The following is the plot of the Poisson probability density
function for four values of
λ
.

Analysis of Pure ALOHA

Notation:
T
f

= frame time (processing, transmission, propagation)
S
: Average number of successful transmissions per T
f

; that is, the
throughput
G
: Average number of total frames transmitted per T
f
D
: Average delay between the time a packet is ready for
transmission and the completion of successful transmission.
We will make the following assumptions
All frames are of constant length
The channel is noise-free; the errors are only due to collisions.
Frames do not queue at individual stations
The channel acts as a Poisson process.

Analysis of Pure ALOHA…

Since
S
 represents the number of “good” transmissions per
frame time
, and
G
 represents the total number of
attempted transmissions per
frame time
, then we have:

S
 =
G

 (Probability of good transmission)
The vulnerable time for a successful transmission is

2T
f
So, the probability of good transmission is not to have an
arrival
 during the vulnerable time .

16

Analysis of Pure ALOHA

t
0

t
0
+ t

t
0
+ 2t

t
0
+ 3t

Collides with
the start of
the shaded
frame

Collides with
the end of
the shaded
frame

Vulnerable

Time

Vulnerable period for the shaded frame

t

Analysis of Pure ALOHA…

Using:

And setting
t
 = 2T
f
 and
k
= 0, we get
18
Analysis of Pure ALOHA…

If we differentiate
S = Ge
-2G
 with respect to
G
 and
set the result to 0 and solve for
G
, we find that the
maximum occurs when


G =
0.5,
    and for that
S =
1
/
2
e =
0.18. So, the maximum
throughput is only 18% of capacity.
Tradeoffs vs. TDMA
19
In TDMA, each host must wait for its turn
Delay is proportional to number of hosts
In Aloha, each host sends immediately
Much lower delay
But, much lower utilization
ALOHA Frame
ALOHA Frame

Time

Sender A

Sender B

Maximum throughput is ~18% of channel capacity
20
Slotted ALOHA

Channel is organized into uniform slots whose size
equals the frame transmission time.
Transmission is permitted only to begin at a slot
boundary.



Here is the procedure:
While there is a new frame A to send do

Send frame A at
(the next)
 slot boundary

Analysis of Slotted ALOHA

Note that the vulnerable period is now reduced in half.
Using:

And setting
t
 = T
f
 and
k
= 0, we get
Slotted ALOHA
22
Protocol
Same as ALOHA, except time is divided into slots
Hosts may only transmit at the beginning of a slot
Thus, frames either collide completely, or not at all
37% throughput vs. 18% for ALOHA
But, hosts must have synchronized clocks
802.3 Ethernet
23

Preamble is 7 bytes of 10101010. Why?
Start Frame (SF) is 10101011
Source and destination are MAC addresses
E.g. 00:45:A5:F3:25:0C
Broadcast: FF:FF:FF:FF:FF:FF
Minimum packet length of 64 bytes, hence the pad
Preamble
SF
Source
Dest.
Length
7
1
6
6
2
Bytes
Data
Checksum
Pad
0-1500
0-46
4
Broadcast Ethernet
24
Originally, Ethernet was a broadcast technology
Tee Connector
Terminator
Hub
Repeater

Carrier Sense Multiple Access (CSMA)

Additional assumption:
Each station is capable of sensing the medium to determine
if another transmission is underway

Non-persistent CSMA

While there is a new frame A to send
1.
Check the medium
2.
If the medium is busy,
wait some time
, and go to 1.
3.
(medium idle) Send frame A

1-persistent CSMA

While there is a new frame A to send
1.
Check the medium
2.
If the medium is busy, go to 1.
3.
(medium idle) Send frame A

p
-persistent CSMA

While there is a new frame A to send
1.
Check the medium
2.
If the medium is busy, go to 1.
3.
(medium idle) With probability
p
 send frame A, and
probability (1-
p
) delay one time slot and go to 1.
29
CSMA Summary

Persistent and Non-persistent CSMA

Comparison of throughput versus load for
various random access protocols.

CSMA with Collision Detection

Stations can sense the medium while transmitting
A station aborts its transmission if it senses another
transmission is also happening (that is, it detects collision)
Question: When can a station be sure that it has
seized
 the
channel?
Minimum time to detect collision is the time it takes for a signal to
traverse between two farthest apart stations.

CSMA/CD

A station is said to
seize
 the channel if all the other
stations become aware of its transmission.
There has to be a lower bound on the length of each
frame for the
collision detection
 feature to work out.
Ethernet uses CSMA/CD
CSMA/CD
33

Carrier sense multiple access with collision detection
Key insight: wired protocol allows us to sense the medium
Algorithm
1.
Sense for carrier
2.
If carrier is present, wait for it to end
Sending would cause a collision and waste time
3.
Send a frame and sense for collision
4.
If no collision, then frame has been delivered
5.
If collision, abort immediately
Why keep sending if the frame is already corrupted?
6.
Perform exponential backoff then retransmit
CSMA/CD Collisions
34
Time

t
0

t
1

Collisions can occur
Collisions are quickly
detected and aborted
Note the role of
distance
,
propagation
delay
, and
frame
length
Spatial Layout of Hosts

Exponential Backoff

35

When a sender detects a collision, send “jam signal”
Make sure all hosts are aware of collision
Jam signal is 32 bits long (plus header overhead)
Exponential backoff operates
:
Select
k

 [0, 2
n
 – 1]
 unif. rnd.
, where
n
 = number of collisions
Wait
k

time units (packet times)
 before retransmission
n
 is capped at 10, frame dropped after 16 collisions
Backoff time is divided into
contention slots

Remember this
number
Minimum Packet Sizes
36

Why is the minimum packet size 64 bytes?
To give hosts enough time to detect collisions
What is the relationship between packet size and cable
length?

Propagation Delay (
d
)

1.
Time
t
: Host A starts
transmitting
2.
Time
t + d
: Host B starts
transmitting
3.
Time
t + 2*d
: collision
detected

A

B

Basic idea: Host A must be transmitting at time 2*d!

CSMA/CD

CSMA/CD can be in one of
three states: contention,
transmission, or idle.

To detect all the collisions
we need
T
f
 ≥ 2T
pg
where T
f
 is the time needed
to send the frame
And T
pg
 is the propagation
delay between A and B
Minimum Packet Size
38

Host A must be transmitting after 2*d time units
Min_pkt =
rate

(b/s)
 * 2 * d
(s)
… but what is d? propagation delay: limited by speed of light
Propagation delay
(d)
= distance
 (m)
/ speed of light
(m/s)
This gives:
Min_pkt =
rate

(b/s)
* 2 * dist
(m)
/ speed of light
(m/s)
So cable length is equal ….
Dist = min_pkt  * light speed /(2 *
rate
)

10 Mbps Ethernet
Packet and cable lengths change for
faster Ethernet standards

(64B*8)*(2.5*10
8
mps)/(2*10
7
bps) = 6400 meters
Cable Length Examples
39

min_frame_size*light_speed/(2*bandwidth) = max_cable_length
(64B*8)*(2.5*10
8
mps)/(2*10Mbps) = 6400 meters

What is the max cable length if min packet size were
changed to 1024 bytes?
102.4 kilometers
What is max cable length if bandwidth were changed to
1 Gbps ?
64 meters
What if you changed min packet size to 1024 bytes and
bandwidth to 1 Gbps?
1024 meters

Maximum Packet Size

40

Maximum Transmission Unit (MTU): 1500 bytes
Pros:
Bit errors in long packets incur significant recovery penalty
Cons:
More bytes wasted on header information
Higher per packet processing overhead
Datacenters shifting towards Jumbo Frames
9000 bytes per packet

Long Live Ethernet

41

Today’s Ethernet is switched
More on this later
1Gbit and 10Gbit Ethernet now common
100Gbit on the way
Uses same old packet header
Full duplex (send and receive at the same time)
Auto negotiating (backwards compatibility)
Can also carry power

Just Above the Data Link Layer

42

Bridging
How do we connect LANs?
Function:
Route packets between LANs
Key challenges:
Plug-and-play, self configuration
How to resolve loops
Application
Presentation
Session
Transport
Network
Data Link
Physical

Pros: Simplicity
Hardware is stupid and cheap
Cons: No scalability
More hosts = more collisions = pandemonium
Recap
43
Originally, Ethernet was a broadcast technology
Tee Connector
Terminator
Hub
Repeater
Bridging the LANs
44

Bridging limits the size of collision domains
Vastly improves scalability
Question: could the whole Internet be one bridging domain?
Tradeoff: bridges are more complex than hubs
Physical layer device vs. data link layer device
Need memory buffers, packet processing hardware, routing tables
Hub
Hub
Bridges
45
Original form of Ethernet switch
Connect multiple IEEE 802 LANs at layer 2
Goals
Reduce the collision domain
Complete transparency
“Plug-and-play,” self-configuring
No hardware of software changes on hosts/hubs
Should not impact existing LAN operations
Hub
Frame Forwarding Tables
46
Each bridge maintains a
forwarding table
Learning Addresses
47
Manual configuration is possible, but…
Time consuming
Error Prone
Not adaptable (hosts may get added or removed)
Instead, learn addresses using a simple heuristic
Look at the
source
 of frames that arrive on each port
Hub
00:00:00:00:00:AA
00:00:00:00:00:BB
Port 1
Port 2
The Danger of Loops
48

<Src=AA, Dest=DD>
This continues to infinity
How do we stop this?
Remove loops from the
topology
Without physically unplugging
cables
802.1
 (LAN architecture)
 uses
an algorithm to build and
maintain a
spanning tree
for
routing
AA
Port 1
Hub
Port 1
Hub
Port 2
Port 2
BB
CC
DD
Spanning Tree Definition
49

A subset of edges in a graph that:
Span all nodes
Do not create any cycles
This structure is a tree
1
4
2
5
6
3
7
1
4
2
5
6
3
7
5
1
4
2
6
3
7
802.1 Spanning Tree Approach
50

1.
Elect a bridge to be the root of the tree
2.
Every bridge finds shortest path to the root
3.
Union of these paths becomes the spanning tree

Bridges exchange Configuration Bridge Protocol Data
Units (
BPDU
s) to build the tree
Used to elect the root bridge
Calculate shortest paths
Locate the next hop closest to the root, and its port
Select ports to be included in the spanning trees

Determining the Root

51

Initially, all hosts assume they are the root
Bridges broadcast BPDUs:


Based on received BPDUs, each switch chooses:
A new root (smallest known Root ID)
A new root port (what interface goes towards the root)
A new designated bridge (who is the next hop to root)
Spanning Tree Construction
52
0: 0/0
12: 12/0
3: 3/0
27: 27/0
41: 41/0
9: 9/0
68: 68/0
27: 0/1
12: 0/1
41: 3/1
68: 9/1
41: 0/2
3: 0/2
68: 3/2
9: 3/2
68: 0/3
9: 0/3
Bridges vs. Switches
53

Bridges make it possible to increase LAN capacity
Reduces the amount of broadcast packets
No loops
Switch is a special case of a bridge
Each port is connected to a
single
host
Either a client machine
Or another switch
Links are full duplex
Simplified hardware: no need for CSMA/CD!
Can have different speeds on each port
Switching the Internet
54

Capabilities of switches:
Network-wide routing based on MAC addresses
Learn routes to new hosts automatically
Resolve loops
Could the whole Internet be one switching domain?

NO
Limitations of MAC Routing
55

Inefficient
Flooding packets to locate unknown hosts
Poor Performance
Spanning tree does not balance load
Hot spots
Extremely Poor Scalability
Every switch needs every MAC address on the Internet in its
routing table!
IP addresses these problems (next …)
Slide Note

8/22/2012

Defense

Christo Wilson

Embed
Share

Exploring the Data Link Layer and MAC Sublayer in computer networks, focusing on dynamic channel allocation, station models, collision assumptions, continuous vs. slotted time, carrier sense mechanisms, efficiency measurements, throughput calculation, media access strategies like channel partitioning and contention, and goals of contention MAC protocols for efficient medium sharing.

  • Computer Networks
  • Data Link Layer
  • MAC Sublayer
  • Dynamic Channel Allocation
  • Efficiency Measurement

Uploaded on Sep 27, 2024 | 0 Views


Download Presentation

Please find below an Image/Link to download the presentation.

The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.

E N D

Presentation Transcript


  1. Computer Networks Lecture 6: Data Link layer >> MAC sublayer Based on slides from D. Choffnes Northeastern U. and P. Gill from StonyBrook University Revised Autumn 2015 by S. Laki

  2. Dynamic Channel Allocation in LANs and MANs 1. Station Model. N terminals/hosts The prob. of a frame being generated in t is t, where the arrival rate is . 2. Single Channel Assumption. All stations are equivalent A single channel is available for all communications 3. Collision Assumption. If two frames are transmitted simultaneously, they overlap in time which results a garbled signal This event is called collision 4. Continuous Time VS Slotted Time. 5. Carrier Sense VS No Carrier Sense.

  3. Dynamic Channel Allocation in LANs and MANs 4. Continuous Time VS Slotted Time. Time Time 5. Carrier Sense VS No Carrier Sense.

  4. How can the efficiency be measured? Throughput (S) Number of packets/frames transmitted in a time unit (successfully) Delay The time needs for transmitting a packet Fairness All the terminals are treated as equals

  5. Throughput and offered load Offered load (G) The number of packets in a time unit that the protocol must handle G>1: overloading An ideal protocol If G<1, S=G If G 1, S=1 where sending out a packet takes 1 time unit.

  6. Strategies for Media Access 6 Channel partitioning Divide the resource into small pieces Allocate each piece to one host Example: Time Division Multi-Access (TDMA) cellular Example: Frequency Division Multi-Access (FDMA) cellular Taking turns Tightly coordinate shared access to avoid collisions Example: Token ring networks Contention Allow collisions, but use strategies to recover Examples: Ethernet, Wifi

  7. Contention MAC Goals 7 Share the medium Two hosts sending at the same time collide, thus causing interference If no host sends, channel is idle Thus, want one user sending at any given time High utilization TDMA is low utilization Just like a circuit switched network Simple, distributed algorithm Multiple hosts that cannot directly coordinate No fancy (complicated) token-passing schemes

  8. Contention Protocol Evolution 8 ALOHA Developed in the 70 s for packet radio networks Stations transmit data immedately If there is a collision, it retransmits the packet later. Slotted ALOHA Start transmissions only at fixed time slots Significantly fewer collisions than ALOHA Carrier Sense Multiple Access (CSMA) Start transmission only if the channel is idle CSMA / Collision Detection (CSMA/CD) Stop ongoing transmission if collision is detected

  9. Pure ALOHA The goal was to use low-cost commercial radio equipment to connect users on Oahu and the other Hawaiian islands with a central time-sharing computer on the main Oahu campus. Algorithm was developed by Uni. of Hawaii If you have data to send, send the data Low-cost and very simple

  10. ALOHA 10 Topology: radio broadcast with multiple stations Protocol: Stations transmit data immediately Receivers ACK all packets No ACK = collision, wait a random time then retransmit Simple, but radical concept Previous attempts all divided the channel TDMA, FDMA, etc. Optimized for the common case: few senders A B C

  11. Performance analysis -Poisson Process The Poisson Process is a celebrated model used in Queuing Theory for random arrivals . Assumptions leading to this model include: The probability of an arrival during a short time interval t is proportional to the length of the interval, and does not depend on the origin of the time interval (memory-less property) The probability of having multiple arrivals during a short time interval t approaches zero.

  12. Performance analysis - Poisson Distribution The probability of having k arrivals during a time interval of length t is given by: k t ( ) k t e = ( ) P t k ! where is the arrival rate. Note that this is a single- parameter model; all we have to know is .

  13. FYI: Poisson Distribution 13 The following is the plot of the Poisson probability density function for four values of .

  14. Analysis of Pure ALOHA Notation: Tf= frame time (processing, transmission, propagation) S: Average number of successful transmissions per Tf; that is, the throughput G: Average number of total frames transmitted per Tf D: Average delay between the time a packet is ready for transmission and the completion of successful transmission. We will make the following assumptions All frames are of constant length The channel is noise-free; the errors are only due to collisions. Frames do not queue at individual stations The channel acts as a Poisson process.

  15. Analysis of Pure ALOHA Since Srepresents the number of good transmissions per frame time, and G represents the total number of attempted transmissions per frame time, then we have: S = G (Probability of good transmission) The vulnerable time for a successful transmission is 2Tf So, the probability of good transmission is not to have an arrival during the vulnerable time .

  16. Analysis of Pure ALOHA 16 Collides with the start of the shaded frame Collides with the end of the shaded frame t t0 t0 + t t0 + 2t t0 + 3t Time Vulnerable Vulnerable period for the shaded frame

  17. Analysis of Pure ALOHA Using: k t ( ) k t e = ( ) P t k ! And setting t = 2Tf and k = 0, we get 2 T 0 ( 2 ) T e f = = f 2 G (2 ) P T e 0 f 0! G T = = 2 G becasue . Thus, S G e f

  18. Analysis of Pure ALOHA 18 If we differentiate S = Ge-2G with respect to G and set the result to 0 and solve for G, we find that the maximum occurs when and for that S = 1/2e = 0.18. So, the maximum throughput is only 18% of capacity. G = 0.5,

  19. Tradeoffs vs. TDMA 19 In TDMA, each host must wait for its turn Delay is proportional to number of hosts In Aloha, each host sends immediately Much lower delay But, much lower utilization Throughput ALOHA Frame Sender A ALOHA Frame Sender B Time Load Maximum throughput is ~18% of channel capacity

  20. Slotted ALOHA 20 Channel is organized into uniform slots whose size equals the frame transmission time. Transmission is permitted only to begin at a slot boundary. Here is the procedure: While there is a new frame A to send do Send frame A at (the next) slot boundary

  21. Analysis of Slotted ALOHA Note that the vulnerable period is now reduced in half. Using: ( ) ( t P k = k t ) k t e ! And setting t = Tf and k = 0, we get T 0 ( ) T e f = = f G ( ) P T e 0 f 0! G T = = G because . Thus, S G e f

  22. Slotted ALOHA 22 Protocol Same as ALOHA, except time is divided into slots Hosts may only transmit at the beginning of a slot Thus, frames either collide completely, or not at all 37% throughput vs. 18% for ALOHA But, hosts must have synchronized clocks Throughput Load

  23. Broadcast Ethernet 24 Originally, Ethernet was a broadcast technology 10Base2 Terminator Repeater Tee Connector Hubs and repeaters are layer-1 devices, i.e. physical only 10BaseT and 100BaseT T stands for Twisted Pair Hub

  24. Carrier Sense Multiple Access (CSMA) Additional assumption: Each station is capable of sensing the medium to determine if another transmission is underway

  25. Non-persistent CSMA While there is a new frame A to send Check the medium If the medium is busy, wait some time, and go to 1. (medium idle) Send frame A 1. 2. 3.

  26. 1-persistent CSMA While there is a new frame A to send 1. Check the medium 2. If the medium is busy, go to 1. 3. (medium idle) Send frame A

  27. p-persistent CSMA While there is a new frame A to send Check the medium If the medium is busy, go to 1. (medium idle) With probability p send frame A, and probability (1- p) delay one time slot and go to 1. 1. 2. 3.

  28. CSMA Summary 29 Nonpersistent 1-persistent p-persistent CSMA persistence and backoff Non-persistent: Transmit if idle Otherwise, delay, try again Constant or variable Delay Time Channel busy Ready 1-persistent: Transmit as soon as channel goes idle If collision, back off and try again p-persistent: Transmit as soon as channel goes idle with probability p Otherwise, delay one slot, repeat process

  29. Persistent and Non-persistent CSMA Comparison of throughput versus load for various random access protocols.

  30. CSMA with Collision Detection Stations can sense the medium while transmitting A station aborts its transmission if it senses another transmission is also happening (that is, it detects collision) Question: When can a station be sure that it has seized the channel? Minimum time to detect collision is the time it takes for a signal to traverse between two farthest apart stations.

  31. CSMA/CD A station is said to seize the channel if all the other stations become aware of its transmission. There has to be a lower bound on the length of each frame for the collision detection feature to work out. Ethernet uses CSMA/CD

  32. CSMA/CD 33 Carrier sense multiple access with collision detection Key insight: wired protocol allows us to sense the medium Algorithm Sense for carrier If carrier is present, wait for it to end Sending would cause a collision and waste time Send a frame and sense for collision If no collision, then frame has been delivered If collision, abort immediately Why keep sending if the frame is already corrupted? Perform exponential backoff then retransmit 1. 2. 3. 4. 5. 6.

  33. CSMA/CD Collisions 34 Spatial Layout of Hosts Collisions can occur Collisions are quickly detected and aborted A B C D Note the role of distance, propagation delay, and frame length t0 t1 Time Detect Collision and Abort

  34. Exponential Backoff 35 When a sender detects a collision, send jam signal Make sure all hosts are aware of collision Jam signal is 32 bits long (plus header overhead) Exponential backoff operates: Select k [0, 2n 1] unif. rnd., where n = number of collisions Wait k time units (packet times) before retransmission n is capped at 10, frame dropped after 16 collisions Backoff time is divided into contention slots Remember this number

  35. Minimum Packet Sizes 36 Why is the minimum packet size 64 bytes? To give hosts enough time to detect collisions What is the relationship between packet size and cable length? A B 1. Time t: Host A starts transmitting 2. Time t + d: Host B starts transmitting 3. Time t + 2*d: collision detected Basic idea: Host A must be transmitting at time 2*d! Propagation Delay (d)

  36. CSMA/CD CSMA/CD can be in one of three states: contention, transmission, or idle. To detect all the collisions we need Tf 2Tpg where Tf is the time needed to send the frame And Tpg is the propagation delay between A and B

  37. Minimum Packet Size 38 Host A must be transmitting after 2*d time units Min_pkt = rate (b/s) * 2 * d (s) but what is d? propagation delay: limited by speed of light Propagation delay (d) = distance (m) / speed of light (m/s) This gives: Min_pkt = rate (b/s) * 2 * dist (m) / speed of light (m/s) faster Ethernet standards 10 Mbps Ethernet Packet and cable lengths change for So cable length is equal . Dist = min_pkt * light speed /(2 * rate) (64B*8)*(2.5*108mps)/(2*107bps) = 6400 meters

  38. Cable Length Examples 39 min_frame_size*light_speed/(2*bandwidth) = max_cable_length (64B*8)*(2.5*108mps)/(2*10Mbps) = 6400 meters What is the max cable length if min packet size were changed to 1024 bytes? 102.4 kilometers What is max cable length if bandwidth were changed to 1 Gbps ? 64 meters What if you changed min packet size to 1024 bytes and bandwidth to 1 Gbps? 1024 meters

  39. Maximum Packet Size 40 Maximum Transmission Unit (MTU): 1500 bytes Pros: Bit errors in long packets incur significant recovery penalty Cons: More bytes wasted on header information Higher per packet processing overhead Datacenters shifting towards Jumbo Frames 9000 bytes per packet

  40. Long Live Ethernet 41 Today s Ethernet is switched More on this later 1Gbit and 10Gbit Ethernet now common 100Gbit on the way Uses same old packet header Full duplex (send and receive at the same time) Auto negotiating (backwards compatibility) Can also carry power

  41. Just Above the Data Link Layer 42 Bridging How do we connect LANs? Application Presentation Session Transport Network Data Link Physical Function: Route packets between LANs Key challenges: Plug-and-play, self configuration How to resolve loops

  42. Recap 43 Originally, Ethernet was a broadcast technology Terminator Repeater Tee Connector Hub Pros: Simplicity Hardware is stupid and cheap Cons: No scalability More hosts = more collisions = pandemonium

  43. Bridging the LANs 44 Hub Hub Bridging limits the size of collision domains Vastly improves scalability Question: could the whole Internet be one bridging domain? Tradeoff: bridges are more complex than hubs Physical layer device vs. data link layer device Need memory buffers, packet processing hardware, routing tables

  44. Bridges 45 Original form of Ethernet switch Connect multiple IEEE 802 LANs at layer 2 1. Forwarding of frames 2. Learning of (MAC) Addresses 3. Spanning Tree Algorithm (to handle loops) Goals Reduce the collision domain Complete transparency Plug-and-play, self-configuring No hardware of software changes on hosts/hubs Should not impact existing LAN operations Hub

  45. Frame Forwarding Tables 46 Each bridge maintains a forwarding table MAC Address Port Age 00:00:00:00:00:AA 1 1 minute 00:00:00:00:00:BB 2 7 minutes 00:00:00:00:00:CC 3 2 seconds 00:00:00:00:00:DD 1 3 minutes

  46. Learning Addresses 47 Manual configuration is possible, but Time consuming Error Prone Not adaptable (hosts may get added or removed) Delete old entries after a timeout Instead, learn addresses using a simple heuristic Look at the source of frames that arrive on each port MAC Address Port Age 00:00:00:00:00:AA 1 0 minutes 00:00:00:00:00:AA 00:00:00:00:00:BB 2 0 minutes Port 1 Port 2 00:00:00:00:00:BB Hub

  47. The Danger of Loops 48 CC DD <Src=AA, Dest=DD> This continues to infinity How do we stop this? Remove loops from the topology Without physically unplugging cables 802.1 (LAN architecture) uses an algorithm to build and maintain a spanning tree for routing Hub Port 2 Port 2 AA AA AA 1 2 1 AA AA AA 1 2 1 Port 1 Port 1 Hub AA BB

  48. Spanning Tree Definition 49 A subset of edges in a graph that: Span all nodes Do not create any cycles 5 This structure is a tree 1 1 2 2 3 3 4 6 2 3 5 5 1 4 4 7 6 6 7 7

  49. 802.1 Spanning Tree Approach 50 Elect a bridge to be the root of the tree Every bridge finds shortest path to the root Union of these paths becomes the spanning tree 1. 2. 3. Bridges exchange Configuration Bridge Protocol Data Units (BPDUs) to build the tree Used to elect the root bridge Calculate shortest paths Locate the next hop closest to the root, and its port Select ports to be included in the spanning trees

  50. Determining the Root 51 Initially, all hosts assume they are the root Bridges broadcast BPDUs: Bridge ID Root ID Path Cost to Root Based on received BPDUs, each switch chooses: A new root (smallest known Root ID) A new root port (what interface goes towards the root) A new designated bridge (who is the next hop to root)

More Related Content

giItT1WQy@!-/#giItT1WQy@!-/#giItT1WQy@!-/#giItT1WQy@!-/#giItT1WQy@!-/#giItT1WQy@!-/#giItT1WQy@!-/#giItT1WQy@!-/#giItT1WQy@!-/#giItT1WQy@!-/#giItT1WQy@!-/#
