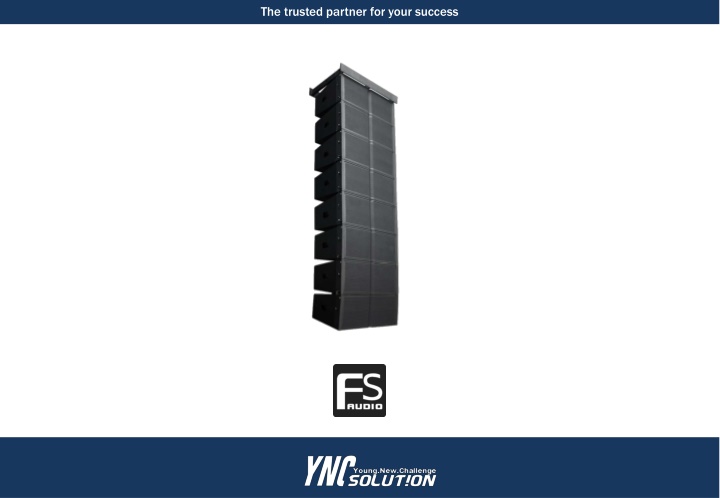

  1. The trusted partner for your success

  2. JK Series

  3. JK-061 6.5 2way loudspeaker SPECIFICATIONS System : 6.5 2way Speaker Speaker drivers : 6.5 LF/ 1 HF Frequency range : 80Hz 20KHz FEATURES Coverage (HxV) : 90 conical , Fill U Power : 50W(RMS)/ 100W(Program)/ 200W(peak) Impedance : 16 Sensitivity 1w/1m : 89dB Max SPL : 109dB(Program)/ 112dB(Peak) Dimensions : 320(h) x 200(w) x 195(d) mm Weight : 4.5kg

  4. JK-081 8 2way loudspeaker SPECIFICATIONS System : 8 2way Speaker Speaker drivers : 8 LF/ 1 HF Frequency range : 60Hz 19KHz FEATURES Coverage (HxV) : 50 to 100 x 55 Coverage range 50 to 100 x 55 , , , fill U Power : 120W(RMS)/ 240W(Program)/ 480W(peak) Impedance : 8 Sensitivity 1w/1m : 95dB Max SPL : 119dB(Program)/ 122dB(Peak) Dimensions : 413(h) x 263(w) x 240(d) mm Weight : 9.35kg

  5. JK-1201 12 2way loudspeaker SPECIFICATIONS System : 12 2way Speaker Speaker drivers : 12" (2.5 VC)LF/ 1.4" HF Frequency range : 55Hz - 19kHz FEATURES Coverage (HxV) : 50 to 100 x 55 , , Power : 300W(RMS)/ 600W(Program) / 1,200W(peak) Impedance : 8 Sensitivity 1w/1m : 96dB Max SPL : 124dB(Program)/ 127dB(Peak) Dimensions : 605(h) x 387.9(w) x 362(d) mm Weight : 19kg

  6. PAC Series

  7. PAC-28 2x8 2way loudspeaker SPECIFICATIONS System : 2x8 2way Loudspeaker Speaker drivers : 2x8 LF/ 1.75" HF Frequency range : 90Hz 20KHz FEATURES Coverage (HxV) : 90 x 60 8 , , Power : 300W(RMS)/ 600W(Program) / 1200W(Peak) Impedance : 8 Sensitivity 1w/1m : 96dB Max SPL (peak) : 124dB Dimensions : 696(h) x 250(w) x 260(d) mm Weight : 13.5kg

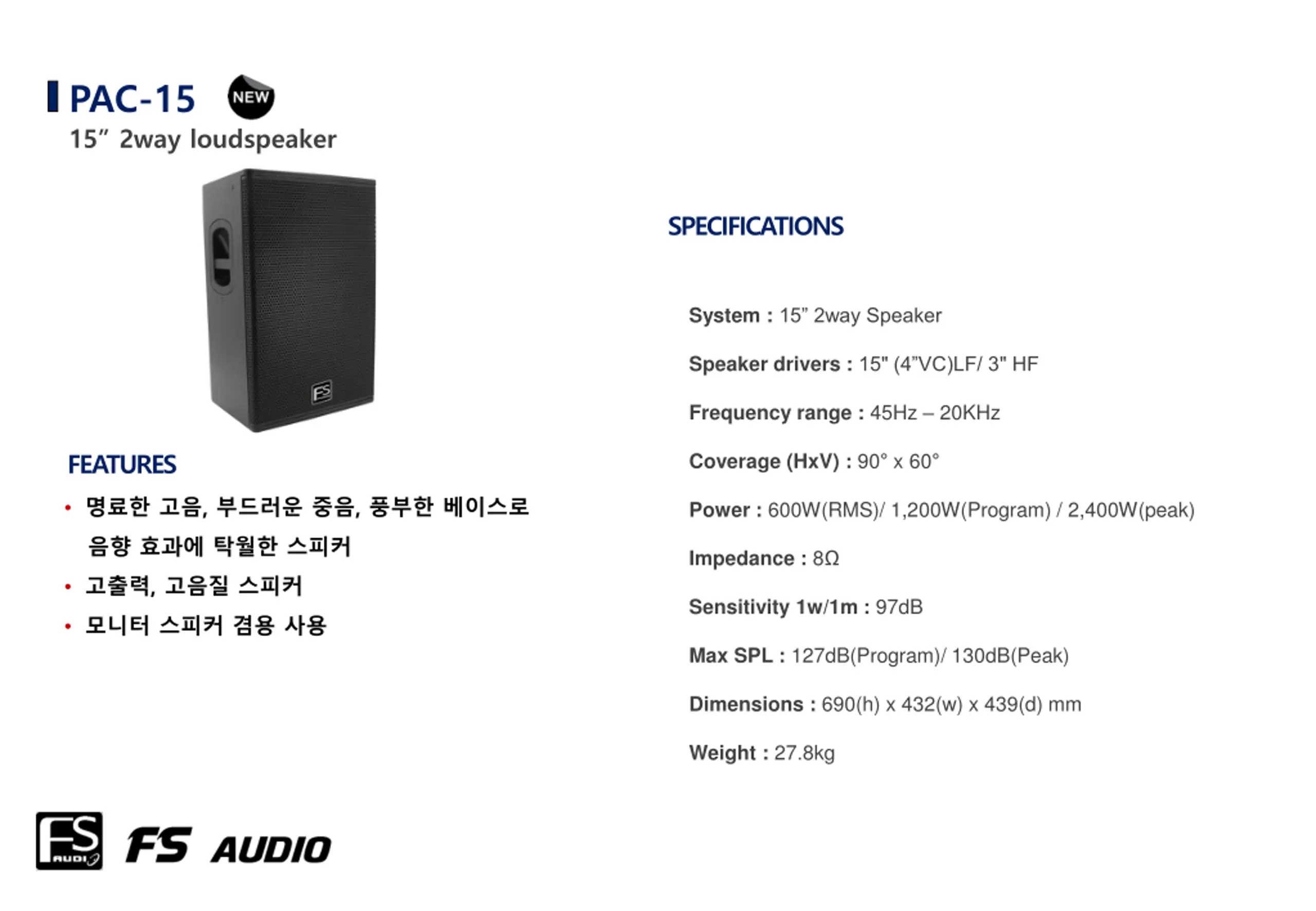

  8. PAC-15 15 2way loudspeaker SPECIFICATIONS System : 15 2way Speaker Speaker drivers : 15" (4 VC)LF/ 3" HF Frequency range : 45Hz 20KHz FEATURES Coverage (HxV) : 90 x 60 , , , Power : 600W(RMS)/ 1,200W(Program) / 2,400W(peak) Impedance : 8 Sensitivity 1w/1m : 97dB Max SPL : 127dB(Program)/ 130dB(Peak) Dimensions : 690(h) x 432(w) x 439(d) mm Weight : 27.8kg

  9. PAC-15S 15" Subwoofer SPECIFICATIONS System : 15 Subwoofer Speaker drivers : 15" (4 VC) Frequency range : 47Hz 2,000Hz FEATURES Coverage (HxV) : omnidirectional 15" Power : 500W(RMS)/ 1,000W(Program) / 2,000W(peak) Impedance : 8 Sensitivity 1w/1m : 96dB Max SPL : 126dB(Program)/ 129dB(Peak) Dimensions : 590(h) x 460(w) x 580(d) mm Weight : 27.3kg

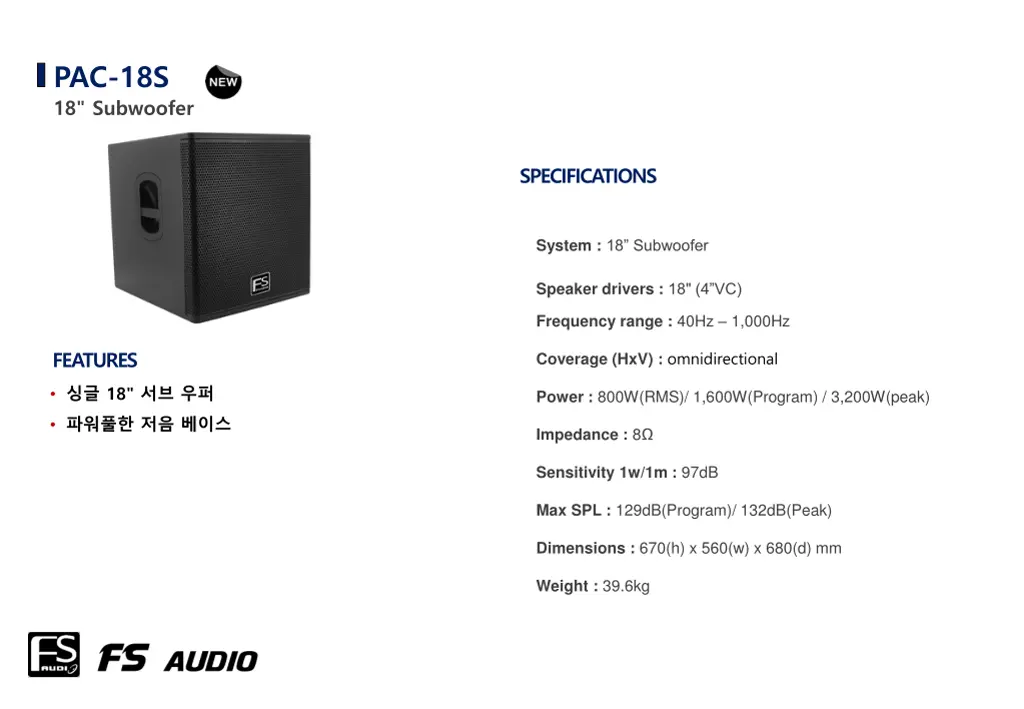

  10. PAC-18S 18" Subwoofer SPECIFICATIONS System : 18 Subwoofer Speaker drivers : 18" (4 VC) Frequency range : 40Hz 1,000Hz FEATURES Coverage (HxV) : omnidirectional 18" Power : 800W(RMS)/ 1,600W(Program) / 3,200W(peak) Impedance : 8 Sensitivity 1w/1m : 97dB Max SPL : 129dB(Program)/ 132dB(Peak) Dimensions : 670(h) x 560(w) x 680(d) mm Weight : 39.6kg

  11. H-T Series / CH Series

  12. CH-4E 4x4" column loudspeaker SPECIFICATIONS System : 4x4 Column Speaker Speaker drivers : 4x4"(1"VC)NEO woofer Frequency range : 95Hz 13KHz Coverage (HxV) : 90 x 30 Power : 150W(RMS)/ 300W(Program) / 600W(peak) FEATURES Impedance : 8 Sensitivity 1w/1m : 95dB Max SPL : 120dB(Program)/ 123dB(Peak) Dimensions : 673(h) x 135(w) x 140(d) mm Weight : 6kg

  13. H-T3 3x3.5" column loudspeaker SPECIFICATIONS System : 3x3.5 Column Speaker Speaker drivers : 3x3.5" Frequency range : 160Hz 16KHz Coverage (HxV) : 90 x 45 Power : 90W(RMS)/ 180W(Program) / 360W(peak) FEATURES Impedance : 4 U Sensitivity 1w/1m : 97dB Max SPL : 119.5dB(Program)/ 122.5dB(Peak) Dimensions : 277(h) x 120(w) x 133(d) mm Weight : 2.8kg

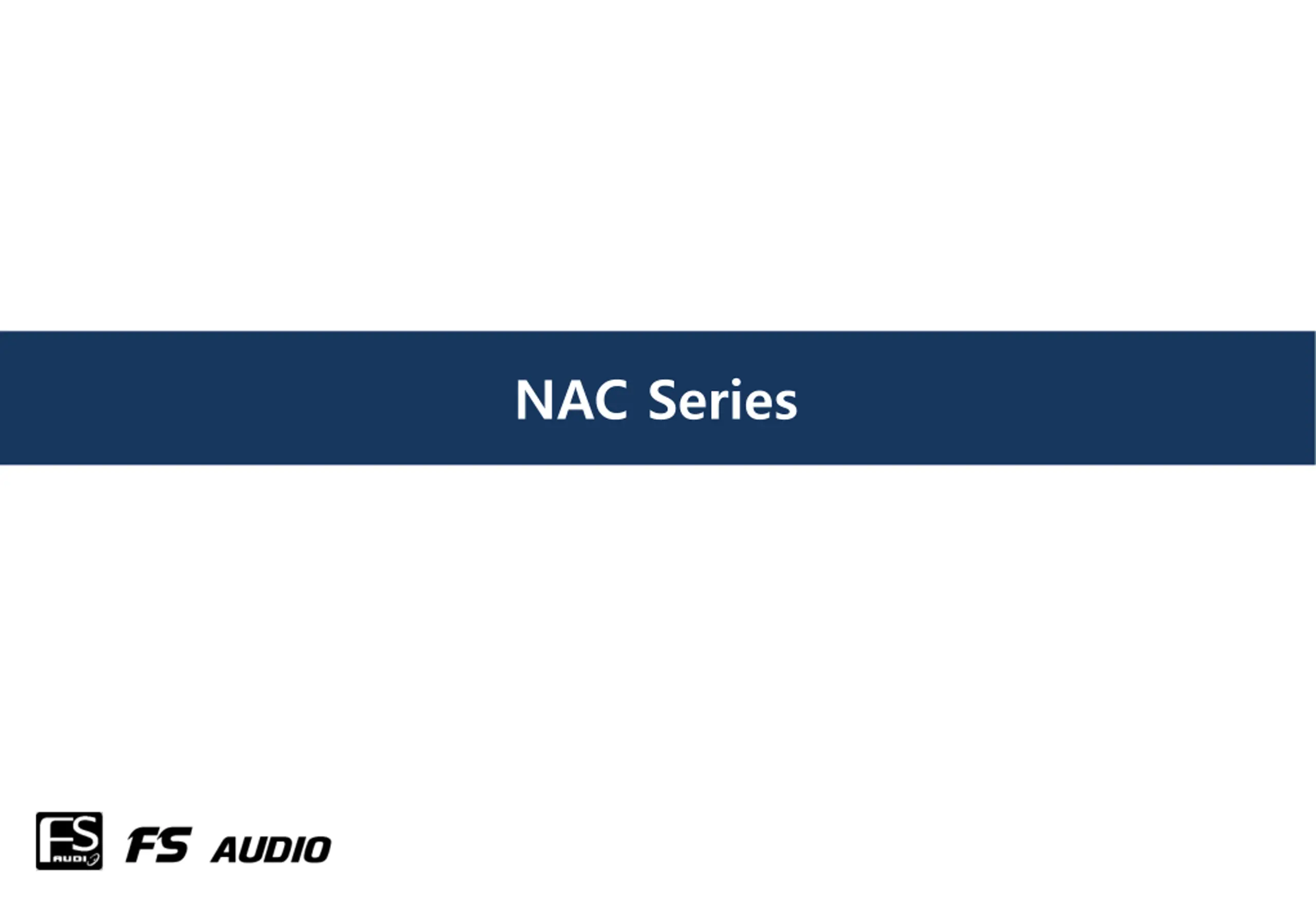

  14. NAC Series

  15. LINX-208H2 2x8" Line Array Speaker SPECIFICATIONS System : 2x8" Line Array Speaker Speaker drivers : 2x8 (2.5"VC, Neo) / 2x1.75 (Neo) Frequency range : 65Hz 18KHz Coverage (HxV) : 110 x 10 FEATURES Power : 460W LF(RMS)/ 80W HF(RMS) 8 , 920W LF(Program)/ 160W HF(Program) 1,840W LF(peak)/ 320W HF(peak) Impedance : LF 8 / HF 8 Sensitivity 1w/1m : LF 96dB/ HF 113dB Max SPL : 129dB(Program)/ 132dB(Peak) Dimensions : 266(h) x 700(w) x 393(d) mm Weight : 21.6kg

  16. NAC-18S 18" Subwoofer SPECIFICATIONS System : 18 Subwoofer Speaker drivers : 18"(4"VC)woofer Frequency range : 40Hz 200Hz FEATURES Coverage (HxV) : omnidirectional 18" Power : 800W(RMS)/ 1,600W(Program)/ 3,200W(peak) Impedance : 8 Sensitivity 1w/1m : 97dB Max SPL : 129dB(Program)/ 132dB(Peak) Dimensions : 543(h) x 595(w) x 667(d) mm Weight : 48kg

  17. LINX-Fly-Frame Fly-Frame for LINX-208H2 SPECIFICATIONS Material : Steel Dimensions : 90(h) x 530(w) x 730(d) mm Weight : 11kg FEATURES Fly-Frame for LINX-208H2

  18. Ceiling Speaker Series

  19. 5006 5.25 Ceiling speaker SPECIFICATIONS Speaker drivers : 5.25" Frequency range : 70Hz 20KHz Power : 20W(RMS) FEATURES Impedance : 8 5.25 20W 8 or Tap Hi-impedance Sensitivity 1w/1m : 88dB Transformer Tap : 20W/10W/5W/2.5W(70.7V) 20W/10W/5W(100V) Dimensions : 235(dia) x 166(d) mm Material, Color : ABS, white Cut Size : 205mm

  20. 5007 6.5 Ceiling speaker SPECIFICATIONS Speaker drivers : 6.5" Frequency range : 50Hz 20KHz Power : 30W(RMS) FEATURES Impedance : 8 6.5 30W 8 or Tap Hi-impedance Sensitivity 1w/1m : 90dB Transformer Tap : 30W/15W/7.5W/3.75W(70.7V) 30W/15W/7.5W(100V) Dimensions : 260(dia) x 178(d) mm Material, Color : ABS, white Cut Size : 230mm

  21. 5008 8 Ceiling speaker SPECIFICATIONS Speaker drivers : 8" Frequency range : 40Hz 20KHz Power : 40W(RMS) Impedance : 8 FEATURES Sensitivity 1w/1m : 92dB 8 40W 8 or Tap Hi-impedance Transformer Tap : 40W/20W/10W/5W(70.7V) 40W/20W/10W(100V) Dimensions : 300(dia) x 195(d) mm Material, Color : ABS, white Cut Size : 270mm

  22. The trusted partner for your success AV System Consulting / Design AV System Sales / Installation Stadium Auditorium Seminar Room Video Conference AV System Network BGM System YNC Solution, Inc. MisahousD EL Bldg. #F412, 35, Jojeong-daero, Hanam-si, Gyeonggi-do, Republic of Korea Contact Terrie Lee/ e-mail : terrie@yncsolution.co.kr/ +8210-3266-4969 Lyn Lee/ e-mail : lyn@yncsolution.co.kr / +8210-3785-1355 Tel : +8231-5175-4412 / Fax : +8231-5175-4410
