Dual Floc Tube Water Treatment System with Chitosan PTS Sock DBP-2100

This system utilizes a Dual Floc Tube design incorporating Chitosan PTS Sock and DBP-2100 for effective water treatment. The specifications include a 72-inch length, 6-inch diameter, and a knit fabric construction. The natural polymer Chitosan is used in a dry weight of 2.0 lbs for treating 200,000 gallons at 1 mg/L. The system is engineered for settling basins and stormwater detention basins, offering passive treatment solutions. Additionally, the application curve shows turbidity vs. flow rate for various Chitosan sock and DBP-2100 sock combinations.

• Water treatment system
• Chitosan
• Dual Floc Tube
• Passive treatment
• Environmental concepts

eliz_338 Follow

Uploaded on Oct 10, 2024 | 0 Views

Download Presentation

Please find below an Image/Link to download the presentation.

The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.

Presentation Transcript

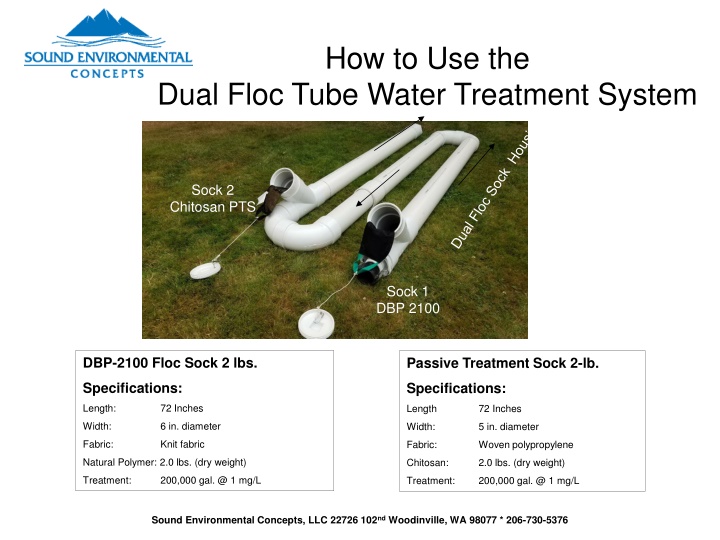

1. How to Use the Dual Floc Tube Water Treatment System Sock 2 Chitosan PTS Sock 1 DBP 2100 DBP-2100 Floc Sock 2 lbs. Passive Treatment Sock 2-lb. Specifications: Specifications: Length: 72 Inches Length 72 Inches Width: 6 in. diameter Width: 5 in. diameter Fabric: Knit fabric Fabric: Woven polypropylene Natural Polymer: 2.0 lbs. (dry weight) Chitosan: 2.0 lbs. (dry weight) Treatment: 200,000 gal. @ 1 mg/L Treatment: 200,000 gal. @ 1 mg/L Sound Environmental Concepts, LLC 22726 102nd Woodinville, WA 98077 * 206-730-5376

2. Engineered SEC Settling Basin Design Dual Sock Housing Discharge Structure Settling Basin Crushed Rock Dam Side View Dual Sock Housing Settling Basin Discharge Structure Top View

3. Biochar Filter Dual Sock Housing Dual Sock Housing Pump Stormwater Detention Basin Treatment

4. Dual Floc Water Treatment System APPLICATION CURVE TURBIDITY VS FLOW RATE 2500 pH Range 7.5-8.5 2250 4+ Chitosan Socks & 2.5 DBP-2100 Socks 2000 1750 3-4 Chitosan Socks & 2 DBP-2100 Socks 1500 TURBIDITY 1250 1000 2-3 Chitosan Socks & 1.5 DBP-2100 Socks 750 500 250 1-2 Chitosan Socks & 1 DBP-2100 Sock NTU US 100 200 300 400 500 600 700 800 GPM FLOW RATE Sound Environmental Concepts, LLC 22726 102nd Ave SE Woodinville, WA 98077 * 206-730-5376
