Domestic Electricity and Safety Features
undefined

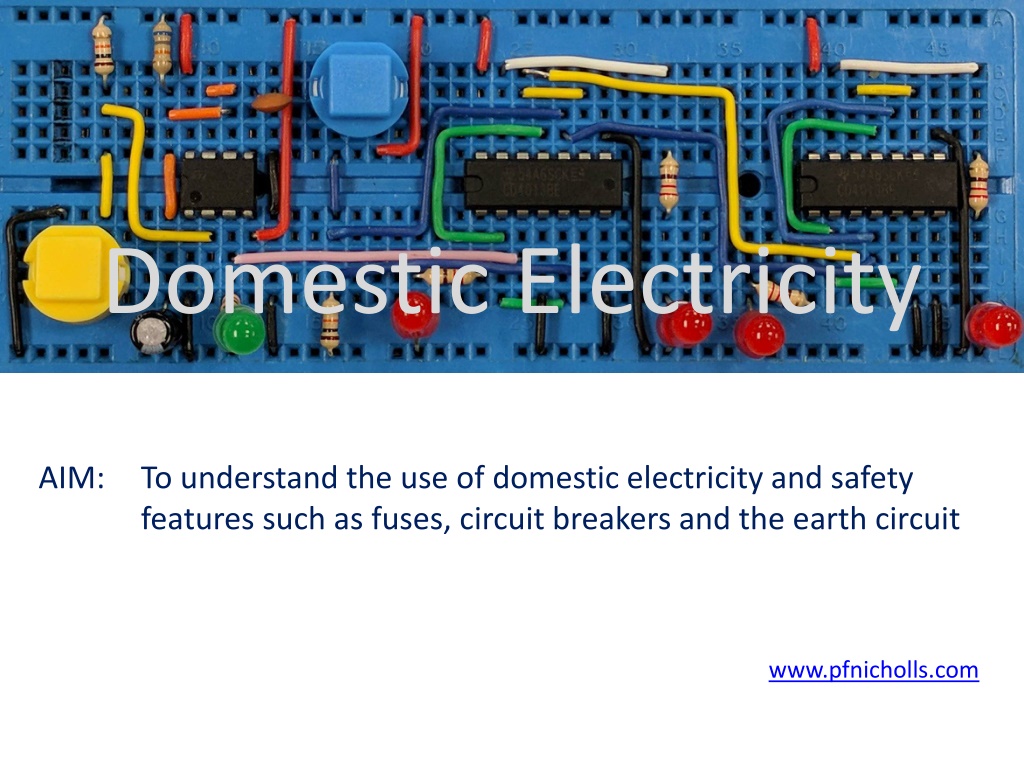

Domestic Electricity
AIM:
To understand the use of domestic electricity and safety
features such as fuses, circuit breakers and the earth circuit
Domestic Electricity
The electricity supplied to our homes is a.c. It is nominally 230 volts
and has a frequency of 50Hz. The voltage and frequency can
change slightly throughout the day as demand changes.
The wires that carry electricity into our home are called the LIVE
wire and the NEUTRAL wire. There is also an EARTH wire connected
to the earth via a large metal spike buried in the ground.
After entering the home, the electricity supply first goes through
the electricity meter and then to the consumer unit.
From the consumer unit there are separate circuits for plug
sockets, lights, electric immersion heaters, electric showers,
electric cookers and out buildings etc.
Domestic Electricity
Picture of a consumer unit showing the circuit breakers for different
parts of the house and the main RCCD
RCCB
40A
Shower
Circuit
Breaker
32A Socket CB
6A Lighting CB
Domestic Electricity
The black cable is the Live and
Neutral to the house, this goes
through the electricity meter
and then to the consumer unit
Main Live and Neutral
connections to the house. The
outer shield provides an Earth
connection (just visible)
Old Style
Electricity
meter
Connection to consumer unit for
distribution round the house
Electricity board 60A main fuse
Domestic Electricity
The red Live wires
each go to a circuit
breaker.
The Earth connections
all join together at the
top.
The black Neutral
wires all connect
together at the side
(hard to see).
Main supply goes to
RCCB first.
Plugs
The standard domestic plug is
shown opposite.
•
The LIVE wire is BROWN
•
The NEUTRAL wire is BLUE
•
The EARTH wire is YELLOW &
GREEN stripes
•
The FUSE is in the Live wire
•
Cord grip prevents the cable
being pulled out of the plug
•
The plug can not be used
with the top removed
because all the pins fall out if
you try to plug it in
Plugs
There are a few extra safety features
visible in this picture of a standard
plug.
•
The Earth pin is the longest so that
it goes in first and comes out last.
The Earth pin opens the shutters in
the socket that protect the Live
and Neutral connections.
•
The Live and Neutral pins have
tape around them so that little
fingers can’t make contact when
you pull the plug out – children
tend to wrap their fingers behind
the plug to pull.
Fuses
A fuse is a thin piece of wire included in a circuit. The material from
which the fuse wire is made usually has a lower melting point and a
slightly higher resistance than the other wires in the circuit.
If too much current flows in the circuit, the fuse wire will get hot
(due to its higher resistance) and melt (due to its lower melting
point) before any of the other wires get hot. Once the fuse melts,
the circuit is broken and no more current flows.
Domestic fuses are rated at 3A, 5A and 13A for use in plugs and 6A,
16A, 32A, 40A for use in consumer units. Many appliances, such as
TVs etc, also contain internal fuses with an even lower current
rating.
Fuses
Left: 13A, 5A and 3A
domestic fuses
found in plugs
Right: fuses found
inside appliances –
the small ones are
500 mA
Bottom: Automobile
fuses, sometimes
called blade fuses.
These come in
multiples of 5A – the
yellow ones are 20A
Circuit Breakers
A circuit breaker does the same job
as a fuse – it breaks the circuit if too
much current flows.
A circuit breaker is an electro-
mechanical device. It uses an
electromagnet to move a
mechanical switch when the current
is too high
The advantages of a circuit breaker
are:
•
They disconnect the circuit
quickly
•
They can be reset easily
40A – Higher power devices such
as cookers or showers
32A – Sockets on a ring main
6A – Lighting circuits
RCCB
If a fault occurs, or a person gets an electric shock, a
small amount of current flows from Live to Earth – this
is the residual current. The current in the Neutral wire
is less than the current in the Live wire.
A
R
esidual
C
urrent
C
ircuit
B
reaker (RCCB) detects the
small difference in current in the Live and Neutral and
disconnects the electrical supply.
An RCCB is very fast, disconnecting the supply in just a
few milliseconds.
The device shown is also the main Circuit Breaker
rated at 100A total for the whole house. The residual
trip current is shown as 0.03A (30mA).
Earth Circuit
The Earth wire is not necessary for the circuit to work. In normal
operation, current flows along the Live and Neutral wires and the
earth wire is connected to exposed metal parts of the appliance.
If a fault occurs and the Live wire touches the metal parts of the
appliance, it is possible for the user to receive an electric shock.
However a large current flows through the Live, along the Earth
wire and to ground. This large current blows the fuse.
The Earth wire is only effective when used with a fuse.
The Neutral wire is less dangerous as it is always at a low voltage
where as the Live wire is at a high voltage. This is why the fuse is
always in the Live wire.
Earth Circuit
The circuit is working properly, there is no fault. Current flows in the
Live and Neutral wires - the element glows. No current flows in the
Earth wire, the person is not electrocuted and the fuse doesn’t blow.
Earth Circuit
The circuit has a fault. The Live wire is touching the metal kettle and the
person will receive an electric shock.
However, a large current now flows along the Earth wire. This current is
enough to blow the fuse and disconnecting the electrical supply.
Earth Circuit
The circuit has a fault and no Earth wire. The Live wire is connected to the
metal case of the kettle and the user will get an electric shock. The small
extra current through the person is not enough to blow the fuse. The kettle
remains connected to the electrical supply and is a danger to the user.
Double Insulation
Not all appliances need an Earth wire. If there are no exposed metal
parts then there is no risk of the appliance being live in the event of
a fault. Such appliances are called “Double Insulated” because there
are two layers of insulation – one around the wire, the other around
the case itself.
Double Insulation
Symbol and example
of a double insulated
power supply
Note the plastic Earth
pin, it is still
necessary to open
the shutters in the
socket
Summary
Domestic electricity is supplied at 230v
The wires in a domestic appliance are Live (brown), Neutral (blue)
and Earth (green & yellow)
Fuses and circuit breakers disconnect the electrical supply when
too much current flows. Circuit breakers can be easily reset
The fuse or circuit breaker is always in the live wire
The earth wire blows the fuse in the case of a fault and so prevents
the user receiving a shock if the metal parts of an appliance are live
RCCBs cut off the electrical supply if a person is being electrocuted
or some other fault occurs where current flows to ground
Questions
1.
What are the advantages of a circuit breaker over a fuse
2.
What is the difference between a circuit breaker and an RCCB?
3.
How can a fuse and earth wire protect against electric shock
4.
What are 3 wires found in a plug? What are their colours?
Answers
1.
A circuit breaker is:
•
Faster
•
Can be easily reset
•
More accurate
2.
A circuit breaker protects against excess current and the risk of
fire, an RCCB protects against being electrocuted
3.
If there is a fault and the live wire touches the metal case of an
appliance, the earth provides an easy path to ground and a
massive current flows. This blows the fuse.
4.
Live – Brown, Neutral – Blue, Earth – Green and Yellow
