Dielectrics and Insulators in Electrical Engineering
Prof. Dr. Wisam J. Aziz
1

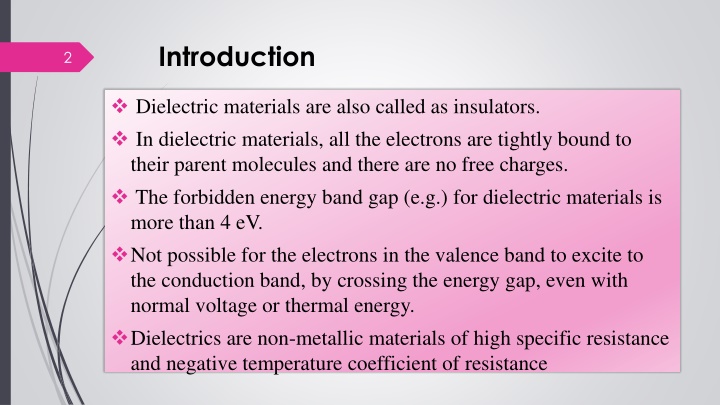

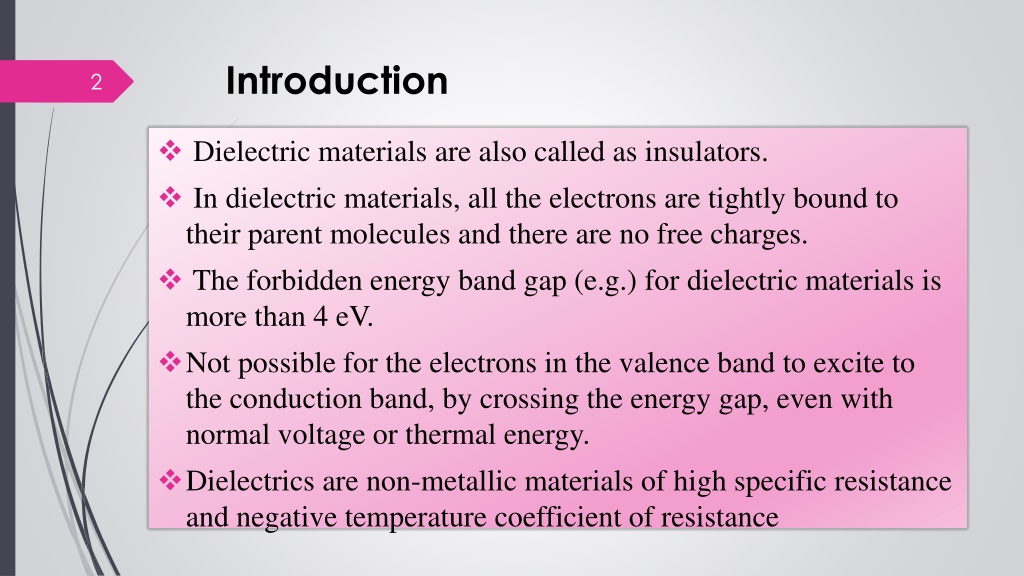

Introduction
Dielectric materials are also called as insulators.
In dielectric materials, all the electrons are tightly bound to
their parent molecules and there are no free charges.
The forbidden energy band gap (e.g.) for dielectric materials is
more than 4 eV.
Not possible for the electrons in the valence band to excite to
the conduction band, by crossing the energy gap, even with
normal voltage or thermal energy.
Dielectrics are non-metallic materials of high specific resistance
and negative temperature coefficient of resistance
2
Definition of Dielectric
The dielectric material is a type of an insulator which has
some free electrons. It becomes polarized in the presence
of the electric field. The polarization is the property of the
material in which the positive and negative charges of the
material are shifted in the opposite direction. The
polarization reduces the overall field of the material.
3
Definition of Insulator
The material which does not allow the electric current to pass through them
is known as the insulator. The insulating material does not have any free
electrons because their molecules have the strong covalent bond. The
resistivity of the material is very high as compared with other material.
Resistivity is the property of the material that shows the strong obstruction
against the flow of charges.
4
Dielectric and Insulator
The dielectric and insulator are differentiated from
their applications. One of the major difference
between the dielectric and insulator is that the
dielectric stores the electrical charges while the
insulator opposes the flow of electrons. Some other
differences between them are explained below in
the comparison chart
.
5
6
Classification of Dielectrics according to
electrical energy store
The dielectric materials can be classified into
Active dielectric materials
Passive dielectric materials
.
7
Active dielectrics
When a dielectrics material is kept in an external
electric field, if it actively accepts the electricity,
then it is shown as active dielectric material .Thus,
active dielectrics are the dielectrics which can
easily adapt themselves to store the electrical
energy in it.
Examples:- Piezoelectric
materials.
8
Passive dielectrics
Passive dielectrics are the dielectrics
which restrict the flow of electrical energy
in them. So, these dielectrics act as
insulators.
Examples: All insulating materials such as
glass, mica, rubber.
9
Classification of Dielectrics according
Temperature
Dielectric constant, loss tangent and dielectric
strength are the three parameters which characterize
the dielectric material.
Besides, heat resistance is also one of the important
properties, on the basis of which dielectrics have
been classified:
10
(i) Class O (Up to 90 °C)
This category comprises of cotton, silk, paper and similar
organic materials when neither impregnated nor immersed
in liquid dielectric.
11
(ii) Class A (Up to 105 °C)
Like the cotton, silk, paper or similar organic materials
when either impregnated or immersed in liquid dielectric.
This category also includes molded and laminated materials
with cellulose filler, phenolic resins.
(iii) Class B (Up to 130 °C)
Like Mica, asbestos, glass fiber and similar inorganic
materials in built-up form with organic binding
substances.
12
(iv) Class C (No Temperature Limit)
Mica, porcelain, glass, quartz and similar inorganic materials.
Properties of Dielectric Material
The energy gap in the dielectric materials is very large.
The temperature coefficient of resistance is negative and
the insulation resistance is high.
The dielectric materials have high resistivity.
The attraction between the electrons and the parent
nucleus is very strong.
The electrical conductivity of these materials is very low
as there are no free electrons to carry current.
13
Important Properties of Dielectric
I.
Permittivity
II.
Electric polarization
14
Permittivity
A measure of the ability of a material to interaction with
an electrical field and become polarized by the field.
15
Electric polarization
Slight relative shift of positive and negative electric
charge in opposite directions with in an insulator,
or dielectric, induced by an external electric field.
16
Dielectric constant
17
Classification of Dielectrics polarization
Polar Molecules.
Non-Polar Molecules.
18
Polar Molecules
Polar Molecules are those type of dielectric where the
possibilities of the positive and negative molecules
coinciding with each other are null or zero. This is because
they all are asymmetric in shape.
Examples: H
2
O, CO
2
, NO
2
etc.
When the electric field is not present, it causes the electric
dipole moment of these molecules in a random direction.
This is why the average dipole moment is zero. If the
external electric field is present, the molecules assemble in
the same direction as the electric field.
19
Non-Polar Molecule
Unlike polar molecules, in non-polar molecules, the
center of positive charge and negative coincide, that
is it is not zero.
The molecule then has no permanent
(or intrinsic) dipole moment. Examples: O
2
, N
2
, H
2
.
20
Applications of Dielectric Material
Applications of Dielectric Material
1- These are used for energy storage in capacitors.
2- To enhance the performance of a semiconductor
device, high permittivity dielectric materials are used.
3- Dielectrics are used in liquid crystal displays.
4- Ceramic dielectric is used in dielectric resonator
oscillator.
5- Barium Strontium Titanate thin films are dielectric which
are used in microwave tunable devices providing high
tenability and low leakage current.
21
6-
In electrical transformers, mineral oils are used as a liquid
dielectric and they assist in the cooling process.
7- Castor oil is used in high-voltage capacitors to increase
its capacitance value.
8- Electrets, a specially processed dielectric material acts as
electrostatic equivalent to magnets.
22
23
THANK YOU FOR YOUR ATTENTION
