Development of Wool Follicles in Sheep: A Detailed Overview

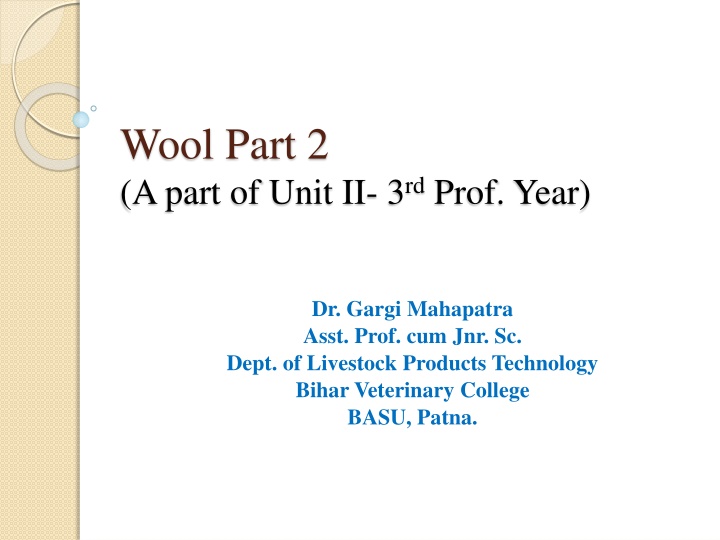

Wool Part 2
Wool Part 2
(A part of Unit II- 3
(A part of Unit II- 3
rd
rd
Prof. Year)
Prof. Year)
Dr. Gargi Mahapatra
Asst. Prof. cum Jnr. Sc.
Dept. of Livestock Products Technology
Bihar Veterinary College
BASU, Patna.
undefinedDEVELOPMENT
OF WOOL
Wool follicles produce the mature fleece.
Basal layer of the epidermis crucial in wool follicle formation.
Follicles appear in the second month of gestation.
DEVELOPMENT
OF WOOL
Basal layer thickens and Grows down into the
dermis
Forms a plug of cell tissues . The plug forms the
wool follicle and accessory structures
Plug further moves downwards
Two out-growths appear on the same side;
sebaceous and sudoriferous glands
Lower end of bulb becomes bulbous
Base of bulb turns inwards and forms dome like
structure containing actively dividing cells, this
is called papilla.
Cells in the papilla divide and elongate to form
wool fibre and the inner root sheath
DEVELOPMENT
OF WOOL
Follicles have shape of a golf club because the
papilla is derived towards the side of the follicles.
Orientation of the papilla and shape of the follicle
are connected to the crimpiness and waviness of the
fibre.
In a mature follicle the bulb region proliferates and
organises to the Outer Root Sheath and Inner Root
Sheath. The ORS forms the cuticle of the fibre
whereas the IRS forms the cortex of the fibre.
*Follicles in the unborn are
arranged in a group of
3
.
*Follicles forming the trio are
primary follicles.
*Each trio is associated with
accessory structure sebaceous
gland, sweat gland and
arrector muscle.
*New follicles called
secondary follicles appear in
association with primary
follicles.
* Primary follicles produce
coarse fibres whereas
Secondary follicles produce
fine (merino type) fibres
Follicular Arrangement
on the Skin
*Secondary follicles are
present on the upper side
of the primary follicle and
lack arrector muscles.
* Sebaceous glands
associated with secondary
follicles are smaller than
those associated with
primary follicles.
* The S:P ratio i.e.
Secondary: Primary
dictates types of fleece
produced.
Follicular Arrangement
on the Skin
WOOL SHEARING
Process of clipping wool from sheep
Preparing Animal for Shearing
Animal is washed 10-15 days before shearing
Animal should be kept off-feed 10 hr. prior shearing starts.
Clean each and every animal individually by picking soil and thorns from the
fleece.
Clip away the dung and urine stained wool.
Move the cleaned animals to a clean pen, until their turn for shearing arrives
Place the animal on a clean and smooth board platform and then shear the animal
either along or around the sheep.
WOOL SHEARING
Contd…
Opening of Fleece
: Sheep is made to sit on its buttocks, between the legs of
the shearer, both animal and shearer looking in the same direction. The shearer
begins from the top of brisket region and moves downwards, cleaning the
lower part of the sheep and making a line of division in the fleece.
Methods of Shearing
Along the Sheep & Around the Sheep
TIME OF SHEARING
1.
Spring/ Before Summer- March to April
2.
Autumn/ Before Winter- September to October
(Animal is generally sheared on an annual basis)
Points of Consideration
Before
Shearing
During Shearing
Shears should be very clean,
sharp and well greased.
Weather should be
comfortable
Before releasing the animal
dress for accidental shear cuts.
Provide good nourishment to
counteract the ill effects of
change post shearing
Use clean and swept surface
Keep the skin stretched.
Blades of the shearer should be
kept flat on the skin surface.
Each stroke should be even and
regular. Use long strokes if
possible.
Do not clip the sheath, udder or
teats
Do the process in one go, avoid
second cuts. Try removing
fleece in one piece
WOOL
PROCESSING
Steps Involved
1.
Sorting
2.
Opening & Dusting
3.
Scouring
4.
Burr Picking and Carbonization
5.
Oiling
6.
Carding
7.
Spinning
8.
Weaving
9.
Dyeing and Finishing
10.
Testing
WOOL PROCESSING
1.
Sorting
: Raw wool bought to the mill and is sorted as per
requirement, a skilled process.
2.
Opening & Dusting
: Clumps of wool fibre are opened up into
individual staples by means of machine. These staples are then
shaken off to remove the dust. This process helps in achieving
the objective of proper penetration of scouring liquid
3.
Scouring
: Wool is cleaned from dirt and grease. Wool is dipped
and washed in a series of vats usually 3-6 in number. These vats
contain hot water (45°C-120°C), soap and sodium carbonate.
4.
Burr
picking
and
carbonization
: Vegetable content (burr) is
removed mechanically (picking) or chemically (carbonization).
In carbonization cellulose is degraded by acids at high
temperature, most commonly sulphuric acid is used
WOOL PROCESSING
contd…
5.
Oiling
: Wool fibre is lubricated with oil emulsion to reduce
breakage of fibre and maximise cohesion. Generally, mineral
oils are emulsified with non-ioninc soaps @ 3-5% of wool wt.
6.
Carding
: Wool fibres are blended into one another, vegetable
matter is removed, fibres are straightened and laid in such
manner that they lie parallel to each other, all pointing in the
same direction. The wool fibre are bundled into strips known as
“
Roving/Sliver
”.
7.
Spinning
: The roving's are passed through small rollers,
applying a twist that gives the resulting yarn strength and size.
8.
Weaving
: One of the most crucial part. The whole process
provides a basis for the final product. It intertwines the yarns
into desired product
It includes a number of steps namely; cone winding, warp
preparation, warp sizing, pirn winding of welt yarns and
tying in and drying in of the wrap
WOOL PROCESSING
contd…
9.
Dyeing
: Dyeing refers to induction of permanent colour into
the wool fibres. Dyes used for wools are classified as Acid
Dyes; Metal Complex Dyes; Chrome Dyes; Vat Dyes; Reactive
Dyes and Direct Dyes. Some commonly used dyes are
Rhodamine b, Rhodamine C, Sandoz Yellow, Sand Blue etc.
10.
Finishing
: This process improves the appearance of the
garment, as that received from loom, thereby making it more
acceptable to buyer. Steps involved in finishing are Milling;
Carbonization; Raising and Shearing.
11.
Testing
: Critical examination of the end product to obtain
desirable quantitative and qualitative information. This process
assesses the quality, value, defect and other characteristics of
the end product.
STEPS INVOLVED IN
FINISHING
Milling; Carbonization; Raising and Shearing.
Milling
:
Shrinkage of the fabric to the required degree in order to thicken
it and give it a desired appearance
.
Carbonization
:
Chemically burr is removed by treating the finished
product with dilute acid at high temperature. Thereafter wrinkles are
removed by
bearming
.
Raising
: This process involves lifting out of wool from the body of the
fabric. The action is simply to entangle fibres with sharp points of wire
roller and bring them to the surface of the fabric.
Shearing
: The fibres which have been raised out during brushing/raising,
from the cloth surface are levelled out.
Organizations Having Standard
Testing Procedures
Indian Standard Association (ISI)
American Society for Testing Materials
(ASTM)
International Woollen Textile Organization
(IWTO)
British Standards
Thank
You
Wool production in sheep involves the development of wool follicles starting from the basal layer of the epidermis. The process includes the formation of follicles during gestation, thickening of the basal layer into a plug, growth of accessory structures like glands, and the differentiation of cells into wool fibers. The orientation and shape of the follicles contribute to the quality of the wool produced. Primary and secondary follicles play different roles in producing coarse and fine fibers respectively. Understanding the intricacies of wool follicle development is crucial for the shearing process in sheep.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
E N D
Presentation Transcript
Wool Part 2 (A part of Unit II- 3rdProf. Year) Dr. Gargi Mahapatra Asst. Prof. cum Jnr. Sc. Dept. of Livestock Products Technology Bihar Veterinary College BASU, Patna.
DEVELOPMENT OF WOOL Wool follicles produce the mature fleece. Basal layer of the epidermis crucial in wool follicle formation. Follicles appear in the second month of gestation.
Basal layer thickens and Grows down into the dermis Forms a plug of cell tissues . The plug forms the wool follicle and accessory structures Plug further moves downwards Two out-growths appear on the same side; sebaceous and sudoriferous glands Lower end of bulb becomes bulbous Base of bulb turns inwards and forms dome like structure containing actively dividing cells, this is called papilla. Cells in the papilla divide and elongate to form wool fibre and the inner root sheath DEVELOPMENT OF WOOL
Follicles have shape of a golf club because the papilla is derived towards the side of the follicles. Orientation of the papilla and shape of the follicle are connected to the crimpiness and waviness of the fibre. In a mature follicle the bulb region proliferates and organises to the Outer Root Sheath and Inner Root Sheath. The ORS forms the cuticle of the fibre whereas the IRS forms the cortex of the fibre. DEVELOPMENT OF WOOL
*Follicles in the unborn are arranged in a group of 3. *Follicles forming the trio are primary follicles. *Each trio is associated with accessory structure sebaceous gland, sweat gland and arrector muscle. *New follicles called secondary follicles appear in association with primary follicles. Follicular Arrangement on the Skin * Primary follicles produce coarse fibres whereas Secondary follicles produce fine (merino type) fibres
*Secondary follicles are present on the upper side of the primary follicle and lack arrector muscles. * Sebaceous glands associated with secondary follicles are smaller than those associated with primary follicles. * The S:P ratio i.e. Secondary: Primary dictates types of fleece produced. Follicular Arrangement on the Skin
WOOL SHEARING Process of clipping wool from sheep Preparing Animal for Shearing Animal is washed 10-15 days before shearing Animal should be kept off-feed 10 hr. prior shearing starts. Clean each and every animal individually by picking soil and thorns from the fleece. Clip away the dung and urine stained wool. Move the cleaned animals to a clean pen, until their turn for shearing arrives Place the animal on a clean and smooth board platform and then shear the animal either along or around the sheep.
WOOL SHEARING Contd Opening of Fleece: Sheep is made to sit on its buttocks, between the legs of the shearer, both animal and shearer looking in the same direction. The shearer begins from the top of brisket region and moves downwards, cleaning the lower part of the sheep and making a line of division in the fleece. Methods of Shearing Along the Sheep & Around the Sheep
Spring/ Before Summer- March to April Autumn/ Before Winter- September to October 1. 2. (Animal is generally sheared on an annual basis) TIME OF SHEARING
Before Shearing During Shearing Shears should be very clean, sharp and well greased. Weather should be comfortable Use clean and swept surface Keep the skin stretched. Blades of the shearer should be kept flat on the skin surface. Each stroke should be even and regular. Use long strokes if possible. Do not clip the sheath, udder or teats Do the process in one go, avoid second cuts. Try removing fleece in one piece Before releasing the animal dress for accidental shear cuts. Provide good nourishment to counteract the ill effects of change post shearing Points of Consideration
WOOL PROCESSING Steps Involved Steps Involved Sorting Opening & Dusting Scouring 4. Burr Picking and Carbonization Oiling Carding Spinning Weaving Dyeing and Finishing 10. Testing 1. 2. 3. 5. 6. 7. 8. 9.
Sorting: Raw wool bought to the mill and is sorted as per requirement, a skilled process. Opening & Dusting: Clumps of wool fibre are opened up into individual staples by means of machine. These staples are then shaken off to remove the dust. This process helps in achieving the objective of proper penetration of scouring liquid Scouring: Wool is cleaned from dirt and grease. Wool is dipped and washed in a series of vats usually 3-6 in number. These vats contain hot water (45 C-120 C), soap and sodium carbonate. Burr picking and carbonization: Vegetable content (burr) is removed mechanically (picking) or chemically (carbonization). 1. 2. 3. 4. In carbonization cellulose is degraded by acids at high temperature, most commonly sulphuric acid is used WOOL PROCESSING
Oiling: Wool fibre is lubricated with oil emulsion to reduce breakage of fibre and maximise cohesion. Generally, mineral oils are emulsified with non-ioninc soaps @ 3-5% of wool wt. Carding: Wool fibres are blended into one another, vegetable matter is removed, fibres are straightened and laid in such manner that they lie parallel to each other, all pointing in the same direction. The wool fibre are bundled into strips known as Roving/Sliver . Spinning: The roving's are passed through small rollers, applying a twist that gives the resulting yarn strength and size. Weaving: One of the most crucial part. The whole process provides a basis for the final product. It intertwines the yarns into desired product 5. 6. 7. 8. It includes a number of steps namely; cone winding, warp preparation, warp sizing, pirn winding of welt yarns and tying in and drying in of the wrap WOOL PROCESSING contd
Dyeing : Dyeing refers to induction of permanent colour into the wool fibres. Dyes used for wools are classified as Acid Dyes; Metal Complex Dyes; Chrome Dyes; Vat Dyes; Reactive Dyes and Direct Dyes. Some commonly used dyes are Rhodamine b, Rhodamine C, Sandoz Yellow, Sand Blue etc. Finishing: This process improves the appearance of the garment, as that received from loom, thereby making it more acceptable to buyer. Steps involved in finishing are Milling; Carbonization; Raising and Shearing. Testing: Critical examination of the end product to obtain desirable quantitative and qualitative information. This process assesses the quality, value, defect and other characteristics of the end product. 9. 10. 11. WOOL PROCESSING contd
STEPS INVOLVED IN FINISHING Milling; Carbonization; Raising and Shearing. Milling: Shrinkage of the fabric to the required degree in order to thicken it and give it a desired appearance. Carbonization: Chemically burr is removed by treating the finished product with dilute acid at high temperature. Thereafter wrinkles are removed by bearming. Raising: This process involves lifting out of wool from the body of the fabric. The action is simply to entangle fibres with sharp points of wire roller and bring them to the surface of the fabric. Shearing: The fibres which have been raised out during brushing/raising, from the cloth surface are levelled out.
Organizations Having Standard Testing Procedures Indian Standard Association (ISI) American Society for Testing Materials (ASTM) International Woollen Textile Organization (IWTO) British Standards
Thank Thank You You
