DataVaut @Discovery
DataVaut @Discovery
Managing Data Storage for Research Projects
Derek Cooper Ph.D., Morgridge Institute for Research
Em Craft, Wisconsin Institute for Discovery, UW-Madison
Development of the DataVault
●
The Discovery Building opened in 2010
●
Morgridge and WID Researchers needed disk space right away
●
Considered Gluster and Luster for a shared Distributed File System
○
Gluster had recently been purchased by Red Hat
○
Luster @ Ice Cube had recently crashed was rebuilt from scratch
●
We chose Gluster for ease of management, hopeful stability, and thought that it
was a good bet that Red Hat would do well by the open-source project
Discovery Data Management: 2010-2016
●
We surveyed the labs for Meta Data to help manage the data
○
That failed miserably as none of the PI’s would fill out the paperwork
●
Data was grouped by Department
○
Department-level quotas within Organization-level quotas
○
Became scattered without knowing who owned it
○
One person (or CHTC job) in one lab could fill the volume for the entire department
○
Cleanup and archive was impossible as no one knew what or when to archive
●
Project files ended up in multiple locations
○
There was no tracking of software or raw files used for reproducibility
○
Research Data was sometimes stored in Home Directories and students graduate
○
No one person was authorized or responsible for clean-ups
Galaxy – A potential solution
●
Galaxy is an open-source software that could have helped with managing
projects and tacking meta data for reproducibility
○
Great concept – tracked files, meta data, and software versions used
○
Unfortunately, the security and manageability was not enterprise ready
○
CHTC jobs would want to run as root
○
We couldn’t lock down users' data from other users' jobs
WID DataVault: 2017
●
The DiscoverIT team and Em Craft put their heads together to solve the
numerous issues in managing the data lifecycle @ Discovery
○
WID broke off from the old cluster and bought new Dell 720XD storage servers with expansion
chassis
■
An additional server was also added for home directories (not available on the 1
st
system)
○
A redmine ticketing system was developed to hold all the Metadata to enable tracking the
lifecycle research data
○
Including authorized users in the project allowed for the use of scripts to automatically
provision the folders and ACL’s for the projects on the production servers and also space for the
backup servers as well

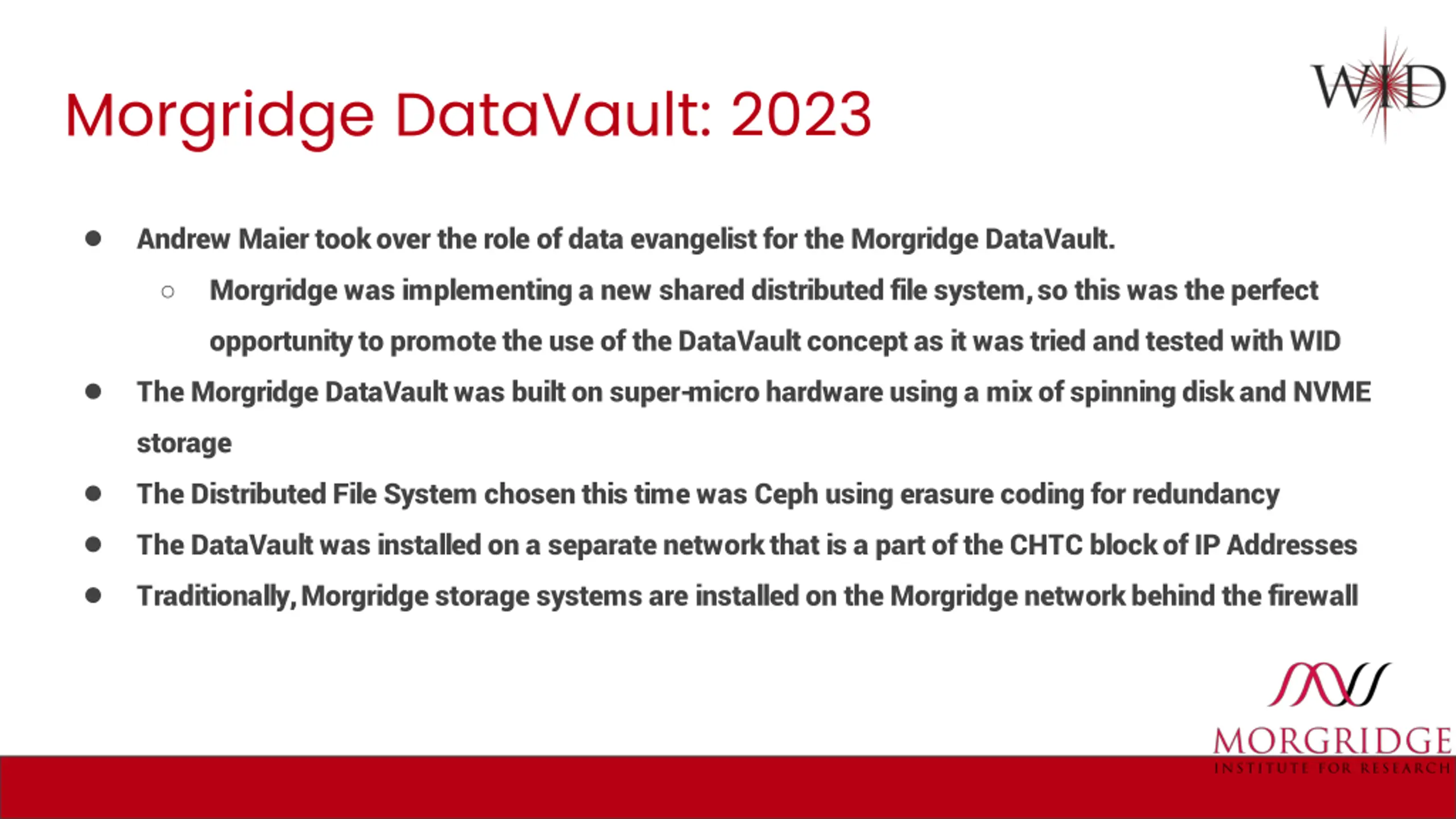

Morgridge DataVault: 2023
●
Andrew Maier took over the role of data evangelist for the Morgridge DataVault.
○
Morgridge was implementing a new shared distributed file system, so this was the perfect
opportunity to promote the use of the DataVault concept as it was tried and tested with WID
●
The Morgridge DataVault was built on super-micro hardware using a mix of spinning disk and NVME
storage
●
The Distributed File System chosen this time was Ceph using erasure coding for redundancy
●
The DataVault was installed on a separate network that is a part of the CHTC block of IP Addresses
●
Traditionally, Morgridge storage systems are installed on the Morgridge network behind the firewall

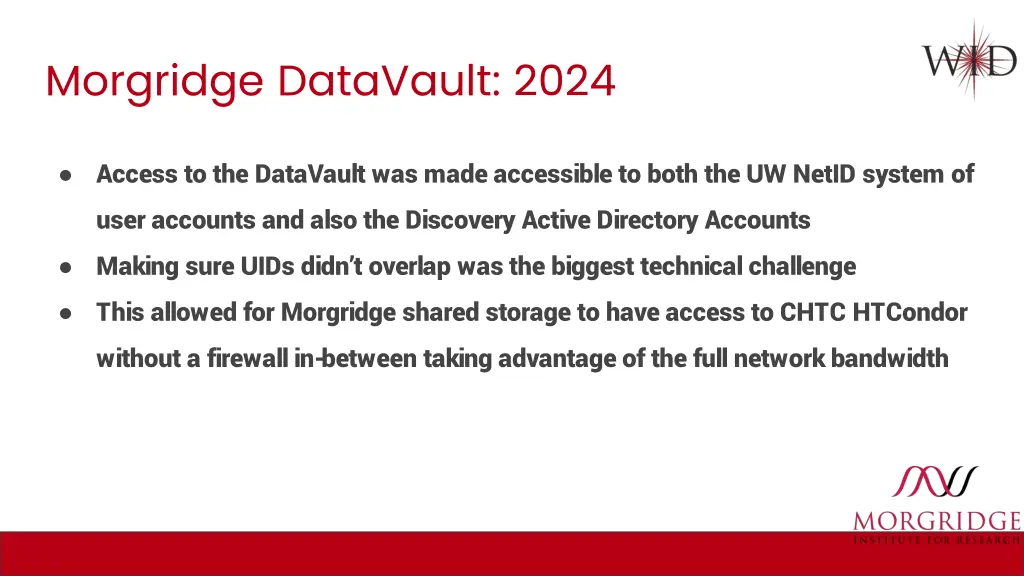

Morgridge DataVault: 2024
●
Access to the DataVault was made accessible to both the UW NetID system of
user accounts and also the Discovery Active Directory Accounts
●
Making sure UIDs didn’t overlap was the biggest technical challenge
●
This allowed for Morgridge shared storage to have access to CHTC HTCondor
without a firewall in-between taking advantage of the full network bandwidth
DataVault Projects
Definitions
●
PI
: Principal Investigator
●
Project Data
: data files, software,
documents
●
Project Metadata
: who, what, when,
where, why
●
Project Completion
: UW finished
Closeout, PI/lab no longer need the
data 🤞
Lifecycle
1)
Initialize
2)
Use and Update
3)
Archive and Remove

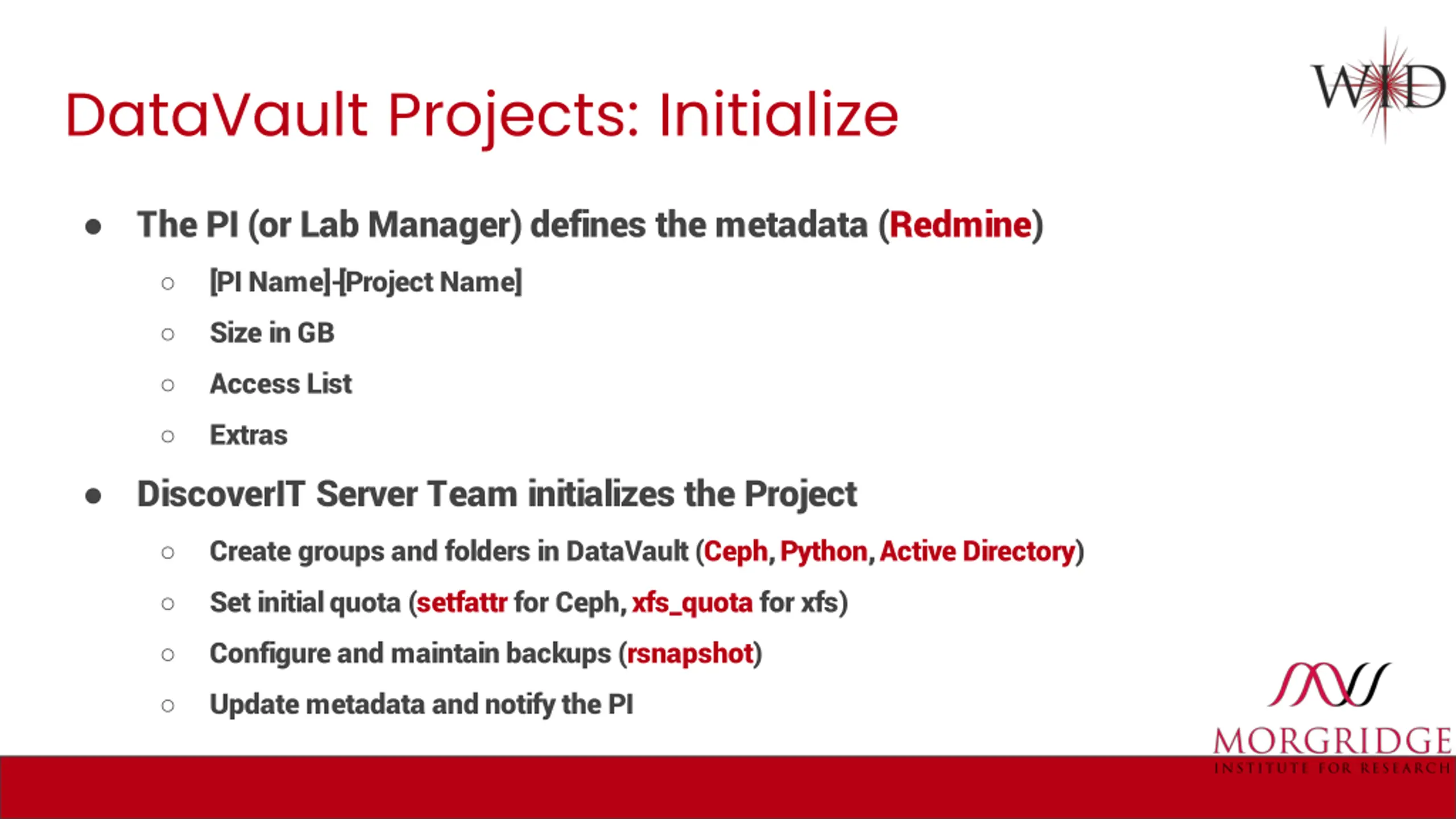

DataVault Projects: Initialize
●
The PI (or Lab Manager) defines the metadata (
Redmine
)
○
[PI Name]-[Project Name]
○
Size in GB
○
Access List
○
Extras
●
DiscoverIT Server Team initializes the Project
○
Create groups and folders in DataVault (
Ceph
,
Python
,
Active Directory
)
○
Set initial quota (
setfattr
for Ceph,
xfs_quota
for xfs)
○
Configure and maintain backups (
rsnapshot
)
○
Update metadata and notify the PI
DataVault Projects: Use and Update
●
Project Members create and access data
○
Supported compute servers: domain-level connection (
NFS
,
kernel driver
)
○
Instruments, equipment, and other computers: user-level connection (
SMB
)
○
Globus endpoints available
●
DiscoverIT Server Team and PIs maintain the project
○
Access managed through on/off-boarding or one-off (
Redmine
,
ManageEngine
,
Freshworks
)
○
Access and usage audited each semester (
Access
,
PowerShell
, and a LOT of
)
○
Review usage graphs and reports (
Grafana
and
Diskover Data
)
○
Size and inode notifications (
Icinga
)
○
Fix Unix file permissions as needed (
chmod
)
DataVault Projects: Archive and Remove
●
After Project Completion, DiscoverIT moves the data to
DoIT’s Storage and updates the metadata. (
Globus
,
s3
)
●
DiscoverIT updates the metadata and can delete the data.
Flexible Implementation
DataVault Project Types
●
Standard
○
PI-ProjectName
○
PI-RawData
○
WID-Software
●
Shared
Other Data Storage
●
Home Directory
●
Local Storage
●
Removable Storage
●
CHTC Storage
●
Research Drive
●
Campus-Licensed Cloud
Storage
Project
Shared
Student B
Student A
PI
B
A
The journey of managing research data storage at Morgridge Institute for Research and Wisconsin Institute for Discovery, including challenges faced, solutions considered, and steps taken to improve data management practices. From initial storage decisions to the development of the DataVault and improvements in data lifecycle management, this narrative sheds light on the evolution of data storage strategies in a research setting.
