Dahua Technology ASI1212F Fingerprint Access Control Terminal Overview
The latest ASI1212F Fingerprint Access Control Terminal from Dahua Technology is a versatile device combining access control and time attendance functions. With a capacity to store up to 3,000 fingerprints, it supports Wi-Fi connection and OSDP. Users can manage the terminal through a touchscreen display, mobile phone, or PC web interface. The device offers features like a 2.8-inch LCD touch screen, fingerprint sensor, card area, bell button, and supports various connection protocols. Ideal for indoor scenarios like offices, schools, and factories. Elegant design, cost-effective, and convenient operation make it a great choice for distributors.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
E N D
Presentation Transcript

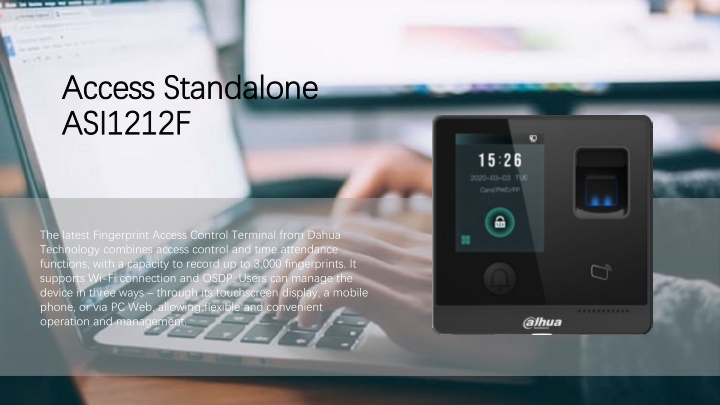

Access Standalone Access Standalone ASI1212F ASI1212F The latest Fingerprint Access Control Terminal from Dahua Technology combines access control and time attendance functions, with a capacity to record up to 3,000 fingerprints. It supports Wi-Fi connection and OSDP. Users can manage the device in three ways through its touchscreen display, a mobile phone, or via PC Web, allowing flexible and convenient operation and management.
Overview 2.8 inch LCD touch screen Fingerprint sensor Card area Bell button
Features - AC DSS Express DMSS Mobile phone web TCP, P2P,WiFi Surface mount OSDP Wiegand Electric lock, Door sensor, Alarm, Exit button, Door Bell
Features TA and general Period setting and holiday setting 30,000 Users Change period setting and holiday setting by web interface 30,000 Passwords NTP timing and DST Configure NTP timing and DST by web interface. 30,000 Cards 13.56MHZ Mifare Card 1 cm 3 cm (0.03 ft 0.10 ft) Screen saver The screen saver will be displayed if there is no operation in 30 seconds. You can import up to 5 pictures. 3,000 Fingerprints Deep Learning algorithm Recognition Time 1.5S TCP port 150,000 Records Modify the TCP port on the communication management menu. The TCP port is 37777 by default.
Highlights Elegant design Black color, small and lightweight More features Both time attendance and access control supported Cost effective Low-end product line Convenient Able to configure through device menu, mobile phone and pc. Multiple connection protocols supported TCP/IP, WiFi, P2P, OSDP, Wiegand, USB 2.0
Market positioning Applicable for many kinds of indoor scenarios, such as office, school, factory. S c h o o l O f f i c e F a c t o r y Target channel: Distributors.
Material codes DAHUA IC 1.0.01.25.10929 DHI-ASI1212F DAHUA ID 1.0.01.25.10931 DHI-ASI1212F-D IC 1.0.01.25.10930 ASI1212F ID 1.0.01.25.10932 ASI1212F-D
