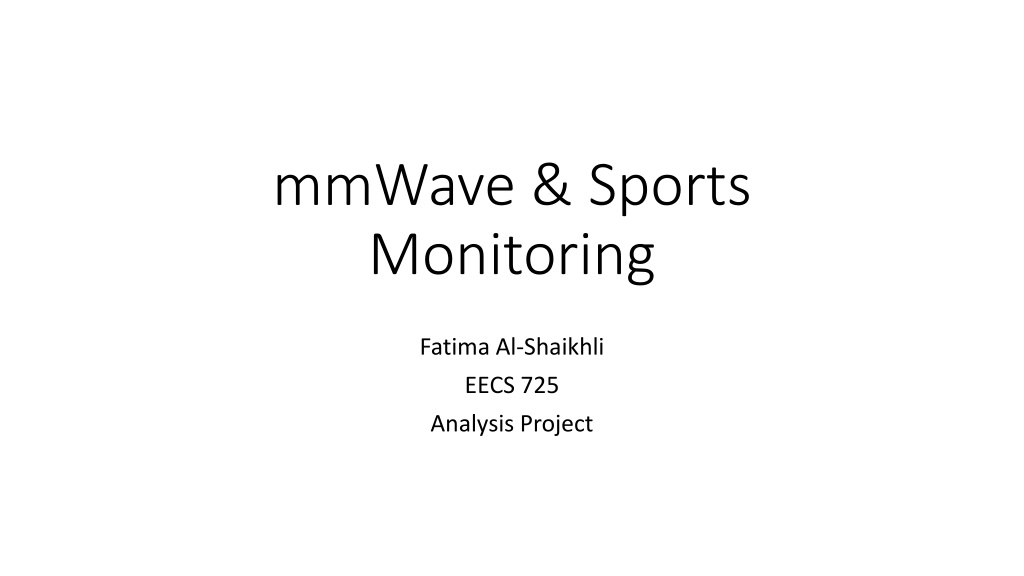

1. mmWave & Sports Monitoring Fatima Al-Shaikhli EECS 725 Analysis Project

2. TIs mmWave Radar Sensor Fully Integrated Chips Enabling Long range and High Resolution Short Wavelength EM Waves 60-77 GHz Advantages: Small Overall System Small Antenna High Accuracy Detect very small movements

3. TIs mmWave Radar Sensor Solve vision-sensing challenges Industrial Transport Intelligent Street Lighting Traffic Monitoring Home Security Systems Driver Assistance Monitoring Factory Automation Systems

4. Operating Principle Frequency-Modulated Continuous Wave (FMCW) Determines the Range, Velocity and Angle

5. Better than SiGe-based Solutions Integrates DSP, Microcontroller , TX-RF & RX-RF mmWave Sensors enable flexibility and programmability in the RF front-end and the DSP processing back-end SiGe-based solution store a limited number of chirps and requires real-time intervention to update chirps TI s mmWave sensor solutions can store 512 chirps with four profiles before a frame starts easily configured with multiple configurations to maximize the amount of useful data extracted from a scene

6. Sports Hawk-Eye Video Assistant Referee (VAR) Monitors movement of the human skeleton World Cup 2022 TrackMan Golf Baseball Football Tennis C. Hahn, Tracking Club and ball, TrackMan Golf, https://blog.trackmangolf.com/tracking-club-ball/ (accessed Nov. 13, 2023).

7. TrackMan Doppler Radar Technology Speed Direction of speed of the club head at impact Spin rate C. Hahn, Tracking Club and ball, TrackMan Golf, https://blog.trackmangolf.com/tracking-club-ball/ (accessed Nov. 13, 2023).

8. C. Hahn, Tracking Club and ball, TrackMan Golf, https://blog.trackmangolf.com/tracking-club-ball/ (accessed Nov. 13, 2023).

9. Measuring Angles and Distances C. Hahn, Tracking Club and ball, TrackMan Golf, https://blog.trackmangolf.com/tracking-club-ball/ (accessed Nov. 13, 2023).

10. References [1] C. Hahn, Tracking Club and ball, TrackMan Golf, https://blog.trackmangolf.com/tracking-club-ball/ (accessed Nov. 13, 2023). [2] C. Iovescu and S. Rao, The fundamentals of millimeter wave radar sensors, Texas Instrument

11. Features FMCW transceiver Integrated PLL, transmitter, receiver, baseband, and ADC 76- to 81-GHz coverage with 5 GHz available bandwidth Four receive channels Three transmit channels Ultra-accurate chirp engine based on Fractional-N PLL TX power: 13 dBm RX noise figure: 12 dB Phase noise at 1 MHz: 96 dBc/Hz (76 to 77 GHz) 94 dBc/Hz (77 to 81 GHz) Built-in calibration and self-test Built-in firmware (ROM) Self-calibrating system across process and temperature
