Lab 7: Crystal Radio Spreadsheet Upload Only Today

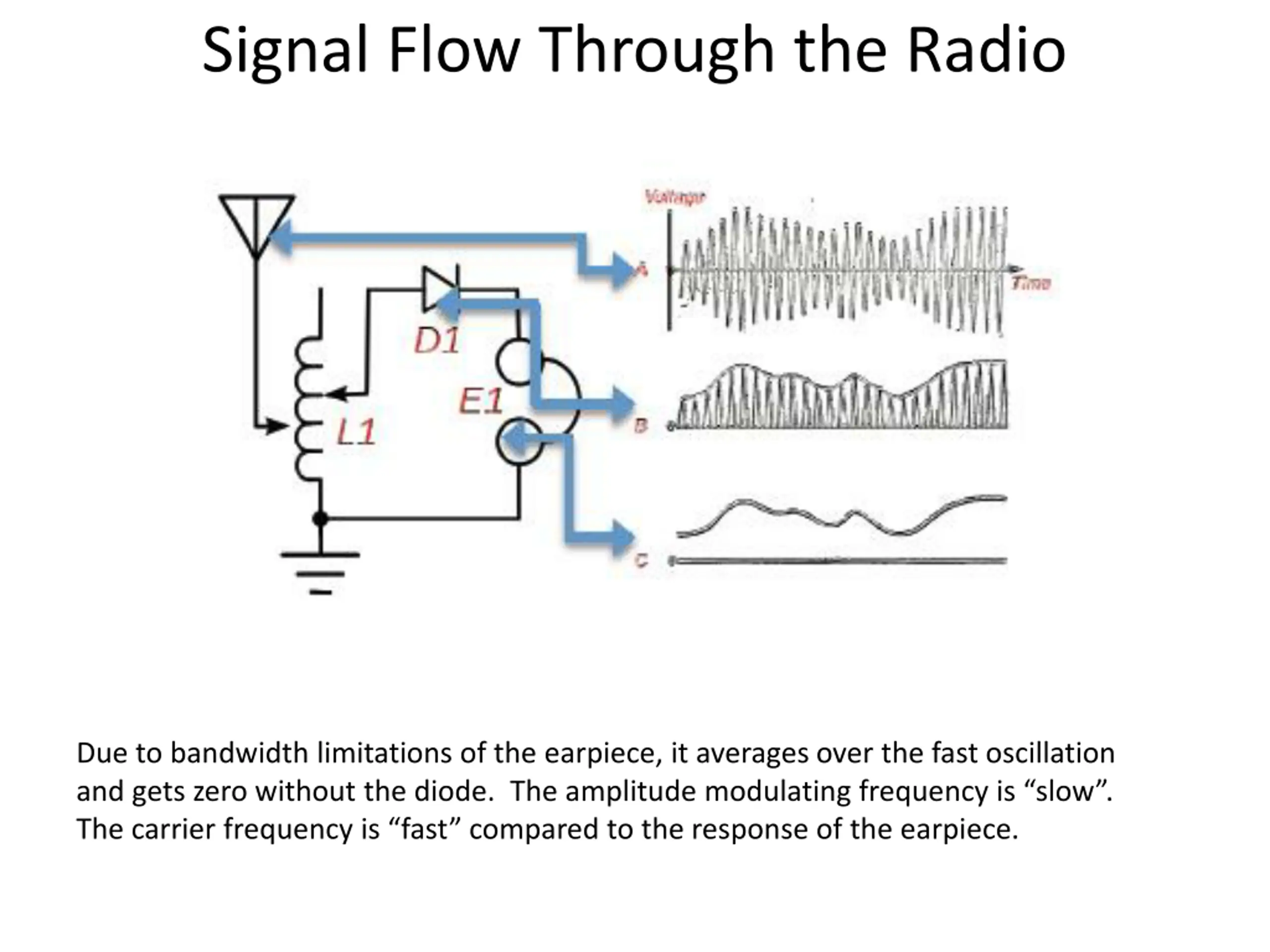

Signal Flow Through the Radio Due to bandwidth limitations of the earpiece, it averages over the fast oscillation and gets zero without the diode. The amplitude modulating frequency is slow . The carrier frequency is fast compared to the response of the earpiece.

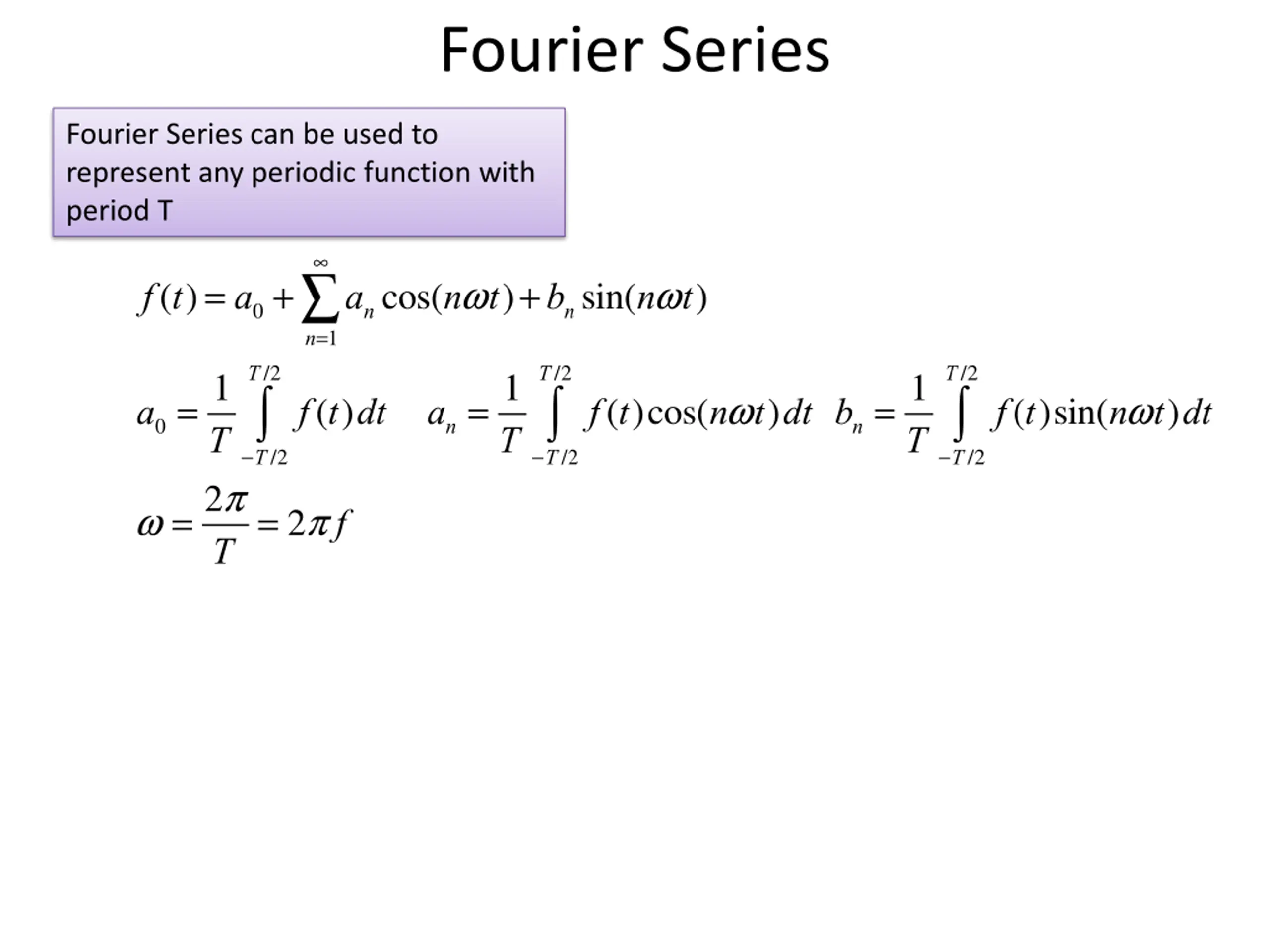

Fourier Series Fourier Series can be used to represent any periodic function with period T f(t)= a0+ cos(nwt)+bnsin(nwt) an n=1 T/2 T/2 T/2 a0=1 an=1 bn=1 f(t)cos(nwt)dt f(t)sin(nwt)dt f(t)dt T T T -T/2 -T/2 -T/2 w =2p = 2p f T

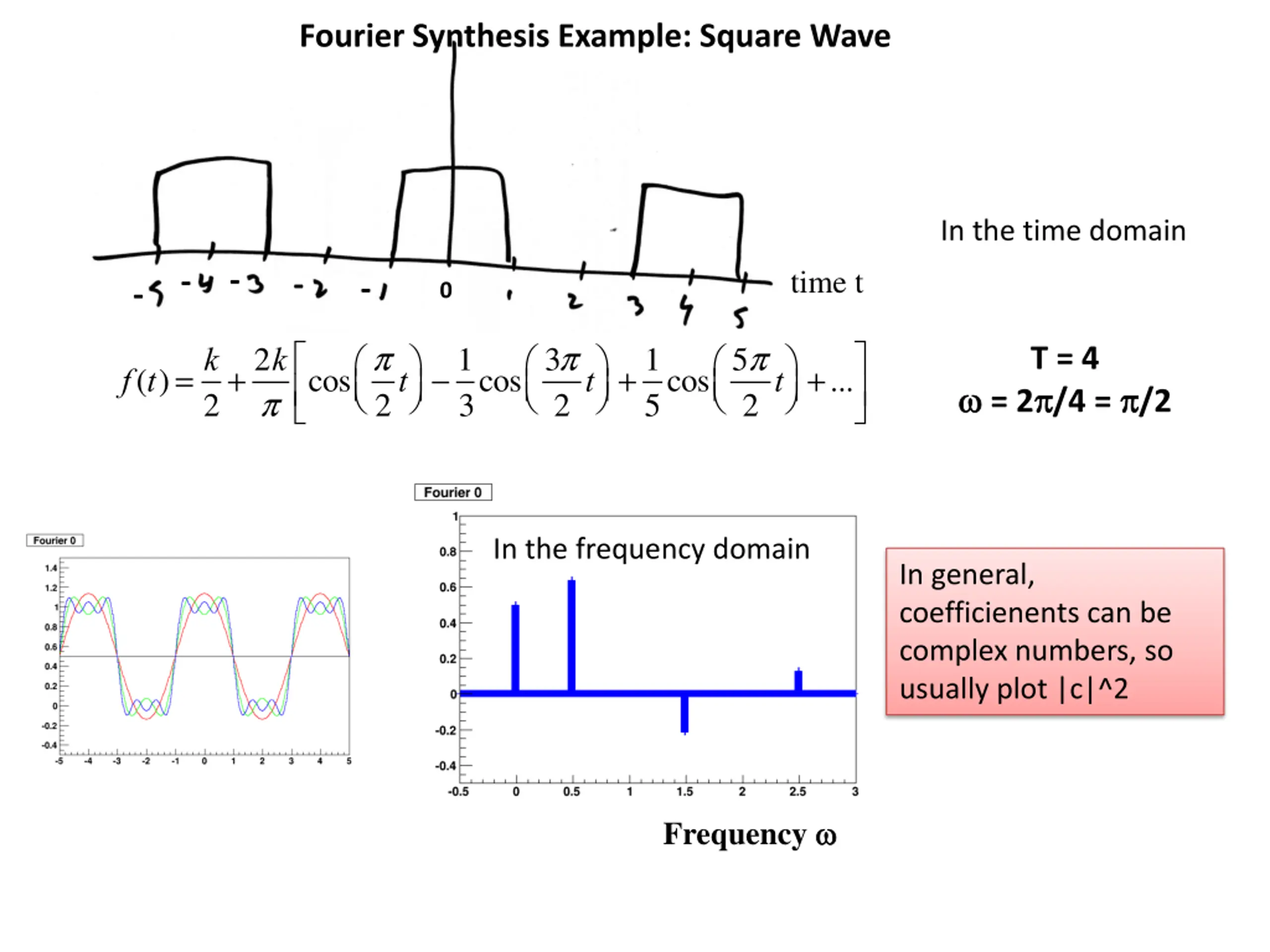

Fourier Synthesis Example: Square Wave In the time domain time t - - - - - 0 p 2t 3p 2t 5p 2t 2+2k -1 +1 +... f(t)=k T = 4 cos 3cos 5cos = 2 /4 = /2 p In the frequency domain In general, coefficienents can be complex numbers, so usually plot |c|^2 Frequency

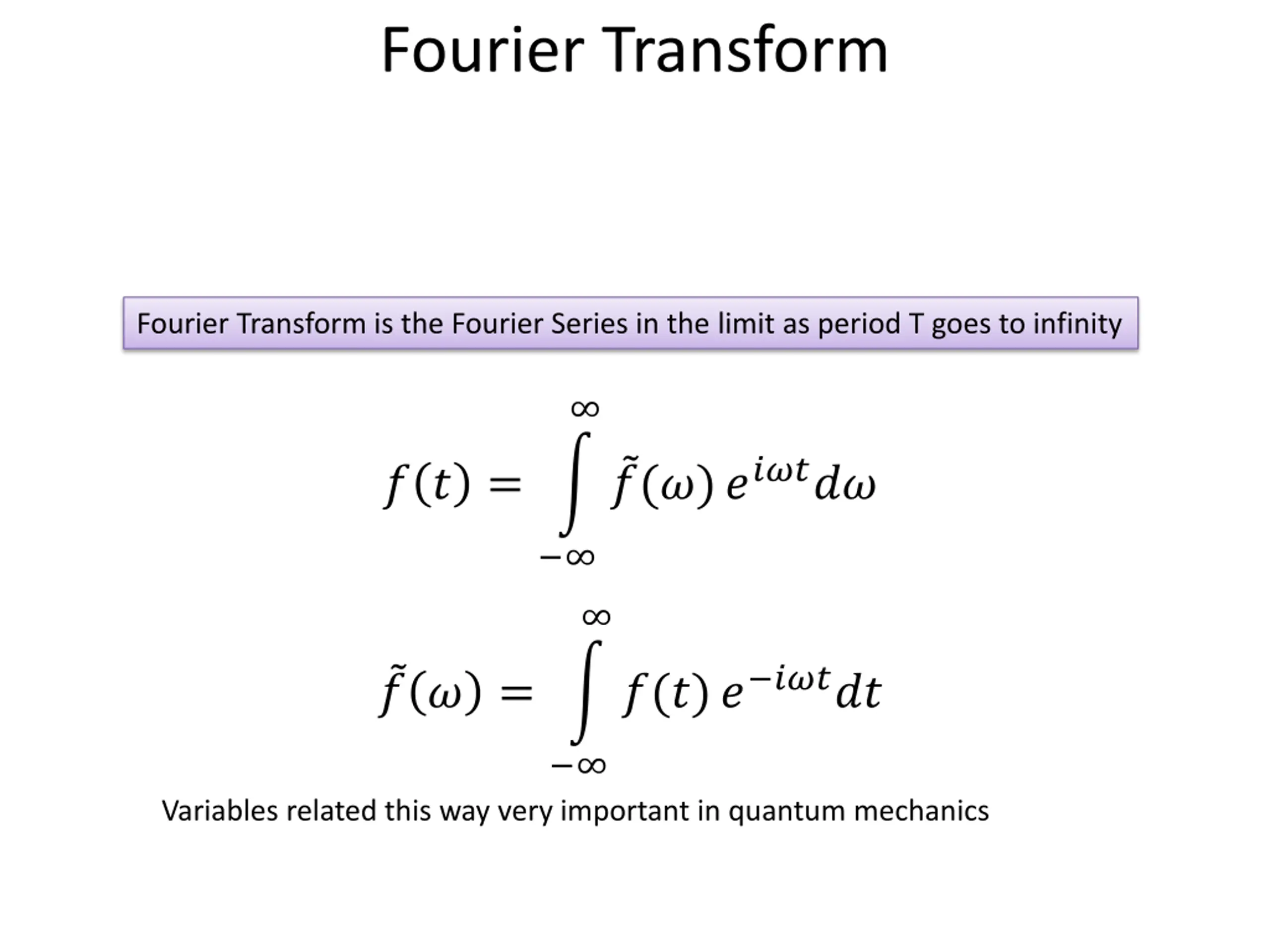

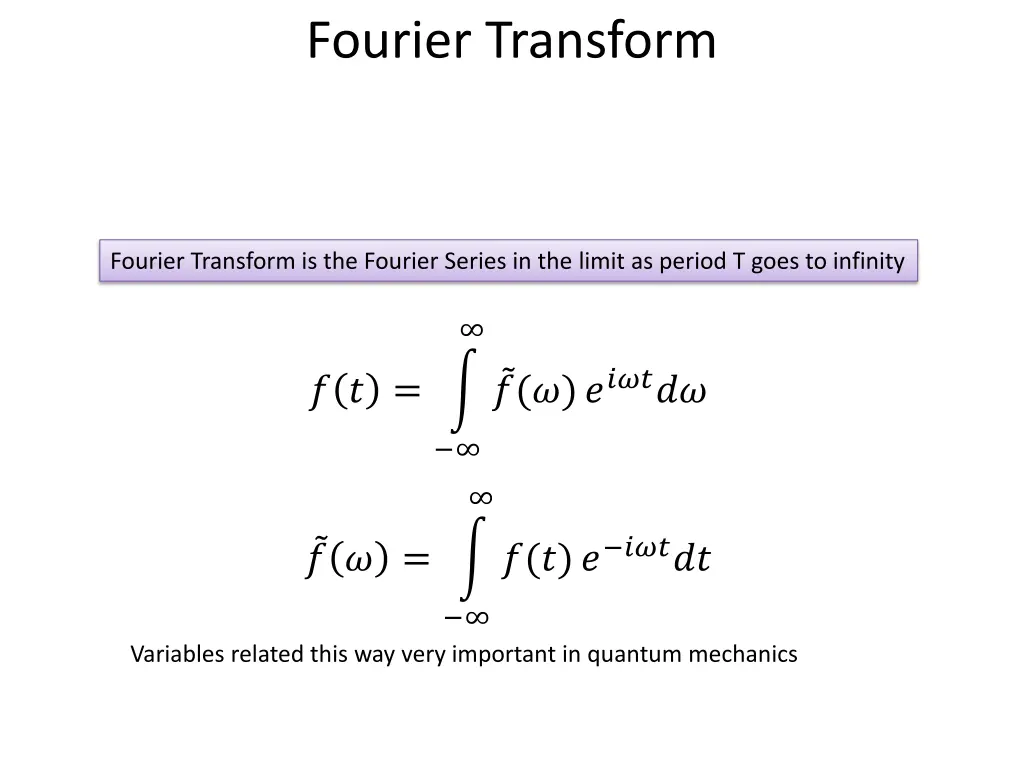

Fourier Transform Fourier Transform is the Fourier Series in the limit as period T goes to infinity ?(?)?????? ? ? = ? ? = ?(?)? ????? Variables related this way very important in quantum mechanics

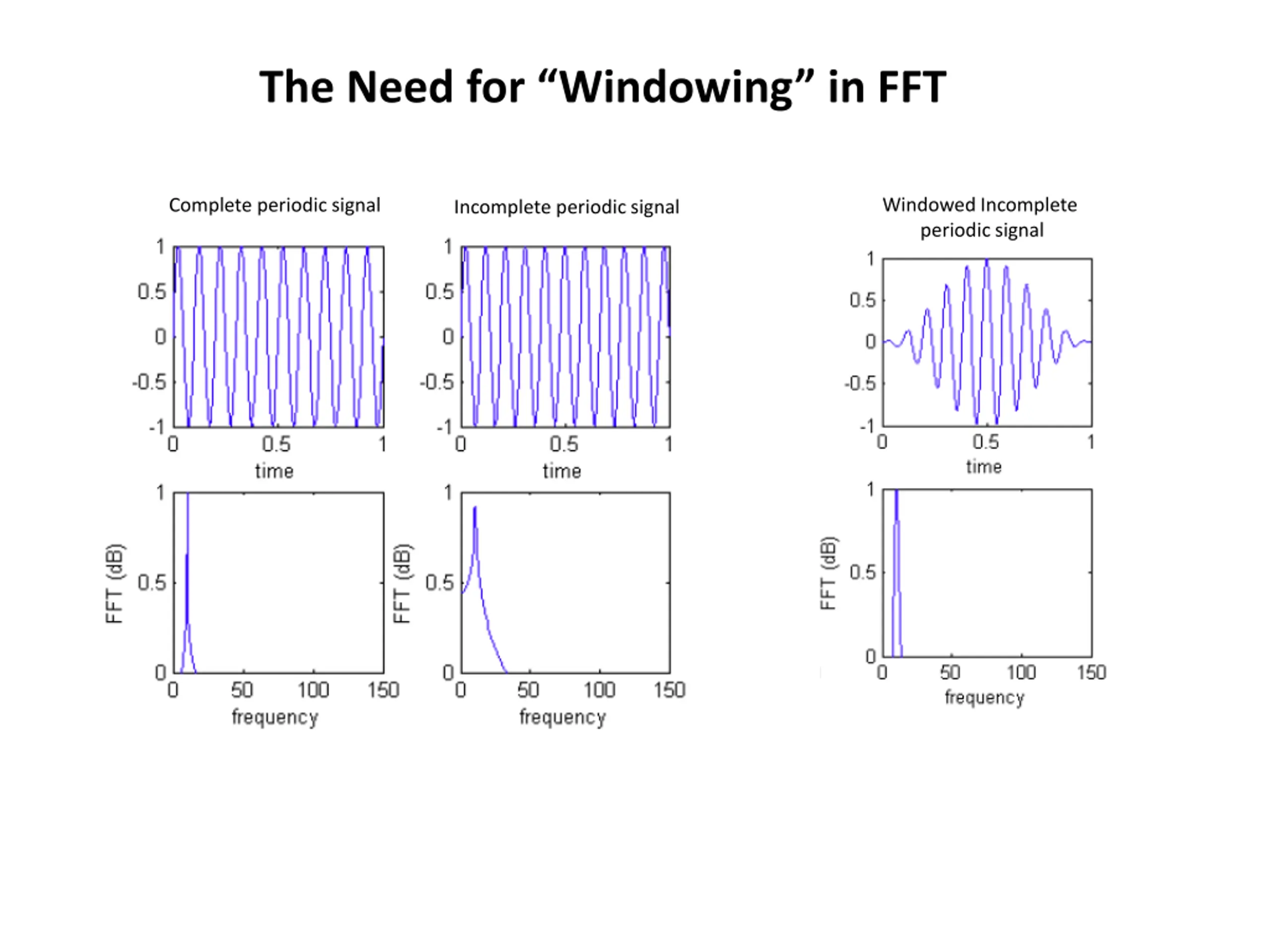

The Need for Windowing in FFT Windowed Incomplete periodic signal Complete periodic signal Incomplete periodic signal

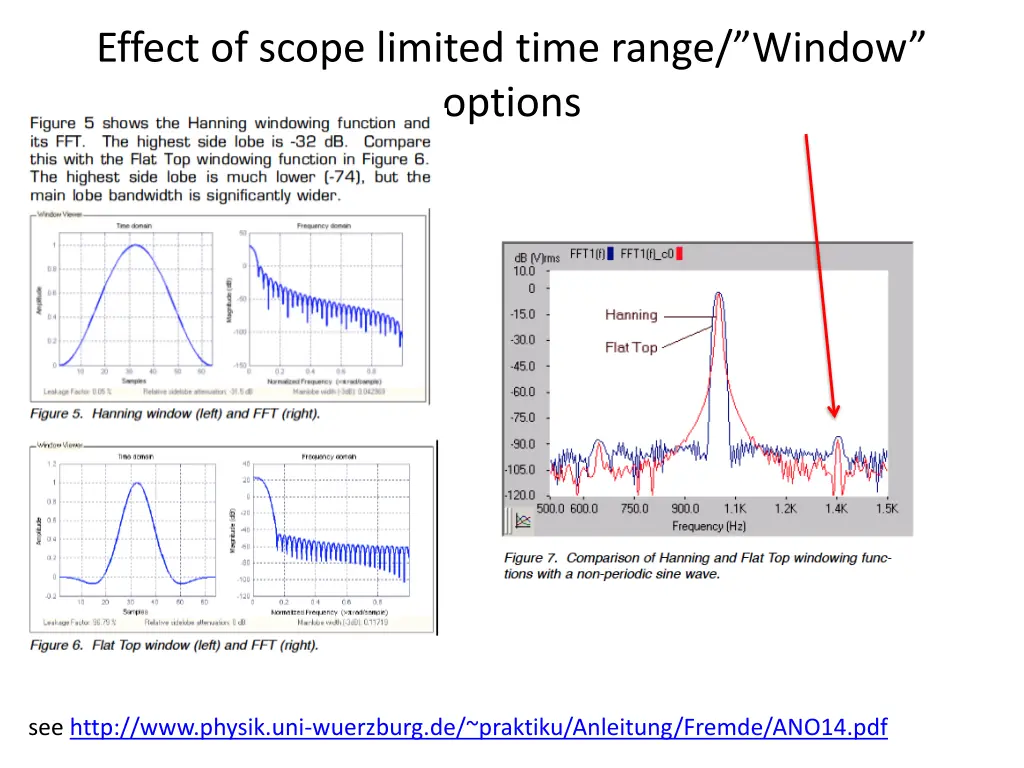

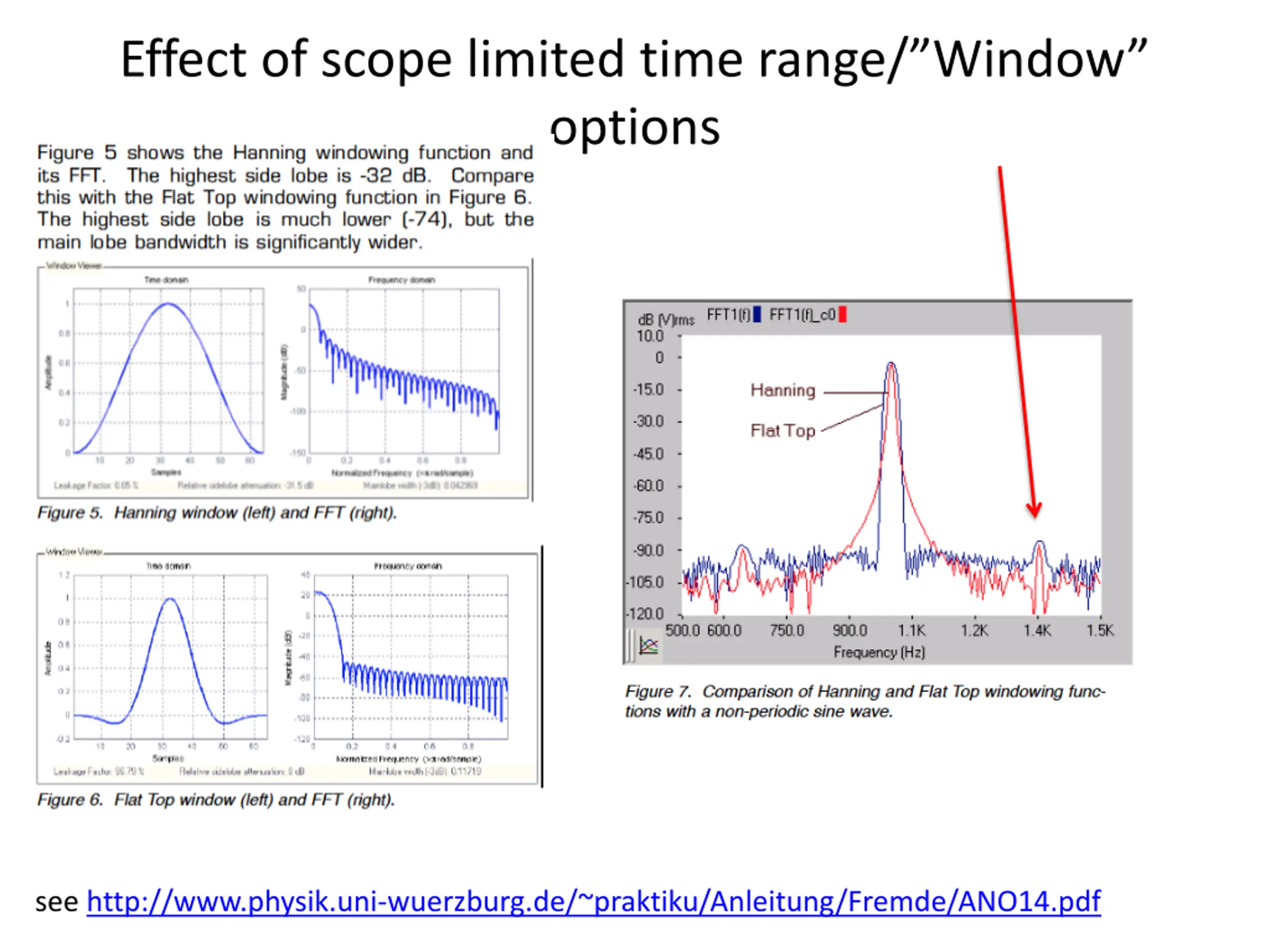

Effect of scope limited time range/Window options see http://www.physik.uni-wuerzburg.de/~praktiku/Anleitung/Fremde/ANO14.pdf

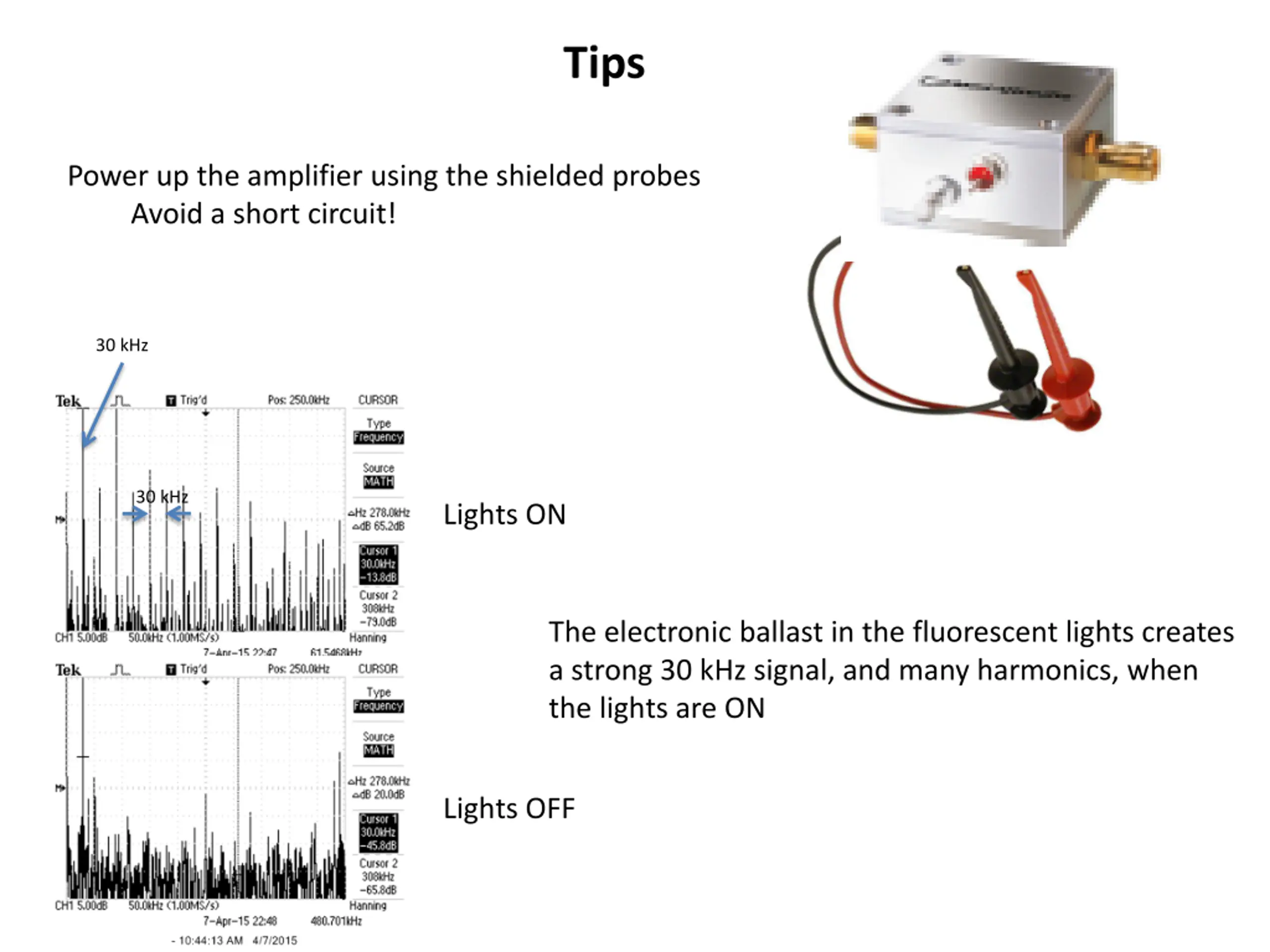

Tips Power up the amplifier using the shielded probes Avoid a short circuit! 30 kHz 30 kHz Lights ON The electronic ballast in the fluorescent lights creates a strong 30 kHz signal, and many harmonics, when the lights are ON Lights OFF
